Earth science 8 1 earthquakes

Earth Science 8.1 Earthquakes

Earthquakes


Earth science 8 1 earthquakes

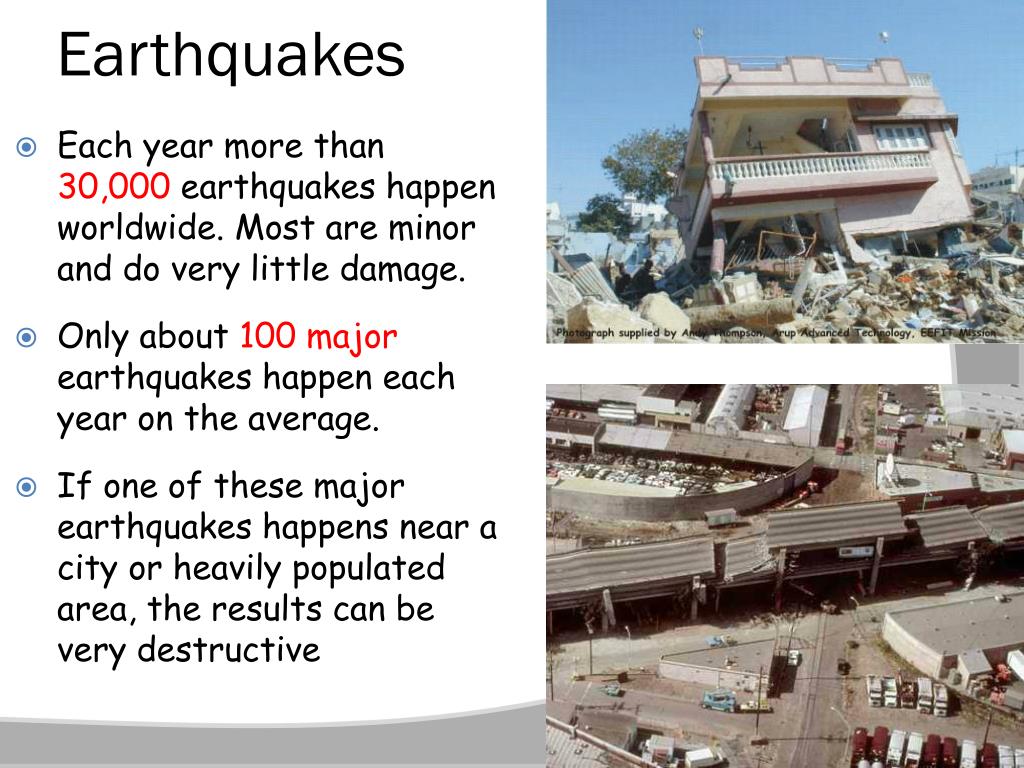

Earthquakes

  • Each year more than 30,000 earthquakes happen worldwide. Most are minor and do very little damage.

  • Only about 100 major earthquakes happen each year on the average.

  • If one of these major earthquakes happens near a city or heavily populated area, the results can be very destructive


Earth science 8 1 earthquakes

Earthquakes

  • An earthquakeis the vibration of Earth produced by the rapid release of energy within the lithosphere.

  • Earthquakes are produced by slippage along a break in the lithosphere called a fault.


Earth science 8 1 earthquakes

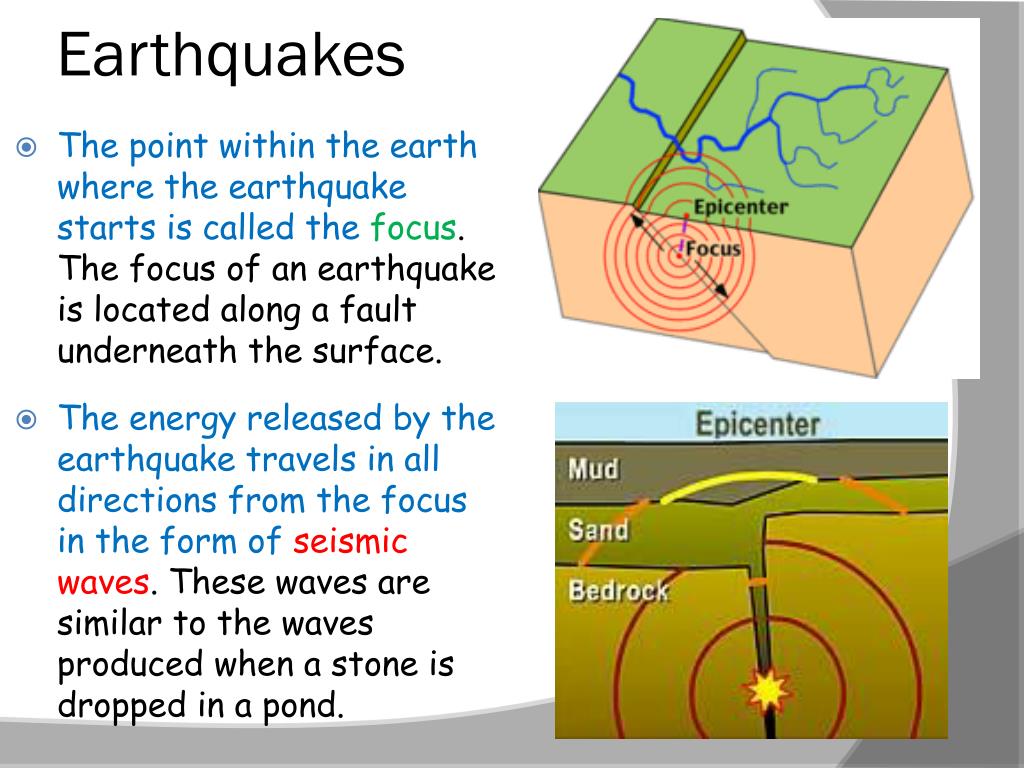

Earthquakes

  • The point within the earth where the earthquake starts is called the focus. The focus of an earthquake is located along a fault underneath the surface.

  • The energy released by the earthquake travels in all directions from the focus in the form of seismic waves. These waves are similar to the waves produced when a stone is dropped in a pond.


Earth science 8 1 earthquakes

Earthquakes

  • When you see a news report about an earthquake, the reporter always mentions the place on the Earth’s surface where the earthquake was centered.

  • This place is referred to as the epicenter.

  • The epicenter is the location on the surface directly above the focus.


Earth science 8 1 earthquakes

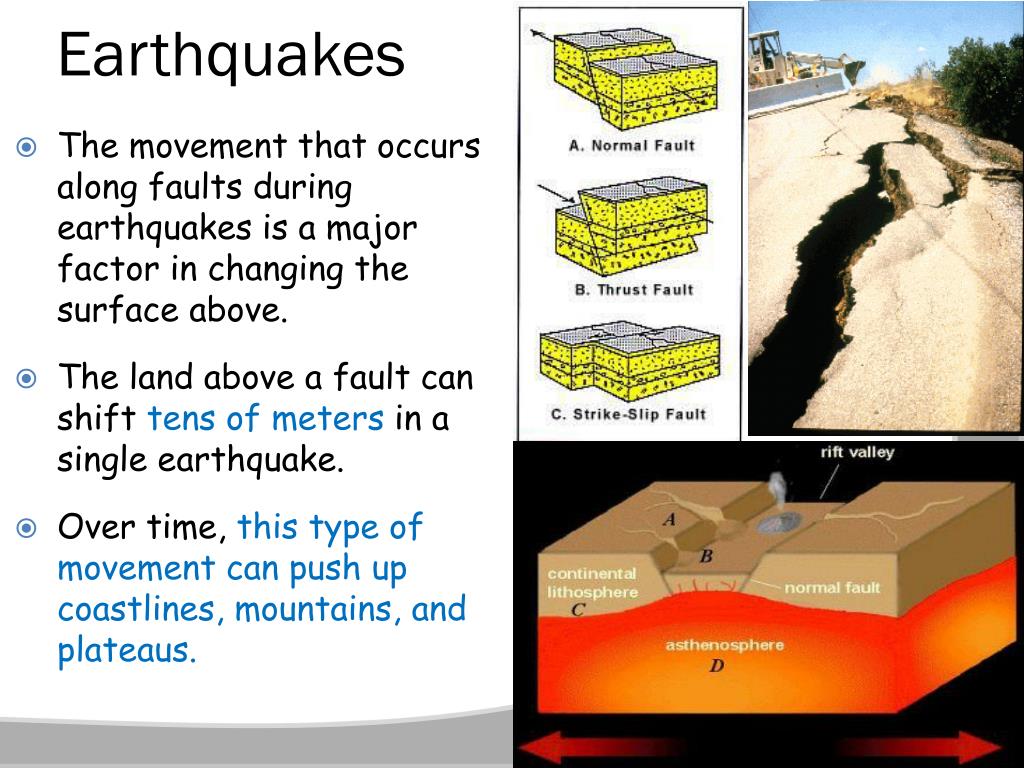

Earthquakes

  • The movement that occurs along faults during earthquakes is a major factor in changing the surface above.

  • The land above a fault can shift tens of meters in a single earthquake.

  • Over time, this type of movement can push up coastlines, mountains, and plateaus.


Earth science 8 1 earthquakes

Earthquakes

  • The crust can move vertically or horizontally as a result of fault movements.

  • If the crust moves vertically, scientists say it has been uplifted. Vertical movements create a sharp edge called a fault scarp.

  • If the crust moves horizontally we say it has been offset or displaced.


Earth science 8 1 earthquakes

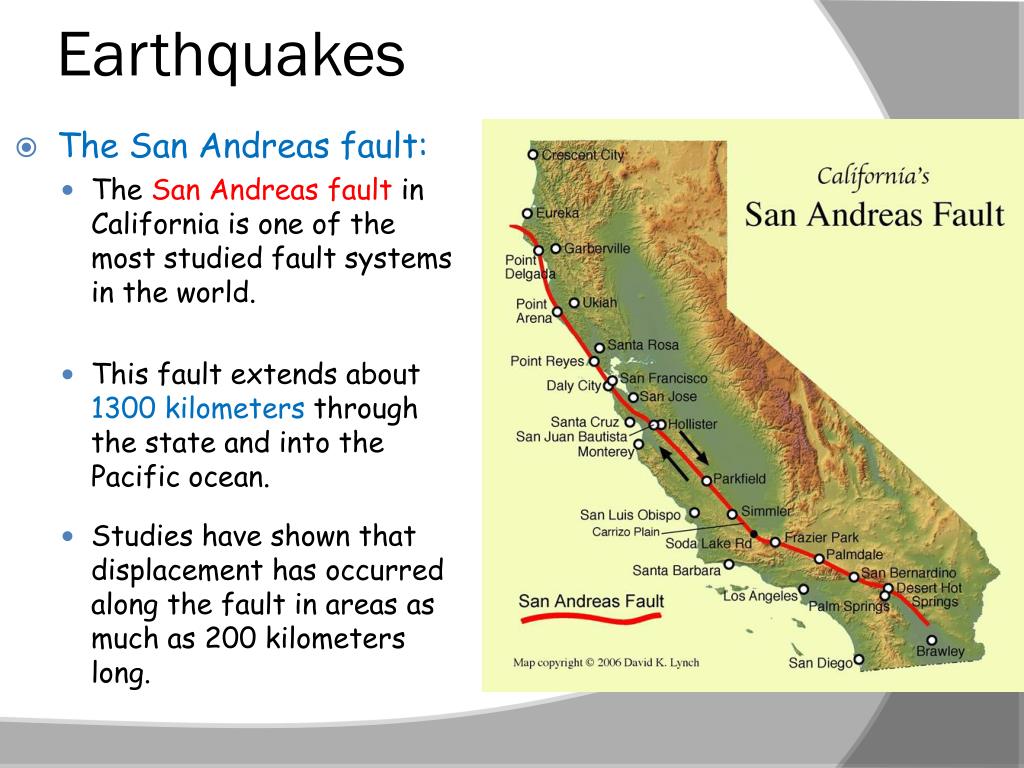

Earthquakes

  • The San Andreas fault:

    • The San Andreas fault in California is one of the most studied fault systems in the world.

    • This fault extends about 1300 kilometers through the state and into the Pacific ocean.

    • Studies have shown that displacement has occurred along the fault in areas as much as 200 kilometers long.


Earth science 8 1 earthquakes

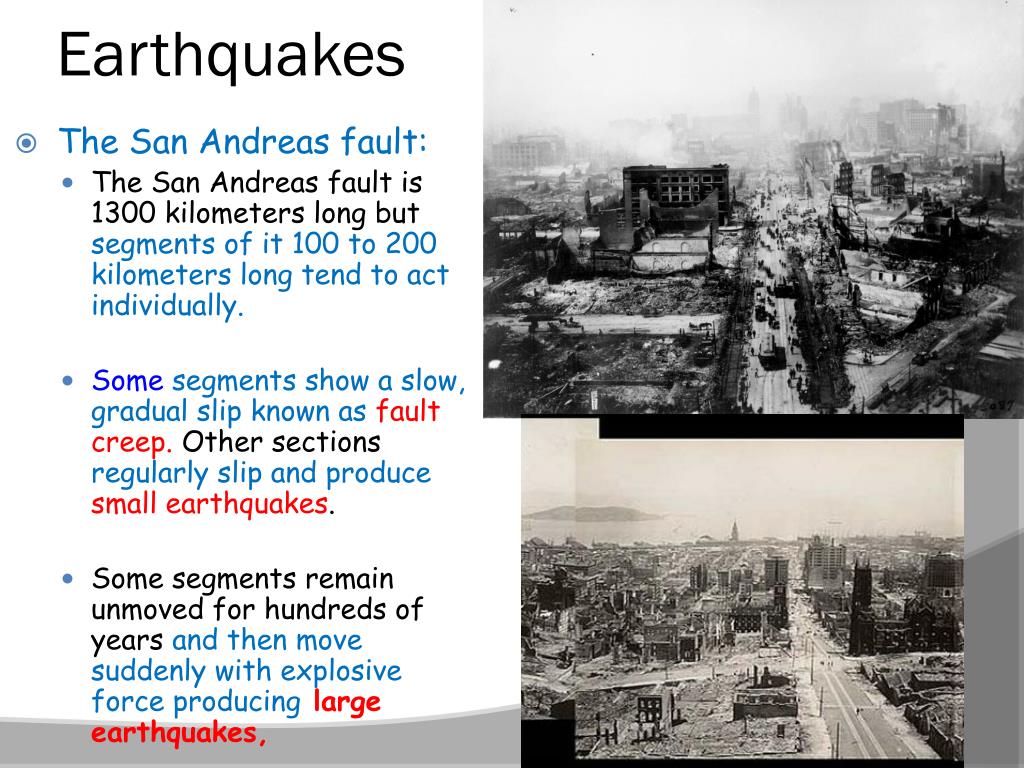

Earthquakes

  • The San Andreas fault:

    • The San Andreas fault is 1300 kilometers long but segments of it 100 to 200 kilometers long tend to act individually.

    • Some segments show a slow, gradual slip known as fault creep. Other sections regularly slip and produce small earthquakes.

    • Some segments remain unmoved for hundreds of years and then move suddenly with explosive force producing large earthquakes,


Earth science 8 1 earthquakes

Earthquakes

  • The San Andreas fault:

    • One great earthquake along the fault was the San Francisco Earthquake of 1906.

    • During this earthquake, the land on the western side of the fault moved 4.7 meters in relation to the land on the east.


Earth science 8 1 earthquakes

Earthquakes

  • Before the San Francisco Earthquake, scientists did not understand what caused them. Studies afterward led to the development of a hypothesisthat explained earthquakes.

  • According to the elastic rebound theory, most earthquakes are produced by the rapid release of energy stored in rock that has been subjected to great forces.

  • When the strength of the rock is exceeded, it suddenly breaks, releasing some of it’s energy as seismic waves.


Earth science 8 1 earthquakes

Earthquakes

  • Deformation of Rock:

    • Forces inside the earth slowly deform the rock that makes up the Earth’s crust, causing the rock to change it’s shape.

    • As the rocks bend, they store energy, just as a wooden ruler does when you bend it. Elastic energy is the same kind of energy that is stored when you stretch a rubber band.

    • As the rock is stretched farther, as each side of the fault moves in an opposite direction, the elastic energy builds as tension in the rock increases.


Earth science 8 1 earthquakes

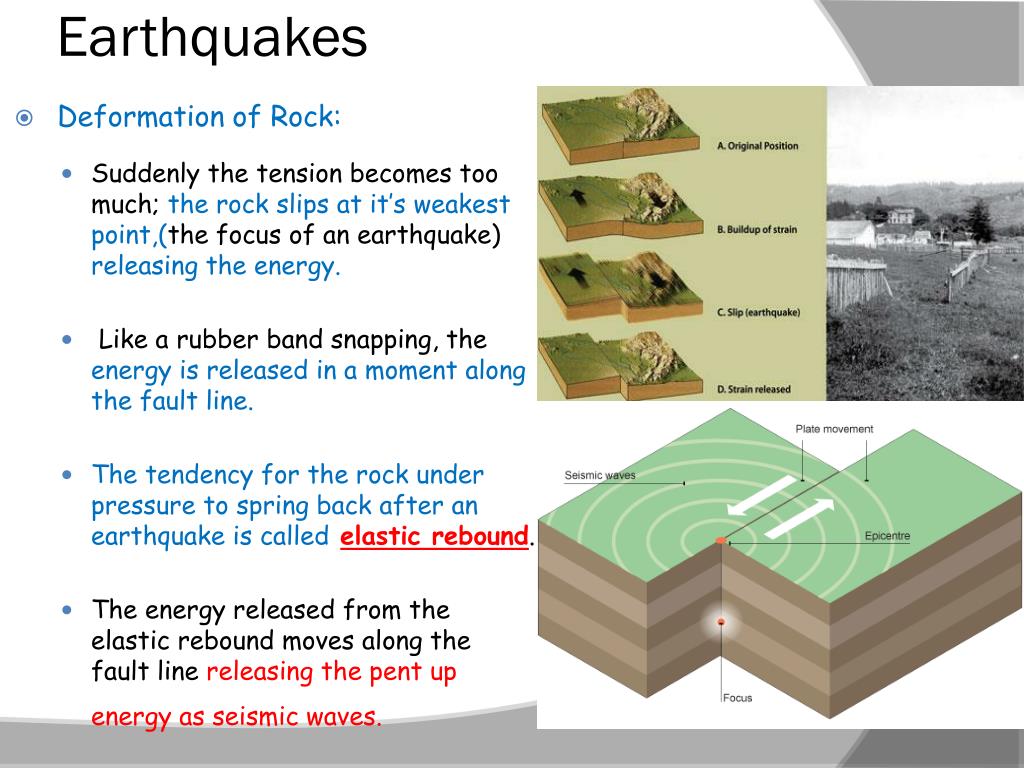

Earthquakes

  • Deformation of Rock:

    • Suddenly the tension becomes too much; the rock slips at it’s weakest point,(the focus of an earthquake) releasing the energy.

    • Like a rubber band snapping, the energy is released in a moment along the fault line.

    • The tendency for the rock under pressure to spring back after an earthquake is calledelastic rebound.

    • The energy released from the elastic rebound moves along the fault line releasing the pent up energy as seismic waves.


Earth science 8 1 earthquakes

Earthquakes

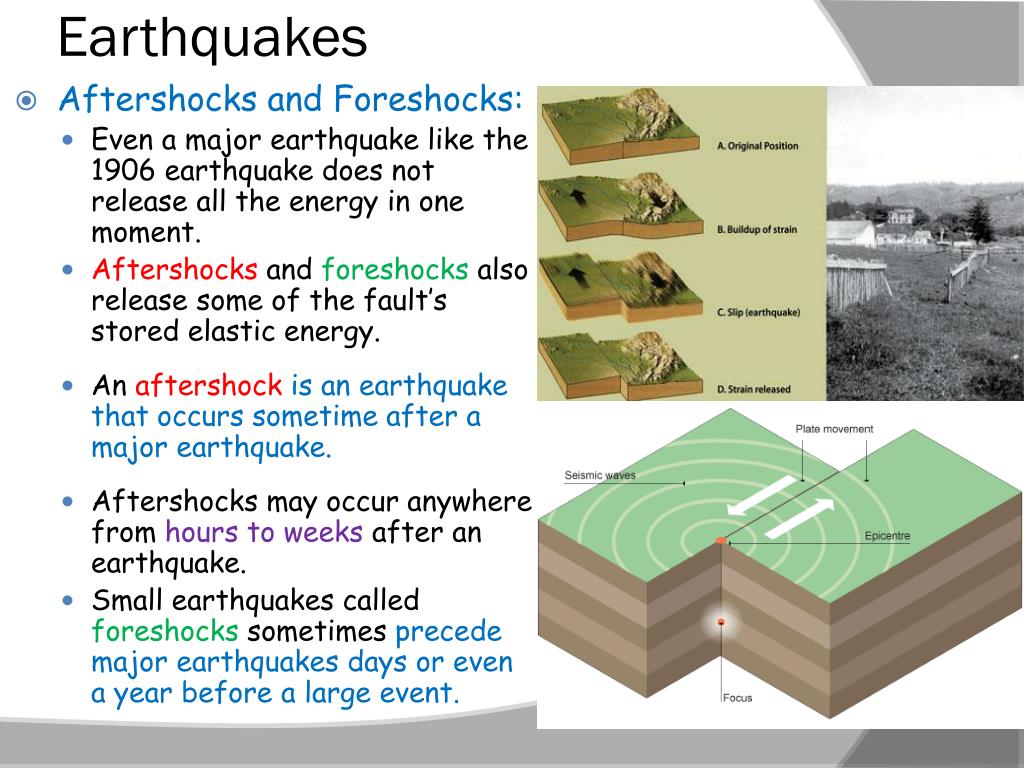

  • Aftershocks and Foreshocks:

    • Even a major earthquake like the 1906 earthquake does not release all the energy in one moment.

    • Aftershocks and foreshocks also release some of the fault’s stored elastic energy.

    • An aftershockis an earthquake that occurs sometime after a major earthquake.

    • Aftershocks may occur anywhere from hours to weeks after an earthquake.

    • Small earthquakes called foreshockssometimes precede major earthquakes days or even a year before a large event.


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

Measuring Earthquakes


Earth science 8 1 earthquakes

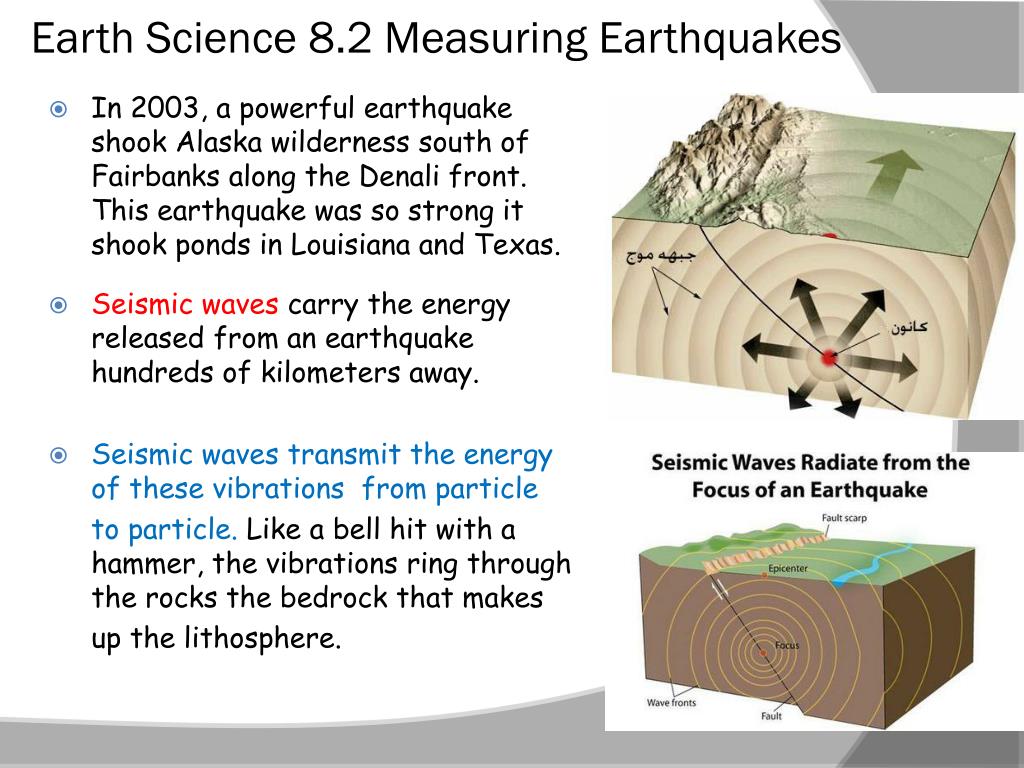

Earth Science 8.2 Measuring Earthquakes

  • In 2003, a powerful earthquake shook Alaska wilderness south of Fairbanks along the Denali front. This earthquake was so strong it shook ponds in Louisiana and Texas.

  • Seismic waves carry the energy released from an earthquake hundreds of kilometers away.

  • Seismic waves transmit the energy of these vibrations from particle

    to particle. Like a bell hit with a hammer, the vibrations ring through the rocks the bedrock that makes up the lithosphere.


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

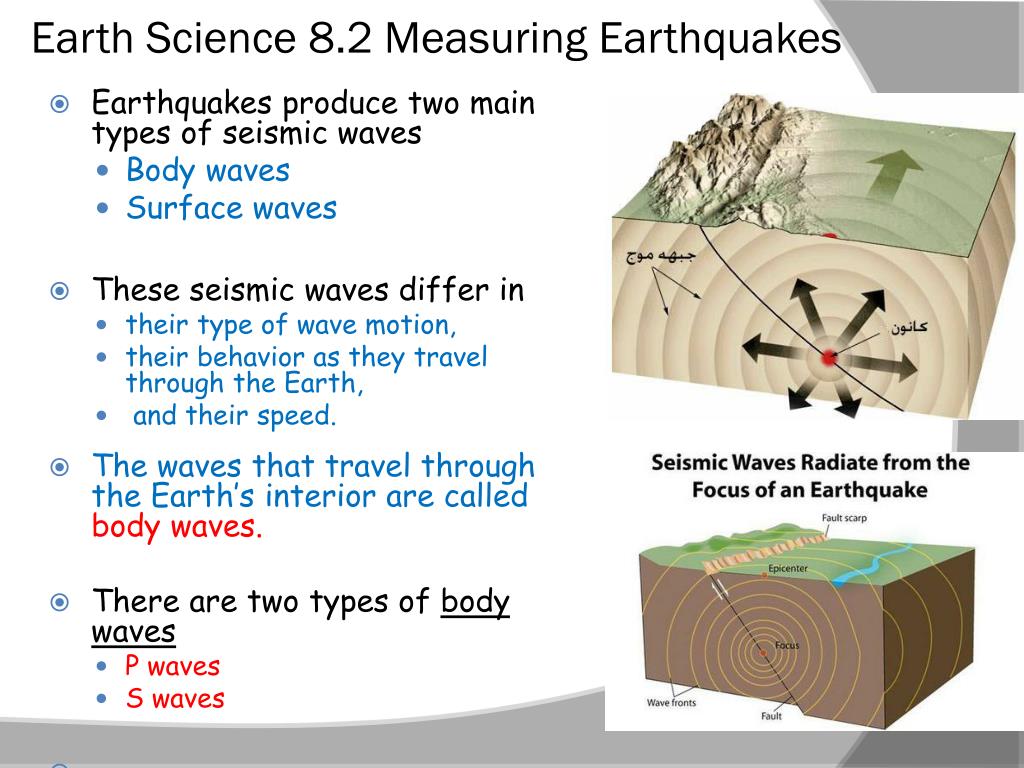

  • Earthquakes produce two main types of seismic waves

    • Body waves

    • Surface waves

  • These seismic waves differ in

    • their type of wave motion,

    • their behavior as they travel through the Earth,

    • and their speed.

  • The waves that travel through the Earth’s interior are called body waves.

  • There are two types of body waves

    • P waves

    • S waves


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

  • P waves and S waves:

    • P wavesare push-pull waves that push and pull particles as they move in a direction. They could also be said to compress-expand.

    • P waves are also called compressional waves. P waves travel faster than S waves. P waves can travel through both liquids and solids.

    • S wavesshake particles at right angles to the waves direction. Like taking one end of a rope and shaking it, the waves move in a curve. S waves are also called transverse waves.


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

  • Surface waves:

    When body waves reach the surface, they produce surface waves. Surface waves travel more slowly than body waves do.

  • Surface waves move up and down as well as side-to-side.

  • Surface waves are usually much larger than body waves, so surface waves are usually the most destructive seismic waves.


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

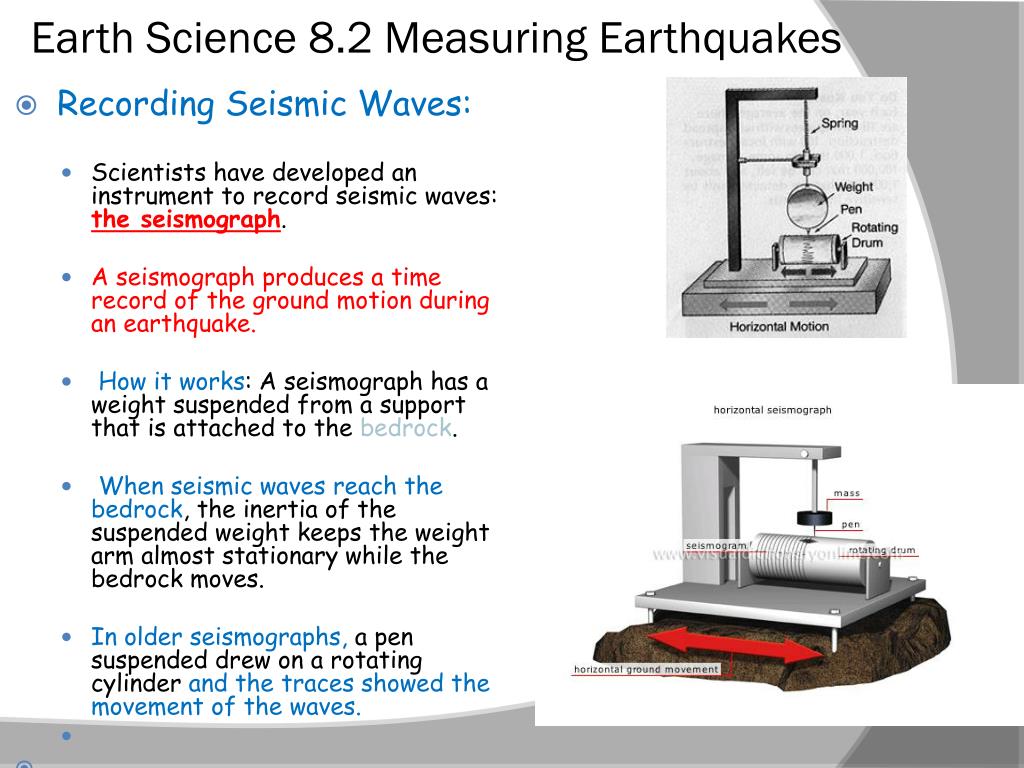

  • Recording Seismic Waves:

    • Scientists have developed an instrument to record seismic waves: the seismograph.

    • A seismograph produces a time record of the ground motion during an earthquake.

    • How it works: A seismograph has a weight suspended from a support that is attached to the bedrock.

    • When seismic waves reach the bedrock, the inertia of the suspended weight keeps the weight arm almost stationary while the bedrock moves.

    • In older seismographs, a pen suspended drew on a rotating cylinder and the traces showed the movement of the waves.


Earth science 8 1 earthquakes

Earth Science 8.2 Measuring Earthquakes

  • Seismogram:

    • The time record that a seismograph produces is called a seismogram.

    • A seismogram shows all three types of seismic waves.

    • The stronger the earthquake, the larger the waves on the seismogram.

    • The first wave to arrive is the P wave, followed soon after by the S wave.

    • After the S waves, the Surface waves arrive showing much stronger movement.

seismogram

seismograph


Earth science 8 1 earthquakes

Measuring Earthquakes: Richter Scale

  • Intensityis a measure of the amount of earth shaking that happens at a given location in an earthquake.

  • Magnitude(M) is a measure of the size of the seismic waves or the amount of energy released at the source of the earthquake.

  • The Richter Scale and the Moment Magnitude Scale both measure earthquake’s magnitude.

  • The Modifed Mercalli Scale is based on earthquake intensity.

seismogram

seismograph


Earth science 8 1 earthquakes

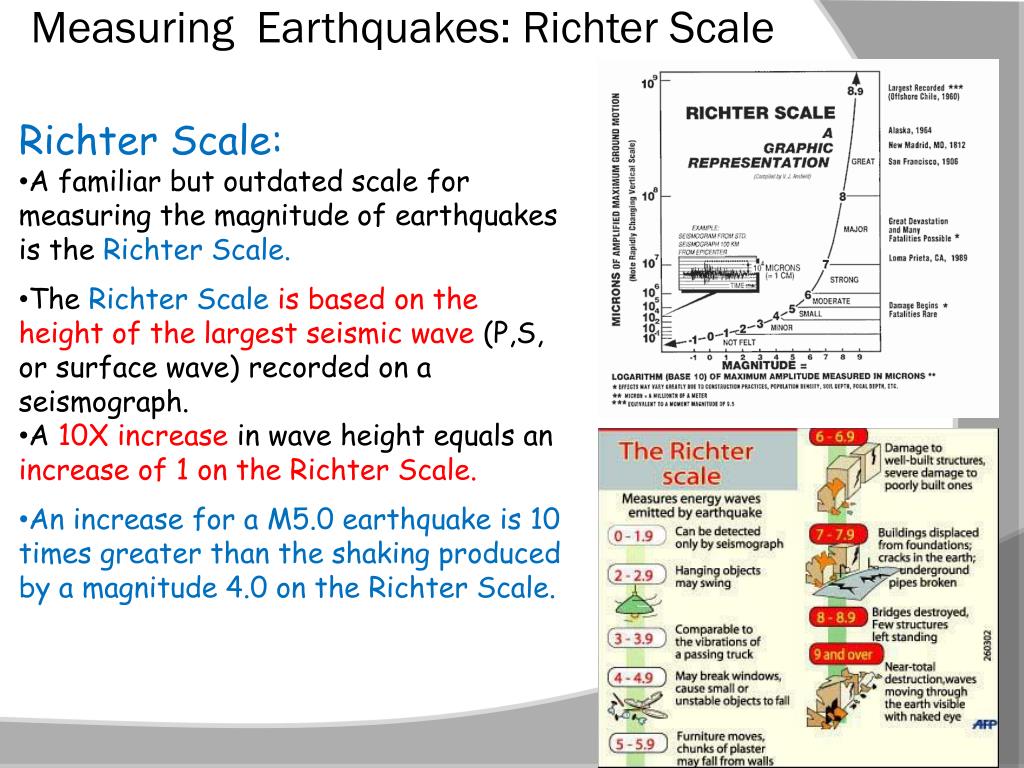

Measuring Earthquakes: Richter Scale

  • Richter Scale:

  • A familiar but outdated scale for measuring the magnitude of earthquakes is the Richter Scale.

  • The Richter Scale is based on the height of the largest seismic wave (P,S, or surface wave) recorded on a seismograph.

  • A 10X increase in wave height equals an increase of 1 on the Richter Scale.

  • An increase for a M5.0 earthquake is 10 times greater than the shaking produced by a magnitude 4.0 on the Richter Scale.

seismogram


Earth science 8 1 earthquakes

Measuring Earthquakes: Momentary Magnitude Scale

  • Moment Magnitude Scale:

  • Today scientists use the moment magnitude scale to measure earthquakes.

  • The moment magnitude scaleis derived from the amount of displacement that occurs along a fault.

  • The moment magnitude scale is also the only scale that estimates the energyreleased by earthquakes.


Earth science 8 1 earthquakes

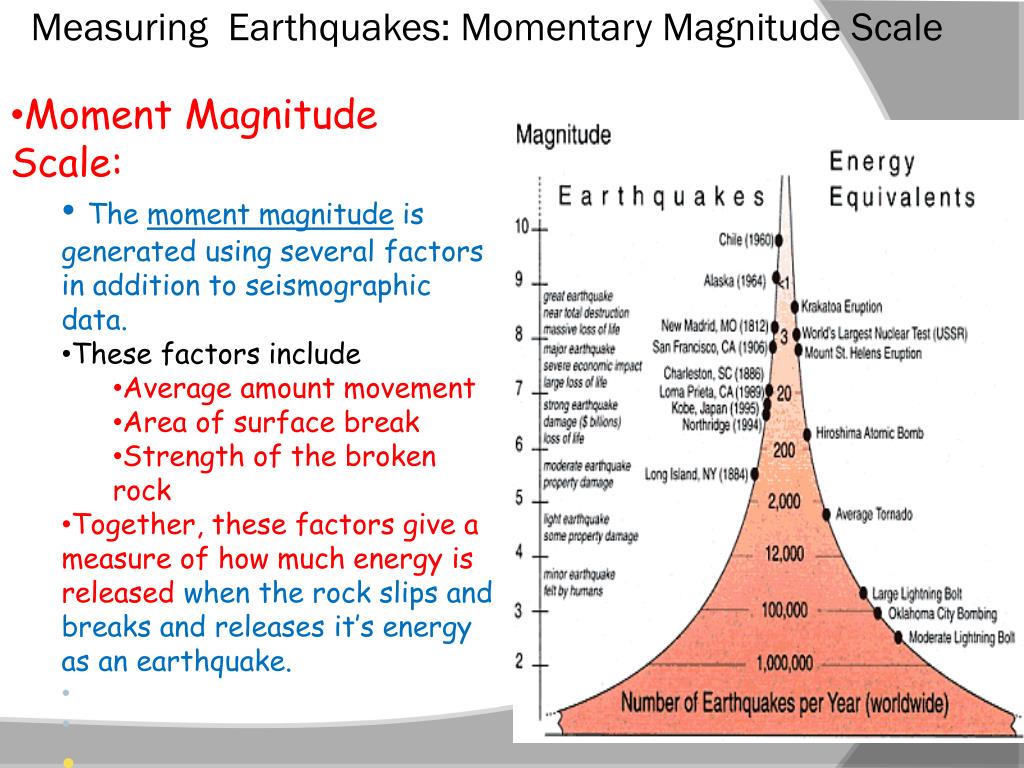

Measuring Earthquakes: Momentary Magnitude Scale

  • Moment Magnitude Scale:

    • The moment magnitude is generated using several factors in addition to seismographic data.

    • These factors include

      • Average amount movement

      • Area of surface break

      • Strength of the broken rock

    • Together, these factors give a measure of how much energy is released when the rock slips and breaks and releases it’s energy as an earthquake.


Earth science 8 1 earthquakes

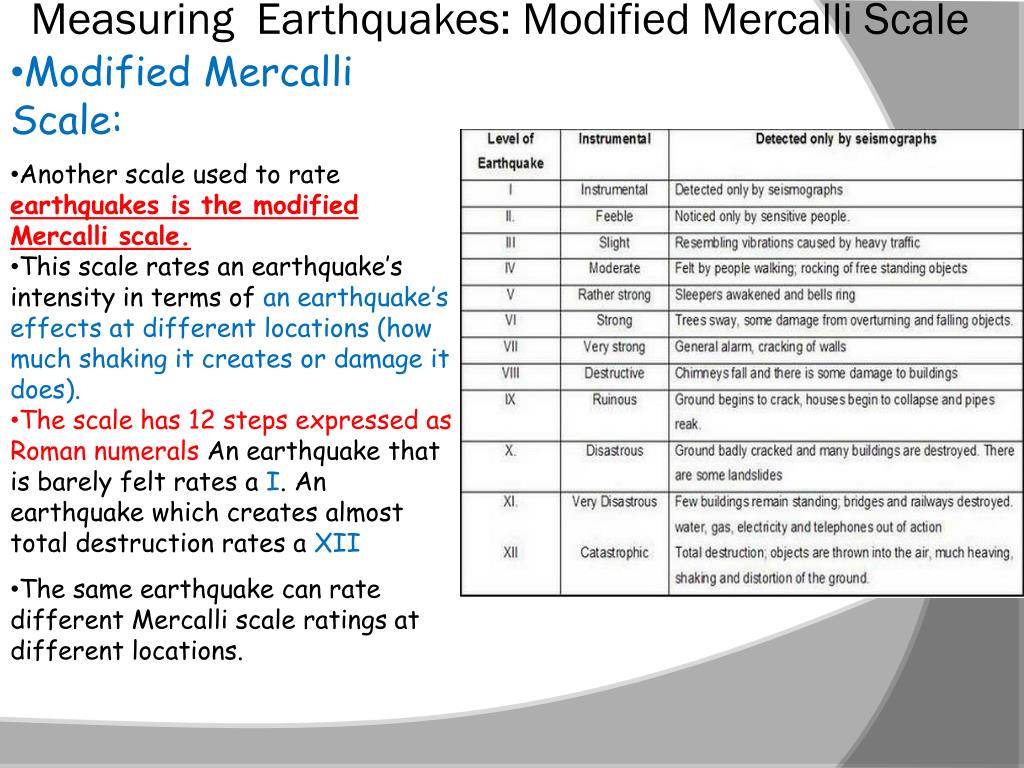

Measuring Earthquakes: Modified Mercalli Scale

  • Modified Mercalli Scale:

  • Another scale used to rate earthquakes is the modified Mercalli scale.

  • This scale rates an earthquake’s intensity in terms of an earthquake’s effects at different locations (how much shaking it creates or damage it does).

  • The scale has 12 steps expressed as Roman numerals An earthquake that is barely felt rates a I. An earthquake which creates almost total destruction rates a XII

  • The same earthquake can rate different Mercalli scale ratings at different locations.


Earth science 8 1 earthquakes

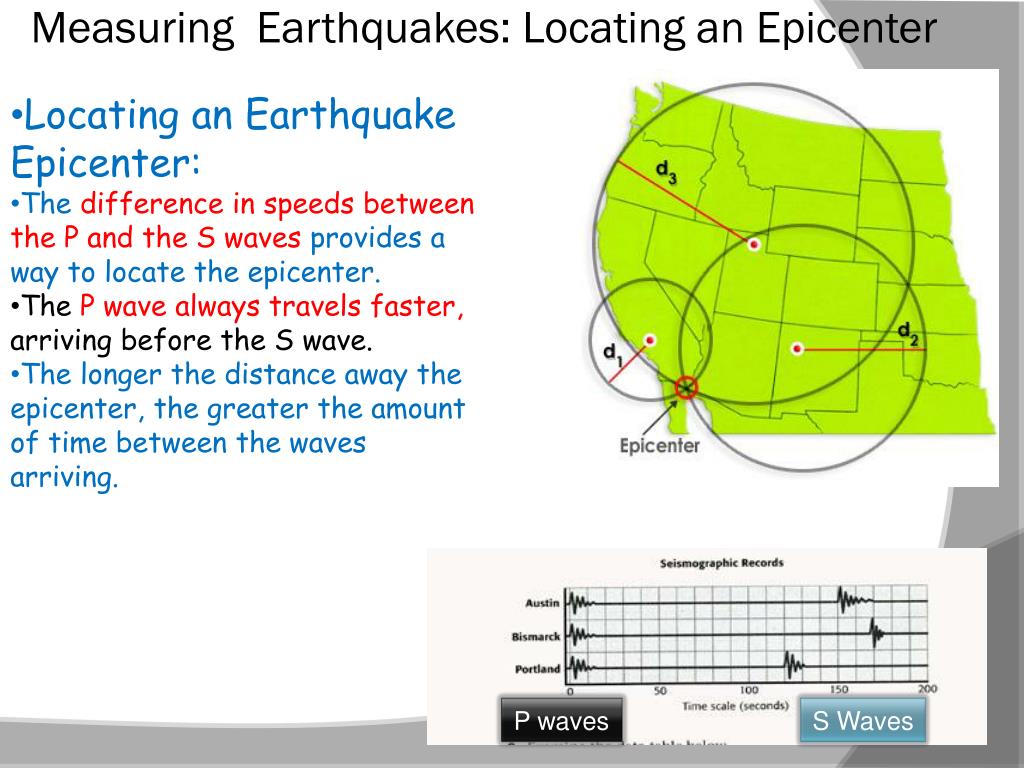

Measuring Earthquakes: Locating an Epicenter

P waves

S Waves

  • Locating an Earthquake Epicenter:

  • The difference in speeds between the P and the S waves provides a way to locate the epicenter.

  • The P wave always travels faster, arriving before the S wave.

  • The longer the distance away the epicenter, the greater the amount of time between the waves arriving.


Earth science 8 1 earthquakes

Measuring Earthquakes: Triangulation

  • Locating an Earthquake Epicenter:

  • With this information, a receiver can judge the distance to the epicenter of the earthquake.

  • If multiple receiving stations ( 3 or more) at different spots on the globe can all identify and coordinate their information, they can triangulatea location. Each station knows it’s distance to the epicenter.

  • Triangulatemeans to use three or positions to determine an exact location.


Earth science 8 1 earthquakes

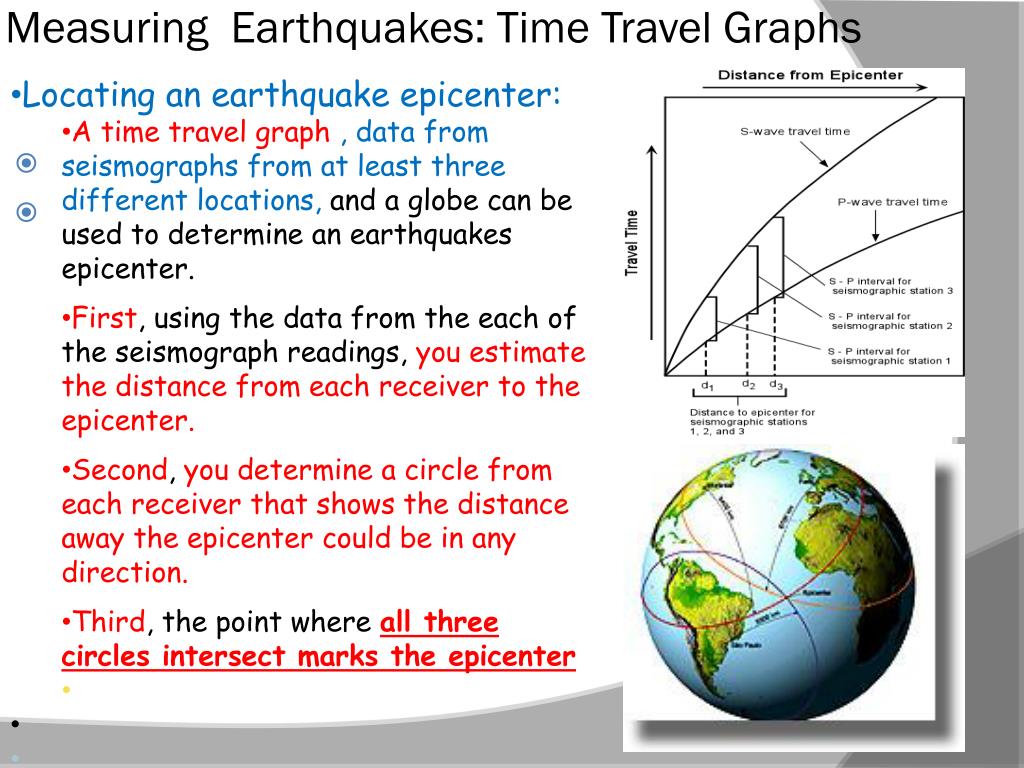

Measuring Earthquakes: Time Travel Graphs

  • Locating an earthquake epicenter:

    • A time travel graph , data from seismographs from at least three different locations, and a globe can be used to determine an earthquakes epicenter.

    • First, using the data from the each of the seismograph readings, you estimate the distance from each receiver to the epicenter.

    • Second, you determine a circle from each receiver that shows the distance away the epicenter could be in any direction.

    • Third, the point where all three circles intersect marks the epicenter


Earth science 8 1 earthquakes

Vocabulary: Earthquakes

  • Focus: the point beneath Earth's surface where rock that is under stress breaksEpicenter: point directly above the focusSeismic waves: vibrations that travel through Earth's surface carrying the energy created by an earthquakePrimary waves: the earthquake waves that compress and expand the ground like an accordionSecondary waves: the waves that vibrate from side to side as well as up and downSurface waves: when Primary waves and Secondary waves reach the surface some of them are transformed into Surface wavesSeismograph: the instrument that geologist use to record and measure the vibration of seismic waveMagnitude: the measurement of earthquake strength based on seismic waves and movement a long faultsMercalli Scale: rate earthquakes by their intensityRichter Scale: rate earthquakes by mechanical seismographMoment Magnitude Scale: rates earthquakes by estimating the total energy released
