  1. NAT/Firewall Behavioral Requirements draft-ietf-behave-nat-00 François Audet - audet@nortelnetworks.com Cullen Jennings - fluffy@cisco.com draft-ietf-behave-nat-00

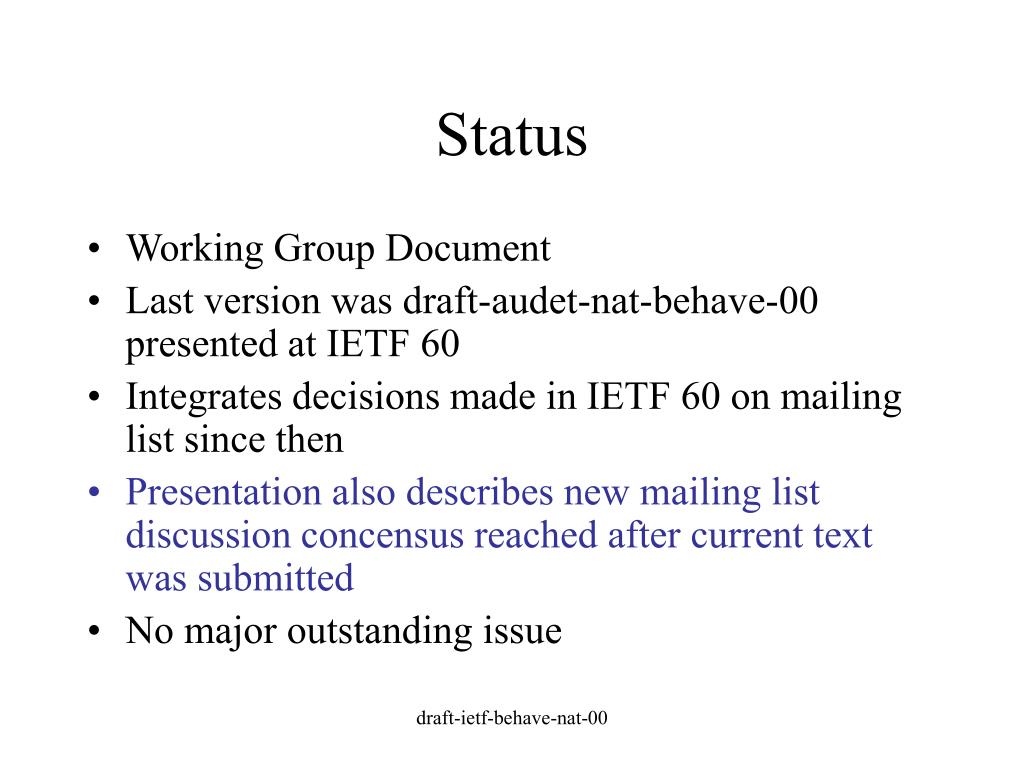

  2. Status • Working Group Document • Last version was draft-audet-nat-behave-00 presented at IETF 60 • Integrates decisions made in IETF 60 on mailing list since then • Presentation also describes new mailing list discussion concensus reached after current text was submitted • No major outstanding issue draft-ietf-behave-nat-00

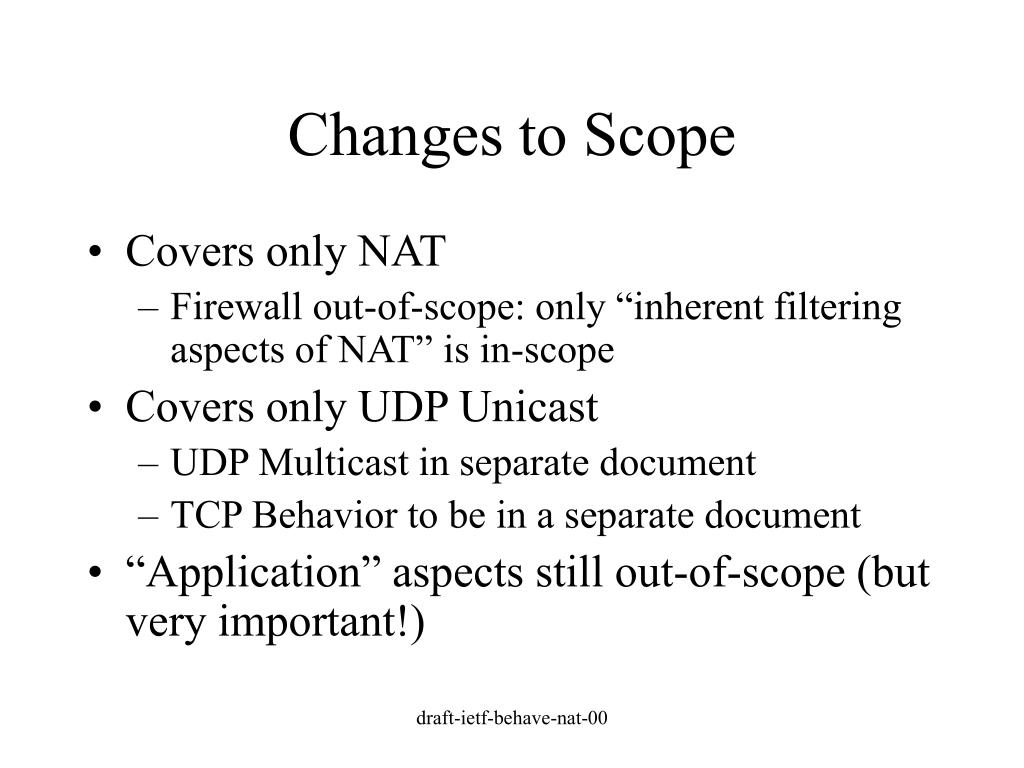

  3. Changes to Scope • Covers only NAT • Firewall out-of-scope: only “inherent filtering aspects of NAT” is in-scope • Covers only UDP Unicast • UDP Multicast in separate document • TCP Behavior to be in a separate document • “Application” aspects still out-of-scope (but very important!) draft-ietf-behave-nat-00

  4. IP address assignment • Multiple IP addresses on external side of NAT • IP address pooling: • “Arbitrary”: MUST NOT (REQ-2a) • “Paired, strict”: MAY (REQ-2b) • “Paired, best-effort”: RECOMMENDED (REQ-2) • Required for gaming and other protocols that don’t negotiate IP address for RTP/RTCP separately • Minimize port exhaustion draft-ietf-behave-nat-00

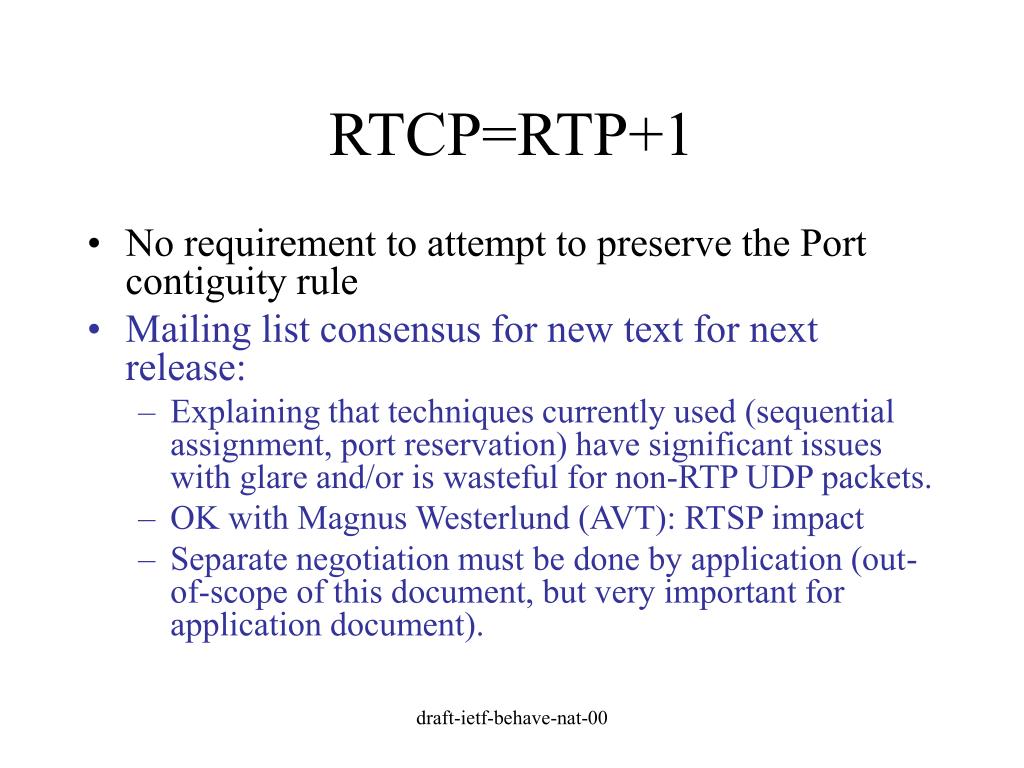

  5. RTCP=RTP+1 • No requirement to attempt to preserve the Port contiguity rule • Mailing list consensus for new text for next release: • Explaining that techniques currently used (sequential assignment, port reservation) have significant issues with glare and/or is wasteful for non-RTP UDP packets. • OK with Magnus Westerlund (AVT): RTSP impact • Separate negotiation must be done by application (out-of-scope of this document, but very important for application document). draft-ietf-behave-nat-00

  6. Source Port Range • Well-known (0-1023), Registered (1024-49151), Dynamic/Private (49152-65535) • Current text: MUST NOT use Well-known (REQ-3c) • Mailing list discussion: • Some applications will break with this (RFC 2623) • Mailing list agreement for next version: • If the host's source port was in the range 0-1023, the NAT's source port MUST also be in the same range. If the host's source port was in the range 1024-65535, the NAT's source port MUST also be in that range. (REQ-3c) • Everybody OK with this? draft-ietf-behave-nat-00

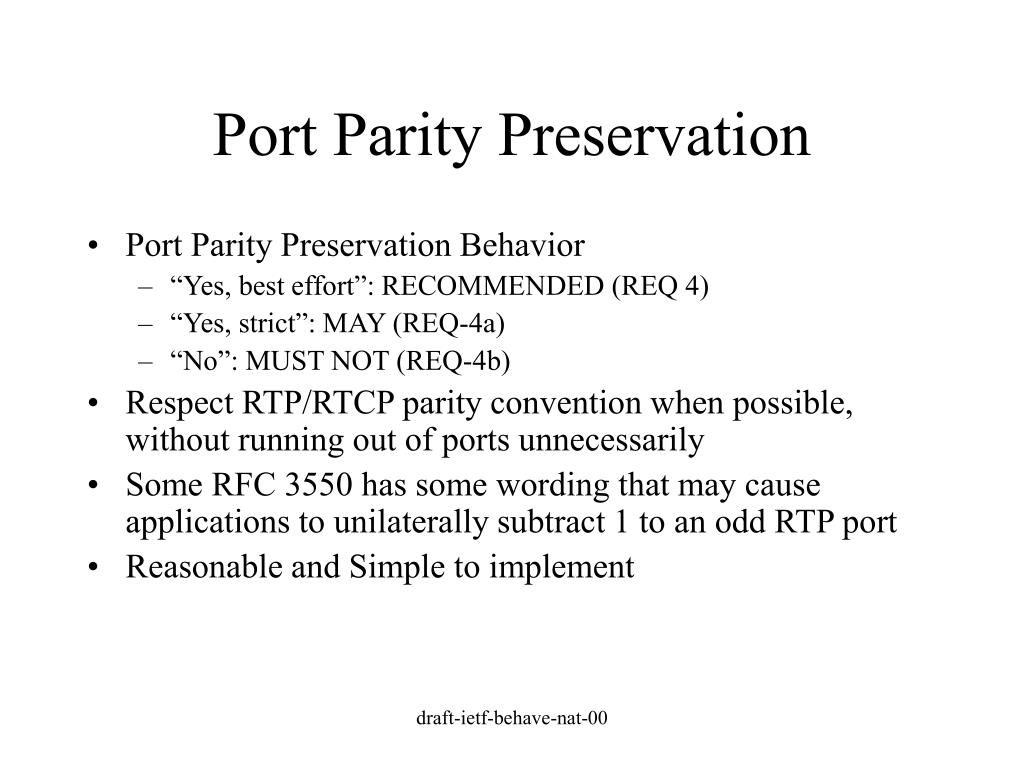

  7. Port Parity Preservation • Port Parity Preservation Behavior • “Yes, best effort”: RECOMMENDED (REQ 4) • “Yes, strict”: MAY (REQ-4a) • “No”: MUST NOT (REQ-4b) • Respect RTP/RTCP parity convention when possible, without running out of ports unnecessarily • Some RFC 3550 has some wording that may cause applications to unilaterally subtract 1 to an odd RTP port • Reasonable and Simple to implement draft-ietf-behave-nat-00

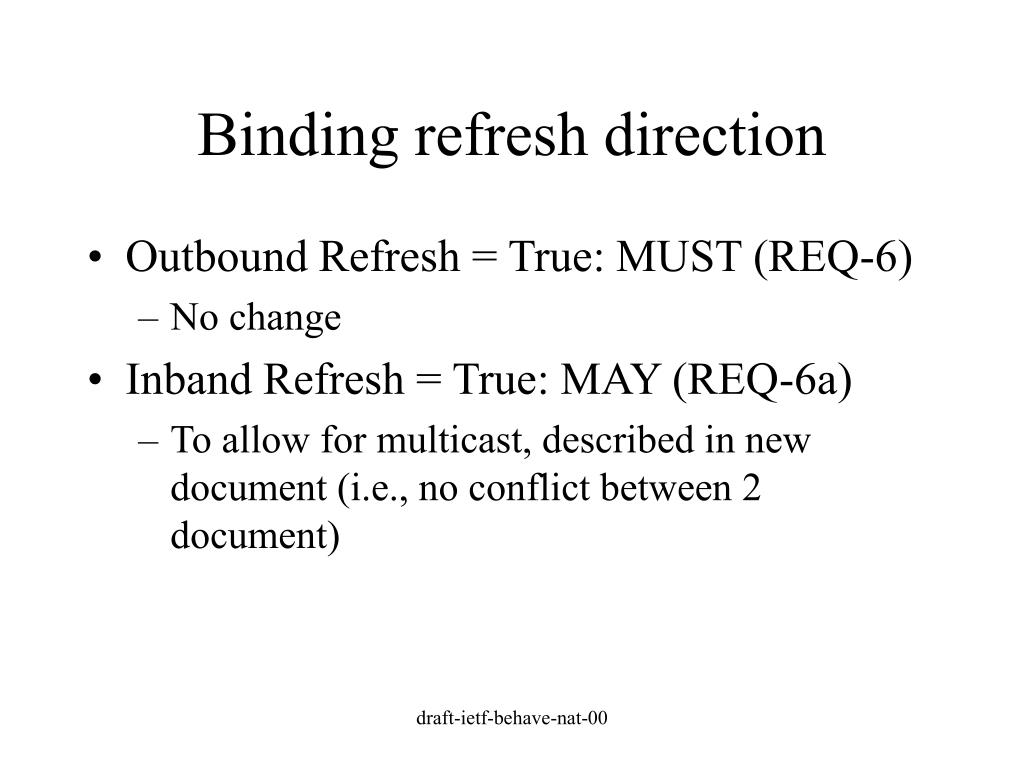

  8. Binding refresh direction • Outbound Refresh = True: MUST (REQ-6) • No change • Inband Refresh = True: MAY (REQ-6a) • To allow for multicast, described in new document (i.e., no conflict between 2 document) draft-ietf-behave-nat-00

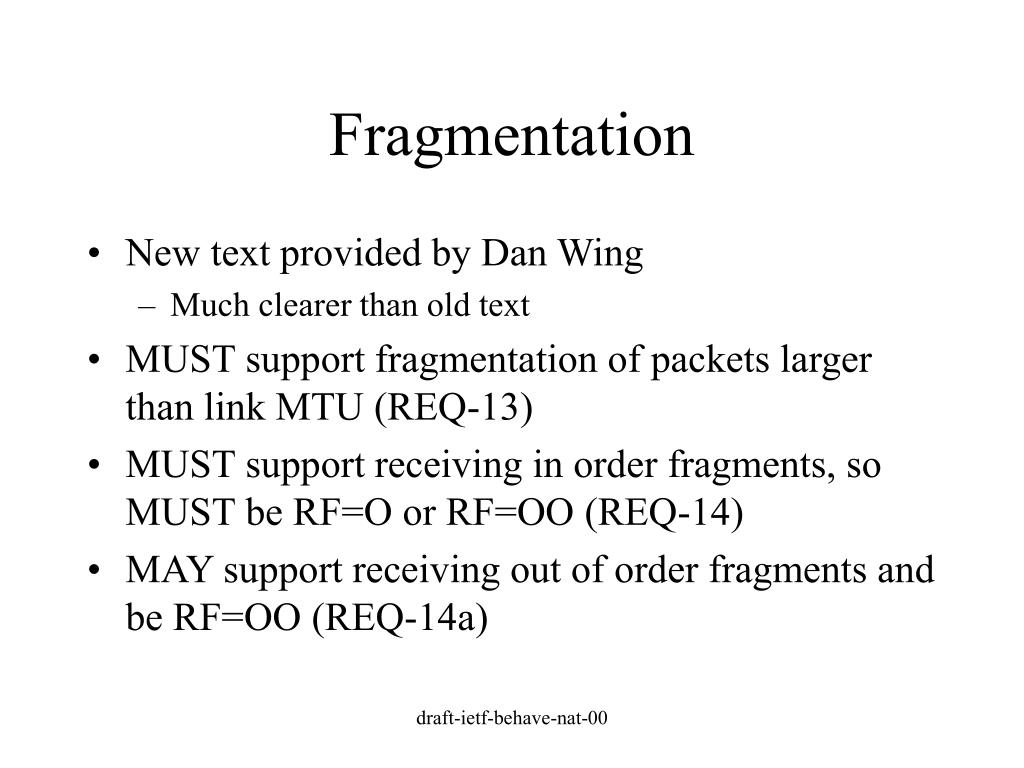

  9. Fragmentation • New text provided by Dan Wing • Much clearer than old text • MUST support fragmentation of packets larger than link MTU (REQ-13) • MUST support receiving in order fragments, so MUST be RF=O or RF=OO (REQ-14) • MAY support receiving out of order fragments and be RF=OO (REQ-14a) draft-ietf-behave-nat-00

  10. ALGs • Current text: • A NAT MUST have the capability to turn off individually all ALGs it supports, except for DNS and IPsec (REQ-10) • Any NAT ALG for SIP MUST be turned off by default (REQ-10a) • Mailing list discussion consensus text for next version: • If a NAT includes ALGs, all of those ALGs MUST be disabled by default. (REQ-10) • If a NAT includes ALGs, it is RECOMMENDED that the NAT allow the user to enable or disable each ALG separately. (REQ-10a) • IPsec is not relevant to UDP • Stronger stance against ALGs being “off” by default draft-ietf-behave-nat-00

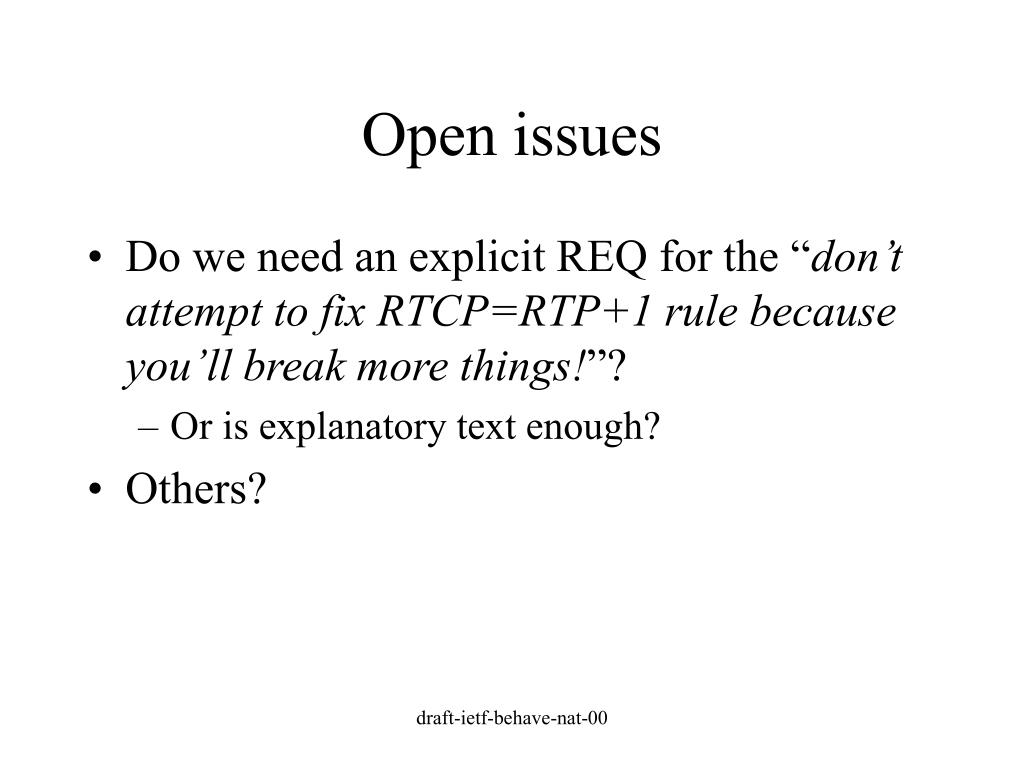

  11. Open issues • Do we need an explicit REQ for the “don’t attempt to fix RTCP=RTP+1 rule because you’ll break more things!”? • Or is explanatory text enough? • Others? draft-ietf-behave-nat-00
