  1. Thermopix Inc. Smart Stove Cooktop Phoebe Liu, Andrew Lin, Claire Wu, Hao Su April 17, 2009

  2. Team Members

  3. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learnt • Future Work • Conclusion • References • Questions

  4. saucepan cooktop induction coils Background • An induction cooktop holds a series of burners called induction coils (based on magnetic principles) • These coils generate magnetic fields that induct a warming reaction in steel and iron-based pots and pans How doesinduction work?

  5. Motivation Benefitsof induction stove safer: there are no open flames and the surface remains cool to the touch quicker: heating and adjustments are immediate, saving you up to 50% of the cooking time when compared to more traditional methods even heating: hot spots and rings are avoided because the bottom of your cookware heats uniformly easy cleaning: the surface is flat and smooth; spills and overflows do not stick to the cooktop, so they can easily be wiped away

  6. Motivation A Scenario

  7. Innovation • Completely automate your cooking experience • Can fit any size of shape and pan • Even more energy efficient

  8. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learnt • Future Work • Conclusion • References • Questions

  9. System Overview

  10. Power Generation Module • Consists of IGBT and diodes in parallel • Executes high frequency switching with the voltage and current remaining at zero • Composed of resonant inductance and resonant capacitance • Quasi-resonant converter

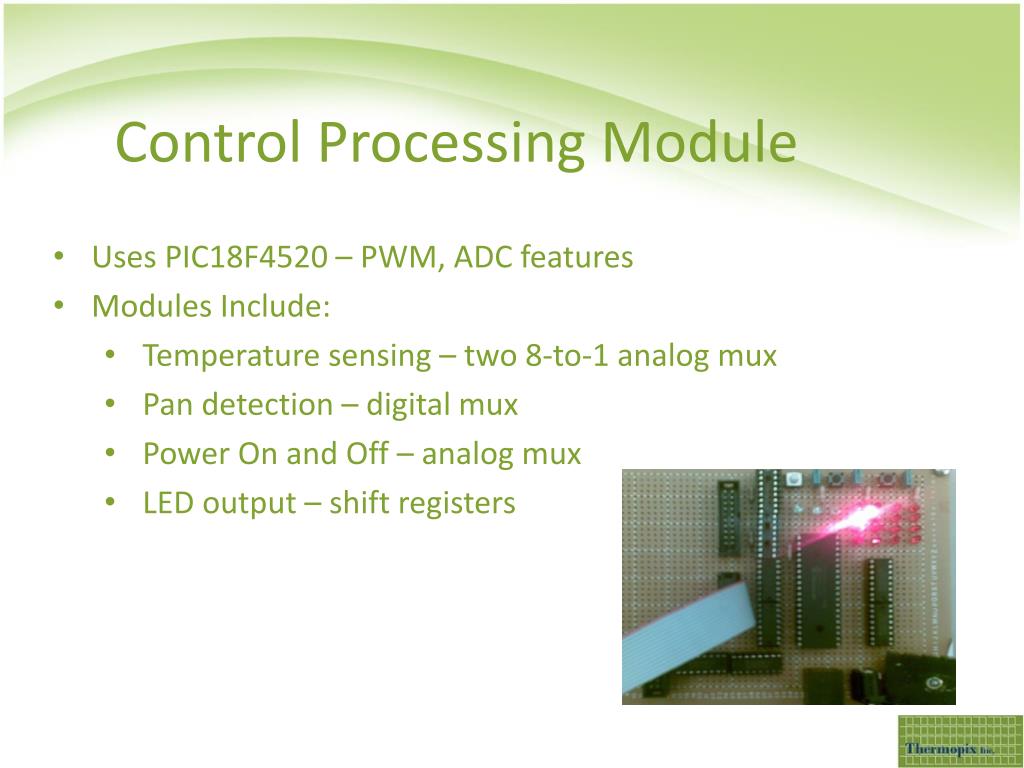

  11. Control Processing Module • Uses PIC18F4520 – PWM, ADC features • Modules Include: • Temperaturesensing – two 8-to-1 analogmux • Pan detection – digital mux • Power On and Off – analogmux • LED output – shift registers

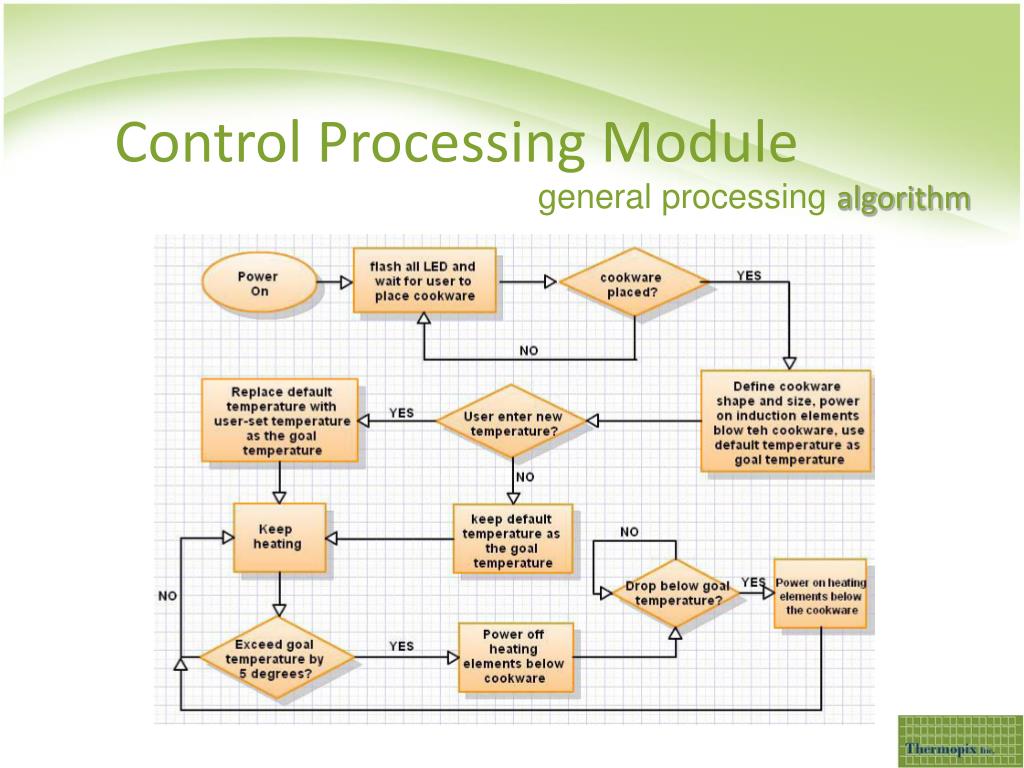

  12. Control Processing Module general processing algorithm

  13. Output Conversion Module/UI • Arrays of LED depending on the number of coils in use • Temperature Adjustment Module • 4 different temperature levels: 0, 250F, 300F, 350F

  14. Casing & Physical Design Cooktopof induction stove Proposed Material Actual Material Heat resistance painted wood Pros: Does not scratch easily Cheap - $5 Cons: Not as heat resistant Harder to clean • Ceremic Glass • Pros: • High thermal shock rating • Easy to clean • Cons: • If broken glass shatters into large fragments • Scratches easily • Expensive - $419. 54

  15. Casing & Physical Design Casing induction stove • Needs to provide enough ventaliation for heat • Coils mounted and isolated from power board • Power board are mounted vertically

  16. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learned • Future Work • Conclusion • References • Questions

  17. Business Analysis MarketPotential • Targeting European and Asian Market • 1170 thousands units in production in Europe for 2008 [1] • Energy Saving • Environment-friendly cooking • Clean cooking

  18. Business Analysis CostComparison

  19. Business Analysis CostComparison • Actual prototype cost is cheaper than our estimated prototype cost • R&D Financing from ESSEF - $700 • Other possible funding include: • Angel investors • SR&ED credits • IRAP

  20. Business Analysis CurrentCompetition

  21. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learned • Future Work • Conclusion • References • Questions

  22. Timeline Schedule of First Phase Development

  23. Teamwork Dynamic

  24. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learned • Future Work • Conclusion • References • Questions

  25. What was learned • Technical Skills • C • PIC features and components implementation • Power distribution and transformer configuration • Induction heating circuit design • How to be safe • One of the most dangerous project in ENSC 440 history

  26. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learned • Future Work • Conclusion • References • Questions

  27. Future Work

  28. Future Work

  29. Content • Background and Innovation • System Overview and High Level System Design • Business Analysis • Timeline • What was learned • Future Work • Conclusion • References • Questions

  30. Conclusion • Be careful and have fun!

  31. Conclusion • Movie time!

  32. Question?

  33. Acknowledgement • Patrick Leung • Steve Whitmore • Ash Parameswaran • Fred Heep • Marius Haiducu • Gary Houghton • Gary Schum • Jason Lee • ESSS

  34. References [1] Witcheck appliance. 1971. http://www.witbeckappliance.com/index.asp?PageAction=VIEWPROD&ProdID=4640 [2] H Okatsuka, K Taniguchi, T Kakizawa, Electromagnetic Induction heating apparatus capable of heating nonmagnetic cooking vessels, US Patent 4,549,056, 1985 [3] Lee, Min Ki, Method and circuit for controlling power level in the electromagnetic induction cooker, US Patent 5,004,881, 1991 [4] Induction Cooktops, Heat from the friction produced by magnetized molecules: A cool way to cook, NAHB Research Center, 2008. http://www.toolbase.org/Technology-Inventory/Appliances/induction-cooktops [5] Federal Communication Commission, 2009, <http://www.fcc.gov/> [6] IEC – International electrotechnical Commission, 2009, <http://www.iec.ch/> [7] RoHS, 2009, <http://www.rohs.gov.uk/> [8] Standards – CSA – Making Standards Work for People and Business <http://www.csa.ca>

  35. References Overallsystem implemtation
