1. The Power of Testing in the Distributed Test Architectureand a little more … Rob Hierons, Brunel University, London, UK Joint work with Prof Ural, University of Ottawa Dagstuhl October 2006

2. Assumptions • We are interested in testing an FSM implementation against an FSM model. • Assume: everything deterministic. • There is a slow environment: all outputs are received before the next input is sent. • The semantics: just traces Dagstuhl October 2006

3. The power of testing • Assuming M is specification FSM and MI is an FSM that models implementation. • Black-box testing is capable of distinguishing M and MI if and only if they are not equivalent. • If M and MI are not equivalent then there exists an input sequence that distinguishes them. Dagstuhl October 2006

4. A distributed test architecture • A system may have several distributed interfaces. • We may have a separate tester at each port. • If these testers cannot interact we have the distributed test architecture. • This causes additional controllability and observability problems if we do not have a global clock. Dagstuhl October 2006

5. Upper Tester Implementation Under Test Lower Tester The architecture Dagstuhl October 2006

6. Controllability • Assume that there is no communication between the testers and no global clock. • We cannot apply the following test. Dagstuhl October 2006

7. Observability • Assume that there is no communication between the testers and no global clock. • We cannot distinguish between the following: Dagstuhl October 2006

8. Overcoming these problems • We can eliminate these problems by introducing an external network through which the testers can communicate. • But: • This can increase the cost of testing. • Timing constraints can cause additional problems. • So we may want to use test sequences that have no observability or controllability problems. Dagstuhl October 2006

9. Distinguishing states • Input sequence x distinguishes states s and s’ if and only if it leads to different output sequences from these states. Instead we need: • x causes no controllability problems from s and s’ • x leads to different sequences of interactions, for s and s’, at some port. • We say that x locally distinguishes s and s’. • If no input sequence locally distinguishes s and s’ they are locally equivalent. Dagstuhl October 2006

10. Distinguishing machines • To distinguish machines M (spec) and MI (IUT) we need to ‘distinguish’ their initial states. • Thus, in our architecture, we have to locally distinguish their initial states. Dagstuhl October 2006

11. xL/(-, yL) xu/(yu,-) s1 s2 xu/(yu,-) xL/(-, yL) xL/(yu,-) xL/(-, yL) xu/(yu,-) s4 s3 xu/(yU,-) Testing is weaker • We cannot locally distinguish s1 and s4 but xUxL distinguishes them. Dagstuhl October 2006

12. Distinguishing two states • Given states s1 and s2 of a k-port FSM M with n states and port p: • s1 and s2 are locally distinguishable by an input sequence starting at p if and only if they are locally distinguished by some such input sequence of length at most k(n-1). • This bound is ‘tight’. • The sequences can be found in low-order polynomial time. Dagstuhl October 2006

13. Distinguishing all states • A ‘complete’ set of input sequences that locally distinguish the locally distinguishable states of M can be found in O(pn2), where p is the size of the input alphabet. Dagstuhl October 2006

14. Local minimality • An FSM is locally minimal if it has no locally equivalent states. • A minimal FSM need not be locally minimal. • If M is not locally minimal and is to be used in this architecture (with no global clock) we cannot distinguish M from some smaller FSM. • So, we might use the smaller FSM? Dagstuhl October 2006

15. Producing a locally minimal FSM • We can simply merge locally equivalent states: if s and s’ are locally equivalent we replace one by the other. • Thus, we can achieve this in polynomial time, O(pn2). • Note – there is an O(pnlog(n)) algorithm for minimizing an FSM. Dagstuhl October 2006

16. There are choices • ‘State merging’ is not confluent. • We can have many FSMs that are locally equivalent to M. • Question – is there some ‘natural choice’? Dagstuhl October 2006

17. Canonical FSMs • Given FSM M, can we find: • A maximal FSM that is locally equivalent to M? • A minimal FSM that is locally equivalent to M? • Can we find them efficiently? Dagstuhl October 2006

18. Observation • There are many notions of equivalence in the LTS literature. • However, these reduce to isomorphism when considering minimal, deterministic, completely-specified FSMs. • Local equivalence does not. • Can we combine it with e.g. ioco, tioco? Dagstuhl October 2006

19. Test generation • A common test hypothesis when testing from FSM M: • for some predetermined m, the implementation I behaves like an unknown FSM MI that has the same input and output alphabets as M and has no more than m states. • Testing is seen as trying to decide whether MI is equivalent to M. • Can we instead use local equivalence? Dagstuhl October 2006

20. y/… x/… s’ s y/… x/… Avoiding the problem • Maybe we can apply sequences that are not synchronizable. We get a form of non-determinism. • For example: • Question – how can we formalise this for test generation? Dagstuhl October 2006

21. Open questions • These include the following: • Can we tailor test generation algorithms to local equivalence? • Are there sensible conditions under which local equivalence and equivalence ‘converge’? • Canonical locally equivalent (and locally minimal?) FSMs? • What about LTS models? Time? Dagstuhl October 2006

22. The ordering of adaptive test cases for deterministic implementations Dagstuhl October 2006

23. 0 1 0 1 b a Adaptive test cases • The next input applied depends upon the input/output that has been observed. • We reset between adaptive test cases Dagstuhl October 2006

24. 0 1 0 1 a 0 1 0 1 0 1 b a a a Example of possible saving • Here the behaviour a/0,a/0 for the first adaptive test case tells us that we will get response a/0 to the second Dagstuhl October 2006

25. So • We can have adaptive test cases 1 and 2 such that: • There is some possible response to 1 that determines the response of I to 2. • There may be other possible responses that don’t do this. • We denote this 21. • If we apply 1 before 2 then we may not have to use 2. Dagstuhl October 2006

26. Consequence • The expected cost of testing depends upon the order in which the adaptive test cases are to be applied. • Question: how can we find an order that minimises the expected cost of testing? Dagstuhl October 2006

27. Deciding  • 21 if and only if sav(1,2 ) where: sav(,null) := true sav(null,(x,f)) := false sav((x1,f1),(x2,f2)) := (x1=x2)  y.sav(f1(y),f2(y)) • Good news: this requires linear time. Dagstuhl October 2006

28. a The relation  is not transitive. a a 0 1 0 1 0 1 a b a b a 0 0 0 1 1 1 0 1 0 1 Dagstuhl October 2006

29. The dependence digraph • Given set  ={1,…, n} of adaptive test cases the dependence digraph (V,E) is: • V={v1,…,vn} • There is an edge from vi to vj if and only if ji. Dagstuhl October 2006

30. Solving in terms of the dependence digraph • If we consider onlyG then the optimal order is: • The order that minimises the number of edges that ‘point backwards’ • This is an instance of the Feedback Arc Set (FAS) problem. Dagstuhl October 2006

31. Complexity • The FAS problem is NP-hard. • Based on this it is not too difficult to prove that the problem of finding the optimal ordering is NP-hard. Dagstuhl October 2006

32. Problems • We will consider: • Reducing the size of the optimisation problem: • Merging adaptive test cases. • Dividing the problem. • Producing a ‘good’ ordering based on the dependence digraph. Dagstuhl October 2006

33. 0 1 0 1 0 1 0 1 a b a a Merging adaptive test sequences • These can be merged • Linear complexity Dagstuhl October 2006

34. Observation • There may be more than one possible result of merging elements of a set of adaptive test cases. • Question: how can we do this in the ‘best’ way. • A problem for future work Dagstuhl October 2006

35. Independent adaptive test cases • We might remove the direction of the edges in the dependence digraph to form G’. • Then two adaptive test cases i and j are said to be independent if and only if there is no path from vi to vj in G’ Dagstuhl October 2006

36. Reducing the size of the problem • We can: • Merge compatible adaptive test cases • Separately consider the classes of independent adaptive test cases. • Result: • these two approaches do not ‘conflict’. Dagstuhl October 2006

37. A special case: acyclic dependence digraph • This is easy: • We find an ordering based on a DAG. Dagstuhl October 2006

38. Where G contains cycles • We can: • Solve the FAS problem to find some feedback arc set A. • Let G’=(V,E\A) • Now solve • However, this ignores information that may be useful. Dagstuhl October 2006

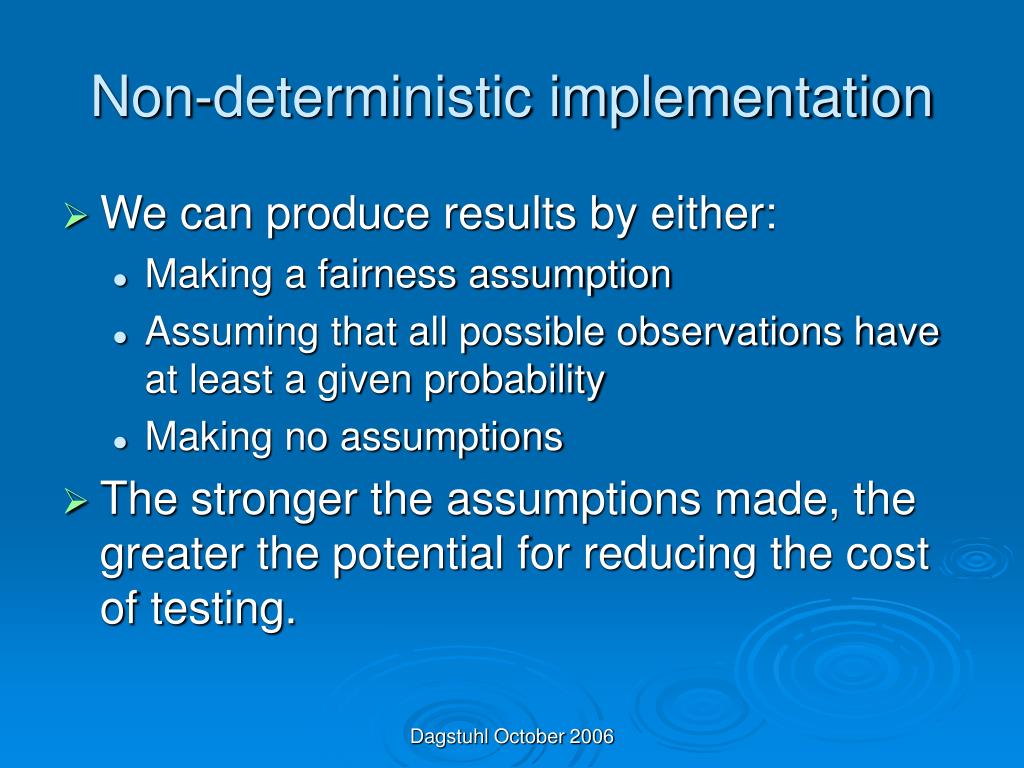

39. Non-deterministic implementation • We can produce results by either: • Making a fairness assumption • Assuming that all possible observations have at least a given probability • Making no assumptions • The stronger the assumptions made, the greater the potential for reducing the cost of testing. Dagstuhl October 2006

40. Further work • The following problems have yet to be investigated: • Infinite adaptive test cases (i.e. not finite trees). • Choosing the order in which to merge. • On-the-fly techniques. • Optimisation when considering a wider range of sources of information. • Timed or distributed adaptive test cases. • Empirical studies. Dagstuhl October 2006

41. Conclusions • We have seen regarding: • The cost of applying adaptive test cases. • The power of testing in the distributed test architecture. • In each case there is still much to be done! • Question: is this problem different for open and reactive systems? Dagstuhl October 2006
