ip management

IP Management

Technology and

Implementation Issues

contents

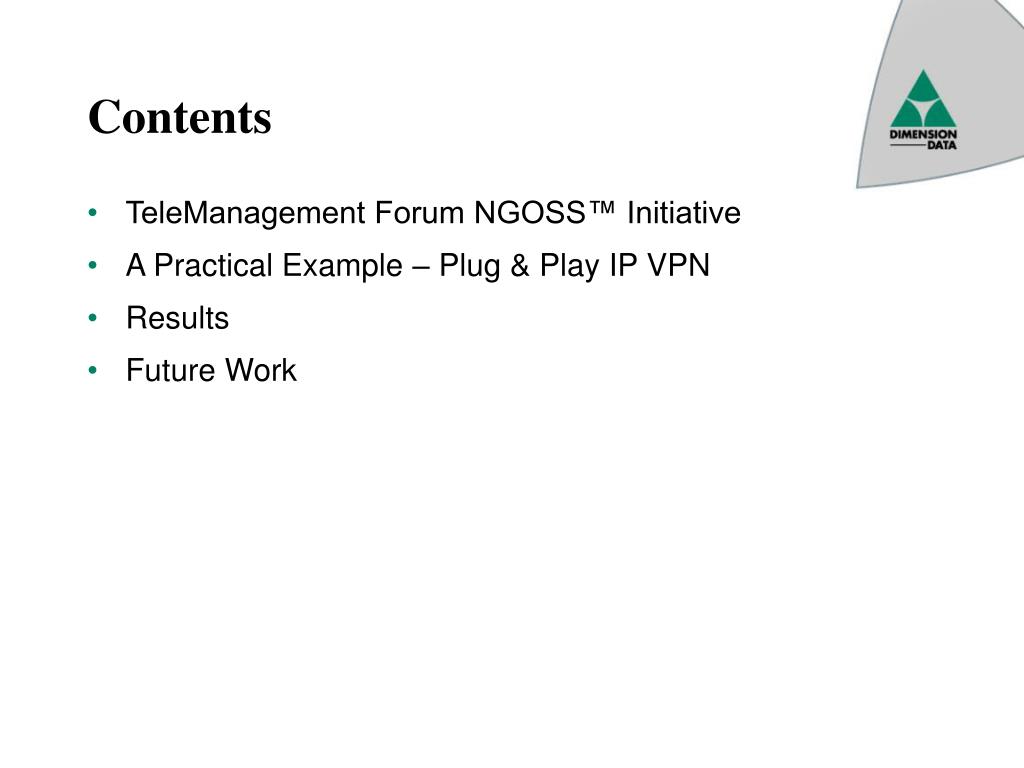

Contents
  • TeleManagement Forum NGOSS™ Initiative
  • A Practical Example – Plug & Play IP VPN
  • Results
  • Future Work
ngoss

NGOSS™

A TMF Initiative

drivers

Wireless

Transport

Data

Data

Voice

Growth of Networks

IP Convergence

Sales

Order

Management

Service

Configuration

Provisioning

Fault

Management

SLA

Management

Billing

First 100 Million Users (Years)

5

16

17

43

Source: CEMA, IDC

Rate of Change

Drivers

N2 Complexity

Data Silos

ngoss1
NGOSS™
  • Business Case
    • Industry NPV of $293 Billion1
  • Requirements
  • Architecture
    • Traceable through Requirements to Business Case
  • Plug & Play Catalyst Programme
    • Proves Architectural Concepts
    • Showcase Demonstrations every 6 months at TeleManagement World

1TMF051, NGOSS Business Case V1.0, Oct 2000

plug play architectural concepts

D

i

r

e

c

t

o

r

y

&

CIM

M1

Mn

M3

...

Work

flow

Bus

...

M2

Mn-1

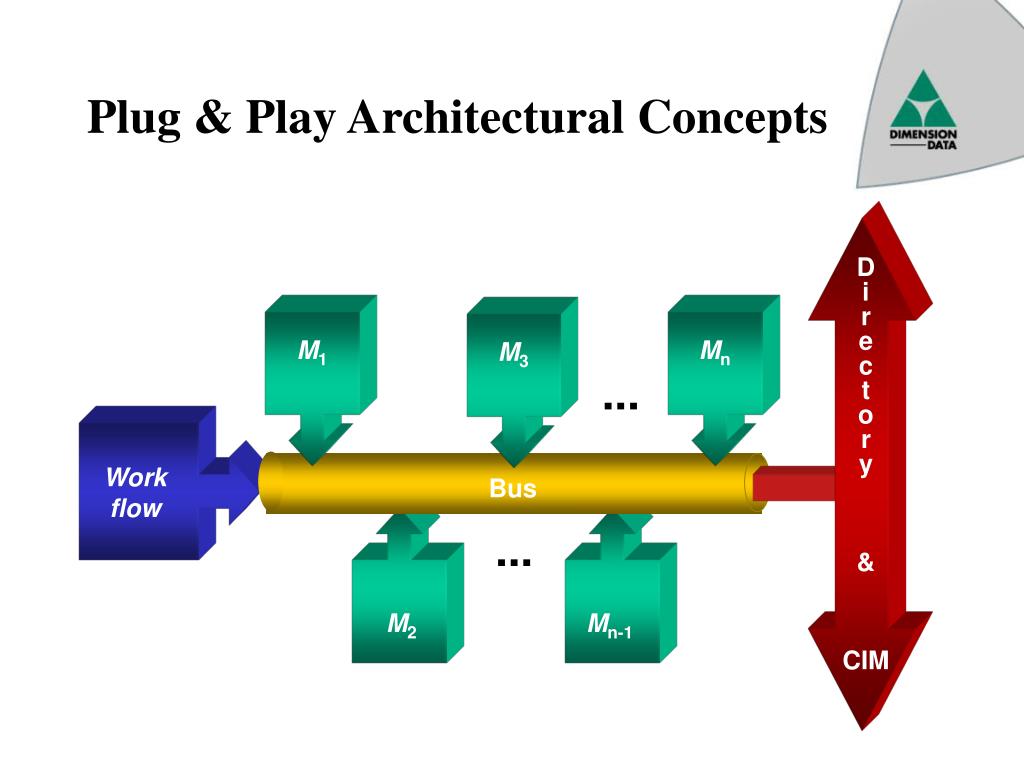

Plug & Play Architectural Concepts
objectives

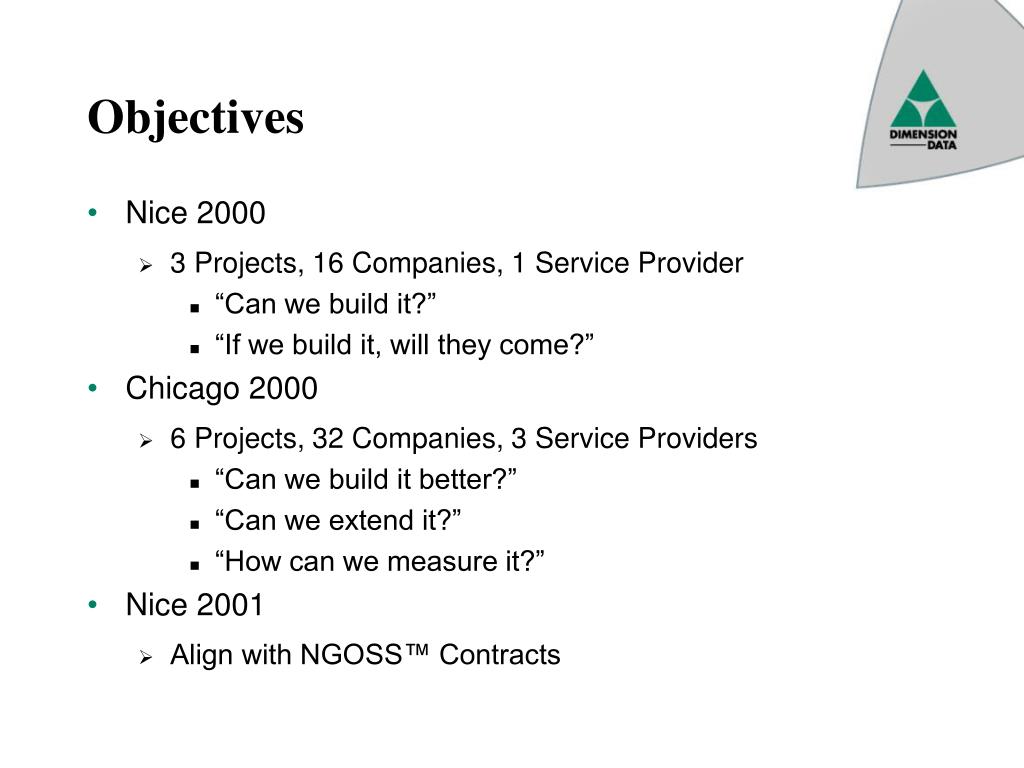

Objectives
  • Nice 2000
    • 3 Projects, 16 Companies, 1 Service Provider
      • “Can we build it?”
      • “If we build it, will they come?”
  • Chicago 2000
    • 6 Projects, 32 Companies, 3 Service Providers
      • “Can we build it better?”
      • “Can we extend it?”
      • “How can we measure it?”
  • Nice 2001
    • Align with NGOSS™ Contracts
projects and participants
Projects and Participants

B2B Managed Services for DSL

AMS, ADC, IGS, MetaSolv, Micromuse, Nortel/Architel Solutions, Syndesis, Web Methods

Broadband/Cable Services Management:

CGE&Y, Cisco Sys., Cygent, Syndesis, Metasolv, TIBCO, IGS, Sun, Portal, MDSI, Trendium, Micromuse, TCSI

Sponsor: AT&T Labs - Broadband

DSL Customer Management Services

PwC, Alcatel, Cisco Systems, Compaq, Sun, Vitria, Portal, Syndesis, Siebel

IP Service Management

CGE&Y, CommTech, Cisco Systems, Microsoft, Granite, CrossKeys, Portal, Riversoft, Sun, Telcordia

Sponsors: Verizon, France Telecom

IP VPN Management

Dimension Data, Cisco Systems, Astracon, CrossKeys, Daleen, IGS, Portal, Sodalia, Telcordia, Vitria

Sponsor: Verizon

Self Service over Multiple Networks

HP, Cisco Systems, Alcatel, Astracon, Cambio, Cygent, IGS, Portal, Syndesis, Web Methods

*

*

benefits to stakeholders

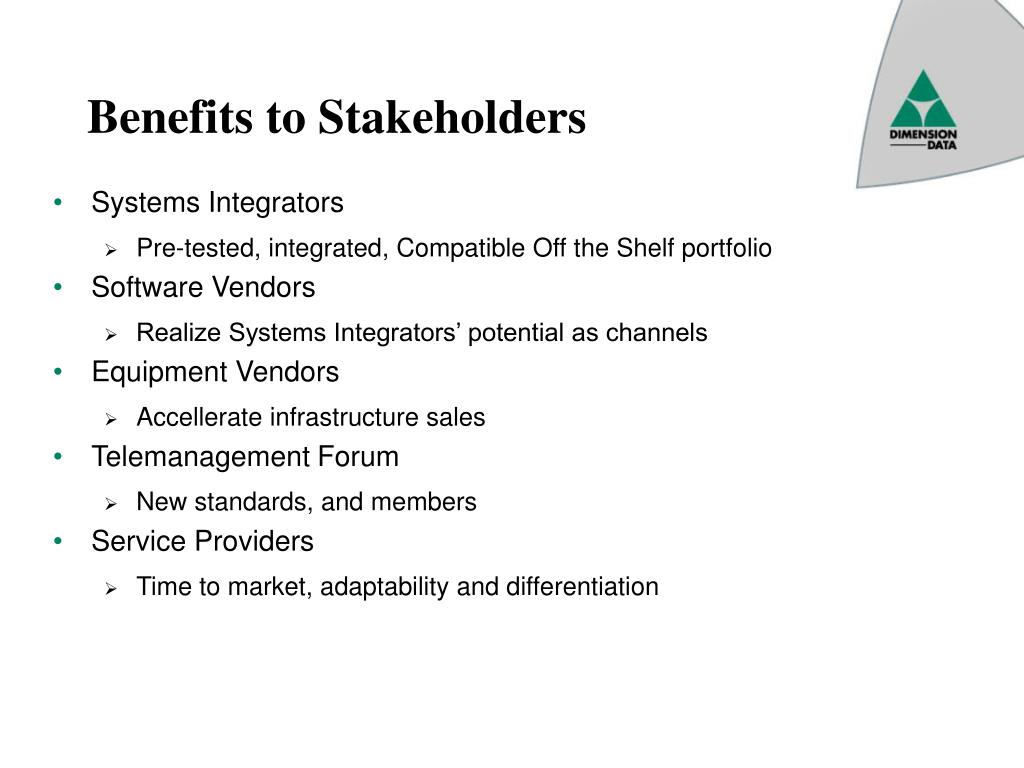

Benefits to Stakeholders
  • Systems Integrators
    • Pre-tested, integrated, Compatible Off the Shelf portfolio
  • Software Vendors
    • Realize Systems Integrators’ potential as channels
  • Equipment Vendors
    • Accellerate infrastructure sales
  • Telemanagement Forum
    • New standards, and members
  • Service Providers
    • Time to market, adaptability and differentiation
plug play ip vpn

Plug & Play IP VPN

A Practical Example

chicago showcase

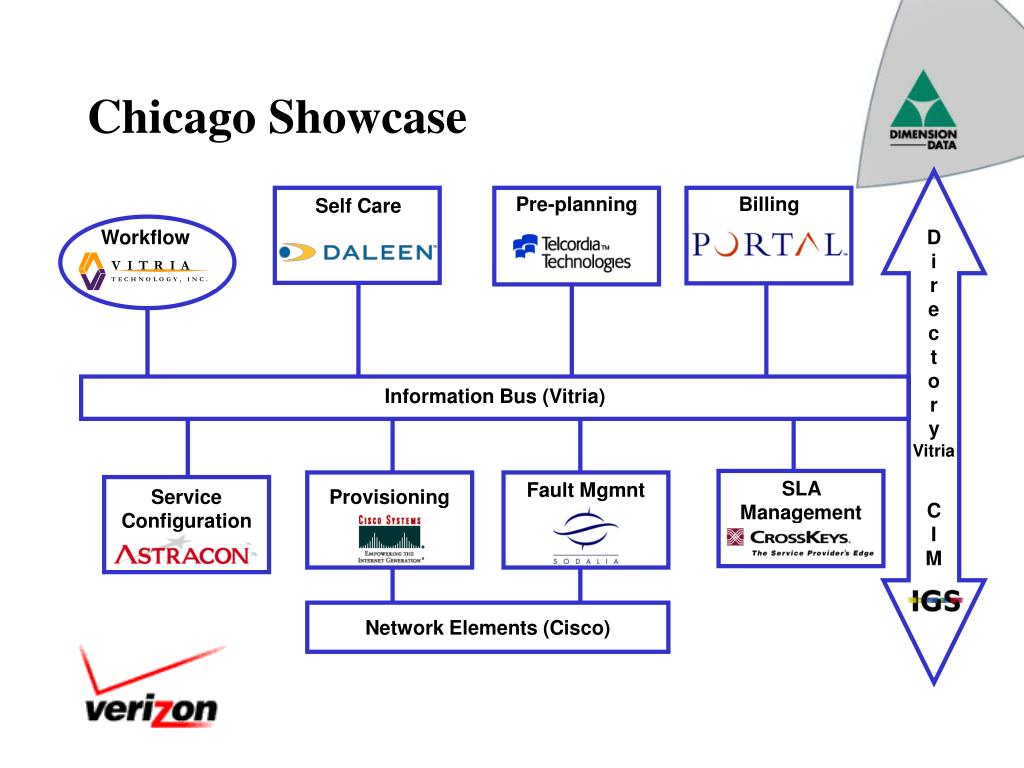

Chicago Showcase

Pre-planning

Billing

Self Care

Workflow

D

i

r

e

c

t

o

r

y

Vitria

C

I

M

Information Bus (Vitria)

SLA Management

Fault Mgmnt

Service Configuration

Provisioning

Network Elements (Cisco)

application of p p principles

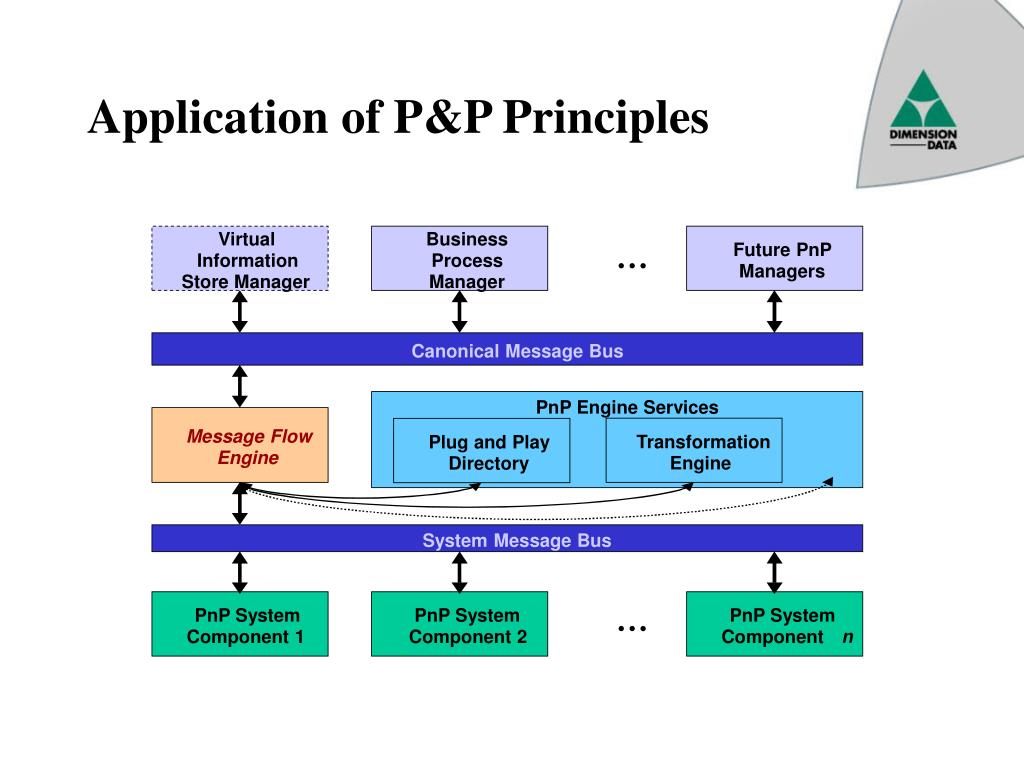

Application of P&P Principles

Virtual

Business

Future PnP

Information

Process

Managers

Store Manager

Manager

Canonical Message Bus

PnP Engine Services

Message Flow

Transformation

Plug and Play

Engine

Engine

Directory

System Message Bus

PnP System

PnP System

PnP System

n

Component 1

Component 2

Component

benefits of solution

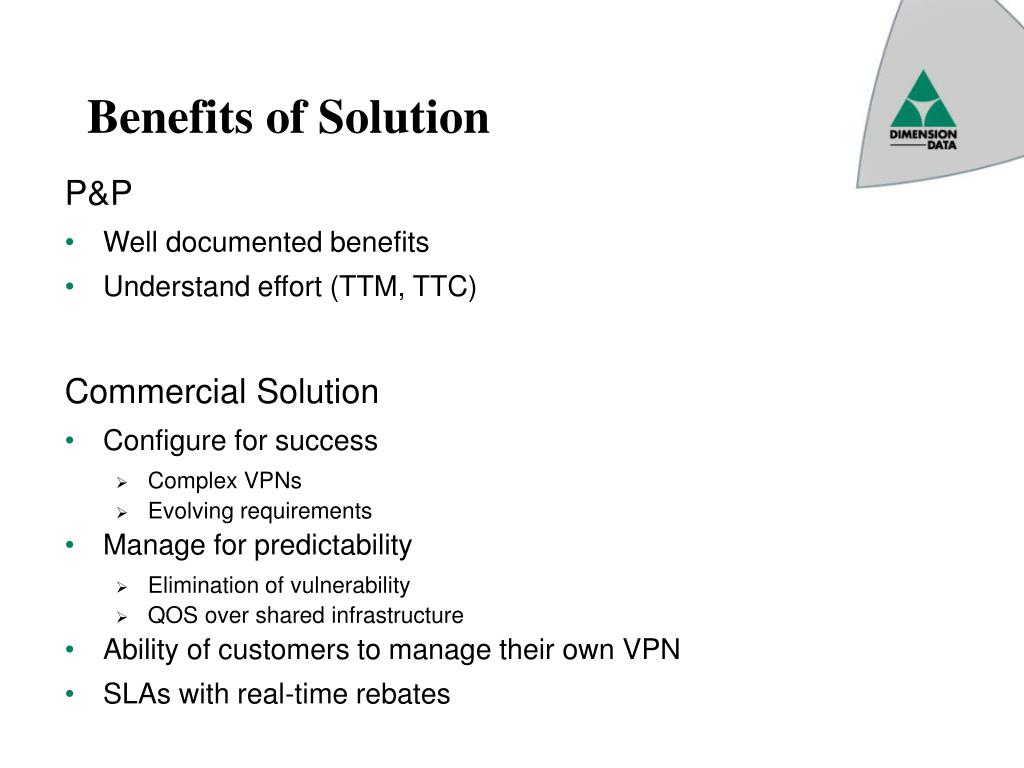

Benefits of Solution

P&P

  • Well documented benefits
  • Understand effort (TTM, TTC)

Commercial Solution

  • Configure for success
    • Complex VPNs
    • Evolving requirements
  • Manage for predictability
    • Elimination of vulnerability
    • QOS over shared infrastructure
  • Ability of customers to manage their own VPN
  • SLAs with real-time rebates
network architecture

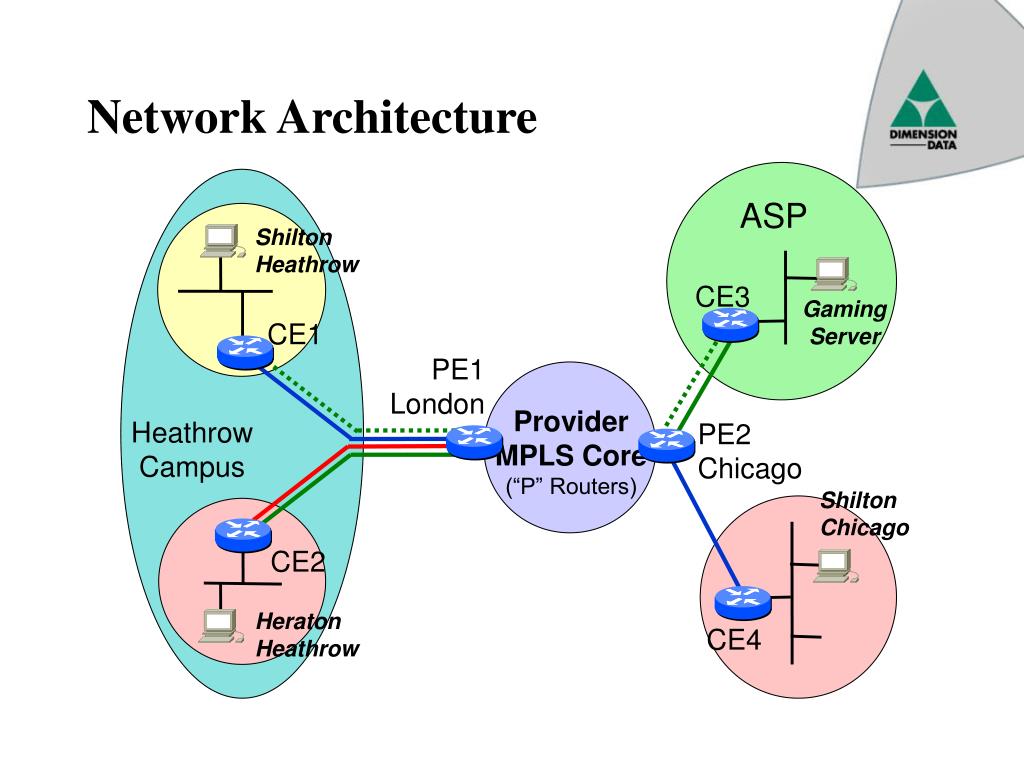

Network Architecture

ASP

ShiltonHeathrow

CE3

Gaming

Server

CE1

PE1

London

Provider

MPLS Core

(“P” Routers)

Heathrow Campus

PE2

Chicago

Shilton

Chicago

CE2

HeratonHeathrow

CE4

slide18

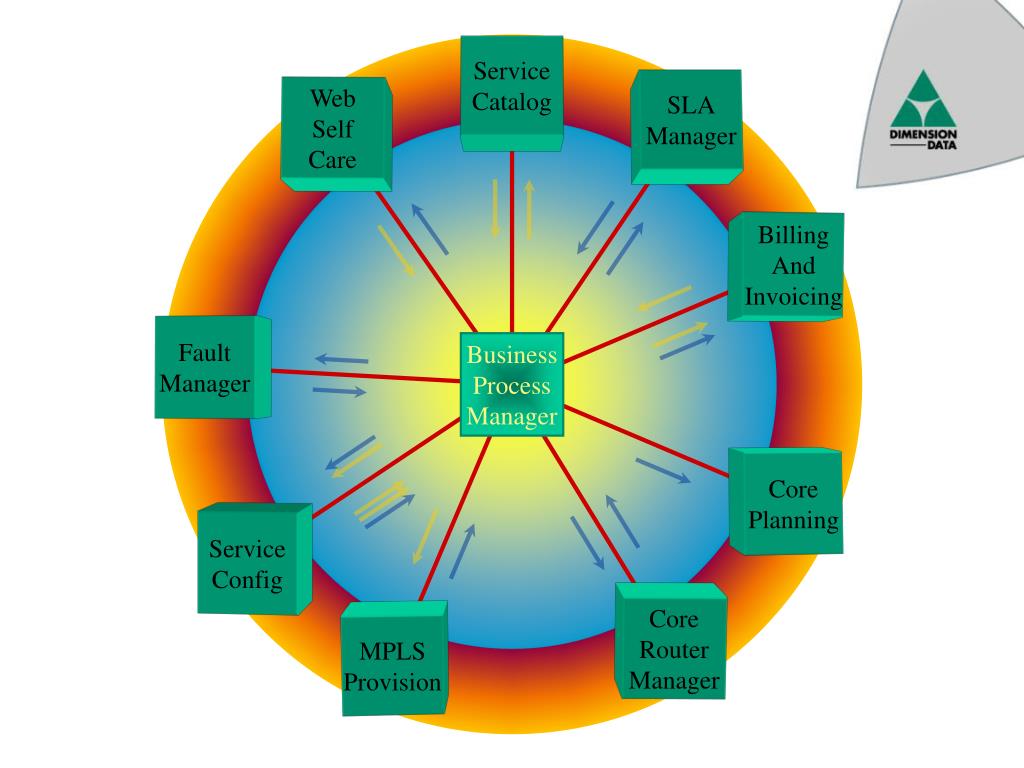

Service

Catalog

SLA

Manager

Web

Self

Care

Billing

And

Invoicing

Fault

Manager

Business

Process

Manager

Core

Planning

Service

Config

Core

Router

Manager

MPLS

Provision

slide20

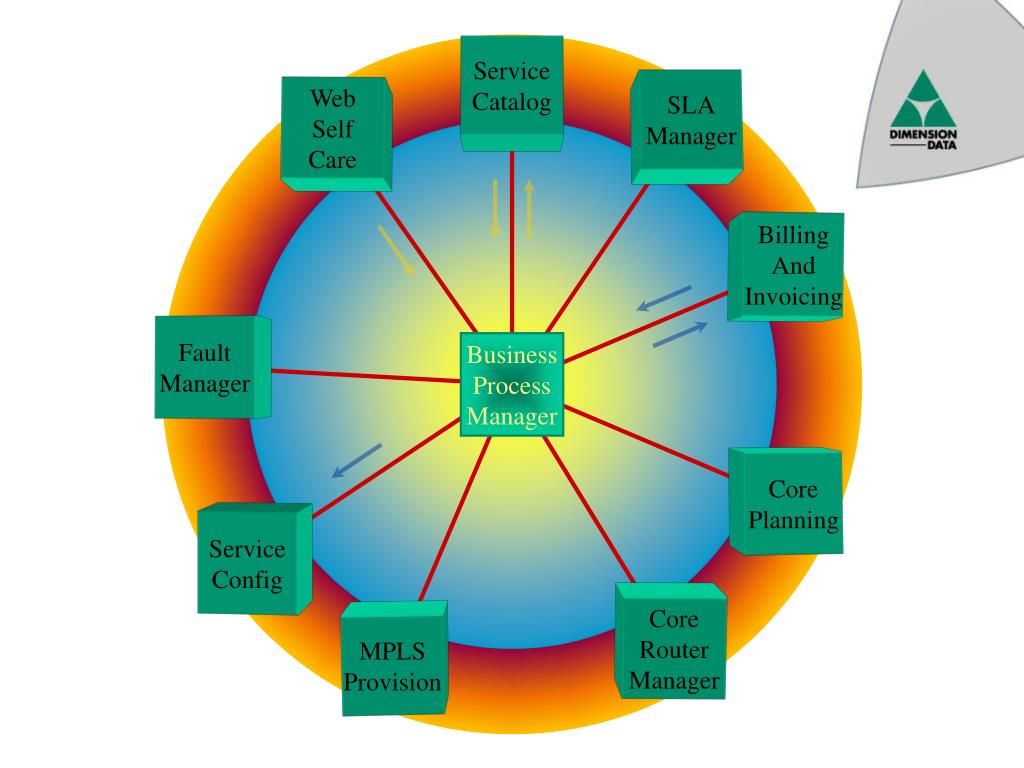

Service

Catalog

SLA

Manager

Web

Self

Care

Billing

And

Invoicing

Fault

Manager

Business

Process

Manager

Core

Planning

Service

Config

Core

Router

Manager

MPLS

Provision

slide22

Service

Catalog

SLA

Manager

Web

Self

Care

Billing

And

Invoicing

Fault

Manager

Business

Process

Manager

Core

Planning

Service

Config

Core

Router

Manager

MPLS

Provision

slide25

Service

Catalog

SLA

Manager

Web

Self

Care

Billing

And

Invoicing

Fault

Manager

Business

Process

Manager

Core

Planning

Service

Config

Core

Router

Manager

MPLS

Provision

plug play

Plug & Play

Results & Future Work

metrics

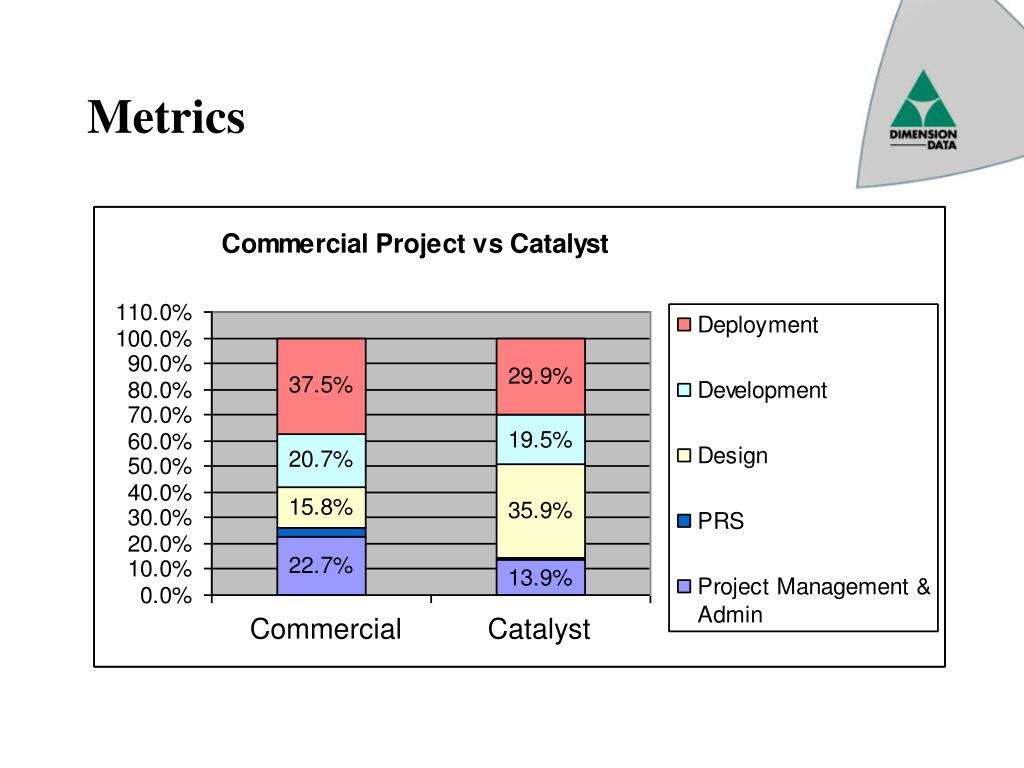

Metrics

Commercial Catalyst

ip vpn phase 2
Commercial Solution: Promote the benefits of a fully integrated, multi-everything provisioning & management solution

P&P: Well documented benefits, Contracts, Metrics, Testability, Scalability, Security

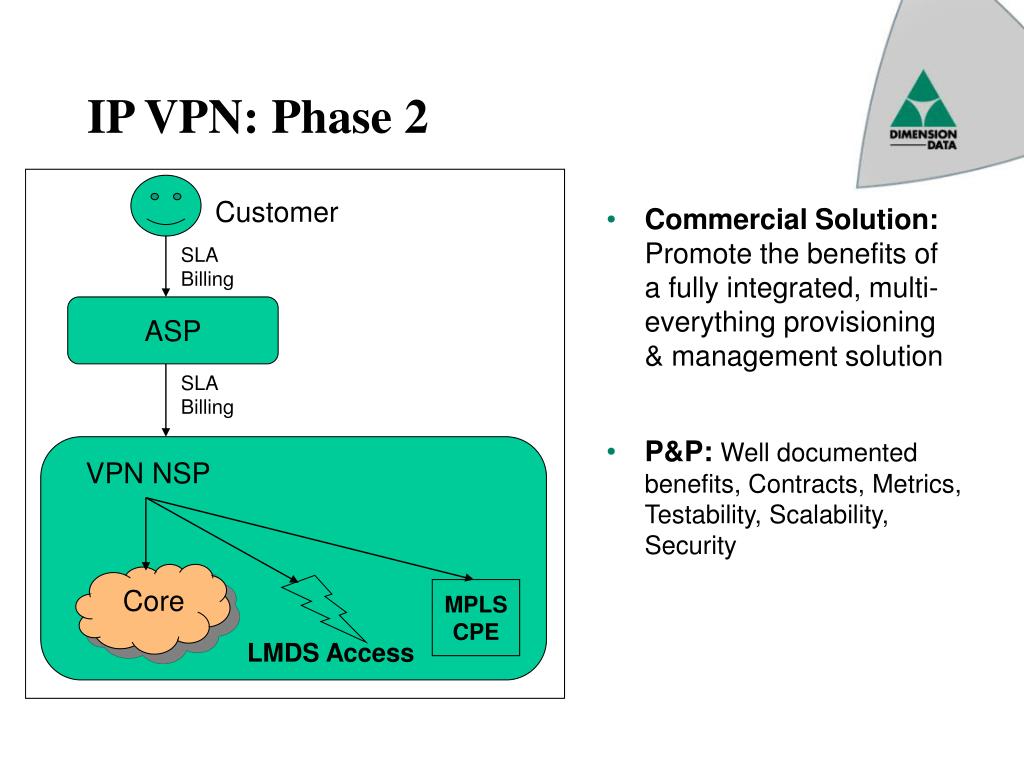

IP VPN: Phase 2

Customer

SLA

Billing

ASP

SLA

Billing

VPN NSP

Core

MPLS

CPE

LMDS Access

slide31

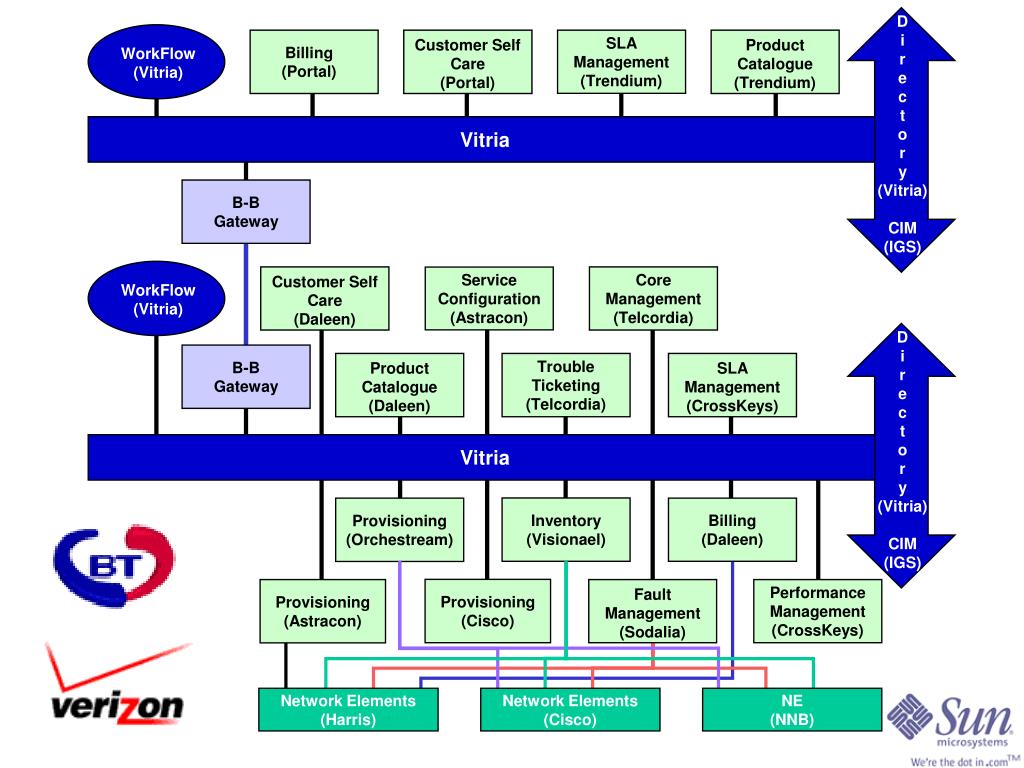

WorkFlow (Vitria)

WorkFlow (Vitria)

Billing

(Portal)

Inventory

(Visionael)

Provisioning (Orchestream)

Performance Management

(CrossKeys)

SLA Management

(Trendium)

Billing

(Daleen)

Provisioning

(Astracon)

Provisioning

(Cisco)

Fault Management

(Sodalia)

D

i

r

e

c

t

o

r

y

(Vitria)

CIM

(IGS)

Customer Self Care

(Portal)

Product Catalogue

(Trendium)

Vitria

B-B

Gateway

Customer Self Care

(Daleen)

Core Management (Telcordia)

Service Configuration (Astracon)

D

i

r

e

c

t

o

r

y

(Vitria)

CIM

(IGS)

B-B

Gateway

Product Catalogue

(Daleen)

Trouble Ticketing (Telcordia)

SLA Management

(CrossKeys)

Vitria

Information Bus

(Vitria)

Network Elements

(Harris)

Network Elements

(Cisco)

NE

(NNB)

network topology

Game Client:

Shilton - Paris

Video Client:

Heraton - Paris

Network Topology

Game Server

London

PE2

PE1

CE2

CE1

P1

P2

CE3

CE4

PE4

PE3

Video Server

Munich

Video Client:

Heraton - Nice

regression testing
Regression Testing

D

i

r

e

c

t

o

r

y

&

CIM

M1

Mn

M3

...

Work

flow

Bus

...

M2

Mn-1

Stubs

scalability

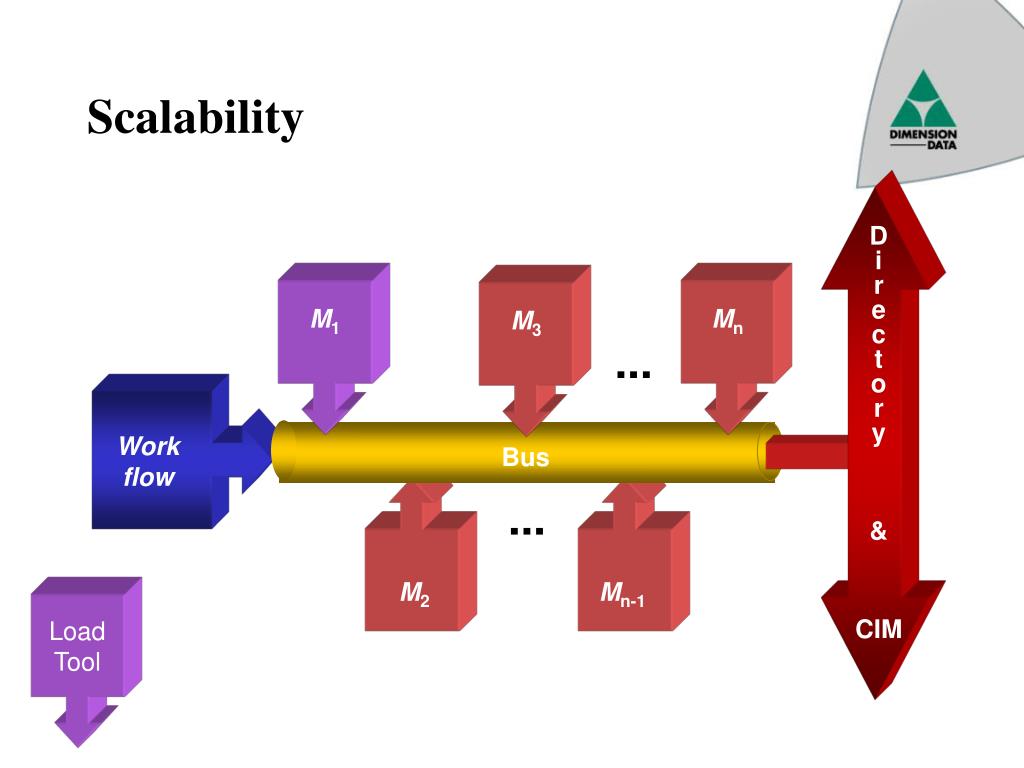

Scalability

D

i

r

e

c

t

o

r

y

&

CIM

M1

Mn

M3

...

Work

flow

Bus

...

M2

Mn-1

Load

Tool

interface to business dashboard

Virtual

Future PnP

Information

Managers

Store Manager

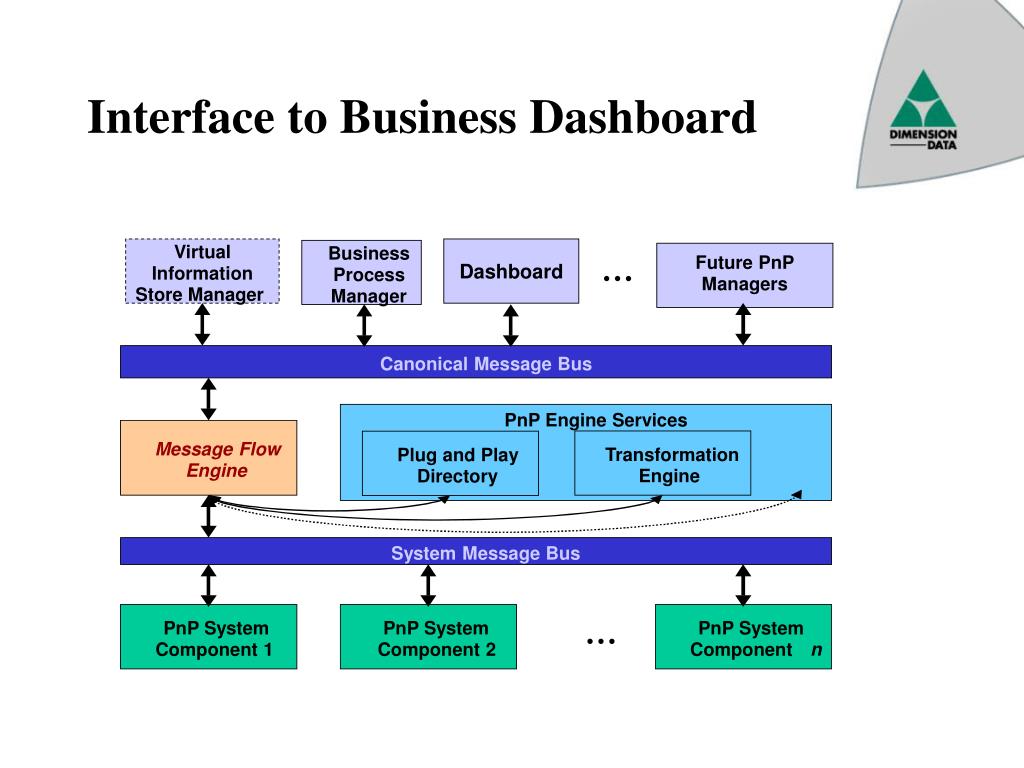

Interface to Business Dashboard

Dashboard

Business

Process

Manager

Canonical Message Bus

PnP Engine Services

Message Flow

Transformation

Plug and Play

Engine

Engine

Directory

System Message Bus

PnP System

PnP System

PnP System

n

Component 1

Component 2

Component

thank you

Thank You!

Craig Levieux

[email protected]

http://www.didata.com/catalyst
