Unit 1 1

Unit 1.1 :

Basic MOS Technology

(Pucknell p:-1-24)

ECEA


Moore s law

Moore’s law

ECEA


Unit 1 1

ECEA


Levels of integration

Levels of Integration:-

i) Small Scale Integration:- (10-100) transistors => Example: Logic gates

ii) Medium Scale Integration:- (100-1000) =>

Example: counters

iii) Large Scale Integration:- (1000-20000) =>

Example:8-bit chip

iv) Very Large Scale Integration:- (20000-1000000) => Example:16 & 32 bit up

v) Ultra Large Scale Integration:- (1000000-10000000) => Example: Special processors, virtual reality machines, smart sensors

ECEA

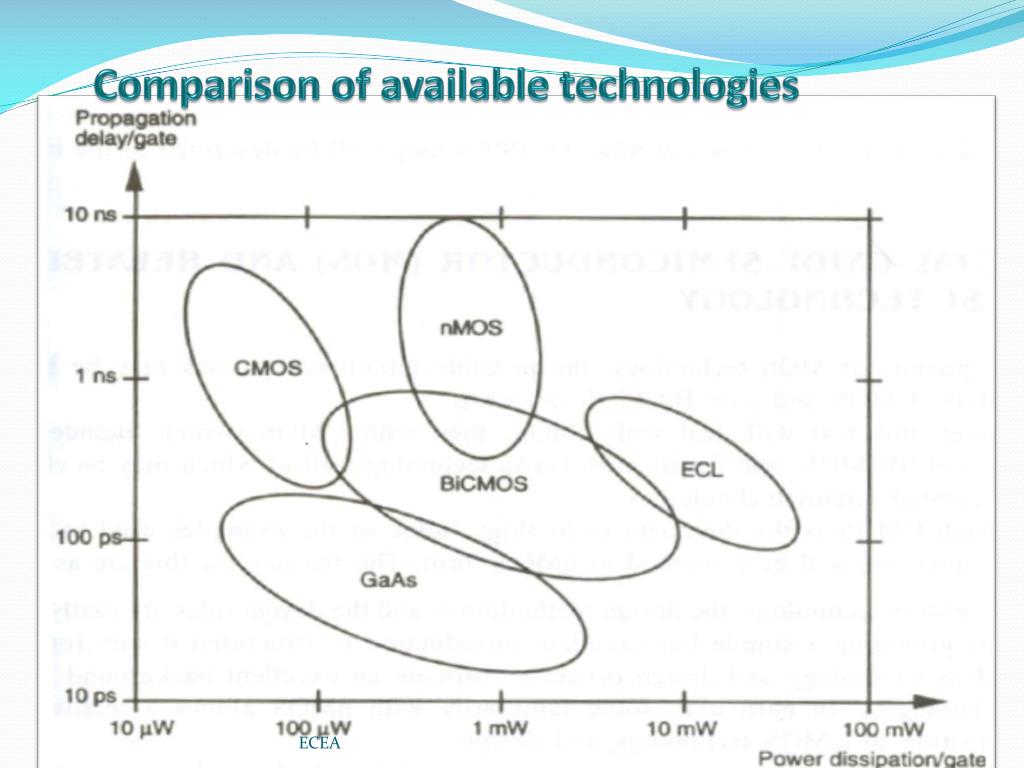

Comparison of available technologies

Comparison of available technologies

ECEA


Basic mos transistors

Basic MOS Transistors

  • We have PMOS and NMOS transistors.

  • They are Enhancement mode and Depletion mode of operation

ECEA


Unit 1 1

  • In Enhancement mode transistor channel is going to form after giving a proper gate voltage.

ECEA


Unit 1 1

  • In Depletion mode transistor channel will be present by the implant. It can be removed by giving a proper negative gate voltage.

ECEA


Enhancement mode transistor action

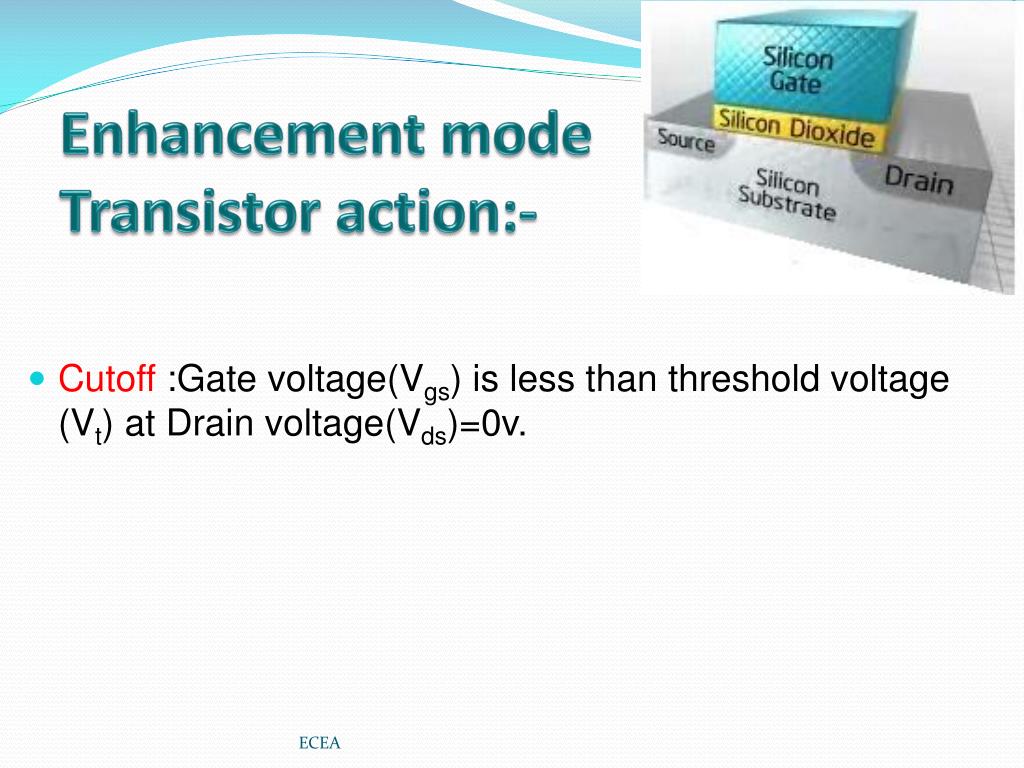

Enhancement mode Transistor action:-

  • Cutoff :Gate voltage(Vgs) is less than threshold voltage (Vt) at Drain voltage(Vds)=0v.

ECEA


Unit 1 1

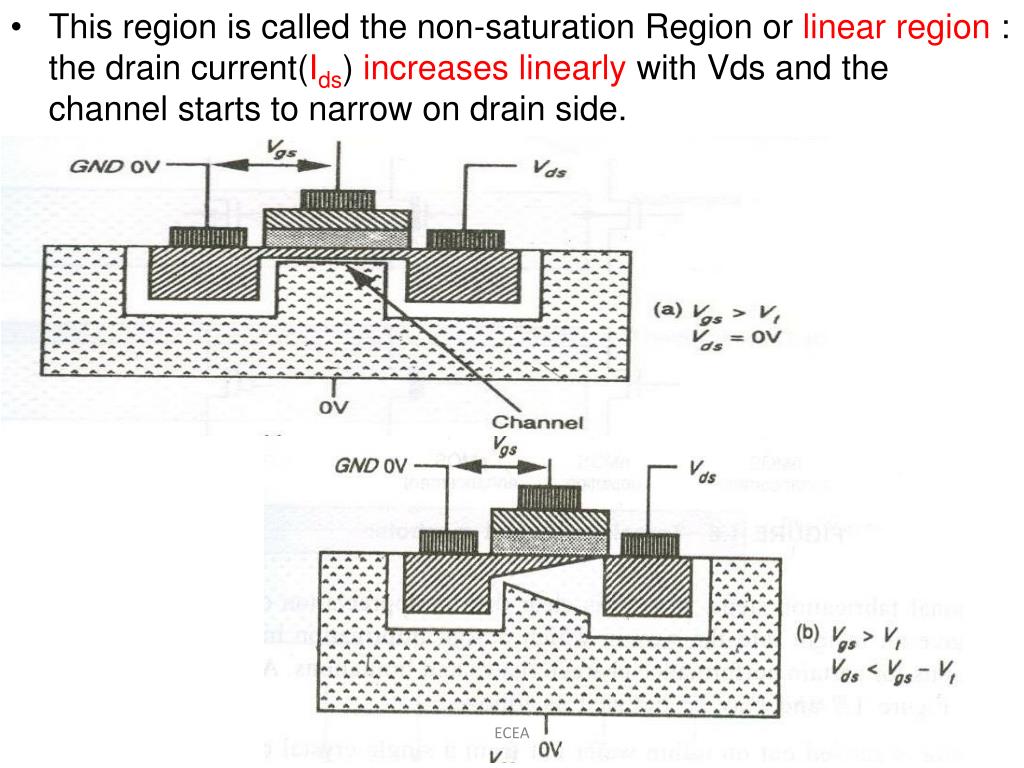

  • This region is called the non-saturation Region or linear region : the drain current(Ids) increases linearly with Vds and the channel starts to narrow on drain side.

ECEA


Unit 1 1

  • Saturation Region: the drain current remains almost constant. (As the drain voltage is increased further beyond (Vgs-Vt) the pinch off point starts to move from the drain end to the source end)

ECEA


Depletion mode transistor action

Depletion mode Transistor action:-

  • Channel is established due to the implant even when

    Vgs = 0 and the channel can be cut off by applying a negative voltage between the gate and source.

ECEA


N mos fabrication process

n-MOS fabrication process

  • Process is carried out on a thin wafer (75 to 150 mm dia, .4mm thick)

    • Doped with boron impurity concentration of 1015/cm3 to make substrate

Substrate

ECEA


N mos fabrication process1

n-MOS fabrication process

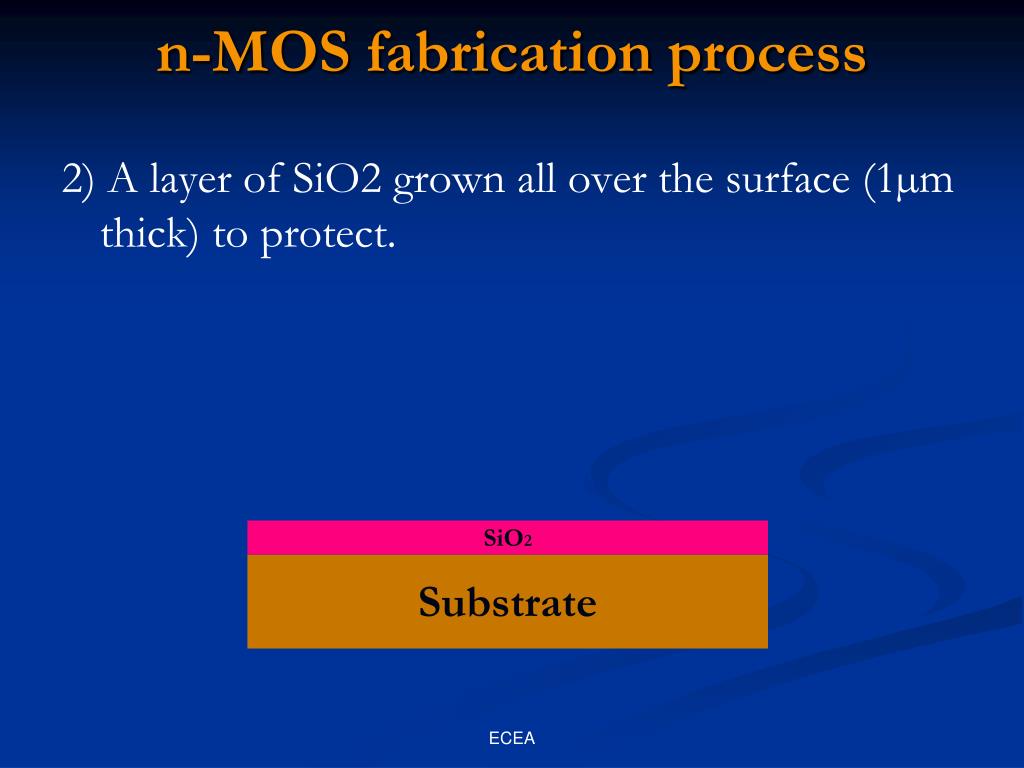

2) A layer of SiO2 grown all over the surface (1µm thick) to protect.

SiO2

Substrate

ECEA


Photolithography

Photolithography

3) Then the oxidized wafer is covered with Photo resist.

Photo-Resist

SiO2

Substrate

ECEA


Photolithography1

Photo-Mask

Photolithography

4) Now the wafer is exposed to UV Light through a photo mask to define regions.

Photo-Resist

SiO2

Substrate

ECEA


Photolithography2

Photolithography

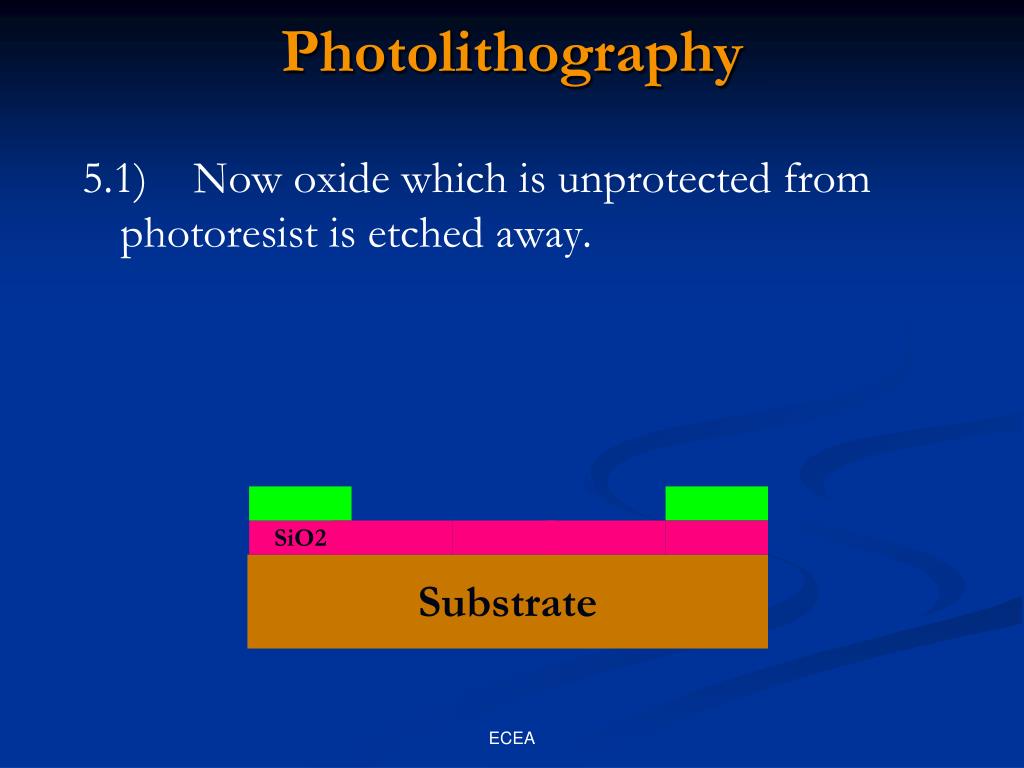

5.1) Now oxide which is unprotected from photoresist is etched away.

SiO2

Substrate

ECEA


Photolithography3

Photolithography

5.2) The rest of the photo resist is removed.

Then the further fabrication process is carried out, say doping.

SiO2

SiO2

Substrate

ECEA


Unit 1 1

Thin layer of SiO2(0.1µm) grown and then polysilicon is deposited on top to form gate structur.

Polysilicon layer consists of heavily doped polysilicondepositd by CVD.

Polysilicon on thin oxid

Poly Si

SiO2

Thinox

Substrate

ECEA


Metallization

Metallization

7) Use mask to remove exposed area into which n-type impurities(phosphorus) are to be diffused to form source and drain.

n

n

SiO2

Poly Si

Thinox

Substrate

ECEA


Metallization1

Metallization

8) Again thinox is grown all over the surface and is then masked to expose selected areas of gate, drain and source to make Contact holes (cut)

n

n

Poly Si

SiO2

Thinox

Substrate

ECEA


Metallization2

Metallization

9) Finally, whole chip is metal deposited over its surface for required interconnection pattern.

n

n

Poly Si

SiO2

Thinox

Substrate

ECEA


Cmos fabrication

CMOS fabrication

  • When we need to fabricate both nMOS and pMOStransistors on the same substrate we need to follow different processes.

  • The three different processes are , P-well process ,N-well process and Twin tub process.

ECEA


P well process

P-well process

  • Mask sequence.

  • Mask 1: Defines the areas in which the deep p-well diffusion takes place.

  • Mask 2: Defines the thin oxide region (where the thick oxide is to be removed or stripped and thin oxide grown)

  • Mask 3: It’s used to pattern the polysilicon layer which is deposited after thin oxide.

ECEA


Unit 1 1

  • Mask 4: A p+ mask (anded with mask 2) to define areas where p-diffusion is to take place.

  • Mask 5: We are using the –ve form of mask 4 (p+ mask) It defines where n-diffusion is to take place.

ECEA


Unit 1 1

  • Mask 6: Contact cuts are defined using this mask.

  • Mask 7: The metal layer pattern is defined by this mask.

  • Mask 8: An overall passivation (overglass) is now applied and it also defines openings for accessing pads.

ECEA

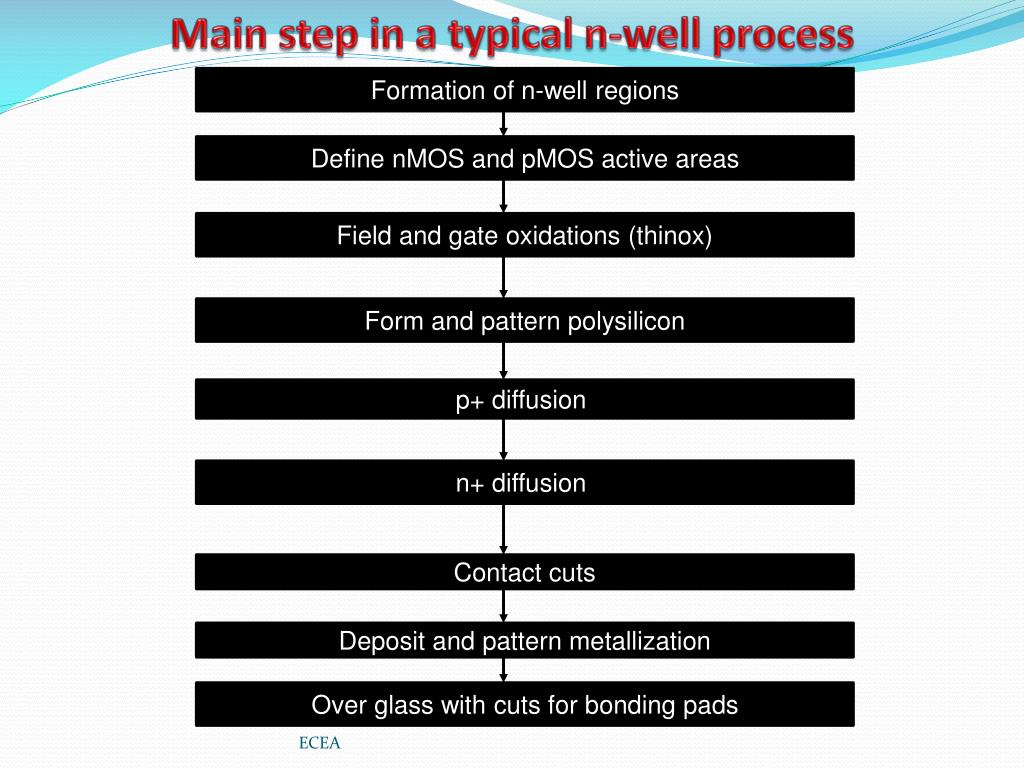

Main step in a typical n well process

Define nMOS and pMOS active areas

Field and gate oxidations (thinox)

Form and pattern polysilicon

p+ diffusion

n+ diffusion

Contact cuts

Deposit and pattern metallization

Over glass with cuts for bonding pads

Formation of n-well regions

Main step in a typical n-well process

ECEA


N well cmos

n-Well CMOS

ECEA

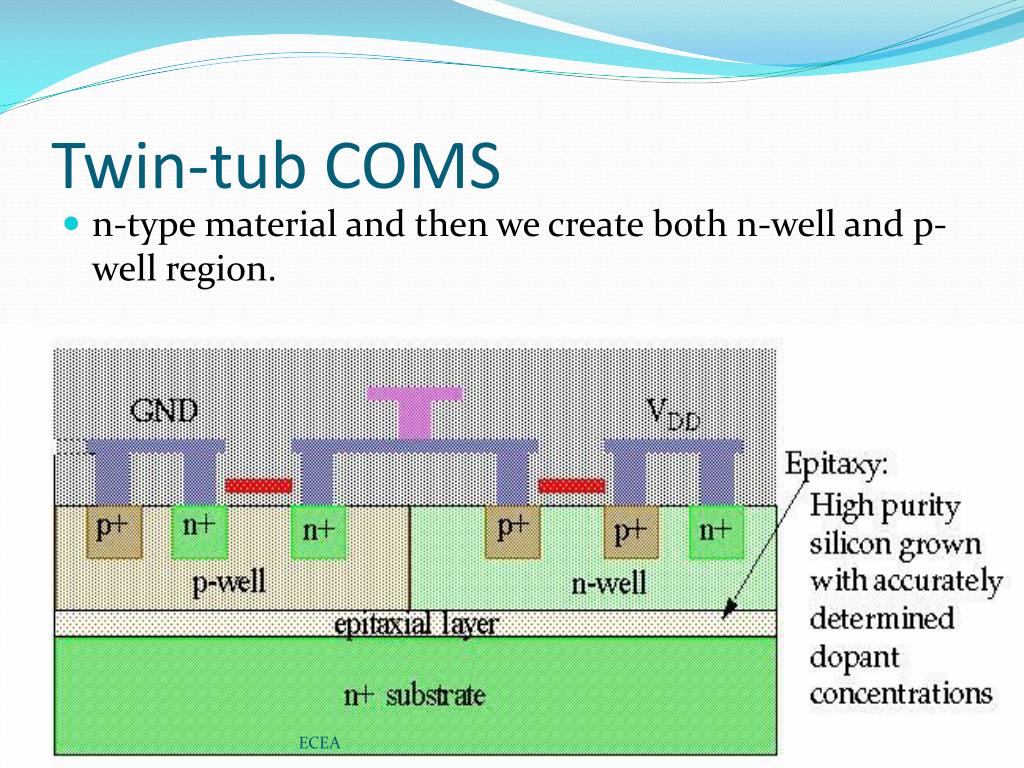

Twin tub coms

Twin-tub COMS

  • n-type material and then we create both n-well and p-well region.

ECEA


Bi cmos

Bi-CMOS

  • Driving capability of MOS transistors is less

  • Bi-Cmos technology capable to drive large capacitive loads.

ECEA


Bi cmos1

Bi-CMOS

The npn transistor is formed an n-well & the additional p+ base region is located in the well to form the p-base region of the transistor. The second additional layer, the buriedn+subcollector(BCCD) is added to reduce the n-well (collector) resistance & thus improve the quality of the bipolar transistor.

ECEA


Comparison between cmos and bipolar technologies

Comparison between CMOS and Bipolar technologies

CMOS Bipolar technologies

  • Low static power dissipation

  • High input impedance

  • Scalable threshold voltage

  • High noise margin

  • High packing density

  • High delay sensitivity to load

  • Low output drive current

  • Low gm

  • Bidirectional capability

  • A near ideal switching device

  • High power dissipation

  • Low input impedance

  • Low voltage swing logic

  • Low packing density

  • Low delay sensitivity to load

  • High output drive current

  • High gm

  • Essentially unidirectional

ECEA


Cost versus delay graph

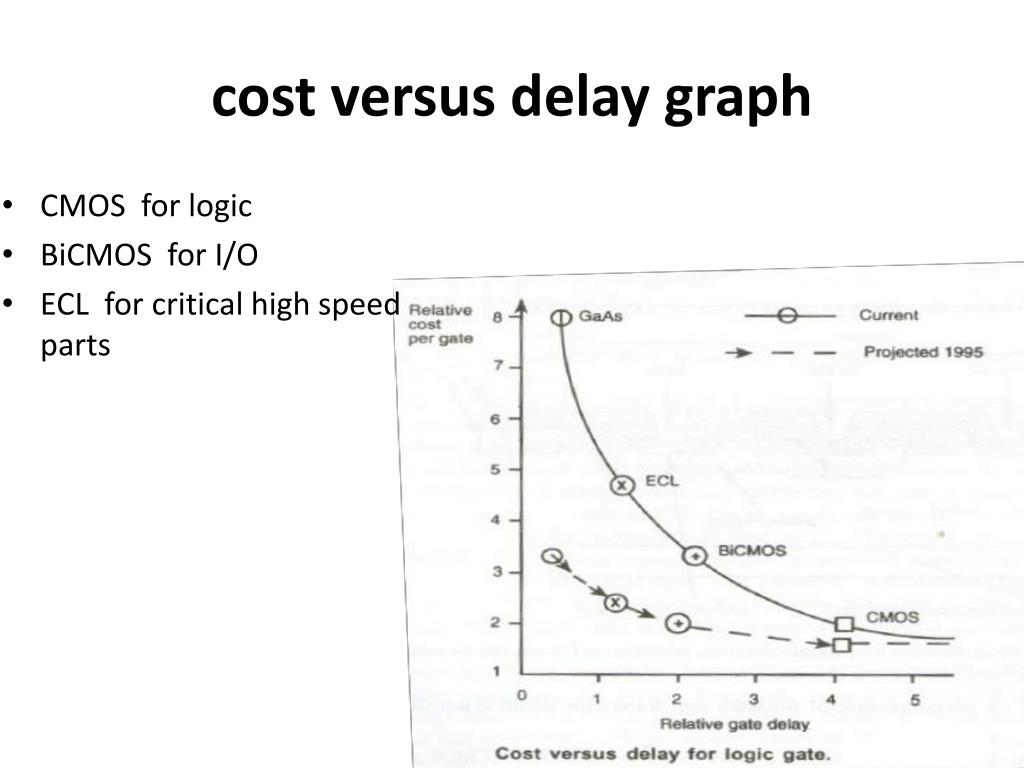

cost versus delay graph

  • CMOS for logic

  • BiCMOS for I/O

  • ECL for critical high speed parts

ECEA


Production of e beam masks

Production of e-beam masks:

  • The steps in production of e-beam masks.

  • Starting materials is chromium coated glass plates which are coated with e-beam sensitive resist.

  • E-beam machine is loaded with the mask description data.

  • Plates are loaded into e-beam machine, where they are exposed with the patterns specified by mask description data.

ECEA


Unit 1 1

  • After exposure to e-beam, plates are introduced into developer to bring out patterns.

  • The cycle is followed by a bake cycle which removes resist residue.

  • The chrome is then etched and plate is stripped of the remaining e-beam resist.

ECEA


Unit 1 1

  • Their are two types of scanning, Raster scanning and vector scanning to map the pattern on to the mask.

  • In raster type, e-beam scans all possible locations and a bit map is used to turn the ebeam on and off, depending on whether the particular location being scanned is to be exposed or not.

  • In vector type, beam is directed only to those location which are to be exposed.

ECEA


Advantages e beam masks

Advantages e-beam masks:

  • Tighter layer to layer registration;

  • Small feature sizes
