Pipe file

제32강 : pipe file

pipe file


Grep who

grep | who

write_count

0

Data

PIPSIZ

read_count

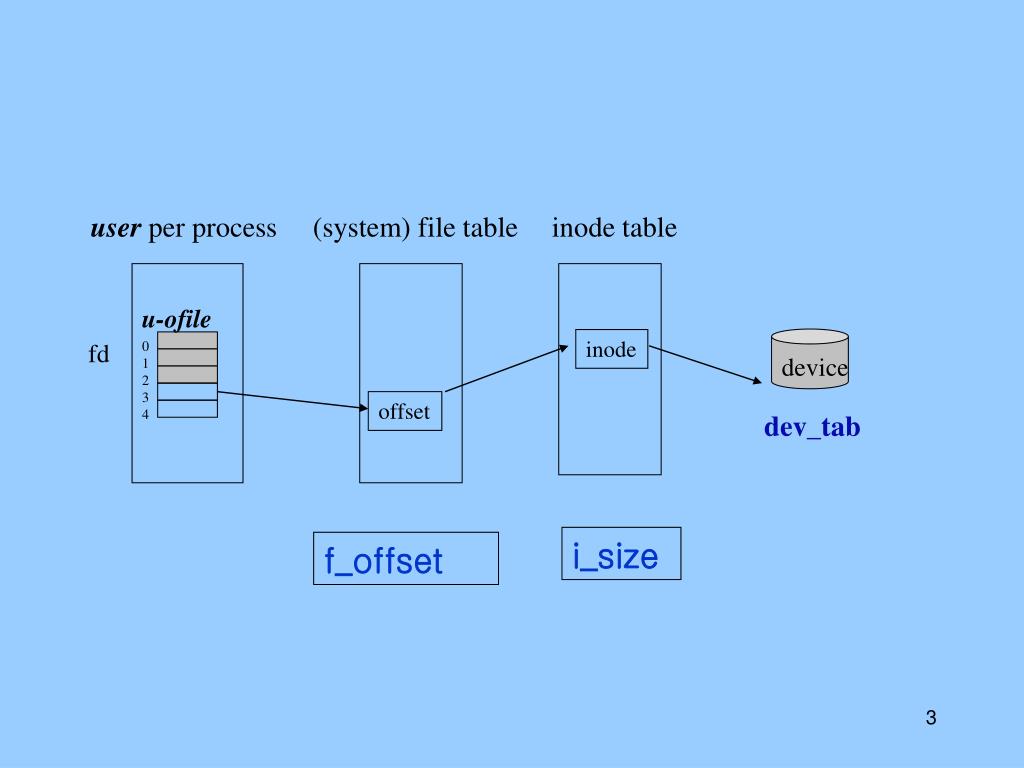

Pipe file

userper process

(system) file table

inode table

u-ofile

inode

fd

0

1

2

3

4

device

offset

dev_tab

i_size

f_offset

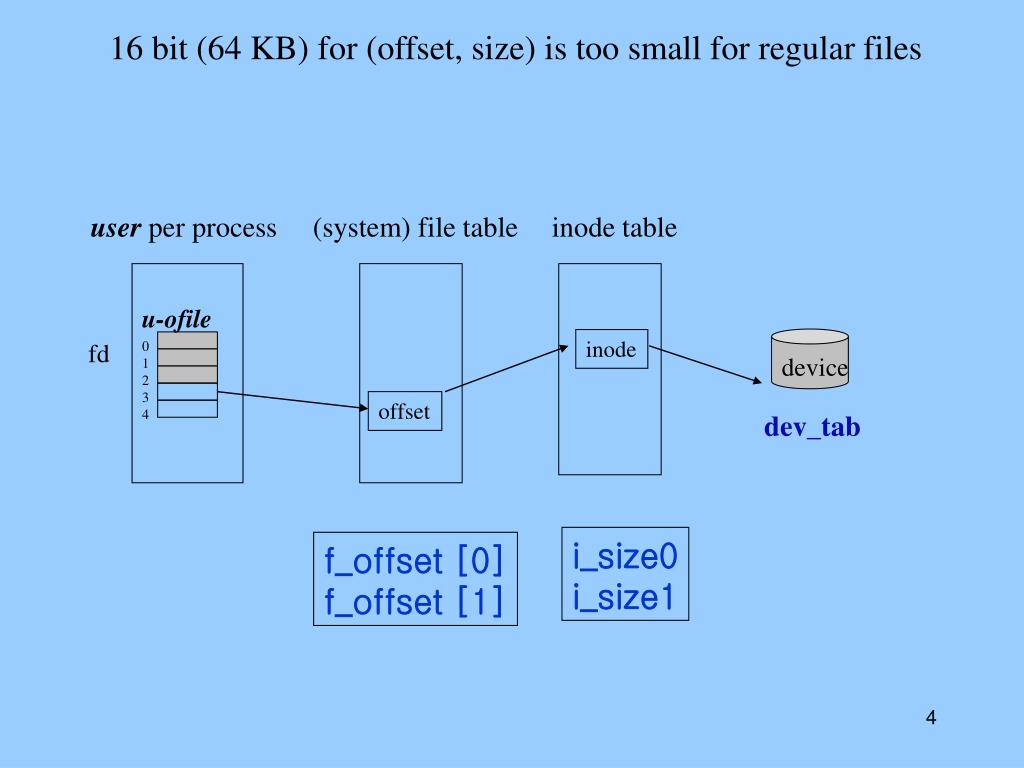

Pipe file

16 bit (64 KB) for (offset, size) is too small for regular files

userper process

(system) file table

inode table

u-ofile

inode

fd

0

1

2

3

4

device

offset

dev_tab

i_size0

i_size1

f_offset [0]

f_offset [1]


Pipe file

16 bit (64 KB) for (offset, size) is too small for regular files

But 16 bit is enough for pipe file (size, offset)

Use 2nd word for other purpose

userper process

(system) file table

inode table

u-ofile

inode

fd

0

1

2

3

4

Pipe file

4096 Bytes

offset

PIPSIZ

(7846, 7715)

i_size0

i_size1

f_offset [0]

f_offset [1]

write count

read_count

(count MOD PIPSIZ)

(count MOD PIPSIZ)


Pipe file

7758: readp(fp)

7759: int *fp;

7760: {

7761: register *rp, *ip;

7763: rp = fp;

7764: ip = rp->f_inode;

7765: loop:

7768: plock(ip);

7772: if(rp->f_offset[1] == ip->i_size1) {

7773: if(rp->f_offset[1] != 0) {

7774: rp->f_offset[1] = 0;

7775: ip->i_size1 = 0;

7776: if(ip->i_mode&IWRITE) {

7777: ip->i_mode =& ~IWRITE;

7778: wakeup(ip+1);

7779: }

7780: }

7781:

7786: prele(ip);

7787: if(ip->i_count < 2)

7788: return;

7789: ip->i_mode =| IREAD;

7790: sleep(ip+2, PPIPE);

7791: goto loop;

7792: }

7795: u.u_offset[0] = 0;

7796: u.u_offset[1] = rp->f_offset[1];

7797: readi(ip);

7798: rp->f_offset[1] = u.u_offset[1];

7799: prele(ip);

7800: }

7805: writep(fp)

7806: {

7807: register *rp, *ip, c;

7809: rp = fp;

7810: ip = rp->f_inode;

7811: c = u.u_count;

7812: loop:

7815: plock(ip);

7816: if(c == 0) {

7817: prele(ip);

7818: u.u_count = 0;

7819: return;

7820: }

7825: if(ip->i_count < 2) {

7826: prele(ip);

7827: u.u_error = EPIPE;

7828: psignal(u.u_procp, SIGPIPE);

7829: return;

7830: }

7835: if(ip->i_size1 == PIPSIZ) {

7836: ip->i_mode =| IWRITE;

7837: prele(ip);

7838: sleep(ip+1, PPIPE);

7839: goto loop;

7840: }

7844: u.u_offset[0] = 0;

7845: u.u_offset[1] = ip->i_size1;

7846: u.u_count = min(c, PIPSIZ-u.u_offset[1]);

7847: c =- u.u_count;

7848: writei(ip);

7849: prele(ip);

7850: if(ip->i_mode&IREAD) {

7851: ip->i_mode =& ~IREAD;

7852: wakeup(ip+2);

7853: }

7854: goto loop;

7855: }


Pipe file

write_count

i_size1

0

Data

PIPSIZ

read_count

f_offset[1]

Also alternate use of i_mode :

i_mode = IWRITE (writer is blocked) or IREAD(reader is blocked)

i_size1: Write Counter

f_offset[1]: Read Counter

i_mode: Lock pipe file

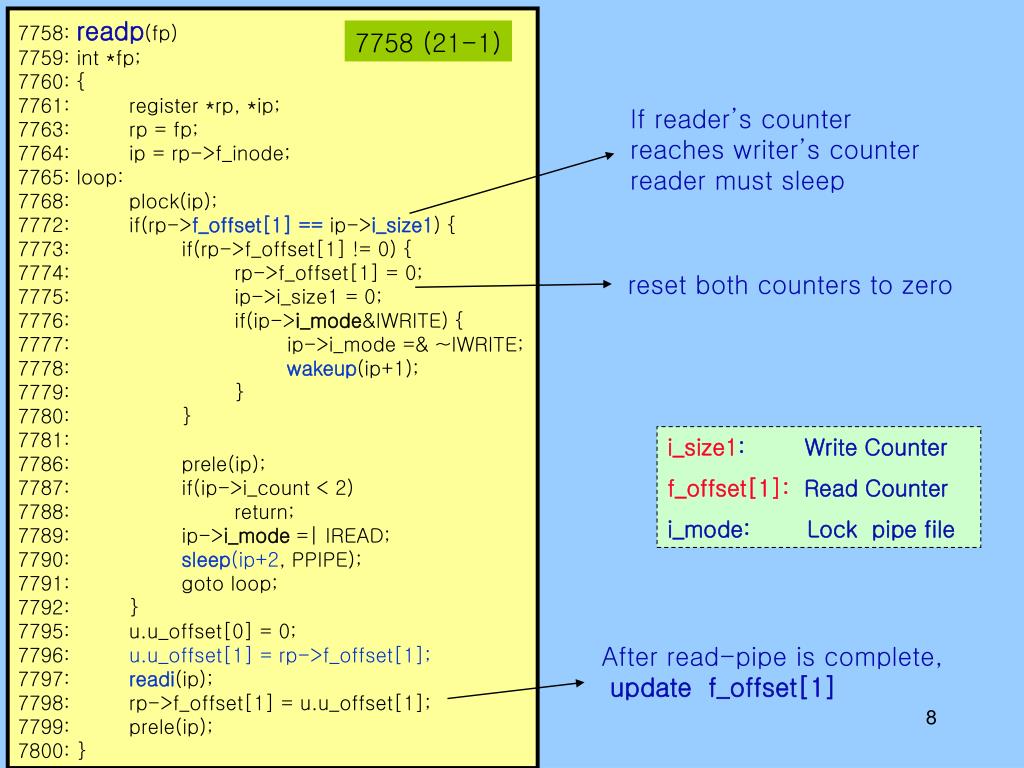

Pipe file

7758: readp(fp)

7759: int *fp;

7760: {

7761: register *rp, *ip;

7763: rp = fp;

7764: ip = rp->f_inode;

7765: loop:

7768: plock(ip);

7772: if(rp->f_offset[1] == ip->i_size1) {

7773: if(rp->f_offset[1] != 0) {

7774: rp->f_offset[1] = 0;

7775: ip->i_size1 = 0;

7776: if(ip->i_mode&IWRITE) {

7777: ip->i_mode =& ~IWRITE;

7778: wakeup(ip+1);

7779: }

7780: }

7781:

7786: prele(ip);

7787: if(ip->i_count < 2)

7788: return;

7789: ip->i_mode =| IREAD;

7790: sleep(ip+2, PPIPE);

7791: goto loop;

7792: }

7795: u.u_offset[0] = 0;

7796: u.u_offset[1] = rp->f_offset[1];

7797: readi(ip);

7798: rp->f_offset[1] = u.u_offset[1];

7799: prele(ip);

7800: }

7758 (21-1)

If reader’s counter

reaches writer’s counter

reader must sleep

reset both counters to zero

i_size1: Write Counter

f_offset[1]: Read Counter

i_mode: Lock pipe file

After read-pipe is complete,

update f_offset[1]


Pipe file

7805: writep(fp)

7806: {

7807: register *rp, *ip, c;

7809: rp = fp;

7810: ip = rp->f_inode;

7811: c = u.u_count;

7812: loop:

7815: plock(ip);

7816: if(c == 0) {

7817: prele(ip);

7818: u.u_count = 0;

7819: return;

7820: }

7825: if(ip->i_count < 2) {

7826: prele(ip);

7827: u.u_error = EPIPE;

7828: psignal(u.u_procp, SIGPIPE);

7829: return;

7830: }

7835: if(ip->i_size1 == PIPSIZ) {

7836: ip->i_mode =| IWRITE;

7837: prele(ip);

7838: sleep(ip+1, PPIPE);

7839: goto loop;

7840: }

7844: u.u_offset[0] = 0;

7845: u.u_offset[1] = ip->i_size1;

7846: u.u_count = min(c, PIPSIZ-u.u_offset[1]);

7847: c =- u.u_count;

7848: writei(ip);

7849: prele(ip);

7850: if(ip->i_mode&IREAD) {

7851: ip->i_mode =& ~IREAD;

7852: wakeup(ip+2);

7853: }

7854: goto loop;

7855: }

7800 (21-1)

i_size1: Write Counter

f_offset[1]: Read Counter

i_mode: Lock pipe file

If writer’s counter

reaches max (pipe size)

writer must sleep

( PIPSIZ – i_size1)

PIPSIZ

Data

c= u.u_count

/* amount of data */

After write-to-pipe is complete,

writei() updates the size of pipe file

 writei() updates i_size1


Pipe file

IPC

  • Group of system calls (kernel service)

    for data exchange synchronization

    between different processes

  • Here, for pipe IPC – kernel support:

    • moved data between processes

    • Synchronized processes (block/wakeup)

  • Other IPC examples

    • pipesocketsignal….

  • Why so many?

    • Varying data size, synchronization requirements

    • (such as frequency, speed …..)
