  1. Persistency Framework Newsfor ATLAS Andrea Valassi (IT-ES) For the Persistency Framework team ATLAS Database Meeting, 18th July 2011

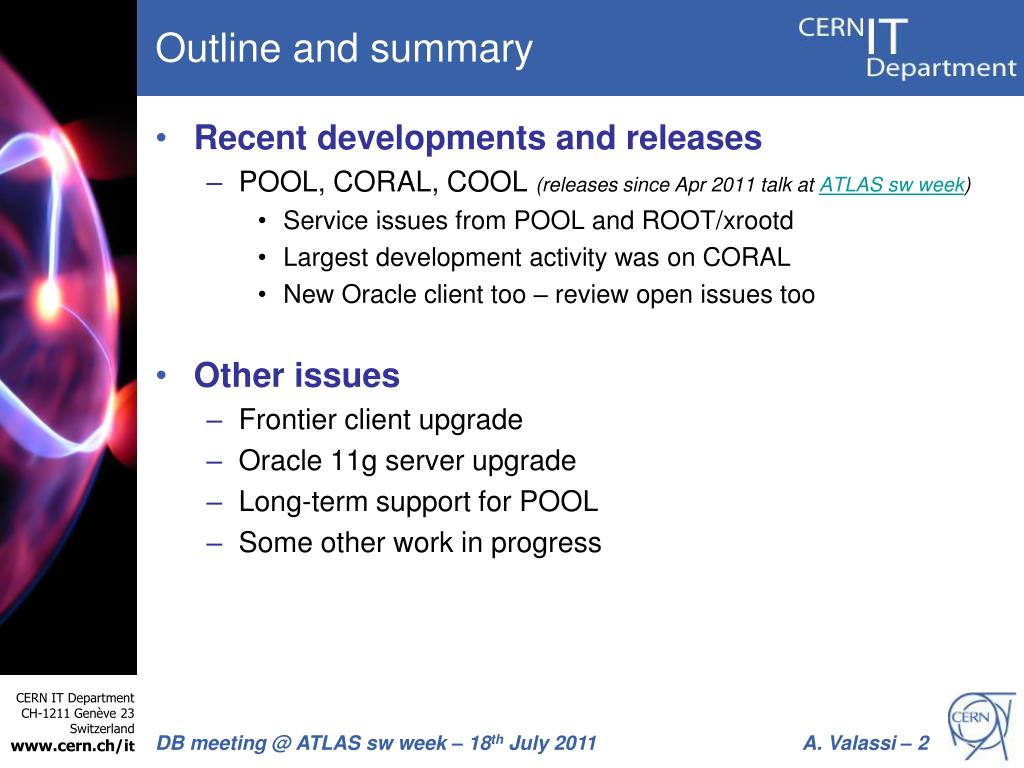

  2. Outline and summary • Recent developments and releases • POOL, CORAL, COOL (releases since Apr 2011 talk at ATLAS sw week) • Service issues from POOL and ROOT/xrootd • Largest development activity was on CORAL • New Oracle client too – review open issues too • Other issues • Frontier client upgrade • Oracle 11g server upgrade • Long-term support for POOL • Some other work in progress

  3. ATLAS 16.6.7 (June 2011) • Main motivation: urgent bug fix in ROOT (xrootd client) • Upgrade to ROOT 5.26.00f • Avoid Kerberos request flood from the xrootd client (bug #82793) • The main patch, which was already in ROOT 5.28 (LCG 60 series), was backported from 5.28 to 5.26.00f • POOL 2.9.11, CORAL 2.3.14, COOL 2.8.8 • Same as in LCG 59b (no rebuild) • Original plan was LCG 59c, finally handled internally in ATLAS 16.6.7 • Kerberos service (KDC) was flooded with kinit-like requests • Initially reported for a POOL utility (pool_extractFileIdentifier) called by users of ATLAS 16.6.5 – soon tracked down to xrootd client • Soon observed also from direct xrdcp (only ROOT, no POOL) • Still unclear what changed to trigger the issue (new usage pattern?) • ROOT client upgrade eventually removed the KDC server flood • But client jobs with new ROOT occasionally failed until a server-side workaround was also applied in the xrootd redirector • Combination of xrootd bug with a bug in the SLC5 Kerberos library To all ATLAS 16.x users : please use (or at least asetup) 16.6.7

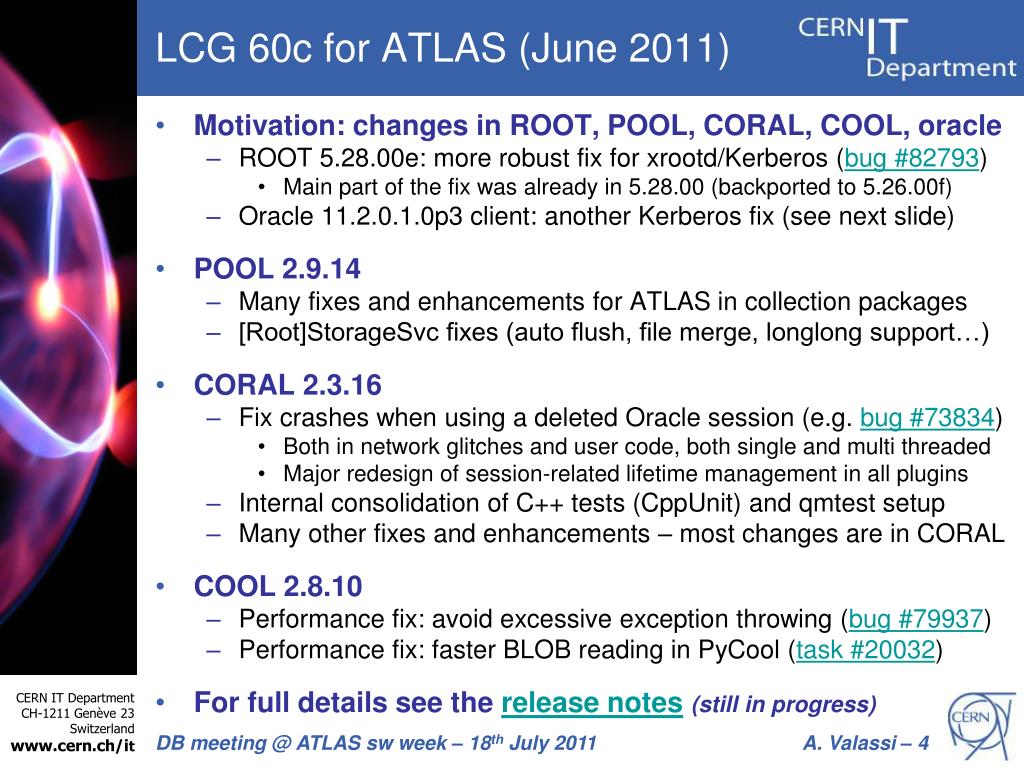

  4. LCG 60c for ATLAS (June 2011) • Motivation: changes in ROOT, POOL, CORAL, COOL, oracle • ROOT 5.28.00e: more robust fix for xrootd/Kerberos (bug #82793) • Main part of the fix was already in 5.28.00 (backported to 5.26.00f) • Oracle 11.2.0.1.0p3 client: another Kerberos fix (see next slide) • POOL 2.9.14 • Many fixes and enhancements for ATLAS in collection packages • [Root]StorageSvc fixes (auto flush, file merge, longlong support…) • CORAL 2.3.16 • Fix crashes when using a deleted Oracle session (e.g. bug #73834) • Both in network glitches and user code, both single and multi threaded • Major redesign of session-related lifetime management in all plugins • Internal consolidation of C++ tests (CppUnit) and qmtest setup • Many other fixes and enhancements – most changes are in CORAL • COOL 2.8.10 • Performance fix: avoid excessive exception throwing (bug #79937) • Performance fix: faster BLOB reading in PyCool (task #20032) • For full details see the release notes(still in progress)

  5. Oracle client – three open issues • Oracle client redefines gssapi symbols (bug #71416) • SR 3-1977807081 – gssapi in libclntsh.so conflicts with libgssapi_krb5.so • Suggested that Oracle use versioned symbols (Oracle bug 10184681) • No workaround needed so far (problem not yet seen in production…) • Similar to bug in Globus that also redefines gssapi symbols (bug #70641) • Workaround: disabled gssapi from Xerces (used by CORAL) • Now fixed in 2011 EMI release – upgrade Grid middleware clients eventually? • Oracle client redefines kerberos symbols (bug #76988) • SR 3-3620145421 – krb5 symbols in libclntsh.so conflict with libkrb5.so • Suggested that Oracle use versioned symbols (Oracle bug 12557209) • Workaround in Oracle 11.2.0.1.0p3 client: fix kerberos in custom sqlnet.ora • New in LCG60c (see previous slide) • Crash in OCIStmtRelease outside session (bug #83601) • SR 3-3905928071 – crash in OCIStmtRelease after closing the session • Suggested that Oracle fails with error but no crash (Oracle bug 12733000) • Workaround in CORAL (do not call OCIStmtRelease outside session), but this may potentially lead to client memory leaks and server resource leaks? • Same crash (same stack dump) outside transaction • SR 3-1360883521 – crash in OCIStmtRelease after closing the transaction • Workaround in CORAL (add missing OCI call) with no negative side effects

  6. Frontier client upgrade • New 2.8.2 client available while releasing LCG60c • Main motivation: performance improvements (bug #84067) • Interleave decompression with socket reading and XML processing • It was too late to include it in the LCG60c release (there was no time for proper testing and validation) • LCG60c uses the 2.8.0 client (the same as in LCG60b) • Functional bugs in 2.8.2 were identified in CMS soon after the release: it was a good choice not to include it in a rush! • New 2.8.3 client now available with bug fixes • Still being built/installed in the AFS area • Will then be tested in the nightlies • Can then include it in a new LCG release or ATLAS patch • Not yet clear if a CORAL rebuild is necessary

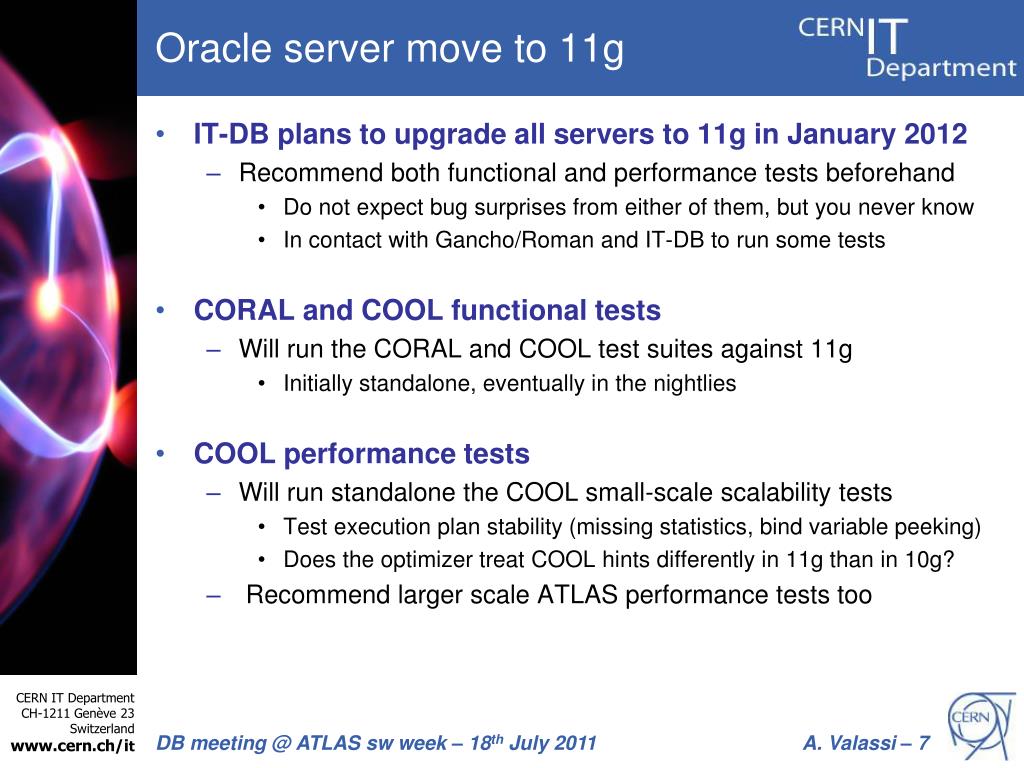

  7. Oracle server move to 11g • IT-DB plans to upgrade all servers to 11g in January 2012 • Recommend both functional and performance tests beforehand • Do not expect bug surprises from either of them, but you never know • In contact with Gancho/Roman and IT-DB to run some tests • CORAL and COOL functional tests • Will run the CORAL and COOL test suites against 11g • Initially standalone, eventually in the nightlies • COOL performance tests • Will run standalone the COOL small-scale scalability tests • Test execution plan stability (missing statistics, bind variable peeking) • Does the optimizer treat COOL hints differently in 11g than in 10g? • Recommend larger scale ATLAS performance tests too

  8. POOL long-term support • POOL usage in ATLAS • Interface to ROOT for events, collections, conditions • Developed and used by ATLAS and LHCb • Collection packages (including TAG database) • Developed and used by ATLAS alone • LHCb is considering to drop POOL • To move to direct usage of ROOT • POOL implies an overhead but few benefits for LHCb • ATLAS would then remain the only experiment using POOL • Considering the move of POOL responsibility to ATLAS • Several meetings this week during the ATLAS software week • IT team already more involved with CORAL and COOL than POOL • Move of components to GAUDI also being discussed with LHCb • Long term support for CORAL and COOL also discussed • Reviewing resources in IT and the experiments

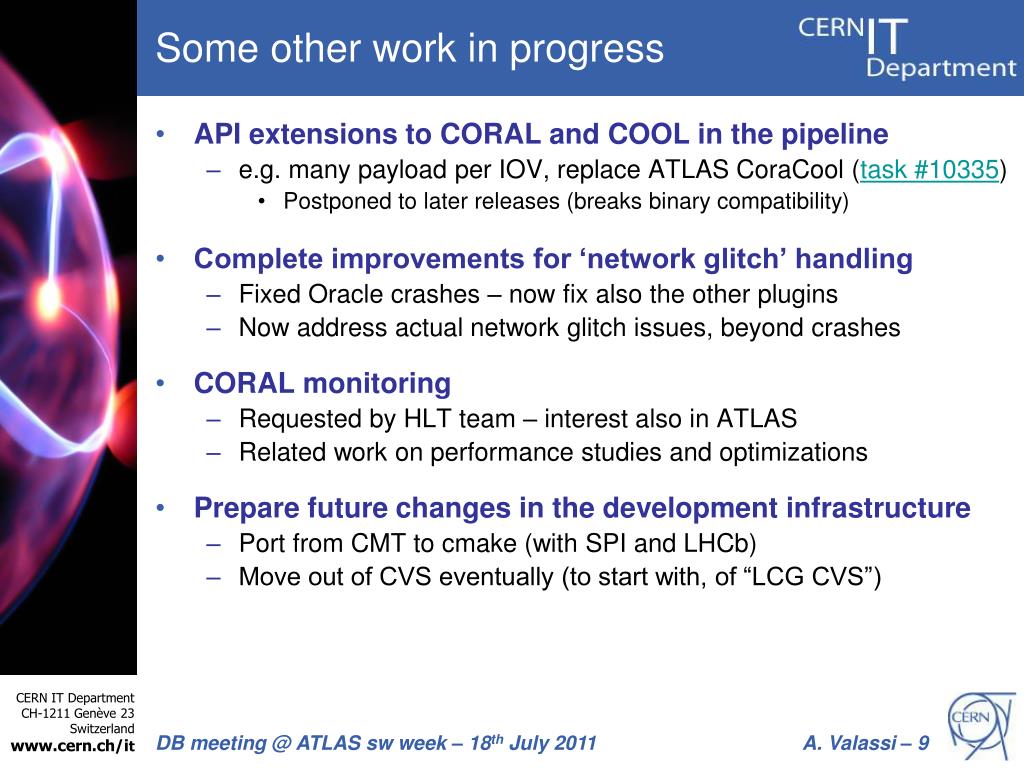

  9. Some other work in progress • API extensions to CORAL and COOL in the pipeline • e.g. many payload per IOV, replace ATLAS CoraCool (task #10335) • Postponed to later releases (breaks binary compatibility) • Complete improvements for ‘network glitch’ handling • Fixed Oracle crashes – now fix also the other plugins • Now address actual network glitch issues, beyond crashes • CORAL monitoring • Requested by HLT team – interest also in ATLAS • Related work on performance studies and optimizations • Prepare future changes in the development infrastructure • Port from CMT to cmake (with SPI and LHCb) • Move out of CVS eventually (to start with, of “LCG CVS”)
