Parallel programming

Parallel Programming

Yang Xianchun

Department of Computer Science and Technology

Nanjing University

Introduction

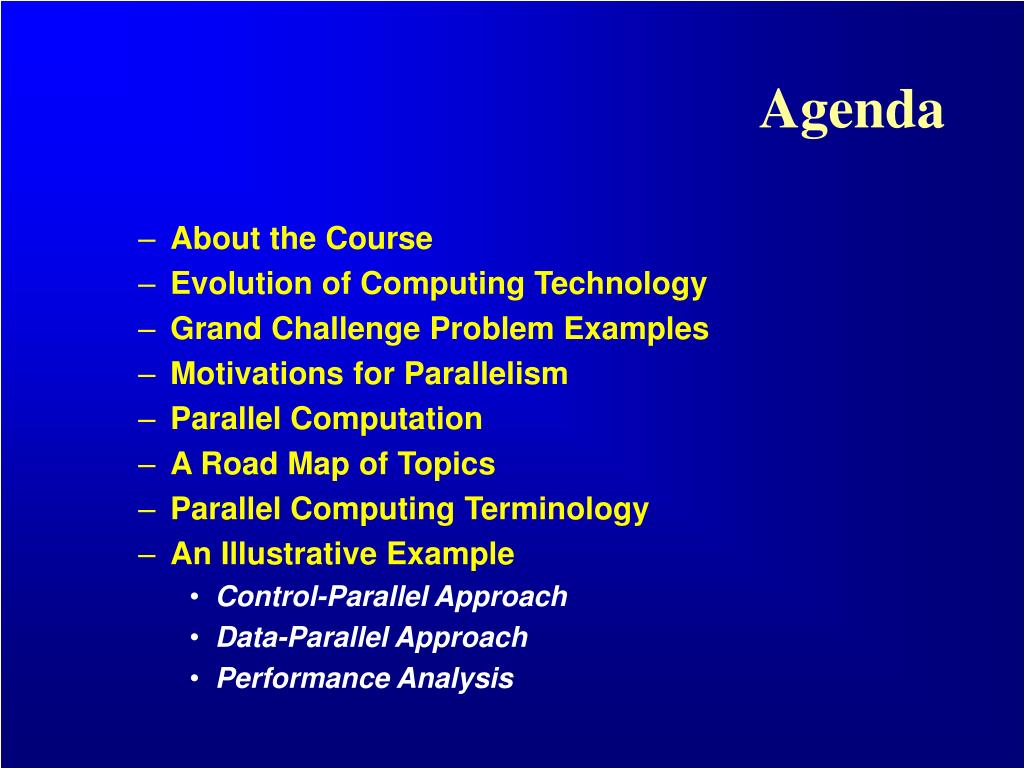

Agenda
Agenda

  • About the Course

  • Evolution of Computing Technology

  • Grand Challenge Problem Examples

  • Motivations for Parallelism

  • Parallel Computation

  • A Road Map of Topics

  • Parallel Computing Terminology

  • An Illustrative Example

    • Control-Parallel Approach

    • Data-Parallel Approach

    • Performance Analysis


About the course

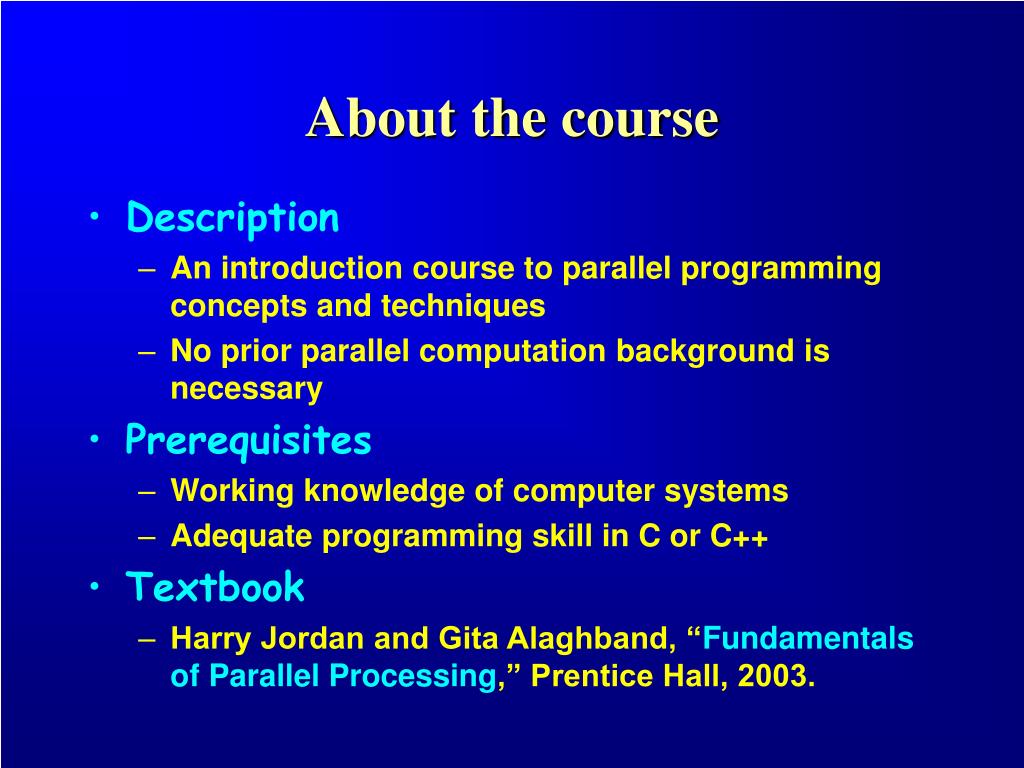

About the course

  • Description

    • An introduction course to parallel programming concepts and techniques

    • No prior parallel computation background is necessary

  • Prerequisites

    • Working knowledge of computer systems

    • Adequate programming skill in C or C++

  • Textbook

    • Harry Jordan and Gita Alaghband, “Fundamentals of Parallel Processing,” Prentice Hall, 2003.


About the course cont
About the course(cont.)

  • Topics

    • Introduction

    • Parallel architectures

    • Data parallel computing

      • Fortran 90 / 95

    • Shared memory computing

      • Pthreads

      • OpenMP

    • Message passing programming

      • PVM

      • MPI

    • Applications

      • Sorting

      • Numerical algorithms

      • Graph algorithms

    • Interconnection network

    • Performance

    • Models


About the course cont1
About the course(cont.)

  • Organization

    • Lectures

    • Programming projects

      • using parallel programming tools PVM and MPI on Linux / Unix machines

    • Homeworks

    • Class Tests and Final Exam (Open book)


Evolution of computing technology

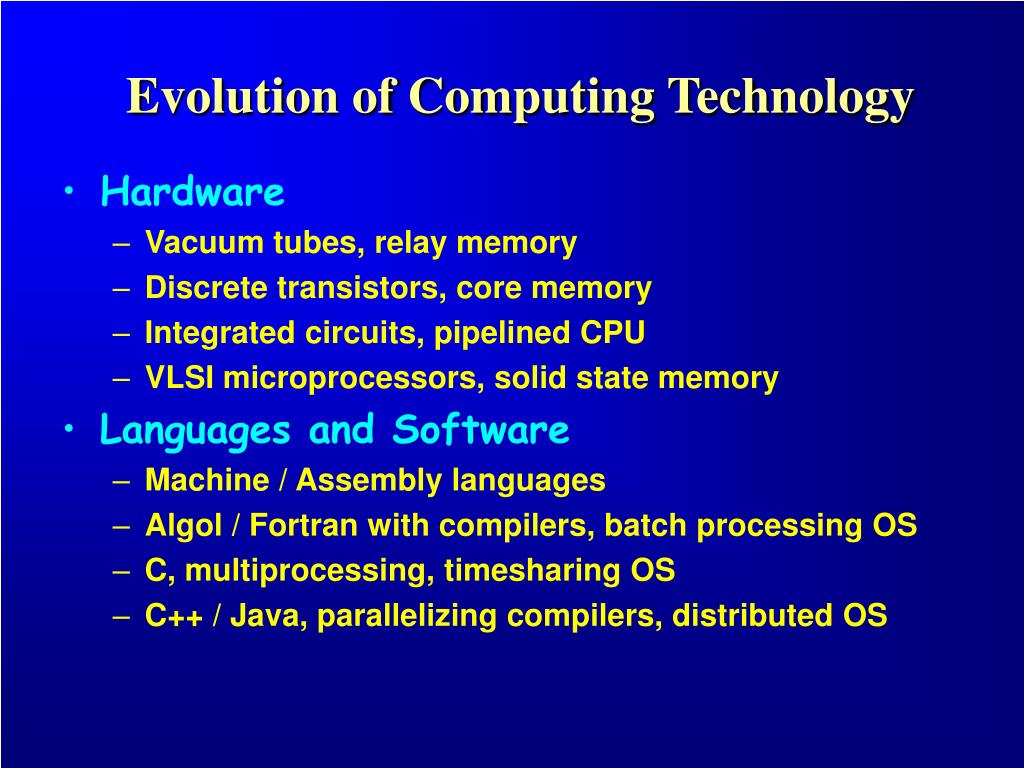

Evolution of Computing Technology

  • Hardware

    • Vacuum tubes, relay memory

    • Discrete transistors, core memory

    • Integrated circuits, pipelined CPU

    • VLSI microprocessors, solid state memory

  • Languages and Software

    • Machine / Assembly languages

    • Algol / Fortran with compilers, batch processing OS

    • C, multiprocessing, timesharing OS

    • C++ / Java, parallelizing compilers, distributed OS


Evolution of computing technology cont
Evolution of Computing Technology(cont.)

  • The Driving Force Behind the Technology Advances

    • The ever-increasing demands on computing power

      • Scientific computing (e.g. Large-scale simulations)

      • Commercial computing (e.g. Databases)

      • 3D graphics and realistic animation

      • Multimedia internet applications


Grand challenge problem examples
Grand Challenge Problem Examples

  • Simulations of the earth’s climate

    • Resolution: 10 kilometers

    • Period: 1 year

    • Ocean and biosphere models: simple

  • Total requirements: 1016 floating-point operations per second

  • With a supercomputer capable of 10 Giga FLOPS, it will take 10 days to execute

  • Real-time processing of 3D graphics

    • Number of data elements: 109 (1024 in each dimension)

    • Number of operations per element : 200

    • Update rate: 30 times per second

  • Total requirements: 6.4 x 1012 operations per second

  • With processor capable of 10 Giga IOPS, we need 640 of them


  • Motivations for parallelism

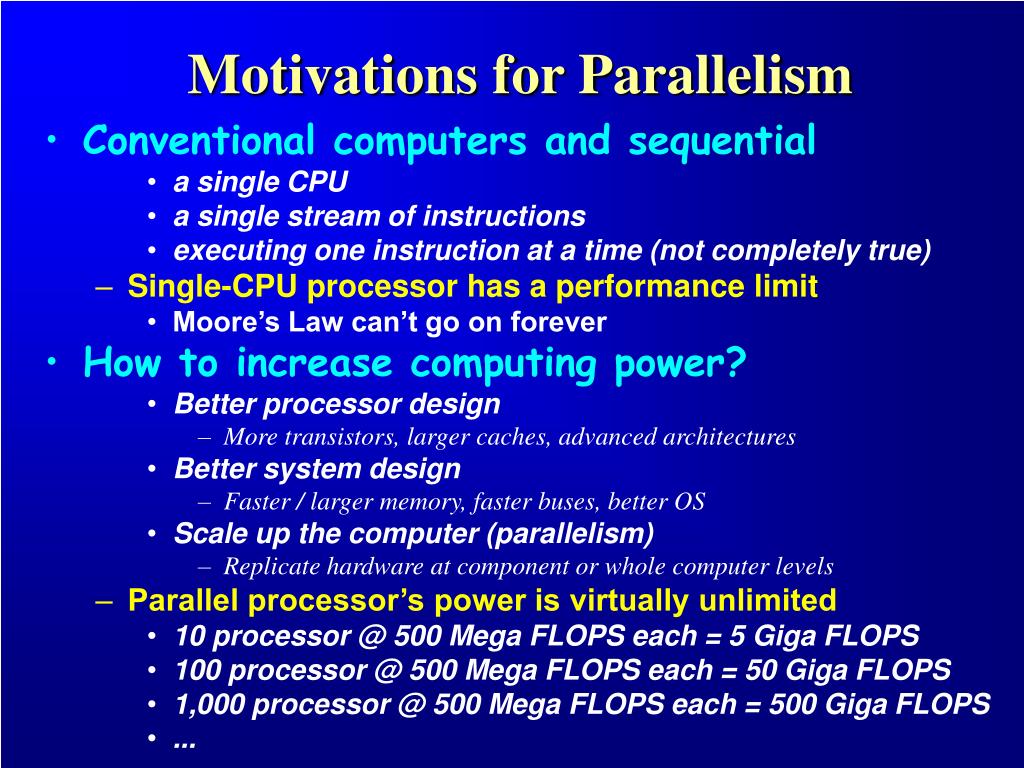

    Motivations for Parallelism

    • Conventional computers and sequential

      • a single CPU

      • a single stream of instructions

      • executing one instruction at a time (not completely true)

    • Single-CPU processor has a performance limit

      • Moore’s Law can’t go on forever

  • How to increase computing power?

    • Better processor design

      • More transistors, larger caches, advanced architectures

    • Better system design

      • Faster / larger memory, faster buses, better OS

    • Scale up the computer (parallelism)

      • Replicate hardware at component or whole computer levels

  • Parallel processor’s power is virtually unlimited

    • 10 processor @ 500 Mega FLOPS each = 5 Giga FLOPS

    • 100 processor @ 500 Mega FLOPS each = 50 Giga FLOPS

    • 1,000 processor @ 500 Mega FLOPS each = 500 Giga FLOPS

    • ...


  • Motivations for parallelism cont
    Motivations for Parallelism(cont.)

    • Additional Motivations

      • Solving bigger problems

      • Lowering cost


    Parallel computation

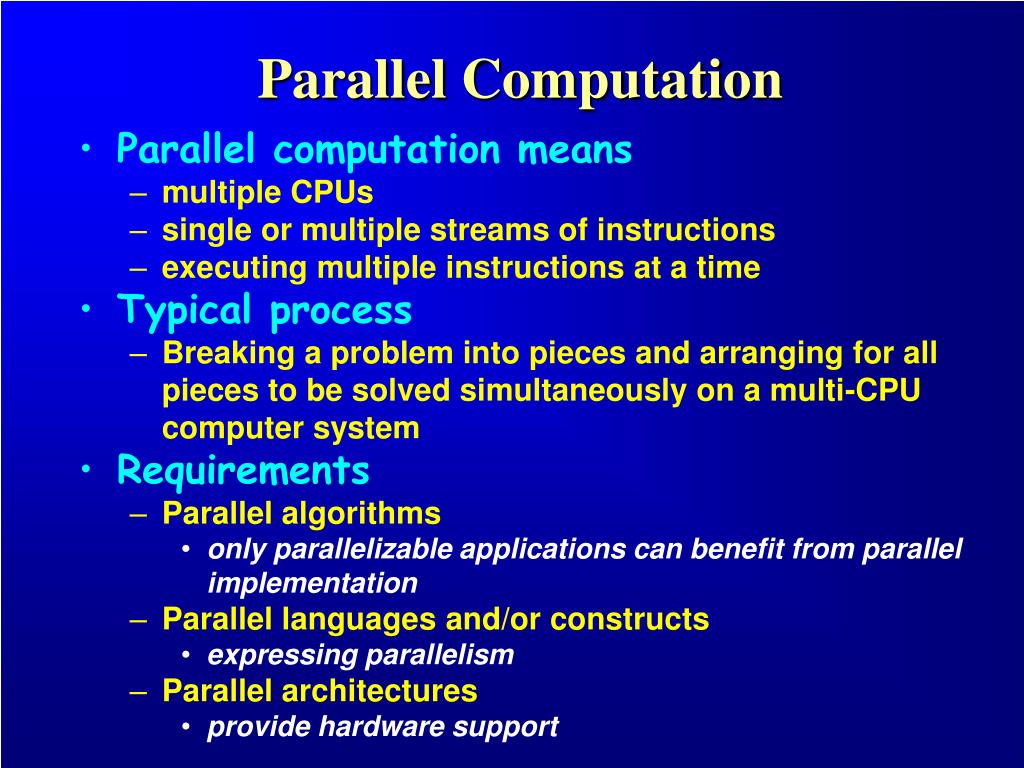

    Parallel Computation

    • Parallel computation means

      • multiple CPUs

      • single or multiple streams of instructions

      • executing multiple instructions at a time

    • Typical process

      • Breaking a problem into pieces and arranging for all pieces to be solved simultaneously on a multi-CPU computer system

    • Requirements

      • Parallel algorithms

        • only parallelizable applications can benefit from parallel implementation

      • Parallel languages and/or constructs

        • expressing parallelism

      • Parallel architectures

        • provide hardware support


    A road map of topics
    A Road Map of Topics

    Machine Models

    • PRAM

    • LogP

    Parallel Architectures

    • Vector / SIMD / MIMD

    • design issues

    Programming Models

    • data parallel

    • shared memory

    • message passing

    Parallel Algorithms

    • master-slave

    • divide-conquer

    • control vs. Data

    • complexity analysis

    Programming Languages

    • Fortran 90 / 95

    • Pthreads, OpenMP

    • PVM, MPI

    Applications

    • Scientific computations

    • data-intensive problems

    • performance measurement


    Parallel computing terminology 1

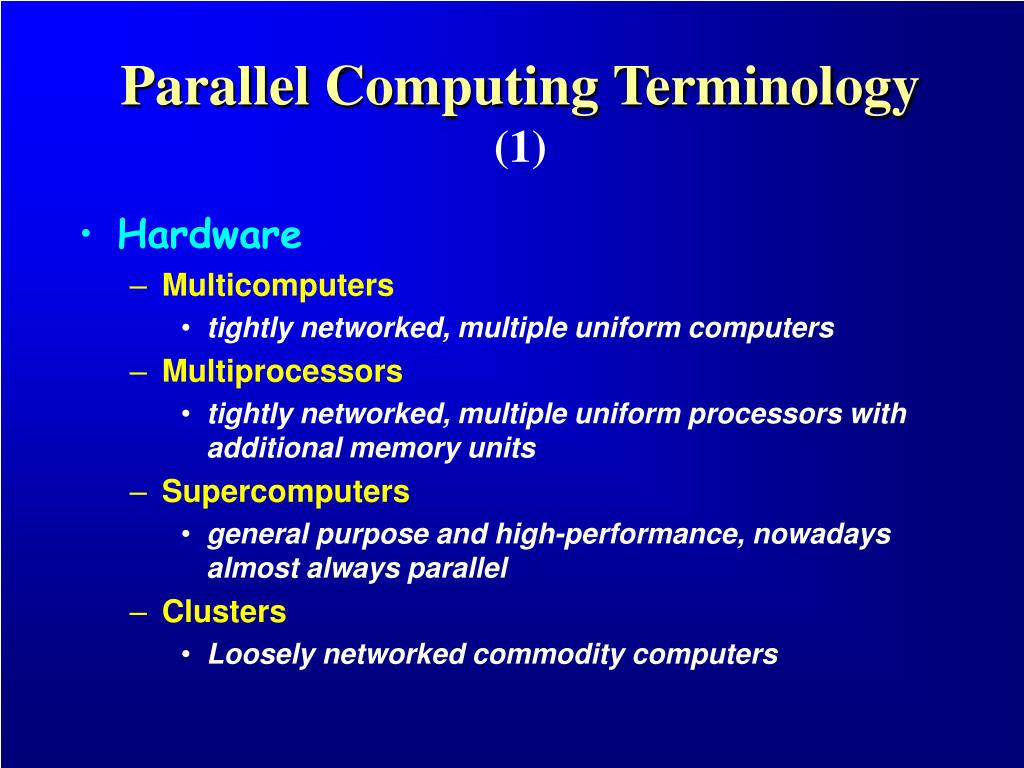

    Parallel Computing Terminology (1)

    • Hardware

      • Multicomputers

        • tightly networked, multiple uniform computers

      • Multiprocessors

        • tightly networked, multiple uniform processors with additional memory units

      • Supercomputers

        • general purpose and high-performance, nowadays almost always parallel

      • Clusters

        • Loosely networked commodity computers


    Parallel computing terminology 2

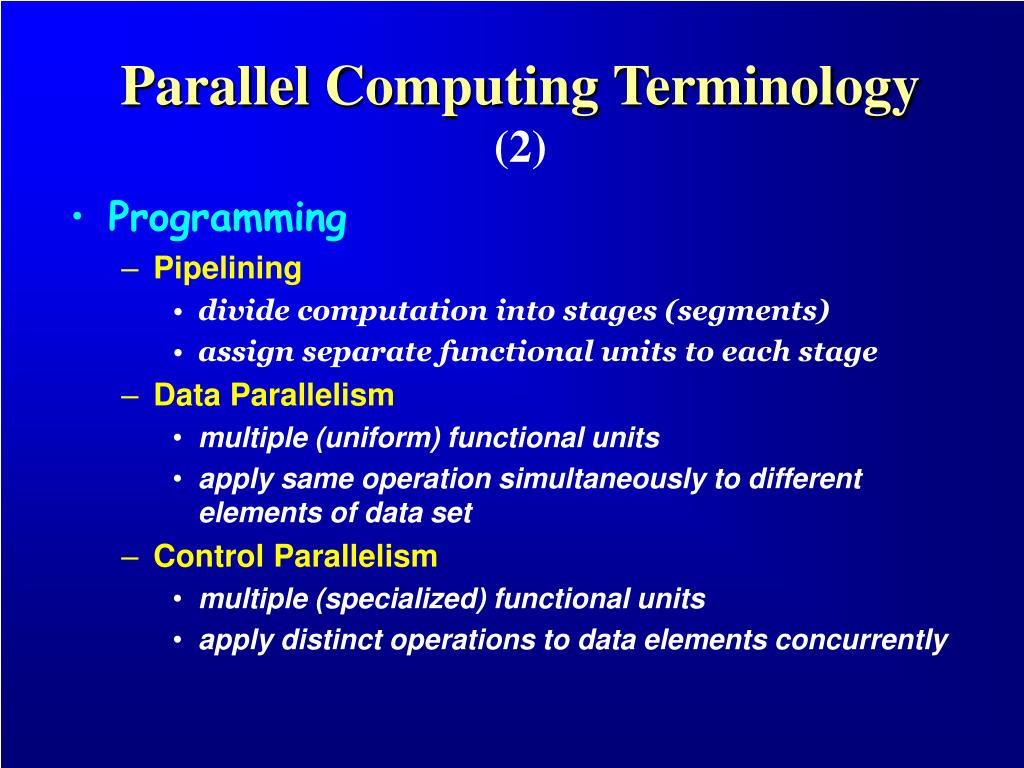

    Parallel Computing Terminology (2)

    • Programming

      • Pipelining

        • divide computation into stages (segments)

        • assign separate functional units to each stage

      • Data Parallelism

        • multiple (uniform) functional units

        • apply same operation simultaneously to different elements of data set

      • Control Parallelism

        • multiple (specialized) functional units

        • apply distinct operations to data elements concurrently


    Parallel computing terminology 3

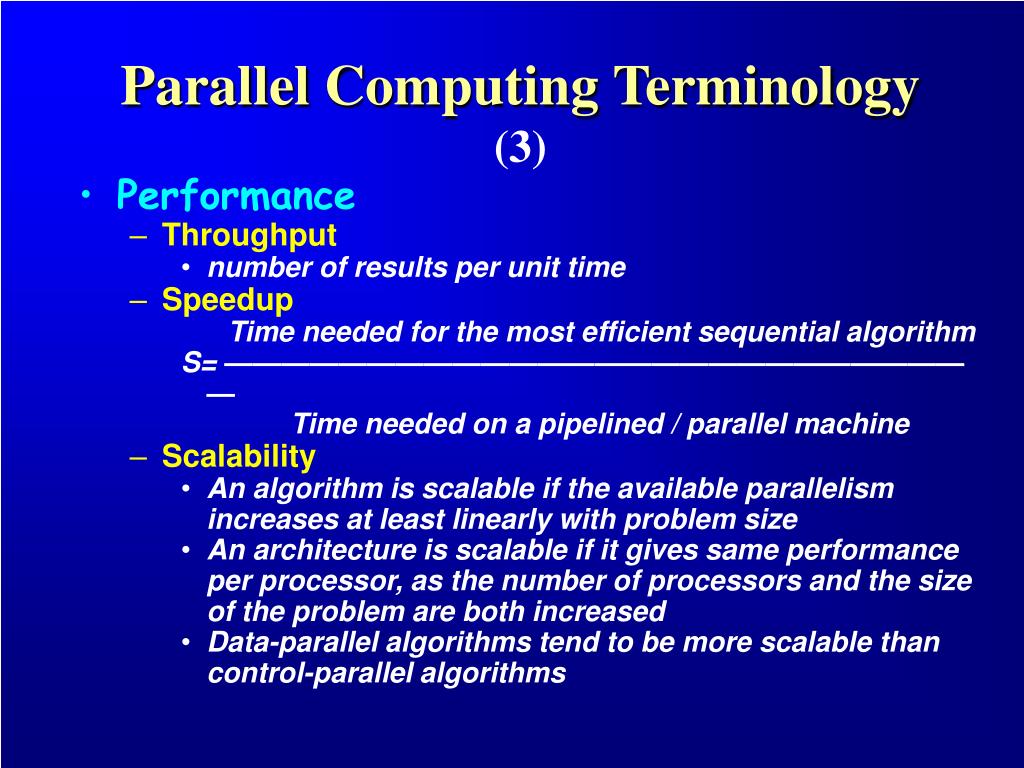

    Parallel Computing Terminology (3)

    • Performance

      • Throughput

        • number of results per unit time

      • Speedup

        Time needed for the most efficient sequential algorithm

        S= ———————————————————————————

        Time needed on a pipelined / parallel machine

      • Scalability

        • An algorithm is scalable if the available parallelism increases at least linearly with problem size

        • An architecture is scalable if it gives same performance per processor, as the number of processors and the size of the problem are both increased

        • Data-parallel algorithms tend to be more scalable than control-parallel algorithms


    An illustrative example

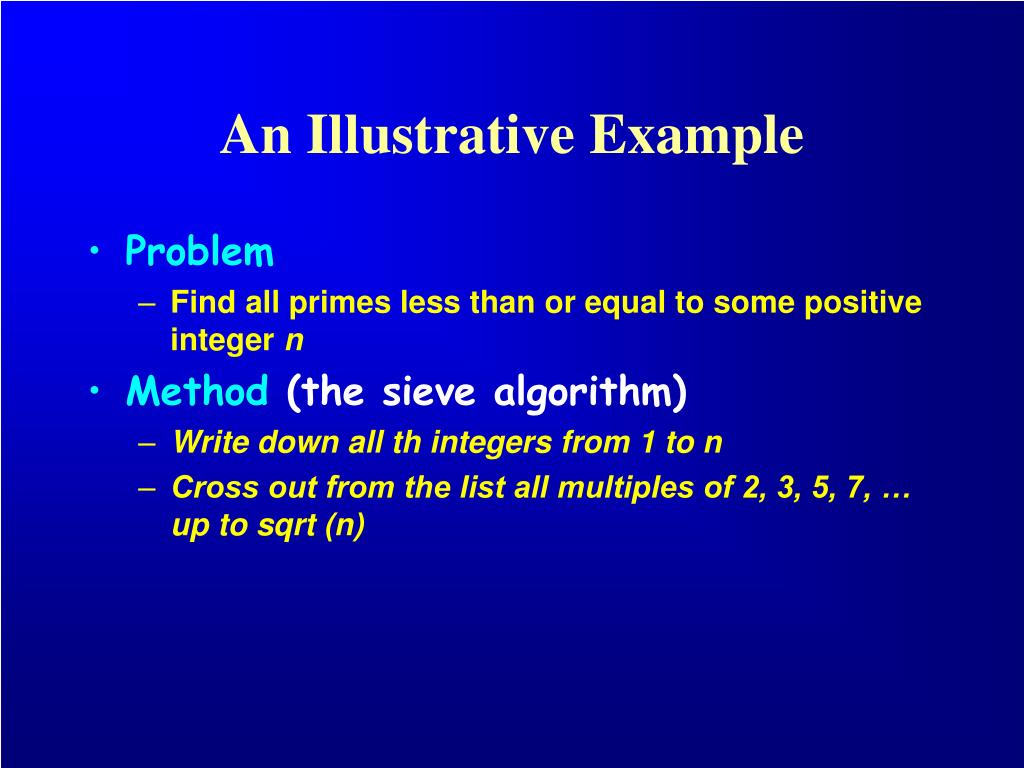

    An Illustrative Example

    • Problem

      • Find all primes less than or equal to some positive integer n

    • Method (the sieve algorithm)

      • Write down all th integers from 1 to n

      • Cross out from the list all multiples of 2, 3, 5, 7, … up to sqrt (n)


    An Illustrative Example (cont.)

    • sequential Implementation

      • Boolean array representing the integers from 1 to n

      • Buffer for holding current prime

      • Index for loop iterating through the array


    An illustrative example cont
    An Illustrative Example (cont.)

    • Control-Parallel Approach

      • Different processors strike out multiples of different primes

      • The boolean array and the current prime is shared; each processor has its own private copy of loop index


    An illustrative example cont1

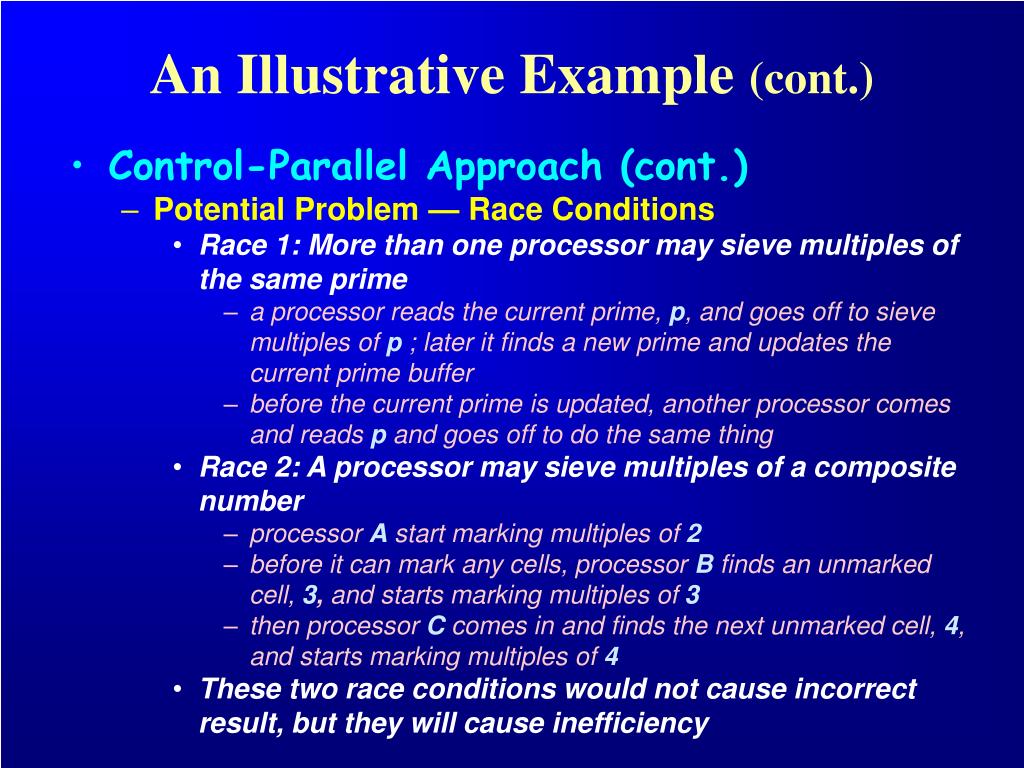

    An Illustrative Example (cont.)

    • Control-Parallel Approach (cont.)

      • Potential Problem — Race Conditions

        • Race 1: More than one processor may sieve multiples of the same prime

          • a processor reads the current prime, p, and goes off to sieve multiples of p ; later it finds a new prime and updates the current prime buffer

          • before the current prime is updated, another processor comes and reads p and goes off to do the same thing

        • Race 2: A processor may sieve multiples of a composite number

          • processor A start marking multiples of 2

          • before it can mark any cells, processor B finds an unmarked cell, 3, and starts marking multiples of 3

          • then processor C comes in and finds the next unmarked cell, 4, and starts marking multiples of 4

        • These two race conditions would not cause incorrect result, but they will cause inefficiency


    An illustrative example cont2
    An Illustrative Example (cont.)

    • Data-Parallel Approach

      • Each processor responsible for a unique range of the integers, it does all the striking in that range

      • Processor 1 is responsible for broadcasting its findings to other processors

      • Potential Problem

        • If [n/p] < sqrt(n), more than one processor need to broadcast their findings


    An illustrative example cont3

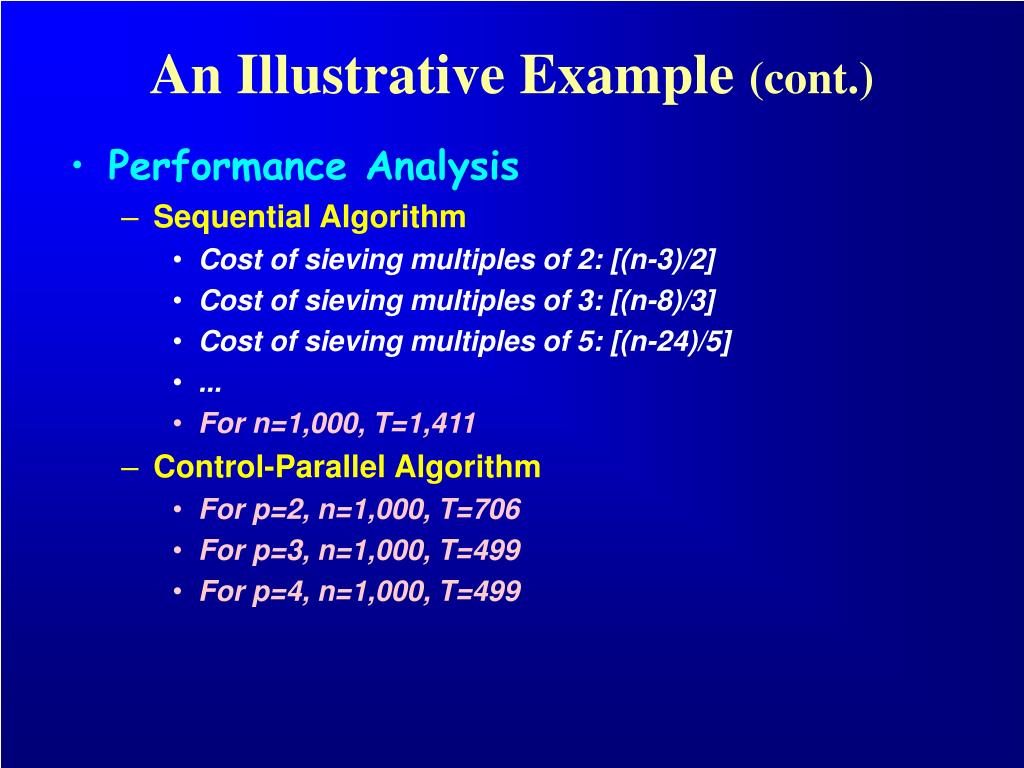

    An Illustrative Example (cont.)

    • Performance Analysis

      • Sequential Algorithm

        • Cost of sieving multiples of 2: [(n-3)/2]

        • Cost of sieving multiples of 3: [(n-8)/3]

        • Cost of sieving multiples of 5: [(n-24)/5]

        • ...

        • For n=1,000, T=1,411

      • Control-Parallel Algorithm

        • For p=2, n=1,000, T=706

        • For p=3, n=1,000, T=499

        • For p=4, n=1,000, T=499


    An illustrative example cont4
    An Illustrative Example (cont.)

    • Performance Analysis (cont.)

      • Data-Parallel Algorithm

        • Cost of broadcasting: k(P-1)l

        • Cost of striking:

          ([(n/p)/2]+ [(n/p)/3]+ … + [(n/p)/pk])χ

        • For p=2, n=1,000, T≈781

        • For p=3, n=1,000, T≈ 471

        • For p=4, n=1,000, T≈ 337
