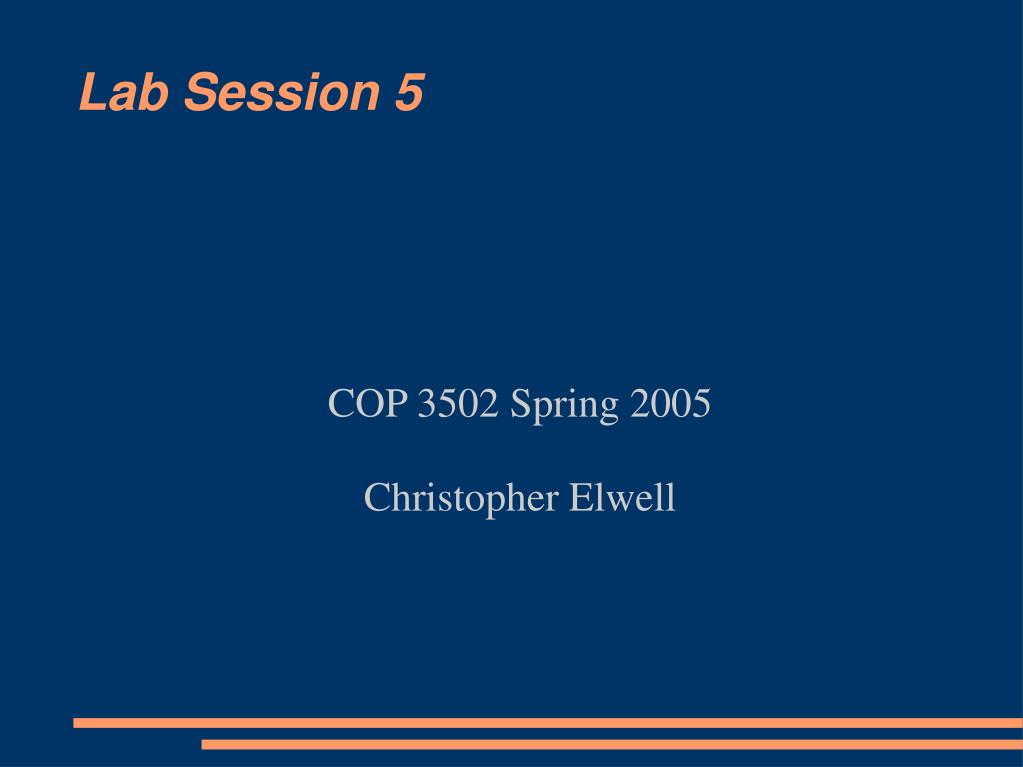

Cop 3502 spring 2005 christopher elwell

COP 3502 Spring 2005

Christopher Elwell

Lab Session 5

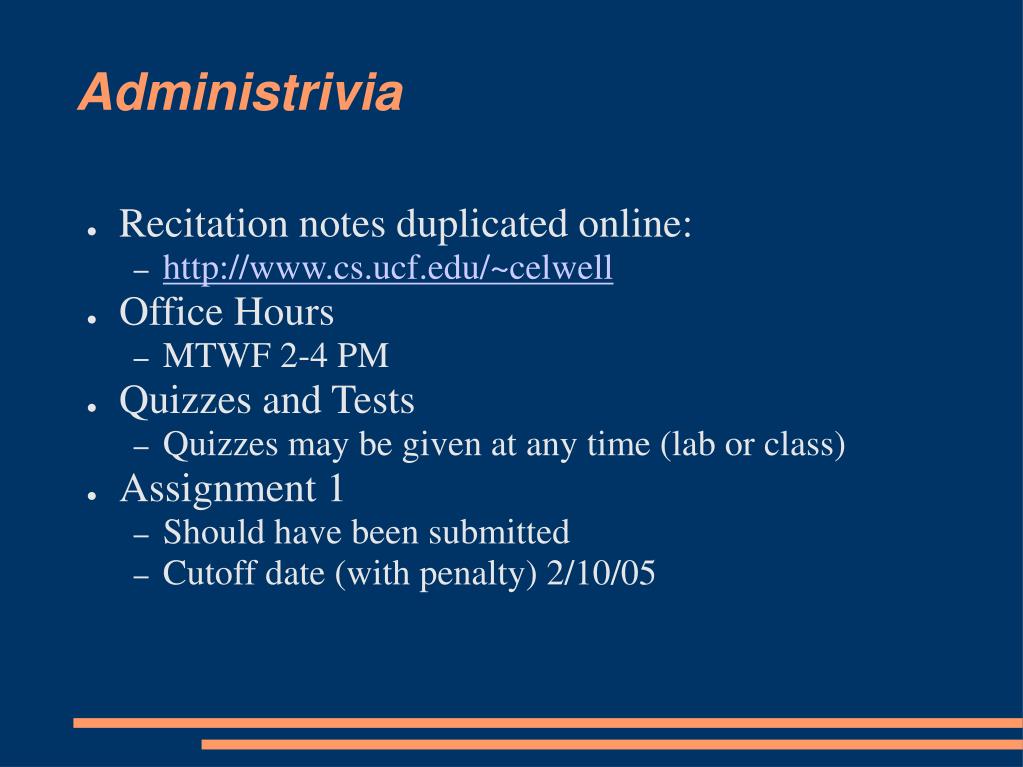

Administrivia

Administrivia

  • Recitation notes duplicated online:

    • http://www.cs.ucf.edu/~celwell

  • Office Hours

    • MTWF 2-4 PM

  • Quizzes and Tests

    • Quizzes may be given at any time (lab or class)

  • Assignment 1

    • Should have been submitted

    • Cutoff date (with penalty) 2/10/05

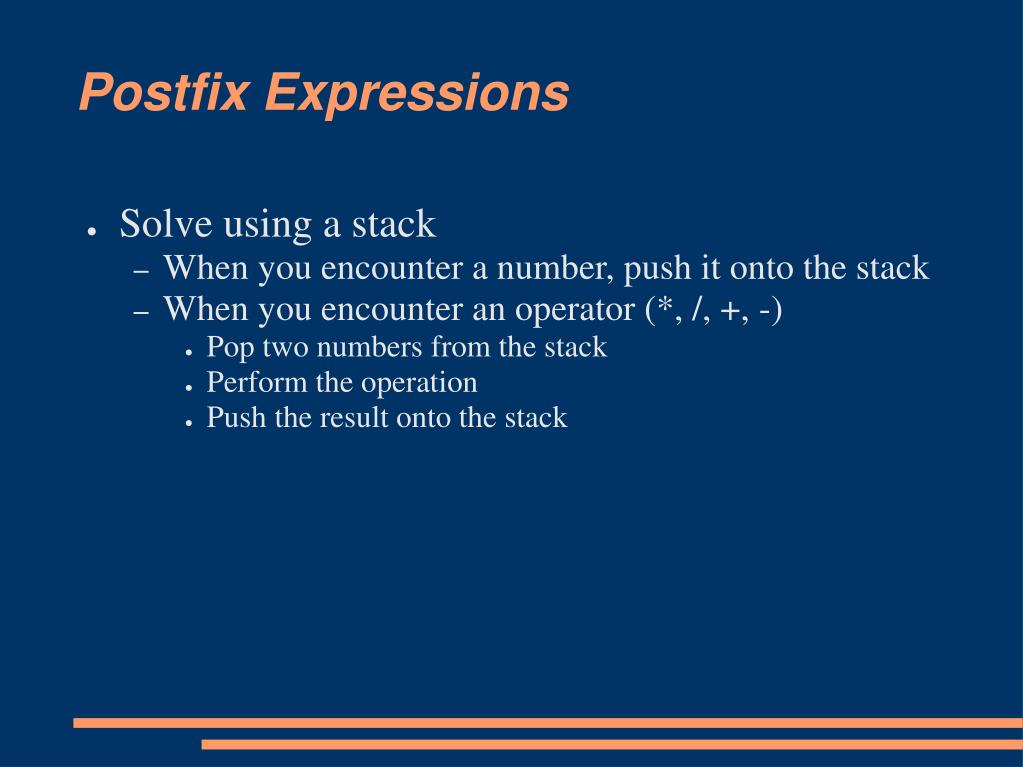

Postfix expressions

Postfix Expressions

  • Solve using a stack

    • When you encounter a number, push it onto the stack

    • When you encounter an operator (*, /, +, -)

      • Pop two numbers from the stack

      • Perform the operation

      • Push the result onto the stack


Postfix expressions1

Postfix Expressions

1.) 6 7 9 + -

2.) 6 7 9 + - 2 / 11 2 2 / + *

3.) 2 8 – 12 * 2 5 6 + - / 3 3 / *

4.) 4 4 4 4 + - * 2 4 + + 5 / 3 *

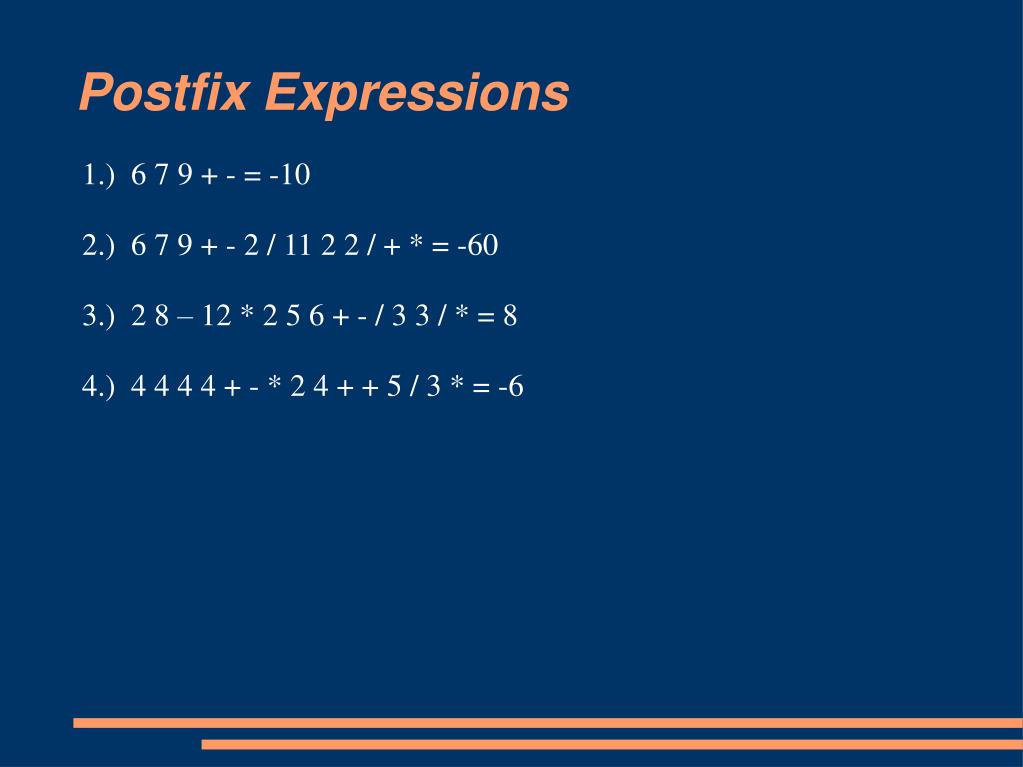

Postfix expressions2

Postfix Expressions

1.) 6 7 9 + - = -10

2.) 6 7 9 + - 2 / 11 2 2 / + * = -60

3.) 2 8 – 12 * 2 5 6 + - / 3 3 / * = 8

4.) 4 4 4 4 + - * 2 4 + + 5 / 3 * = -6


Converting infix to postfix

Converting Infix to Postfix

  • General Algorithm:

    • Process from left to right

    • Copy numbers directly to the output

    • Use stack for operators

      • Always push ( onto the stack

      • When you encounter ), pop symbols off the stack until you reach the preceding ( (discard both parentheses)

      • Operators:

        • If the operator being “scanned” has higher precedence than the symbol at the stack top, push that symbol onto the stack

        • Otherwise, pop

      • Pop all operators off stack when you reach end of expression.


Converting infix to postfix1

Converting Infix to Postfix

1.) X*Y-(P+Q)*(R/S)

2.) E-F*G/(P+Q)+T

3.) M+L/K*U


Converting infix to postfix2

Converting Infix to Postfix

1.) X*Y-(P+Q)*(R/S) = XY*PQ+RS/*-

2.) E-F*G/(P+Q)+T = EFG*PQ+/-T+

3.) M+L/K*U = MLK/U*+


Valid

Valid?

1.) 3 5 7 - + 3 2 9 * / -

2.) 4 3 – 2 3 * 5 8 - + 4 - * 2 +

3.) 7 5 3 - + 3 / * 4 2 +


Valid1

Valid?

1.) 3 5 7 - + 3 2 9 * / -Valid

2.) 4 3 – 2 3 * 5 8 - + 4 - * 2 +Valid

3.) 7 5 3 - + 3 / * 4 2 +Invalid
