Presentation Transcript
slide1

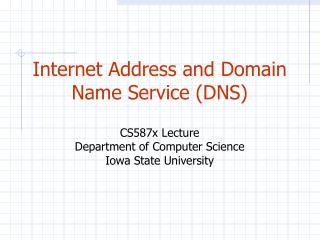

Internet Address and Domain Name Service (DNS)

CS587x Lecture

Department of Computer Science

Iowa State University

what to cover today
What to cover today
  • Internet Address
    • IPv4
    • CIDR
  • Domain Name Service
    • Name Resolution
    • Load Balancing
internet addressing
Internet Addressing
  • IPv4
    • Each address is represented by 4 bytes
    • Four numbers, 0-255, separated by dots
  • Classified IP address (developed in 1970s)
    • Class+Network ID+Host ID

#nets #hosts

16,777,216

128

65,536

16,384

256

2,097,152

  • To minimize routing table entries
    • Given an IP packet, a router examines its first one to four bits to determine its class and then breaks it down into network and host bits. The network bits are used to find a route to the network. Once a packet reached its target network, its host field was examined for final delivery.
special ip addresses
Special IP Addresses
  • Some special addresses
    • 127.0.0.1 – loopback/localhost
    • 255.255.255.255 – broadcast
  • Reserved addresses
    • Can be used locally (behind Network Address Translator, for example)
      • 192.168.0.0-192.168.255.255
      • 172.16.0.0-172.31.255.255
      • 10.0.0.0-10.255.255.255
    • Not routed through the Internet
space limitation of ip address
Space limitation of IP Address
  • 32 bits
    • IPv6 calls for 128-bit address, but requires significant changes throughout much of the Internet
  • Classified
    • not flexible and efficient in address allocation
      • While the Internet was running out of unassigned addresses, only 3% of the assigned addresses were actually being used
challenges
Challenges
  • Represent more networks
    • Need more network IDs, given the same 32-bits address space
  • Global routing tables at capacity
    • As the number of networks on the Internet increased, so did the number of routes
      • A few years back, it was forecasted that the global backbone Internet routers were fast approaching their limit on the number of routes they could support.
    • Even using the latest router technology, the maximum theoretical routing table size is approximately 60,000 routing table entries
      • If nothing was done, the global routing tables would have reached capacity by mid-1994 and all Internet growth would be halted
solutions
Solutions
  • Assign IP to machines dynamically
    • For an ISP, at any given time, only a small percentage of its customers are connected to the network
    • Not effective for DSL/cable connections, where clients are always on
  • Computers not visible to the Internet can share the same block of IP address
    • Use those special address blocks
  • Classless Inter-Domain Routing (CIDR)
    • Restructuring IP address assignments to increase efficiency
    • Hierarchical routing aggregation to minimize route table entries
slide8
CIDR
  • A CIDR address includes the standard 32-bit IP address and also information on how many bits are used for the network prefix, e.g.,
    • 206.13.01.48/25, the "/25" indicates the first 25 bits are used to identify the unique network leaving the remaining bits to identify the specific host
    • 129.186.0.0/16 (ISU), 192.188.162.0/24 (ISU Research Park), 63.224.0.0/13 (USWest)
  • CIDR allows the division between the network and host portions of the IP addresses to occur at any point in the 32-bit number
    • Mask length currently is anywhere from 13 to 27 bits
  • Compatibility with Existing Addresses
    • Class A address, a#.b#.c#.d#  a#.b#.c#.d#/8
    • Class B address, a#.b#.c#.d#  a#.b#.c#.d#/16
    • Class C address, a#.b#.c#.d#  a#.b#.c#.d#/24
advantages of cidr
Advantages of CIDR
  • More network IDs -- Flexible allocation of IP address blocks allows more efficient use of 32-bit address space
    • The size of a block of IP addresses could be any power of 2
    • An organization needing 512 addresses could be assigned with a 23-bit mask, rather than an entire class B network (65536 addresses)
  • Minimizing routing table entries -- ISPs can now aggregate their networks into larger blocks
    • Suppose an ISP is assigned the 12.0.0.0/8 network, the ISP can further divide this block of addresses into smaller blocks and allocate them to its customers
      • E.g., one customer can have 12.45.0.0/16 and another might have 12.194.34.0/23 network
      • The allocation of address blocks may depend on the size of the customer
    • Global routers need to remember only the routes to 12.0.0.0/8
example of address aggregation

networks

routes

12.0.0.0/8

XXX

13.0.0.0/20

XXX

::

::

Example of Address Aggregation

Organization1

12.1.0.0/16

Internet

Organization2

12.2.0.0/16

ISP/Router

12.0.0.0/8

:

:

Packet with

IP 12.255.1.1

Organization255

12.255.0.0/16

  • Given a packet, check the routing table to determine which network it belongs to
    • This can be done by bit mask
example of address aggregation11

networks

routes

12.0.0.0/8

XXX

13.0.0.0/20

XXX

12.255.0.0/16

XXX

Example of Address Aggregation

Organization1

12.1.0.0/16

Internet

Organization2

12.2.0.0/16

ISP/Router

12.0.0.0/8

:

:

Packet with

IP 12.255.1.1

ISP/Router

12.255.0.0/16

Organization255

12.255.0.0/16

  • Which entry to use?
    • The entry with longest mask length
  • Which entry to drop?
    • A subnet entry with longest mask length (a block <= 8192 most likely be dropped)
    • The original ISP is still responsible for resolving all addresses in its block
routing with cidr
Routing with CIDR
  • Internet routers normally do not remember each individual IP
    • Internet routers need only to know how to reach ISPs
    • Given an IP packet, routers determine the block it belongs to and send the packet to the ISP who are responsible for this block
    • The ISP needs to know how to reach each of its own separate networks
  • CIDR significantly reduces the growth in the number of routing table entries at each level in the network hierarchy
    • Currently, the global routing tables have approximately 35,000 entries
domain name service
Domain Name Service
  • Routers need an address to route while people need a host name to remember
    • Host Names yield information to people
    • IP addresses yield information to routers
  • Solution: give each IP address a name
    • popeye.cs.iastate.edu  129.186.3.1
    • www.myown.com  111.222.333.444
  • Questions:
    • Given an IP, how to find out its hostname?
    • Given a hostname, how to find out its IP?
dns history
DNS: History
  • 1970’s ARPANET
    • All host-address mappings were in hosts.txt (in /etc/hosts)
    • Changes were submitted to SRI-NIC by email
    • New versions of hosts.txt were updated periodically from SRI
    • Administrators could pick names at their discretion
  • As the internet grew this system broke down because of
    • Traffic and load: SRI couldn’t handled the load
    • Reliability: The system was unreliable since there was a single point of contact
    • Consistency and confliction: Names were not unique and many hosts had inaccurate copies of hosts.txt
  • Internet growth was threatened
    • DNS was created in 1983 (RFCs 1034 and 1035), modified, updated, and enhanced by subsequent RFCs
dns concepts
DNS Concepts
  • Provide a lookup mechanism for object translation (IP address  hostname)
  • DNS consists of three components
    • Namespace
    • Domain Name Servers
    • DNS queries (issued by clients)
      • gethostbyname()
      • gethostbyaddr()
dns namespace
DNS Namespace
  • The namespace must be able to scale
  • Solution: make namespace hierarchical by naming objects based on
    • location (within country, set of organizations, set of companies, etc)
    • unit within that location (company within set of company, etc)
    • object within unit (name of person in company)
hierarchical organization of host names
Hierarchical Organization of Host names

root

  • The first level names are called “Top Level Domains”
  • Depth of tree is arbitrary (limit 128)
  • No restriction on the amount of branch
  • Domains are subtrees
    • e.g. iastate.edu and cs.iastate.edu
  • Name collision avoided
    • e.g. iastate.edu and iastate.com

edu

gov

mil

net

fr

cn

com

org

mit

iastate

cs

eece

popeye

hierarchical administration of host names
Hierarchical Administration of Host Names

root

root

Each zone corresponds to an administrative authority that is responsible for that portion of the hierarchy

  • Zones are “administrative spaces”
  • Zone administrators are responsible for portion of a domain’s name space
  • Authority is delegated from a parent and to a child

edu

edu

gov

gov

mil

mil

net

net

fr

cn

com

com

org

org

mit

iastate

cs

eece

popeye

domain name servers
Domain Name Servers
  • Name servers, who answer “DNS” questions, are organized in hierarchies
  • Each server has authority over a portion of the hierarchy
    • A server maintains only a subset of all names
  • Each server contains all the records for the hosts in its zone
  • Each server may know other servers who are responsible for the other portions of the hierarchy
    • Every server knows the root
    • Root server knows about all top-level domains
dns protocol
DNS Protocol
  • Govern the communication between a DNS client and a DNS server
    • A DNS client sends a query to a DNS server, which returns a response with the requested information
    • DNS primarily uses UDP for sending queries and responses, although TCP may also be used
  • DNS queries can be
    • Recursive : such queries request the receiving DNS server resolve the entire request itself
    • Iterative : such queries request the receiving DNS server respond directly to the DNS client with the IP address of the next DNS server in the hierarchy
      • Root server handles only iterative queries
example of recursive query
popeye.cs.iastate.edu wants IP address of www.berkeley.edu

1. Contacts its local DNS server, 129.186.3.1

2. 129.186.3.1 contacts root name server, if necessary

3. Root name server contacts authoritative name server,ns1.berkeley.edu, if necessary

local name server

129.186.3.1

Example of Recursive Query

root name server

2

4

3

5

authorititive name server

ns1.berkeley.edu

1

6

requesting host

popeye.cs.iastate.edu

www.berkeley.edu

example of iterated queries
Contacted server replies with name of server to contact

“I don’t know this name, but you can ask this server”

local name server

129.186.3.1

intermediate name server

(com server)

Example of Iterated Queries

root name server

2

iterated queries

3

4

5

7

6

1

8

authoritative name server

www.myown.com

requesting host

popeye.cs.iastate.edu

www.sales.myown.com

dns query is expensive
DNS query is expensive
  • Resolving an IP hostname may invoke several messages
  • Solution: caching previous query results
    • The cached mapping can be used
    • The cached results can be associated with TTL to reduce the risk of using expired information
dns based web server load balancing
DNS-based Web Server Load Balancing
  • A popular web site can be replicated in different geographical locations in order to provide better service to a diverse set of clients
    • One web site can be associated with more than one IP addresses
      • For example, all hosts in the acme.com may have the same IP address
      • The return of an IP address may depend on where a query is sent from
load balancing 1
Load Balancing (1)
  • DNS can return an IP address based on where queries come from
    • Direct HTTP requests to a collection of web servers that provide access to the same content
example www akamai com
Example: www.akamai.com
  • From Ames

C:\>ping www.akamai.com

Pinging a1440.g.akamai.net [209.152.119.232] with 32 bytes of data:

Request timed out.

Request timed out.

Request timed out.

Request timed out.

Ping statistics for 209.152.119.232:

Packets: Sent = 4, Received = 0, Lost = 4 (100% loss),

  • From the NY area
    • 63.240.15.146
  • From the UK
    • 194.82.174.224
load balancing 2
Load Balancing (2)
  • A query to a host name may return several IP address
    • e.g., www.big.com may correspond to four machines with IP addresses 1.2.3.1, 1.2.3.2, 1.2.3.3, 1.2.3.4
  • By default, the requesting client uses the first IP address
    • Heavy load on the server 1.2.3.1
  • DNS can vary the order of the IP addresses for each query
    • The response to the second query could be 1.2.3.2, 1.2.3.3, 1.2.3,4, 1.2.3.1.
dns summary
DNS Summary
  • Internet address and CIDR
  • DNS is a crucial part of the Internet
  • Namespace is hierarchical
  • Globally distributed and locally managed
  • DNS performance is enhanced by caching
  • DNS can help balance web server workload
ad
