Presentation Transcript


Atomic structure and the periodic table l.jpg

  • To insert your company logo on this slide

  • From the Insert Menu

  • Select “Picture”

  • Locate your logo file

  • Click OK

  • To resize the logo

  • Click anywhere inside the logo. The boxes that appear outside the logo are known as “resize handles.”

  • Use these to resize the object.

  • If you hold down the shift key before using the resize handles, you will maintain the proportions of the object you wish to resize.

Atomic Structure and The Periodic Table

Mr. Chan

Northwestern University


Today day 18 l.jpg
Today (Day 18)

  • (0-10) Return/Discuss Tests

  • (10-15) Activate: Sketch Atom

  • (15-20) Mystery Box

  • (20-30) Dalton’s Atomic Theory

  • (30-43) Word Splash

  • Video – WOC The Atom (30 min)

    • Conferences


Mystery boxes l.jpg
Mystery Boxes

  • Procedure:

  • Select a Mystery Box. Without opening it, try to learn about its contents by using all the tools of observation available to you. Outline your plan to determine the contents of the box and record all observations you make.


Mystery boxes4 l.jpg
Mystery Boxes

  • Questions:

  • 1. What evidence supports your conclusion about the type of item contained in the box?

  • 2. What kinds of things can you do to determine the contents of your box if you had access to other kinds of observational tools?

  • 3. Since you cannot see what is inside, how can you be 100% sure of its contents?

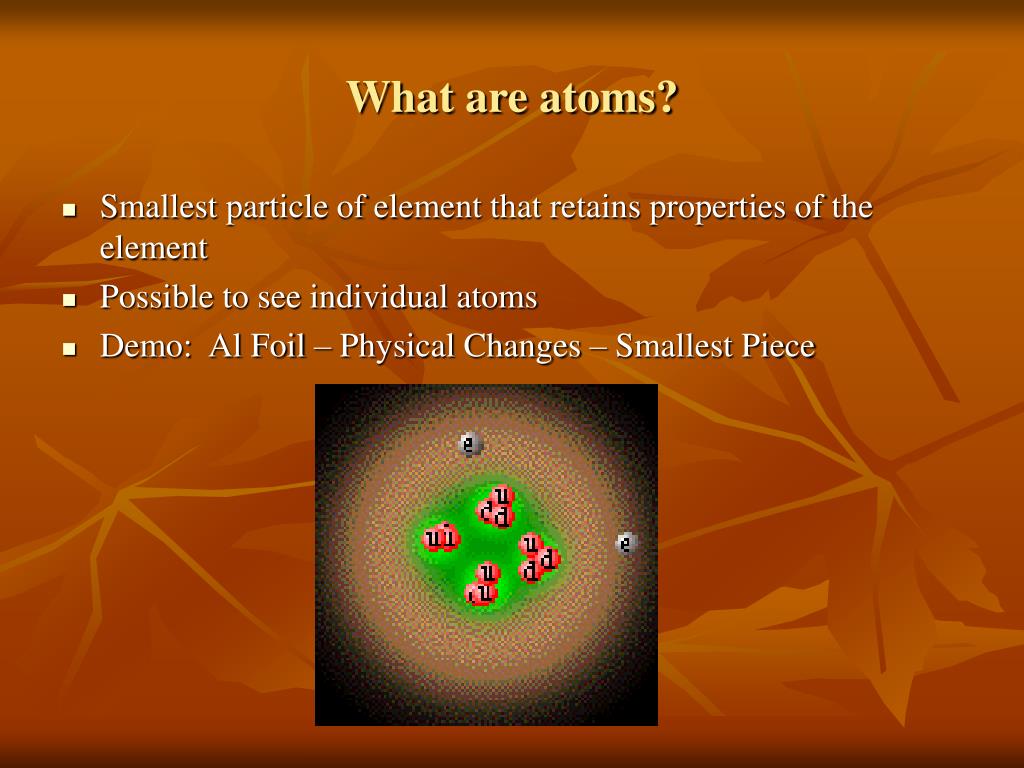

What are atoms l.jpg
What are atoms?

  • Smallest particle of element that retains properties of the element

  • Possible to see individual atoms

  • Demo: Al Foil – Physical Changes – Smallest Piece


History of atomic theory l.jpg
History of Atomic Theory

  • Original model – Democritus

    • Atomos – smallest unit of matter

  • Dalton’s Theory

    • 1) Elements composed of tiny indivisible (not invisible) particles called atoms

    • 2) Atoms of the same element are identical

    • 3) Atoms of different elements can chemically combine with one another in simple whole number ratios (compounds)

    • 4) In chemical reactions, atoms are separated, joined, and rearranged. Atoms of one element are never changed.


Today day 19 l.jpg
Today (Day 19)

  • (0-5) Discuss HW

  • (5-10) Demo

  • (10-25) Experiments – discovery of Atomic Structure

  • (25-35) Rutherford’s Au Experiment

  • (35-43, 0-25) LAB

  • (25-43) Numbers associated with At.Structure


What is the structure of an atom l.jpg
What is the structure of an atom?

  • Electrons

    • J.J. Thomson, cathode ray tubes – Overhead

      • Electric current flowing through gases

      • Beam – cathode ray travels from cathode (-) to the anode (+)

      • Metal plates – beam attracted to positive plate

      • Electrons: negative, 1/2000 mass of hydrogen atom

    • Millikan – oil drop experiments

      • determined charge/mass ratio of electron

      • Mass of electron = 1/1840 mass of hydrogen atom


Structure cont l.jpg
Structure cont.

  • Protons – positively charged particles

    • Needed to balance charge of electrons in atom

    • Goldstein – CRT with loss of electrons – canal rays from cathode traveling in opposite direction as electrons

  • Neutrons – no charge, mass - proton

    • Chadwick – knew some mass was unaccounted for


Summary of subatomic particles l.jpg
Summary of Subatomic particles

  • Particle, symbol, relative charge, relative mass, actual mass

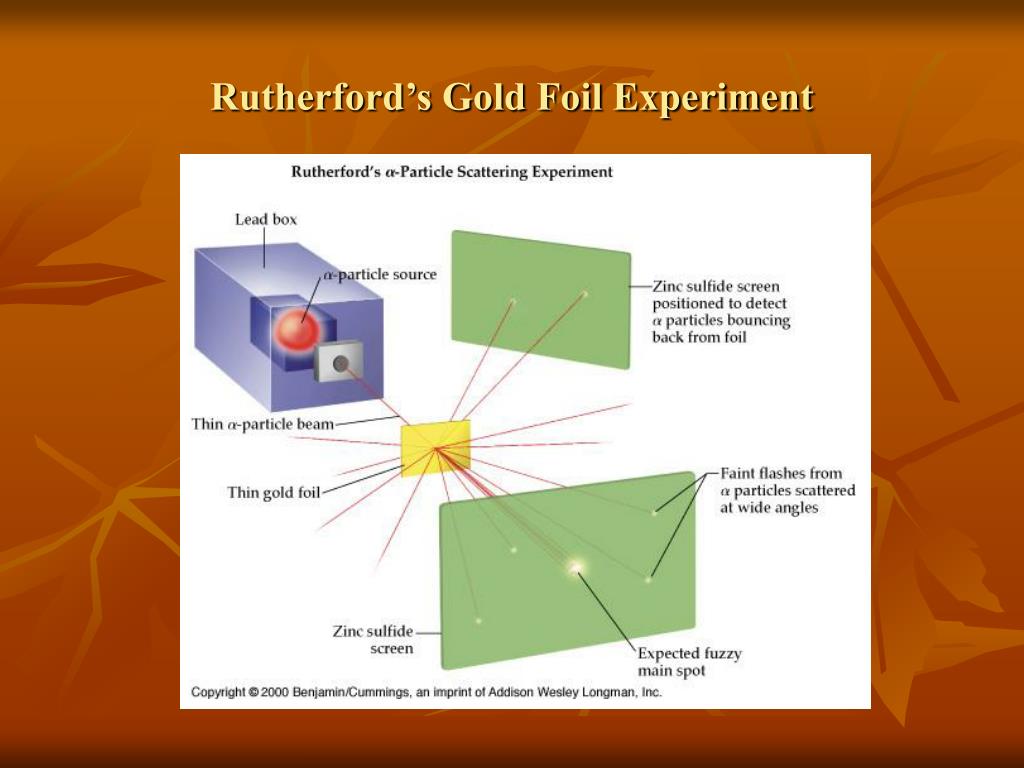

Rutherford s gold foil experiment12 l.jpg
Rutherford’s Gold Foil Experiment

  • Led to discovery that most of the atom is empty space

  • All of the positive charge and most of the atom’s mass found in a small region

  • Nucleus of the atom

    • Core that contains protons and neutrons



Numbers associated with atomic structure l.jpg
Numbers Associated with Atomic Structure

  • Atomic Number

    • Number of protons in nucleus of atom of element

    • Also equals number of electrons if electrically neutral

    • Determines which element you have

    • Practice: How many protons and electrons, what the symbol, element name is

  • Mass number

    • Total number of protons and neutrons

    • Not given on the periodic table


Calculating number of protons neutrons and electrons l.jpg
Calculating Number of Protons, Neutrons, and Electrons

  • Number of neutrons = Mass Number – Atomic Number

  • Shorthand Notation: Mass/Atomic – Element

  • OR Element – Mass number

  • Practice #9-12: Determine number of protons, electrons, and neutrons, completing tables of atomic number, mass number, #protons, #neutrons, #electrons, symbol – notation, Determining from symbol: #neutrons


Today day 20 l.jpg
Today (Day 20)

  • (0-5) Opener

  • (5-15) Discuss HW

  • (15-30) Quiz

  • (30-43) Isotopes


What are isotopes l.jpg
What are Isotopes?

  • Atoms that have the same number of protons but different numbers of neutrons

  • Different mass numbers

  • Atoms are chemically alike – behave similarly

    • Common misconception: radically different – NO!

  • Examples: 3 isotopes of hydrogen

    • Tritium – Spiderman 2 errors – MOVIE CLIP

      • Gas, not solid

      • More than 25 pounds in world

  • Chemical symbols, Subatomic particles examples for isotopes (O-16,17,18)

  • Symbolic Notation - isotopes


Today day 21 l.jpg
Today (Day 21)

  • (0-10) Opener/Discuss HW

  • (10-15) Discuss QUIZ

  • (15-20) Spiderman 2 Clip

  • (20-30) Activity: Isotope Numbers Relay Race

  • (30-43) Average Atomic Mass

  • (0-43) Isotopes and Atomic Mass Lab


Opener 9 29 l.jpg
Opener - 9/29

  • Determine the number of protons, neutrons, and electrons in the following isotopes:

    • Hydrogen-1, Hydrogen-2, and Hydrogen-3


What is average atomic mass l.jpg
What is average atomic mass?

  • Weighted grades analogy

  • Masses of subatomic particles ridiculously small – needed something more convenient

  • Arbitrary amount set: Carbon-12 atom = 12.00000 amu

  • 1 amu (atomic mass unit) = 1/12 mass of C-12 atom

  • Mass of a single proton/neutron – 1 amu

  • Why are the masses decimals?

    • Most elements exist as a mixture of 2 or more isotopes

  • Look at average atomic masses of elements – can you speculate which isotope is most common?


How do you calculate average atomic mass l.jpg
How do you calculate average atomic mass?

  • Average atomic mass = weighted average mass of atoms in naturally occurring sample

    • Number on Periodic Table – explains why we could not use as mass number

    • Reflects both the mass and the relative abundance of the isotopes as they occur in nature

  • Calculating average atomic mass

    • First, example of which is closer?

    • Next, an example comparing to weighted average in class (grades)

    • Finally, example using exact percentages and masses

    • Finish HW/EC problems

  • Practice#14,16


Today day 22 l.jpg
Today (Day 22)

  • Read Article

  • Socratic Seminar



Today day 25 l.jpg
Today (Day 25)

  • Chapter 4 Test


Origin of periodic table l.jpg
Origin of Periodic Table

  • Mendeleev

    • Listed elements in columns and in order of increasing atomic mass

    • Elements in groups with similar properties

  • Moseley

    • Determined atomic numbers

    • Rearranged periodic table to current state

  • P-Tables Online

    • HTML Table

    • Interactive Periodic Table

    • Comic Book P-Table


Organization of periodic table l.jpg
Organization of Periodic Table

  • Increasing atomic number

  • Periods

    • Horizontal rows

  • Groups

    • Vertical columns of elements

  • Periodic law

    • Repetition of chemical and physical properties

  • Representative elements

    • Metals (alkali, alkaline earth, transition)

    • Nonmetals (halogens, noble gases)

    • Metalloids
