gps 4 gis
GPS 4 GIS

Tips, Tricks and Tarpits

Garmin

Pro XR

GeoExplorer 3

Trimble

Joel Cusick

National Park ServiceAlaska Support Office

PLGR

outline
Outline
  • Dictionary of Terms
  • How GPS Collects Data
  • Overview of Main GPS Receiver Types
  • The Right Tool for the Job
  • Tarpits
assumptions
Assumptions
  • You collect or receive GPS data collected in Alaska
  • You try to minimize positional errors along the way
  • Ultimate goal is a GIS dataset
dictionary of terms
Dictionary of Terms
  • Global Positioning Systems (GPS)
  • Differential GPS
    • Real-Time Differential GPS
    • Post-Process Differential GPS
  • How GPS collects Features in the Field
gps space segment
GPS Space Segment
  • Tracking a GPS Satellite Vehicle (SV)
  • 28 Satellites
  • Distance = 12,0000 miles
  • Speed = 6000 mph

http://liftoff.msfc.nasa.gov/realtime/jtrack/3d/JTrack3d.html

gps ground segment

Garmin

Pro XR

GeoExplorer 3

Trimble

GPS Ground Segment
  • Mapping Grade Receivers
  • Recreational Grade Receivers
dictionary of terms7

Garmin

Dictionary of Terms
  • GPS
    • Not for navigation anymore
    • Since Selective Availability SA was turned off…..
    • $300 unit can map at 1:24,000 scale (+/- 12m)
      • in the open
      • but not under canopy

http://www.fs.fed.us/database/gps/

dictionary of terms8
Dictionary of Terms
  • Differential Global Positioning System (DGPS)
    • Any system that can remove atmospheric errors in a GPS solution (greatest error after SA)
      • Realtime
      • or back in the office - Post-Process
dictionary of terms9
Dictionary of Terms
  • Real Time Differential GPS
    • CORS BASE Stations
    • In Alaska - depends on where you are at and how lucky you are
    • Dependent on the CORS Network - Gulf of Alaska:
      • Hit / Miss
      • Not dependable
dictionary of terms10
Dictionary of Terms
  • Real Time Differential GPS
    • WAAS
      • Wide Area Augmentation System
      • Designed for high flying aircraft
      • 2 Geostationary satellites (parked over equator)
      • 3 meter solution (if the GPS is enabled)
      • Hit / Miss in AK
      • Poor under any canopy

Tip: Other Satellite DGPS systems like StarLink do not cover AK

dictionary of terms11
Dictionary of Terms

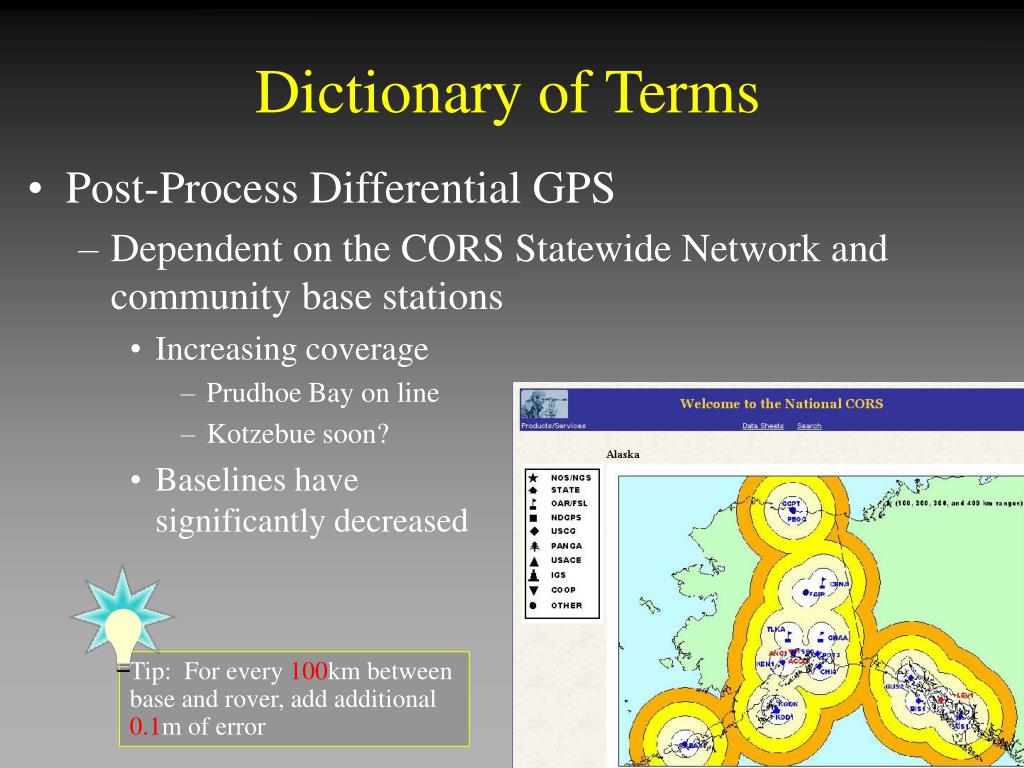

  • Post-Process Differential GPS
    • Dependent on the CORS Statewide Network and community base stations
      • Increasing coverage
        • Prudhoe Bay on line
        • Kotzebue soon?
      • Baselines have significantly decreased

Tip: For every 100km between base and rover, add additional 0.1m of error

dictionary of terms12
Dictionary of Terms
  • GPS View of the World

How a digitizing tablet is used today

dictionary of terms13
Dictionary of Terms
  • Digitizing Terms

Traditional Way GPS Way

Tablet

Earth

Puck

GPS Antenna

Nodes / Vertices

Positions

GRAIN or WEED {*| DEFAULT | distance}

Logging Rate

dictionary of terms14
Dictionary of Terms
  • A GPS View of GIS Features
    • Point features are one or more positions averaged into a point
      • Mapping Grade Receivers : Called “Points”
      • Recreational Grade Receivers : Called “Waypoints”
  • String of positions converted into a line / area
    • Mapping Grade Receivers : Collected directly in the field as a line / area feature
    • Recreational Grade Receivers : Collected as a “TrackLog” then converted back in the office
line and point features

Waypoint1

N 61 13 9.0

W 149 53 28.4

Line and Point Features
collecting points or waypoints along the way
Collecting Points or Waypoints along the Way

Multiple positions averaged into a point

what a gps mapping receiver should do19
What a GPS Mapping Receiver Should Do
  • Hardware
    • Accuracy (How close to Truth)
      • Meet National Mapping Accuracy Standards:
        • 1:63,360 (32meters)
        • 1:24,000 (12 meters)
        • 1:5,000 (4 meters)
    • Precise (How reliable)
    • Rugged
    • Able to Average Positions into a Point
    • External Antenna Options
    • Good on Batteries

No Problem!

Most Likely

With Effort

Tip: A Pause button is crucial to creating clean line/poly data in the field

what a gps mapping receiver should do20
What a GPS Mapping Receiver Should Do
  • Software
    • Export in GIS Friendly Formats (shapes, coverages, DXF)
    • Capable of Controlling Attributes in the Field
      • Data Dictionary (Name, Trail Width, Comments)
    • Capable of Datum Transform - To NADCON 27
    • Mission Planning
      • Sky Plots
      • Planning the day
    • Able to Differentially Correct (Realtime or Post-process)
overview of main types
Overview of Main Types
  • Recreational Grade GPS - Garmin
  • Mapping Grade GPS - Trimble
  • Y-Code Receivers - Rockwell PLGR+96
  • GPS/GIS Field Mapping Tools

Nerd Factor

recreational grade gps garmin
Recreational Grade GPS - Garmin
  • Features Include:
    • Accuracy:
      • Autonomous < 15meters 68%
      • DGPS ready 1-5 meters 68%
    • User Friendly
    • Many models
      • Garmin GPSIII+, GPSMap76, eTrex
    • Moving Base Maps (1:100,000 scale)

Garmin

RealTime Kit

mapping grade gps trimble
Mapping Grade GPS - Trimble
  • Features Include:
    • Accuracy:
      • Autonomous < 15meters 68%
      • Post-Process DGPS
        • 3-5 meters 95% (Geo3)
        • 1 meter 95% (ProXR)
    • Pathfinder Office Software
      • Data Dictionary, Mission Planning

Trimble

y code receivers plgr 96
Y-Code Receivers - PLGR+96
  • Features Include:
    • Accuracy:
      • Autonomous < 15meters 68%
    • Club Fed Only
    • Good under Canopy

PLGR

gis gps field mapping tools
GIS/GPS Field Mapping Tools
  • GPS unit + Handheld PC(CE) + ArcPad:
    • Realtime display of vector /raster data
    • Hook to any GPS
    • Unlimited Storage (dependent on storage capacity of device)
    • Instant shapefile creation
    • Application builder($1500)

Garmin and IPAQ running ArcPad

gps for gis pros and cons
GPS for GIS - Pros and Cons
  • Garmin III+
    • Pros
      • Cheap and consistent 15 meters positions - okay under canopy
      • Good “Point tool”
      • Fun / easy to use and easy to navigate with
      • Integration into ArcView - relatively straightforward
      • Battery usage is great
    • Cons
      • Cheap
      • No GPS Filters (2D Fixes Given, SNR, PDOP, MASK Angle set to 5)
      • Position accuracy not recorded
      • Not designed for GIS Mapping - relies on 3rd party software
      • No Data Dictionary capability

Large Errors!

gps for gis pros and cons27
GPS for GIS - Pros and Cons
  • Trimble GeoExplorer 3
    • Pros
      • 2-5 meter mapping tool
      • Point/Line/Poly Tool
      • Rugged
      • Collect data for 16 hours
      • Exports in coverage or shapefile
      • Excellent software (Pathfinder Office)
    • Cons
      • Requires additional training
      • $4000
      • Under Canopy issues - Velocity filtering / Use Antenna
      • Need to post-process after the field (internet connection)
gps for gis pros and cons28
GPS for GIS - Pros and Cons
  • Trimble Pro XR
    • Pros
      • Top-of-the-line GIS Mapping Tool
      • Submeter to 2 meter Tool
      • Real-time DGPS
      • Point/Line/Poly
      • Excellent under Canopy
      • Rugged
      • Exports in coverage or shapefile
      • Excellent software (Pathfinder Office)
    • Cons
      • Requires additional training
      • $8,000 - $10,000
      • Big/Bulky
      • Need to post-process after the field (internet connection)
gps for gis pros and cons29
GPS for GIS - Pros and Cons
  • PLGR
    • Pros
      • Good “Point tool”
      • Records error and Datum
      • Integration into ArcView - relatively straightforward
    • Cons
      • Older technology - Phasing Out
      • Heavy
      • Does not store an AVERAGED solution
      • Terrible on batteries
      • Club Fed only
      • No Data Dictionary capability
gis gps field mapping tools pros and cons
GIS/GPS Field Mapping ToolsPros and Cons
  • IPAQ / ArcPad
    • Pros
      • Now can select GPS Filters (SNR, PDOP)
      • Creation of shapefiles
      • Pen-based digitizing from the air
      • Measure distances in field
    • Cons
      • Not a tight package (GPS, cables, ipaq, cradle, software, data)
      • Small screen view
      • Purchase of ruggedized collectors($900 - $3000)
      • GIS skills support is high (design forms, maintain/move data)
      • Battery usage poor
right tool for the right job
Right Tool for the Right Job
  • Sorry… It’s a Multi - Tool Environment
    • Garmin
    • Trimble
    • …..PLGR
  • Need to learn enough about each system to know when to use the tool
right tool for the right job32
Right Tool for the Right Job
  • Mapping Scenarios:
    • Garmin / PLGR
      • Mapping sheep from the air?
      • Record cabin (points) location for fire
      • Photo control for georeferencing an AHAP (1:60,000) photo
      • Mapping study sites; Inventory and Monitoring
    • Garmin\PLGR\Trimble
      • Mapping a trail from a fast moving vehicle or by air (moving)
right tool for the right job33
Right Tool for the Right Job
  • Mapping Scenarios cont:
    • IPAQ/ArcPad
      • Mapping fires from the air - need to know position now
      • ARC IMS connectivity to mothership???
    • Trimble
      • Mapping a Road while collecting point features along the way
      • Mapping a trash can lid
      • Mapping complex attributes?
      • Photo control for larger scale maps (1:12,000)
      • Updating of existing GIS layers
    • PLGR
      • In Dense Canopy (but prefer XR)
right tool for the right job34
Right Tool for the Right Job
  • Putting it another Way:
    • If accuracy is the key...
      • Map a SUV - Garmin or PLGR
      • Map a small Subaru - Garmin (Average) or Trimble
      • Map a bunch of scooters - Trimble and post process
      • Map the four corners of an archeology dig (10 meters across)
        • Pull out the Survey equipment
    • If mapping features is the key...
      • Map a trail network - limited funds, inexperienced personnel - Garmins
      • Map a campground - tentpads, sign posts- Trimble
what is best
What is Best?
  • Ask Yourself
  • 1) What are your accuracy needs?
    • A) resolution of the other data types
    • B) anticipated data for the future
  • 2) Project Needs
    • A) What are the crews GIS skills
    • B) Is it just you dealing with the data
  • 3) What part of Alaska are you working in?
  • 4) How much money do you have?
tarpits
TARPITS
  • Cleaning the data
  • Datums
  • When to Hang it up
qc clean tarpit
QC / Clean Tarpit
  • Coverages
    • Set Precision to Double Double
    • Check out the data tolerances first -measure distances between vertices
    • Watch for places where a GPS was left on and dropped a bunch of vertices
gps datum tarpit
GPS Datum Tarpit
  • What’s the big deal
    • Differences:
      • WGS84(NAD83) to NADCON Alaska 27 = 100-150meters
      • 3parameter NAD27 to NADCON Alaska 27 = 1.5 - 8 meters
    • #1 - KNOW the Datum
    • Accept that 1.5 - 7 meters might not be a big deal
      • Depending on the GPS, method of acquisition, scale of base data etc.
    • In your mind, switch WGS84 with NAD83
gps datum tarpit39
GPS Datum Tarpit
  • How to deal with it
    • Ask? Demand the Datum be written down
    • Know how the Data arrives to the PC
      • Garmin - Garmin Protocol - WGS84(NAD83)
      • Garmin - via NMEA - up to the Display
    • If a Trimble
      • Handle datum in Software - FOR NAD27 EXPORTS ! USE NADCON27 ALASKA

Airplane GPS is always WGS84

datum solutions
Datum Solutions
  • Use prj files to eliminate the define projection step
    • Keep a set of NAD83 and NAD27 prj files around
    • Copy the prj alongside the *.dbf, *.shx, *.shp

GEOGCS["GCS_North_American_1983",DATUM["D_North_American_1983",SPHEROID["GRS_1980",6378137,298.257222101]],PRIMEM["Greenwich” ,0],UNIT["Degree",0.0174532925199433]]

gps data tarpits
GPS Data Tarpits
  • When to “Hang it Up”
    • Effective GPS for GIS purposes requires
      • In Super thick canopy or canyons?????
      • Attentive field personnel (“A Field Nerd”)
    • Mapping may be more efficient by..
      • remote sensing
      • heads-up digitizing
summary
Summary
  • GPS not for navigation alone
  • Rapidly evolving technology - Migration to Windows CE and mult-tasking environments
  • GPS Toolbox may require several tools to get the job done
  • Instead of waiting for an updated Map product do it yourself and enjoy the outdoors
ad
