Presentation Transcript
Cse 381 advanced game programming multiplayer gaming l.jpg

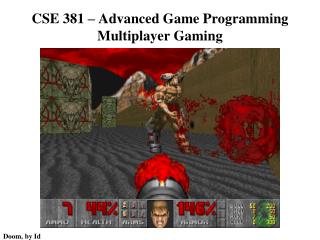

CSE 381 – Advanced Game ProgrammingMultiplayer Gaming

Doom, by Id


Life before networked gaming l.jpg
Life Before Networked Gaming

  • Play against your own scores

  • Play against AI

  • Play against other players taking turns

  • Play against other players via a split screen


Life after doom l.jpg
Life After Doom

  • Doom was not the first, but it changed everything

    • gaming communities

    • multiplayer cultures

    • coincided nicely with Internet boom & graphical computing

  • Significant Ancestors of DOOM multiplayer:

    • PLATO games

      • Empire, based on Star Trek

      • SPASIM

    • MUDs


Empire 1973 l.jpg
Empire (1973)

  • John Daleske & Silas Warner of Iowa State

  • Gameplay

    • supported up to 32 players working in teams

    • screen updates once every 10 seconds

    • your view is of space quadrants

    • you have weapons like phasers

    • goal is to drop armies on every planet in the universe


Spasim 1974 l.jpg
SPASIM (1974)

  • Originally “Space Sim”

  • Also for PLATO system

  • Jim Bowery w/ Universities of Iowa & Illinois

    • He’s offering $500 to anyone who can find an earlier multiplayer FPS:

      • http://www.geocities.com/jim_bowery/spasim.html

  • Used a first person perspective

    • players flew around in space

    • others appeared as wireframe ships


Star vs mesh topologies ref http www webopedia com quick ref topologies asp l.jpg
Star vs. Mesh Topologies(Ref: http://www.webopedia.com/quick_ref/topologies.asp)

  • Star (client/server) Topology

    • All devices are connected to a central hub (server)

    • Nodes communicate across the network by passing data through the hub

  • Mesh (peer to peer) Topology

    • every node has a connection to every other node in the network.

    • provides faster communication

    • burden on clients to enforce application rules

    • minimize size of messages


What data l.jpg
What data?

  • What is communicated across networks?

    • player locations

    • player states

    • player appearance

    • player orientation

    • voice communications

  • Note: send the minimum amount of data necessary

    • minimize data type sizes (bytes are nice)


Bottom line l.jpg
Bottom Line

  • Networked games must be:

    • fast

    • reliable

  • Which should be used (client/server or peer-to-peer) for MMOs?

    • it depends, but mostly client/server

  • Architectures in use:

    • pure client/server

    • pure peer to peer

    • hybrid client/server & peer to peer


Multiplayer issues l.jpg
Multiplayer Issues

  • Latency

    • a difficult issue in multiplayer games

    • How do you handle communication delays?

    • Where is the delay?

      • lag is commonly due to overloaded networks

  • Cheating

    • How do you ensure fairness?

  • Subscriptions

    • How do you ensure only paying customers are playing?


Decisions to make l.jpg
Decisions to make

  • What service provider do you want the connection to use?

  • Will you be “hosting” this connection or will you connect to an existing session?

    • a first host connection must accept the incoming network data from the other peers

    • a first host starts the session


Other networking topics l.jpg
Other Networking Topics

  • Questions for a reliable gaming network:

    • How often should data be sent?

    • How do you handle lost clients?

    • How do you handle lost host clients?

    • How do you handle slow clients?

    • Peer-to-Peer/Client-Server combinations


Server game state l.jpg
Server Game State

  • Server maintains database of:

    • server control objects

      • “true” game state of various objects (player/object locations, player/object states, etc.)

    • connections

  • Continuously, the Server:

    • Collects input from connections

    • Updates control objects according to input

    • Sends updated game state on a need to know basis


A networked game is its traffic l.jpg
A networked game is its traffic

  • Some networked engines have built-in demo recording options

  • How?

    • log all network communications. Why?

    • play back a game for a demo

    • in effect, a game is its network traffic and the state changes it causes


Common strategies l.jpg
Common Strategies

  • Player data sent to server:

    • user input (moves, firing, etc) on timed basis (ex: 30 times/sec)

    • if no input (player idle), little if anything will be sent

  • Server data sent to player

    • world game state (other player & enemy locations & states)

    • on a timed basis

  • Huge amount of data in the world game state. Many efficiencies required:

    • Ex: string tagging, game data masking, ghosting, triggers, etc.


String tagging l.jpg
String tagging

  • String data can eat up network bandwidth

  • Solution? Networked String Table

    • keeps track of strings sent to/from clients

    • most strings of data (i.e. player names) are transmitted only once between clients & the game server

    • if a string that has already been transmitted needs to be sent again:

      • a tag is sent instead of the full string

      • tag is a number that identifies the string to be used

      • so the full string need not be sent again

  • Obviously this won’t work for chat


Game data masking l.jpg
Game Data Masking

  • A network game efficiency

  • Servers maintain info about what data has been changed since last broadcast to clients

    • masks on server keep track of this

  • Server will then only send data that has changed in next broadcast

  • Server will then reset


Masks l.jpg
Masks

  • Ex: let’s use a 32 bit mask for a control object

    • 10111011011011011111111011101100

  • What might these numbers represent?

    • each number represents a piece or pieces of game data

    • 0 means it hasn’t changed, 1 means it has

    • don’t send the data that’s 0

  • How many control masks do we need?

    • one for each game object that clients might need to know about

  • How many bits should it have?

    • one bit for each variable the clients might need to know about


Example mask l.jpg
Example Mask

  • 10111011011011011111111011101100

  • Control object is evil boss:

    • first bit is position

    • second bit is orientation

    • third bit is state (living or dead)

    • fourth bit is animation state

    • etc.


Server handling masks l.jpg
Server handling masks

  • Each loop on server:

    • Reset all masks to all 0’s (0000…000)

    • Collect all input from clients

    • Update appropriate variables

      • player input, physics, AI, etc.

    • For variables with mask bits, if updated, set bit to 1

    • Send game state to players, only sending data with 1s in game mask (they’ve changed since last frame)


Ghosting l.jpg
Ghosting

  • Info sent to clients to be precisely matched to what they need

  • Why?

    • so that no excess bandwidth is wasted

  • Server maintains the authoritative game state for every object in the simulation

  • Sends objects to individual clients based on "only send the data the client requires"

  • NOTE: each client will receive their own custom packet


How does ghosting work l.jpg
How does ghosting work?

  • Server maintains a list of all objects important to each client

  • How does it do that?

    • a scope check

    • Where’s the player camera?

    • What might be near it?

  • During each network update cycle, for each client:

    • Performs a rapid scope check

    • Collect the data we need to tell the client about

    • Builds an update packet

    • Transmit the packet to the client

  • Obviously, this can be combined with game data masking


Determining scope l.jpg
Determining Scope

  • Based upon frustum:

    • field of view for player

    • visible distance for the mission

    • traverse the Scene Graph and mark each object that can be viewed

  • For Real Time Strategy Scoping:

    • determine the visible/not visible state of all units in the mission based on friendly unit locations and visibility ranges

    • construct a list of all visible units per client

    • scope the entire list of visible units to that client


Benefits of ghosting l.jpg
Benefits of Ghosting

  • Minimize the amount of update traffic

  • Security that clients only have what they should have

    • clients shouldn’t have “out of game” knowledge

  • Prevent collusion

    • a game hacker tactic where two players share the information about the simulation they have

    • How do we prevent it?

      • use unique ghost IDs for each player

      • when a new object comes into scope for a specific client, the server assigns a GhostID to this object, and only tells the client what it's unique GhostID is

    • clients cannot share GhostIDs without the server’s involvement

    • the client is never told the actual server ObjectID of the newly scoped object


Obviously there is a huge burden on the server l.jpg
Obviously there is a huge burden on the server

  • It had better be efficient

  • Obsess over every last bit sent to clients. Why?

    • because you may have lots of clients

  • Packing/unpacking data into/from a bit streams

    • many compressions techniques available

      • for strings of 1s and 0s

    • only use the # of bits necessary for the data sent

      • ex: 1 bit for a boolean, 6 bits for an integer storing 43

    • this is a computing trade-off for lower bandwidth


Triggers l.jpg
Triggers

  • Common events & reactions built into a game engine

  • Ex:

    • player walked into room, so close door behind him

  • Opportunity:

    • help clients know game state without having to be told by server


Common types of triggers l.jpg
Common Types of Triggers

  • Common Types:

    • area triggers

      • collide with an area in the world

      • 3D box

    • animation triggers

      • used to synchronize environment effects with animations

        • e.g., footstep sounds with walking animations

    • weapon state triggers

      • dictate what to do when a weapon is firing, loading, etc.

    • player event control triggers

      • lets client act on certain input before server approval


References l.jpg
References

  • ClassicGaming.com: PLATO Ain’t just Greek

    • http://www.classicgaming.com/features/articles/computergaminghistory/index5-2.shtml

  • GameSpy: The History of MUDs

    • http://archive.gamespy.com/articles/january01/muds1/index.shtm

  • MSDN: Windows Sockets 2

    • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/winsock/winsock/windows_sockets_start_page_2.asp

  • Webopedia

    • http://www.webopedia.com/TERM/W/Winsock.html


References28 l.jpg
References

  • Torque/Networking

    • http://tdn.garagegames.com/wiki/TorqueNetworking

  • Torque/Networking/Making a Ghostable Object

    • http://tdn.garagegames.com/wiki/Torque/Networking/Making_a_Ghostable_Object

  • Introduction to Network Programming Concepts

    • http://opentnl.sourceforge.net/doxytree/introprogramming.html
