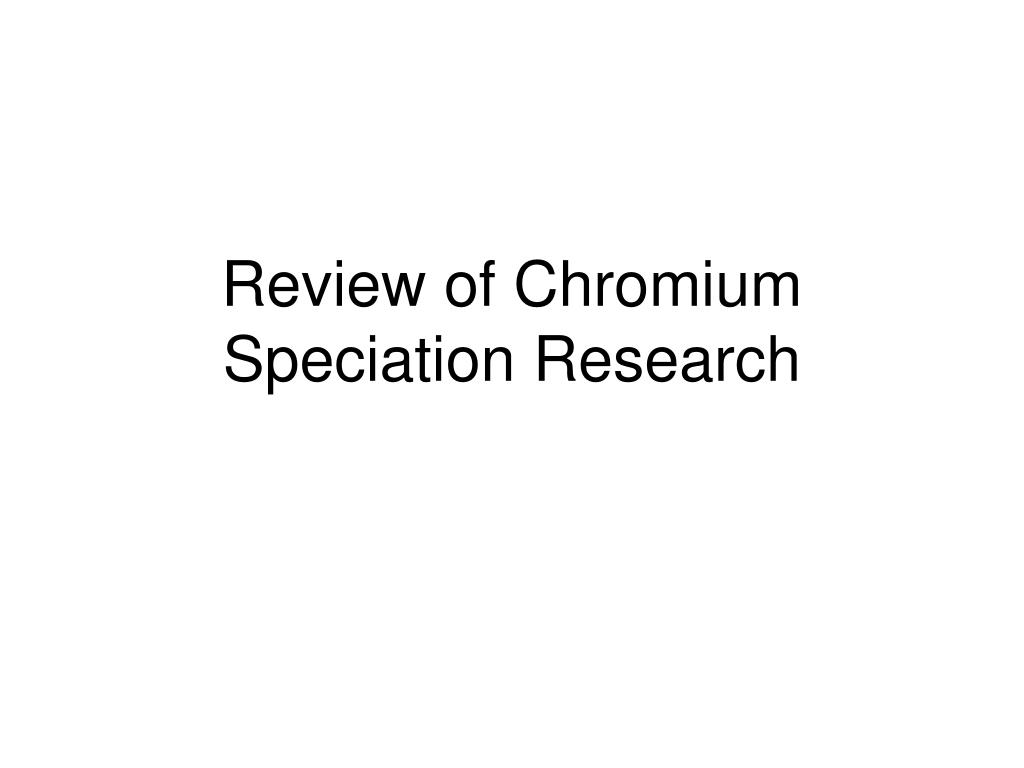

Review of chromium speciation research
Download
1 / 23

Review of Chromium Speciation Research - PowerPoint PPT Presentation


  • 192 Views
  • Updated On :

Review of Chromium Speciation Research. Research Project: Assessing the Impact of Chromium in the Environment. Assessing the Impact of Chromium in the Environment Funding provided by the Florida Department of Environmental Protection RCRA Program. Chromium Exists as Several Chemical Species.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Review of Chromium Speciation Research' - samuru


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Research project assessing the impact of chromium in the environment l.jpg

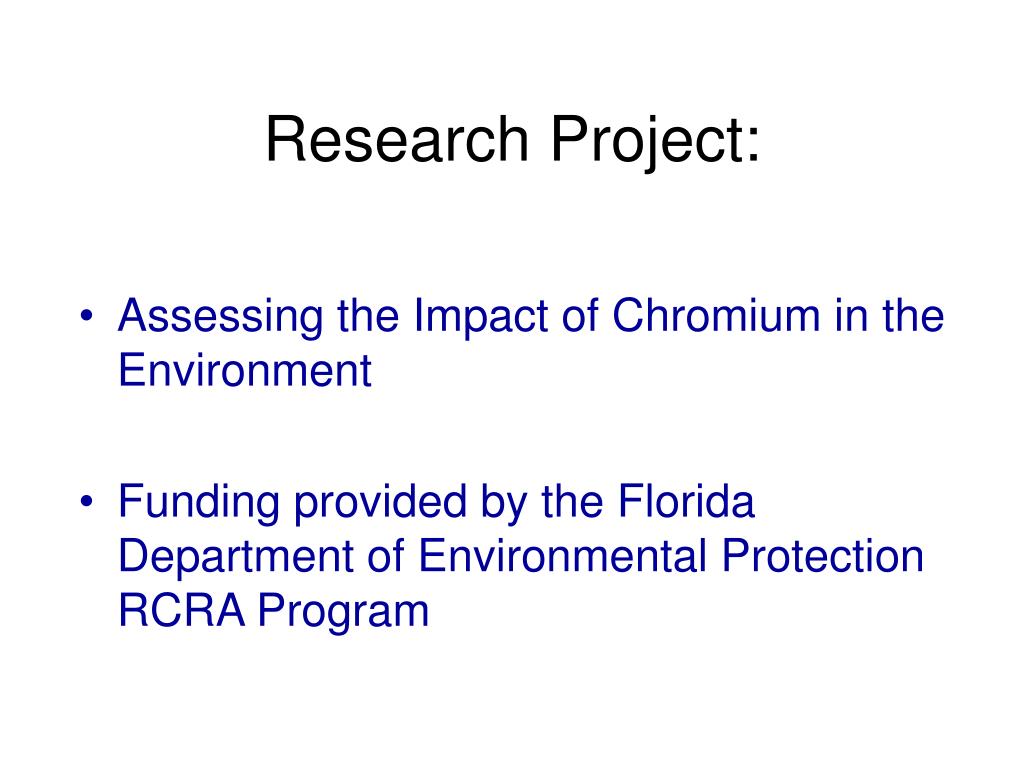

Research Project:Assessing the Impact of Chromium in the Environment

  • Assessing the Impact of Chromium in the Environment

  • Funding provided by the Florida Department of Environmental Protection RCRA Program


Chromium exists as several chemical species l.jpg
Chromium Exists as Several Chemical Species

Most common oxidation states: 0, +3, +6

0: Elemental Chromium (Cr)

+3: Trivalent Chromium

Species: Cr+3, Cr2O3

+6: Hexavalent Chromium

Species: CrO42-, Cr2O7-


Chromium speciation important l.jpg
Chromium Speciation Important!

  • The characteristics and properties of trivalent chromium and hexavalent chromium are greatly different.

  • Cr(VI) is much more toxic and mobile than Cr(III)


Chromium eh ph diagram l.jpg
Chromium Eh-pH Diagram

1.2

1.0

0.8

0.6

0.4

0.2

0.0

-0.2

-0.4

-0.6

Cr2O7 -

CrO4 2-

Cr 3+

Eh (volts)

Cr2O3

0 2 4 6 8 10 12 14

pH


Fate of chromium in cca treatment process l.jpg
Fate of Chromium in CCA-Treatment Process

Treating Solution

  • CrAsO4

  • Cu(OH)CrAsO4

  • CuCrO4

  • Cr(OH)3

  • Cr6+/wood complexes

  • Cr3+/wood complexes

  • Cu2+/wood complexes

Treated Wood

  • CrO3

  • CuO

  • As2O5

Cr+6

Cr+3


Research objective l.jpg
Research Objective

  • Examine the fate and behavior of hexavalent chromium in various environmental media impacted by CCA


Slide9 l.jpg

0.0 mg Cr+6/l

0.3 mg Cr+6/l

0.6 mg Cr+6/l


Alkaline digestion l.jpg
Alkaline Digestion

SW-846 Method 3060A


Ic system l.jpg
IC System

Detector

Analytical

Column

Integrator

Guard

Column

LC Pump


Experiment 1 l.jpg
Experiment 1

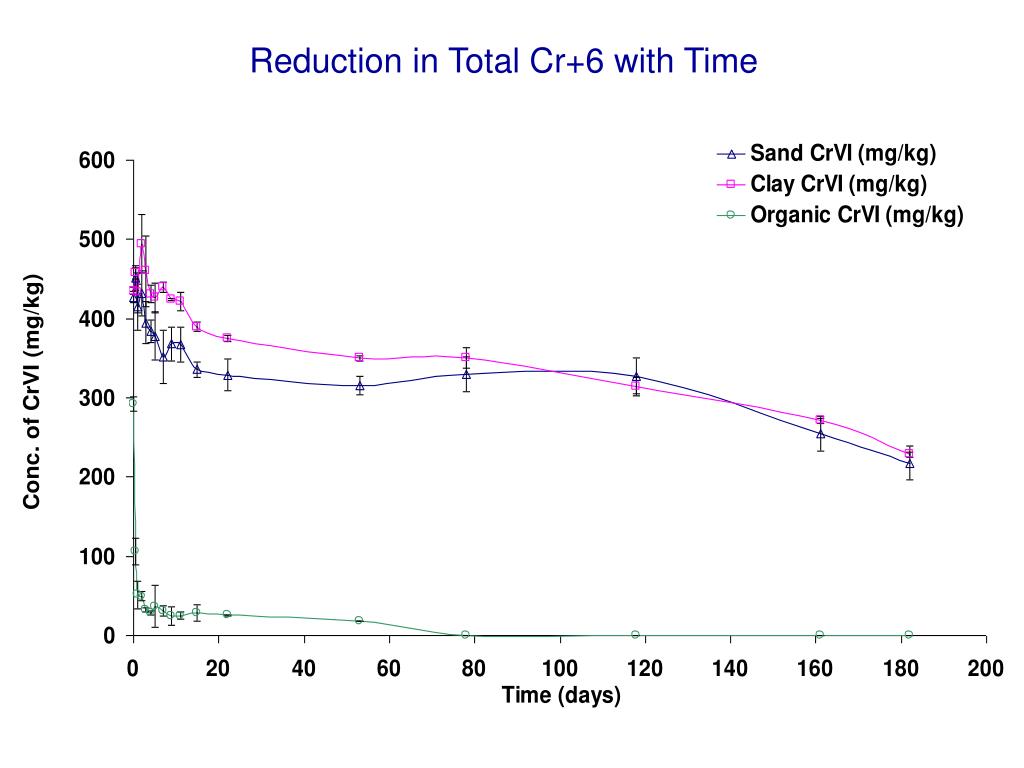

  • Examination of the fate of hexavalent chromium in soils spiked with CCA solution

  • Cr(VI)/Cr(total) concentrations were measured over time

  • Leachable Cr(VI) and Cr(III) concentrations measured over time (SPLP)




Experiment 2 l.jpg

Experiment 2

How Much CrVI is in CCA-Treated Wood


Results l.jpg

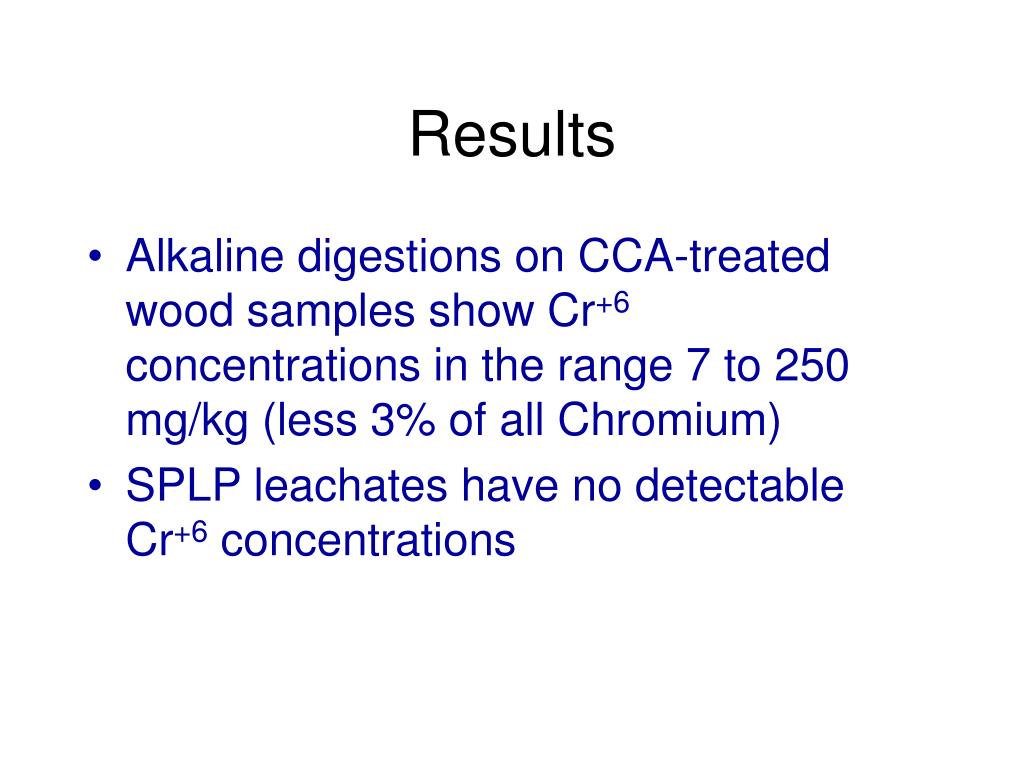

Results

  • Alkaline digestions on CCA-treated wood samples show Cr+6 concentrations in the range 7 to 250 mg/kg (less 3% of all Chromium)

  • SPLP leachates have no detectable Cr+6 concentrations


Experiment 3 l.jpg

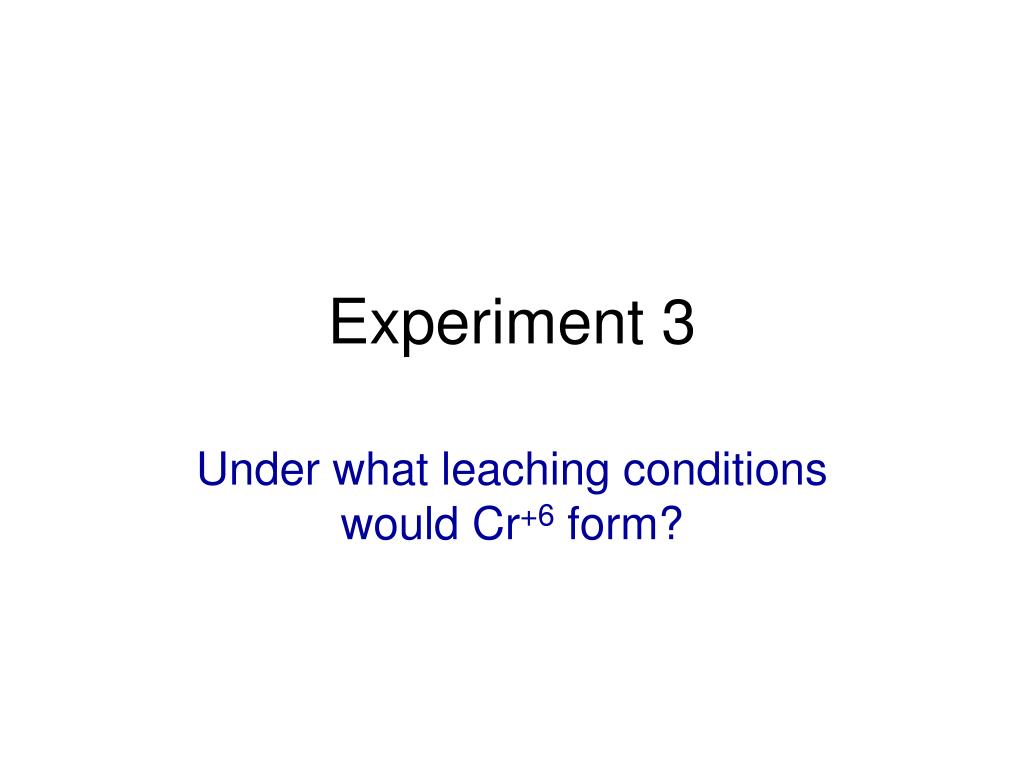

Experiment 3

Under what leaching conditions would Cr+6 form?



Slide19 l.jpg

Chromium Leachability as a Function of Time(weathered wood sample)

MSW LandfillLeachate

AlkalineLeachate

TCLP &SPLP


Experiment 4 l.jpg

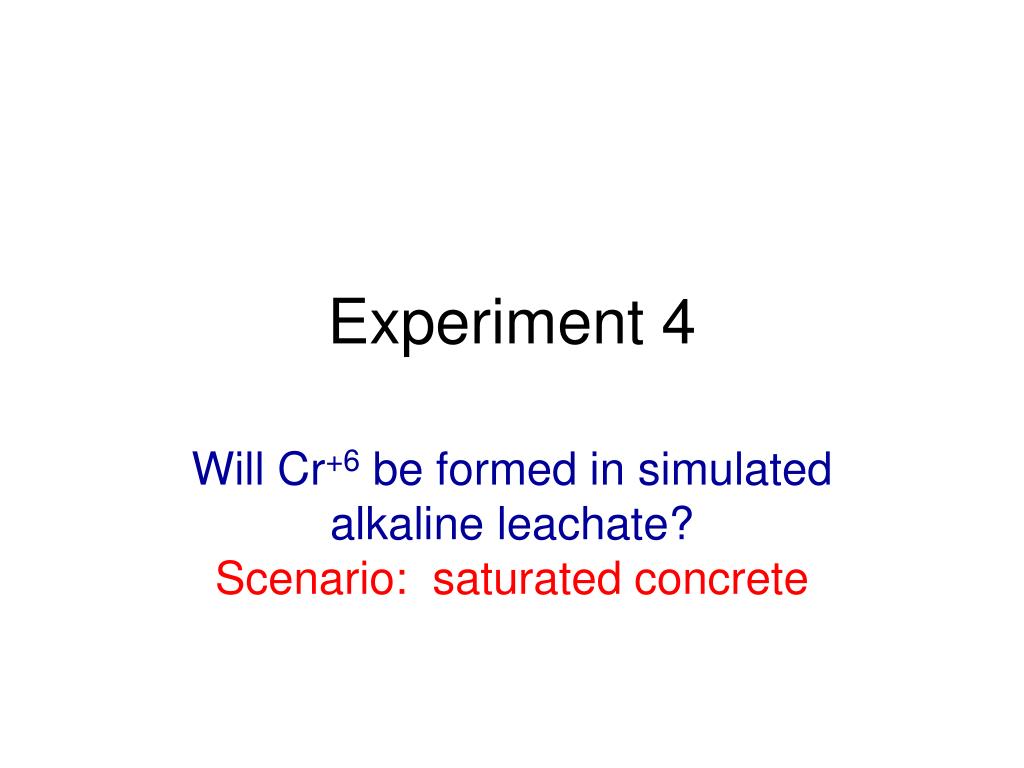

Experiment 4

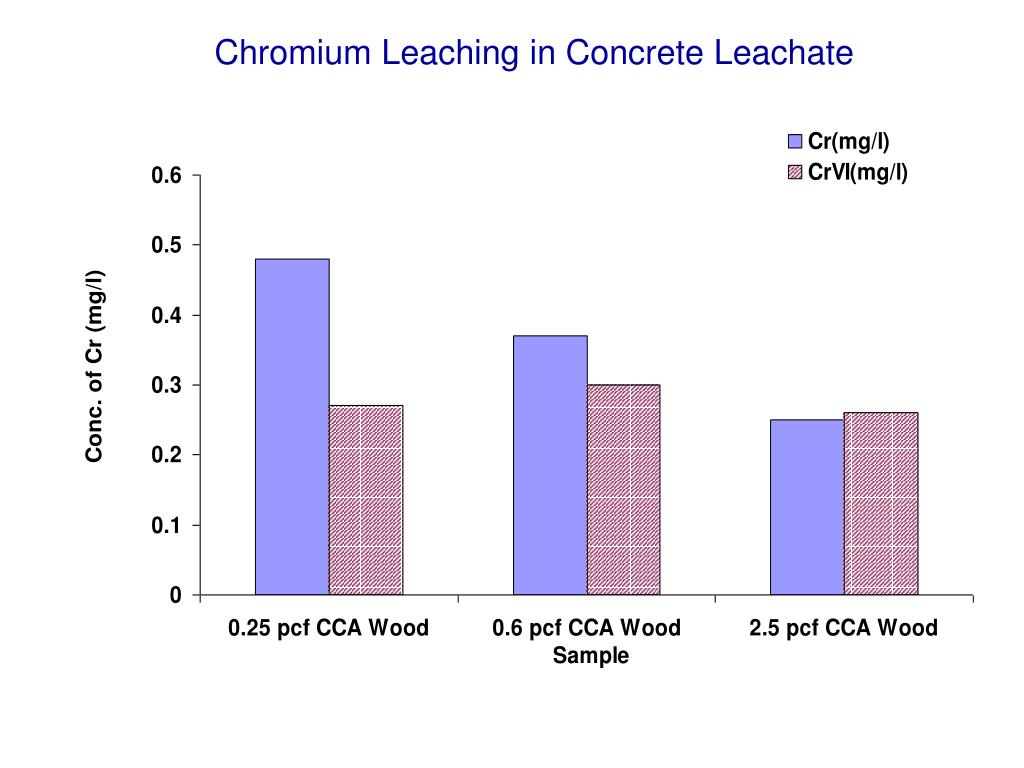

Will Cr+6 be formed in simulated alkaline leachate? Scenario: saturated concrete



Experiment 5 l.jpg

Experiment 5

Is Cr+6 formed during combustion of CCA-treated wood?
