EOS Data and Operations System (EDOS) Latency Enhancements. Agenda. EDOS Architecture Diagram EDOS Processing Timeline Latency Enhancements Latency Enhancement Schedule. Terri Wood NASA EDOS Project Manager. Bruce McLemore MOMS EDOS Project Manager November 16, 2010. EDOS Architecture.
E N D

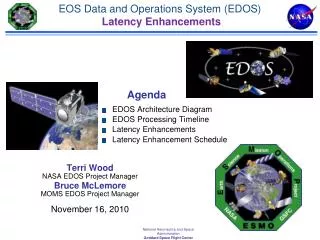

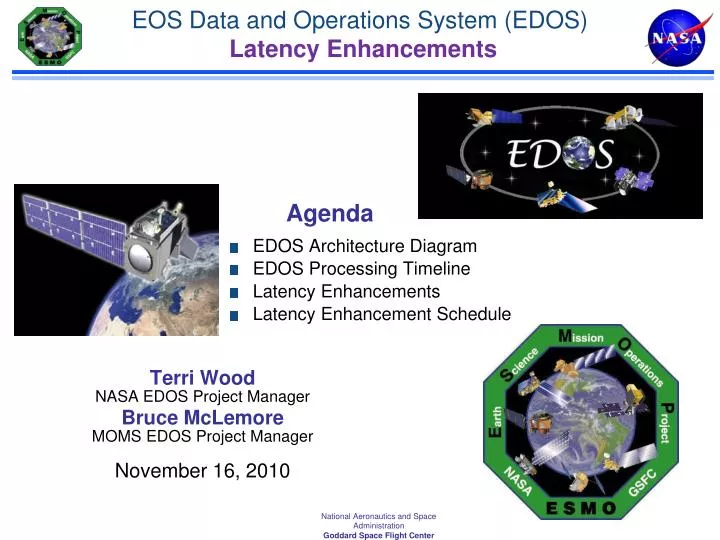

EOS Data and Operations System (EDOS) Latency Enhancements Agenda • EDOS Architecture Diagram • EDOS Processing Timeline • Latency Enhancements • Latency Enhancement Schedule Terri Wood NASA EDOS Project Manager Bruce McLemore MOMS EDOS Project Manager November 16, 2010
EDOS Architecture WSGT EBox-S Captures raw data Generates status data Processes playback data GSIF NAS Stores data for 30 days Daily Totals 1,173RBDs 203 GB EBox-S Playback Data Generates and delivers PDS/EDS products Receives data Terra EOC 24 PDSs 190 MB Terra/Aqua MODAPS 24 PDSs 147.6 GB Terra/Aura ASDC DAAC 252 PDSs 46.2 GB Terra/Aqua LaTIS 4 PDSs 264 MB Aqua NASDA 48 PDSs 0.9 GB ICESat NSIDC DAAC 64 PDSs 5.3 GB ICESat ISIPS 64 PDSs 5.3 GB Terra ASTER SDPS 55 PDSs 53.2 GB Terra/Aqua/ Aura GES DAAC 360 PDSs 21.4 GB LZPF NDAF Stores PDSes External Web Server Provides monitor capabilities to FOT and external customers EOC External Users EO-1 EO-1 MOC 23.3 GB Terra/ Aqua/Aura EOC 361 RBDs 3.1 GB Terra ASTER ICC 31 RBDs 0.3 GB Terra/Aqua NOAA 286 RBDs 174 GB Aura HIRDLS UCB 30 RBDs 1 GB Aura HIRDLS Oxford 75 RBDs 1.1 GB Aura KNMI 60 RBDs 14 MB Aura ONRTS 75 RBDs 6.8 GB Aura TES SIPS 15 RBDs 19.5 MB Aqua NASDA 45 RBDs 1 GB Aqua GES DAAC 195 RBDs 13.9 GB EO-1 4 contacts 28 GB/Day 150 MBps Terra 31 contacts 214 GB/Day 150 Mbps Aqua 15 contacts 122 GB/Day 150 Mbps Aura 15 contacts 74 GB/Day 150 Mbps ALOS 6 contacts 200 GB/Day 280 Mbps Ground Stations PF-1 EBox-S PF-2 EBox-S GL-AB EBox-S GL-C EBox-S SGS-1 EBox-S SGS-2 EBox-S SGS-3 EBox-S SGS-4 EBox-S Spare EBox-S Spare HRDFEP STGT EBox-S Spare EBox-S ALOS HRDFEP WFF EBox-S EBox-S White Sands Complex Wallops Norway Alaska GSIFs CODA Service processes data Generates and distributes RBDs EBox-R LZPF Playback Files Status Data PDSs RBDs CODA CADUFiles LZPF NAS Stores data for 20 days RBD Storage Raid Stores RBDs RBDs PDSs / EDSs Daily Totals 895 PDSs 281 GB
EOS Data and Operations System (EDOS) EDOS Processing Timeline
EOS Data and Operations System (EDOS) Planned Latency Enhancements • Remove Reed-Solomon decoding bits prior to WAN transfer • Benefit: Decrease WAN transfer file size by about 12%, therefore decreasing WAN transfer time. Also saves storage space on NAS at stations and LZPF. (Aqua/Terra savings ~2 min; Aura savings ~1 min) • Provide lossless data compression before WAN transfer and decompress at LZPF upon receipt (includes de-randomization of Terra data) • Benefit: Decrease WAN transfer file size by about 30%, therefore decreasing WAN transfer time (Aqua/Terra savings ~6 min; Aura savings ~2 min) • Move Terra Ebox-R from GSFC LZPF to White Sands, perform Level Zero Processing (service processing and product distribution) on site • Benefit: Eliminate WAN transfer time to LZPF, saving ~10 minutes for Terra RBD product deliveries.
EOS Data and Operations System (EDOS) Latency Enhancements Schedule • Remove Reed-Solomon decoding bits prior to WAN transfer • Development and Test Complete: December 31, 2010 • Deployment: January, 2011 • Provide lossless data compression before WAN transfer and decompress at LZPF upon receipt (includes de-randomization of Terra data) • Development and Test Complete: December 31, 2010 • Deployment: January, 2011 • Move Terra Ebox-R from GSFC LZPF to White Sands, perform Level Zero Processing (service processing and product distribution) on site • Development and Test Complete: April 30, 2011 • Deployment: May, 2011
