Unit ii

Unit II

Neuroscience and Behavior

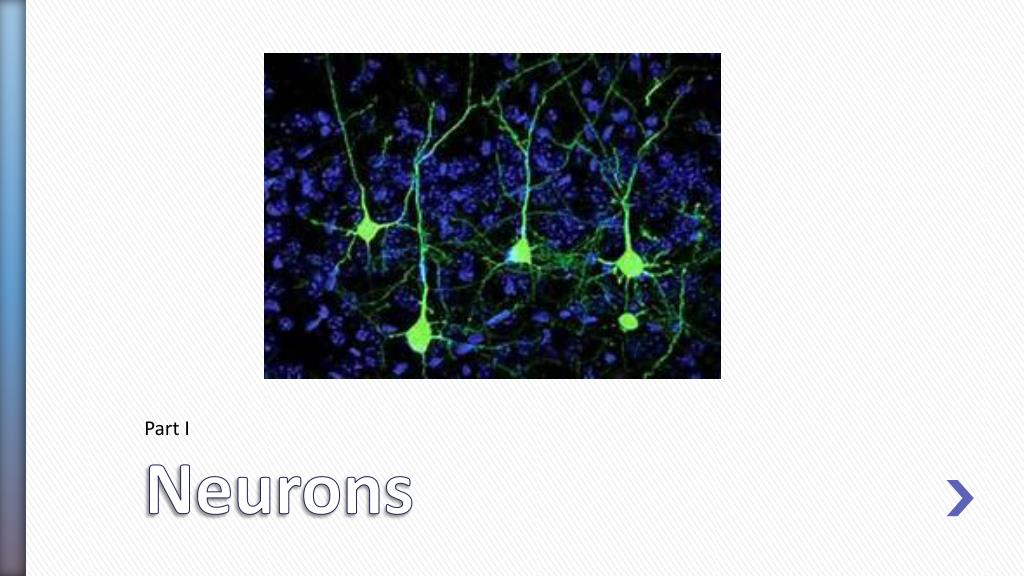

Part I



  • A nerve cell

    • Basic unit of information processing; building block of the brain and nervous system

    • 100 billion neurons in the human brain and CNS! (and 400 trillion synapses!)

    • A grain of sand-size part of the human brain holds 100,000 neurons!



  • Dendrite (receives impulse)

    • Branching extensions of a neuron / receive messages / conduct impulses toward the cell body

  • Axon (transmits impulse)

    • Extension of a neuron, ending in branching terminal fibers, through which messages are sent to other neurons or to muscles or glands

    • Remember: “Axons speak, dendrites listen…”

  • Myelin Sheath (speeds impulse)

    • A layer of fatty cells segmentally encasing the fibers of many neurons

    • Speeds transmission of neutral impulses

    • When it wears out

      • Alzheimer's (impedes transmissions affecting thought process)

      • Multiple sclerosis: interferes with muscle control (as message to muscles is impeded..)



  • Action Potential

    • Aneural impulse; a brief electrical charge that travels down an axon

    • Stimulated when neuron receives signals from sense receptors stimulated by heat, pressure or light

    • Generated by the movement of positively charged atoms in and out of channels in the axon’s membrane

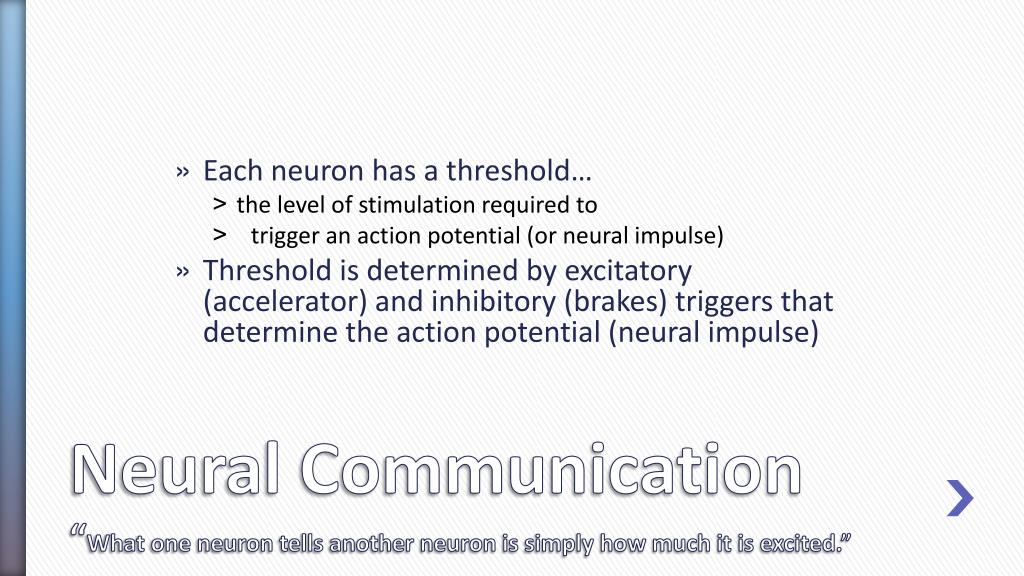

Neural communication what one neuron tells another neuron is simply how much it is excited

  • Each neuron has a threshold…

    • the level of stimulation required to

    • trigger an action potential (or neural impulse)

  • Threshold is determined by excitatory (accelerator) and inhibitory (brakes) triggers that determine the action potential (neural impulse)

Neural Communication“What one neuron tells another neuron is simply how much it is excited.”



  • Resting Potential batteries)

    • Fluid inside a resting axon has negatively charged atoms

    • Fluid outside the axon membrane has positively charge atoms

    • Natural state of inside / outside ions = resting potential

  • Axon’s surface is selectively permeable (it decides what it allows in)

  • Neuron fires

    • Axon opens gates (selectively permeable) and + charged sodium ions flood the membrane

  • + sodium ions cause depolarization

    • Depolarization causes reaction as axons pass the impulse down the chain (like dominoes)

    • Opens and closes 100-1000 times /second!


Reaching a neuron s threshold

  • Refractory Period batteries)

    • Once impulse has been passed, the axon pumps + ions back out of membrane, and thus recharges

  • All or none response

    • Increased stimulus does not increase the action potential’s intensity (a gun either fires or doesn’t)

Reaching a Neuron’s Threshold

Neural communication

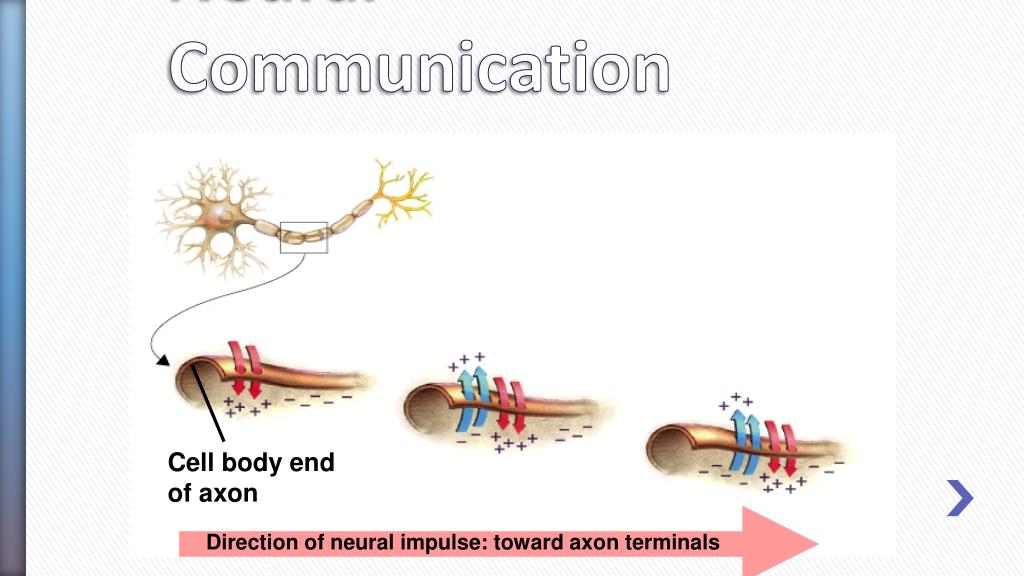

Cell body end batteries)

of axon

Direction of neural impulse: toward axon terminals

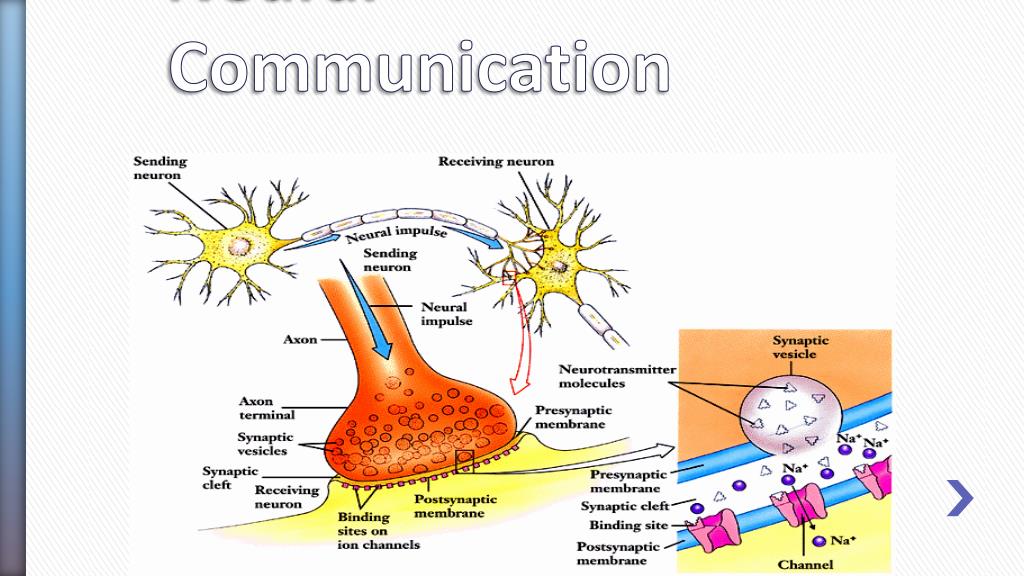

Neural Communication

Neural communication1

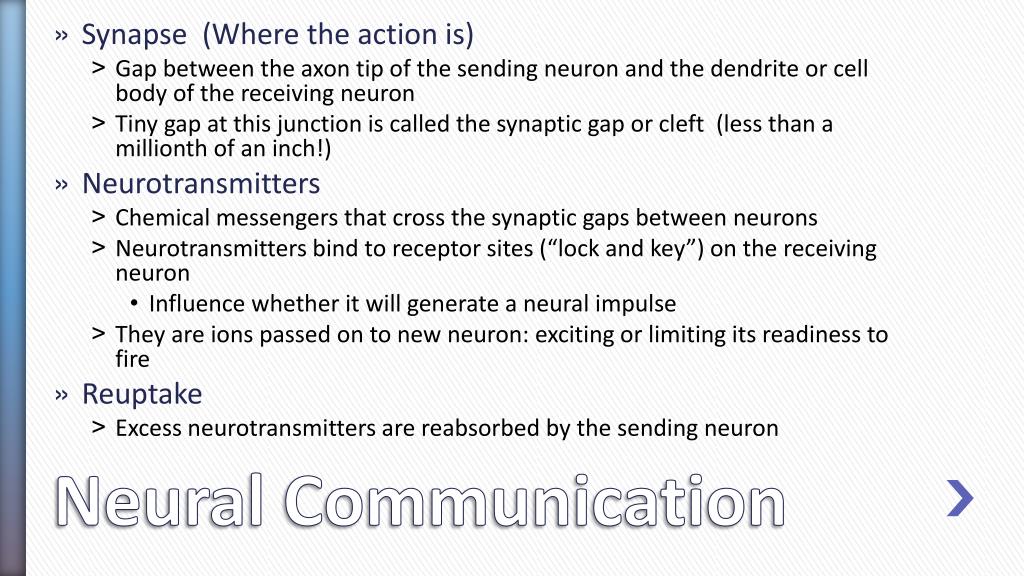

  • Synapse (Where the action batteries)is)

    • Gap between the axon tip of the sending neuron and the dendrite or cell body of the receiving neuron

    • Tiny gap at this junction is called the synaptic gap or cleft (less than a millionth of an inch!)

  • Neurotransmitters

    • Chemical messengers that cross the synaptic gaps between neurons

    • Neurotransmitters bind to receptor sites (“lock and key”) on the receiving neuron

      • Influence whether it will generate a neural impulse

    • They are ions passed on to new neuron: exciting or limiting its readiness to fire

    • Reuptake

    • Excess neurotransmitters are reabsorbed by the sending neuron

Neural Communication

Nervous system

Part II batteries)

Nervous System

The nervous system

  • Nervous System: the body’s electrochemical information network

  • Components of the Nervous System

    • Central Nervous System (CNS)-Internal command center made up of the brain and spinal cord

    • Peripheral Nervous System (PNS)-Connects CNS with sense receptors, muscles, and glands

  • Nerves: large bundles of neurons

    • Sensory Neurons: Info from tissues and organs to the CNS for processing

    • Motor Neurons: Info from CNS back out to the body

    • Interneurons: Complex system of neurons that processes info in the CNS

    • Reflex: Single sensory neuron+single motor neuron+interneuron

The Nervous System

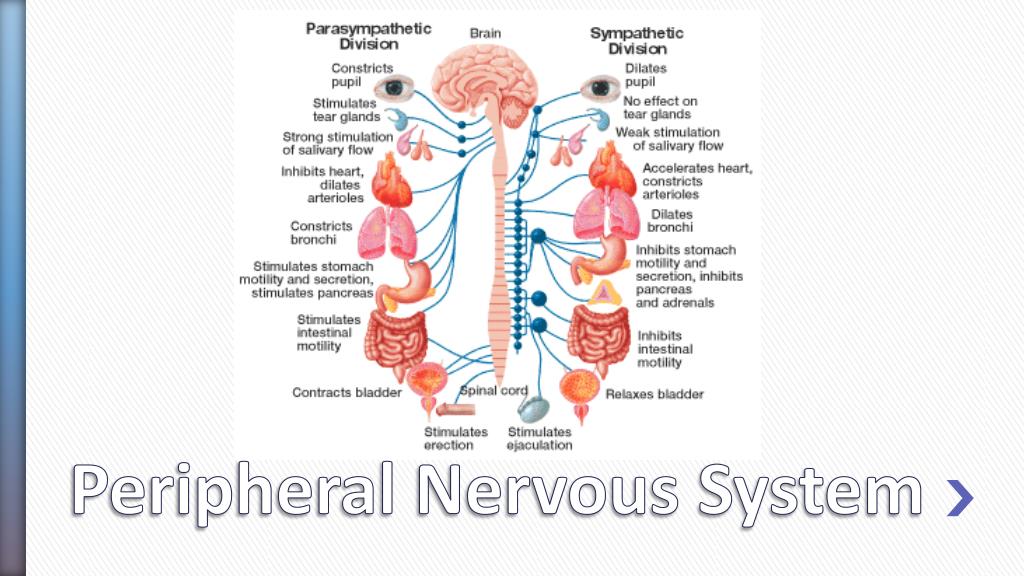

Peripheral nervous system

  • Two components: somatic and autonomic network

    • Somatic: Allows us to move our skeletal muscles

    • Autonomic: Controls glands and muscles of our internal organs (e.g. heartbeat)

      • Operates on its own (but can be consciously overridden)

  • Autonomic Nervous System also has two components

    • Sympathetic: Arouses (reaction to stress—fight or flight)

    • Parasympathetic: Calms (when stress subsides)

    • Sympathetic and parasympathetic systems work together to keep us at a steady state

Peripheral Nervous System

Somatic or autonomic

  • Sneezing network

  • Turning the page

  • High-fiving your friend

  • Kissing a date

  • Coughing

  • Digesting

Somatic or Autonomic?

Nervous system breakdown


Nervous System Breakdown

Central nervous system

  • Brain and Spinal Cordhttp://www.youtube.com/watch?feature=player_embedded&v=ivk_irrH1WY

  • Reflexes rely on the CNS

    • Action occurs without feeling: message stops at the spinal cord and never reaches the brain!

    • “Feeling” hits when the message reaches the brain

  • Brain is the computer of the body

    • Collection of neural networks

    • Learning allows us to build neural networks (think foreign languages!)

Central Nervous System


Pain Reflex: sensory neuron, interneuron, motor neuron=simple, inborn response

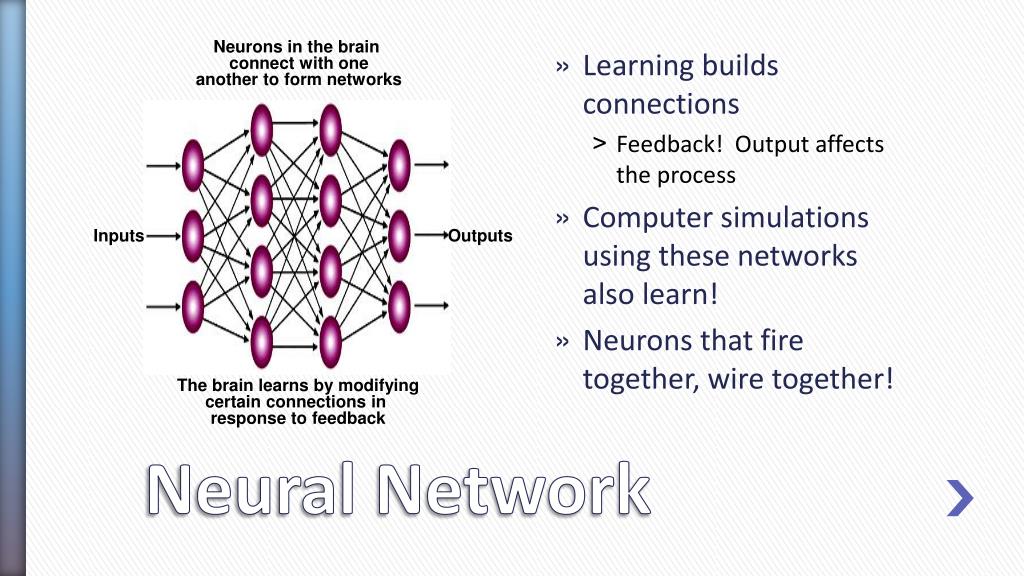

Neural network

Neurons in the brain neuron=simple, inborn response

connect with one

another to form networks



The brain learns by modifying

certain connections in

response to feedback

  • Learning builds connections

    • Feedback! Output affects the process

  • Computer simulations using these networks also learn!

  • Neurons that fire together, wire together!

Neural Network

Endocrine system

Part II b neuron=simple, inborn response

Endocrine System

The endocrine system

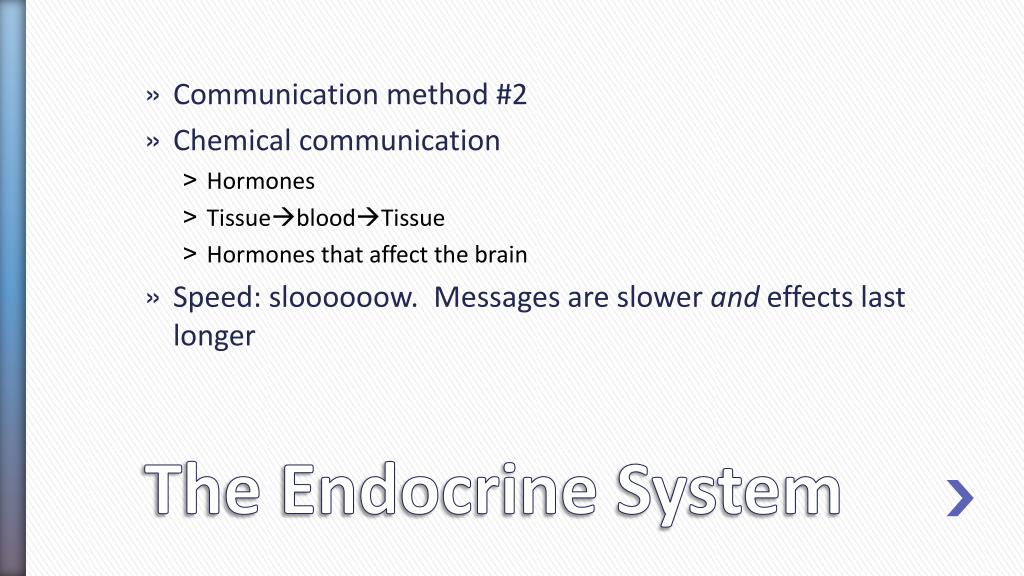

  • Communication method #2 neuron=simple, inborn response

  • Chemical communication

    • Hormones

    • TissuebloodTissue

    • Hormones that affect the brain

  • Speed: sloooooow. Messages are slower and effects last longer

The Endocrine System


  • Chemical Messengers neuron=simple, inborn response

  • Move from tissue to tissue through the blood stream

  • Hormones that affect the brain influence interest in sex, food, and aggression


Major glands

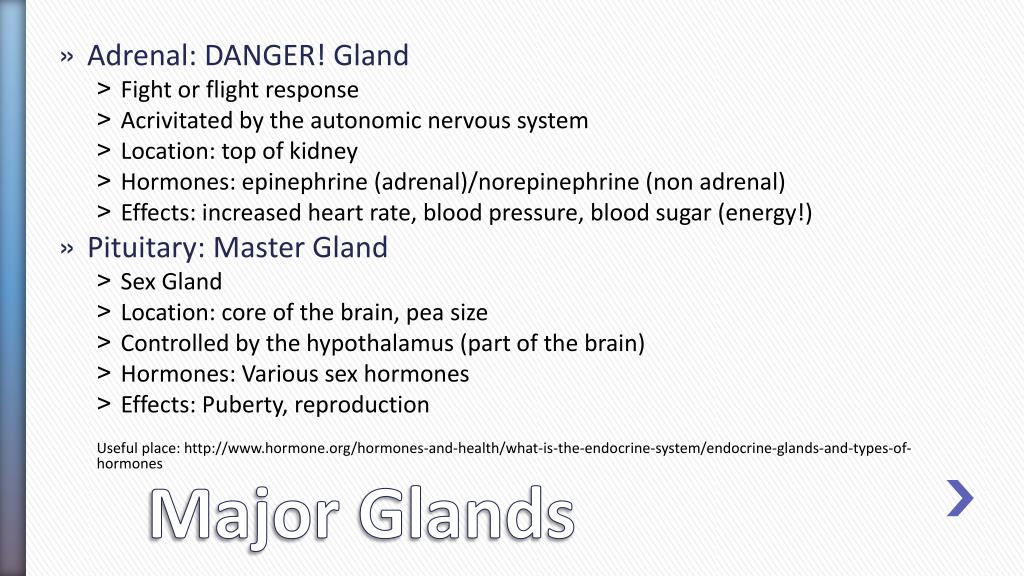

  • Adrenal: DANGER! Gland neuron=simple, inborn response

    • Fight or flight response

    • Acrivitated by the autonomic nervous system

    • Location: top of kidney

    • Hormones: epinephrine (adrenal)/norepinephrine (non adrenal)

    • Effects: increased heart rate, blood pressure, blood sugar (energy!)

  • Pituitary: Master Gland

    • Sex Gland

    • Location: core of the brain, pea size

    • Controlled by the hypothalamus (part of the brain)

    • Hormones: Various sex hormones

    • Effects: Puberty, reproduction

      Useful place: http://www.hormone.org/hormones-and-health/what-is-the-endocrine-system/endocrine-glands-and-types-of-hormones

Major Glands


Pituitary neuron=simple, inborn response



The brain structure

Part III neuron=simple, inborn response

The Brain-Structure

Pre test

Answer the following as true or false. neuron=simple, inborn response

  • The larger the brain, the smarter the animal.

  • The brain’s structure is a better indicator of intelligence than it’s size.

  • The right side of the brain controls the right side of the body, and so on with the left.

  • You fall in love with your heart, not your brain.

  • Your brain uses 20% of your body’s energy, but makes up only 2% of your body’s weight.


  • Your neuron=simple, inborn responsebrain is about the size of a cantaloupe and is wrinkled like a walnut.

  • Your brain feels like a ripe avocado and looks pink because of the blood running through it.

  • The baby’s brain grows 3x in size during its first year.

  • At birth, the human brain weighs 4/5 of a pound, while an adult’s weighs about 3 pounds.

  • Your brain generates about 25 watts of power while awake- or enough to illuminate a light bulb.

A typical human brain

  • Contains neuron=simple, inborn responseabout 100 billion neurons

  • Consumes about ¼ of the body’s oxygen

  • Spends most of the bodies calories

  • Is 70% water

  • Weighs about 3 pounds

A Typical Human Brain

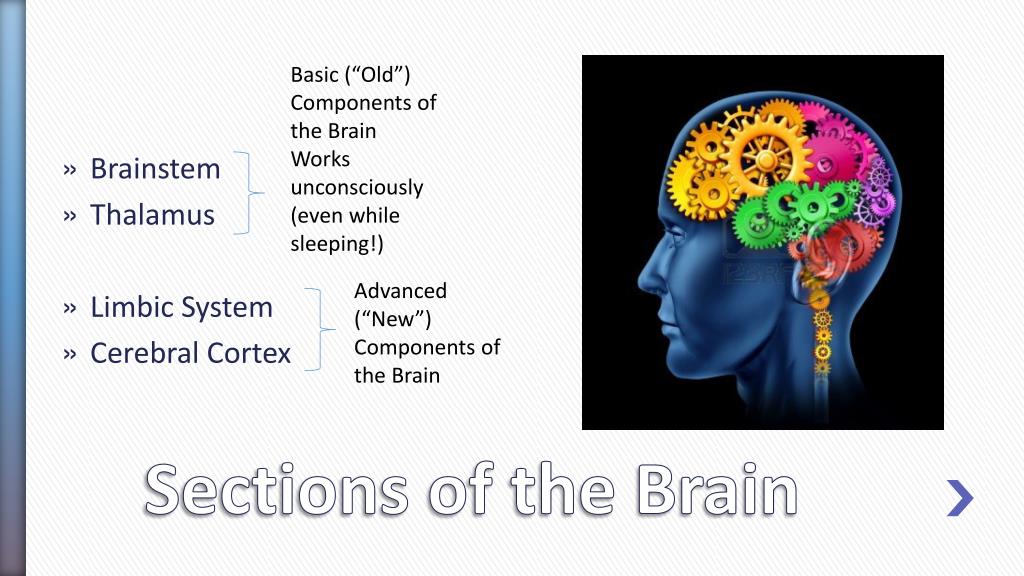

Sections of the brain

Basic (“Old”) Components of the Brain neuron=simple, inborn response

Works unconsciously (even while sleeping!)

  • Brainstem

  • Thalamus

  • Limbic System

  • Cerebral Cortex

Advanced (“New”) Components of the Brain

Sections of the Brain


  • Oldest section of the human brain neuron=simple, inborn response

  • Central core of the brain

  • Begins where the spinal cord swells as it enters the skull

  • Responsible for automatic survival functions


The brain stem

  • Medulla: first piece of the brainstem neuron=simple, inborn response

    • Location: base of the brain above the spinal cord

    • Controls heartbeat and breathing

  • Pons

    • Above the medulla

    • Helps coordinate movement and facial expression

    • Connects midbrain to hindbrain

  • Reticular Formation

    • Structure: Finger shaped network of neurons

    • Location: spinal chord to the thalamus

    • Filters info from the spinal cord, essential for arousal and sleep

The Brain Stem

The brain stem con t

  • The Cerebellum neuron=simple, inborn response

    • Location: Rear of the brainstem

    • Structure: Baseball sized

    • Enables nonverbal learning and memory, allows us to judge time, regulate emotions, discriminate sound and texture, coordinates voluntary movement and maintains balance through fine muscle movements


    • Location: Top of the brain stem

    • Structure: Egg-shaped

    • Receives info from the senses (minus smell), directs it to the proper area of the cortex, then takes replies and sends it to the medulla and cerebellum. Sensory switch board

The Brain Stem Con’t

Cerebellum neuron=simple, inborn response

The forebrain new brain

Useful place: http neuron=simple, inborn response://www.columbia.edu/cu/psychology/courses/1010/mangels/neuro/anatomy/structure.html

  • Controls thoughts and reasoning

  • Thalamus is technically part of the forebrain

The Forebrain (New) Brain

Limbic system

  • Structure: Donut shaped system of neural networks neuron=simple, inborn response

  • Components: hippocampus, amygdala, and hypothalamus

  • Location: border of brainstem and cerebral hemispheres

  • Associated with emotions: fear and aggression and drives: hunger and sex

Limbic System

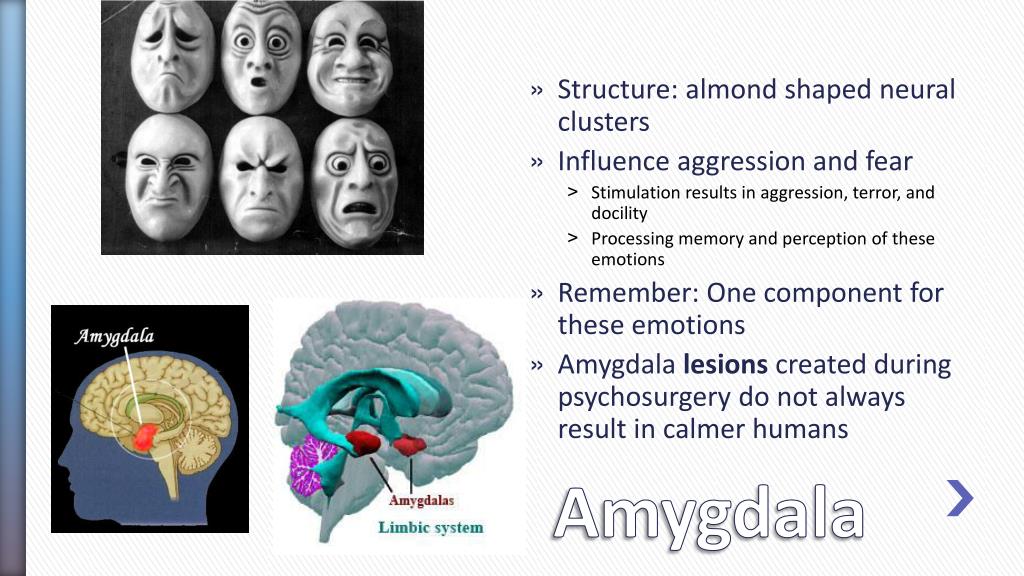

  • Structure: almond shaped neural clusters neuron=simple, inborn response

  • Influence aggression and fear

    • Stimulation results in aggression, terror, and docility

    • Processing memory and perception of these emotions

  • Remember: One component for these emotions

  • Amygdala lesions created during psychosurgery do not always result in calmer humans





  • Location: Below the thalamus; think hypo=below (as in hypothermia)

  • Functions

    • Performs body maintenance: pieces influence hungry, thirst, body temp, sexual behavior

    • Controls the pituitary

    • Closely linked to emotion

  • Commands come from other parts of the brain (for…neural impulses) and by monitoring blood chemistry (for…hormones)

  • Hypothalamus ALSO secretes hormones!

  • Reward center



  • Predominant hypothermia)function is memory

  • When suffering from Alzheimer's this is the first area to show damage


Cerebral cortex

  • Enables perception, thought, and speech hypothermia)

  • Cerebral cortex is to cerebral hemispheres as bark is to a tree

  • More cerebral cortexgreateradaptabilitility

  • Structure: wrinkled, 80% of weight is in the hemispheres, 20-23 billion nerve cells in the cortex!

Cerebral Cortex

Glial cells

  • Glue Cells hypothermia)

  • Guide neural connections

  • Provide nutrients

  • Insulate Myelin

  • Clean extra ions and neurotransmitters

  • More sophisticated the brain, more glial cells

Glial Cells


Four lobes of the cortex hypothermia)

  • Frontal Lobes

  • Parietal Lobes

  • Occipital Lobes

  • Temporal Lobes

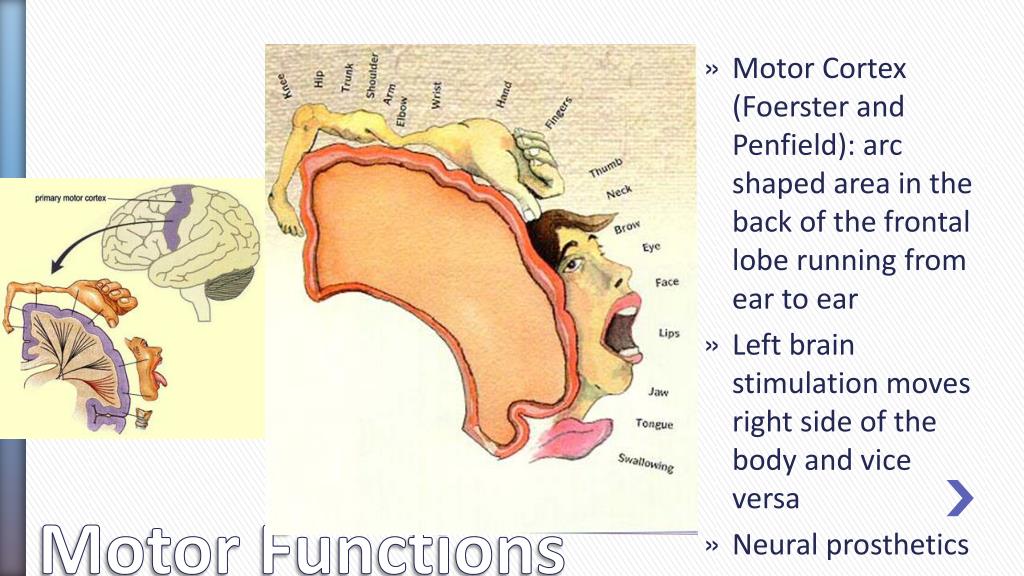

Motor functions

  • Motor hypothermia)Cortex (Foerster and Penfield): arc shaped area in the back of the frontal lobe running from ear to ear

  • Left brain stimulation moves right side of the body and vice versa

  • Neural prosthetics

Motor Functions

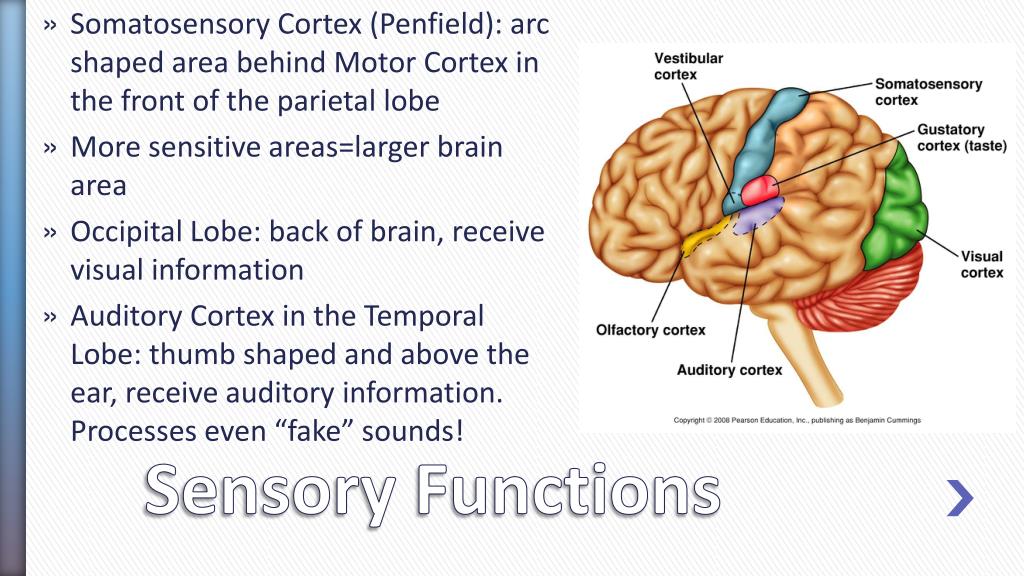

Sensory functions

  • Somatosensory hypothermia)Cortex (Penfield): arc shaped area behind Motor Cortex in the front of the parietal lobe

  • More sensitive areas=larger brain area

  • Occipital Lobe: back of brain, receive visual information

  • Auditory Cortex in the Temporal Lobe: thumb shaped and above the ear, receive auditory information. Processes even “fake” sounds!

Sensory Functions

Association area

  • Remaining sections of the cortex hypothermia)

  • Integrate information: pair new info with memories

  • Frontal Lobe: judge, plan, process new memories, inhibition, personality

  • Parietal Lobe: mathematical and spatial reasoning, facial recognition

Association Area


  • Aphasia: impaired use of language hypothermia)

  • Broca’s Area: Speak (can still sing and understand speech)

  • Wernicker’s Area: Speech comprehension and expression (gibberish)

  • Angular Gyrus: Reading aloud

  • Connections (e.g. reading allowed requires visual info, turned into auditory info, then made into meaning, then spoken




The divided brain

Part hypothermia)IIIb

The Divided Brain

Split brain

  • Corpus Callosum: network of nerves connecting hypothermia)brian hemispheres

    • Help communicate information from one hemisphere to the other (Gazzangia)

  • Right Brain: facial recognition, emotion, simple requests, perception, intuitive responses, drawing, emotions, figurative, subtle

  • Left Brain: deliberate, logical reasoning, calculating, speech, literal

Split Brain

Split brain research

  • Goal: control epileptic seizures hypothermia)

  • Isolate the 2 hemispheres by cutting the corpus callosum

  • Testing the “split brain” proves specific functions of each hemisphere

Split Brain Research

The split brain experiment dr gazzaniga 1967 stare at the dot

he.art hypothermia)

  • Which word would the split-brain patient verbalize seeing? Why?

  • Which word, when asked to point with his left hand, would he report seeing? Why?

The Split Brain ExperimentDr. Gazzaniga- 1967Stare at the Dot…..

Split brain explain the following
Split Brain hypothermia)Explain the following…

The split b rain

If hypothermia)this visual was shown to the right hemisphere of a split brain patient, how might the patient identify the object?

The Split Brain

Fun facts

Fun Facts

Active hemisphere

Simple requests left and right hand.

Perceiving objects

Decision making (deliberative)

Quick intuitive responses

Recognizing faces

Perceiving , expressing emotion

Active Hemisphere


  • More people are right handed left and right hand.

  • Left handedness is more common in males

  • Lefties

    • Process speech in either side of brain (versus righties who process in the left)

    • More often have reading disabilities, allergies, and migraines

    • More common among musicians, mathematicians, pro baseball players, architects, and artists

    • Decline with age…

  • Prenatal or genetic


Studying the brain

Part left and right hand.IIIc

Studying the Brain

Electroencephalogram eeg detects brain waves

  • Measures left and right hand.electrical activity across brain by applying electrodes

  • Can specify waves to specific stimulus

  • Sleep research

Electroencephalogram (EEG) Detects Brain Waves

Computed tomography cat scan

  • Multiple left and right hand.x-ray pictures = 3D image of brain structure

  • Structure only- not function

  • Tumors, physical abnormalities

Computed Tomography (CAT) Scan

Positron emission tomography pet scan

  • Can measure amount and movement of left and right hand.chemical fuel, glucose, in the brain

  • Clues on brain’s activity: the more glucose used, the more activity

  • Neurotransmitters and drugs

Positron Emission Tomography (PET) Scan

Magnetic resonance imaging mri

Magnetic Resonance Imaging (MRI)

Mri scan
MRI Scan location of brain material

Functional mri fmri

Functional MRI (fMRI)

Neurotransmitters and drugs

Part IV location of brain material

Neurotransmitters and Drugs

Important neurotransmitters
Important Neurotransmitters location of brain material

Gaba and glutamate

GABA location of brain material

Inhibitory neurotransmitter

Undersupply = seizures, tremors, insomnia


Excitatory neurotransmitter

Involved in memory

Too much = migraines, seizures

Excitotoxicity: “excite a neuron to death” (glial cells help prevent)

Chinese food- MSG (glutamate) = headaches

Gaba and Glutamate


  • ACh location of brain material

  • Triggers muscle contraction

  • Movement

  • Learning

  • Memory

  • Undersupply = Alzheirmer’s



  • “Endorphins make you happy” location of brain material

  • Natural, opiate-like neurotransmitters

  • Body’s built in morphine

  • Linked to pain control and to pleasure

  • “Runners high”

  • Opium/heroine addicts

  • brain stops producing natural opiates, thus “withdraws”



  • Regulates Mood location of brain material

  • Too much = mania / too little = depression

  • Imbalance = bipolar disorder



  • Sleep location of brain material, eating, mood

  • Related to depression

  • Prozac (anti-depressant drug) raises serotonin levels



  • Perceptual awareness, muscle control location of brain material

  • Too much = Schizophrenia(up to 6x more dopamine)

    • A Beautiful Mind/The Soloist

  • Too little = Parkinson’s Disease (tremors)

    • Muhammad Ali


Drugs affect neurotransmission

  • Drugs can be used to affect communication at the location of brain materialsynapse

  • Agonistsexcite, or mimic the neurotransmitters or block reuptake

    • Drug addicts and withdraw

  • Antagonistsblock, or inhibit neurotransmitters signal

    • Ex. Botox: botulism blocks Ach

  • A complicated process: Brain has blood-brainbarrier that blocks out unwanted chemicals

Drugs Affect Neurotransmission

Neural communication3
Neural Communication location of brain material
