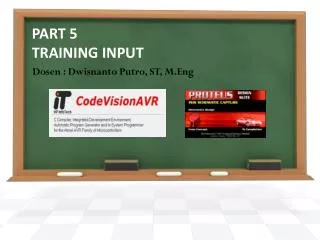

PART 5TRAINING INPUT

Dosen : DwisnantoPutro, ST, M.Eng


Input

  • Input 1 = Mikrokontrolermenerima Input berupategangan (+)

  • Input 0 = Mikrokontrolermenerima Input berupategangan (–) ataupun Ground

Published By Stefanikha69


Cara kerja Push Button

Published By Stefanikha69


System Push Button

Published By Stefanikha69


Jenis-Jenis Push Button

Published By Stefanikha69


Rangkaian Push Button

  • Mikrokontrolermenerimasinyal Ground

Published By Stefanikha69


Rangkaian Push Button PadaUc

Published By Stefanikha69

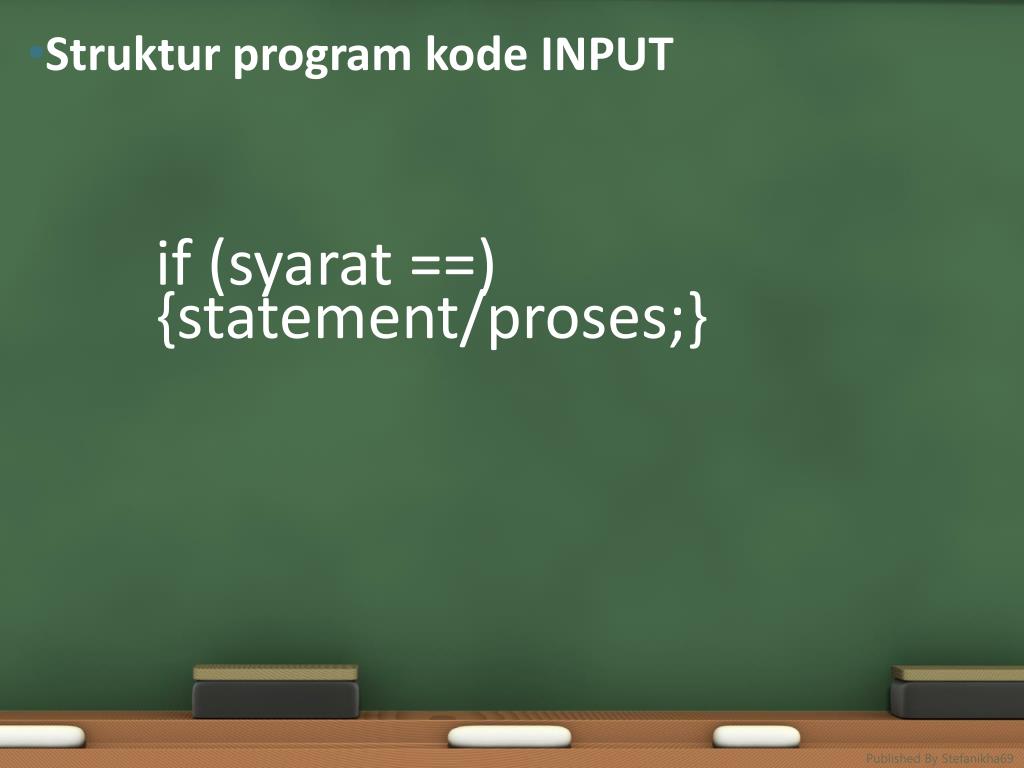

Struktur program kode INPUT

if (syarat ==)

{statement/proses;}

Published By Stefanikha69

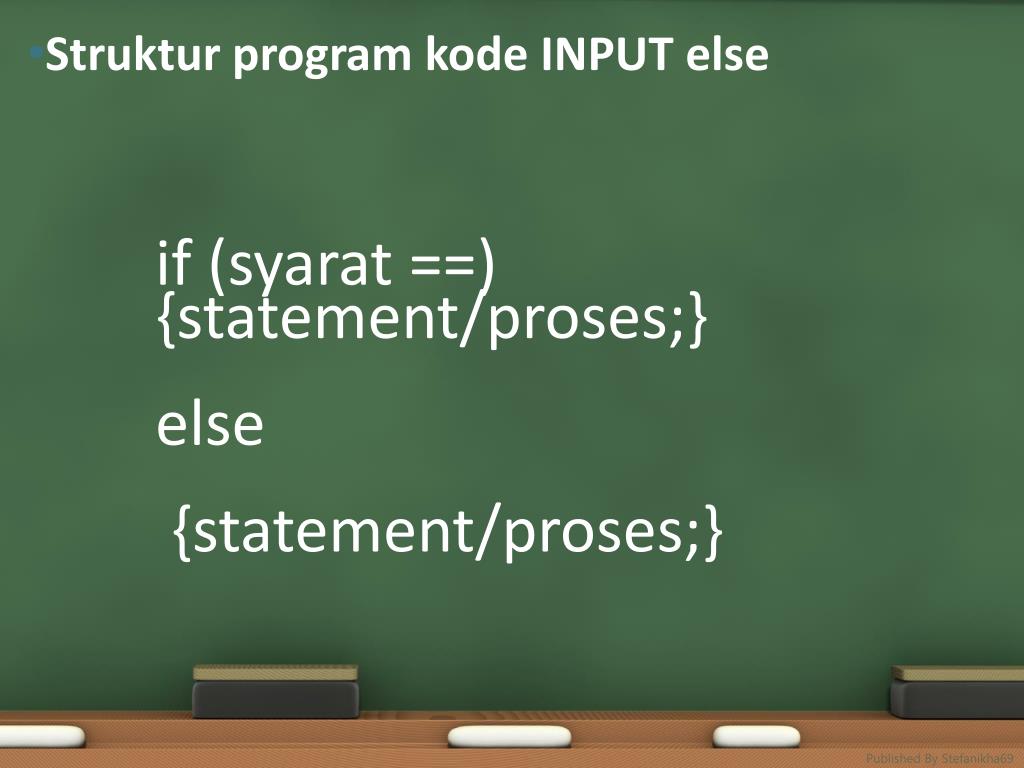

Struktur program kode INPUT else

if (syarat ==)

{statement/proses;}

else

{statement/proses;}

Published By Stefanikha69


New Project

Run CodeVision

Published By Stefanikha69


Published By Stefanikha69


Chip select

Published By Stefanikha69


configuration chip select

  • Chip ATMEGA 8535

  • Clock 8.000000 Mhz

Published By Stefanikha69


  • Untuk port gunakan PORTC untuk LED

    PORTC.0 – PORTC.7 = output (0)

Published By Stefanikha69


Gunakan PORTD.2 dan PORTD.3 sebagai Input pullup (P)

Published By Stefanikha69


Save and Generate

Published By Stefanikha69


Save File – make folder and files

Published By Stefanikha69


Display

Published By Stefanikha69


Configuration ready compile

Published By Stefanikha69


Published By Stefanikha69

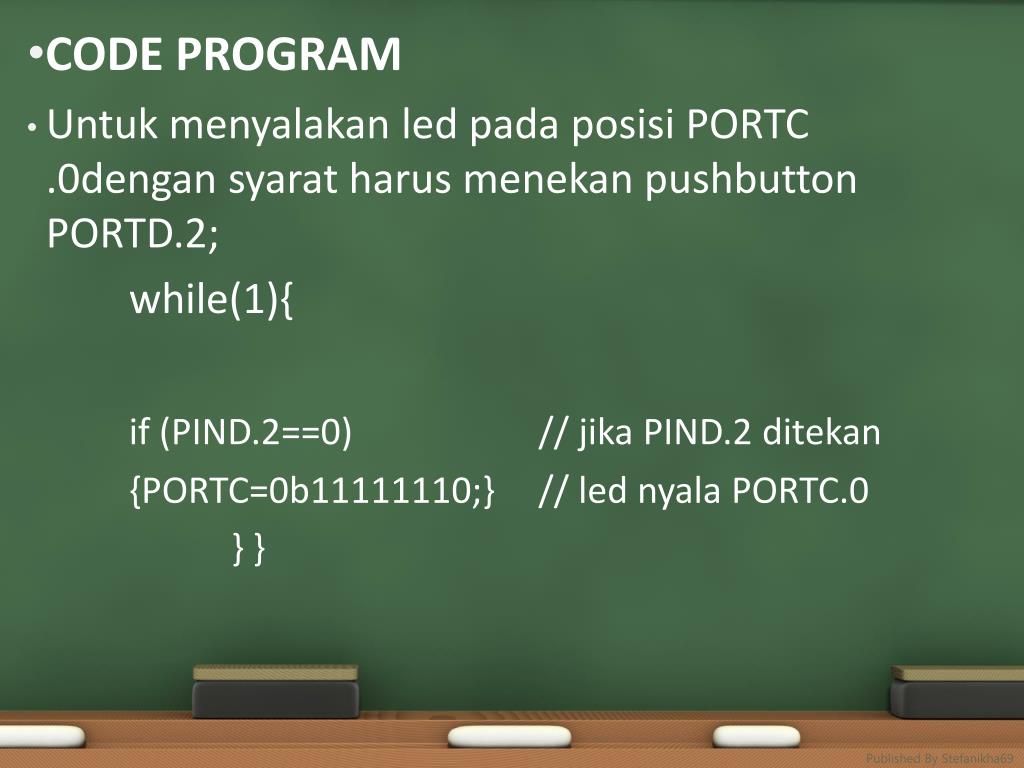

CODE PROGRAM

  • Untukmenyalakanled padaposisiPORTC .0dengan syaratharusmenekan pushbutton PORTD.2;

    while(1){

    if (PIND.2==0)// jika PIND.2 ditekan

    {PORTC=0b11111110;}// led nyala PORTC.0

    } }

Published By Stefanikha69


SETTING USB – DOWNLOADER :

  • INSTALL DEVICE USB DOWNLOADER

  • CONNECT USB DOWNLOADER TO PC/LAPTOP

    SETTING COM PORT:

  • COMPUTER -> MANAGE -> DEVICE MANAGER

  • PORT (COM &LPT) -> PROLIFIC USB TO SERIAL COMM PORT (COM....)

Published By Stefanikha69


Configuration PORT Programmer

Published By Stefanikha69


Choice :

  • AVR Chip programmer type

  • COM PORT

  • BAUD RATE

Published By Stefanikha69


COMPILER AND BUILD ALL PROGRAM

Or Shift F9

Published By Stefanikha69


Connecting USB Downloader - PC/Laptop - Microcontroller, And....

Published By Stefanikha69


Process Downloading.........

Published By Stefanikha69


FINISH

Published By Stefanikha69


  • Solution :

  • Check COM PORT

  • Check Baud Rate

  • Check Connection Downloader

  • Check Prog/Serial TTL select

Error DOWNLOADING

Published By Stefanikha69


CV AVR WITH PROTEUS

OPEN PROGRAM ISIS PROTEUS PROFESSIONAL

Published By Stefanikha69


synchronization cv avr with proteus

  • Creat Project and Design

  • Double click pict microcntroller

Published By Stefanikha69


synchronization cv avr with proteus

Select clock frequency

Select program file, (HEX file type)

Published By Stefanikha69


synchronization cv avr with proteus

  • Running ISIS Proteus

  • FINISH...

    Created by. DwisnantoPutro, Manado, September 2012

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA LED pada PORTC.2 MENYALA

JIKA TIDAK DITEKAN PUSHBUTTON PADA PORTD.2 MAKA LED PADA PORTC.2 MATI

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA LED pada PORTC.2 MENYALA

JIKA PUSH BUTTON PADA PORTD.3 DITEKAN MAKA LED pada PORTC.3 MENYALA

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA LED pada PORTC.2 MENYALA

JIKA PUSH BUTTON PADA PORTD.3 DITEKAN MAKA LED pada PORTC.3 MENYALA

JIKA TIDAK DITEKAN PUSHBUTTON PADA PORTD.2 dan PORTD.3 MAKA LED PADA PORTC.2 DAN PORTC.3 MATI

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA LED pada PORTC.2 MENYALA BERKEDIP SEBANYAK 2 KALI

JIKA PUSH BUTTON PADA PORTD.3 DITEKAN MAKA LED pada PORTC.3 MENYALA BERKEDIP SEBANYAK 3 KALI

DENGAN DELAY = 300 ms

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA LED pada PORTC.2 MENYALA

JIKA PUSH BUTTON PADA PORTD.3 DITEKAN MAKA LED pada PORTC.3 MENYALA

JIKA PUSH BUTTON PADA PORTD.2 DAN PORTD.3 DITEKAN BERSAMAAN MAKA LED SEMUA MATI

Published By Stefanikha69


TASK

BUATLAH project dengan system:

JIKA PUSH BUTTON PADA PORTD.2 DITEKAN MAKA terjadi proses LED berjalan pada PORTC.0 s/d PORTC.7

JIKA PUSH BUTTON PADA PORTD.3 DITEKAN MAKA terjadi proses LED berjalan pada PORTC.7 s/d PORTC.0

Published By Stefanikha69
