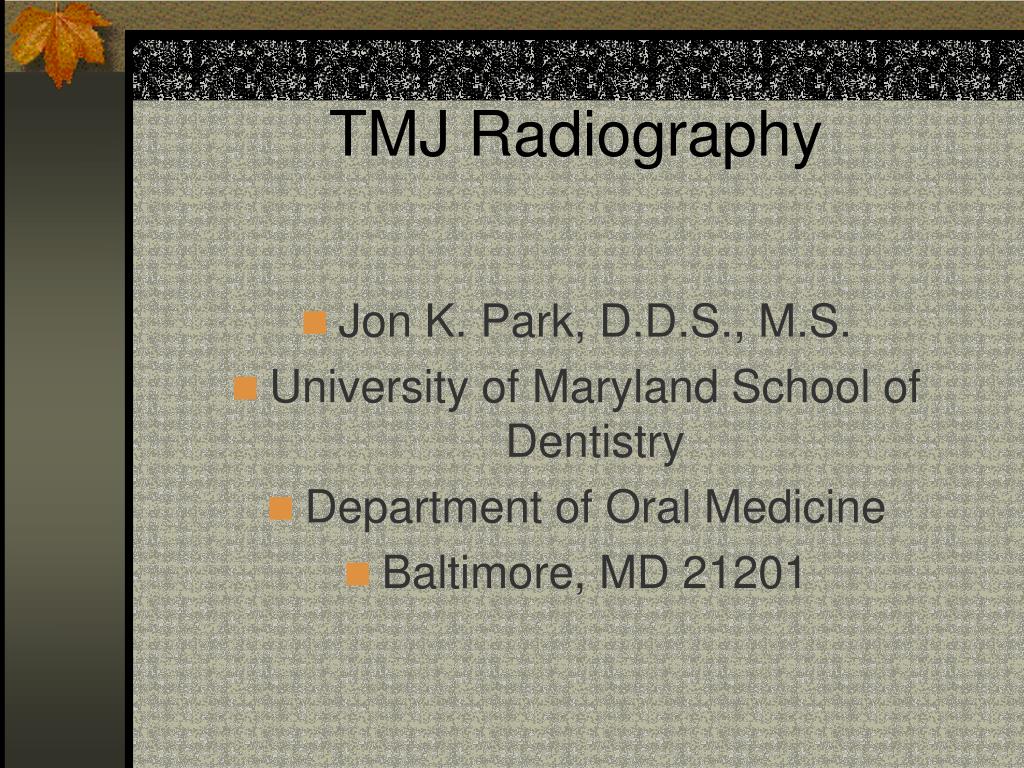

  1. TMJ Radiography • Jon K. Park, D.D.S., M.S. • University of Maryland School of Dentistry • Department of Oral Medicine • Baltimore, MD 21201

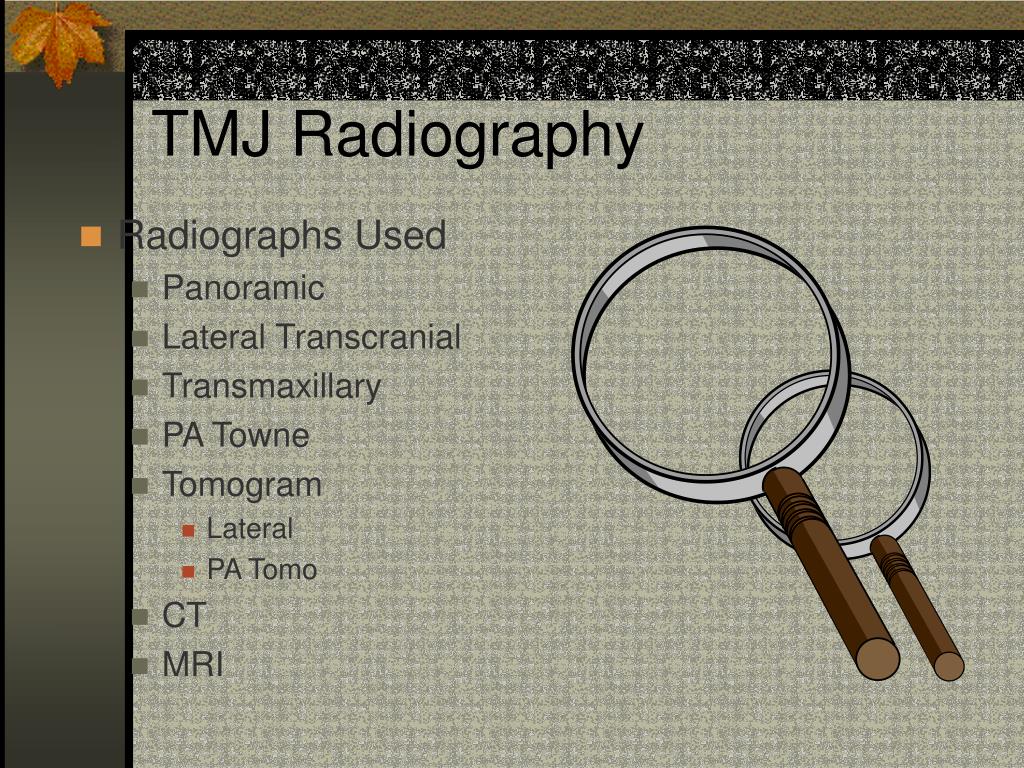

  2. TMJ Radiography • Radiographs Used • Panoramic • Lateral Transcranial • Transmaxillary • PA Towne • Tomogram • Lateral • PA Tomo • CT • MRI

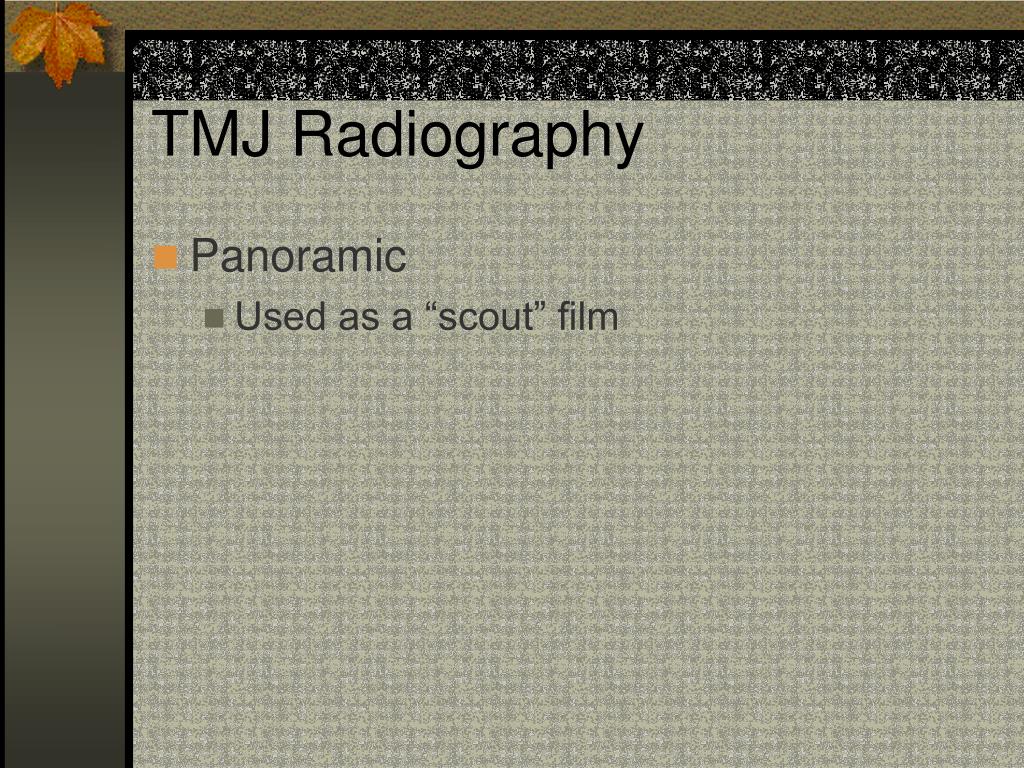

  3. TMJ Radiography • Panoramic • Used as a “scout” film

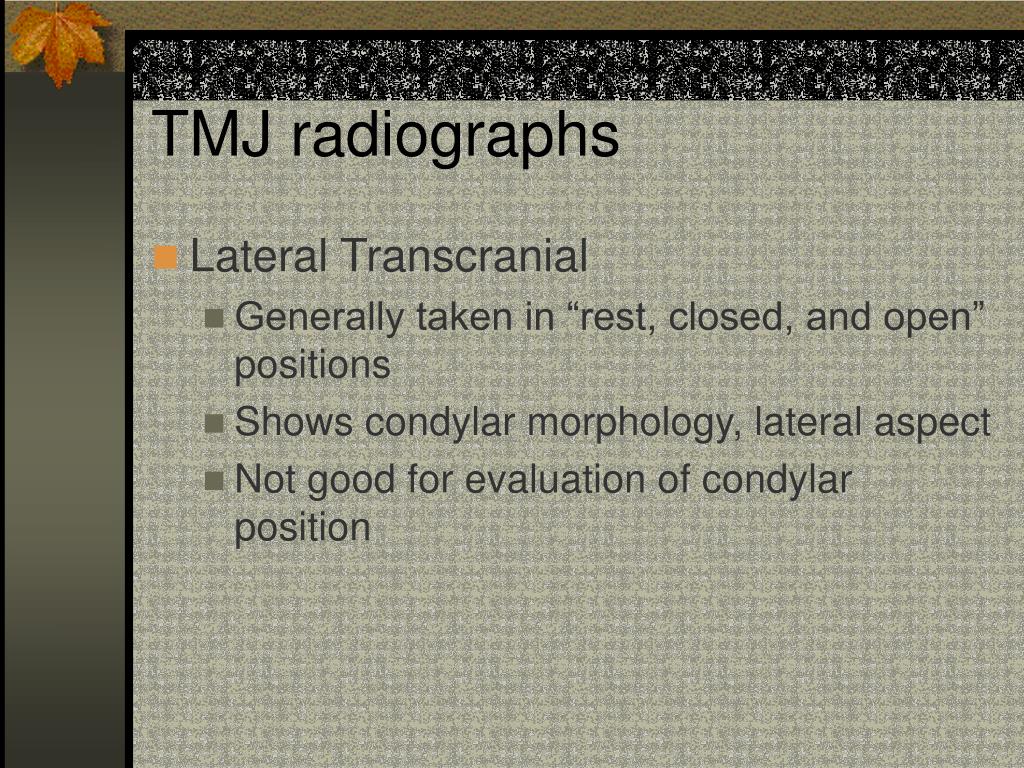

  4. TMJ radiographs • Lateral Transcranial • Generally taken in “rest, closed, and open” positions • Shows condylar morphology, lateral aspect • Not good for evaluation of condylar position

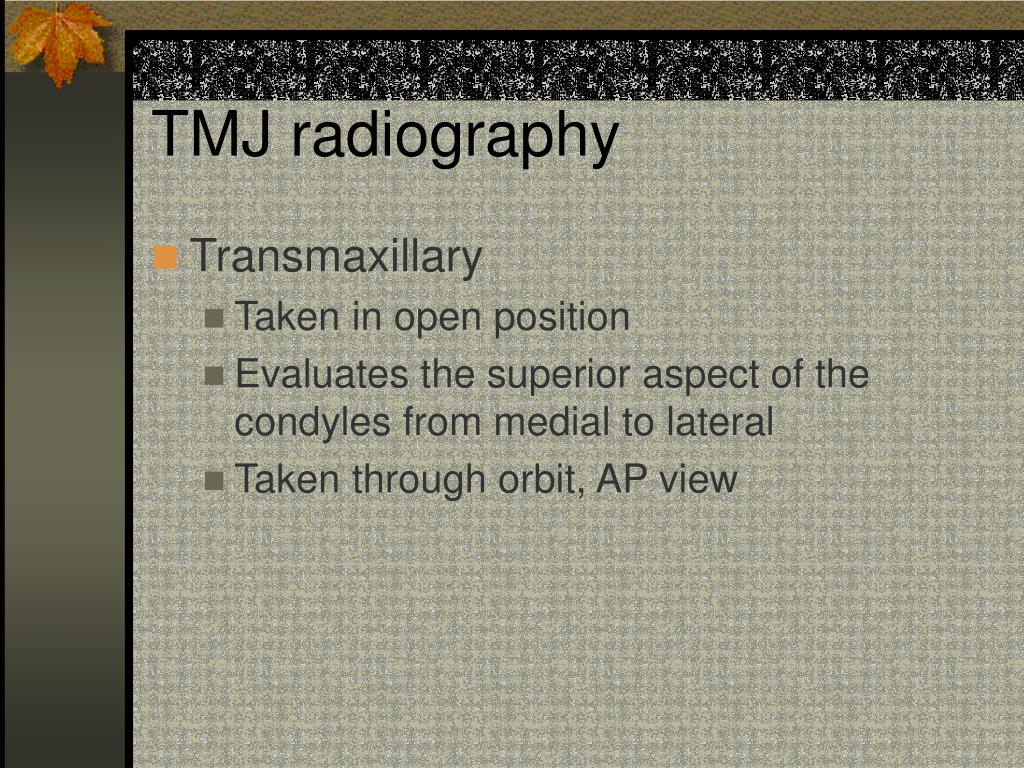

  5. TMJ radiography • Transmaxillary • Taken in open position • Evaluates the superior aspect of the condyles from medial to lateral • Taken through orbit, AP view

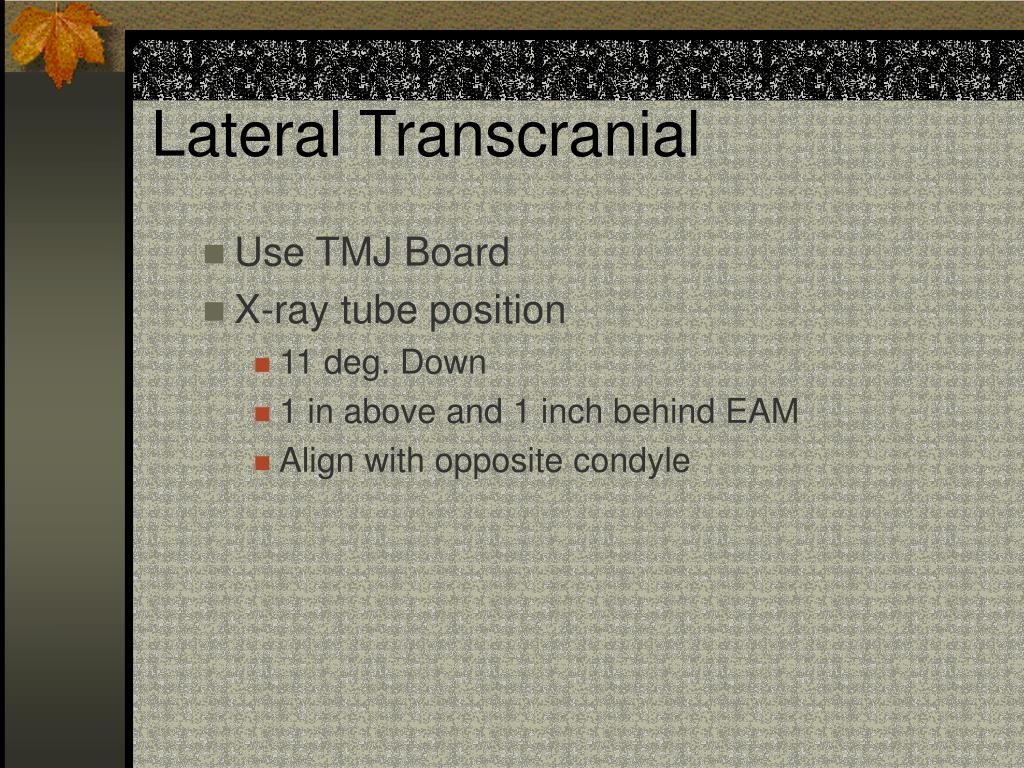

  6. Lateral Transcranial • Use TMJ Board • X-ray tube position • 11 deg. Down • 1 in above and 1 inch behind EAM • Align with opposite condyle

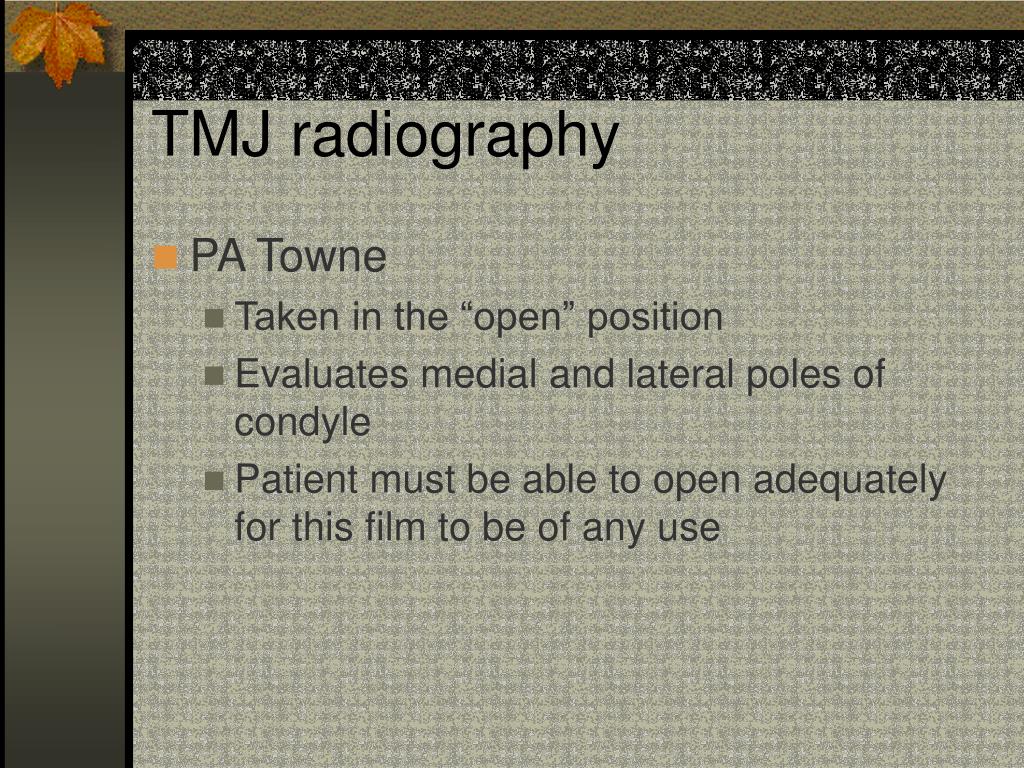

  7. TMJ radiography • PA Towne • Taken in the “open” position • Evaluates medial and lateral poles of condyle • Patient must be able to open adequately for this film to be of any use

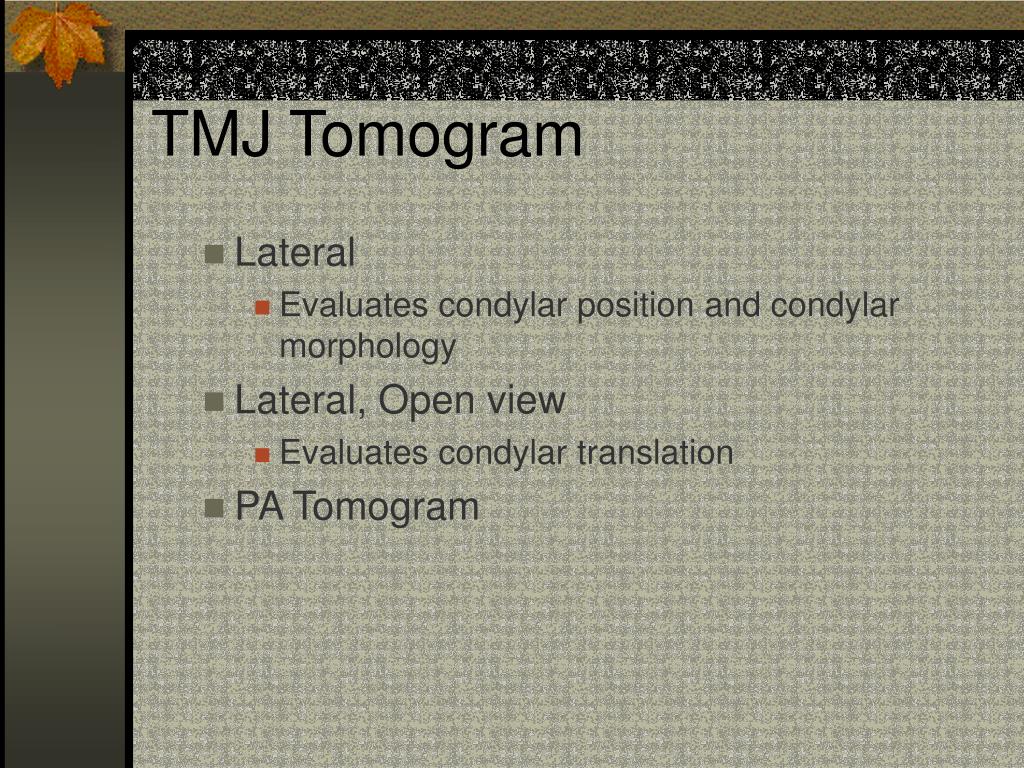

  8. TMJ Tomogram • Lateral • Evaluates condylar position and condylar morphology • Lateral, Open view • Evaluates condylar translation • PA Tomogram

  9. TMJ CT and MRI • CT • Evaluates osseous and soft tissue components • Generally does not show the meniscus • MRI • Good for assessing the meniscus and soft tissue

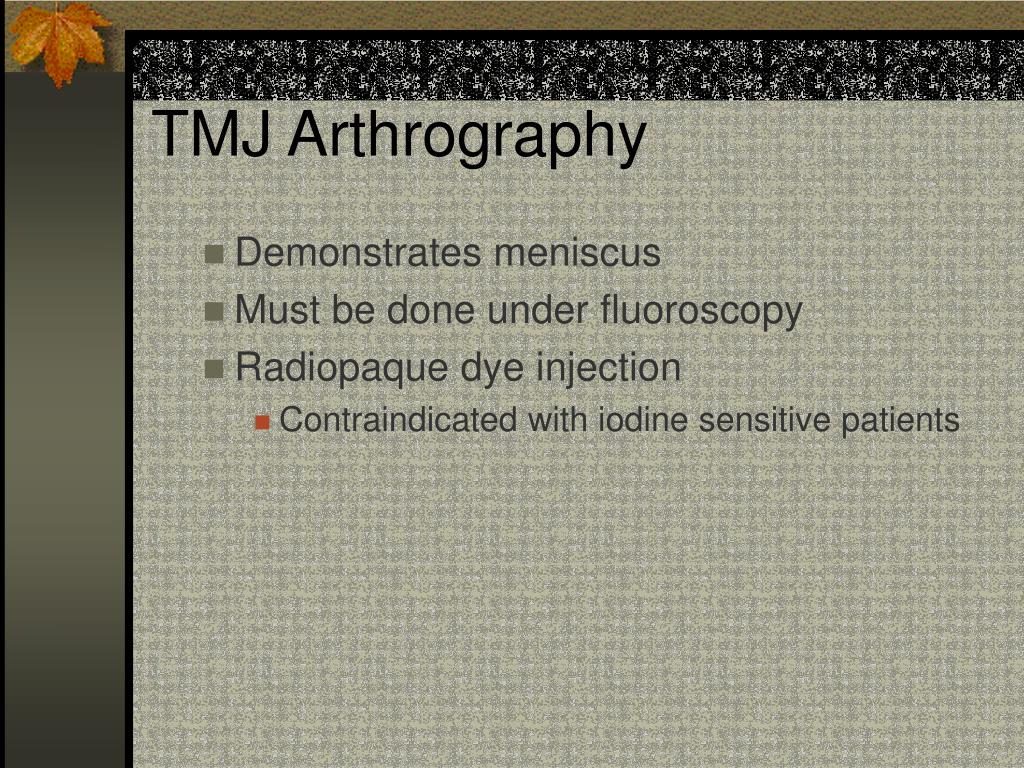

  10. TMJ Arthrography • Demonstrates meniscus • Must be done under fluoroscopy • Radiopaque dye injection • Contraindicated with iodine sensitive patients

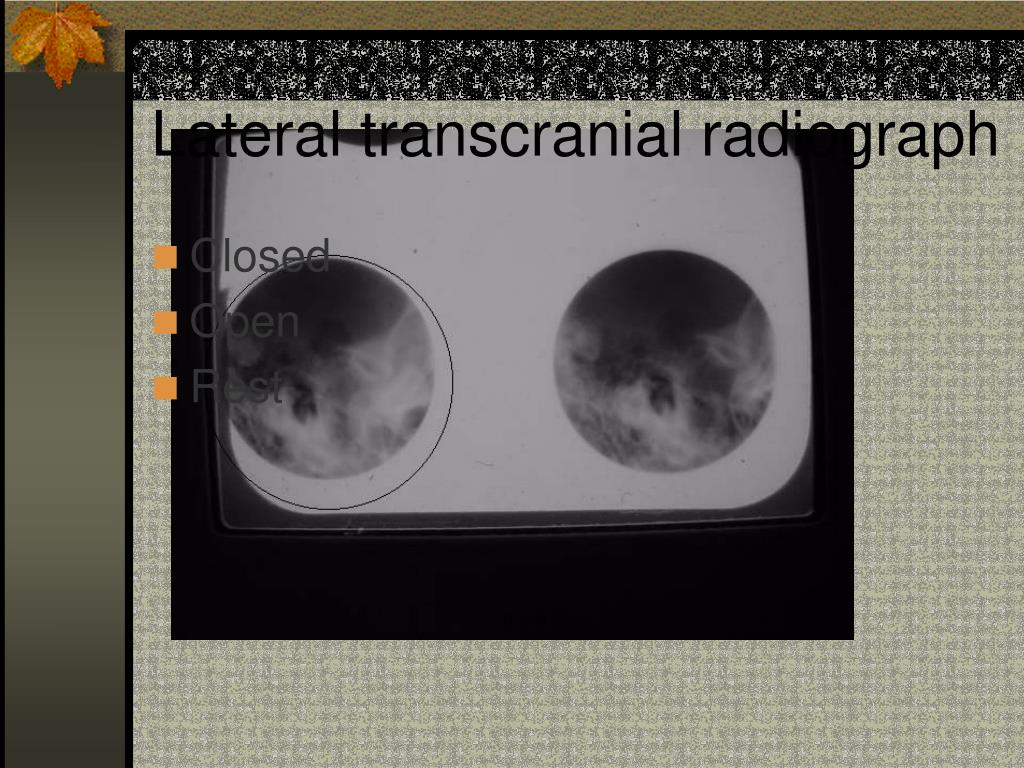

  11. Lateral transcranial radiograph Closed Open Rest

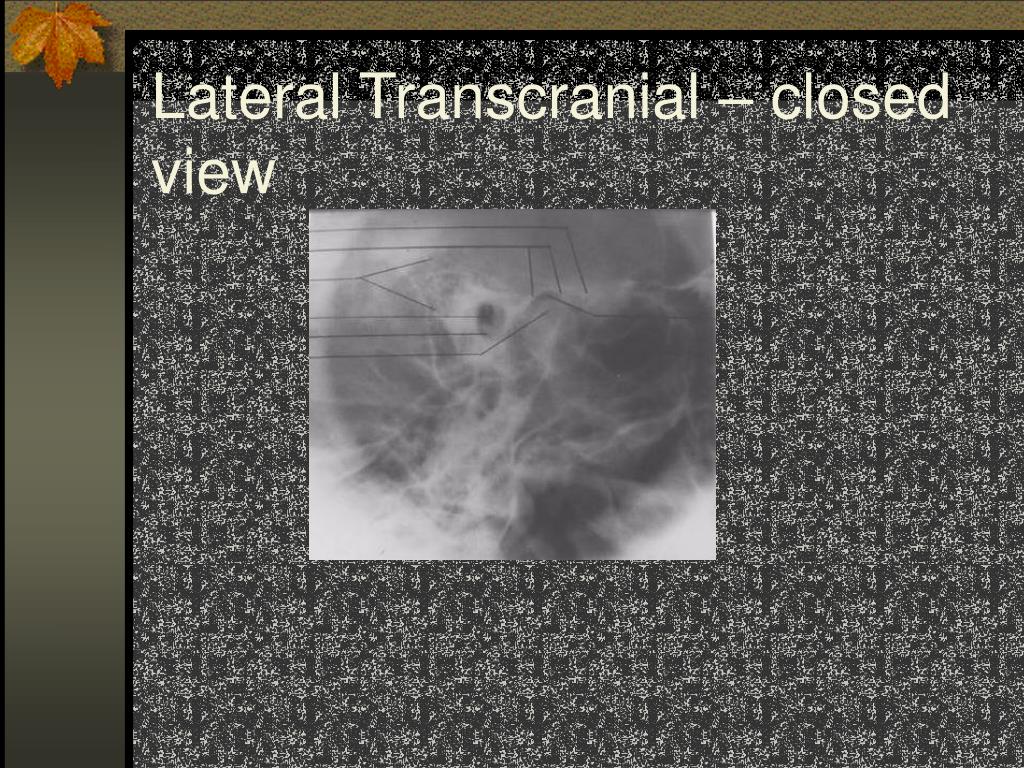

  12. Lateral Transcranial – closed view

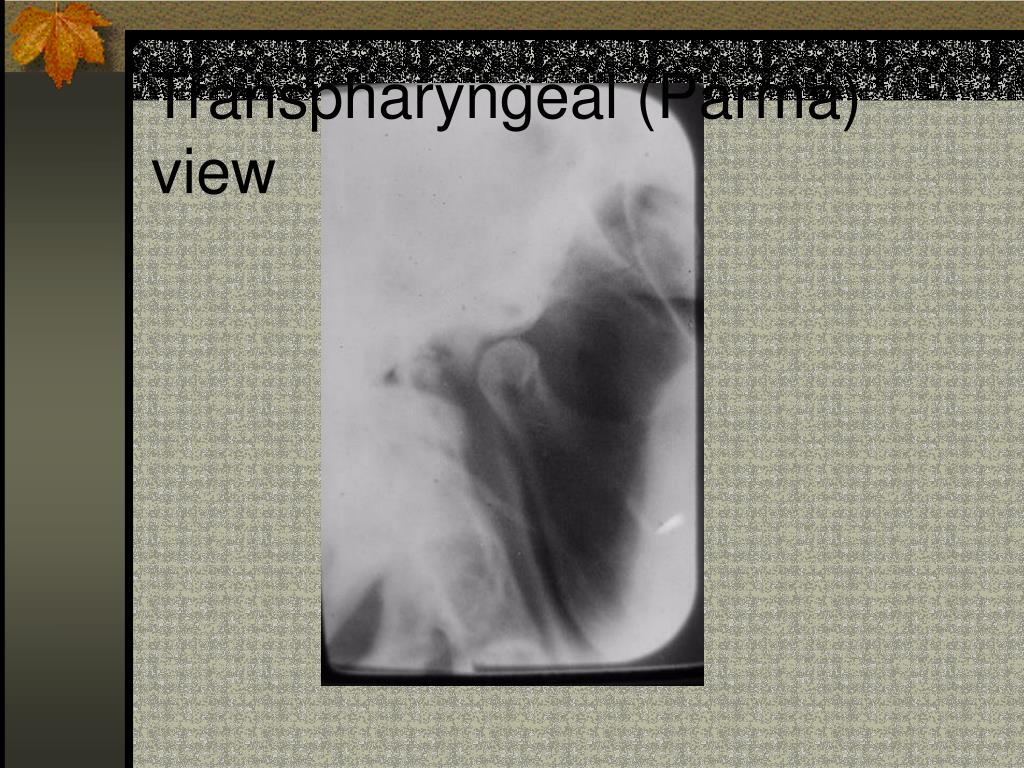

  13. Transpharyngeal (Parma) view

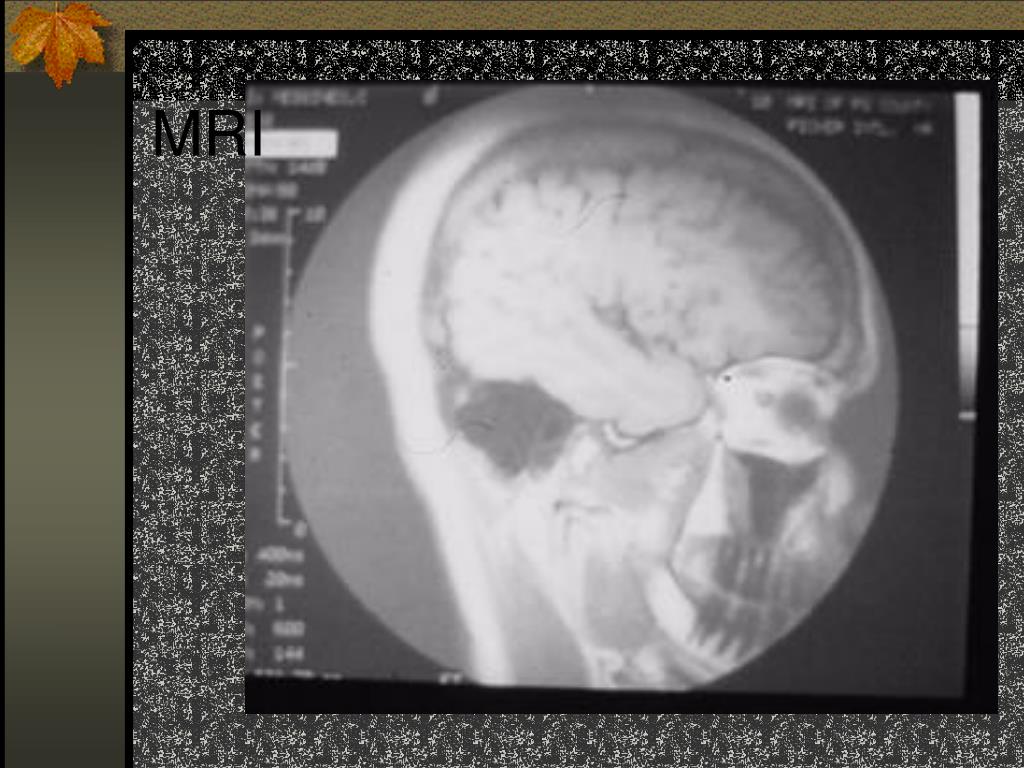

  14. MRI

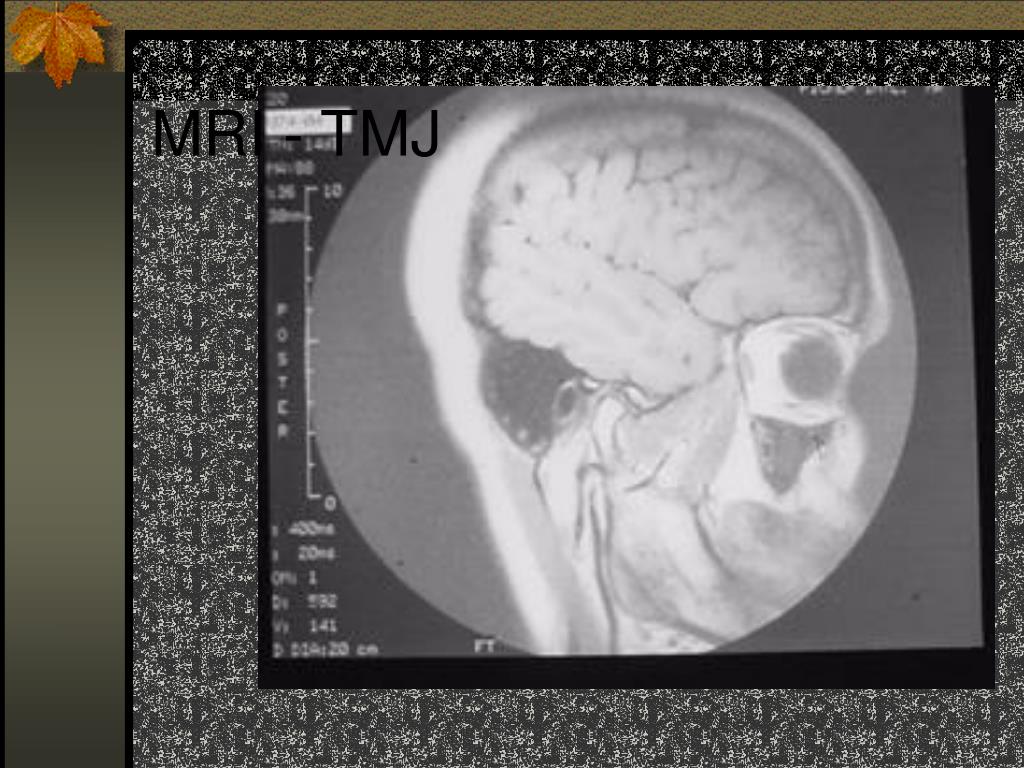

  15. MRI - TMJ

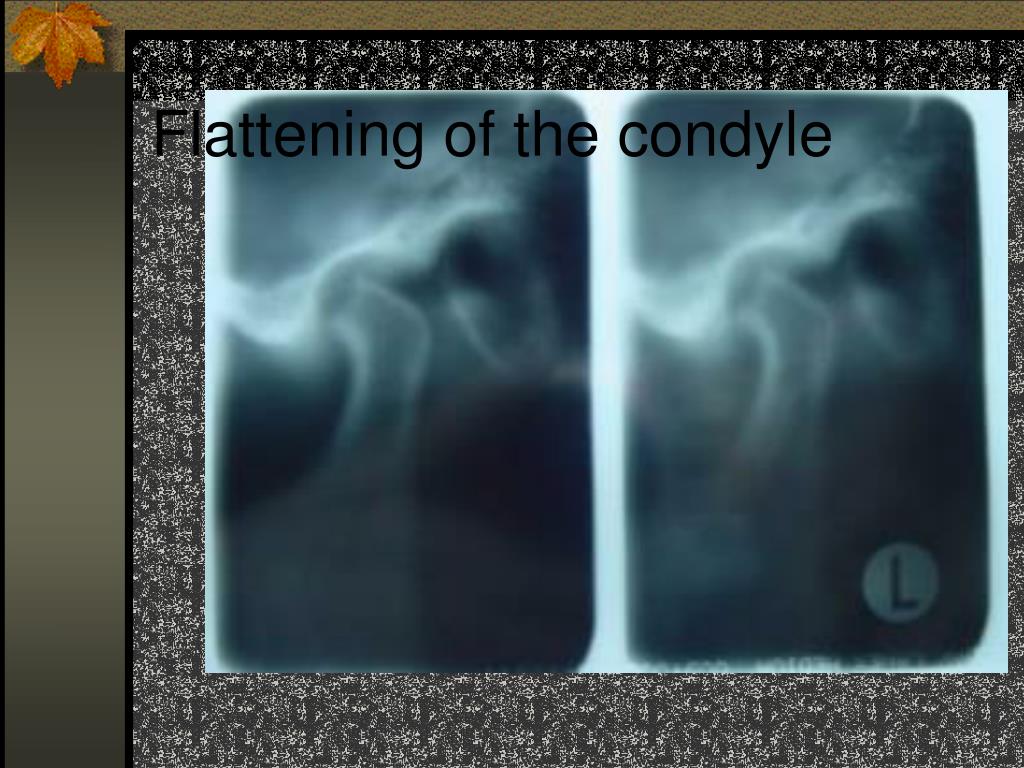

  16. Flattening of the condyle
