Presentation Transcript
Lecture 8 knowledge l.jpg

Psyc 317: Cognitive Psychology

Lecture 8: Knowledge

Outline l.jpg

  • Approaches to Categorization

    – Definitions

    – Prototypes

    – Exemplars

    • Is there a special level of category?

    • Semantic Networks

    • Connectionism

    • Categories in the brain

Categorization is hierarchical l.jpg
Categorization is hierarchical

• So we have levels of categories

• How can all of this be represented in the mind?

• Semantic network approach

Collins quillian s model l.jpg

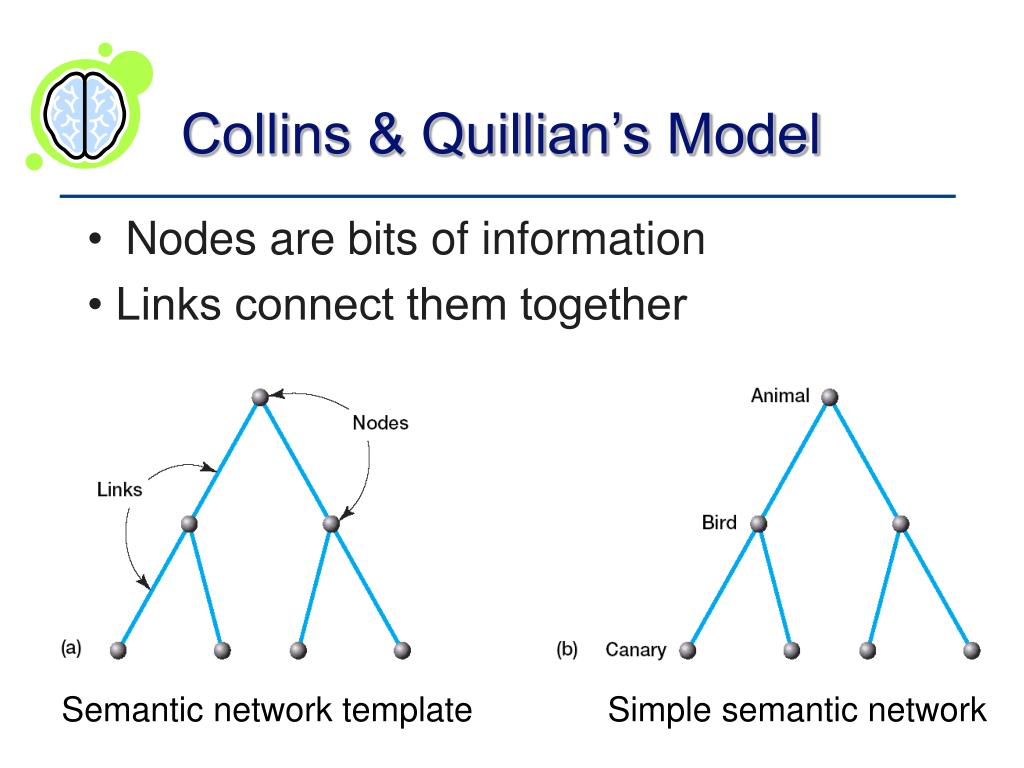

Collins & Quillian’s Model

  • Nodes are bits of information

    • Links connect them together

Semantic network template

Simple semantic network

Get more complicated l.jpg
Get more complicated!

  • Add properties to nodes:

How does the network work l.jpg
How does the network work?

  • Example: Retrieve properties of canary

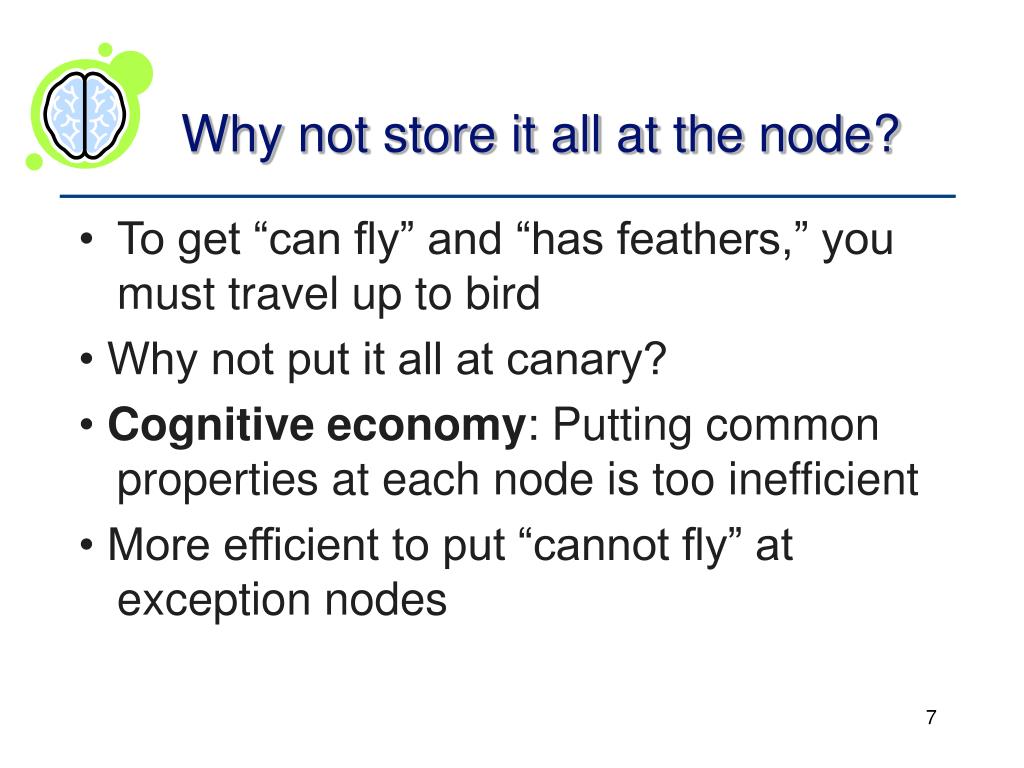

Why not store it all at the node l.jpg
Why not store it all at the node?

  • To get “can fly” and “has feathers,” you must travel up to bird

    • Why not put it all at canary?

    • Cognitive economy: Putting common properties at each node is too inefficient

    • More efficient to put “cannot fly” at exception nodes

How do we know this works collins quillian 1969 l.jpg
How do we know this works?Collins & Quillian (1969)

  • Ask participants about canaryproperties that require more traversal


Link traversal demo l.jpg
Link Traversal Demo

Yes or no:

• A German Shepherd is a type of dog.

• A German Shepherd is a mammal.

• A German Shepherd barks.

• A German Shepherd has skin.

Spreading activation priming the network l.jpg
Spreading activation:Priming the Network

  • An activated node spreads its activation to connected links

Spreading activation works meyer schvaneveldt 1971 l.jpg
Spreading Activation WorksMeyer & Schvaneveldt (1971)

  • Lexical decision task: Are the two letter strings both words?


Meyer schvaneveldt results l.jpg

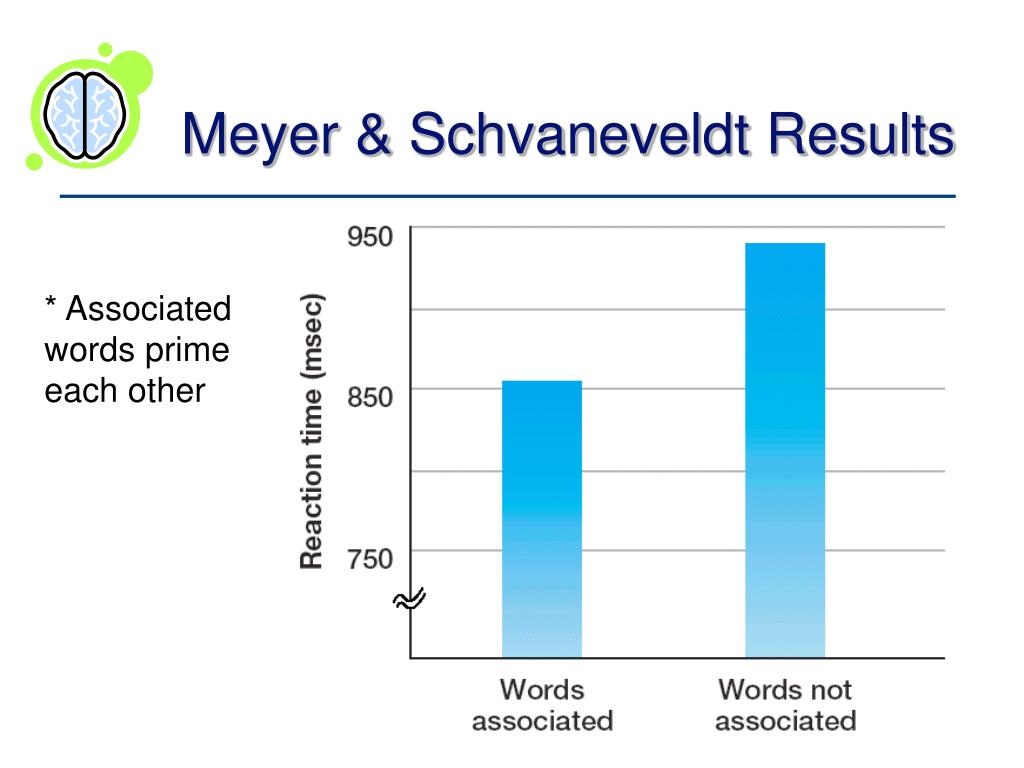

Meyer & Schvaneveldt Results

* Associated words prime each other

Collin quillian criticisms l.jpg
Collin & Quillian Criticisms

  • Typicality effect is not explained - ostrich and canary are one link away from bird

    • Incongruent results (Rips et al., 1972):

    – A pig is a mammal 1476 ms

    – A pig is an animal 1268 ms

Collins loftus model l.jpg

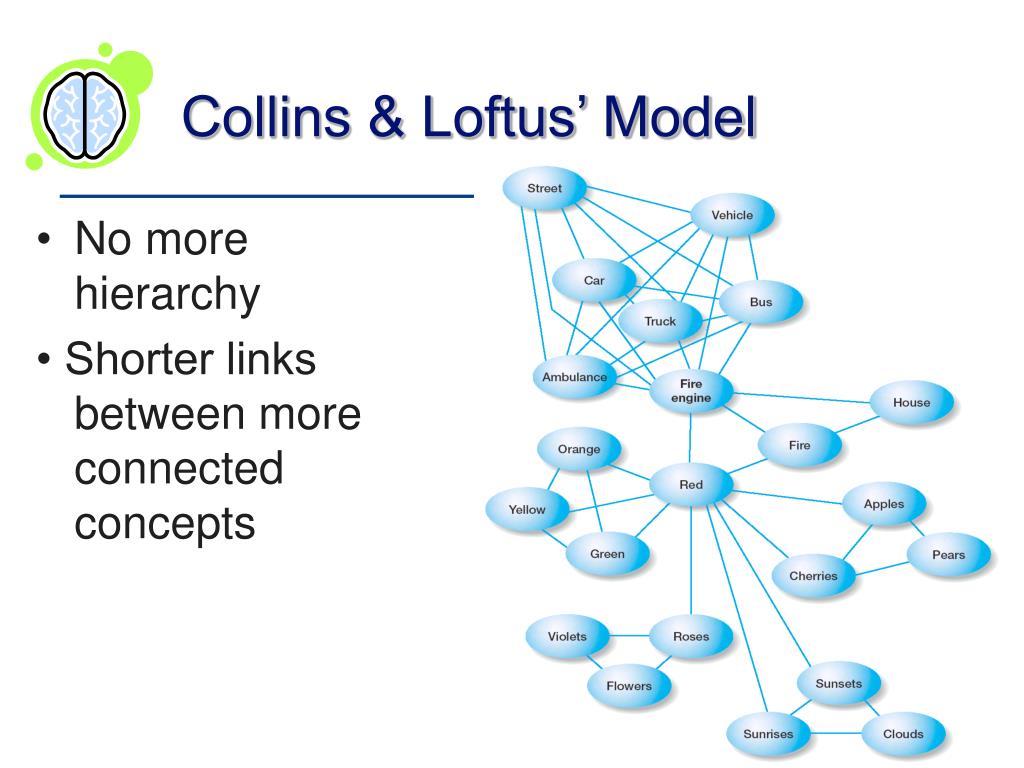

Collins & Loftus’ Model

  • No more hierarchy

    • Shorter links between more connected concepts

Dis advantages of the model l.jpg
(Dis)advantages of the model

“A fairly complicated theory with enough generality to apply to results from many different experimental paradigms.”

• This is bad. Why?

The model is unfalsifiable l.jpg
The model is unfalsifiable

  • The theory explains everything – How long should links be between nodes?

Result B says nodes look like this

Result A says nodes look like this

Everything is arbitrary l.jpg
Everything is arbitrary

  • Cannot disprove theory: what does link length mean for the brain?

    • You can make connections as long as you want/need to explain your results

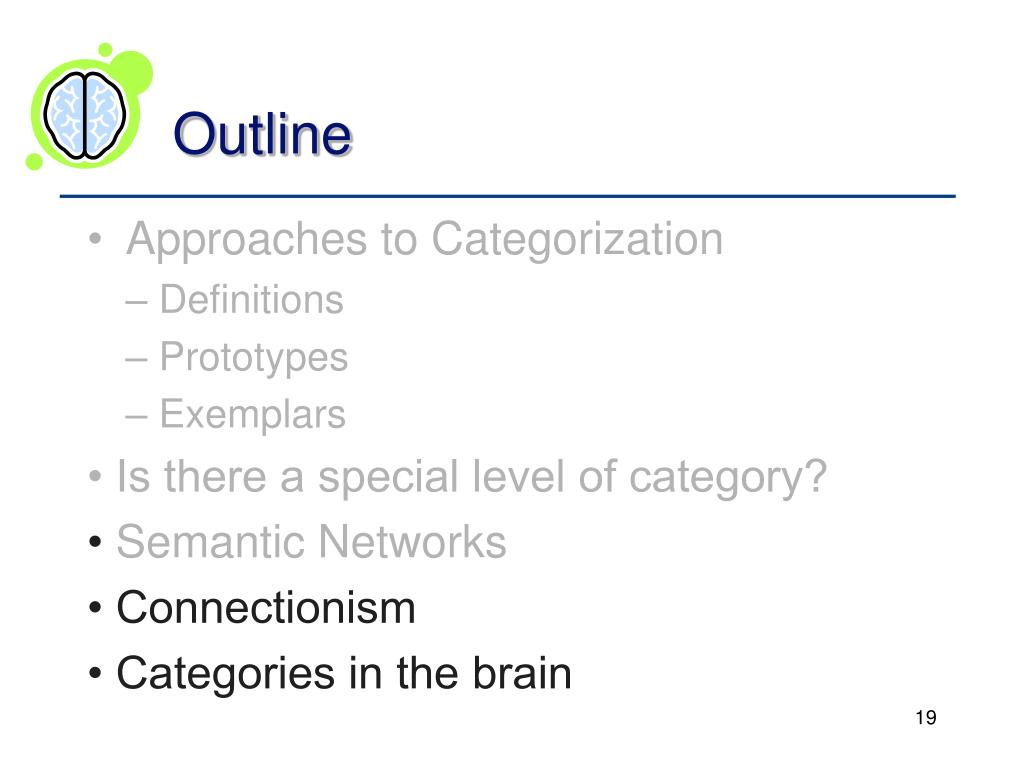

Outline19 l.jpg

  • Approaches to Categorization

    – Definitions

    – Prototypes

    – Exemplars

    • Is there a special level of category?

    • Semantic Networks

    • Connectionism

    • Categories in the brain

Connectionism is a new version of semantic network theories l.jpg
Connectionism is a new version of semantic network theories

  • McClelland & Rummelhart (1986)

    • Concepts are represented in networks with nodes and links

    – But they function a lot differently than in semantic networks

    • Theory is biologically based

    • A quick review of neurons…

Physiological basis of connectionism l.jpg
Physiological Basis of Connectionism

  • Neural circuits: Processing happens between many neurons connected by synapses

    • Excitatory and inhibitory connections:

Physiological basis of connectionism22 l.jpg
Physiological Basis of Connectionism

  • Strength of firing: Number of inputs onto a neuron (+ and -) determines rate of firing



Fires at 1.6


Basics of connectionism l.jpg
Basics of Connectionism

  • Instead of nodes, you have units

    – Units are “neuronlike processing units”

    • Units are connected together

    • Parallel Distributed Processing (PDP)

    – Activation occurs in parallel

    – Processing occurs in many units

Basic pdp network l.jpg
Basic PDP network

Mental representation




From the environment

How a pdp network works l.jpg
How a PDP network works

  • Give the network stimuli via the input units

  • Information is passed through the network by hidden units

    – Weights affect activation of nodes

  • Eventually, the stimulus is represented as a pattern via the output units

Example output l.jpg
Example output

  • The brain represents things from the environment differently

Pdp learning stage 1 l.jpg

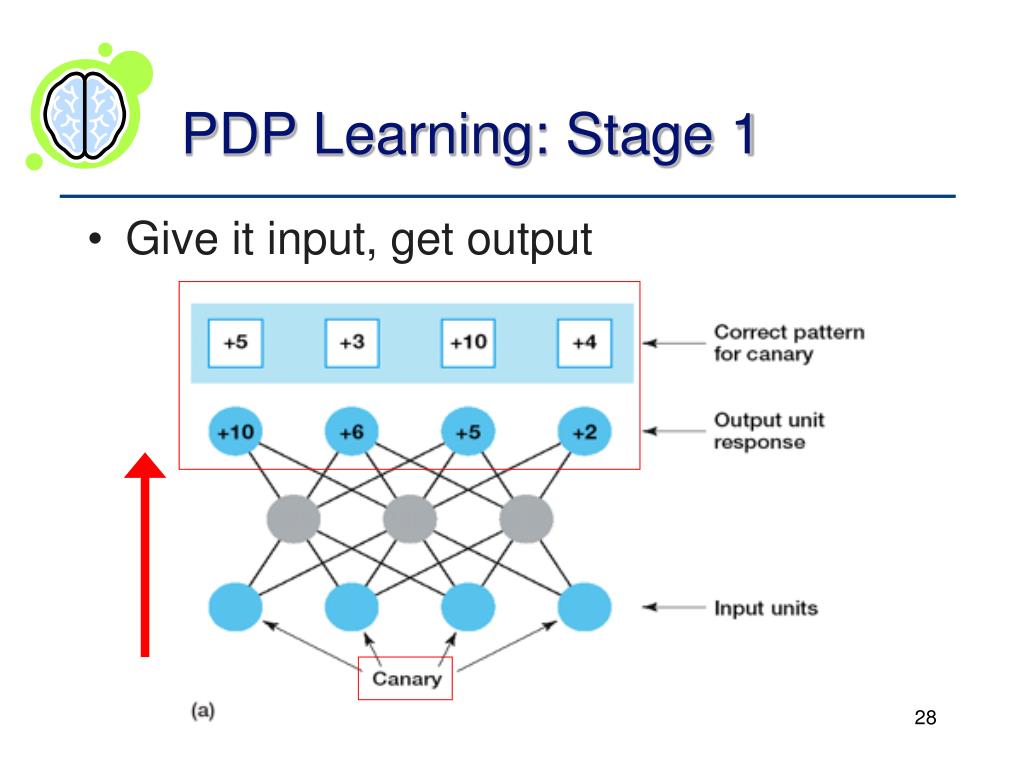

PDP Learning: Stage 1

  • Give it input, get output

Learning error signals l.jpg

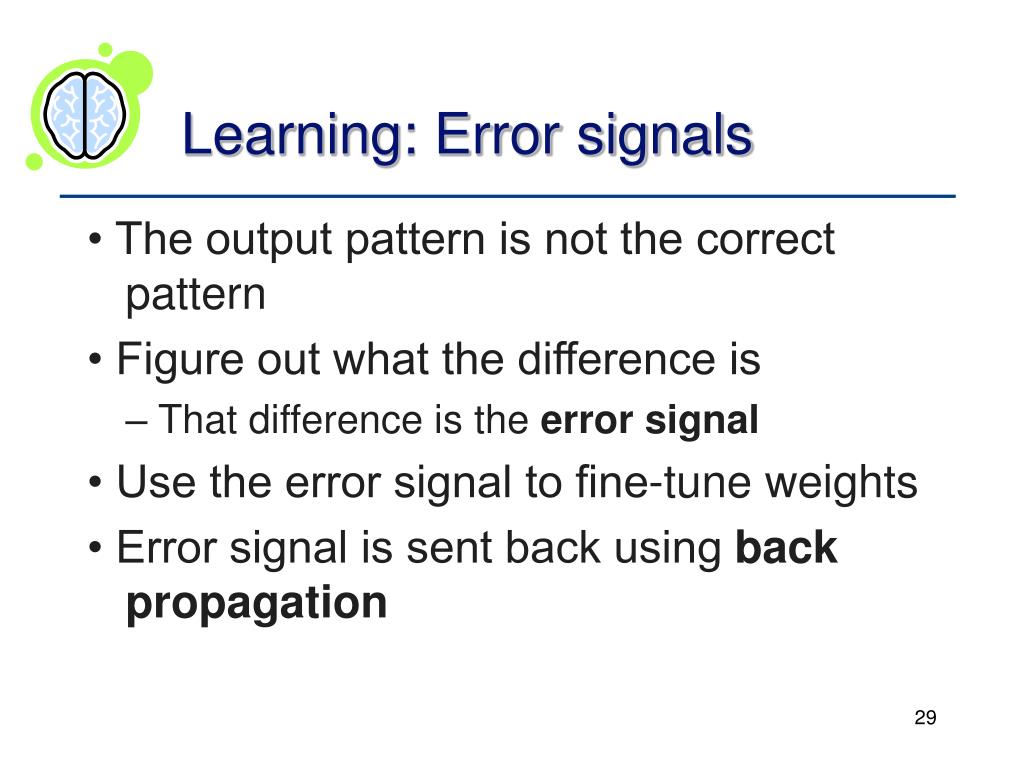

Learning: Error signals

• The output pattern is not the correct pattern

• Figure out what the difference is

– That difference is the error signal

• Use the error signal to fine-tune weights

• Error signal is sent back using back propagation

Learning stage 2 l.jpg
Learning : Stage 2

  • Back propagate error signal through network, adjust weights



Learning stage 3 4 5 1024 l.jpg

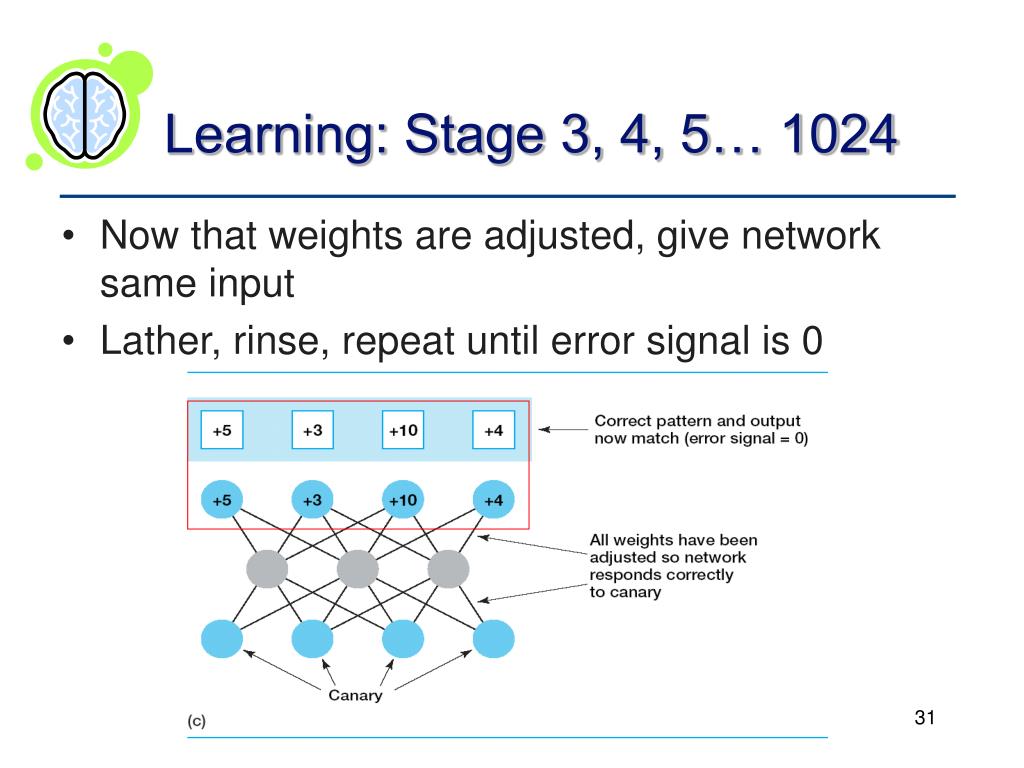

Learning: Stage 3, 4, 5… 1024

  • Now that weights are adjusted, give network same input

  • Lather, rinse, repeat until error signal is 0

So this is learning l.jpg
So this is learning?

• Repeated input and back propagation changes weights between units

• When error signal = 0, the network has learned the correct weights for that stimulus

– The network has been trained

So where is the knowledge l.jpg
So where is the knowledge?

  • Semantic networks

    – One node has “canary” and is connected to “can fly” and “yellow”

    • PDP networks

    – A bunch of nodes together represent “canary” and another bunch represent “yellow”

    – Distributed knowledge in neural circuits

Pdp the good networks based on neurons l.jpg
PDP: The GoodNetworks based on neurons

  • All nodes can do is fire (they are dumb)

    • Knowledge is distributed amongst many nodes

    • Sounds a lot like neurons and the brain!

    • Emergence: Lots of little dumb things form one big smart thing

Pdp the good networks are damage resistant l.jpg
PDP: The GoodNetworks are damage-resistant

  • “Lesion” the network by taking out nodes

    • This damage does not totally take out the system

    – Graceful degradation

    • These networks can adapt to damage

Pdp the good learning can be generalized l.jpg

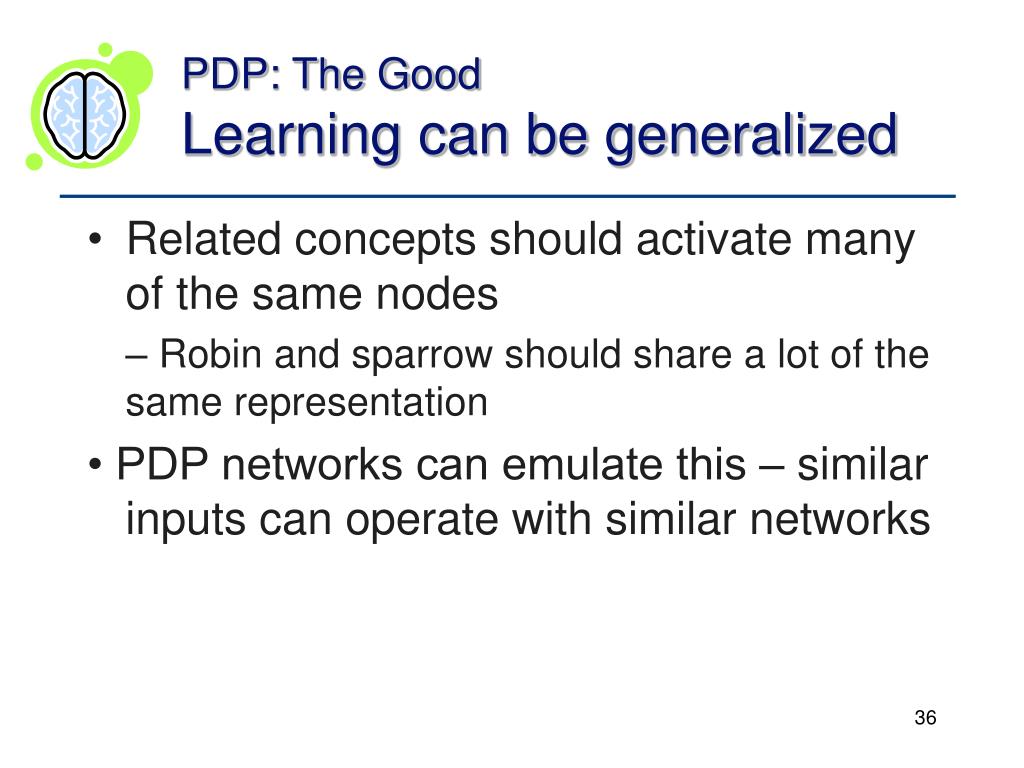

PDP: The GoodLearning can be generalized

  • Related concepts should activate many of the same nodes

    – Robin and sparrow should share a lot of the same representation

    • PDP networks can emulate this – similar inputs can operate with similar networks

Pdp the good successful computer models l.jpg
PDP: The GoodSuccessful computer models

  • Not just a theory, but can be programmed in a computer

    • Computational modeling of the mind

    – Object perception

    – Recognizing words

Pdp the bad cannot explain everything l.jpg
PDP: The BadCannot explain everything

  • More complex tasks cannot be explained

    – Problem solving

    – Language processing

    • Limitation of computers?

    – We have trillions of neurons

    – PDP networks can’t support that many nodes (yet)

Pdp the bad retroactive interference l.jpg
PDP: The BadRetroactive interference

  • Learning something new interferes with something already learned

    Example: Train network on “collie”

    – Weights are perfectly adjusted for collie

    • Give network “terrier”

    – Network must change weights again for terrier

    • Weights must change to accommodate both dogs

Pdp the bad cannot explain rapid learning l.jpg
PDP: The BadCannot explain rapid learning

• It does not take thousands of trials to remember that you parked in Lot K

– How does rapid learning occur?

• Two separate systems?

How the connectionists explain rapid learning l.jpg
How the connectionists explain rapid learning

• Two separate systems

PDP in the Cortex:

Rapid learning in

the Hippocampus:

Outline42 l.jpg

  • Approaches to Categorization

    – Definitions

    – Prototypes

    – Exemplars

    • Is there a special level of category?

    • Semantic Networks

    • Connectionism

    • Categories in the brain

Categories in the brain l.jpg
Categories in the brain

  • Imaging studies have localized face and house areas

    – Still not very exciting (“light-up” studies)

    • Does this mean one brain area processes houses, another one for heads, and chairs, and technology, etc. etc.?

Visual agnosia for categories l.jpg
Visual agnosia for categories

  • Damage to inferior temporal cortex causes inability to name certain objects

    – Visual agnosia

    • Double dissociation for living/nonliving things

Double dissociation l.jpg
Double Dissociation

  • Double dissociation for living/nonliving things

Living vs non living l.jpg
Living vs. Non-living?

  • fMRI studies have shown different brain areas for living and non-living things

    • There is a lot of overlap for the two areas, though

    • Damage for categories is not well understood

Category specific neurons l.jpg
Category-specific neurons

  • Some neurons only respond to certain categories

    • A “Bill Clinton” neuron? Probably not.

    • A “Bill Clinton” neural circuit? More likely.

Not categories but continuum l.jpg
Not categories, but continuum

  • There are probably no distinct face, house, chair, etc. areas in the brain

    • But everything’s not all stored in the same place, either

    • A mix of overlapping areas and distributed processes

    – Living vs. non-living is a big distinction
