  1. Hands-On Ethical Hacking and Network Defense Chapter 10 Hacking Web Servers

  2. Objectives • Describe Web applications • Explain Web application vulnerabilities • Describe the tools used to attack Web servers Hands-On Ethical Hacking and Network Defense

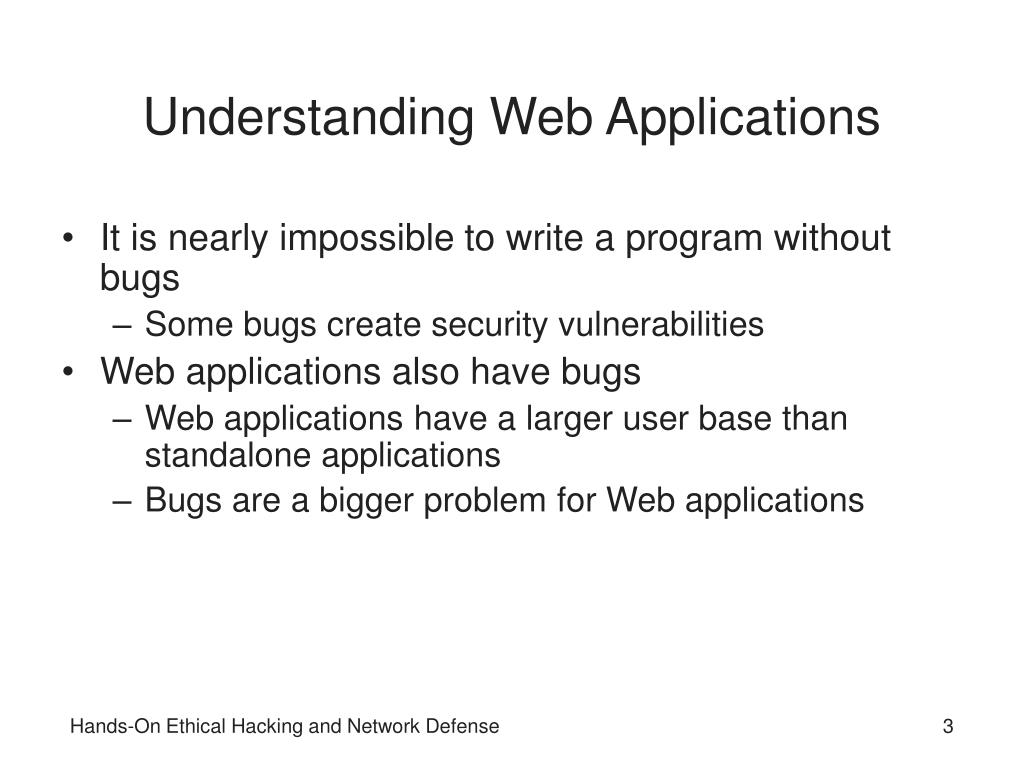

  3. Understanding Web Applications • It is nearly impossible to write a program without bugs • Some bugs create security vulnerabilities • Web applications also have bugs • Web applications have a larger user base than standalone applications • Bugs are a bigger problem for Web applications Hands-On Ethical Hacking and Network Defense

  4. Web Application Components • Static Web pages • Created using HTML • Dynamic Web pages • Need special components • <form> tags • Common Gateway Interface (CGI) • Active Server Pages (ASP) • PHP • ColdFusion • Scripting languages • Database connectors Hands-On Ethical Hacking and Network Defense

  5. Web Forms • Use the <form> element or tag in an HTML document • Allows customer to submit information to the Web server • Web servers process information from a Web form by using a Web application • Easy way for attackers to intercept data that users submit to a Web server Hands-On Ethical Hacking and Network Defense

  6. Web Forms (continued) • Web form example <html> <body> <form> Enter your username: <input type="text" name="username"> <br> Enter your password: <input type="text" name="password"> </form></body></html> Hands-On Ethical Hacking and Network Defense

  7. Hands-On Ethical Hacking and Network Defense

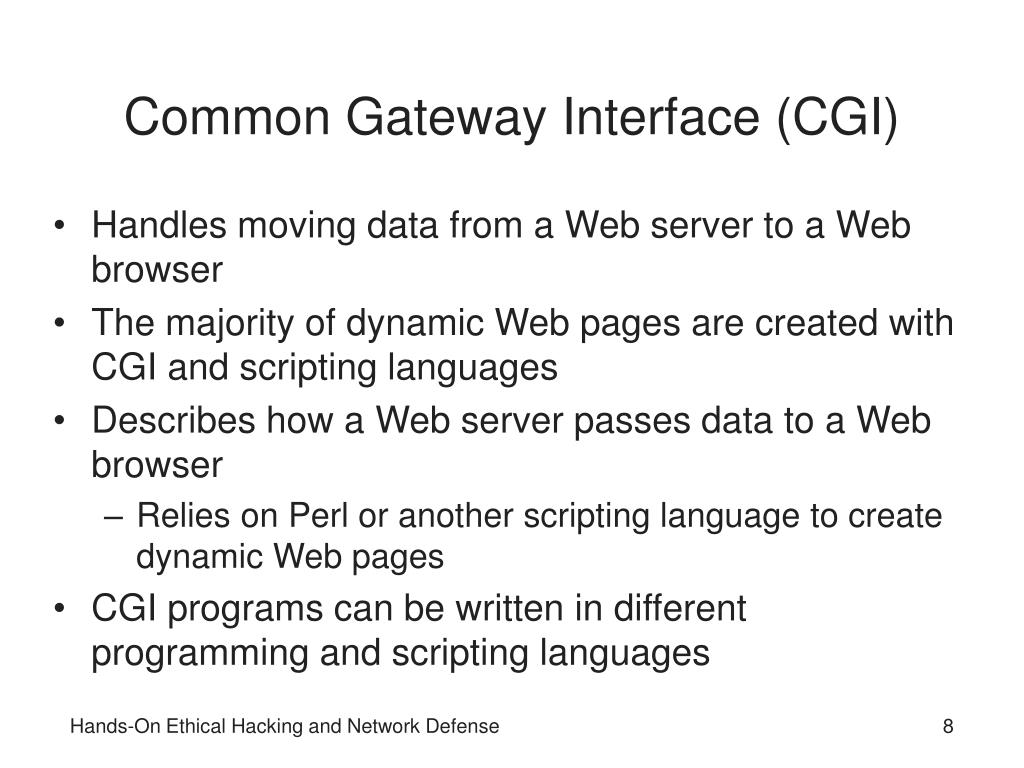

  8. Common Gateway Interface (CGI) • Handles moving data from a Web server to a Web browser • The majority of dynamic Web pages are created with CGI and scripting languages • Describes how a Web server passes data to a Web browser • Relies on Perl or another scripting language to create dynamic Web pages • CGI programs can be written in different programming and scripting languages Hands-On Ethical Hacking and Network Defense

  9. Common Gateway Interface (CGI) (continued) • CGI example • Written in Perl • Hello.pl • Should be placed in the cgi-bin directory on the Web server #!/usr/bin/perl print "Content-type: text/html\n\n"; print "Hello Security Testers!"; Hands-On Ethical Hacking and Network Defense

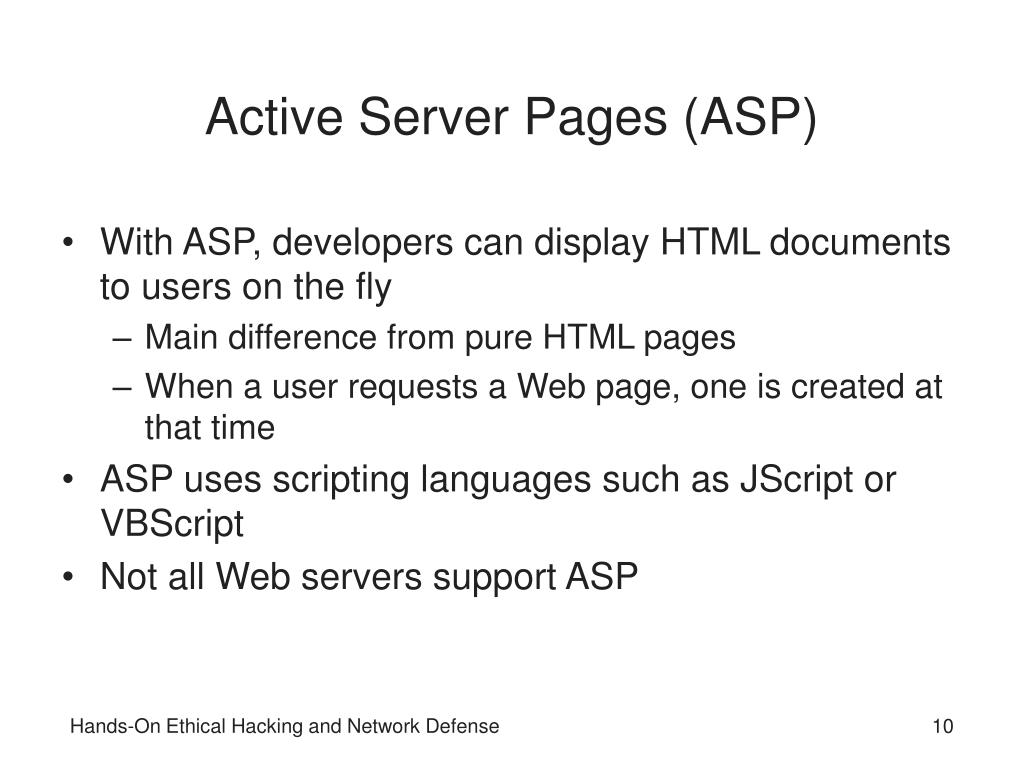

  10. Active Server Pages (ASP) • With ASP, developers can display HTML documents to users on the fly • Main difference from pure HTML pages • When a user requests a Web page, one is created at that time • ASP uses scripting languages such as JScript or VBScript • Not all Web servers support ASP Hands-On Ethical Hacking and Network Defense

  11. Hands-On Ethical Hacking and Network Defense

  12. Active Server Pages (ASP) (continued) • ASP example <HTML> <HEAD><TITLE> My First ASP Web Page </TITLE></HEAD> <BODY> <H1>Hello, security professionals</H1> The time is <% = Time %>. </BODY> </HTML> • Microsoft does not want users to be able to view an ASP Web page’s source code • This can create serious security problems Hands-On Ethical Hacking and Network Defense

  13. Apache Web Server • Tomcat Apache is another Web Server program • Tomcat Apache hosts anywhere from 50% to 60% of all Web sites • Advantages • Works on just about any *NIX and Windows platform • It is free • Requires Java 2 Standard Runtime Environment (J2SE, version 5.0) Hands-On Ethical Hacking and Network Defense

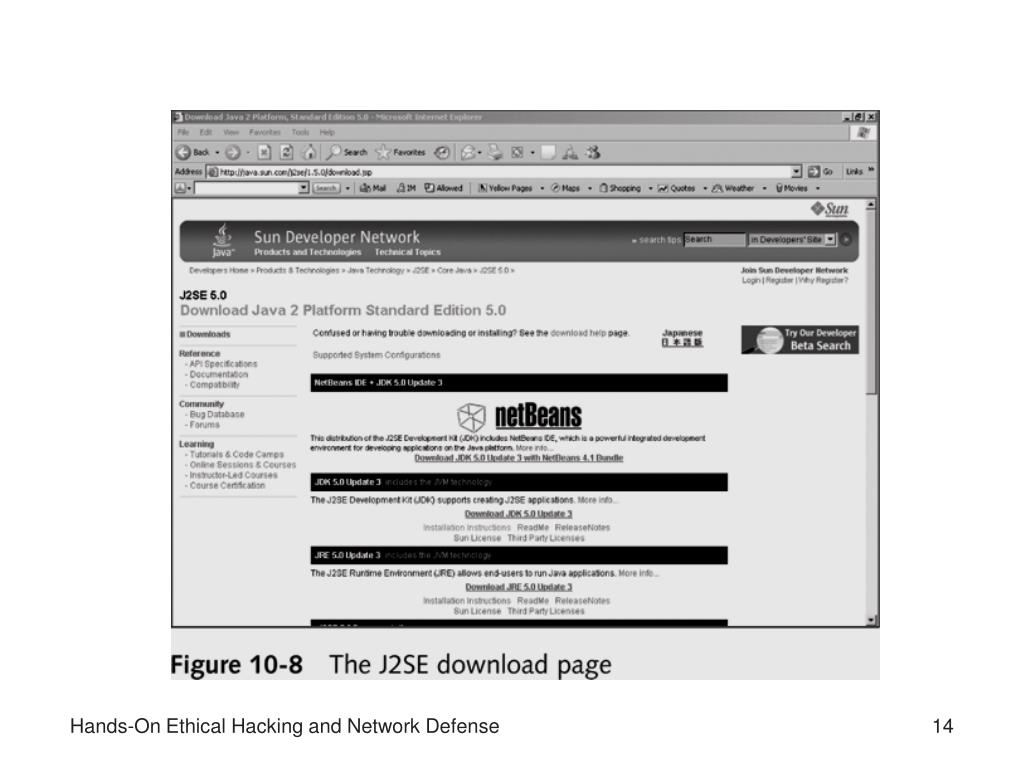

  14. Hands-On Ethical Hacking and Network Defense

  15. Hands-On Ethical Hacking and Network Defense

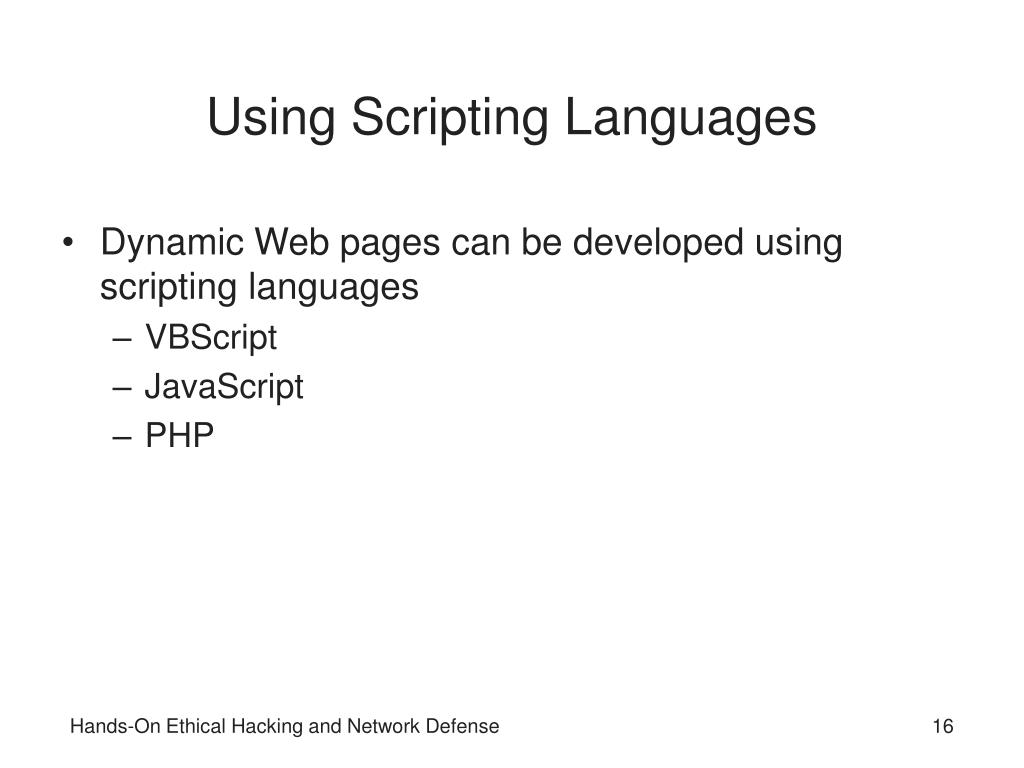

  16. Using Scripting Languages • Dynamic Web pages can be developed using scripting languages • VBScript • JavaScript • PHP Hands-On Ethical Hacking and Network Defense

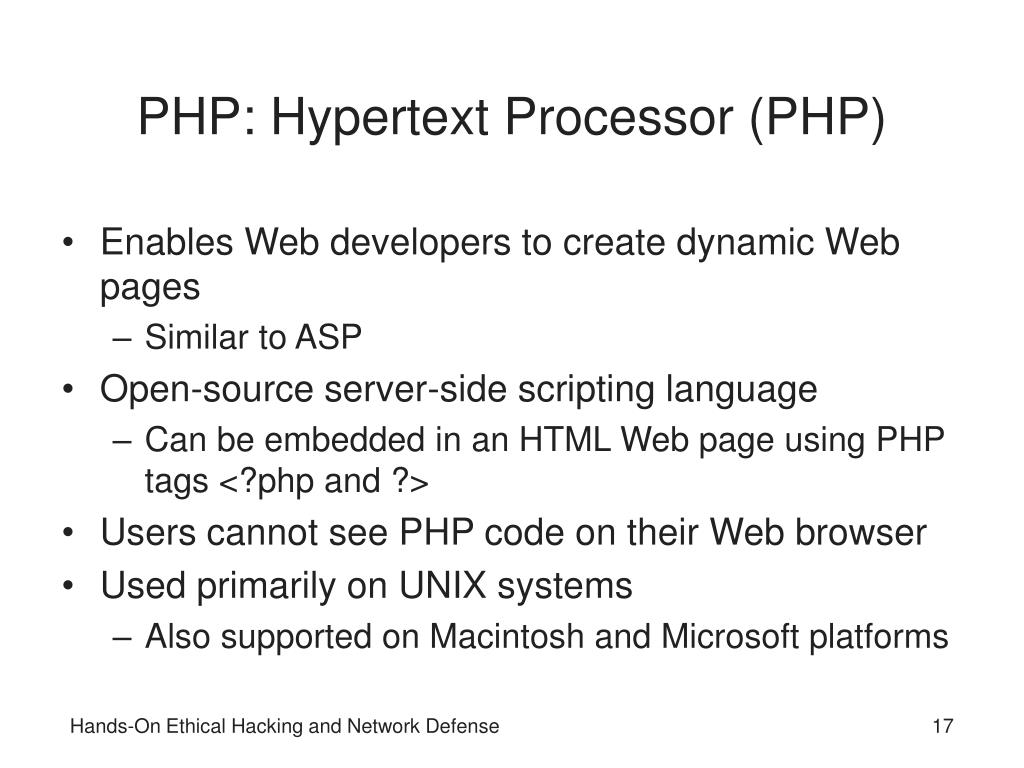

  17. PHP: Hypertext Processor (PHP) • Enables Web developers to create dynamic Web pages • Similar to ASP • Open-source server-side scripting language • Can be embedded in an HTML Web page using PHP tags <?php and ?> • Users cannot see PHP code on their Web browser • Used primarily on UNIX systems • Also supported on Macintosh and Microsoft platforms Hands-On Ethical Hacking and Network Defense

  18. PHP: Hypertext Processor (PHP) (continued) • PHP example <html> <head> <title>My First PHP Program </title> </head> <body> <?php echo '<h1>Hello, Security Testers!</h1>'; ?> </body> </html> • As a security tester you should look for PHP vulnerabilities Hands-On Ethical Hacking and Network Defense

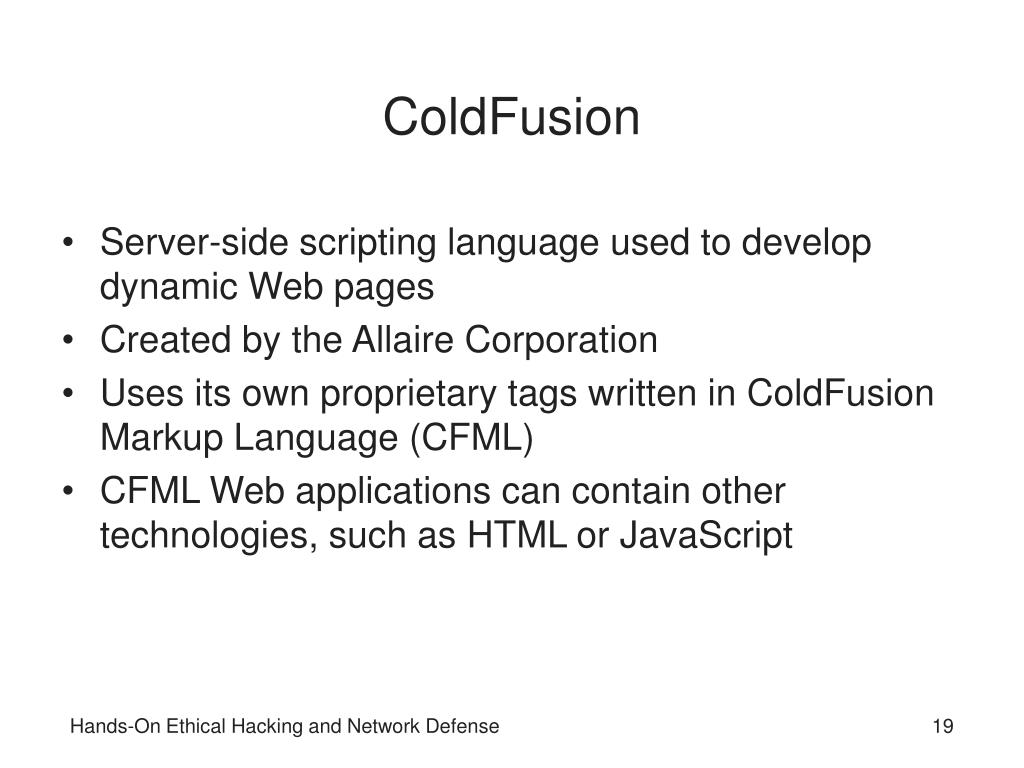

  19. ColdFusion • Server-side scripting language used to develop dynamic Web pages • Created by the Allaire Corporation • Uses its own proprietary tags written in ColdFusion Markup Language (CFML) • CFML Web applications can contain other technologies, such as HTML or JavaScript Hands-On Ethical Hacking and Network Defense

  20. ColdFusion (continued) • CFML example <html> <head> <title>Using CFML</title> </head> <body> <CFLOCATION URL="www.isecom.org/cf/index.htm" ADDTOKEN="NO"> </body> </html> • CFML is not exempt of vulnerabilities Hands-On Ethical Hacking and Network Defense

  21. VBScript • Visual Basic Script is a scripting language developed by Microsoft • Converts static Web pages into dynamic Web pages • Takes advantage of the power of a full programming language • VBScript is also prone to security vulnerabilities • Check the Microsoft Security Bulletin for information about VBScript vulnerabilities Hands-On Ethical Hacking and Network Defense

  22. VBScript (continued) • VBScript example <html> <body> <script type="text/vbscript"> document.write("<h1>Hello Security Testers!</h1>") document.write("Date Activated: " & date()) </script> </body> </html> Hands-On Ethical Hacking and Network Defense

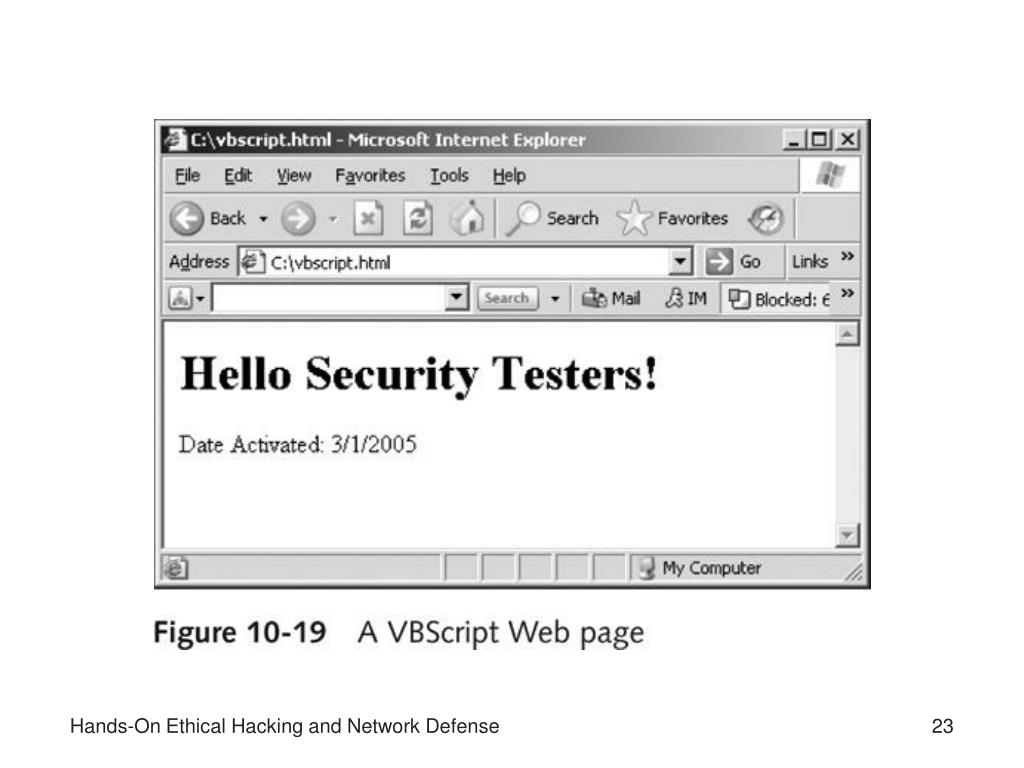

  23. Hands-On Ethical Hacking and Network Defense

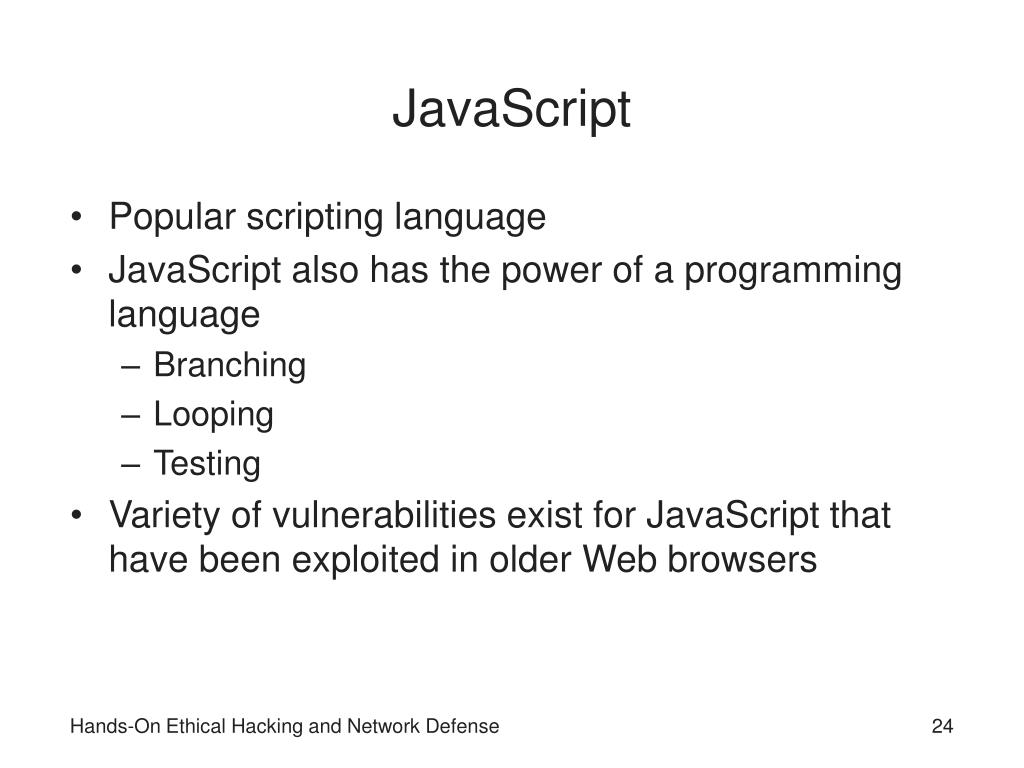

  24. JavaScript • Popular scripting language • JavaScript also has the power of a programming language • Branching • Looping • Testing • Variety of vulnerabilities exist for JavaScript that have been exploited in older Web browsers Hands-On Ethical Hacking and Network Defense

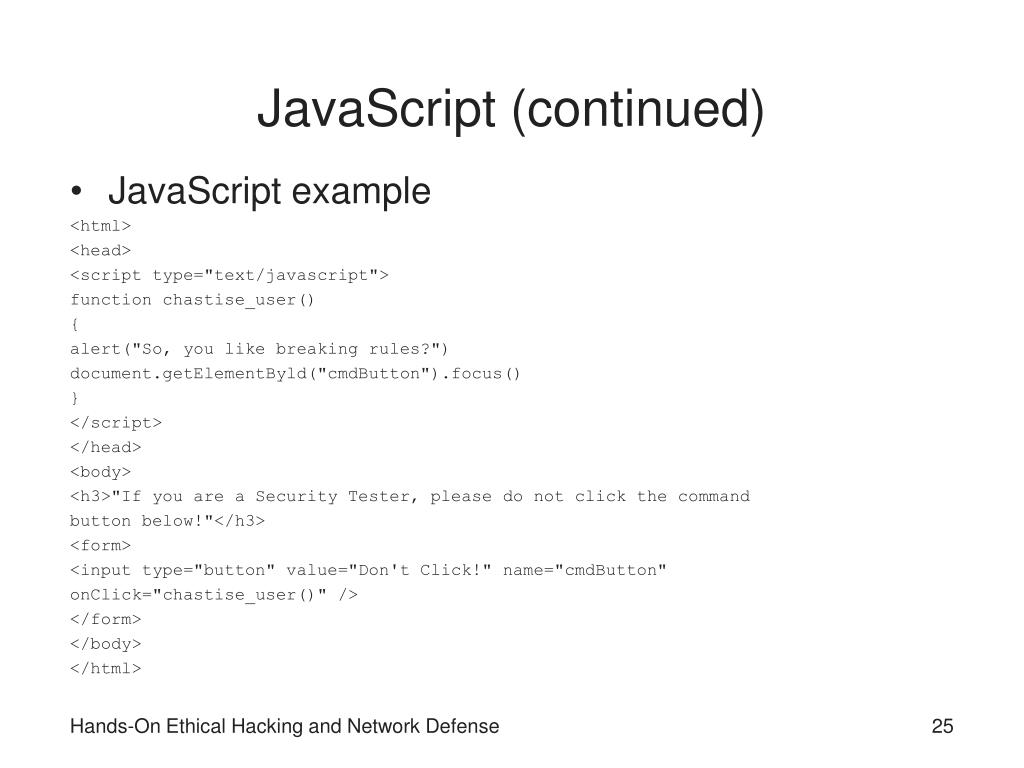

  25. JavaScript (continued) • JavaScript example <html> <head> <script type="text/javascript"> function chastise_user() { alert("So, you like breaking rules?") document.getElementByld("cmdButton").focus() } </script> </head> <body> <h3>"If you are a Security Tester, please do not click the command button below!"</h3> <form> <input type="button" value="Don't Click!" name="cmdButton" onClick="chastise_user()" /> </form> </body> </html> Hands-On Ethical Hacking and Network Defense

  26. Hands-On Ethical Hacking and Network Defense

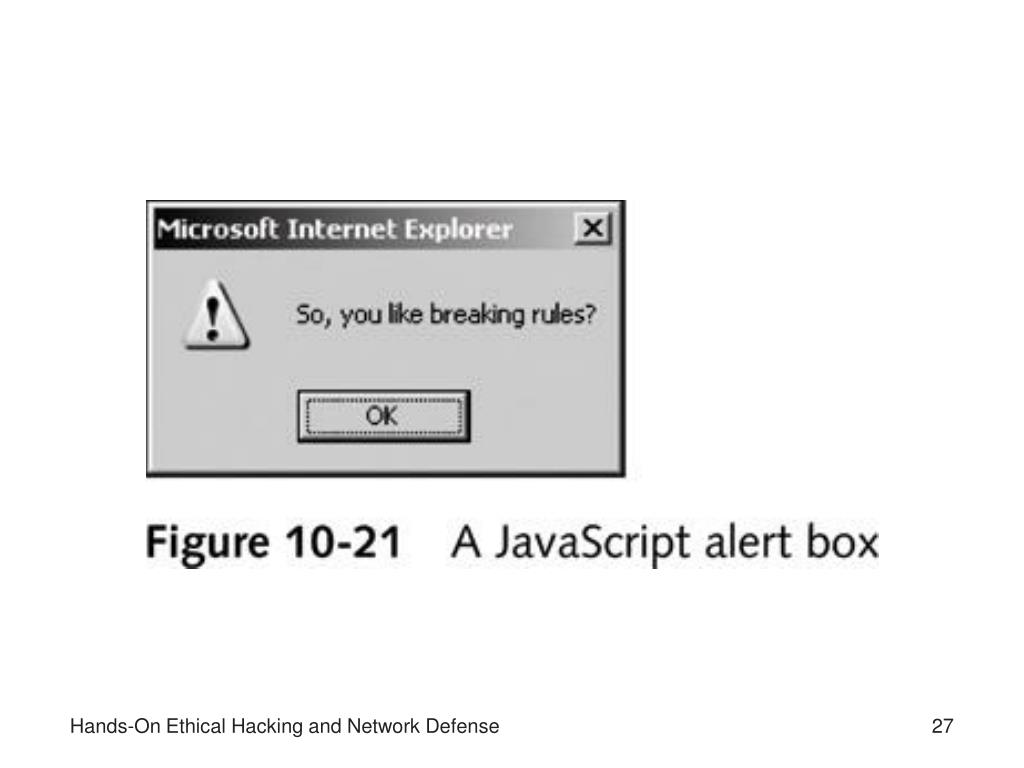

  27. Hands-On Ethical Hacking and Network Defense

  28. Connecting to Databases • Web pages can display information stored on databases • There are several technologies used to connect databases with Web applications • Technology depends on the OS used • ODBC • OLE DB • ADO • Theory is the same Hands-On Ethical Hacking and Network Defense

  29. Open Database Connectivity (ODBC) • Standard database access method developed by the SQL Access Group • ODBC interface allows an application to access • Data stored in a database management system • Any system that understands and can issue ODBC commands • Interoperability among back-end DBMS is a key feature of the ODBC interface Hands-On Ethical Hacking and Network Defense

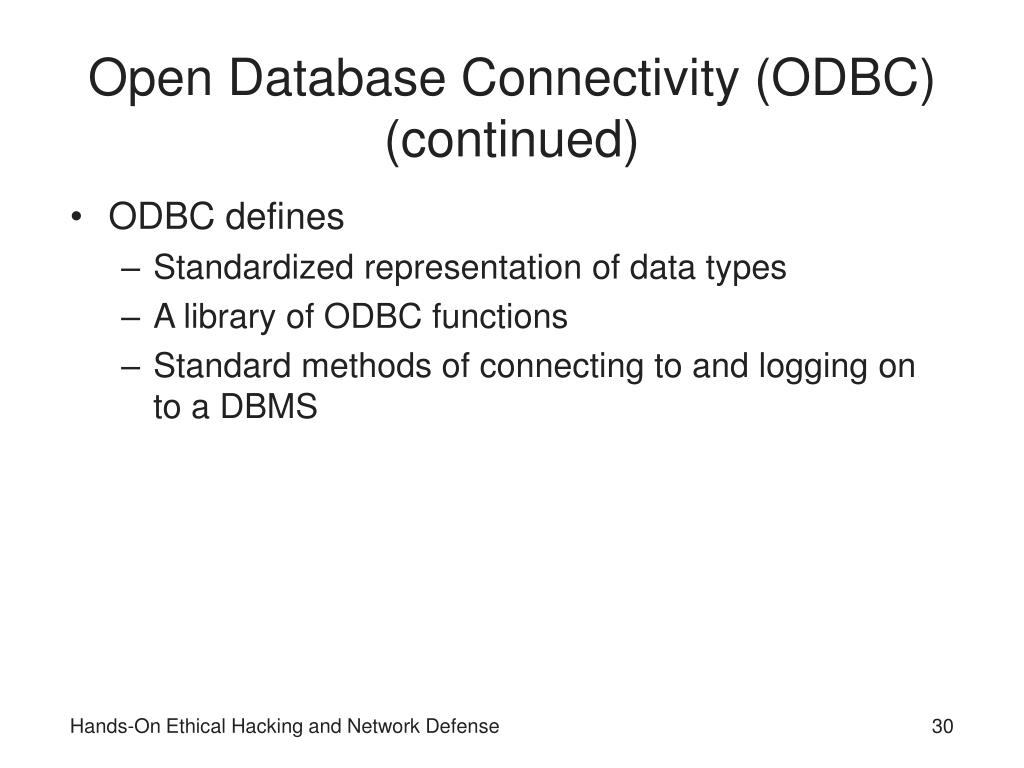

  30. Open Database Connectivity (ODBC) (continued) • ODBC defines • Standardized representation of data types • A library of ODBC functions • Standard methods of connecting to and logging on to a DBMS Hands-On Ethical Hacking and Network Defense

  31. Object Linking and Embedding Database (OLE DB) • OLE DB is a set of interfaces • Enables applications to access data stored in a DBMS • Developed by Microsoft • Designed to be faster, more efficient, and more stable than ODBC • OLE DB relies on connection strings • Different providers can be used with OLE DB depending on the DBMS to which you want to connect Hands-On Ethical Hacking and Network Defense

  32. Hands-On Ethical Hacking and Network Defense

  33. ActiveX Data Objects (ADO) • ActiveX defines a set of technologies that allow desktop applications to interact with the Web • ADO is a programming interface that allows Web applications to access databases • Steps for accessing a database from a Web page • Create an ADO connection • Open the database connection you just created • Create an ADO recordset • Open the recordset • Select the data you need • Close the recordset and the connection Hands-On Ethical Hacking and Network Defense

  34. Understanding Web Application Vulnerabilities • Many platforms and programming languages can be used to design a Web site • Application security is as important as network security • Attackers controlling a Web server can • Deface the Web site • Destroy or steal company’s data • Gain control of user accounts • Perform secondary attacks from the Web site • Gain root access to other applications or servers Hands-On Ethical Hacking and Network Defense

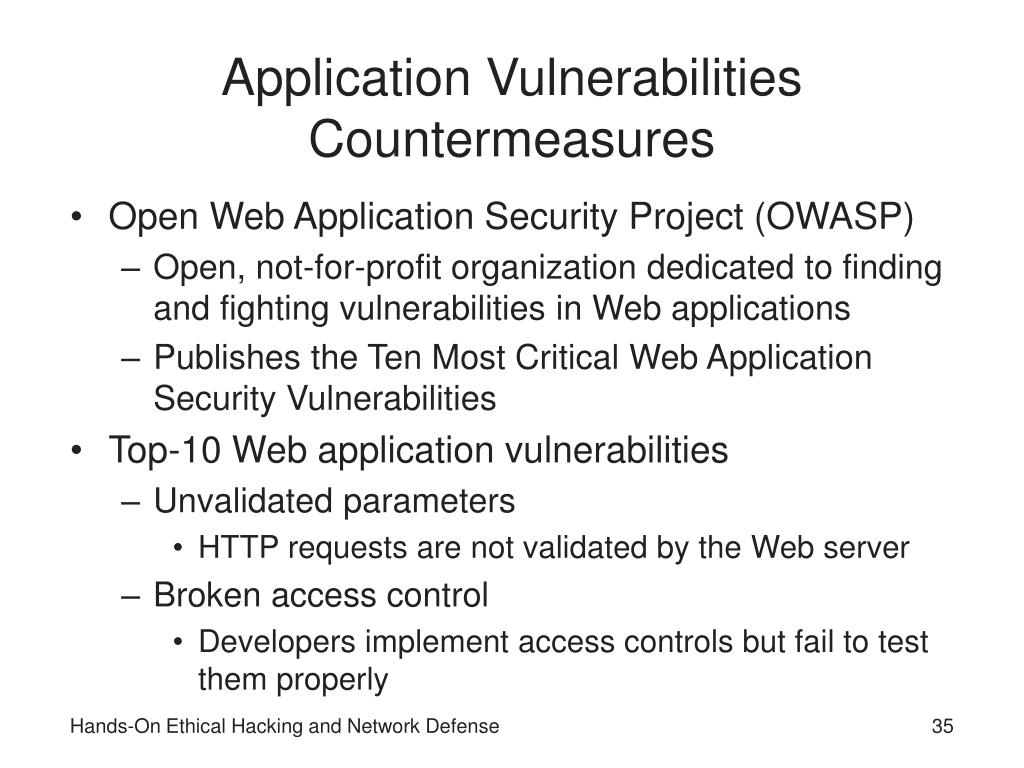

  35. Application Vulnerabilities Countermeasures • Open Web Application Security Project (OWASP) • Open, not-for-profit organization dedicated to finding and fighting vulnerabilities in Web applications • Publishes the Ten Most Critical Web Application Security Vulnerabilities • Top-10 Web application vulnerabilities • Unvalidated parameters • HTTP requests are not validated by the Web server • Broken access control • Developers implement access controls but fail to test them properly Hands-On Ethical Hacking and Network Defense

  36. Application Vulnerabilities Countermeasures (continued) • Top-10 Web application vulnerabilities (continued) • Broken account and session management • Enables attackers to compromise passwords or session cookies to gain access to accounts • Cross-site scripting (XSS) flaws • Attacker can use a Web application to run a script on the Web browser of the system he or she is attacking • Buffer overflows • It is possible for an attacker to use C or C++ code that includes a buffer overflow Hands-On Ethical Hacking and Network Defense

  37. Application Vulnerabilities Countermeasures (continued) • Top-10 Web application vulnerabilities (continued) • Command injection flaws • An attacker can embed malicious code and run a program on the database server • Error-handling problems • Error information sent to the user might reveal information that an attacker can use • Insecure use of cryptography • Storing keys, certificates, and passwords on a Web server can be dangerous Hands-On Ethical Hacking and Network Defense

  38. Application Vulnerabilities Countermeasures (continued) • Top-10 Web application vulnerabilities (continued) • Remote administration flaws • Attacker can gain access to the Web server through the remote administration interface • Web and application server misconfiguration • Any Web server software out of the box is usually vulnerable to attack • Default accounts and passwords • Overly informative error messages Hands-On Ethical Hacking and Network Defense

  39. Application Vulnerabilities Countermeasures (continued) • WebGoat project • Helps security testers learn how to perform vulnerabilities testing on Web applications • Developed by OWASP • WebGoat can be used to • Reveal HTML or Java code and any cookies or parameters used • Hack a logon name and password Hands-On Ethical Hacking and Network Defense

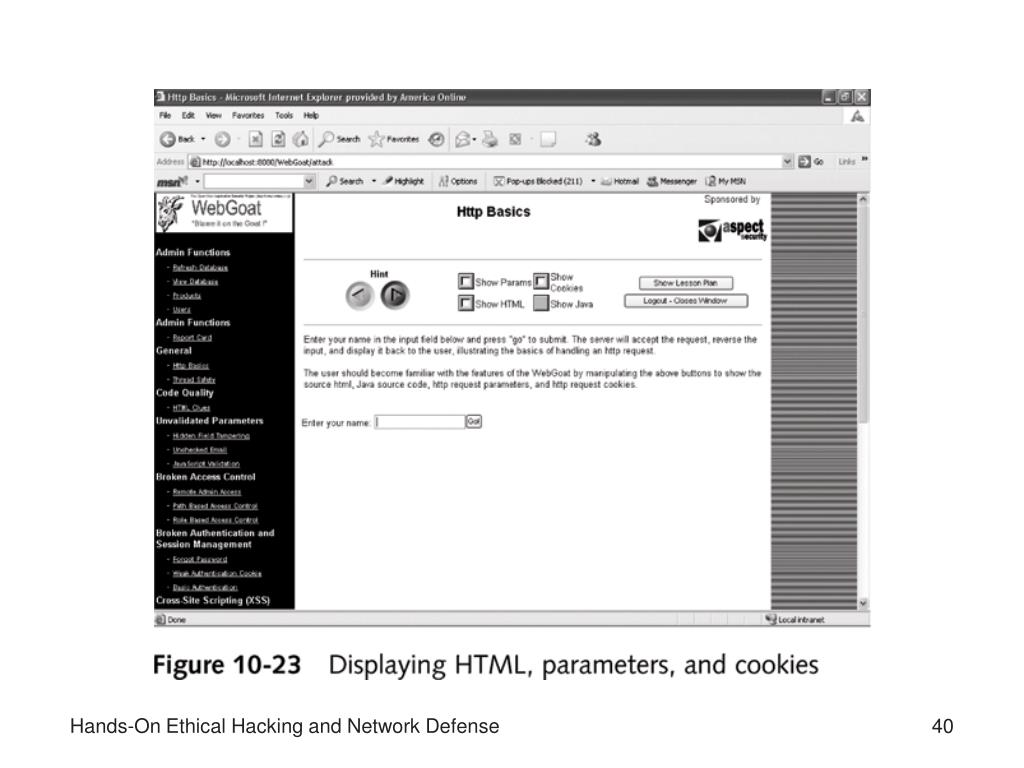

  40. Hands-On Ethical Hacking and Network Defense

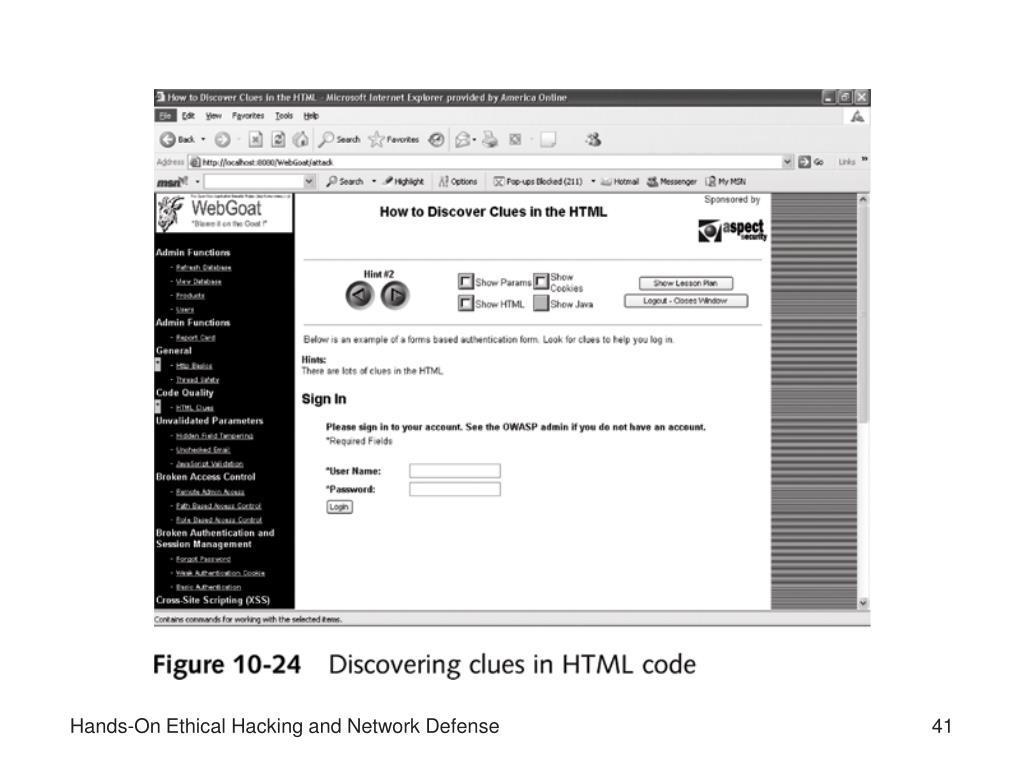

  41. Hands-On Ethical Hacking and Network Defense

  42. Application Vulnerabilities Countermeasures (continued) • WebGoat can be used to • Traverse a file system on a Windows XP computer running Apache • WebGoat’s big challenge • Defeat an authentication mechanism • Steal credit cards from a database • Deface a Web site Hands-On Ethical Hacking and Network Defense

  43. Hands-On Ethical Hacking and Network Defense

  44. Hands-On Ethical Hacking and Network Defense

  45. Hands-On Ethical Hacking and Network Defense

  46. Assessing Web Applications • Security testers should look for answers to some important questions • Does the Web application use dynamic Web pages? • Does the Web application connect to a backend database server? • Does the Web application require authentication of the user? • On what platform was the Web application developed? Hands-On Ethical Hacking and Network Defense

  47. Does the Web Application Use Dynamic Web Pages? • Static Web pages do not create a security environment • IIS attack example • Submitting a specially formatted URL to the attacked Web server • IIS does not correctly parse the URL information • Attackers could launch a Unicode exploit http://www.nopatchiss.com/scripts/..%255c..%255cwinnt/system32/cmd.exe?/c+dir+c • Attacker can even install a Trojan program Hands-On Ethical Hacking and Network Defense

  48. Does the Web Application Connect to a Backend Database Server? • Security testers should check for the possibility of SQL injection being used to attack the system • SQL injection involves the attacker supplying SQL commands on a Web application field • SQL injection examples SELECT * FROM customer WHERE tblusername = ' ' OR 1=1 -- ' AND tblpassword = ' ' or SELECT * FROM customer WHERE tblusername = ' OR "=" AND tblpassword = ' OR "=" Hands-On Ethical Hacking and Network Defense

  49. Does the Web Application Connect to a Backend Database Server? (continued) • Basic testing should look for • Whether you can enter text with punctuation marks • Whether you can enter a single quotation mark followed by any SQL keywords • Whether you can get any sort of database error when attempting to inject SQL Hands-On Ethical Hacking and Network Defense

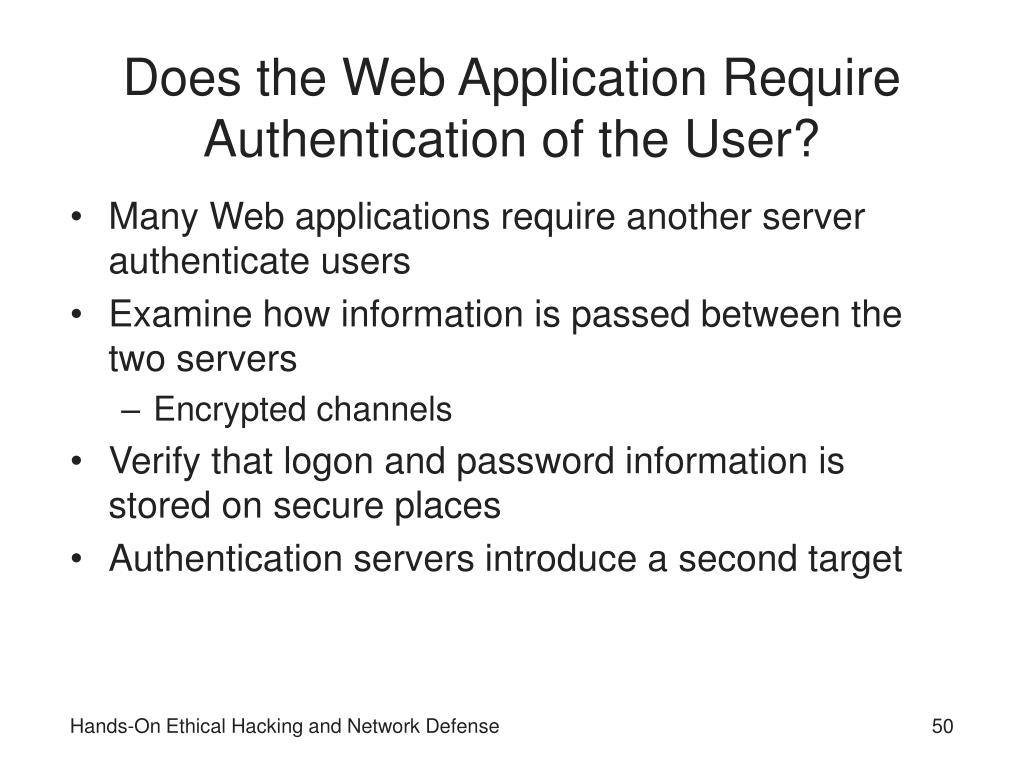

  50. Does the Web Application Require Authentication of the User? • Many Web applications require another server authenticate users • Examine how information is passed between the two servers • Encrypted channels • Verify that logon and password information is stored on secure places • Authentication servers introduce a second target Hands-On Ethical Hacking and Network Defense
