Benzene. Regulated areas. Concentrations exceed permissible exposure limits (PEL) Concentrations exceed short-term exposure limits (STEL). 1a. Regulated areas. Which job titles/functions are allowed to access regulated areas?. 1b. Definitions. Benzene PEL Action level. 2a.

Download Presentation

Benzene

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Benzene l.jpg

Benzene


Regulated areas l.jpg

Regulated areas

  • Concentrations exceed permissible exposure limits (PEL)

  • Concentrations exceed short-term exposure limits (STEL)

1a


Regulated areas3 l.jpg

Regulated areas

  • Which job titles/functions are allowed to access regulated areas?

1b


Definitions l.jpg

Definitions

  • Benzene

  • PEL

  • Action level

2a


Definitions5 l.jpg

Definitions

  • STEL

  • Engineering controls

  • Work practices

2b


Monitoring l.jpg

Monitoring

  • Employees are able to observe the monitoring.

3a


Monitoring7 l.jpg

Monitoring

  • Ongoing monitoring depends upon the following factors:

    • Concentrations at or above the action level, but at or below the 8-hour TWA (annually)

    • Concentrations above the TWA (at least every 6 months)

    • The STEL (as necessary)

3b


Monitoring8 l.jpg

Monitoring

  • Monitoring is required after clean-up of spills, leaks, unintentional releases

  • Monitoring may be stopped under some conditions

3c


Monitoring9 l.jpg

Monitoring

  • Employees must be told of monitoring results within 15 working days:

    • Individually

    • Group posting

  • Written notification must include corrective actions

3d


Monitoring10 l.jpg

Monitoring

  • Additional monitoring may be performed if there is a change in:

    • A process

    • Equipment

    • Personnel

    • Work practices

3e


Monitoring11 l.jpg

Monitoring

  • Written exposureplan is required if employees are exposed at or above PEL

3f

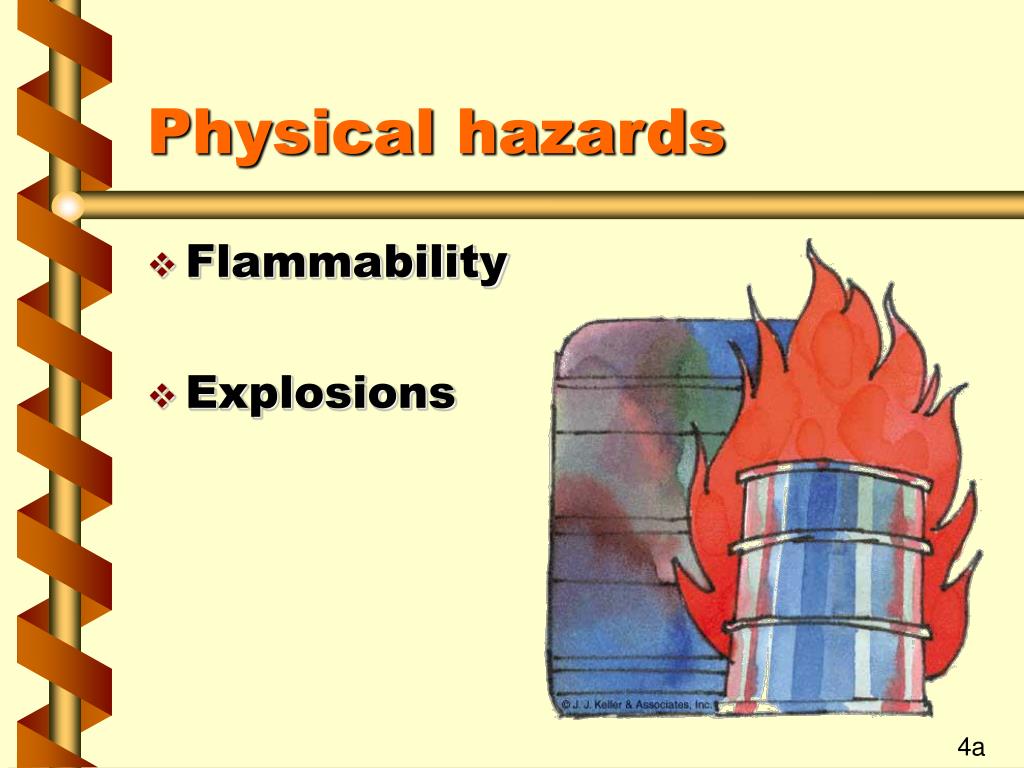

Physical hazards l.jpg

Physical hazards

  • Flammability

  • Explosions

4a


Health hazards l.jpg

Health hazards

  • Inhalation

  • Eye exposure

  • Skin exposure

  • Ingestion

4b


Health hazards14 l.jpg

Health hazards

  • Acts as a narcotic

  • Blood disorders

  • Vague symptoms

  • Carcinogen

4c


Health hazards15 l.jpg

Health hazards

  • Reproductive health changes

  • Mutagenic

  • Tumorigenic

4d


Work practices l.jpg

Work practices

  • When working with benzene, workers should never:

    • store or use cosmetics, lip balm

    • drink or smoke

5a


Work practices17 l.jpg

Work practices

  • Storage and handling procedures

  • Prohibit sources of ignition

  • Use non-sparking tools

5b


Work practices18 l.jpg

Work practices

  • Never incinerate benzene cartridges, tanks, containers

  • Review flammable and combustible liquids regulations - 29 CFR 1910.106

5c


Emergency procedures l.jpg

Emergency procedures

  • Have fire extinguishers available

  • Use foam, CO2, or dry chemical, not water to fight a benzene fire

6a


Emergency procedures20 l.jpg

Emergency procedures

  • Flush eyes with water, lifting eyelids

  • Flush skin with water and wash with soap

6b


Emergency procedures21 l.jpg

Emergency procedures

  • Move victim to fresh air

  • Do not induce vomiting

  • Get immediate medical attention

6c


Emergency procedures22 l.jpg

Emergency procedures

  • Review emergency procedures, including:

    • Written plan

    • Emergency contact phone numbers

    • Emergency contact persons

  • Remove all ignition sources

6d


Emergency procedures23 l.jpg

Emergency procedures

  • Evacuate the area

  • Wear appropriate PPE in clean-up area

  • Properly dispose of all waste

6e


Slide24 l.jpg

PPE

  • Depending on the process, the following PPE might be needed:

    • Impermeable clothing

    • Gloves

    • Goggles

    • Face shields

    • Other protective gear

7a


Slide25 l.jpg

PPE

  • Understand the processes for proper:

    • Selection

    • Use

    • Inspection

    • Cleaning

    • Disposal

    • Decontamination

7b


Use and limitations of respirators l.jpg

Use and limitations of respirators

  • Respirators are required:

    • during periods necessary to install or put into effect engineering controls

    • during periods necessary to install or put into effect work practice controls

8a


Use and limitations of respirators27 l.jpg

Use and limitations of respirators

  • Respirators are required:

    • where exposure levels are above the TWA or STEL

    • where engineering controls and work practice controls are not sufficient to keep exposures below the TWA

8b


Medical surveillance l.jpg

Medical surveillance

  • Medical surveillance is required for all employees exposed:

    • at or above the action level for at least 30 days

    • at or above the PEL 10 or more days per year

    • to solvents containing more than 0.1% benzene

9a


Medical surveillance29 l.jpg

Medical surveillance

  • Exposure thresholds are determined without PPE use

9b


Medical surveillance30 l.jpg

Medical surveillance

  • Examinations are:

    • prior to assignment to an area where exposure may be at or above the conditions previously listed

    • annually

    • after exposure in an emergency

    • as a follow-up to previous exams

9c


Medical surveillance31 l.jpg

Medical surveillance

  • Examinations are:

    • at intervals recommended by the company physician

    • whenever an employee shows signs and symptoms of toxic levels of exposure

9d


Medical surveillance32 l.jpg

Medical surveillance

  • Employees who are required to use respirators at least 30 days per year will have a pulmonary function test every 3 years

  • Medical exams are thorough and emphasize blood chemistry

9e


Medical surveillance33 l.jpg

Medical surveillance

  • Related conditions not directly related to benzene may be included in examinations

  • Employees receive a copy of the physician’s written opinion within 15 days after it is received by the company

9f


Medical surveillance34 l.jpg

Medical surveillance

  • Records are retained by the employer for the duration of employment plus 30 years

9g


Signs and labels l.jpg

Signs and labels

  • Post and maintain signs around regulated areas, as well as entrances and access points

10a


Signs and labels36 l.jpg

Signs and labels

  • Report any faded or missing signs

10b


Signs and labels37 l.jpg

Signs and labels

  • Labels are required on all containers

10c


A copy of the benzene standard is available to all employees l.jpg

A copy of the benzene standard is available to all employees

  • 29 CFR 1910.1028

11a
