F ne riks

[f´‚nE˘RIks]

SILDoulosIPA-Regular Course web page

English 306A; Harris


F ne riks

Articulatoryphonetics

English 306A; Harris


Source filter system

Source-filter system

English 306A; Harris


Source filter system1

Source-filter system

  • Initiation

  • Phonation

  • Resonance

  • Articulation

English 306A; Harris


Source filter system2

Source/filter system

Filter

Source

English 306A; Harris


Source filter system3

Source/filter system

Filter

Phonator

Source

Initiator

English 306A; Harris


Source filter system4

Source/filter system

Resonators

Filter

Articulators

Source

English 306A; Harris


Source filter system phonation

Source/filter systemPhonation

English 306A; Harris


Source filter system phonation1

Source/filter systemPhonation

English 306A; Harris

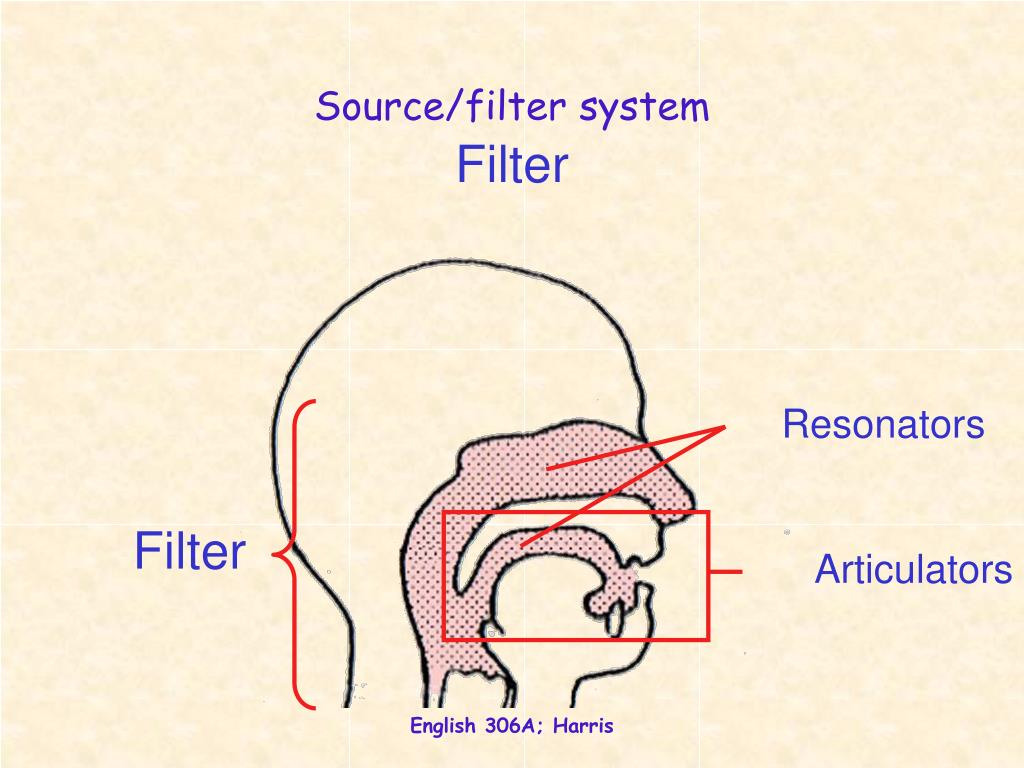

Source filter system filter

Source/filter systemFilter

Resonators

Filter

Articulators

English 306A; Harris

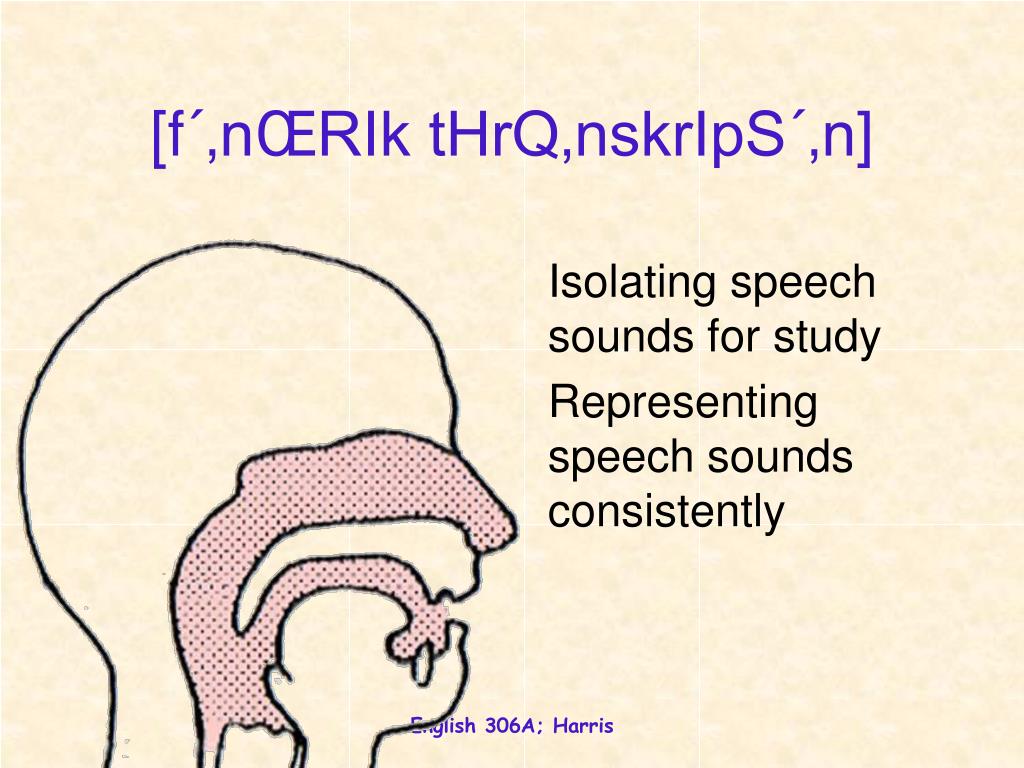

F n rik thrq nskrips n

[f´‚nŒRIk tHrQ‚nskrIpS´‚n]

  • Isolating speech sounds for study

  • Representing speech sounds consistently

English 306A; Harris


Transcribing sounds english spelling

Transcribing soundsEnglish spelling?

ghoti

English 306A; Harris

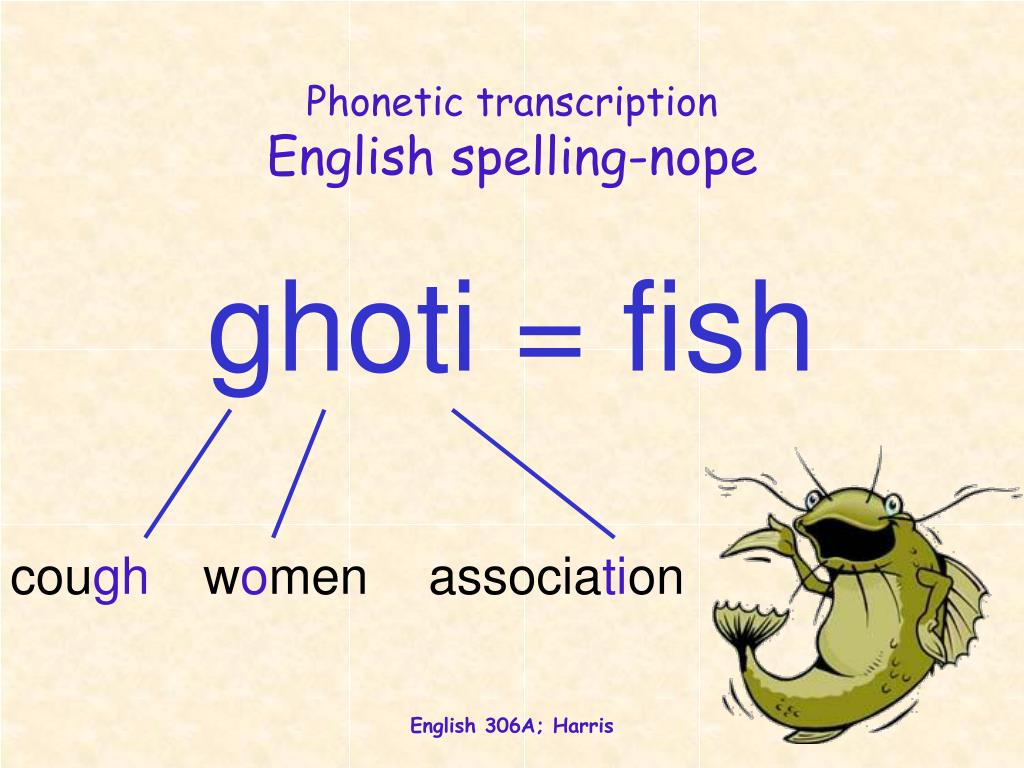

Phonetic transcription english spelling nope

Phonetic transcriptionEnglish spelling-nope

  • ghoti = fish

cough

women

association

English 306A; Harris


Phonetic transcription english spelling nope1

Phonetic transcriptionEnglish spelling-nope

  • [fIS]

cough

women

association

English 306A; Harris


Phonetic transcription the one many problem

Phonetic transcriptionThe one/many problem

  • toughcoughploughdough

[√]

[A]

[Au]

[o]

English 306A; Harris


Phonetic transcription the many one problem

Phonetic transcriptionThe many/one problem

  • toughbuffphonefill

[f]

English 306A; Harris


Phonetic transcription

Phonetic transcription

  • Roughly, 40 phonemes in NA English,

  • coded in 120+ orthographical combinations

English 306A; Harris


Phonetic transcription the detail problem

Phonetic transcriptionThe detail problem

pan

pHQ‚˘n

English 306A; Harris

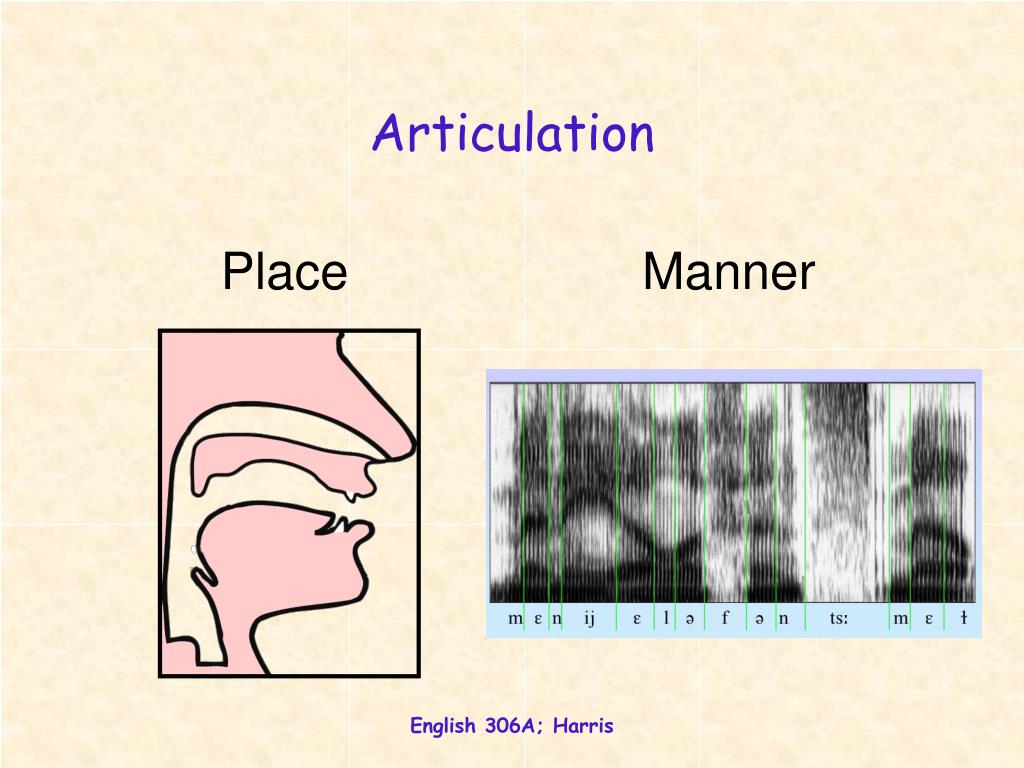

Articulation

Articulation

Place

Manner

English 306A; Harris


Articulation manner

ArticulationManner

English 306A; Harris


Articulation manner1

ArticulationManner

Consonants

Vowels

English 306A; Harris


Articulation manner glides

ArticulationManner: Glides

Consonants

Vowels

English 306A; Harris


Articulation manner glides1

ArticulationManner: Glides

Consonants

Vowels

[j]

[w]

English 306A; Harris


Consonants manner

ConsonantsManner

Sonorants

Obstruents

English 306A; Harris


Consonants manner1

ConsonantsManner

Sonorants

Obstruents

stops

fricatives

English 306A; Harris


Consonants manner2

ConsonantsManner

Sonorants

Obstruents

stops

fricatives

[t]

[s]

English 306A; Harris


Consonants manner3

ConsonantsManner

Sonorants

Obstruents

stops

affricates

fricatives

[t]

[s]

English 306A; Harris

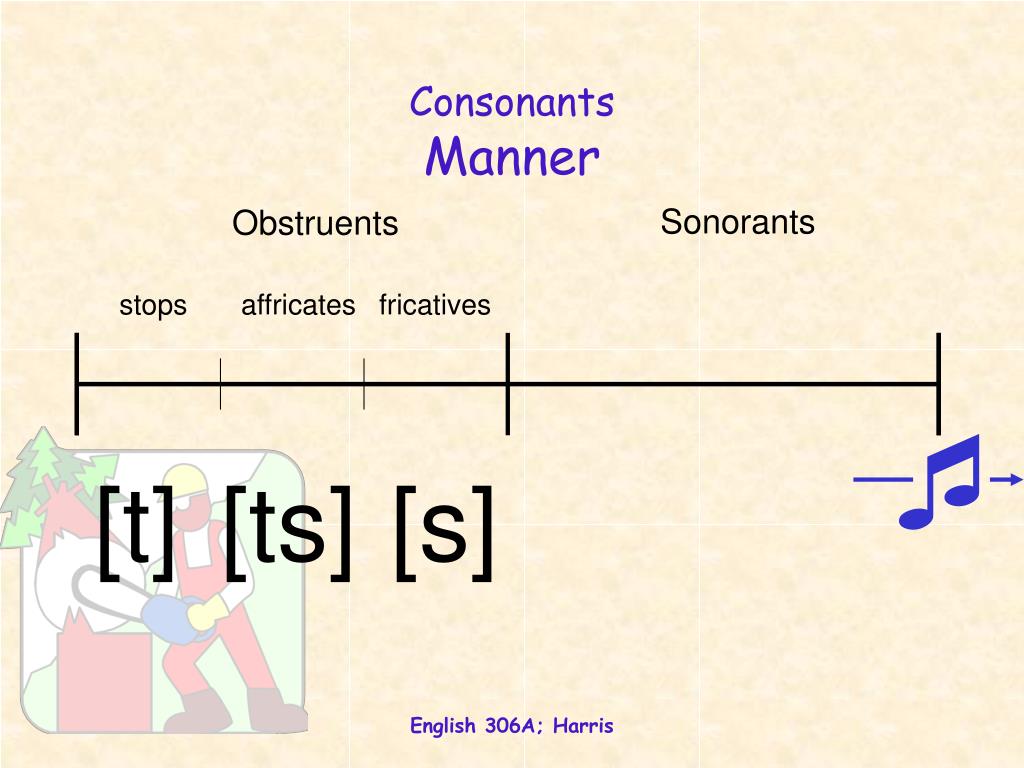

Consonants manner4

ConsonantsManner

Sonorants

Obstruents

stops

affricates

fricatives

[t]

[ts]

[s]

English 306A; Harris


Consonants manner5

ConsonantsManner

Sonorants

Obstruents

stops

affricates

fricatives

[t]

[ts]

[s]

Voiceless

[d]

[dz]

[z]

Voiced

English 306A; Harris


Consonants secondary manner voicing

ConsonantsSecondary Manner—Voicing

English 306A; Harris

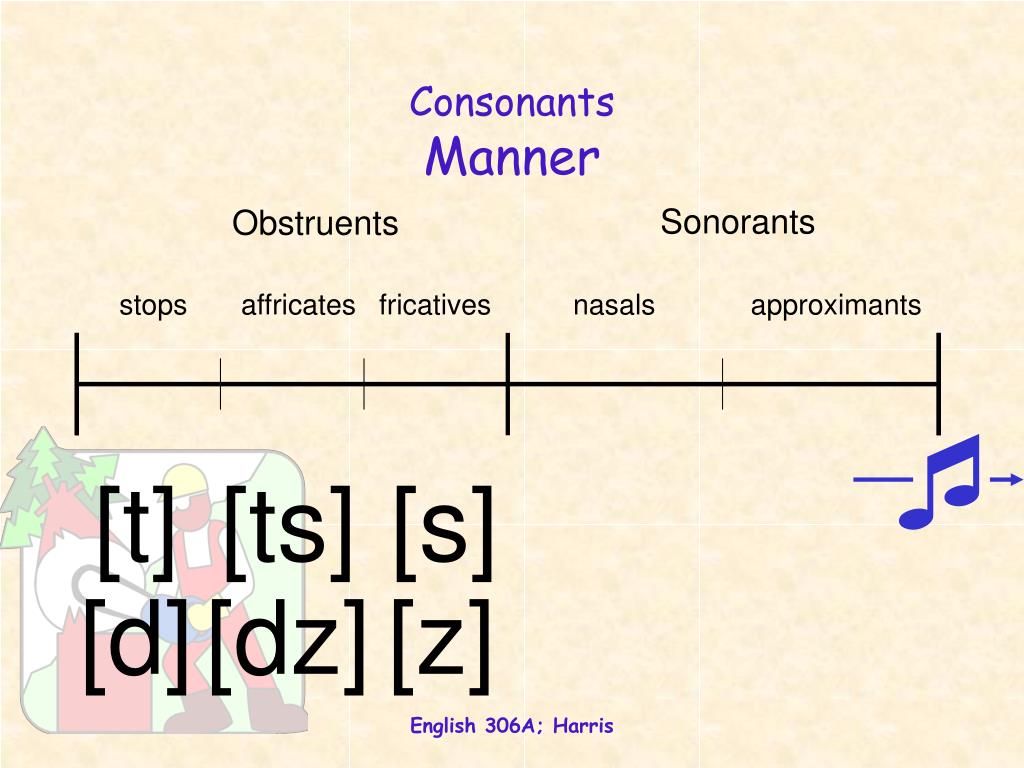

Consonants manner6

ConsonantsManner

Sonorants

Obstruents

stops

affricates

fricatives

nasals

approximants

[t]

[ts]

[s]

[d]

[dz]

[z]

English 306A; Harris


Consonants manner7

ConsonantsManner

Sonorants

Obstruents

stops

affricates

fricatives

nasals

approximants

[t]

[ts]

[s]

[n]

[l]

[d]

[dz]

[z]

English 306A; Harris


Consonants manner sonorants

Consonants—MannerSonorants

approximants

nasals

liquids

glides

[m]

[l]

[j]

[n]

[r]

[w]

[N]

[R]

[„]

English 306A; Harris

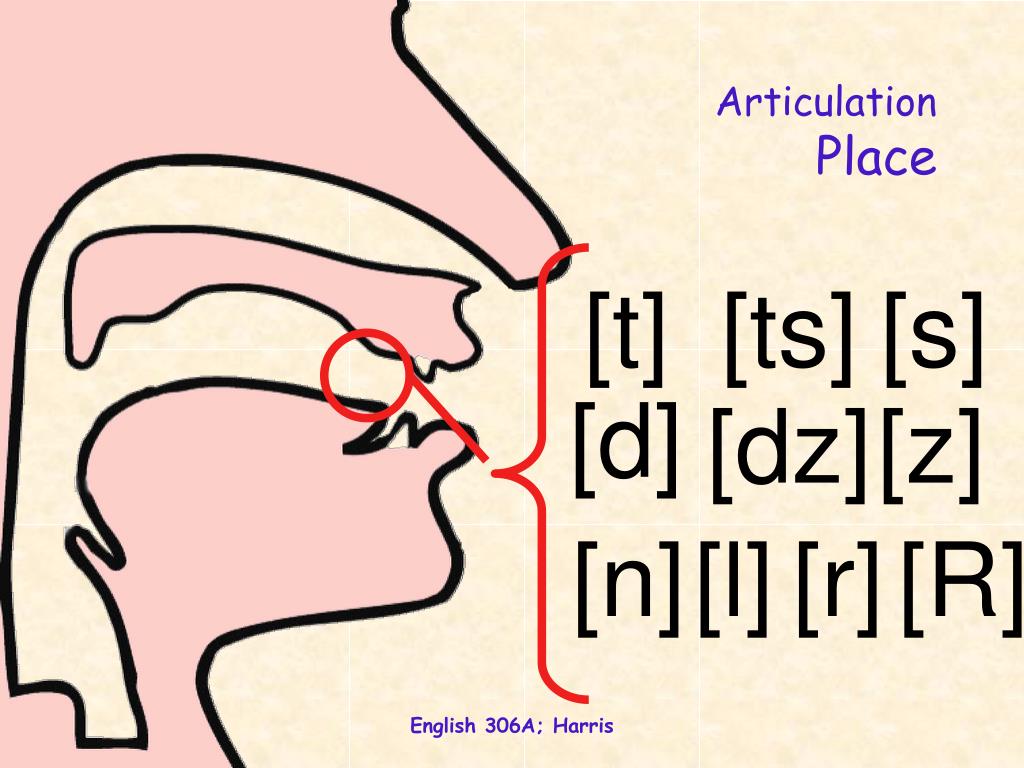

Articulation place

ArticulationPlace

[t]

[ts]

[s]

[d]

[dz]

[z]

[n]

[l]

[r]

[R]

English 306A; Harris

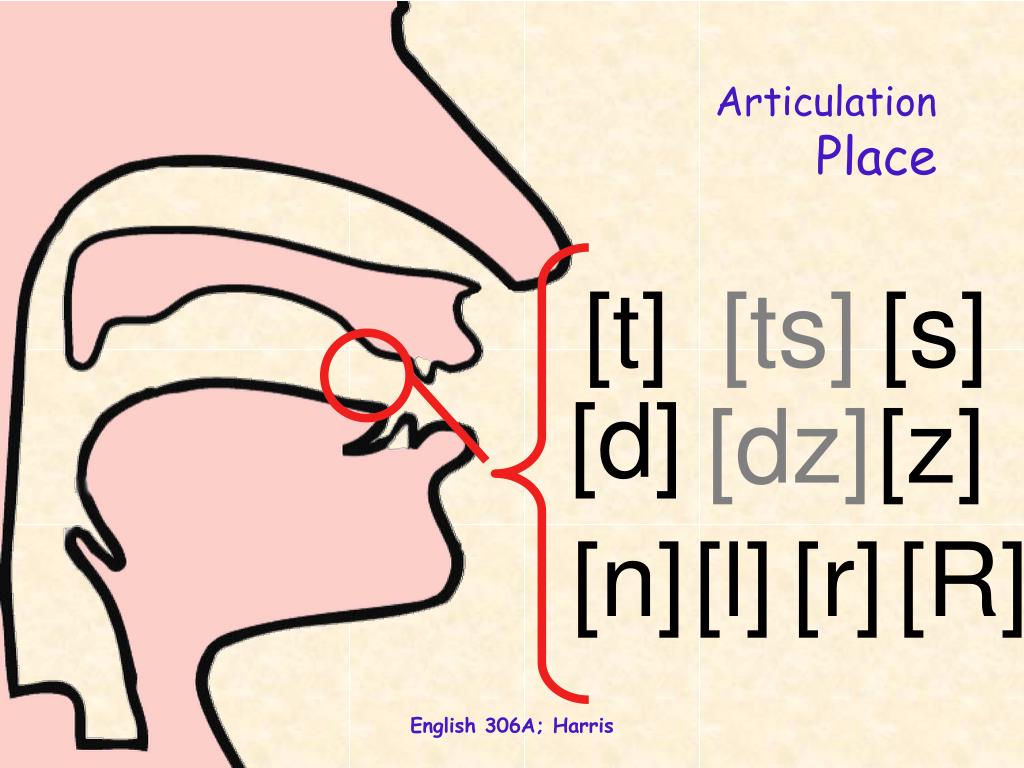

Articulation place1

ArticulationPlace

[t]

[ts]

[s]

[d]

[dz]

[z]

[n]

[l]

[r]

[R]

English 306A; Harris


Articulation place2

ArticulationPlace

Articulators

English 306A; Harris

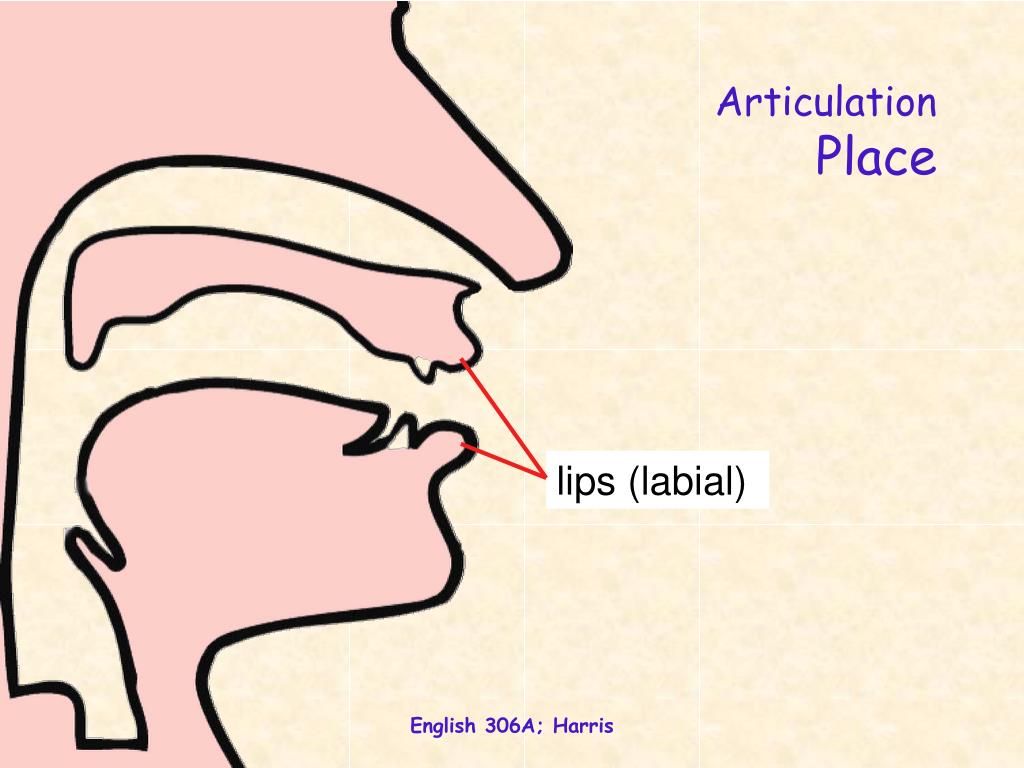

Articulation place3

ArticulationPlace

lips (labial)

English 306A; Harris

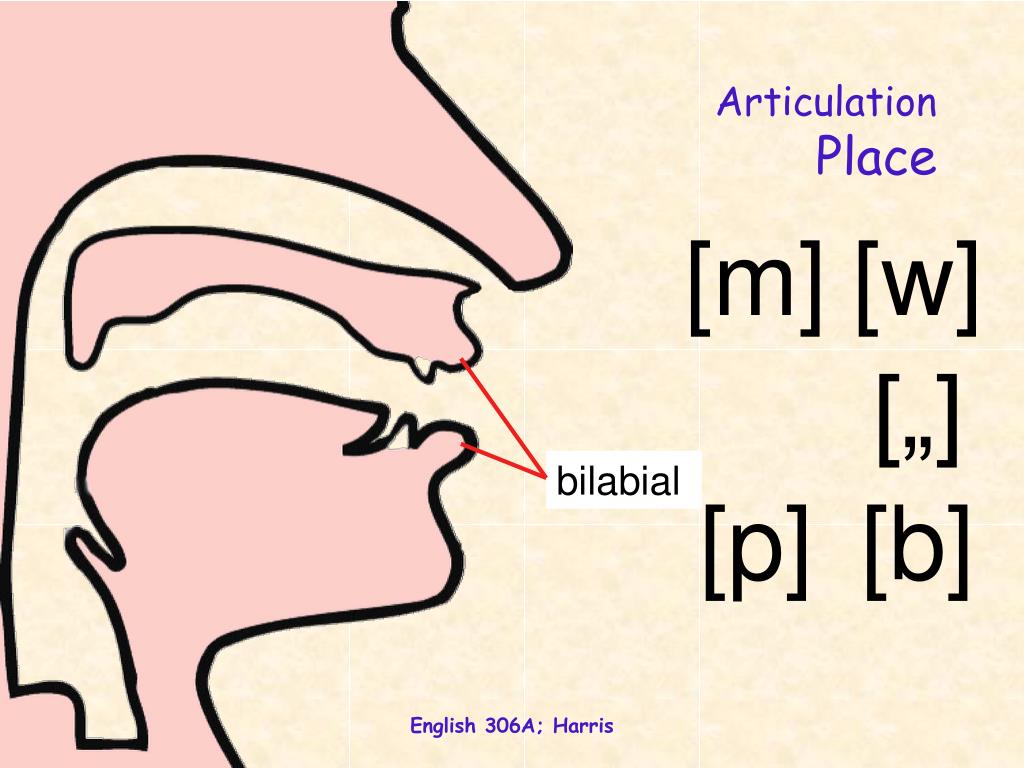

Articulation place4

ArticulationPlace

[m]

[w]

[„]

bilabial

[p]

[b]

English 306A; Harris


Articulation place5

ArticulationPlace

[f]

[v]

labiodental

English 306A; Harris


Articulation place6

ArticulationPlace

teeth (dental)

labial

English 306A; Harris


Articulation place7

ether

[iT´r]

either

[i˘T´r]

ArticulationPlace

interdental

[T]

[D]

labial

English 306A; Harris

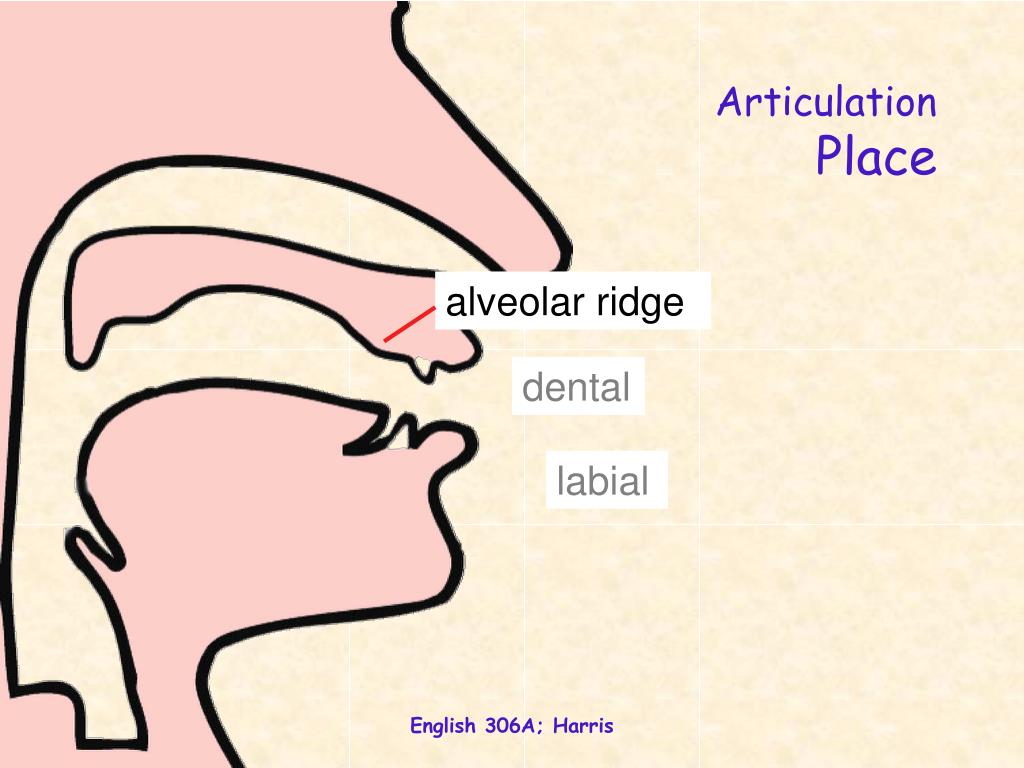

Articulation place8

ArticulationPlace

alveolar ridge

dental

labial

English 306A; Harris


Articulation place9

ArticulationPlace

[t]

[s]

alveolar

dental

[d]

[z]

labial

[n]

[l]

[r]

[R]

English 306A; Harris


Articulation place10

ArticulationPlace

[S]

[Z]

alveopalatal

[tS]

[dZ]

dental

labial

English 306A; Harris

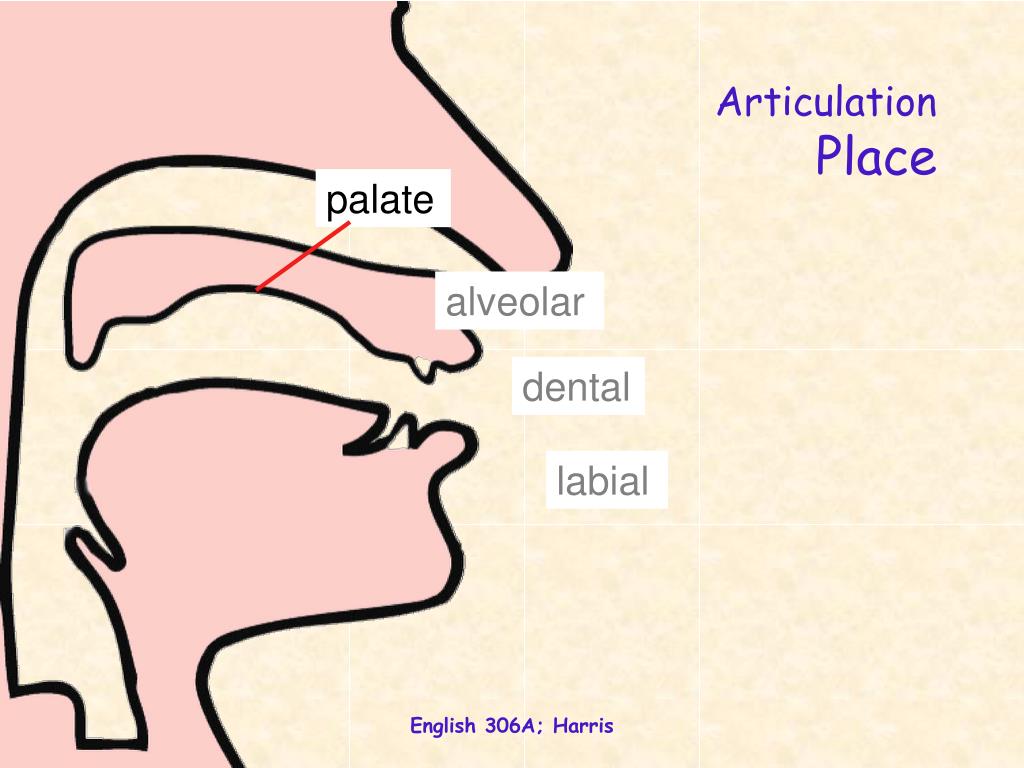

Articulation place11

ArticulationPlace

palate

alveolar

dental

labial

English 306A; Harris


Articulation place12

ArticulationPlace

palatal

alveolar

[j]

dental

labial

English 306A; Harris


Articulation place13

ArticulationPlace

palatal

velum

alveolar

dental

labial

English 306A; Harris

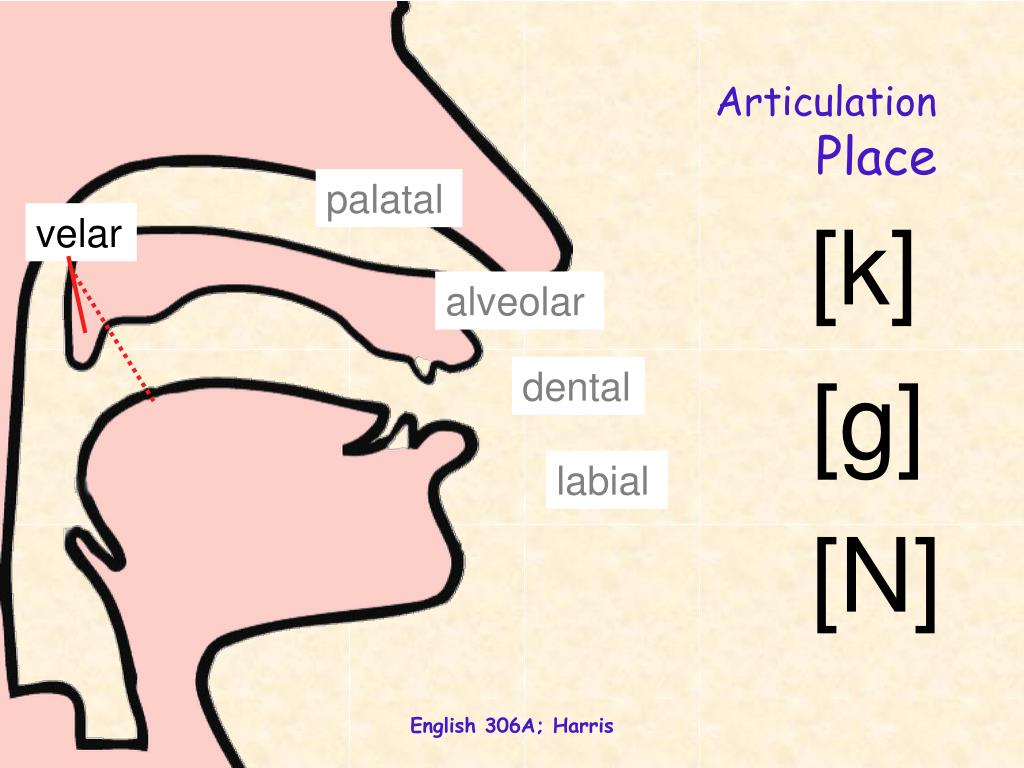

Articulation place14

ArticulationPlace

palatal

[k]

velar

alveolar

[g]

dental

labial

[N]

English 306A; Harris


Articulation nasals

Not a ‘place’ of articulation for nasals; more like ‘anatomical correlate of manner of articulation’.

ArticulationNasals

palatal

[m]

velar

uvula

alveolar

[n]

dental

labial

[N]

English 306A; Harris


Articulation nasal places

ArticulationNasal Places

palatal

[m]

velar

uvula

alveolar

[n]

dental

labial

[N]

English 306A; Harris


Articulation place15

ArticulationPlace

palatal

velar

uvula

alveolar

dental

pharynx

labial

English 306A; Harris


Articulation place16

ArticulationPlace

palatal

velar

uvula

alveolar

dental

pharynx

labial

glottis

English 306A; Harris


Articulation place17

oh-oh

[o/o]

ArticulationPlace

palatal

[h]

velar

uvula

alveolar

dental

[/]

pharynx

labial

glottal

English 306A; Harris


Pink s glottal stops

Pink’s glottal stops

English 306A; Harris


Pink s glottal stops1

Pink’s glottal stops

English 306A; Harris


Articulation place18

ArticulationPlace

palatal

velar

uvula

alveolar

dental

pharynx

labial

glottis

English 306A; Harris


Articulation vowels

ArticulationVowels

English 306A; Harris


Vowels resonator

VowelsResonator

English 306A; Harris


Articulation vowels1

ArticulationVowels

Height

English 306A; Harris


Articulation vowels2

ArticulationVowels

Height

Frontness

English 306A; Harris


Articulation vowels3

ArticulationVowels

Height

Frontness

English 306A; Harris


Articulation vowels4

ArticulationVowels

Central

Back

Front

High

Mid

Low

English 306A; Harris


Articulation vowels5

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels6

ArticulationVowels

Central

Back

Front

i

High

u

beet

I

U

e

o

´

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels7

ArticulationVowels

Central

Back

Front

i

High

u

I

U

bit

e

o

´

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels8

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

bait

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels9

ArticulationVowels

Central

Back

Front

High

u

i

I

U

o

e

´

E

Mid

bet

A

Q

Low

English 306A; Harris


Articulation vowels10

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

E

Mid

A

Q

bat

Low

English 306A; Harris


Articulation vowels11

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

but

E

Mid

butt

A

Q

Low

English 306A; Harris


Articulation vowels12

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

E

Mid

A

Q

bought

Low

English 306A; Harris


Articulation vowels13

ArticulationVowels

Central

Back

Front

i

High

u

boot

I

U

e

o

´

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels14

ArticulationVowels

Central

Back

Front

i

High

u

I

U

put

e

o

´

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels15

ArticulationVowels

Central

Back

Front

i

High

u

I

U

e

o

´

boat

E

Mid

A

Q

Low

English 306A; Harris


Articulation vowels diphthongs

Articulation—vowelsDiphthongs

boy

[boi]

bike

[bAik]

cow

[kAu]

English 306A; Harris


Articulation vowels diphthongs1

Articulation—vowelsDiphthongs

English 306A; Harris


Articulation diphthongs travelling vowels

ArticulationDiphthongs—Travelling vowels

i

u

boy

[boi]

o

bike

cow

[bAik]

[kAu]

A

English 306A; Harris


F ne riks1

[f´‚nE˘RIks]

  • Source-filter model

  • Phonetic transcription

  • Articulatory phonetics

    Manner & Place

    Consonants

    obstruents

    sonorants

    Vowels

    monophthongs (regular old vowels)

    diphthongs

English 306A; Harris
