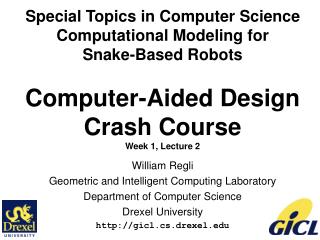

Special Topics in Computer Science Computational Modeling for Snake-Based Robots Computer-Aided Design Crash Course Week 1, Lecture 2. William Regli Geometric and Intelligent Computing Laboratory Department of Computer Science Drexel University http://gicl.cs.drexel.edu.

sailor
Download Presentation

William Regli Geometric and Intelligent Computing Laboratory Department of Computer Science

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Special Topics in Computer ScienceComputational Modeling for Snake-Based RobotsComputer-Aided Design Crash CourseWeek 1, Lecture 2 William Regli Geometric and Intelligent Computing Laboratory Department of Computer Science Drexel University http://gicl.cs.drexel.edu

  2. Building Multidisciplinary Model • Class Goal: create multidisciplinary engineering models • Challenge: Learn enough about each discipline to create integrated models! • Today: The role of 3D models and CAD

  3. Computer Aided Design: A Brief History • In The Beginning…1963Ivan Sutherland’sSketchpad • Modified oscilloscope for drawing • The original CAD system Courtesy Marc Levoy @ Stanford U

  4. History of the 3D graphics industry • 1960s: • Line drawings, hidden lines, parametric surfaces (B-splines…) • Automated drafting & machining for car, airplane, and ships manufacturers • 1970’s: • Mainframes, Vector tubes (HP…) • Software: Solids, (CSG), Ray Tracing, Z-buffer for hidden lines • 1980s: • Graphics workstations ($50K-$1M): Frame buffers, rasterizers , GL, Phigs • VR: CAVEs and head-mounted displays • CAD/CAM & GIS: CATIA, SDRC, PTC • Sun, HP, IBM, SGI, E&S, DEC • 1990s: • PCs ($2K): Graphics boards, OpenGL, Java3D • CAD+Videogames+Animations: AutoCAD, SolidWorks…, Alias-Wavefront • Intel, many board vendors • 2000s: • Laptops, PDAs, Cell Phones: Parallel graphic chips • Everything will be graphics, 3D, animated, interactive • Nvidia, Sony, Nokia

  5. Buzzword Deconfliction • Computer Aided Geometric Design (CAGD): Curves/surfaces • Solid Modeling: Representations and Algorithms for solids • Computational Geometry: Provably efficient algorithms • Computer-Aided Design (CAD): Automation of Shape Design • Computer-Aided Manufacturing (CAM): NC Machining • Finite Element Meshing (FEM): Construction and simulation • Animation: Capture, Design, Simulation of shape behavior • Visualization: Graphical interpretations of (large) nD datasets • Rendering: Making (realistic) pictures of 3D geometric shapes • Image-Based Rendering (IBR): Mix images and geometry • Computer Vision: Reconstruction of 3D models from images • Reverse Engineering: Fitting surfaces to scanned 3D points • Virtual Reality (VR): Immersion in interactive environments • Augmented Reality (AR): Track and mark-up what you see

  6. What is CAD? • Primary authoring tool for the geometry and topology data associated with a product (plan, train, auto, building, etc) • CAD software is central to Product Lifecycle Management and is often integrated with manufacturing, analysis, simulation and other engineering and business functions

  7. Different Aspects of CAD

  8. Raster:Pixels X11 bitmap, XBM X11 pixmap, XPM GIF TIFF PNG JPG Lossy, jaggies when transforming, good for photos. Vector:Drawing instructions Postscript CGM Fig DWG Non-lossy, smooth when scaling, good for line art and diagrams. 2D Graphics

  9. Approximate Facet / Mesh Just surfaces Voxel Volume info Exact Wireframe Parametric Surface Solid Model CSG BRep Implicit Solid Modeling Representing 3D Objects

  10. Exact Precise model of object topology Mathematically represent all geometry Approximate A discretization of the 3D object Use simple primitives to model topology and geometry Representing 3D Objects

  11. Exact Complex data structures Expensive algorithms Wide variety of formats, each with subtle nuances Hard to acquire data Translation required for rendering Approximate Lossy Data structure sizes can get HUGE, if you want good fidelity Easy to break (i.e. cracks can appear) Not good for certain applications Lots of interpolation and guess work Negatives when Representing 3D Objects

  12. Exact Precision Simulation, modeling, etc Lots of modeling environments Physical properties Many applications (tool path generation, motion, etc.) Compact Approximate Easy to implement Easy to acquire 3D scanner, CT Easy to render Direct mapping to the graphics pipeline Lots of algorithms Positives when Representing 3D Objects

  13. Two Major Types to Care About(for this class) • Mesh-based representations • Solid Models • As generated from CAD or modeling systems

  14. 3D Mesh File Formats Some common formats • STL • SMF • OpenInventor • VRML

  15. Minimal • Vertex + Face • No colors, normals, or texture • Primarily used to demonstrate geometry algorithms

  16. Full-Featured • Colors / Transparency • Vertex-Face Normals(optional, can be computed) • Scene Graph • Lights • Textures • Views and Navigation

  17. Subdivision Surfaces • Coarse Mesh & Subdivision Rule • Define smooth surface as limit of sequence of algorithmic refinements • Modify topology & interpolate neighboring vertices • Used in graphics, animation and digital arts applications

  18. Simple Mesh Format (SMF) • Michael Garland http://graphics.cs.uiuc.edu/~garland/ • Triangle data • Vertex indices begin at 1

  19. Stereolithography (STL) • Triangle data +Face Normal • The de-facto standard for rapid prototyping

  20. How STL Works

  21. Open Inventor • Developed by SGI • Predecessor to VRML • Scene Graph

  22. Virtual Reality Modeling Language (VRML) • SGML Based • Scene-Graph • Full Featured

  23. Issues with 3D “mesh” formats • Easy to acquire • Easy to render • Harder to model with • Error prone • split faces, holes, gaps, etc

  24. Scanned Data From Exact Representation 360° Scan Single Scan

  25. How to scan (1)

  26. How to scan (2)

  27. Issues with Scanning • Error and noise • Time consuming • Lots of human editing required to create clean models • Models can be very large • Much larger than original BRep

  28. Solid Models

  29. 3D solid model representations • Implicit models • Super/quadrics • Blobbies • Swept objects • Boundary representations • Spatial enumerations • Distance fields • Quadtrees/octrees • Stochastic models

  30. 3D solid model representations • Implicit models • Super/quadrics • Blobbies • Swept objects • Boundary representations • Spatial enumerations • Distance fields • Quadtrees/octrees • Stochastic models

  31. Boundary Representation Solid Modeling • The de facto standard for CAD since ~1987 • BReps integrated into CAGD surfaces + analytic surfaces + boolean modeling • Models are defined by their boundaries • Topological and geometric integrity constraints are enforced for the boundaries • Faces meet at shared edges, vertices are shared, etc.

  32. Solids and Solid Modeling • Solid modeling introduces a mathematical theory of solid shape • Domain of objects • Set of operations on the domain of objects • Representation that is • Unambiguous • Accurate • Unique • Compact • Efficient

  33. Solid Objects and Operations • Solids are point sets • Boundary and interior • Point sets can be operated on with boolean algebra (union, intersect, etc) Foley/VanDam, 1990/1994

  34. Solid Object Definitions • Boundary points • Points where distance to the object and the object’s complement is zero • Interior points • All the other points in the object • Closure • Union of interior points and boundary points

  35. Let’s Start Simple:Polyhedral Solid Modeling • Definition • Solid bounded by polygons whose edges are each a member of an even number of polygons • A 2-manifold: edges members of 2 polygons

  36. BRep Data Structure • Vertex structure • X,Y,Z point • Pointers to n coincident edges • Edge structure • 2 pointers to end-point vertices • 2 pointers to adjacent faces • Pointer to next edge • Pointer to previous edge • Face structure • Pointers to m edges

  37. BRep Data Structures • Winged-Edge Data Structure (Weiler) • Vertex • n edges • Edge • 2 vertices • 2 faces • Face • m edges Pics/Math courtesy of Dave Mount @ UMD-CP

  38. State of the Art: BRep Solid Modeling • … but much more than polyhedra • Two main (commercial) alternatives • All NURBS, all the time • Pro/E, SDRC, … • Analytic surfaces + parametric surfaces + NURBS + …. all stitched together at edges • Parasolid, ACIS, …

  39. Issues in Boundary Representation Solid Modeling • Very complex data structures • NURBS-based winged-edges, etc • Complex algorithms • manipulation, booleans, collision detection • Robustness • Integrity • Translation • Features • Constraints and Parametrics

  40. Issues with 3D Set Operations • Ops on 3D objects can create “non-3D objects” or objects with non-uniform dimensions • Objects need to be “Regularized” • Take the closure of the interior Input set Closure Interior Regularized Foley/VanDam, 1990/1994

  41. Regularized Boolean Operations • 3D Example • Two solids A and B • Intersection leaves a “dangling wall” • A 2D portion hanging off a 3D object • Closure of interior gives a uniform 3D result Pics/Math courtesy of Dave Mount @ UMD-CP

  42. Boolean Operations • Other Examples: • (c) ordinary intersection • (d) regularized intersection • AB - objects on the same side • CD objects on different sides Foley/VanDam, 1990/1994

  43. Boolean Operations Foley/VanDam, 1990/1994

  44. Constructive Solid Geometry (CSG) • A tree structure combining primitives via regularized boolean operations • Primitives can be solids or half spaces

  45. A Sequence of Boolean Operations • Boolean operations • Rigid transformations Pics/Math courtesy of Dave Mount @ UMD-CP

  46. The Induced CSG Tree Pics/Math courtesy of Dave Mount @ UMD-CP

  47. The Induced CSG Tree • Can also be represented as a directed acyclic graph (DAG) Pics/Math courtesy of Dave Mount @ UMD-CP

  48. Issues with Constructive Solid Geometry • Non-uniqueness • Choice of primitives • How to handle more complex modeling? • Sculpted surfaces? Deformable objects?

  49. Issues with Constructive Solid Geometry • Non-Uniqueness • There is more than one way to model the same artifact • Hard to tell if A and B are identical

  50. Issues with CSG • Minor changes in primitive objects greatly affect outcomes • Shift up top solid face Foley/VanDam, 1990/1994
