  1. EMMA Magnet Modelling Ben Shepherd ASTeC STFC Daresbury Laboratory EMMA Design Review 26-28 February 2007

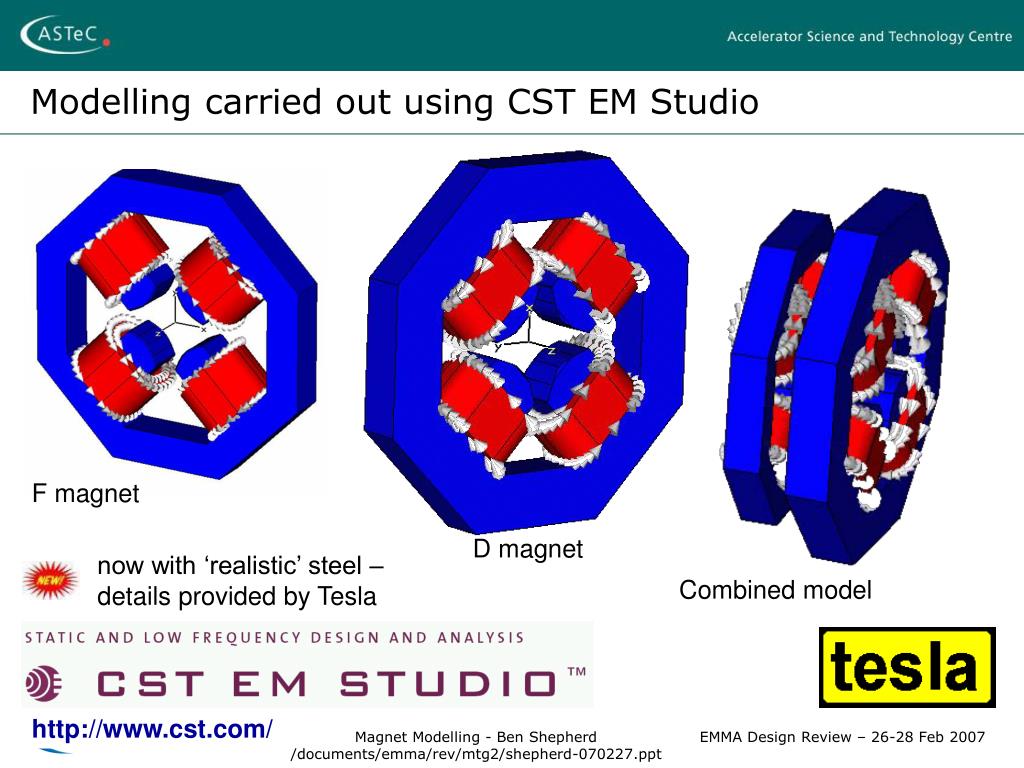

  2. Modelling carried out using CST EM Studio F magnet D magnet now with ‘realistic’ steel –details provided by Tesla Combined model http://www.cst.com/ Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

  3. 3.0 Reference orbit 2.9 Centre of F magnet Centre of D magnet F magnet 2.8 D magnet 2.7 2.6 2.5 2.4 2.3 -0.300 -0.200 -0.100 0.000 0.100 0.200 0.300 EMMA Cell Layout Magnets are now parallel within a cell (JSB, 19 Jan) Outside of ring Ld Lq F D Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

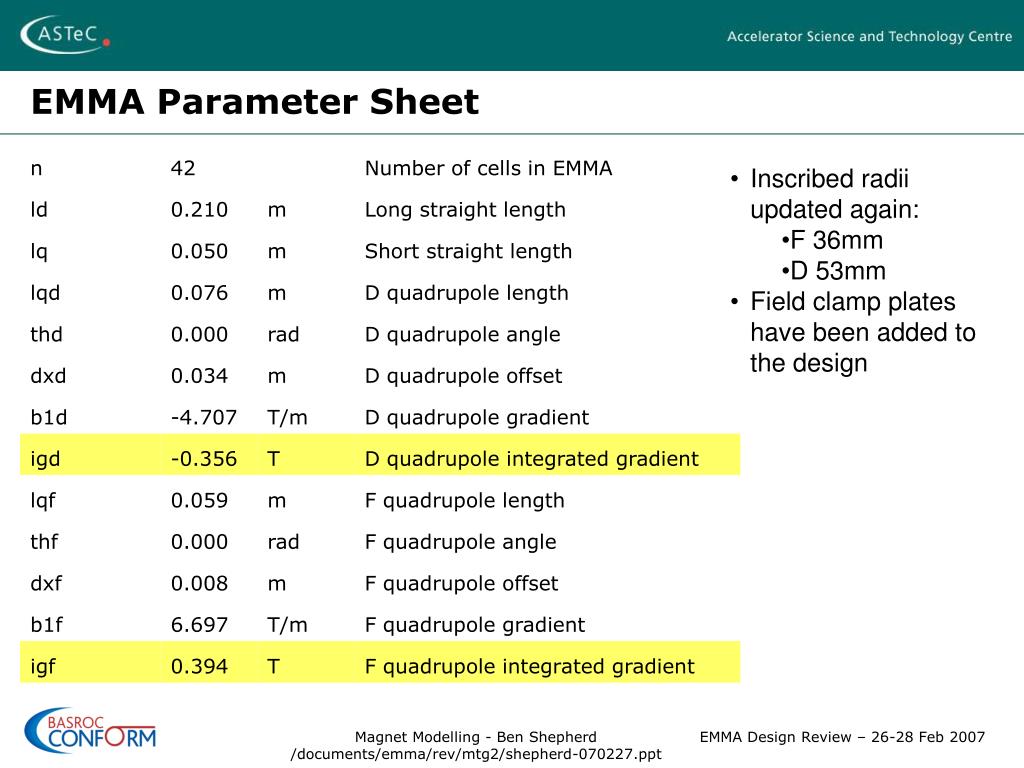

  4. EMMA Parameter Sheet • Inscribed radii updated again: • F 36mm • D 53mm • Field clamp plates have been added to the design Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

  5. Field Clamps • Tracking studies suggest that field clamps are needed • Reduce the amount of field leaking into the long straight • Symmetric or asymmetric? • Occupy space and increase power demand Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

  6. Field Clamps • Integral gradient reduced by 11% (F); 18% (D) • Little effect on good gradient region • No saturation in the clamp plate Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

  7. Field Clamps Field at clamp reduced by ~80% in each case F magnet D magnet Difference between asymmetric and symmetric windows is negligible Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

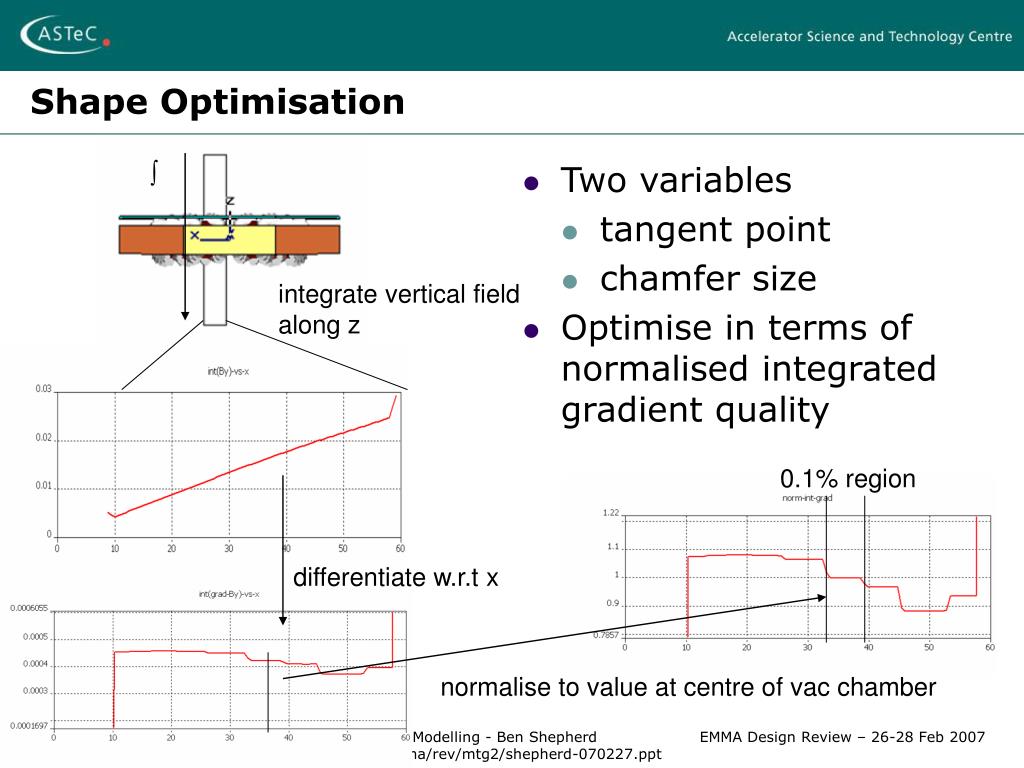

  8. Shape Optimisation  • Two variables • tangent point • chamfer size • Optimise in terms of normalised integrated gradient quality integrate vertical field along z 0.1% region differentiate w.r.t x normalise to value at centre of vac chamber Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

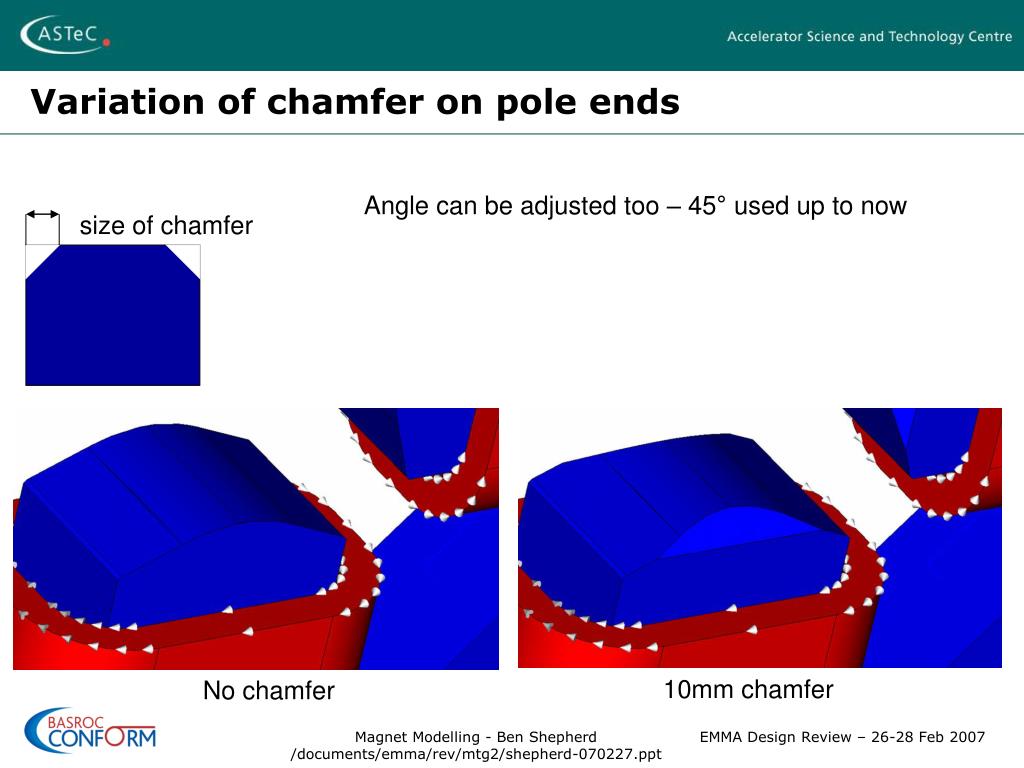

  9. size of chamfer 10mm chamfer No chamfer Variation of chamfer on pole ends Angle can be adjusted too – 45° used up to now Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

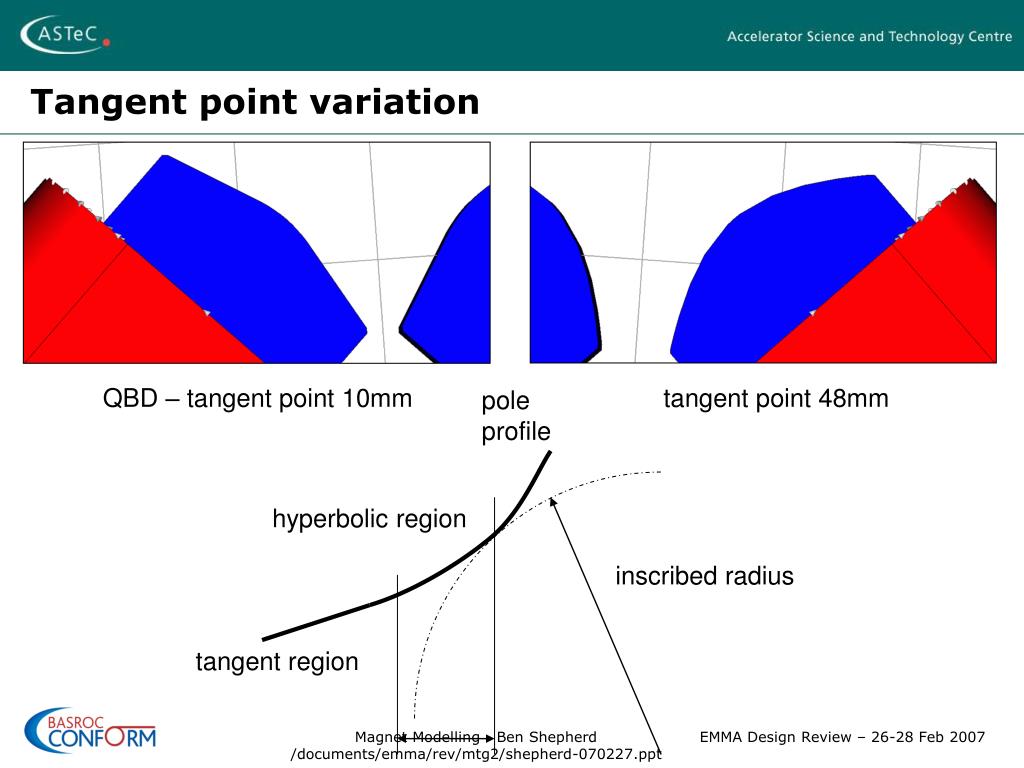

  10. pole profile hyperbolic region tangent region Tangent point variation QBD – tangent point 10mm tangent point 48mm inscribed radius Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

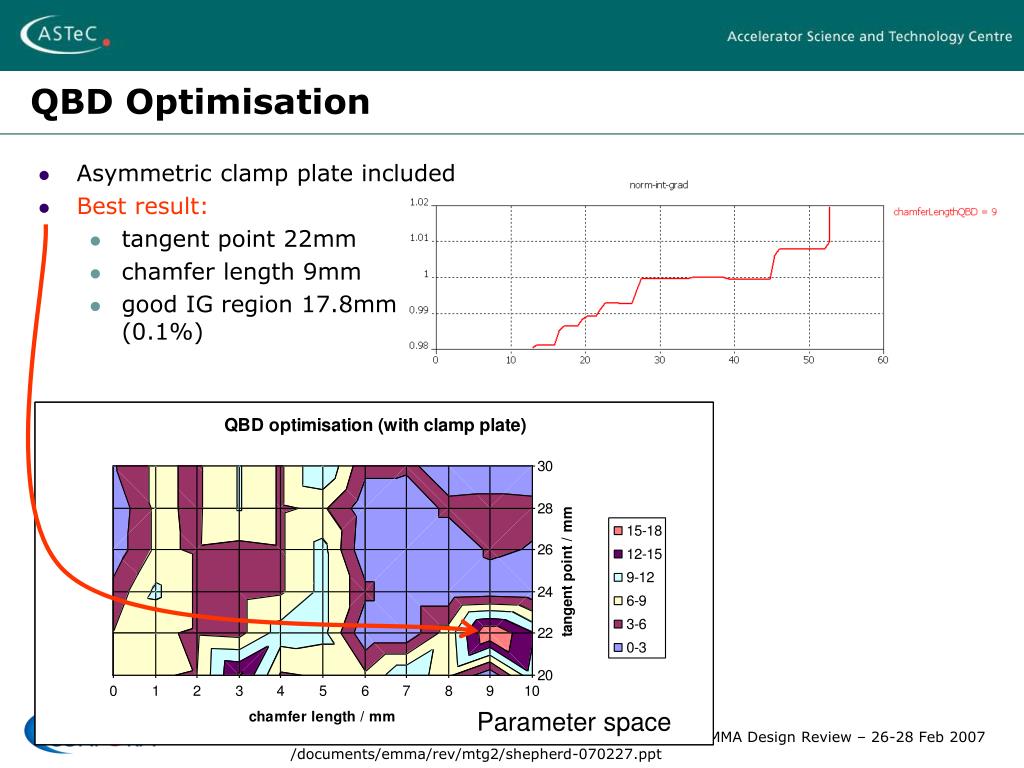

  11. QBD Optimisation • Asymmetric clamp plate included • Best result: • tangent point 22mm • chamfer length 9mm • good IG region 17.8mm(0.1%) Parameter space Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt

  12. Further Work • combined model: finalise currents • complete yoke shape optimisation – both magnets • work with TY checking magnet code results • interface with tracking codes:field map  tracking  change model  field map etc. • more detailed injection/extraction modelling • get prototypes ordered! Magnet Modelling - Ben Shepherd /documents/emma/rev/mtg2/shepherd-070227.ppt
