State diagrams

State Diagrams

What state are we in?


Introduction

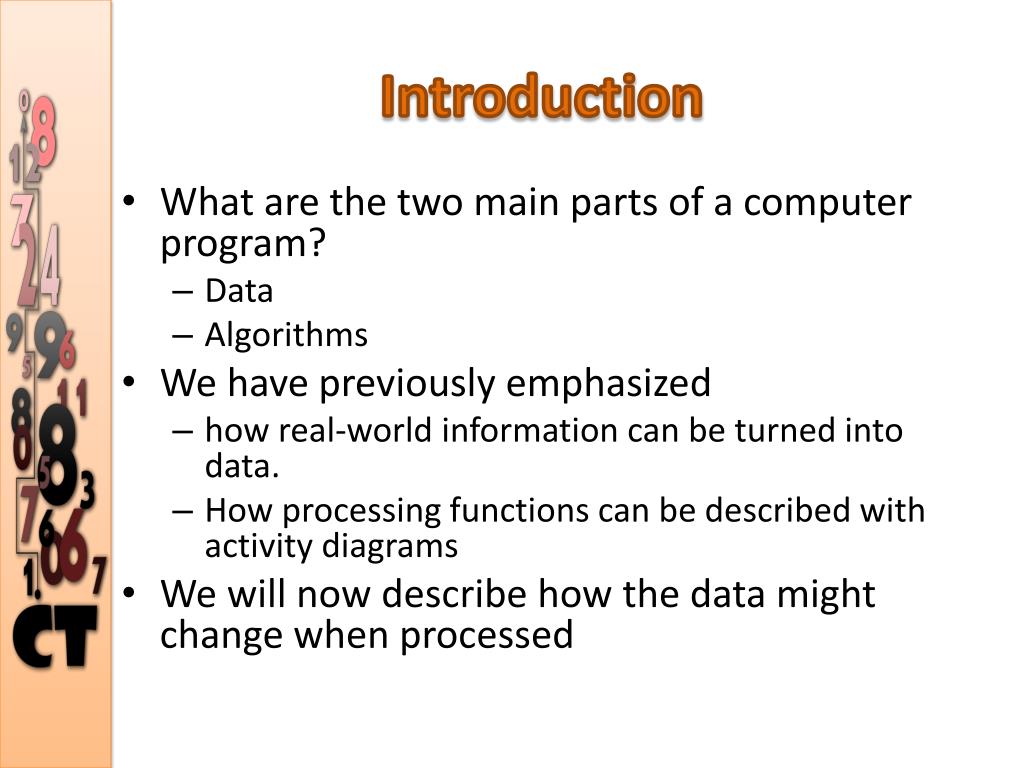

Introduction

  • What are the two main parts of a computer program?

    • Data

    • Algorithms

  • We have previously emphasized

    • how real-world information can be turned into data.

    • How processing functions can be described with activity diagrams

  • We will now describe how the data might change when processed


Object oriented programming

Object Oriented Programming

  • Object-Oriented programming seeks to solve a problem using data models taken from the problem domain.

  • Problem domain: the concepts and elements of the problem that is being solved.

    • An Object is simply a "thing" in the problem domain

  • When designing software, a programmer will listen to the problem description and then identify the objects in the domain.


Object oriented programming1

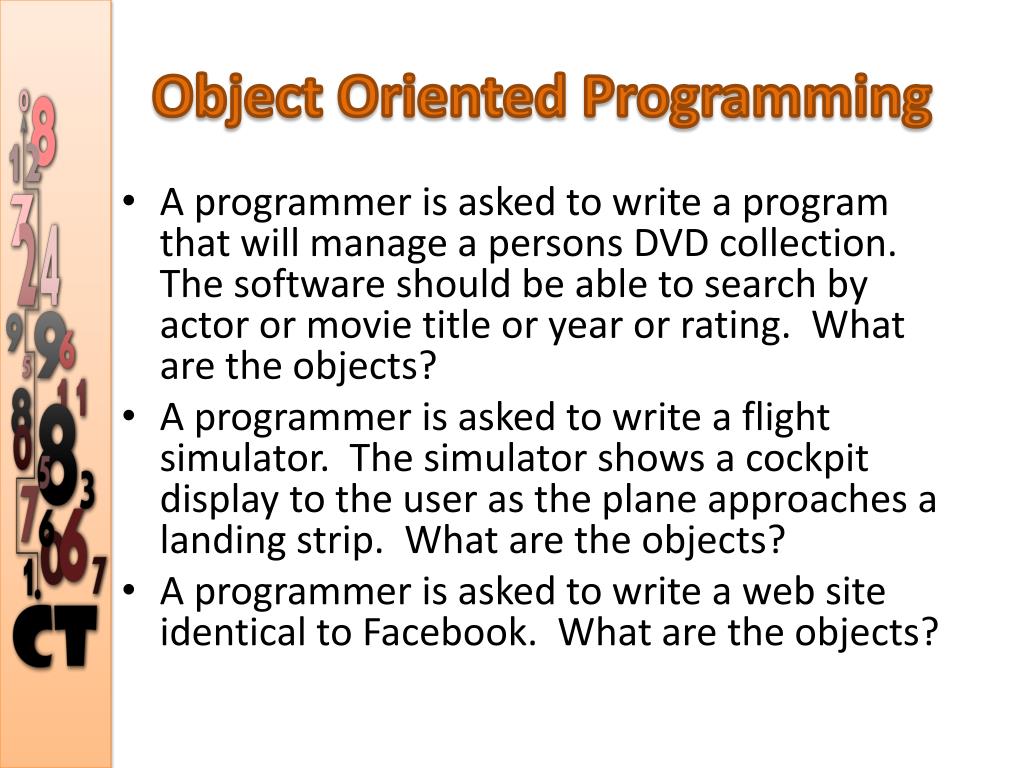

Object Oriented Programming

A programmer is asked to write a program that will manage a persons DVD collection. The software should be able to search by actor or movie title or year or rating. What are the objects?

A programmer is asked to write a flight simulator. The simulator shows a cockpit display to the user as the plane approaches a landing strip. What are the objects?

A programmer is asked to write a web site identical to Facebook. What are the objects?


More about objects

More about Objects

Example: Radio

What is the state?

What is the behavior?

  • An Object is a model of some thing.

    • An object has state (attribute data)

    • An object has behavior (actions it can take)


More about objects1

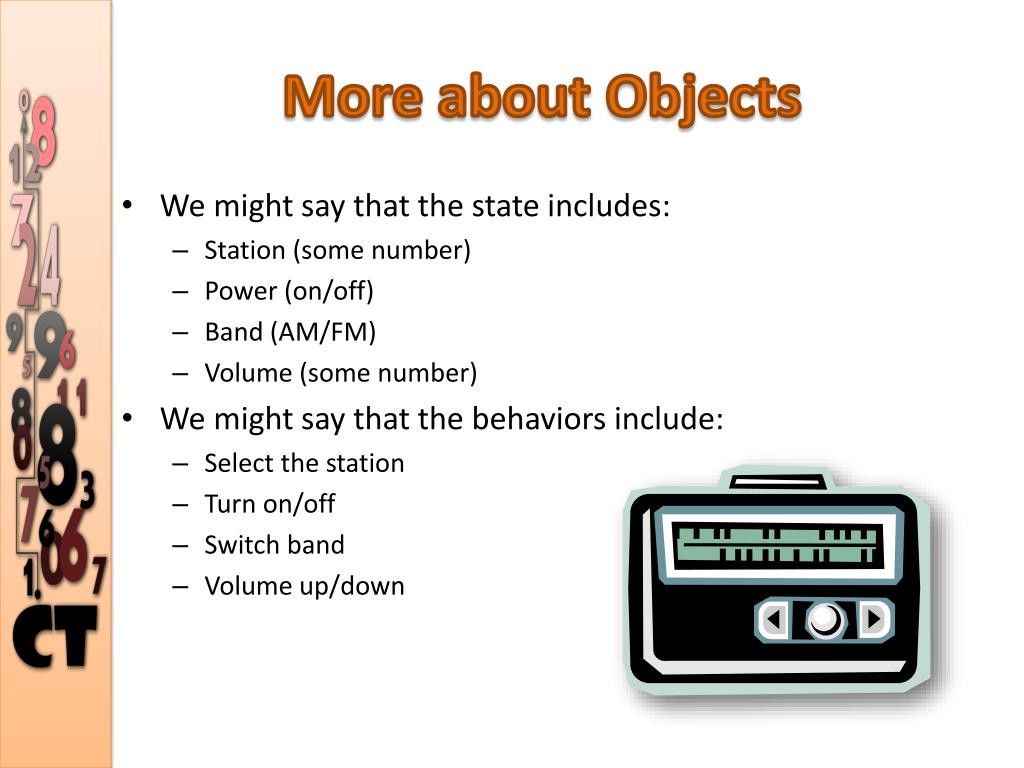

More about Objects

  • We might say that the state includes:

    • Station (some number)

    • Power (on/off)

    • Band (AM/FM)

    • Volume (some number)

  • We might say that the behaviors include:

    • Select the station

    • Turn on/off

    • Switch band

    • Volume up/down


Objects change over time

Objects Change Over Time

  • Consider a program that allows users to control a virtual radio. When the software first starts, what are the values of the attributes?

    • Station, Power, Band, Volume

  • The user then does the following with the program:

    • The user turns on the radio

    • The user selects channel 98.9

    • The user turns up the volume

  • What are the values of the attributes now?

    • Station, Power, Band, Volume

  • The point is, the values of the attributes change over time.


The state of an object

The State of an Object

  • The State of an Object is a snapshot of the attribute values at one moment in time.

  • Recall the radio example. The start state is something like:

    • {Station:89, Power:Off, Band:FM, Volume:0}

  • A series of state changes then follow:

    • {Station:89, Power:On, Band:FM, Volume:0}

    • {Station:98.9, Power:Off, Band:FM, Volume:0}

    • {Station:89, Power:Off, Band:FM, Volume:1}


State diagrams1

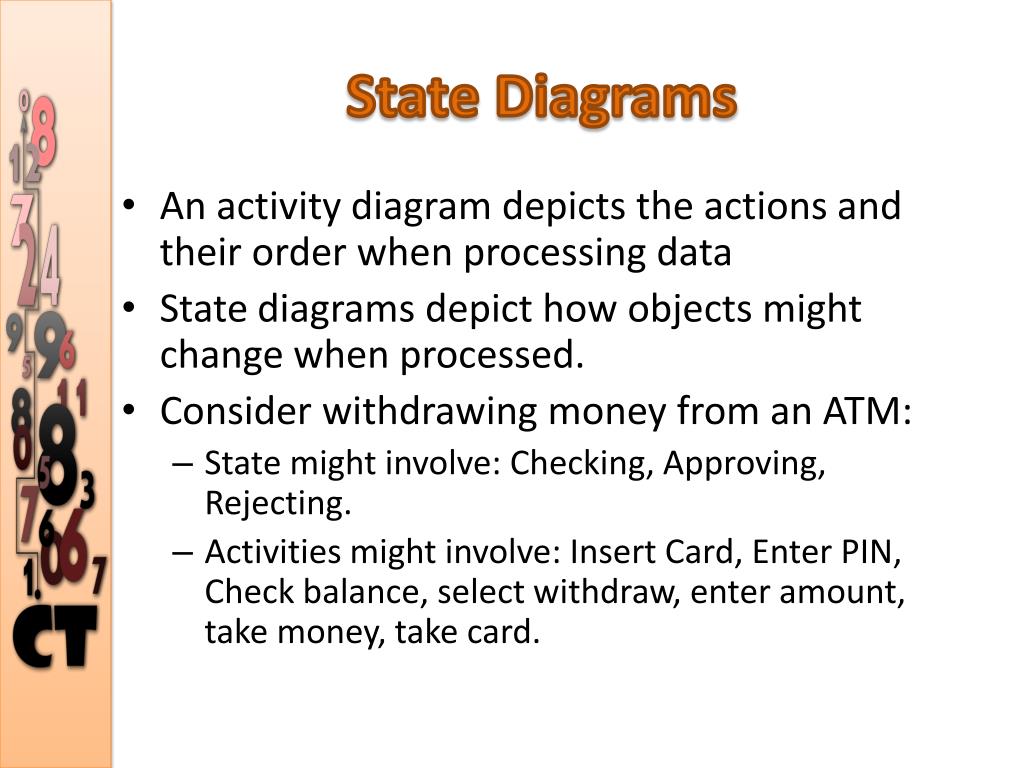

State Diagrams

  • An activity diagram depicts the actions and their order when processing data

  • State diagrams depict how objects might change when processed.

  • Consider withdrawing money from an ATM:

    • State might involve: Checking, Approving, Rejecting.

    • Activities might involve: Insert Card, Enter PIN, Check balance, select withdraw, enter amount, take money, take card.


Uml state diagrams

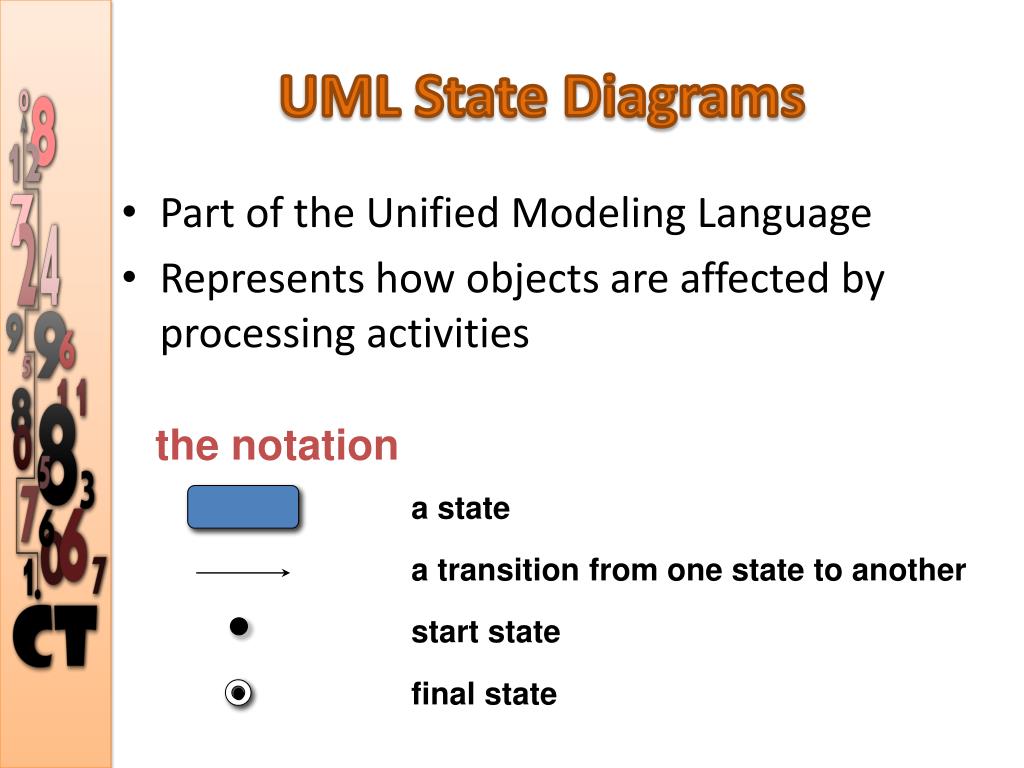

UML State Diagrams

the notation

a state

a transition from one state to another

start state

final state

Part of the Unified Modeling Language

Represents how objects are affected by processing activities


State diagrams

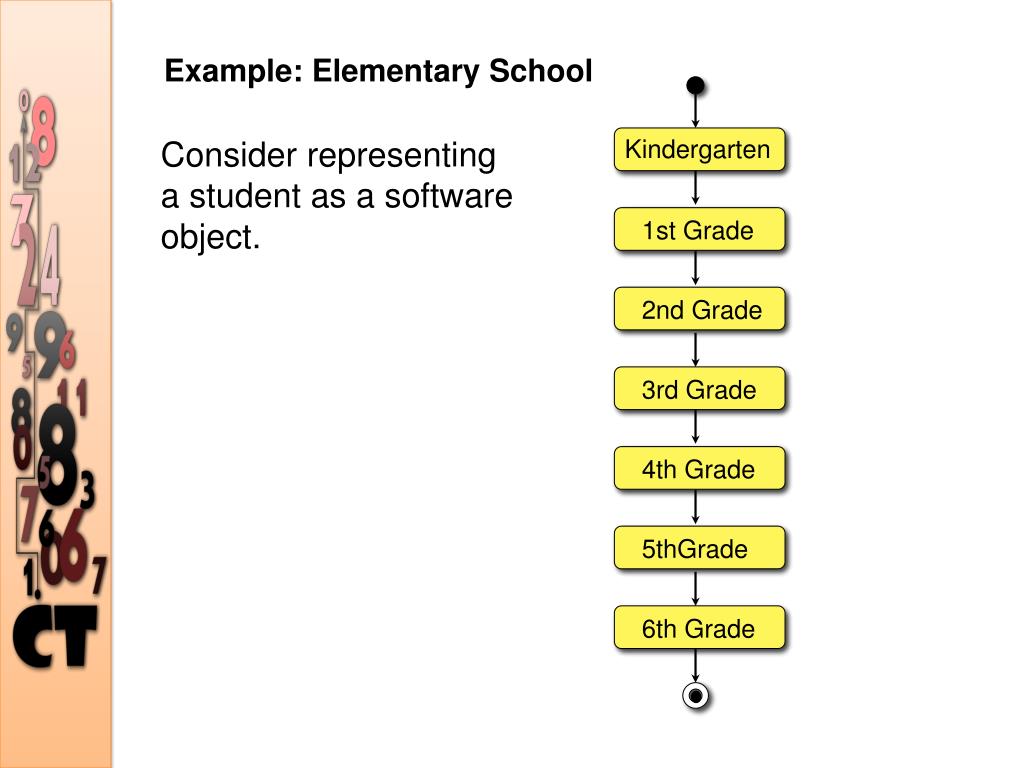

Kindergarten

1st Grade

2nd Grade

3rd Grade

4th Grade

5thGrade

6th Grade

Example: Elementary School

Consider representing a student as a software object.


What causes transitions

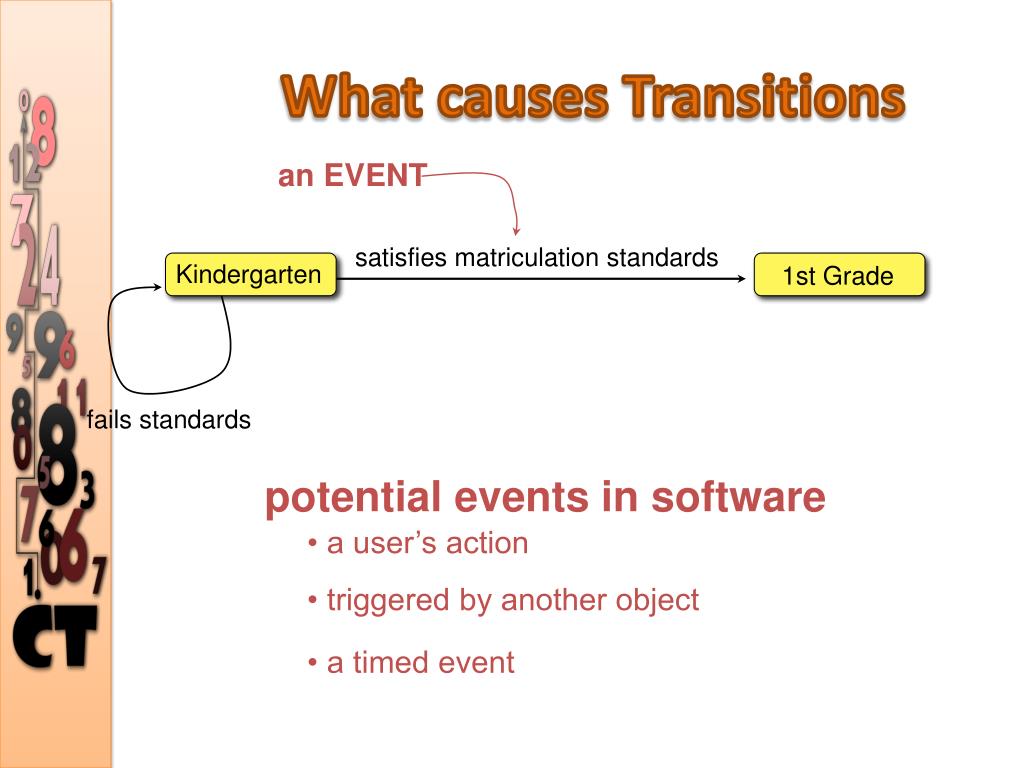

What causes Transitions

an EVENT

Kindergarten

1st Grade

fails standards

satisfies matriculation standards

potential events in software

• a user’s action

• triggered by another object

• a timed event


Traffic light

Traffic Light

  • What might the states of a traffic light be?

    • red / green / yellow / others?

  • What events cause a transition?

    • elapsed time

    • time of day

    • arrival of car

    • power outage


State diagrams

at 2 a.m.

after 10 sec.

RED

YELLOW

FLASHING

RED

GREEN

at 6 a.m.

east/west

car arrives

after 5 sec.

north/south car arrives

+ 2 sec. delay


More notation

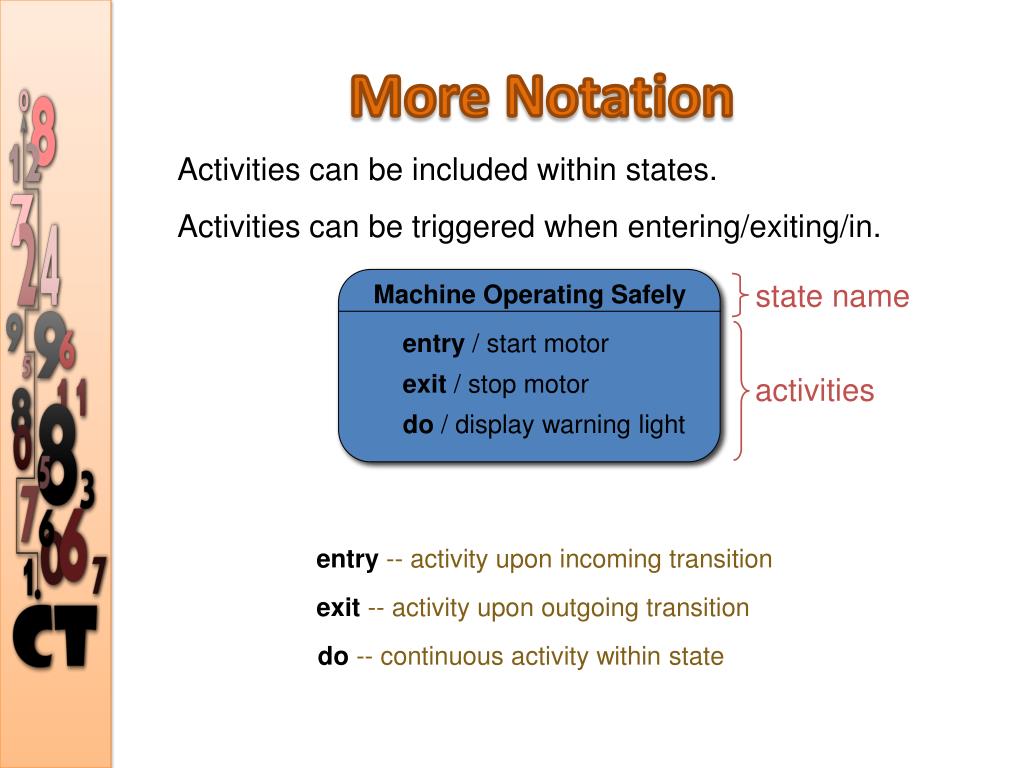

Machine Operating Safely

state name

entry / start motor

exit / stop motor

activities

do / display warning light

More Notation

Activities can be included within states.

Activities can be triggered when entering/exiting/in.

entry -- activity upon incoming transition

exit -- activity upon outgoing transition

do -- continuous activity within state


State diagrams

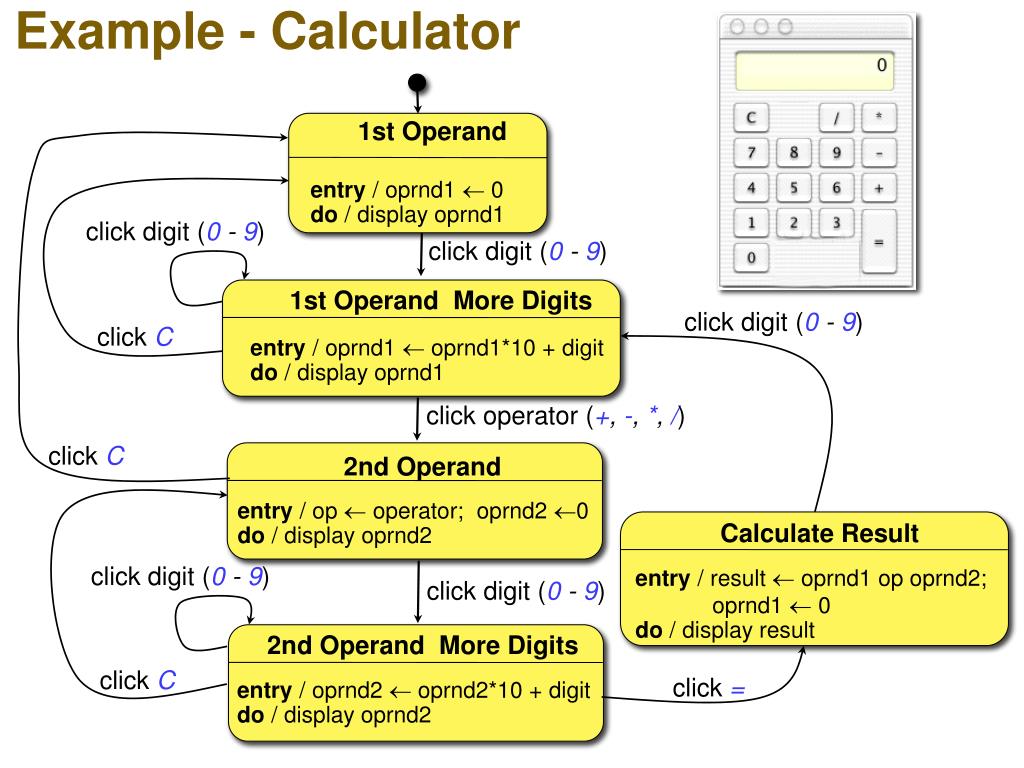

1st Operand

click digit (0 - 9)

entry / oprnd1  0

do / display oprnd1

click digit (0 - 9)

1st Operand More Digits

click digit (0 - 9)

click C

entry / oprnd1  oprnd1*10 + digit

do / display oprnd1

click operator (+, -, *, /)

click C

2nd Operand

entry / op  operator; oprnd2 0

do / display oprnd2

Calculate Result

click digit (0 - 9)

click digit (0 - 9)

entry / result  oprnd1 op oprnd2;

oprnd1  0

do / display result

2nd Operand More Digits

click C

click =

entry / oprnd2  oprnd2*10 + digit

do / display oprnd2

Example - Calculator


State diagrams

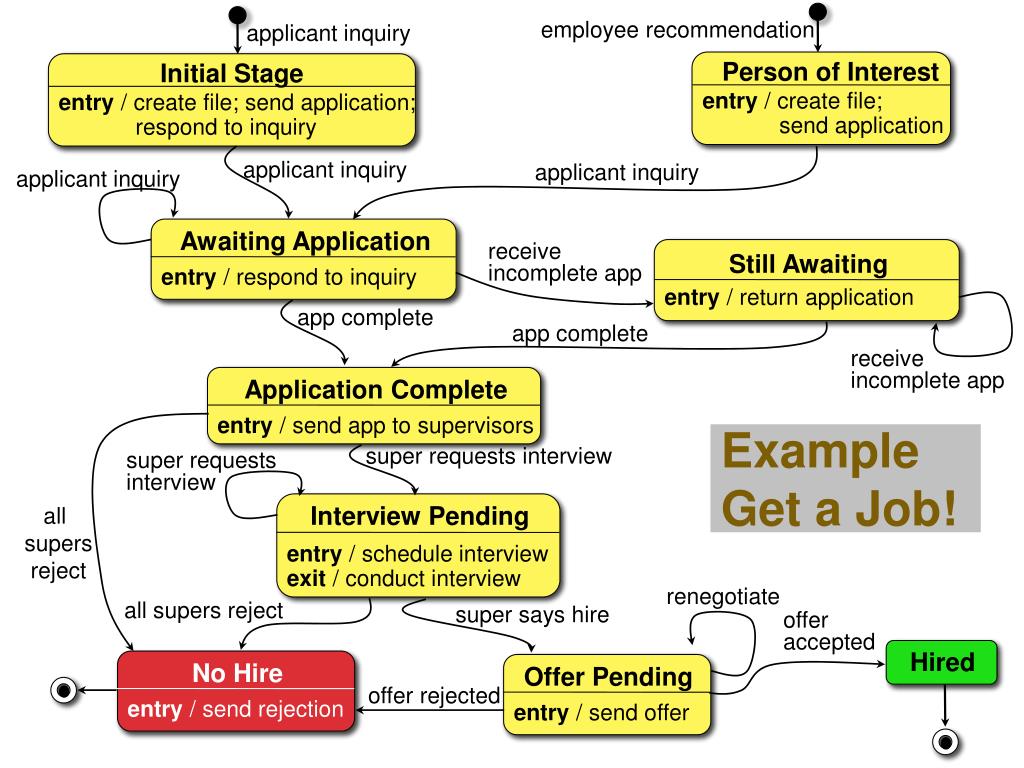

employee recommendation

applicant inquiry

applicant inquiry

applicant inquiry

Initial Stage

Person of Interest

applicant inquiry

entry / create file;

send application

entry / create file; send application;

respond to inquiry

Awaiting Application

Offer Pending

receive

incomplete app

Still Awaiting

entry / respond to inquiry

entry / send offer

app complete

entry / return application

app complete

receive

incomplete app

Application Complete

entry / send app to supervisors

super requests interview

super requests

interview

all

supers

reject

Interview Pending

entry / schedule interview

exit / conduct interview

renegotiate

all supers reject

super says hire

offer

accepted

No Hire

Hired

offer rejected

entry / send rejection

Example Get a Job!
