Project Schedule: (Milestone Dates) Schematic Design Approval (SB) October 11, 2004

Project Schedule: (Milestone Dates) Schematic Design Approval (SB) October 11, 2004 City Approval Documents Submission October 18, 2004 Urbandale Planning & Zoning Approval November 16, 2004 Urbandale City Council Approval November 23, 2004

sahkyo
Download Presentation

Project Schedule: (Milestone Dates) Schematic Design Approval (SB) October 11, 2004

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

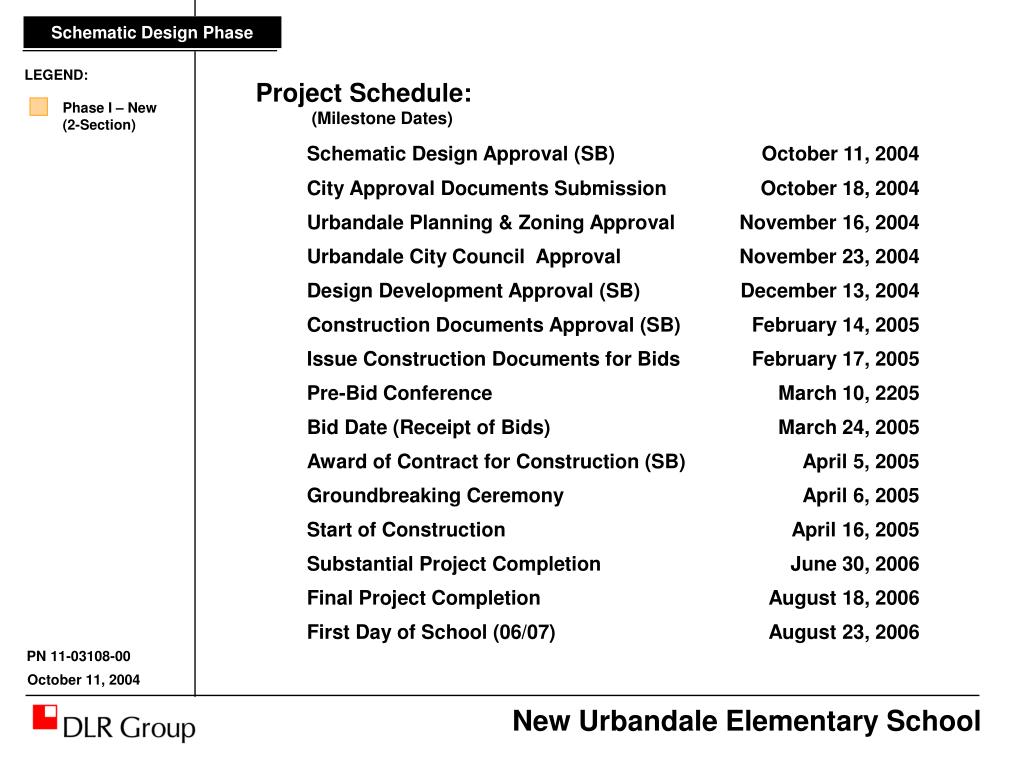

  1. Project Schedule: (Milestone Dates) Schematic Design Approval (SB) October 11, 2004 City Approval Documents Submission October 18, 2004 Urbandale Planning & Zoning Approval November 16, 2004 Urbandale City Council Approval November 23, 2004 Design Development Approval (SB) December 13, 2004 Construction Documents Approval (SB) February 14, 2005 Issue Construction Documents for Bids February 17, 2005 Pre-Bid Conference March 10, 2205 Bid Date (Receipt of Bids) March 24, 2005 Award of Contract for Construction (SB) April 5, 2005 Groundbreaking Ceremony April 6, 2005 Start of Construction April 16, 2005 Substantial Project Completion June 30, 2006 Final Project Completion August 18, 2006 First Day of School (06/07) August 23, 2006

  2. Project Highlights Enrollment Model: Students per Classroom: PK-K: 15 to 18 (3 to 4 sections) Gr. 1-5: 20 to 24 (2 to 3 sections) Student population: (60 to 72 students per grade level) 3/2 - sections per grade level: 245 (45/200) to 294 (54/240) 4/3 - sections per grade level: 360 (60/300) to 432 (72/360) Building Area: 75,305 Gross square Feet Major Space Allocations: 2 PK - K Classrooms 1,200 NSF 2 GR 1 Classrooms 1,200 NSF 8 GR 2-5 Classrooms 900 NSF 2 Educational Commons 960 NSF 1 Computer Lab 900 NSF 1 Special Program Classroom 900 NSF 2 Special Program Classrooms 720 NSF 4 Special Program Classrooms 660 NSF 1 Art Room 1,200 NSF 1 Music Room 1,200 NSF 1 Media Center 5,000 NSF 1 Gymnasium 7,100 NSF 1 Cafeteria/Multi-purpose 2,400 NSF

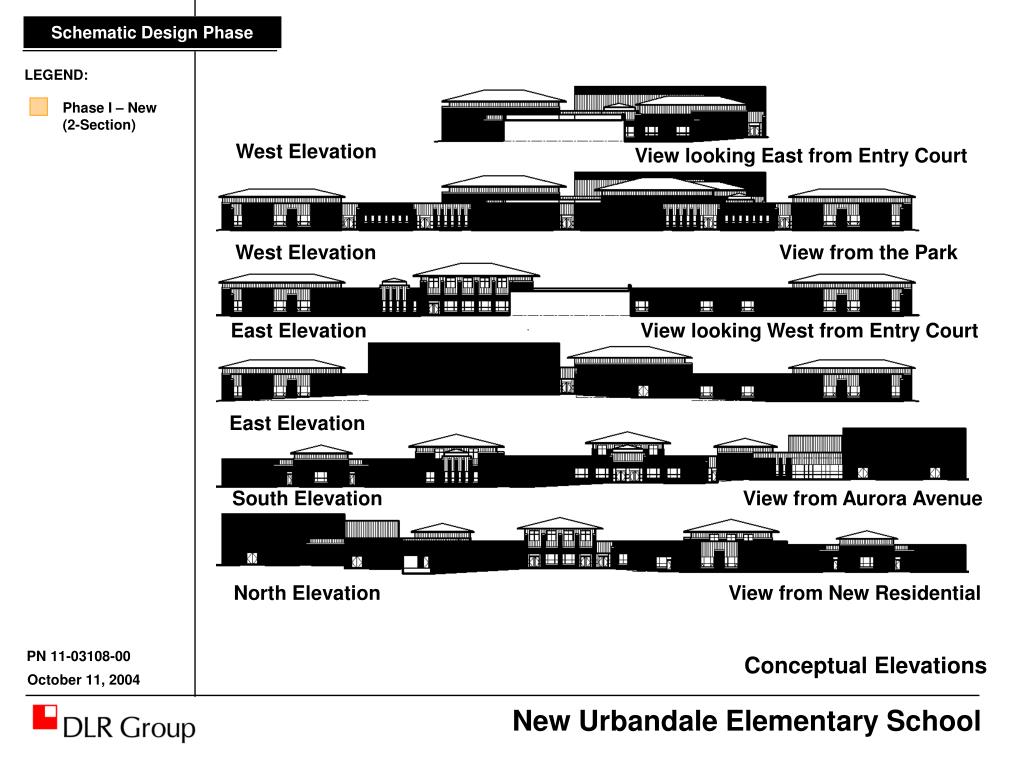

  3. West Elevation View looking East from Entry Court West Elevation View from the Park East Elevation View looking West from Entry Court East Elevation South Elevation View from Aurora Avenue North Elevation View from New Residential Conceptual Elevations

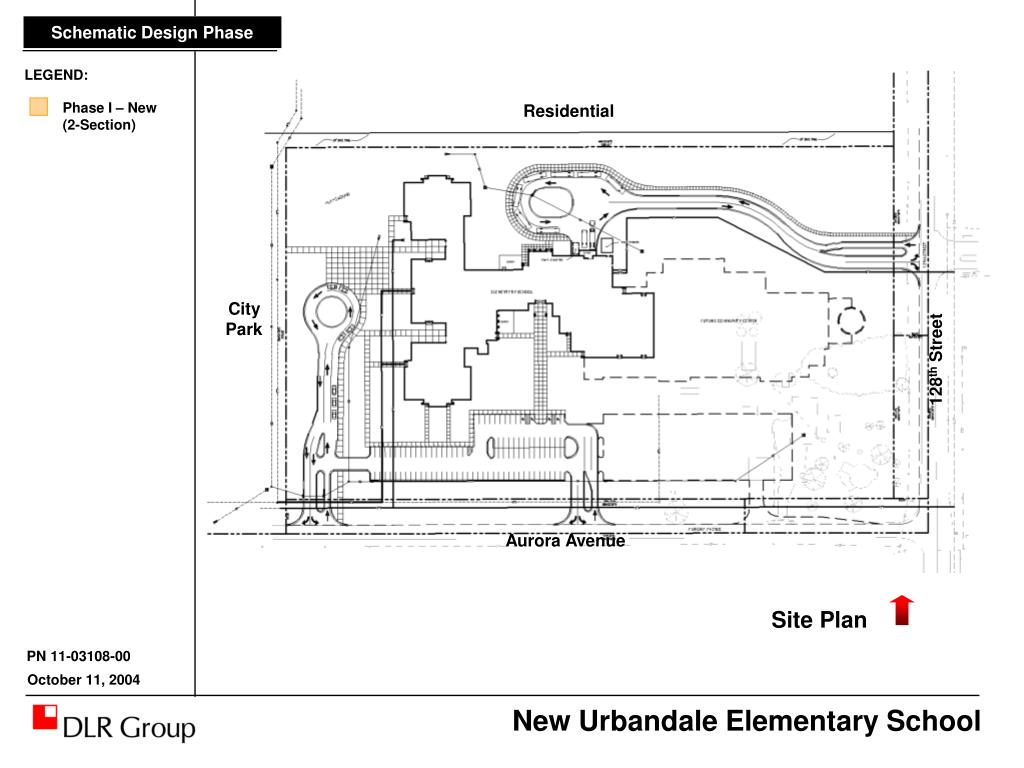

  4. Residential City Park 128th Street Aurora Avenue Site Plan

  5. N EC GR 4 GR 5 J C GR 4 GR 5 B G Art Art AV Audio/Visual Equipment B Boy’s Toilet Room Bio Biology BLR Boys’ Locker Room Br Break Room C Conference Clr Cooler (Walk-in) Cptr Computer Conf Conference Room Ct Coat Room D Data DW Dishwashing E Electrical EC Educational Commons ELL English Language Learners Ens Ensemble Fac Faculty Frz Freezer (Walk-in) G Girl’s Toilet Room GLR Girl’s Locker Room GO General Office HE Head End Room ITV Interactive Video J Janitor K Kitchen Kln Kiln LC Locker Commons M Men’s Toilet Room N Nurse/Health O Office P Practice PO Principal’s Office R Records Serv Servery SP Special Programs St Storage Stry Storytelling T Toilet TPC Teacher’s Planning Center WK Work Room Student Entry Student Entry Service Entry T D E T SP LC ELL SP T E O DW DF TPC K K Cafeteria Wk Clr Kit Kln C Boiler C SP Art Frz T T ST St Ct Br Ct St T T J O St Student Entry Ct T T Ct O AV O St Fac GO Cptr Wk M W Wk ITV R C GR 1 GR 1 N MediaCenter T T HE PO Gymnasium St T Mus O BLR Main Entry SP O GLR C P Ens St Stry SP LC SP D E T Student Entry Activity Entry T GR 2 GR 3 B G J C GR 2 GR 3 Ed Com Floor Plan

  6. Aerial View – Roof Plan

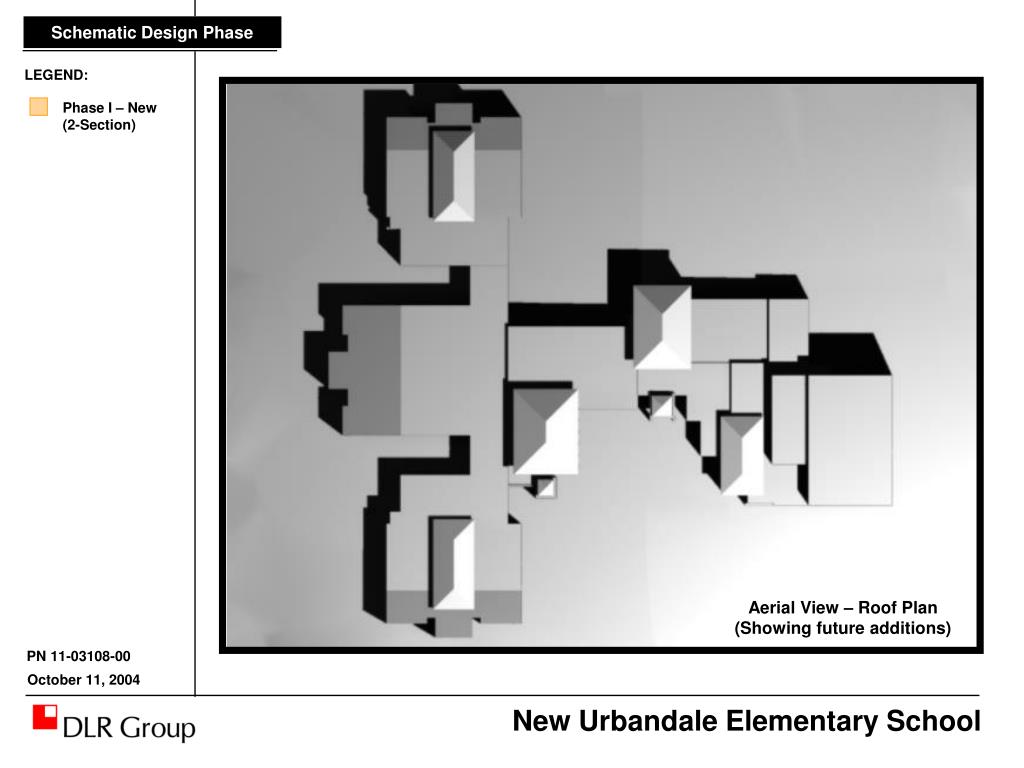

  7. Aerial View – Roof Plan (Showing future additions)

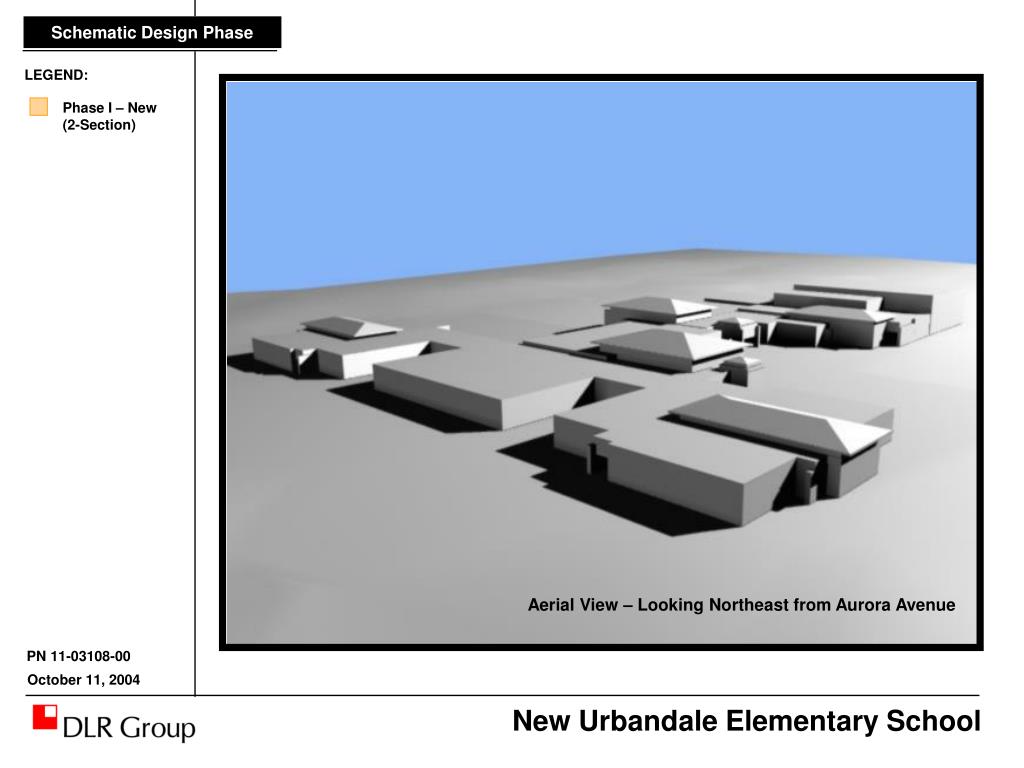

  8. Aerial View – Looking Northeast from Aurora Avenue

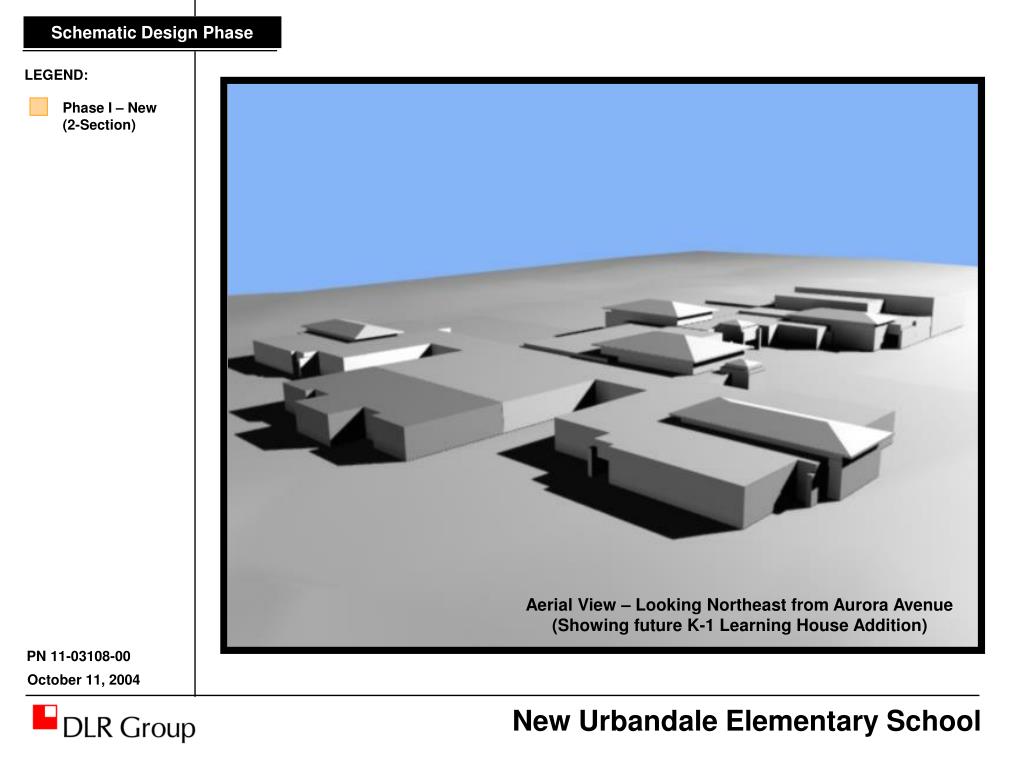

  9. Aerial View – Looking Northeast from Aurora Avenue (Showing future K-1 Learning House Addition)

  10. Aerial View – Looking Northeast from Aurora Avenue (Showing future K-1 & G2-3 Learning House Additions)

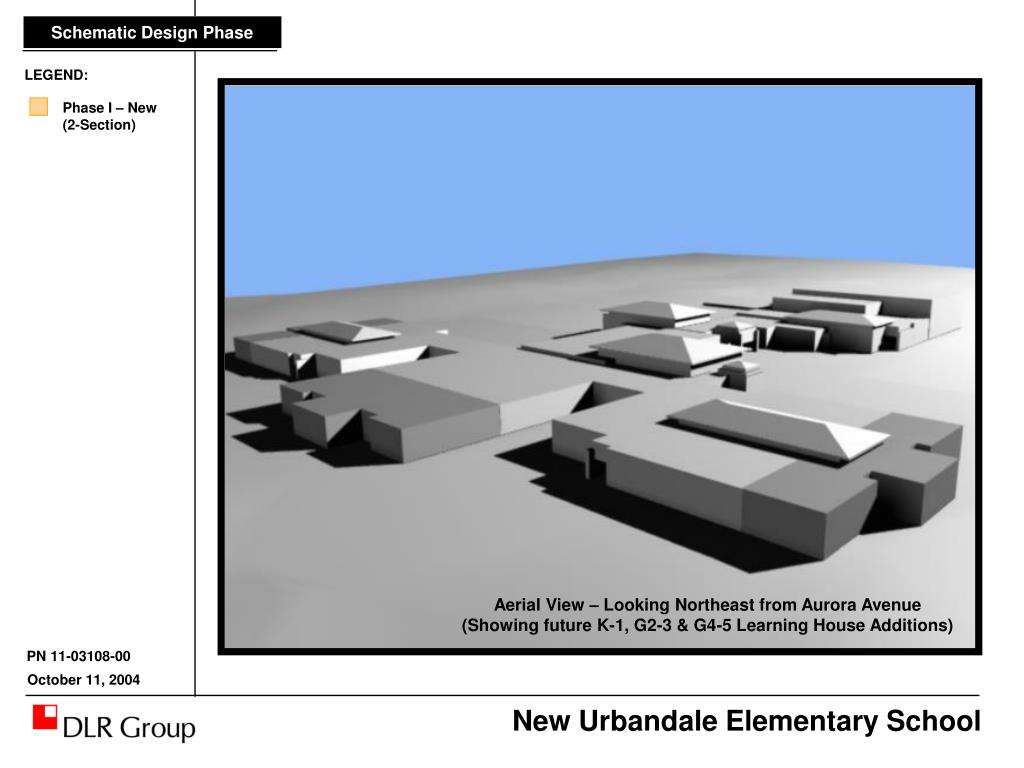

  11. Aerial View – Looking Northeast from Aurora Avenue (Showing future K-1, G2-3 & G4-5 Learning House Additions)
