Presentation Transcript

Cervical vulvar vaginal cancer l.jpg

Cervical/Vulvar/Vaginal Cancer

Steve Remmenga, M.D.

The McClure L Smith Professor of Gynecologic Oncology

Division of Gynecologic Oncology

Department of OB/GYN

University of Nebraska Medical Center

Cervical cancer l.jpg

Cervical Cancer

  • Estimated incidence and mortality in the United States (2007)¹

    • 11,150 new cases

    • 3,670 deaths

    • 1:168 Lifetime risk

1. American Cancer Society. Cancer Facts & Figures. 2007. Atlanta, GA; 2007

Cervical cancer3 l.jpg

Cervical Cancer

  • <2% of all cancer deaths in women (twice as deadly in African-American women)

  • 5-year survival: 71%

1. American Cancer Society. Cancer Facts & Figures. 2004. Atlanta, GA; 2005

Cervical ca l.jpg

Cervical CA

  • International estimates

    • Approximately 570,000 cases expected worldwide each year

    • 275,000 deaths

    • Number one cancer killer of women worldwide

Pap smear l.jpg

Pap Smear

  • With the advent of the Pap smear, the incidence of cervical cancer has dramatically declined

Cervical cancer6 l.jpg

Cervical Cancer

Cervical ca etiology l.jpg

Cervical CA Etiology

  • Cervical cancer is a sexually transmitted disease.

  • HPV DNA is present in virtually all cases of cervical cancer and precursors.

  • Some strains of HPV have a predilection to the genital tract and transmission is usually through sexual contact (16, 18 High Risk).

  • Little understanding of why small subset of women are affected by HPV.

  • HPV may be latent for many years before inducing cervical neoplasia.

Cervical ca risk factors l.jpg

Cervical CA Risk Factors

  • Early age of intercourse

  • Number of sexual partners

  • Smoking

  • Lower socioeconomic status

  • High-risk male partner

  • Other sexually transmitted diseases

  • Up to 70% of the U.S. population is infected with HPV

Prevention l.jpg


  • Educate all providers, men and women regarding HPV and the link to cervical cancer.

  • Adolescents are an especially high-risk group due to behavior and cervical biology.

  • Delay onset of sexual intercourse.

  • Condoms may help prevent sexually transmitted disease.

Screening guidelines for the early detection of cervical cancer american cancer society 2003 l.jpg

Screening Guidelines for the Early Detection of Cervical Cancer, American Cancer Society 2003

  • Screening should begin approximately three years after a women begins having vaginal intercourse, but no later than 21 years of age.

  • Screening should be done every year with regular Pap tests or every two years using liquid-based tests.

  • At or after age 30, women who have had three normal test results in a row may get screened every 2-3 years. However, doctors may suggest a woman get screened more if she has certain risk factors, such as HIV infection or a weakened immune system.

  • Women 70 and older who have had three or more consecutive Pap tests in the last ten years may choose to stop cervical cancer screening.

  • Screening after a total hysterectomy (with removal of the cervix) is not necessary unless the surgery was done as a treatment for cervical cancer.

American Cancer Society. Cancer Facts & Figures. 2004. Atlanta, GA; 2005

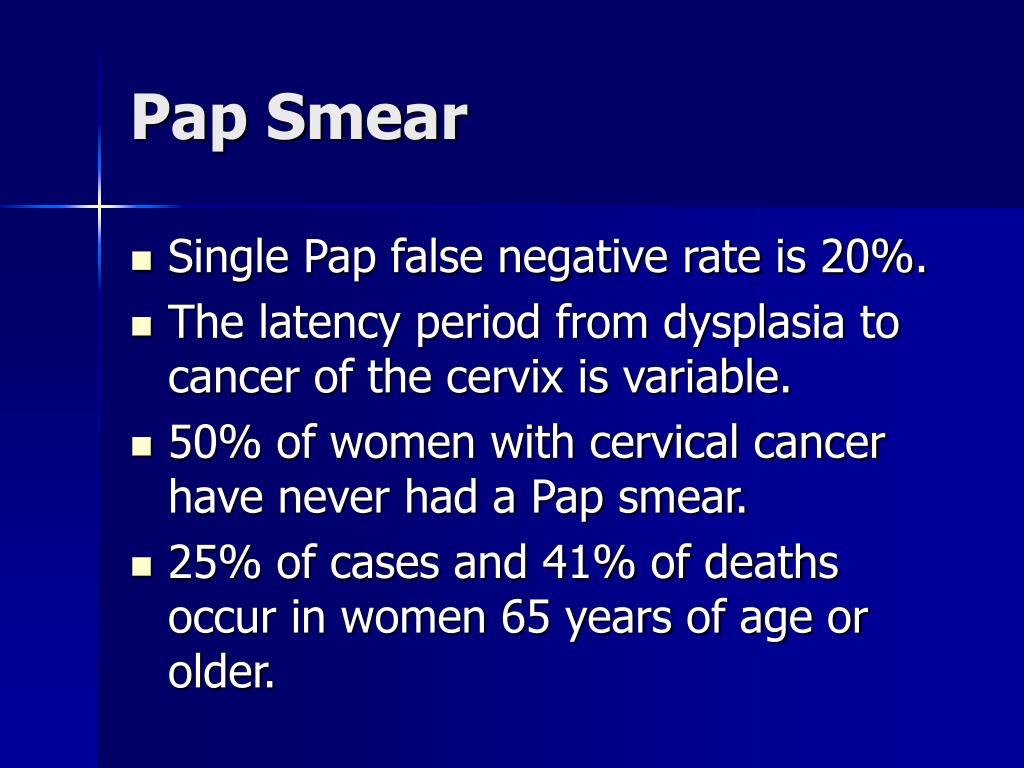

Pap smear11 l.jpg

Pap Smear

  • Single Pap false negative rate is 20%.

  • The latency period from dysplasia to cancer of the cervix is variable.

  • 50% of women with cervical cancer have never had a Pap smear.

  • 25% of cases and 41% of deaths occur in women 65 years of age or older.

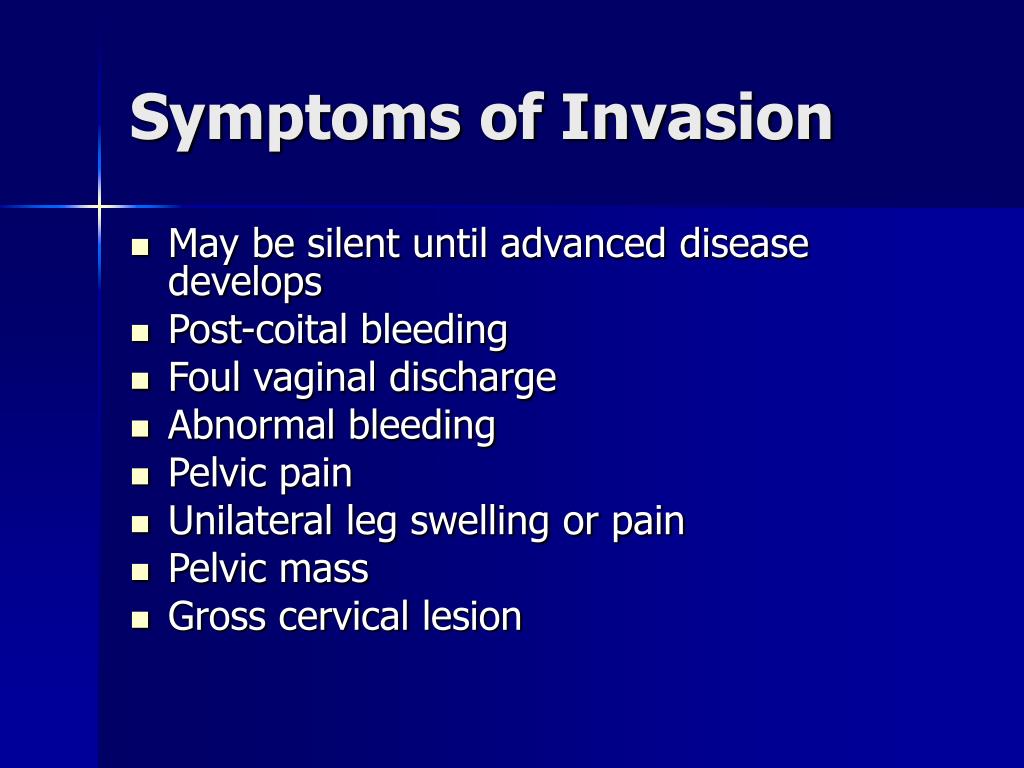

Symptoms of invasion l.jpg

Symptoms of Invasion

  • May be silent until advanced disease develops

  • Post-coital bleeding

  • Foul vaginal discharge

  • Abnormal bleeding

  • Pelvic pain

  • Unilateral leg swelling or pain

  • Pelvic mass

  • Gross cervical lesion

Cell type l.jpg

Cell Type

  • Squamous Cell Carcinoma 80-85%

  • AdenoCarcinoma15%

  • Adenosquamous

  • Others

Staging l.jpg


  • Clinical Staged Disease

    • Physical Exam

    • Blood Work

    • Cystoscopy

    • Proctoscopy

    • IVP

Staging cervical cancer l.jpg

Staging Cervical Cancer

  • Stage IConfined to Cervix

    • Ia1<3 mm deep, < 7 mm wide

    • Ia2>3 <5 mm deep,

    • Ib1< 4cm

    • Ib2> 4 cm

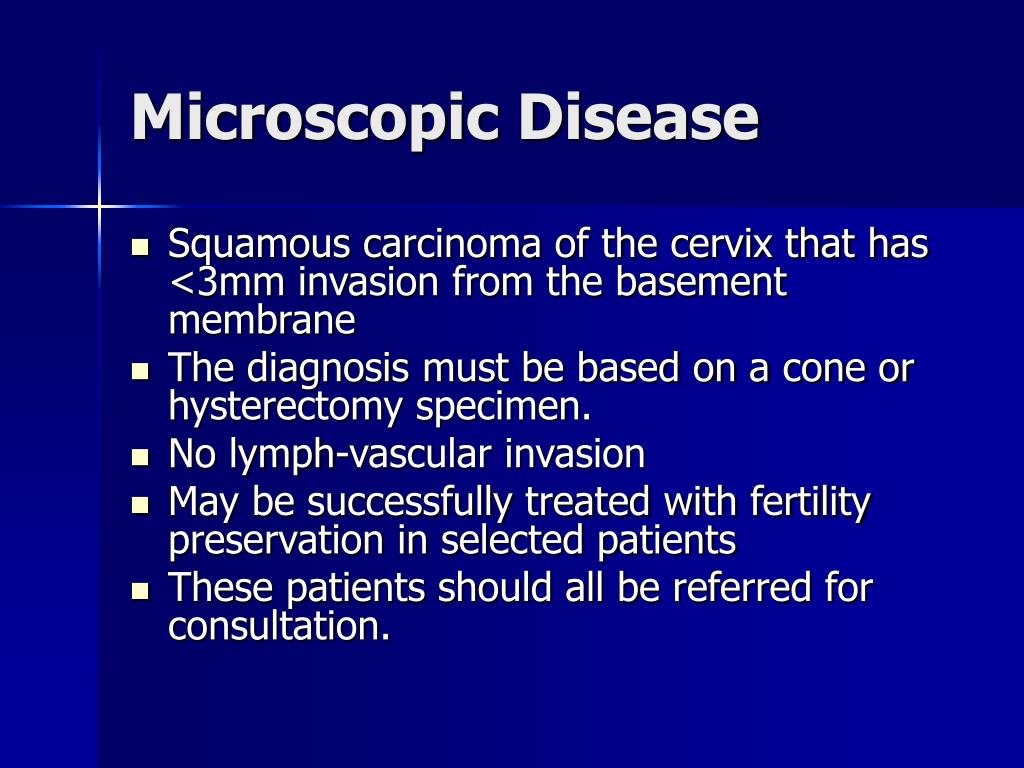

Microscopic disease l.jpg

Microscopic Disease

  • Squamous carcinoma of the cervix that has <3mm invasion from the basement membrane

  • The diagnosis must be based on a cone or hysterectomy specimen.

  • No lymph-vascular invasion

  • May be successfully treated with fertility preservation in selected patients

  • These patients should all be referred for consultation.

Staging18 l.jpg


  • Stage II Upper 2/3 vagina or Parametrial involvement

  • IIAUpper 2/3 vagina with no Parametrial

  • IIBParametrial Involvement

Staging19 l.jpg


  • Stage III Lower 1/3 Vagina, Sidewall or ureteral involvement

  • IIIA Lower 1/3 of Vagina

  • IIIB Sidewall or Ureteral Involvement

Staging20 l.jpg


  • Stage IV Bladder, Rectal or Distal Spread

  • IVA Bladder or Rectal Involvement

  • IVB Distal Spread

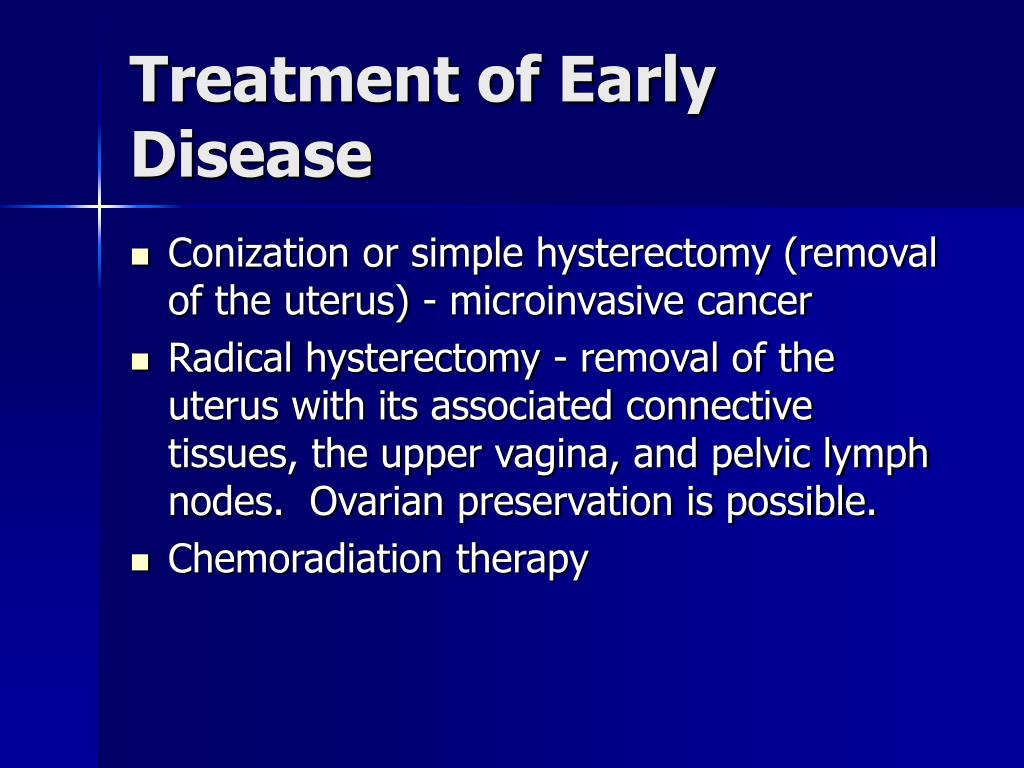

Treatment of early disease l.jpg

Treatment of Early Disease

  • Conization or simple hysterectomy (removal of the uterus) - microinvasive cancer

  • Radical hysterectomy - removal of the uterus with its associated connective tissues, the upper vagina, and pelvic lymph nodes. Ovarian preservation is possible.

  • Chemoradiation therapy

Advanced disease l.jpg

Advanced Disease

  • Chemoradiation is the mainstay of treatment

    • 4-5 weeks of external radiation

    • Two or more implants (brachytherapy)

    • Concurrent Cisplatin-based chemotherapy significantly improves the chances of survival

    • Radiation treats the primary tumor and adjacent tissues and lymph nodes

    • Chemotherapy acts as a radiation sensitizer and may also control distant disease

What is standard therapy for stage ib2 iva cervical carcinoma l.jpg

What is Standard Therapy for Stage IB2 - IVA Cervical Carcinoma?

  • External beam pelvic radiation (4,000 to 6,000 cGy)

  • Brachytherapy (8,000 to 8,500 cGy to Point A)

  • I.V. Cisplatin chemotherapy

    • Cisplatin 40mg/m2 (Max dose 70mg) IV q wk during RT (6wks)

GOG 120-NEJM 340(15):1144, 1999

Symptoms of recurrence l.jpg

Symptoms of Recurrence

  • Weight loss, fatigue and anorexia

  • Abnormal vaginal bleeding

  • Pelvic pain

  • Unilateral leg swelling or pain

  • Foul discharge

  • Signs of distant metastases

  • NOTE: must distinguish radiation side effects from recurrent cancer

Management of recurrence l.jpg

Management of Recurrence

  • Chemoradiation may be curative or palliative, especially in women who have not received prior radiation therapy.

  • Isolated soft tissue recurrence may occasionally be treated by resection with long-term survival.

Recurrent cervical cancer gog 169 l.jpg

Recurrent Cervical Cancer: GOG 169

Moore DH et al. J Clin Oncol 22:3113-3119. 2004

Topotecan in recurrent cervical cancer overview of phase ii studies l.jpg

Topotecan in Recurrent Cervical Cancer – Overview of Phase II Studies

ReferenceRegimen Evaluable Prior CTORRMedian OS


Single Agent (dailyx5):

Bookman1.5mg/m2/d4085%13%6.6 mo

Muderspach1.5mg/m2/d43None19%6.4 mo



FioricaTopo + cisplatin32None28%10 mo

TierstenTopo + paclitaxel1333%54%8.6 mo

  • Bookman MA et al. Gynecol Oncol 2000; 77: 446-449. . Muderspach LI, et al., Gynecologic Oncology 2001;81: 213-215. Noda K, et al. Proc Am Soc Clin Oncol 1996;15:280 [Abstract 754]. Fiorica J, et al. Gynecol Oncol 2002;85:89-94. Tiersten AD, et al. Gyn Oncol 2004;92:635-638

Recurrent cervical cancer gog 179 l.jpg

Recurrent Cervical Cancer:GOG 179

Regimen I

Cisplatin 50 mg/m²

Cervix Cancer

Stage IV B or Regimen II

Recurrent Topotecan 0.75 g/m²/d1-3 Cisplatin 50 mg/m² d 1










Long HJ, et al. Gynecol Oncol 2004; 92:397(SGO)

Slide31 l.jpg

SurvivalBy Treatment Group


Rx Group Alive Dead Total Cisplatin 17 129 146 Cis+Topo 29 118 147




Proportion Surviving








Months on Study





GOG 179

Gog protocol 179 l.jpg

GOG Protocol 179

Response rates based on previous

cisplatin therapy (with RT)

No Prior PlatinumPrior Platinum

CDDP arm20%8%

CDDP/Topo arm39%15%

Comparing gog 169 to 179 l.jpg

Comparing GOG 169 to 179

  • Studies from two different eras

    • 169 before Chemo-RT

    • 179 during transition to Chemo-RT

  • Both showed no QoL disturbance with more aggressive regimens

  • In the new era chemo/RT

    • Response rate to CDDP less

    • Survival after single agent CDDP less

    • Survival advantage when add Topotecan

    • Survival Advantage when add Paclitaxel?

Survival l.jpg


Vulvar cancer l.jpg

Vulvar Cancer

  • 3870 new cases 2005

  • 870 deaths

  • Approximately 5% of Gynecologic Cancers

American Cancer Society. Cancer Facts & Figures. 2004. Atlanta, GA; 2005

Vulvar cancer36 l.jpg

Vulvar Cancer

  • 85% Squamous Cell Carcinoma

  • 5% Melanoma

  • 2% Sarcoma

  • 8% Others

Vulvar cancer37 l.jpg

Vulvar Cancer

  • Biphasic Distribution

  • Average Age 70 years

  • 20% in patients UNDER 40 and appears to be increasing

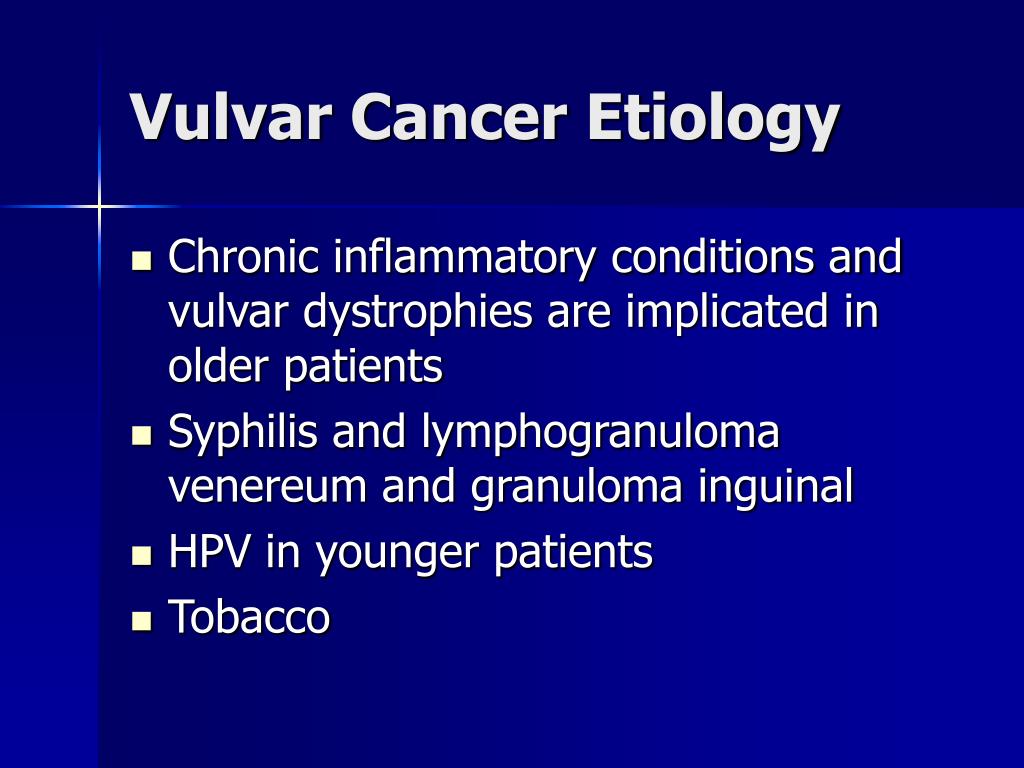

Vulvar cancer etiology l.jpg

Vulvar Cancer Etiology

  • Chronic inflammatory conditions and vulvar dystrophies are implicated in older patients

  • Syphilis and lymphogranuloma venereum and granuloma inguinal

  • HPV in younger patients

  • Tobacco

Vulvar cancer39 l.jpg

Vulvar Cancer

  • Paget’s Disease of Vulva

    • 10% will be invasive

    • 4-8% association with underlying Adenocarcinoma of the vulva

Symptoms l.jpg


  • Most patients are treated for “other” conditions

  • 12 month or greater time from symptoms to diagnosis

Symptoms43 l.jpg


  • Pruritus

  • Mass

  • Pain

  • Bleeding

  • Ulceration

  • Dysuria

  • Discharge

  • Groin Mass

Symptoms44 l.jpg


  • May look like:

    • Raised

    • Erythematous

    • Ulcerated

    • Condylomatous

    • Nodular

Vulvar cancer45 l.jpg

Vulvar Cancer





Tumor spread l.jpg

Tumor Spread

  • Very Specific nodal spread pattern

  • Direct Spread

  • Hematogenous

Staging47 l.jpg


  • Based on TNM Surgical Staging

    • Tumor size

    • Node Status

    • Metastatic Disease

Staging48 l.jpg


  • Stage I T1 N0 M0

    • Tumor ≤ 2cm

    • IA≤1 mm depth of Invasion

    • IB1 mm or more depth of invasion

Staging49 l.jpg


  • Stage II T2 N0 M0

    • Tumor >2 cm

    • Confined to Vulva or Perineum

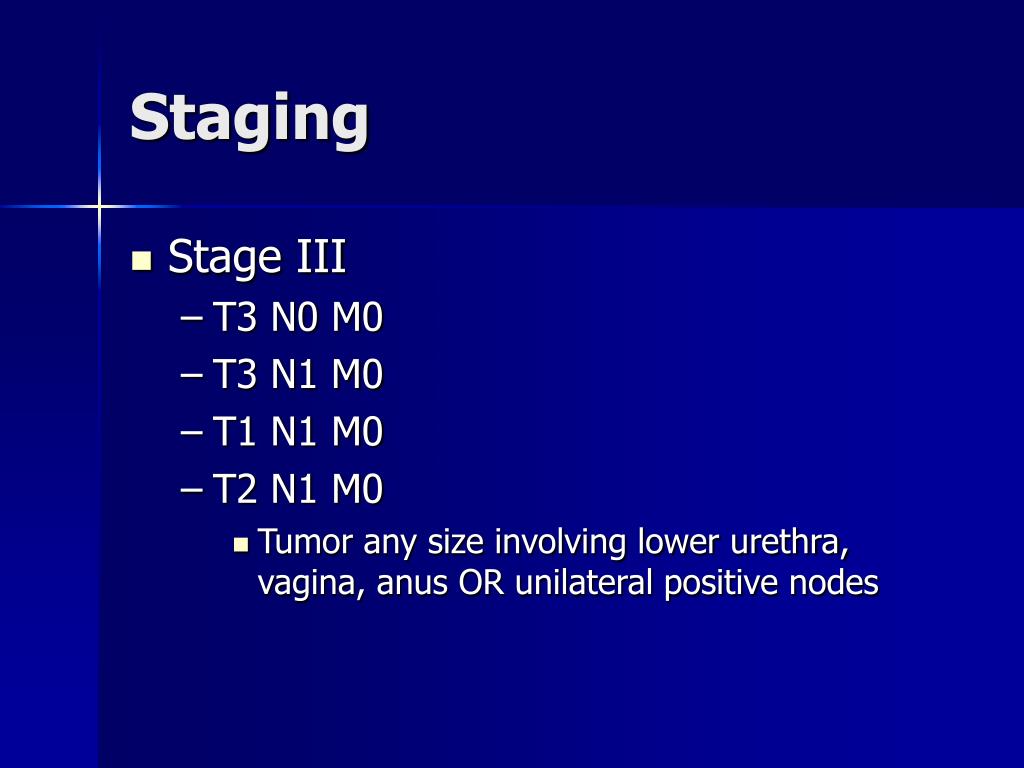

Staging50 l.jpg


  • Stage III

    • T3 N0 M0

    • T3 N1 M0

    • T1 N1 M0

    • T2 N1 M0

      • Tumor any size involving lower urethra, vagina, anus OR unilateral positive nodes

Staging51 l.jpg


  • Stage IVA

    • T1 N2 M0

    • T2 N2 M0

    • T3 N2 M0

    • T4 N any M0

      • Tumor invading upper urethra, bladder, rectum, pelvic bone or bilateral nodes

Staging52 l.jpg


  • Stage IVB

    • Any T Any N M1

      • Any distal mets including pelvic nodes

Treatment l.jpg


  • Primarily Surgical

    • Wide Local Excision

    • Radical Excision

    • Radical Vulvectomy with Inguinal Node Dissection

      • Unilateral

      • Bilateral

      • Possible Node Mapping, still investigational

Treatment54 l.jpg


  • Local advanced may be treated with Radiation plus Chemosensitizer

  • Positive Nodal Status

    • 1 or 2 microscopic nodes < 5mm can be observed

    • 3 or more or >5mm post op radiation

Treatment55 l.jpg


  • Special Tumor

    • Verrucous Carcinoma

      • Indolent tumor with local disease, rare mets UNLESS given radiation, becomes Highly malignant and aggressive

      • Excision or Vulvectomy ONLY

Vulva 5 year survival l.jpg

Vulva 5 year survival

  • Stage I90

  • Stage II77

  • Stage III51

  • Stage IV18

Hacker and Berek, Practical Gynecologic Oncology 4th Edition, 2005

Recurrence l.jpg


  • Local Recurrence in Vulva

    • Reexcision or radiation and good prognosis if not in original site of tumor

    • Poor prognosis if in original site

Recurrence58 l.jpg


  • Distal or Metastatic

    • Very poor prognosis, active agents include Cisplatin, mitomycin C, bleomycin, methotrexate and cyclophosphamide

Melanoma l.jpg


  • 5% of Vulvar Cancers

  • Not UV related

  • Commonly periclitoral or labia minora

Melanoma60 l.jpg


  • Microstaged by one of 3 criteria

    • Clark’s Level

    • Chung’s Level

    • Breslow

Melanoma treatment l.jpg

Melanoma Treatment

  • Wide local or Wide Radical excision with bilateral groin dissection

  • Interferon Alpha 2-b

Vaginal carcinoma l.jpg

Vaginal Carcinoma

  • 2140 new cases projected 2005

  • 810 deaths projected 2005

  • Represents 2-3% of Pelvic Cancers

American Cancer Society. Cancer Facts & Figures. 2004. Atlanta, GA; 2005

Vaginal cancer l.jpg

Vaginal Cancer

  • 84% of cancers in vaginal area are secondary

    • Cervical

    • Uterine

    • Colorectal

    • Ovary

    • Vagina

Fu YS, Pathology of the Uterine Cervix, Vagina and Vulva, 2nd ed. 2002

Vaginal carcinoma64 l.jpg

Vaginal Carcinoma

  • Squamous Cell80-85%

  • Clear Cell10%

  • Sarcoma3-4%

  • Melanoma2-3%

Clear cell carcinoma l.jpg

Clear Cell Carcinoma

  • Associated with DES Exposure In Utero

    • DES used as anti abortifcant from 1949-1971

    • 500+ cases confirmed by DES Registry

    • Usually occurred late teens

Vaginal cancer etiology l.jpg

Vaginal Cancer Etiology

  • Mimics Cervical Carcinoma

    • HPV 16 and 18

Staging67 l.jpg


  • Stage IConfined to Vaginal Wall

  • Stage IISubvaginal tissue but not to pelvic sidewall

  • Stage IIIExtended to pelvic sidewall

  • Stage IVABowel or Bladder

  • Stage IVBDistant mets

Treatment68 l.jpg


  • Surgery with Radical Hysterectomy and pelvic lymph dissection in selected stage I tumors high in Vagina

  • All others treated with radiation with chemosensitization

5 year survival l.jpg

5 year Survival

  • Stage I70%

  • Stage II51%

  • Stage III33%

  • Stage IV17%

  • Login
