1. School of something FACULTY OF OTHER School of Mechanical Engineering FACULTY OF ENGINEERING Flow Simulation for Improved Engineering Design Dr Harvey Thompson & Colleagues Institute of Engineering Thermofluids, Surfaces & Interfaces (iETSI) (Particularly: Dr Nik Kapur, Dr Jon Summers, Dr Mark Wilson, Dr Sergii Veremieiev, Dr Yeawchu Lee, Prof. Phil Gaskell)

2. Summary School of something FACULTY OF OTHER • Current Capabilities of Computational Fluid Dynamics (CFD) in Design of Engineering Systems with Free Surface Film and Droplet Spreading Flows • 2D Simulations: Industrial Coating • 3D Simulations: Flows over real surfaces • Bio-pesticide application methods

3. 2D Simulations: Industrial Coating Flows Slot Coating • Several different precision coating processes • produce a range of important products, • including: • Polymer films and packaging materials • Ink-jet printing and imaging media • Large Area Printed Electronic Devices Roll Coating

4. 2D Simulations: Industrial Coating Flows Key Problem for Coating Engineers – avoid formation of ‘streak-lines’ which destroy product quality – caused by eddies in the flow Coating web direction Thin ‘streak-line’ destroys product quality

5. 2D Simulations: Industrial Coating Flows • Industrial Coating Flows Difficult to Simulate • (even in 2D!): • Surface-tension dominated, free surface flows • Static and dynamic wetting lines where • coating is formed • Highly curved flow domains • Finite Element (FE) Methods suitable • for such problems

6. 2D Simulations: Industrial Coating Flows Avoidance of ‘Streak-lines’ (1): Classic Moffatt 1964 JFM paper – strong effect of static contact line on eddy size and strength Increase static angle to reduce streak-lines Practical solution: coat cascade surface with PTFE – reduced wastage by £4M over three years!

7. 2D Simulations: Industrial Coating Flows Avoidance of ‘Streak-lines (2): Slot exit flow. Slot exits often used to supply pre-metered coatings such as slide and curtain

8. 2D Simulations: Industrial Coating Flows Avoidance of ‘Streak-lines’ (2): Slot exit flow. Back-wetting of uppermost slot may occur during start-up – can lead to defect-causing solids deposits due to degradation in recirculation regions. Back wetting at the upper slot: (a) experimental, (b) CFD prediction

9. 2D Simulations: Industrial Coating Flows Avoidance of Streak-lines (2): Slot exit flow Merging flow out of slot exits – effect of chamfering lower corner Chamfer can remove eddies in both liquid layers simultaneously!

10. Substrate Bath 2D Simulations: Industrial Coating Flows Mass Transfer into Eddies and Residence Times in Forward Roll Coating, Wilson et al, JFM, give date.

11. Navier-Stokes  velocity field Galerkin Finite Element method; spine method 2D Simulations: Industrial Coating Flows ‘Tracer’ particle trajectories Runge-Kutta scheme; trigonometric interpolation of nodal and spinal data allows evaluation of u,v at arbitrary t

12. 2D Simulations: Industrial Coating Flows Mass Transfer into Eddies and Residence Times in Forward Roll Coating, Wilson et al, JFM, give date. Enables residence times and effects of time-dependent forcing to be analysed, e.g. Roll eccentricity or variable roll speeds. Experiment CFD

13. 3-D Film and Droplet Flows over Topography Several important practical applications: e.g. film flow in the eye, electronics cooling, heat exchangers, combustion chambers, etc... Focus on: precision coating of micro-scale displays and sensors, Tourovskaia et al, Nature Protocols, 3, 2006. Pesticide flow over leaves, Glass et al, Pest Management Science, 2010. Plant disease control

14. spin coat liquid > 50μm conformal liquid coating topographic substrate levelling period cure film solid 3D Film Flow over Topography For displays and sensors, coat liquid layers over functional topography – light-emitting species on a screen Key goal: ensure surfaces are as planar as possible – ensures product quality and functionality – BUT free surface disturbances are persistent! Stillwagon, Larson and Taylor, J. Electrochem. Soc. 1987

15. 3D Film Flow over Topography • Key Modelling Challenges: • 3-D surface tension dominated free surface flows are very complex – Navier-Stokes solvers at early stage of development (see later) • Surface topography often very small (~100s nm) but influential – need highly resolved grids? • No universal wetting models exist • Large computational problems – adaptive multigrid, parallel computing? • Very little experimental data for realistic 3D flows.

16. 3D Film Flow over Topography Finite Element methods not as well-established for 3-D free surface flow. Promising alternatives include Level-Set, Volume of Fluid (VoF), Lattice Boltzmann etc… but still issues for 3D surface tension dominated flows – grid resolution etc... Fortunately thin film lubrication low assumptions often valid provided: ε=H0/L0 <<1 and capillary number Ca<<1 Enables 3D flow to be modelled by 2D systems of pdes. gravity H0 inflow y s(x,y) h(x,y) L0 x outflow a

17. 3D Film Flow over Topography Decre & Baret, JFM, 2003: Flow of Water Film over a Trench Topography Comparison between experimental free surface profiles and those predicted by solution of the full Navier-Stokes and Lubrication equations. Agreement is very good between all data. Lubrication theory is accurate – for thin film flows with small topography and inertia!

18. 3D Film Flow over Topography Thin Film Flows with Significant Inertia Free surfaces can be strongly influenced by inertia: e.g. free surface instability, droplet coalescence,... standard lubrication theory can be extended to account for significant inertia – Depth Averaged Formulation of Veremieiev et al, Computer & Fluids, 2010. Film Flows of Arbitrary Thickness over Arbitrary Topography Need full numerical solutions of 3D Navier-Stokes equations!

19. Depth-Averaged Formulation for Inertial Film Flows • Reduction of the Navier-Stokes equations by the long-wave approximation: Restrictions: 2. Depth-averaging stage to decrease dimensionality of unknown functions by one: , Restrictions: no velocity profiles and internal flow structure 3. Assumption of Nusselt velocity profile to estimate unknown friction and dispersion terms:

20. Depth-Averaged Formulation for Inertial Film Flows DAF system of equations: For Re = 0 DAF ≡ LUB Boundary conditions: Inflow b.c. Outflow (fully developed flow) Occlusion b.c.

21. Flow over 3D trench: Effect of Inertia Gravity-driven flow of thin water film: 130µm ≤ H0 ≤ 275µm over trench topography: sides 1.2mm, depth 25µm surge bow wave comet tail

22. Accuracy of DAF approach Gravity-driven flow of thin water film: 130µm ≤ H0 ≤ 275µm over 2D step-down topography: sides 1.2mm, depth 25µm Max % Error vs Navier-Stokes (FE) Error ~1-2% for Re=50 and s0 ≤0.2 s0=step size/H0

23. Free Surface Planarisation • Noted above: many manufactured products require free surface disturbances to be minimised – planarisation • Very difficult since comet-tail disturbances persist over length scales much larger than the source of disturbances • Possible methods for achieving planarisation include: • thermal heating of the substrate, Gramlich et al (2002) • use of electric fields

24. Electrified Film Flow • Gravity-driven, 3D Electrified film flow over a trench topography • Assumptions: • Liquid is a perfect conductor • Air above liquid is a perfect dielectric • Film flow modelled by Depth Averaged Form • Fourier series separable solution of Laplace’s equation • for electric potential coupled to film flow by Maxwell free • surface stresses.

25. Electrified Film Flow • Effect of Electric Field Strength on Film Free Surface • No Electric Field With Electric Field • Note: Maxwell stresses can planarise the persistent, comet-tail disturbances.

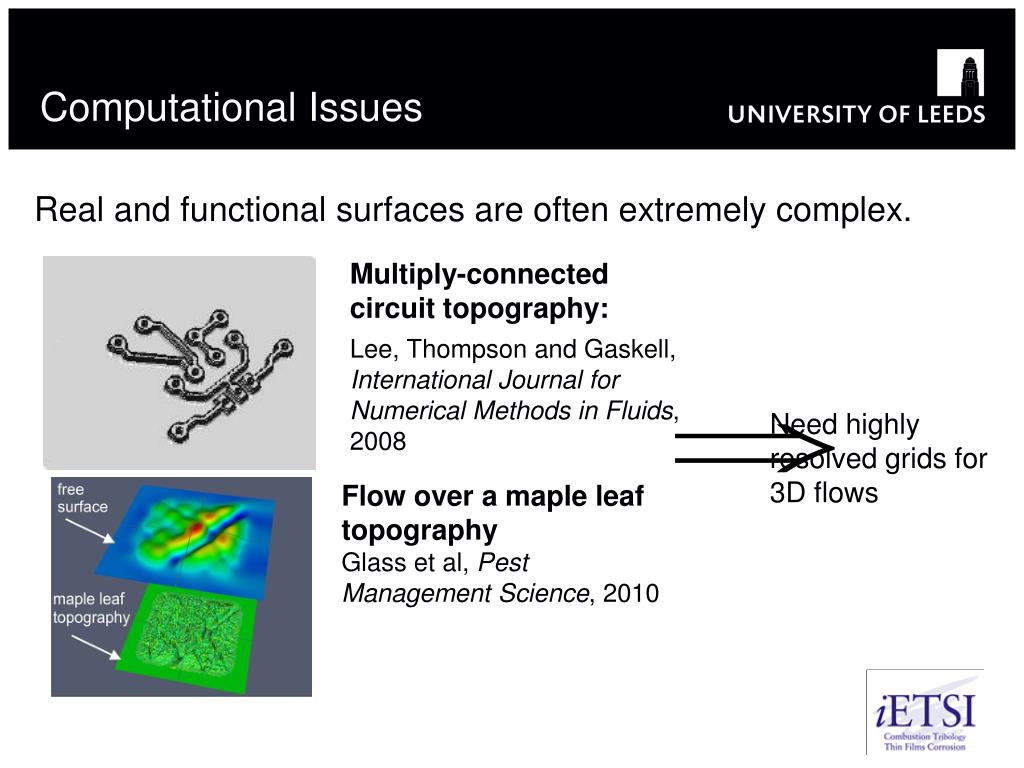

26. Computational Issues • Real and functional surfaces are often extremely complex. Multiply-connected circuit topography: Lee, Thompson and Gaskell, International Journal for Numerical Methods in Fluids, 2008 Need highly resolved grids for 3D flows Flow over a maple leaf topography Glass et al, Pest Management Science, 2010

27. Adaptive Multigrid Methods • Full Approximation Storage (FAS) Multigrid methods very efficient. • Spatial and temporal adaptivity enables fine grids to be used only where they are needed. • E.g. Film flow over a substrate with isolated square, circular and diamond-shaped topographies • Free Surface Plan View of Adaptive Grid

28. Parallel Multigrid Methods • Parallel Implementation of Temporally Adaptive Algorithm using: • Message Passing Interface (MPI) • Geometric Grid Partitioning • Combination of Multigrid O(N) efficiency and parallel speed up very powerful!

29. 3D FE Navier-Stokes Solutions Lubrication and Depth Averaged Formulations invalid for flow over arbitrary topography and unable to predict recirculating flow regions As seen earlier important to predict eddies in many applications: E.g. In industrial coating

30. 3D FE Navier-Stokes Solutions Mixing phenomena E.g. Heat transfer enhancement due to thermal mixing, Scholle et al, Int. J. Heat Fluid Flow, 2009.

31. 3D FE Navier-Stokes Solutions • Commercial CFD codes still rather limited for these type of problems • Finite Element methods are still the most accurate for surface tension dominated free surface flows – grids based on Arbitrary Lagrangian Eulerian ‘Spine’ methods • Spine Method for 2D Flow Generalisation to 3D flow

32. 3D FE Navier-Stokes vs DAF Solutions Gravity-driven flow of a water film over a trench topography: comparison between free surface predictions

33. 3D FE Navier-Stokes Solutions Gravity-driven flow of a water film over a trench topography: particle trajectories in the trench 3D FE solutions can predict how fluid residence times and volumes of fluid trapped in the trench depend on trench dimensions

34. Droplet Flows: Bio-pesticides • Droplet Flow Modelling and Analysis

35. Application of Bio-pesticides ChangingEU legislation is limiting use of chemically active pesticides for pest control in crops. Bio-pesticides using living organisms (nematodes, bacteria etc...) to kill pests are increasing in popularity but little is know about flow deposition onto leaves Working with Food & Environment Research Agency in York and Becker Underwood Ltd to understand the dominant flow mechanisms

36. Nematodes • Nematodes are a popular bio-pesticide control • method - natural organisms present in soil • typically up to 500 microns in length. • Aggressive organisms that attack the pest by entering body openings • Release bacteria that stops pest feeding – kills the pest quickly • Mixed with water and adjuvants and sprayed onto leaves

37. What do we want to understand? • Why do adjuvants improve effectiveness – reduced • evaporation rate? • How do nematodes affect droplet size distribution? • How can we model flow over leaves? • How does impact speed, droplet size and orientation affect droplet motion?

38. Droplet spray evaporation time: effect of adjuvant

39. Droplet size distribution for bio-pesticides Matabi 12Ltr Elegance18+ knapsack sprayer • Teejet XR110 05 nozzle with 0.8bar

40. VMD of the bio-pesticide spray depending on the concentration of adjuvant addition of bio-pesticide does not affect Volume Mean Diameter of the spray

41. Droplet flow over a leaf: simple theory 2nd Newton’s law in x direction: theoretical expressions from Dussan (1985): Stokes drag: Contact angle hysteresis: Velocity: Relaxation time: Terminal velocity: Volume of smallest droplet that can move:

42. Droplet flow over a leaf: simple theory vs. experiments 47V10 silicon oil drops flowing over a fluoro-polymer FC725 surface: Dussan (1985) theory: Podgorski, Flesselles, Limat (2001) experiments: droplet flow is governed by this law: Le Grand, Daerr & Limat (2005), experiments:

43. Droplet flow over a leaf (θ=60º): effect of inertia For: V=10mm3, R=1.3mm, terminal velocity=0.22m/s Lubrication theory Depth averaged formulation

44. Droplet flow over a leaf (θ=60º): effect of inertia For: V=20mm3 R=1.7mm terminal velocity=0.45m/s Lubrication theory Depth averaged formulation

45. Droplet flow over a leaf (θ=60º): summary of computations

46. Droplet flow over a leaf: theory shows small effect of initial velocity Velocity: Initial velocity: Relaxation time:

47. Droplet flow over a leaf: computation of influence of initial condition V=10mm3 R=1.3mm a=0.22m/s Bosinθ=0.61 v0=0.69m/s Bosinθ init =1.57 V=10mm3 R=1.3mm a=0.22m/s Bosinθ=0.61 v0=1.04m/s Bosinθ init =2.49 this is due to the relaxation of the droplet’s shape

48. Droplet flow over (θ=60º) vs. under (θ=120º) a leaf: computation V=20mm3 R=1.7mm a=0.45m/s Bosinθ=0.99 θ=60º V=20mm3 R=1.7mm a=0.45m/s Bosinθ=0.99 θ=120º
