  1. LETS HEAR ITFORCONES !

  2. FACTS ABOUT CONES • They are everywhere • Used in many ways • Low-tech – snow cone cups, paper hats, etc. • High-tech – rocket nose cones • Used by celebrities like: • Dan Aykroyd • Madonna

  3. You, too, can learn to make cones ! “If I can do it, anyone can!” Quote does not belong to Al Gore

  4. Get ready for . . . CONE ENCOUNTERS OF THE WORST KIND

  5. RIGHT CONE WRONG CONE (OBLIQUE) THE “RIGHT” CONE

  6. CONE PATTERN

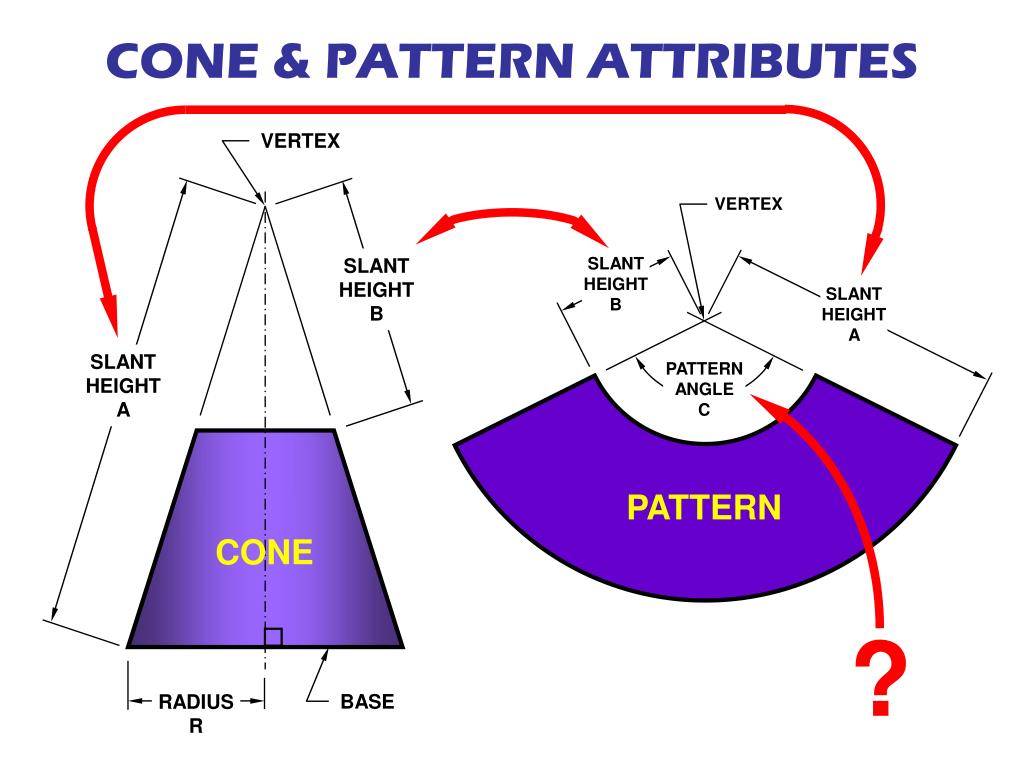

  7. VERTEX VERTEX SLANT HEIGHT B SLANT HEIGHT B SLANT HEIGHT A SLANT HEIGHT A PATTERN ANGLE C PATTERN CONE ? BASE RADIUS R CONE & PATTERN ATTRIBUTES

  8. GENERAL EQUATION: BASE RADIUS SLANT HEIGHT PATTERN ANGLE = 360° SPECIFIC EQUATION: 3.25” 3.25” 6” 1.88” 6” 6” C = 360° 112.8° 1.88” PATTERN ANGLE CALCULATION EXAMPLE

  9. TAB CONSTRUCTINGTHE PATTERN

  10. UVSC SITECONE PATTERNDEVELOPMENT DEMONSTRATION

  11. SUMMARY • CONSTRUCTING CONES • Skills needed: • Hand-eye coordination • Knowledge of basic algebra • Data needed: • Base radius of desired cone • Slant height of desired cone • Tools needed: • Ruler, compass, and pencil, or . . . • CAD system • Paper, sheet metal, etc. • Appropriate cutting tools

  12. DEFINITION:contestn. from the ancient atlantean words Con (cone) and Test (test), meaning “cone test”. So, here is your “CONTEST”

  13. A right cone has abase circumferenceof 18.85 inches,and a slant heightof 9 inches. What is the central angle of its flat pattern?

  14. CHOICES: • 60 degrees • 180 degrees • 141.4 degrees • None of the above

  15. ANSWER:D. None of the above Correct answer is: 120 DEGREES (1/3 of a circle)

  16. CONGRATULATIONS! You are now an official CONEHEAD! Go consume mass quantities

  17. CREDITS Producer: Dave “Little Finger” Manning Director: Darin “Big Finger” Taylor ELK MARBLE STUDIOS Copywrong 2006 all wrongs reserved
