Presentation Transcript

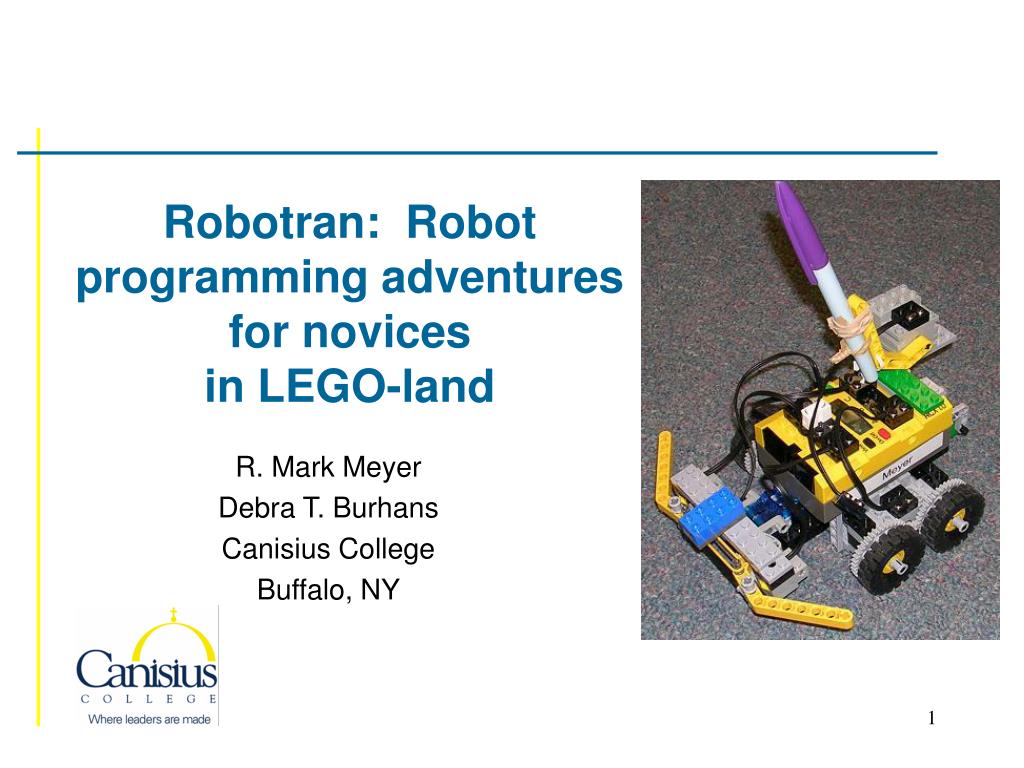

robotran robot programming adventures for novices in lego land

Robotran: Robot programming adventures for novices in LEGO-land

R. Mark Meyer

Debra T. Burhans

Canisius College

Buffalo, NY

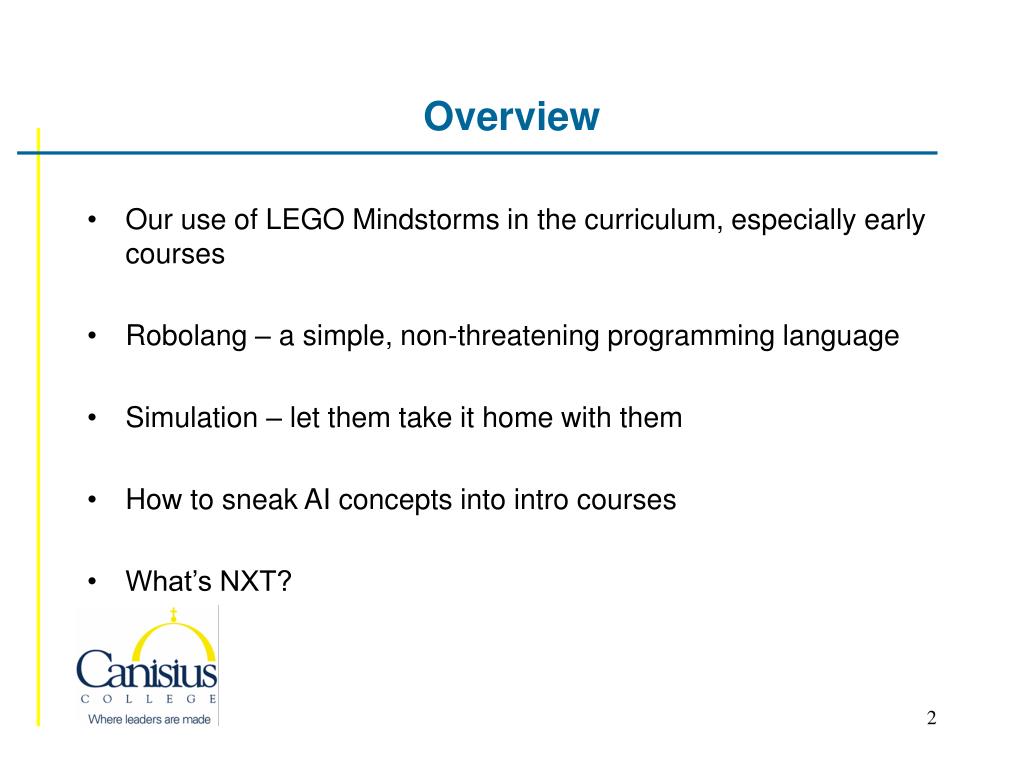

overview
Overview
  • Our use of LEGO Mindstorms in the curriculum, especially early courses
  • Robolang – a simple, non-threatening programming language
  • Simulation – let them take it home with them
  • How to sneak AI concepts into intro courses
  • What’s NXT?
but first our chief protagonist

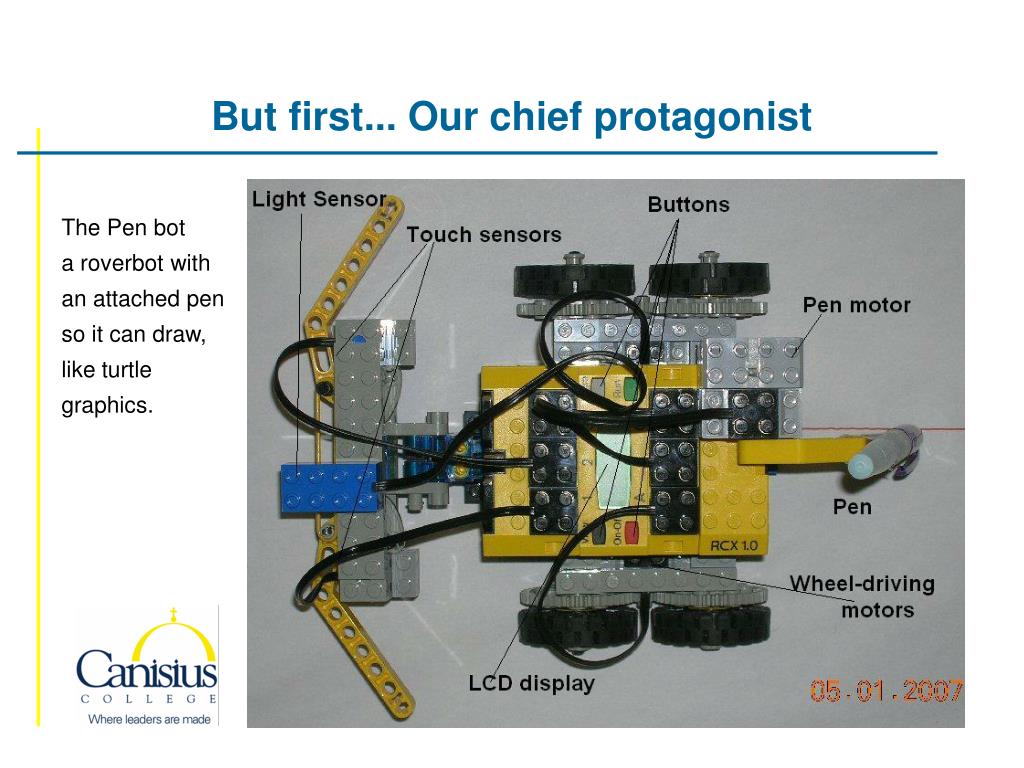

But first... Our chief protagonist

The Pen bot

a roverbot with

an attached pen

so it can draw,

like turtle

graphics.

educational objectives
Educational Objectives
  • Motivate students to stay in CS using the fun and challenge of robotics
  • Recruit new students to CS
  • Teach non-majors simple programming
  • Provide a framework for CS majors to learn Java better (using Lejos)
  • Use social implications of robotics to motivate ethics discussion
  • Introduce students to AI concepts
most of all
Most of all....
  • Our goal is happy students!
curricular use
Curricular Use
  • CSC 110 – A “CS 0” course
  • CSC 109 – Another “CS 0” course that is solely robotics
  • EGR 111 – Introduction to engineering (pre-engineers)
  • CSC 111 – Our Java-based “CS 1”
  • CSC 360 – Intelligent Systems: AI, robotics, knowledge bases
  • CSC 391/491 – Seminar, 1 credit hour special projects
role of ai

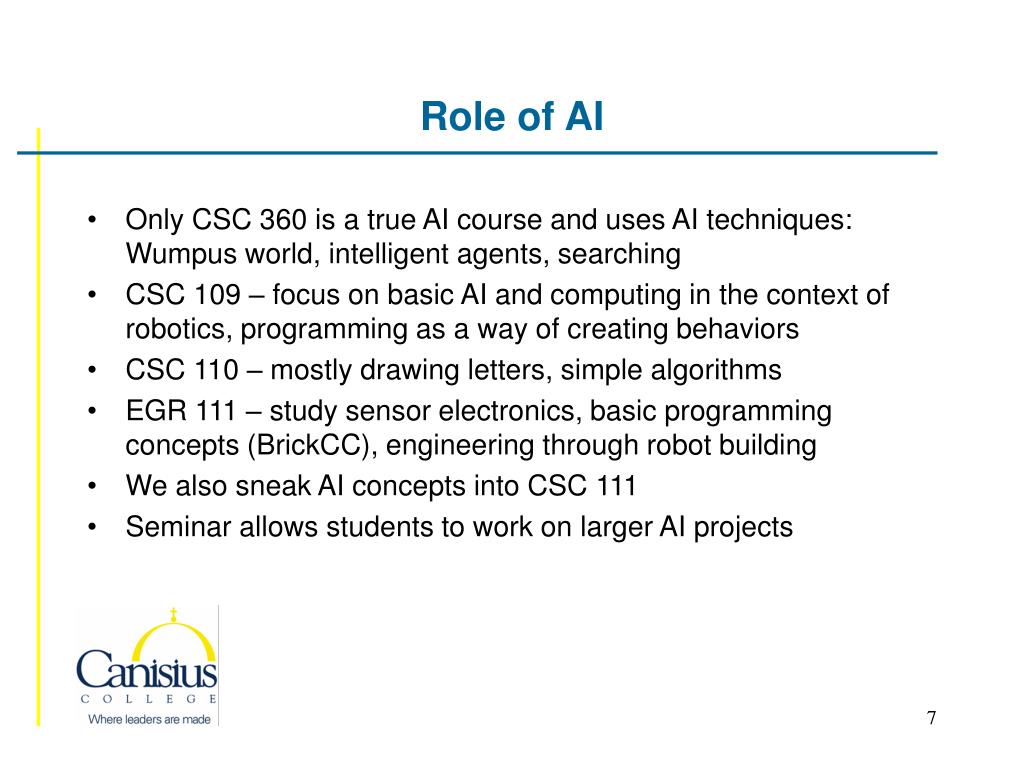

Role of AI
  • Only CSC 360 is a true AI course and uses AI techniques:Wumpus world, intelligent agents, searching
  • CSC 109 – focus on basic AI and computing in the context of robotics, programming as a way of creating behaviors
  • CSC 110 – mostly drawing letters, simple algorithms
  • EGR 111 – study sensor electronics, basic programming concepts (BrickCC), engineering through robot building
  • We also sneak AI concepts into CSC 111
  • Seminar allows students to work on larger AI projects
robotran v 1

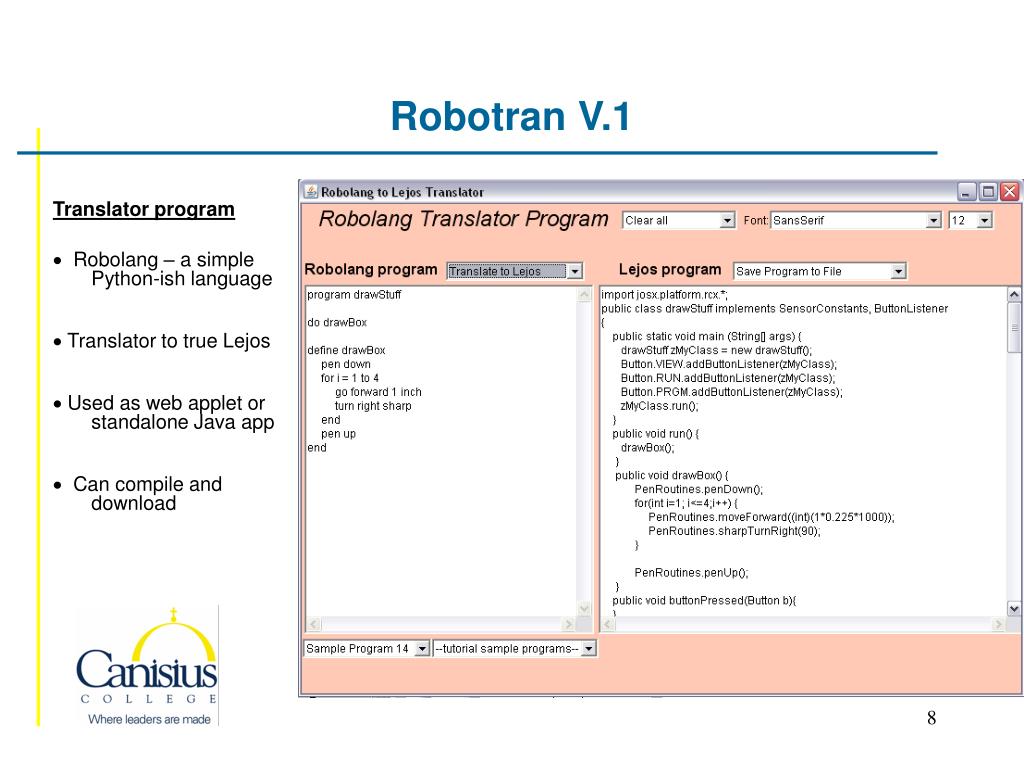

Robotran V.1
  • Translator program
  •  Robolang – a simple Python-ish language
  •  Translator to true Lejos
  •  Used as web applet or standalone Java app
  •  Can compile and download
robolang details

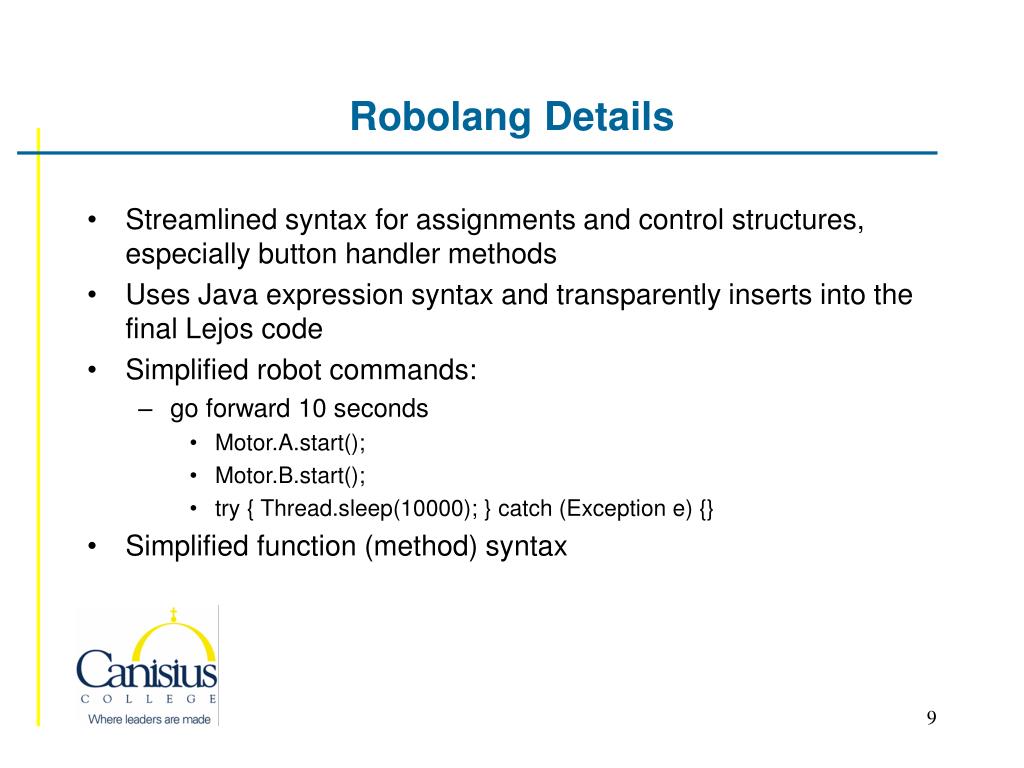

Robolang Details
  • Streamlined syntax for assignments and control structures, especially button handler methods
  • Uses Java expression syntax and transparently inserts into the final Lejos code
  • Simplified robot commands:
    • go forward 10 seconds
      • Motor.A.start();
      • Motor.B.start();
      • try { Thread.sleep(10000); } catch (Exception e) {}
  • Simplified function (method) syntax
simple light follower program

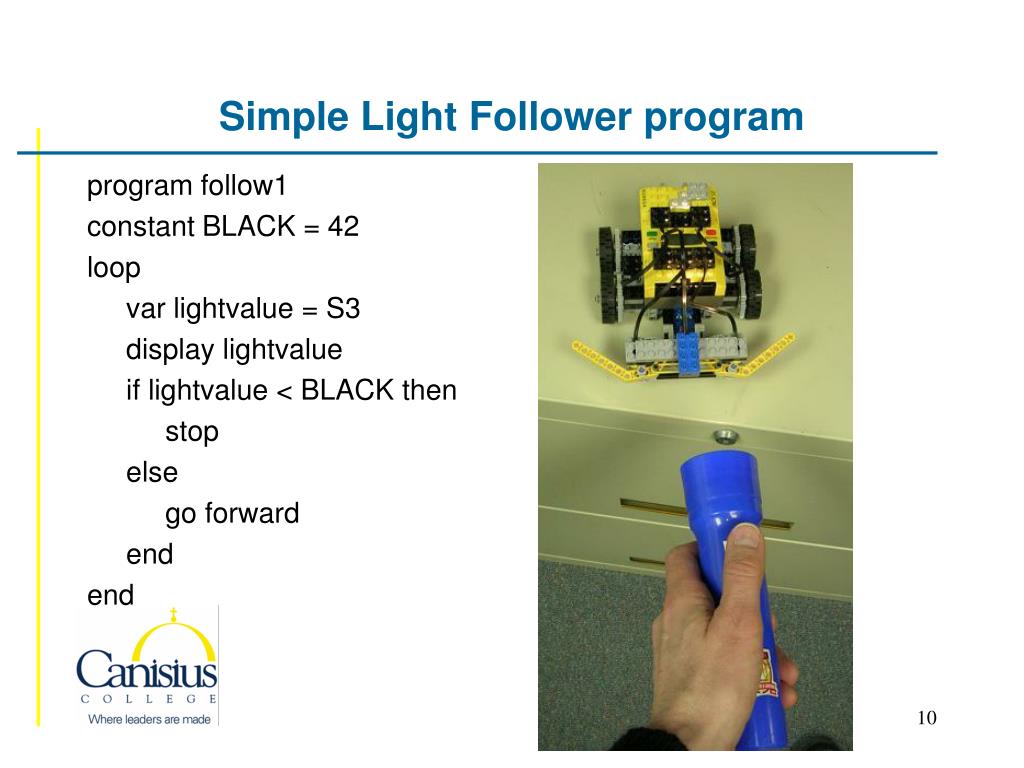

Simple Light Follower program

program follow1

constant BLACK = 42

loop

var lightvalue = S3

display lightvalue

if lightvalue < BLACK then

stop

else

go forward

end

end

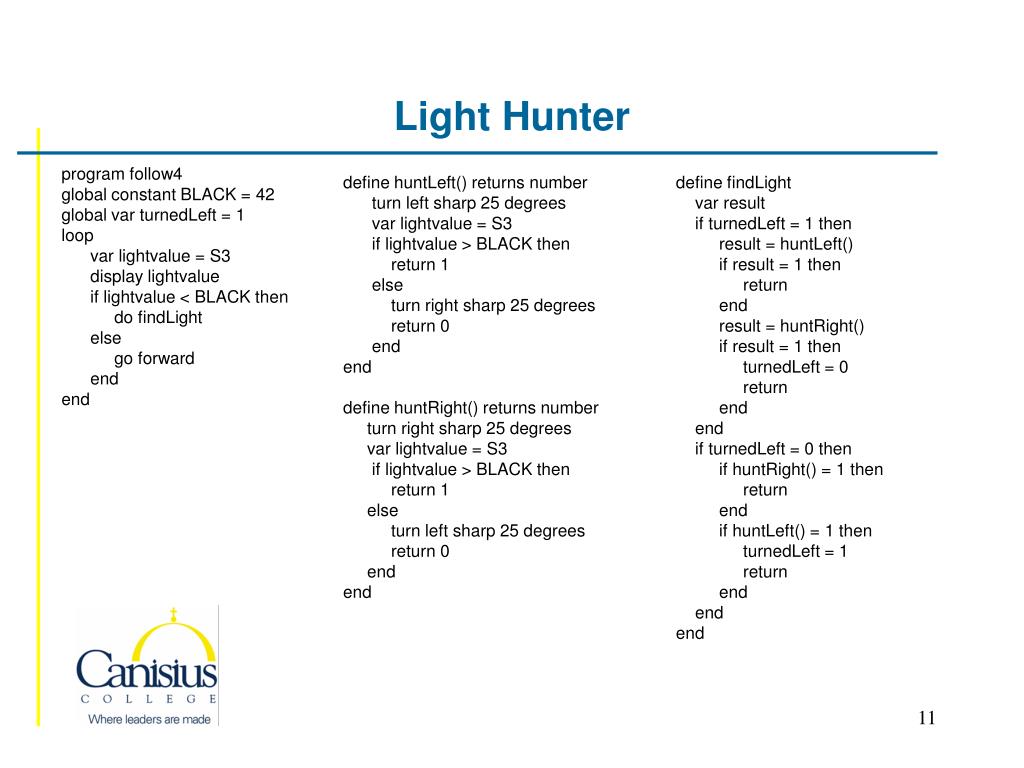

light hunter
Light Hunter

define huntLeft() returns number

turn left sharp 25 degrees

var lightvalue = S3

if lightvalue > BLACK then

return 1

else

turn right sharp 25 degrees

return 0

end

end

define huntRight() returns number

turn right sharp 25 degrees

var lightvalue = S3

if lightvalue > BLACK then

return 1

else

turn left sharp 25 degrees

return 0

end

end

define findLight

var result

if turnedLeft = 1 then

result = huntLeft()

if result = 1 then

return

end

result = huntRight()

if result = 1 then

turnedLeft = 0

return

end

end

if turnedLeft = 0 then

if huntRight() = 1 then

return

end

if huntLeft() = 1 then

turnedLeft = 1

return

end

end

end

program follow4

global constant BLACK = 42

global var turnedLeft = 1

loop

var lightvalue = S3

display lightvalue

if lightvalue < BLACK then

do findLight

else

go forward

end

end

syntactic sugar

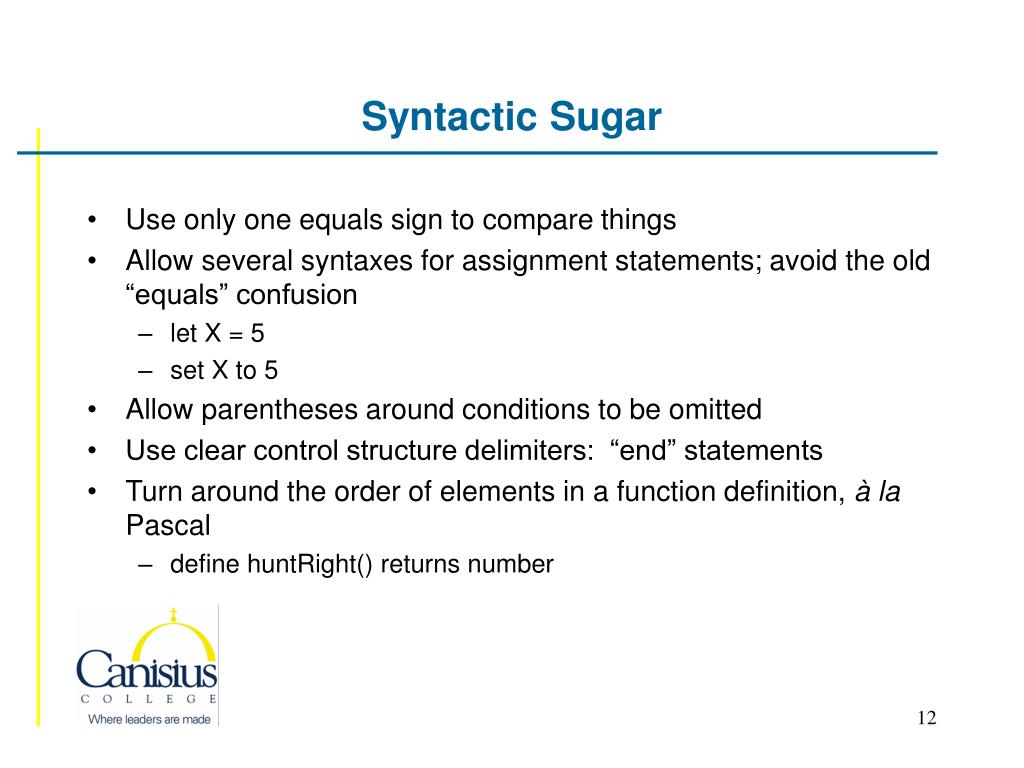

Syntactic Sugar
  • Use only one equals sign to compare things
  • Allow several syntaxes for assignment statements; avoid the old “equals” confusion
    • let X = 5
    • set X to 5
  • Allow parentheses around conditions to be omitted
  • Use clear control structure delimiters: “end” statements
  • Turn around the order of elements in a function definition, à la Pascal
    • define huntRight() returns number
the place of language

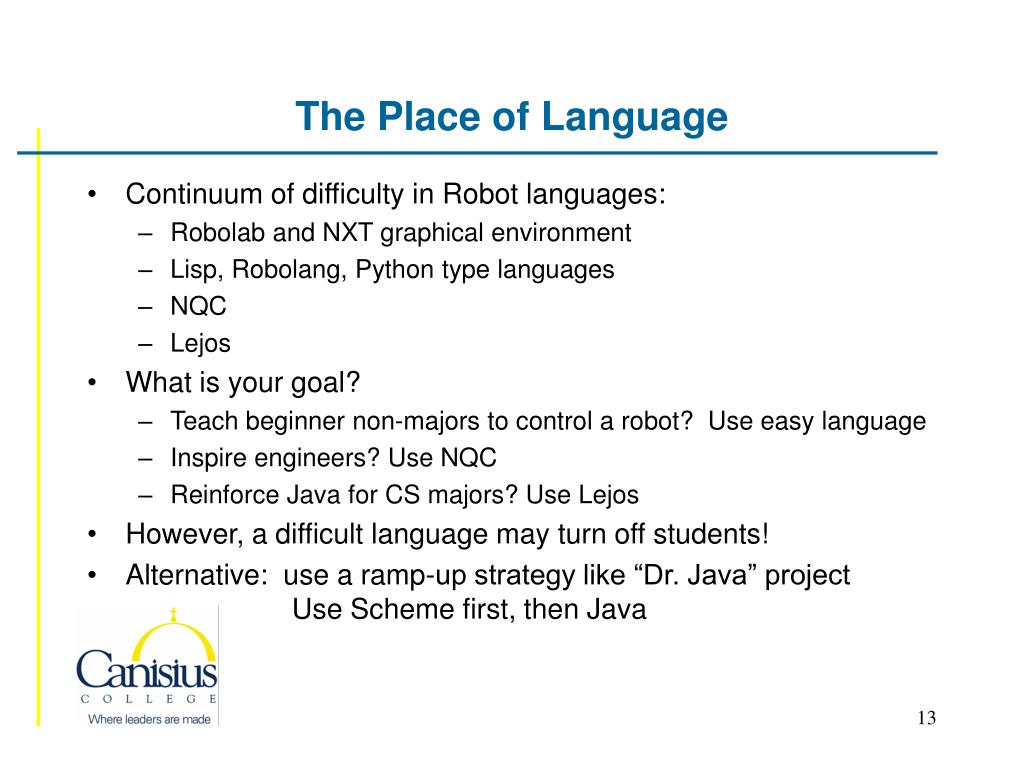

The Place of Language
  • Continuum of difficulty in Robot languages:
    • Robolab and NXT graphical environment
    • Lisp, Robolang, Python type languages
    • NQC
    • Lejos
  • What is your goal?
    • Teach beginner non-majors to control a robot? Use easy language
    • Inspire engineers? Use NQC
    • Reinforce Java for CS majors? Use Lejos
  • However, a difficult language may turn off students!
  • Alternative: use a ramp-up strategy like “Dr. Java” project Use Scheme first, then Java
lessons learned from language design

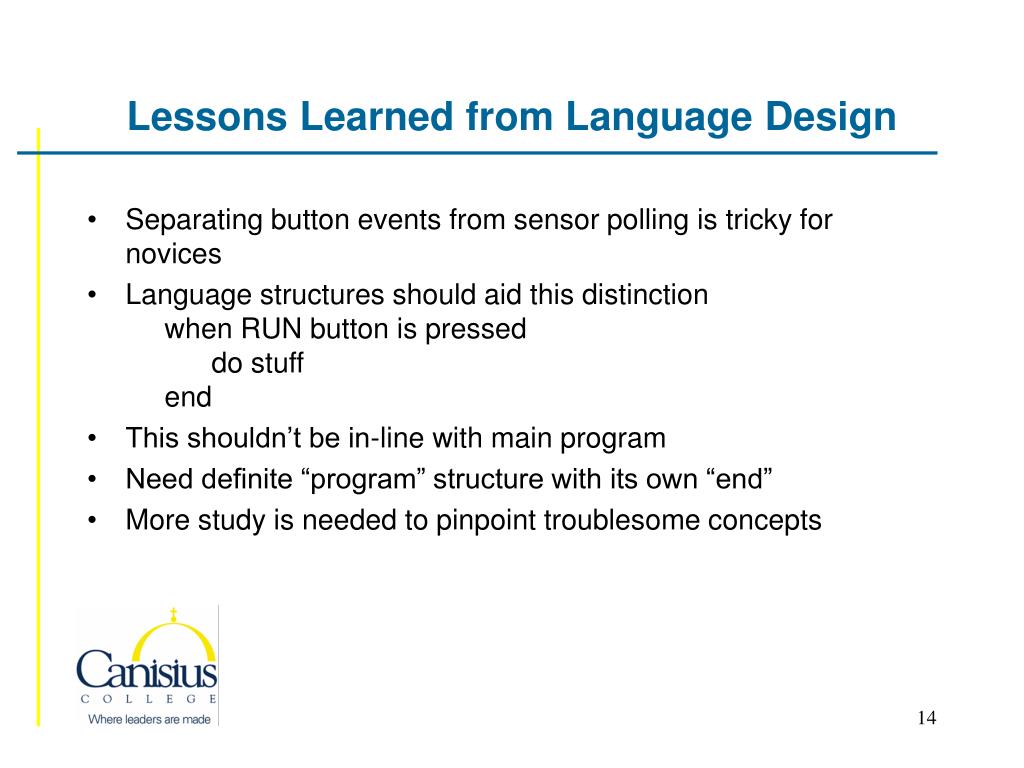

Lessons Learned from Language Design
  • Separating button events from sensor polling is tricky for novices
  • Language structures should aid this distinction when RUN button is pressed do stuff end
  • This shouldn’t be in-line with main program
  • Need definite “program” structure with its own “end”
  • More study is needed to pinpoint troublesome concepts
assignments
Assignments
  • Robot avoids obstacles by randomly turning after bumps
  • Robot draws letters
  • Robot follows a light source and hunts for it when lost
  • Robot receives input from bumps and button presses, including binary or unary numbers
  • Robot is taught a path which it can then replay (uses arrays)
  • Robot follows a line on the floor
  • Robot stays within a sumo ring and tries to push another robot outside without leaving the ring itself
  • Robot navigates a maze (needs to remember path & obstacles)
navigating the maze
Navigating the Maze

Robots were

programmed in

NQC, Lejos, and

Robolang

better algorithms anyone

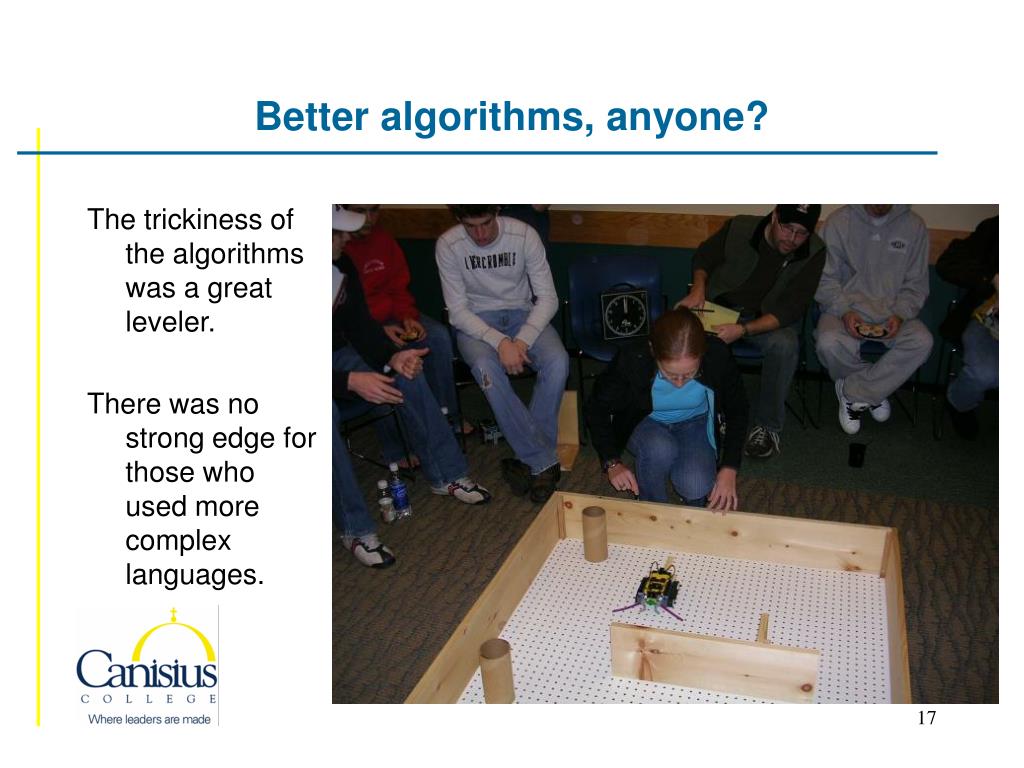

Better algorithms, anyone?

The trickiness of the algorithms was a great leveler.

There was no strong edge for those who used more complex languages.

robot competitions are fun
Robot Competitions are Fun!

The Physics Team at the Robot Competition

(Jeff, Mark, Jim)

Taken 18 Nov 2006

ai concepts at work

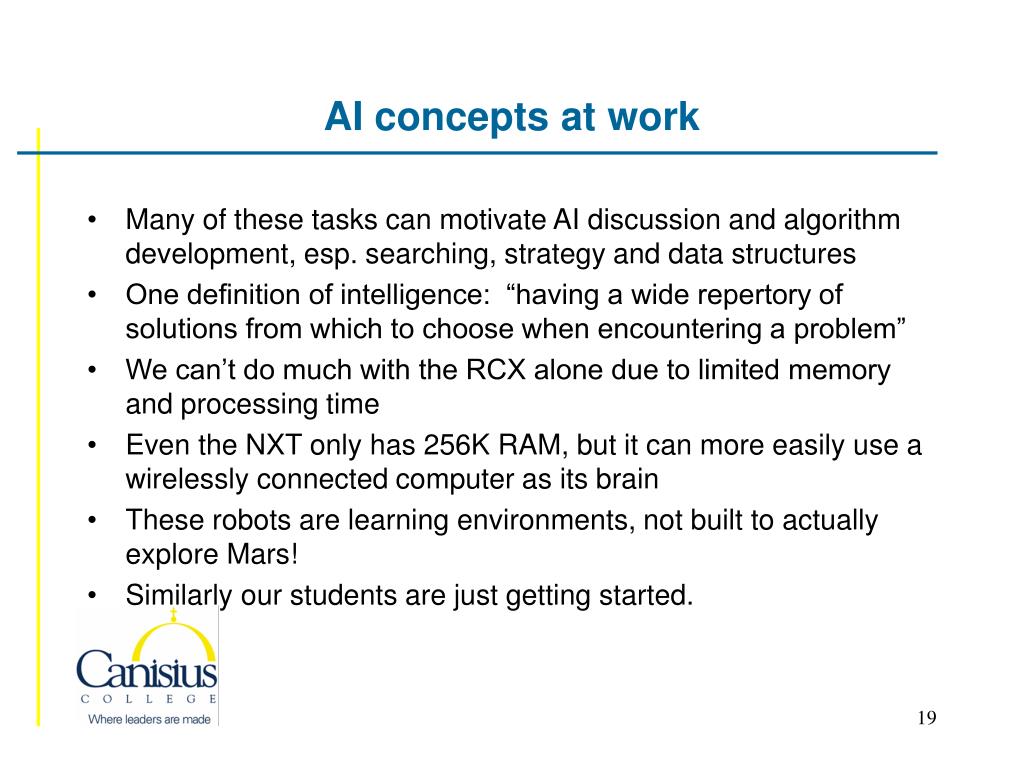

AI concepts at work
  • Many of these tasks can motivate AI discussion and algorithm development, esp. searching, strategy and data structures
  • One definition of intelligence: “having a wide repertory of solutions from which to choose when encountering a problem”
  • We can’t do much with the RCX alone due to limited memory and processing time
  • Even the NXT only has 256K RAM, but it can more easily use a wirelessly connected computer as its brain
  • These robots are learning environments, not built to actually explore Mars!
  • Similarly our students are just getting started.
need for a simulator

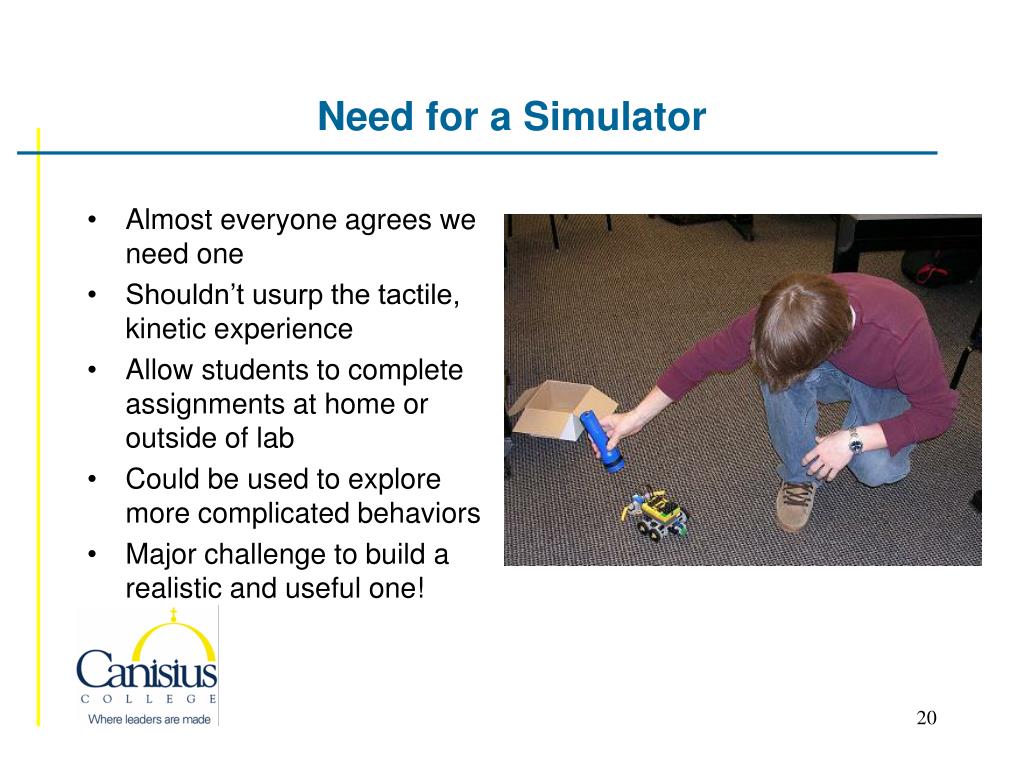

Need for a Simulator
  • Almost everyone agrees we need one
  • Shouldn’t usurp the tactile, kinetic experience
  • Allow students to complete assignments at home or outside of lab
  • Could be used to explore more complicated behaviors
  • Major challenge to build a realistic and useful one!
doomed to succeed

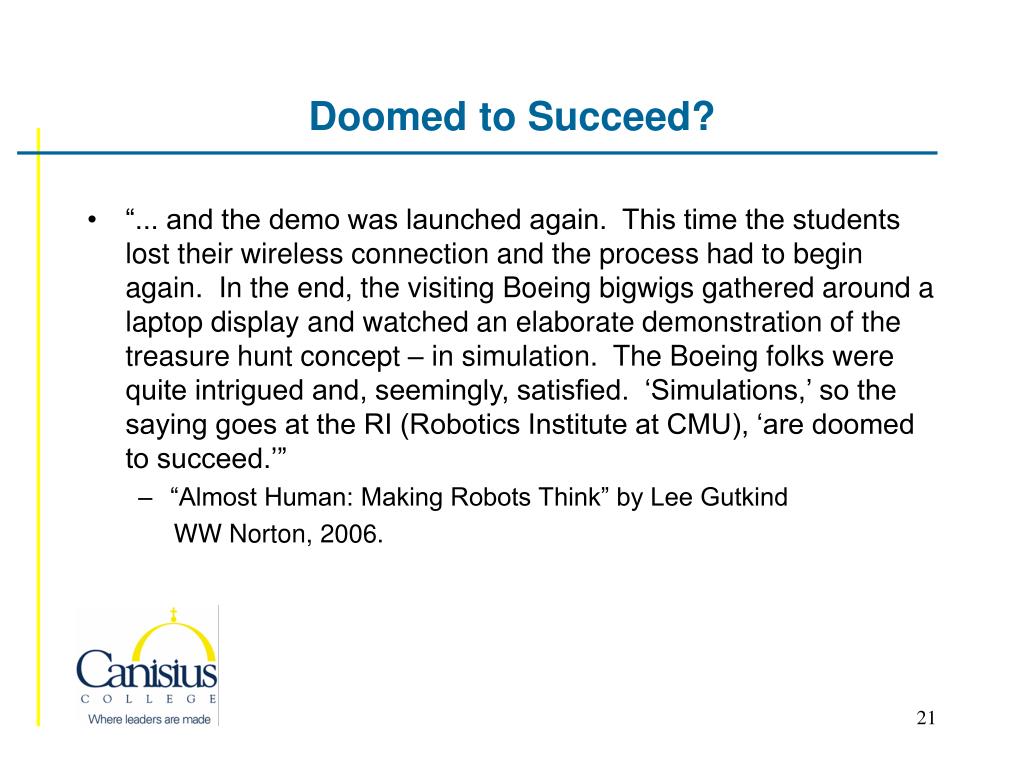

Doomed to Succeed?
  • “... and the demo was launched again. This time the students lost their wireless connection and the process had to begin again. In the end, the visiting Boeing bigwigs gathered around a laptop display and watched an elaborate demonstration of the treasure hunt concept – in simulation. The Boeing folks were quite intrigued and, seemingly, satisfied. ‘Simulations,’ so the saying goes at the RI (Robotics Institute at CMU), ‘are doomed to succeed.’”
    • “Almost Human: Making Robots Think” by Lee Gutkind

WW Norton, 2006.

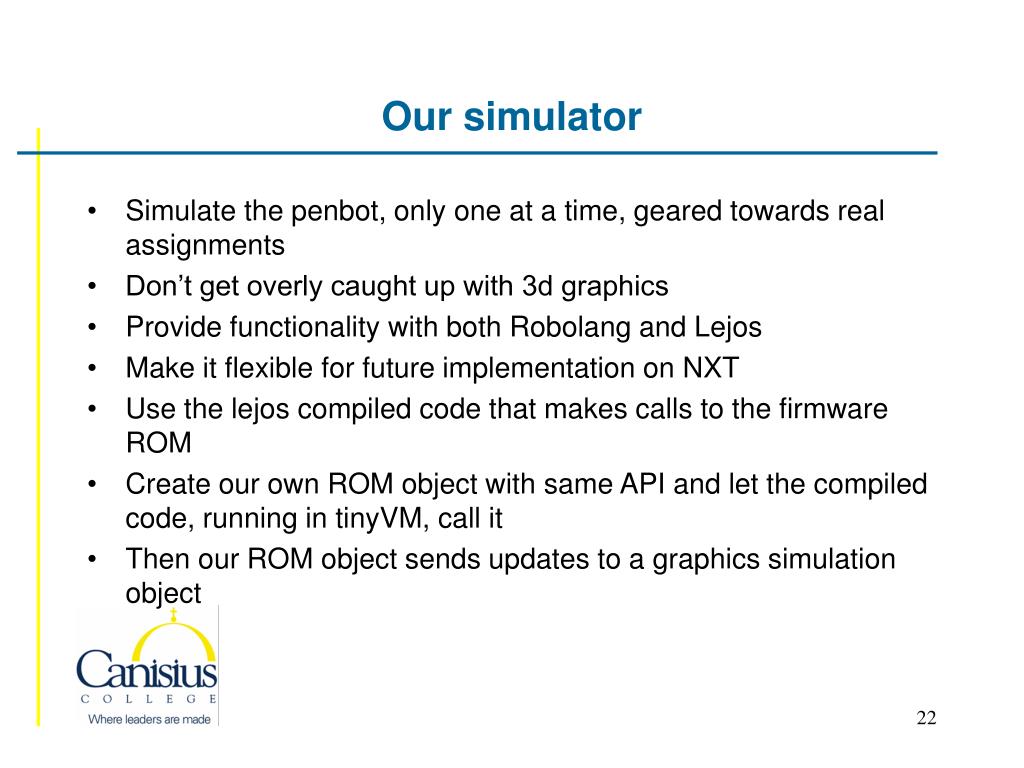

our simulator

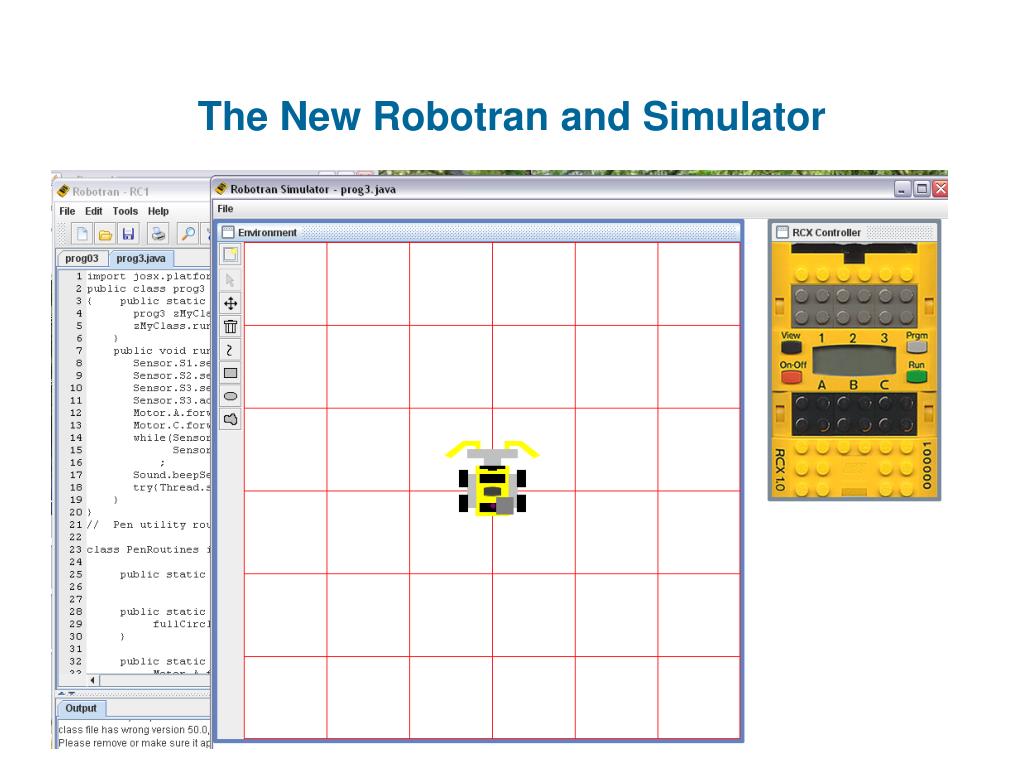

Our simulator
  • Simulate the penbot, only one at a time, geared towards real assignments
  • Don’t get overly caught up with 3d graphics
  • Provide functionality with both Robolang and Lejos
  • Make it flexible for future implementation on NXT
  • Use the lejos compiled code that makes calls to the firmware ROM
  • Create our own ROM object with same API and let the compiled code, running in tinyVM, call it
  • Then our ROM object sends updates to a graphics simulation object

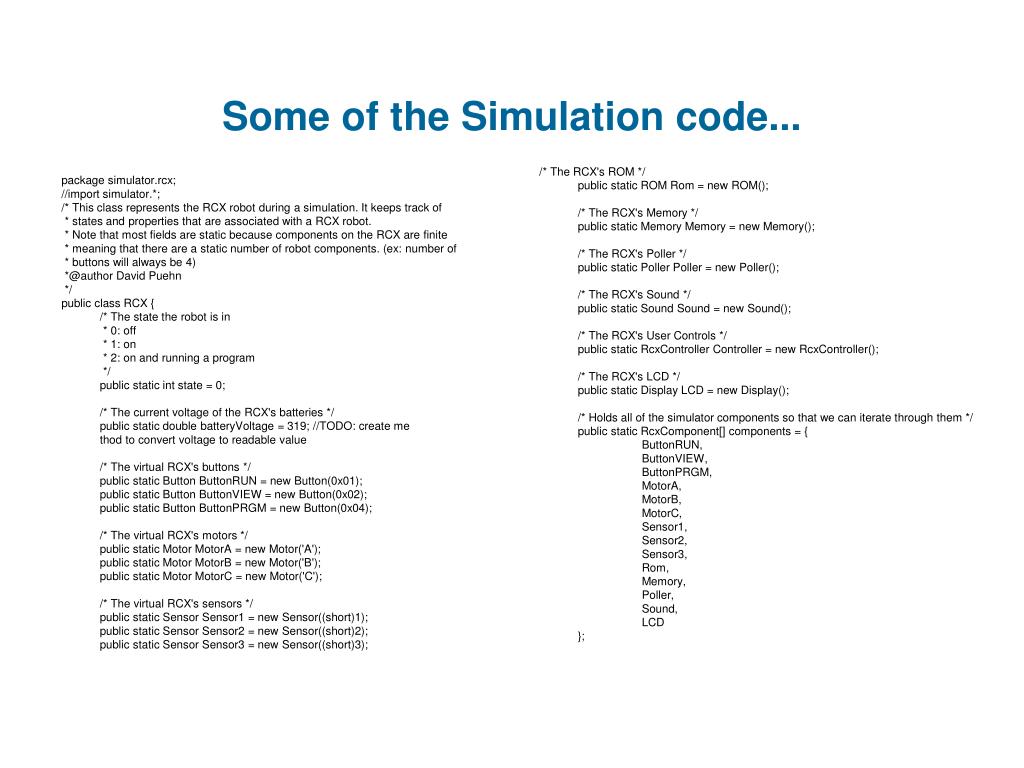

some of the simulation code
Some of the Simulation code...

/* The RCX\'s ROM */

public static ROM Rom = new ROM();

/* The RCX\'s Memory */

public static Memory Memory = new Memory();

/* The RCX\'s Poller */

public static Poller Poller = new Poller();

/* The RCX\'s Sound */

public static Sound Sound = new Sound();

/* The RCX\'s User Controls */

public static RcxController Controller = new RcxController();

/* The RCX\'s LCD */

public static Display LCD = new Display();

/* Holds all of the simulator components so that we can iterate through them */

public static RcxComponent[] components = {

ButtonRUN,

ButtonVIEW,

ButtonPRGM,

MotorA,

MotorB,

MotorC,

Sensor1,

Sensor2,

Sensor3,

Rom,

Memory,

Poller,

Sound,

LCD

};

package simulator.rcx;

//import simulator.*;

/* This class represents the RCX robot during a simulation. It keeps track of

* states and properties that are associated with a RCX robot.

* Note that most fields are static because components on the RCX are finite

* meaning that there are a static number of robot components. (ex: number of

* buttons will always be 4)

*@author David Puehn

*/

public class RCX {

/* The state the robot is in

* 0: off

* 1: on

* 2: on and running a program

*/

public static int state = 0;

/* The current voltage of the RCX\'s batteries */

public static double batteryVoltage = 319; //TODO: create me

thod to convert voltage to readable value

/* The virtual RCX\'s buttons */

public static Button ButtonRUN = new Button(0x01);

public static Button ButtonVIEW = new Button(0x02);

public static Button ButtonPRGM = new Button(0x04);

/* The virtual RCX\'s motors */

public static Motor MotorA = new Motor(\'A\');

public static Motor MotorB = new Motor(\'B\');

public static Motor MotorC = new Motor(\'C\');

/* The virtual RCX\'s sensors */

public static Sensor Sensor1 = new Sensor((short)1);

public static Sensor Sensor2 = new Sensor((short)2);

public static Sensor Sensor3 = new Sensor((short)3);

emulating the native rom routines

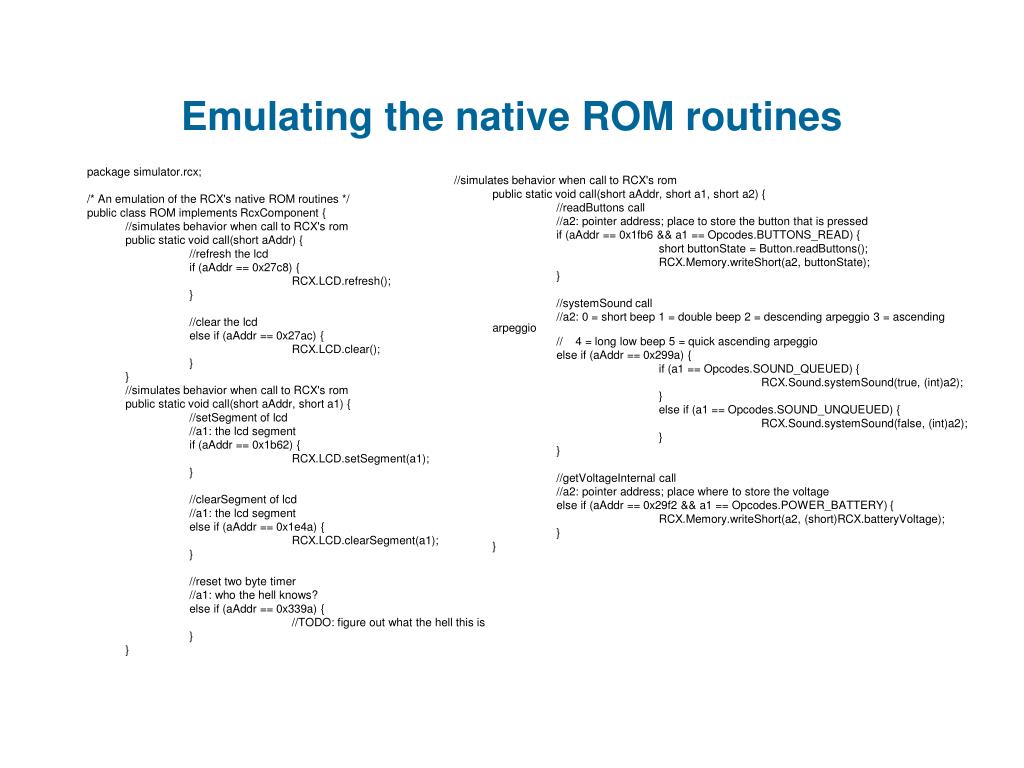

Emulating the native ROM routines

//simulates behavior when call to RCX\'s rom

public static void call(short aAddr, short a1, short a2) {

//readButtons call

//a2: pointer address; place to store the button that is pressed

if (aAddr == 0x1fb6 && a1 == Opcodes.BUTTONS_READ) {

short buttonState = Button.readButtons();

RCX.Memory.writeShort(a2, buttonState);

}

//systemSound call

//a2: 0 = short beep 1 = double beep 2 = descending arpeggio 3 = ascending arpeggio

// 4 = long low beep 5 = quick ascending arpeggio

else if (aAddr == 0x299a) {

if (a1 == Opcodes.SOUND_QUEUED) {

RCX.Sound.systemSound(true, (int)a2);

}

else if (a1 == Opcodes.SOUND_UNQUEUED) {

RCX.Sound.systemSound(false, (int)a2);

}

}

//getVoltageInternal call

//a2: pointer address; place where to store the voltage

else if (aAddr == 0x29f2 && a1 == Opcodes.POWER_BATTERY) {

RCX.Memory.writeShort(a2, (short)RCX.batteryVoltage);

}

}

package simulator.rcx;

/* An emulation of the RCX\'s native ROM routines */

public class ROM implements RcxComponent {

//simulates behavior when call to RCX\'s rom

public static void call(short aAddr) {

//refresh the lcd

if (aAddr == 0x27c8) {

RCX.LCD.refresh();

}

//clear the lcd

else if (aAddr == 0x27ac) {

RCX.LCD.clear();

}

}

//simulates behavior when call to RCX\'s rom

public static void call(short aAddr, short a1) {

//setSegment of lcd

//a1: the lcd segment

if (aAddr == 0x1b62) {

RCX.LCD.setSegment(a1);

}

//clearSegment of lcd

//a1: the lcd segment

else if (aAddr == 0x1e4a) {

RCX.LCD.clearSegment(a1);

}

//reset two byte timer

//a1: who the hell knows?

else if (aAddr == 0x339a) {

//TODO: figure out what the hell this is

}

}

near future improvements

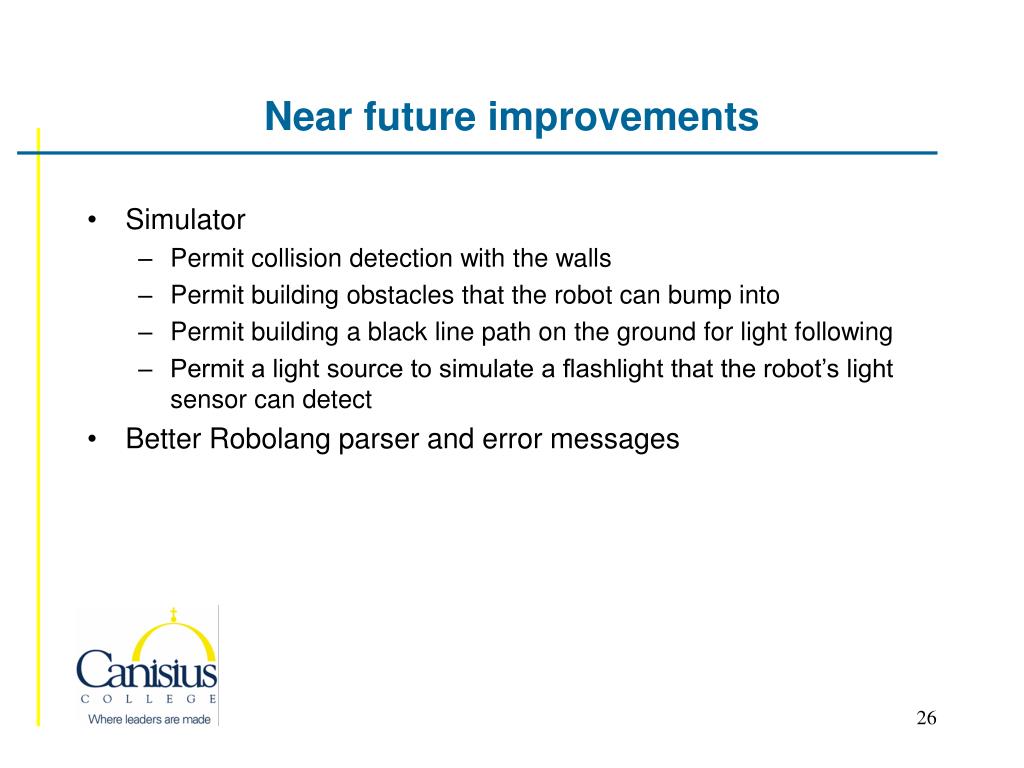

Near future improvements
  • Simulator
    • Permit collision detection with the walls
    • Permit building obstacles that the robot can bump into
    • Permit building a black line path on the ground for light following
    • Permit a light source to simulate a flashlight that the robot’s light sensor can detect
  • Better Robolang parser and error messages
our experience
Our experience
  • Students in early courses that use only Robolang like it
  • They can implement very complex algorithms quickly
  • They participated in a local robot competition and did well
  • Those who went on to CSC 111 seemed to appreciate the link and made the transition to Lejos/Java well
  • Surveys and anecdotal evidence indicate high level of satisfaction
  • After first robot lab: “I actually got a robot to do something!”
  • No statistical difference in final grades between non-robot and robot years in CSC 111
student reactions to ai
Student Reactions to AI
  • Some students who are not very interested in computer science find AI fascinating
  • The interest in AI helps motivate them in robot programming tasks
  • Students are able to make connections between the very simple systems they are using and extremely complex robots such as the Honda Asimo
  • Students appreciate the difficulty of unsolved AI problems such as vision
  • The cultural perception of programmers is negative and boring a la “Office Space”, but roboticists are viewed as interesting and “sexy”
future plans

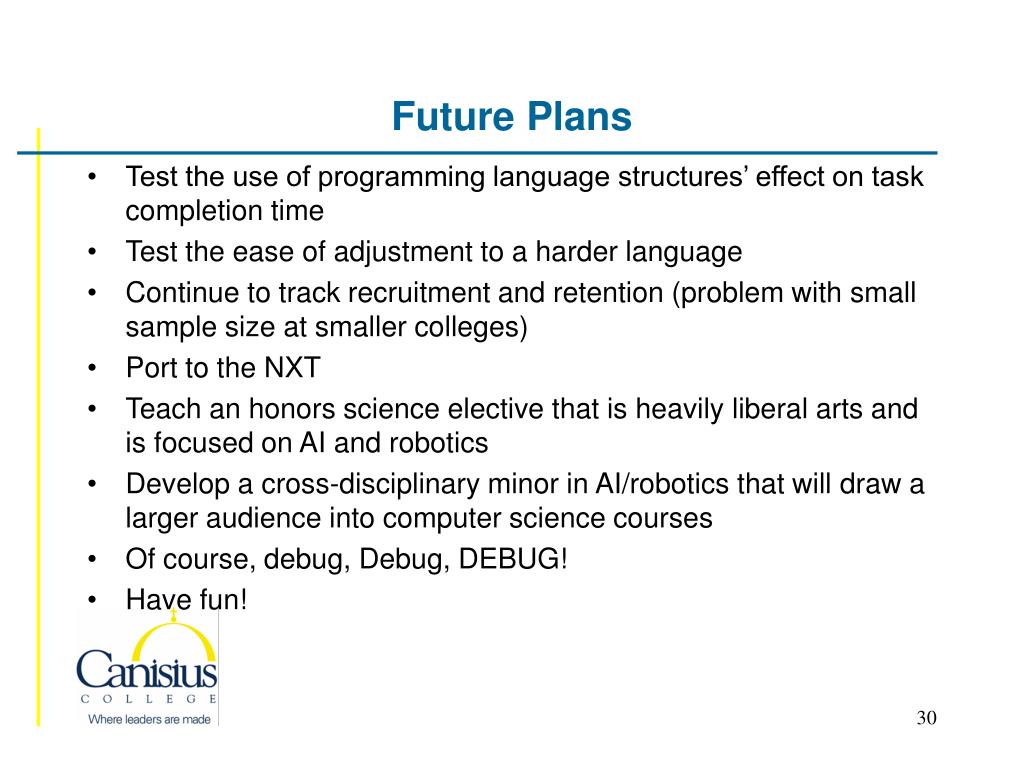

Future Plans
  • Test the use of programming language structures’ effect on task completion time
  • Test the ease of adjustment to a harder language
  • Continue to track recruitment and retention (problem with small sample size at smaller colleges)
  • Port to the NXT
  • Teach an honors science elective that is heavily liberal arts and is focused on AI and robotics
  • Develop a cross-disciplinary minor in AI/robotics that will draw a larger audience into computer science courses
  • Of course, debug, Debug, DEBUG!
  • Have fun!
ad
