Industrial furnaces

Industrial Furnaces

Muhammad Tahir 2006-chem-07

Muhammad Azeem 2006-chem-09

engineering-resource.com


engineering-resource.com


engineering-resource.com process or chemical reaction.


Essential parts
Essential Parts: process or chemical reaction.

  • Burner

  • Radiant section

  • Convection section

  • Shield section

  • Damper

  • Stack

  • Insulation

engineering-resource.com


Burners
Burners process or chemical reaction.

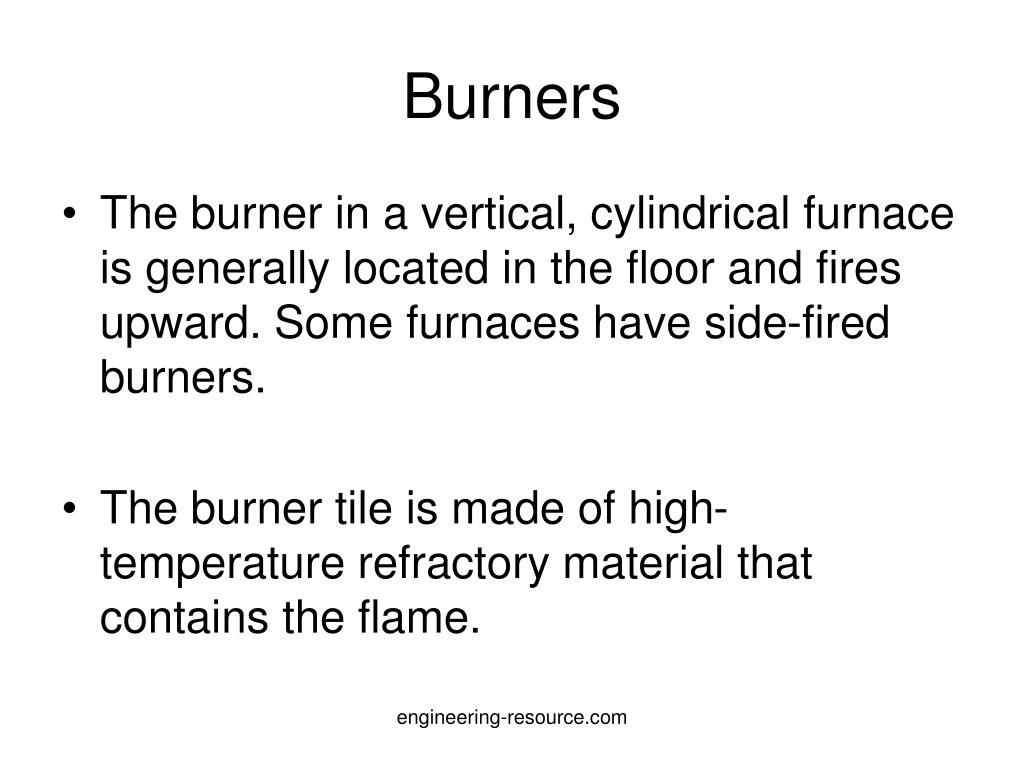

  • The burner in a vertical, cylindrical furnace is generally located in the floor and fires upward. Some furnaces have side-fired burners.

  • The burner tile is made of high-temperature refractory material that contains the flame.

engineering-resource.com


engineering-resource.com process or chemical reaction.


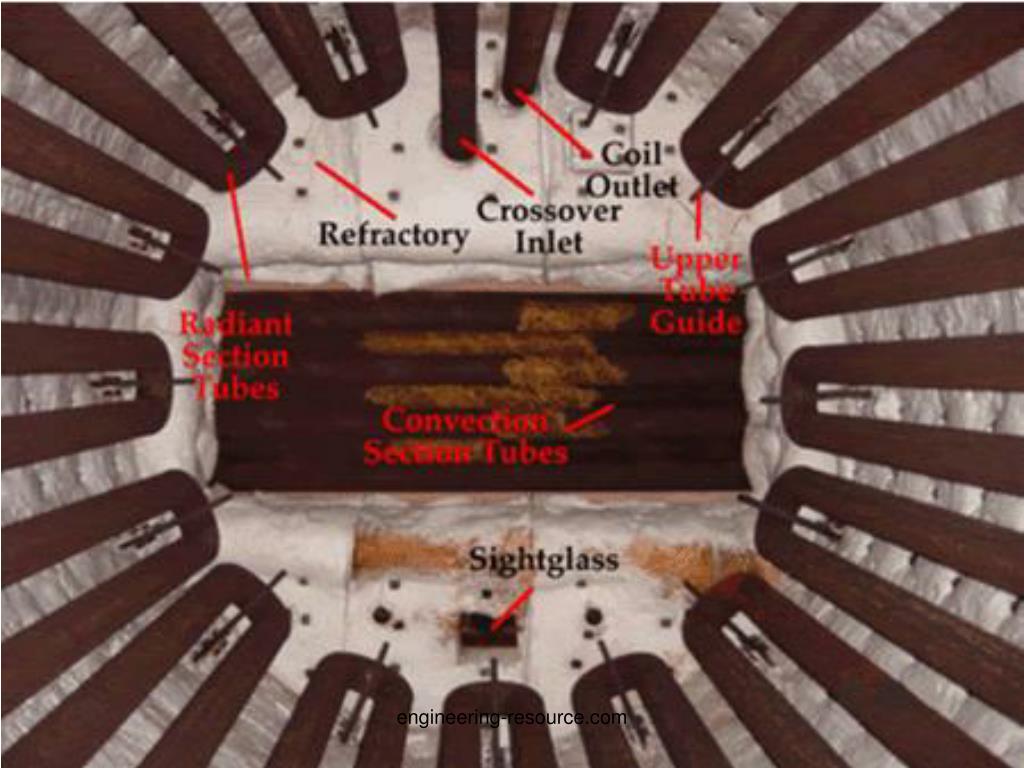

Radiant section
Radiant section process or chemical reaction.

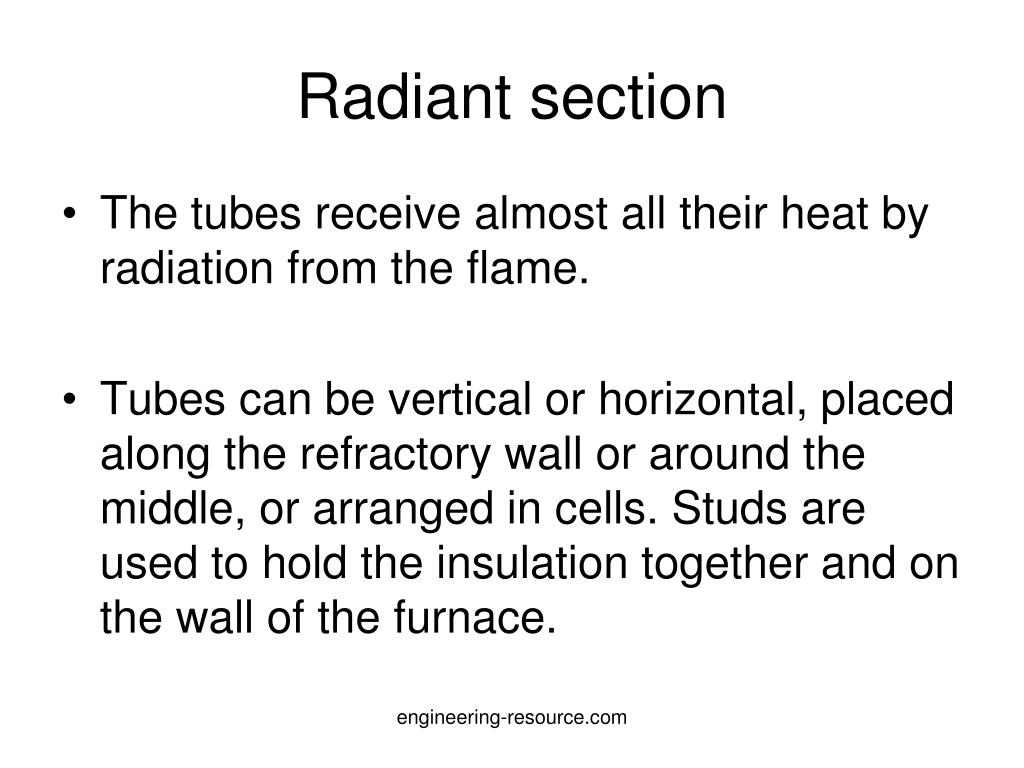

  • The tubes receive almost all their heat by radiation from the flame.

  • Tubes can be vertical or horizontal, placed along the refractory wall or around the middle, or arranged in cells. Studs are used to hold the insulation together and on the wall of the furnace.

engineering-resource.com


engineering-resource.com process or chemical reaction.


engineering-resource.com process or chemical reaction.


Convection section
Convection section process or chemical reaction.

  • The convection section is located above the radiant section, where it is cooler to recover additional heat.

  • In this section, heat transfer takes place by convection, and the tubes are finned to increase heat transfer.

engineering-resource.com


engineering-resource.com


Shield section

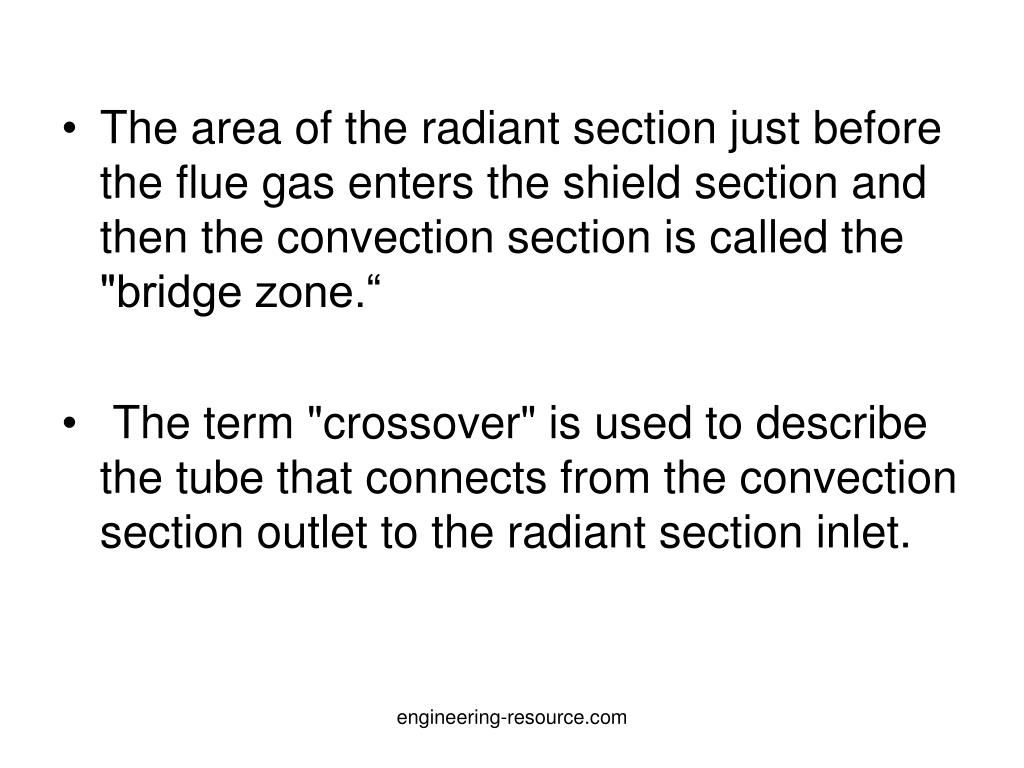

Shield section enters the shield section and then the convection section is called the "bridge zone.“

  • The first two tube rows at the bottom of the convection section and the top of the radiant section form an area of bare tubes (without fins) and are known as the

    "shield section“.

engineering-resource.com


Damper
Damper enters the shield section and then the convection section is called the "bridge zone.“

  • It works like a butterfly valve and regulates the draft (pressure difference between air intake and air outflow) in the furnace. The draft pulls the flue gas through the convection section.

  • It also regulates the heat lost through the stack.

engineering-resource.com


engineering-resource.com enters the shield section and then the convection section is called the "bridge zone.“


Stack
Stack enters the shield section and then the convection section is called the "bridge zone.“

  • The flue gas stack is a cylindrical structure at the top of the heat transfer chamber. The breeching directly below it collects the flue gas and releases it high in the atmosphere where it will not endanger personnel.

engineering-resource.com


Insulation
Insulation enters the shield section and then the convection section is called the "bridge zone.“

  • Insulation is an important part of the furnace because it prevents excessive heat loss.

  • Refractory materials such as firebrick, castable refractories, and ceramic fiber are used for insulation.

engineering-resource.com


Applications
Applications enters the shield section and then the convection section is called the "bridge zone.“

  • Metal Industries

  • Glass Industries

  • Chemical Plants

  • Chemical Industries

  • Steel Industries

  • Aluminum Industries

  • Petrochemical plants

engineering-resource.com
