  1. LaBour Products LVA / TFA Self Priming Classic Taber LaBour Product

  2. LaBour Company History - continued - LaBour Product

  3. LaBour Company History LaBour Product

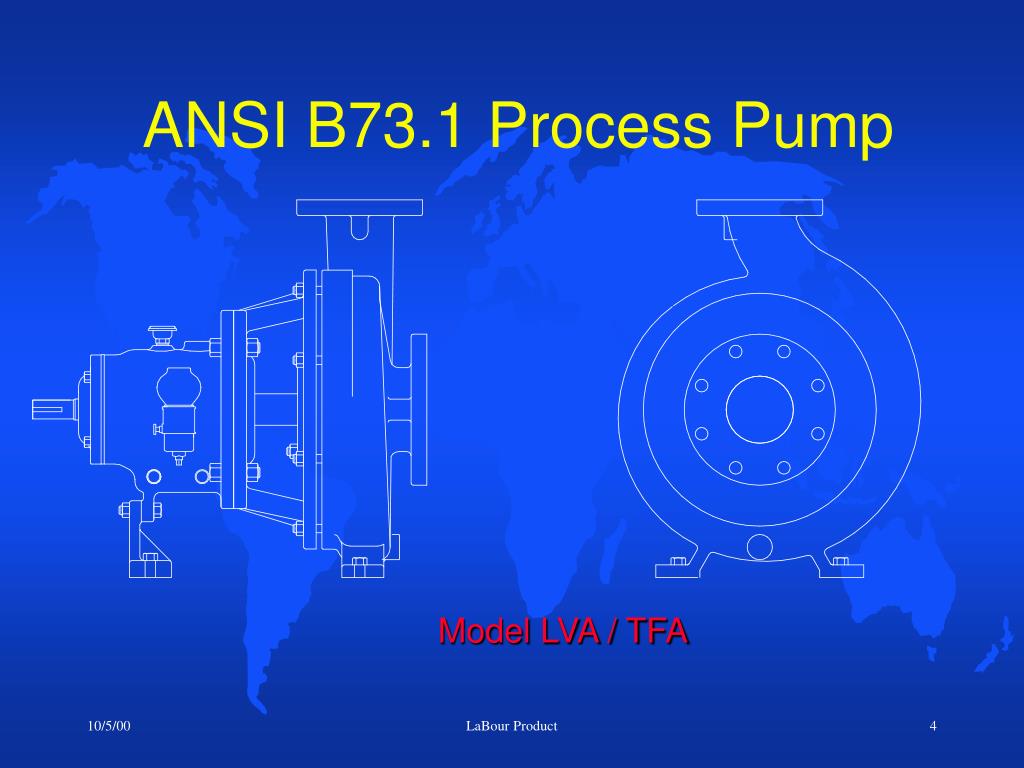

  4. ANSI B73.1 Process Pump • Model LVA / TFA LaBour Product

  5. LVA Design LaBour Product

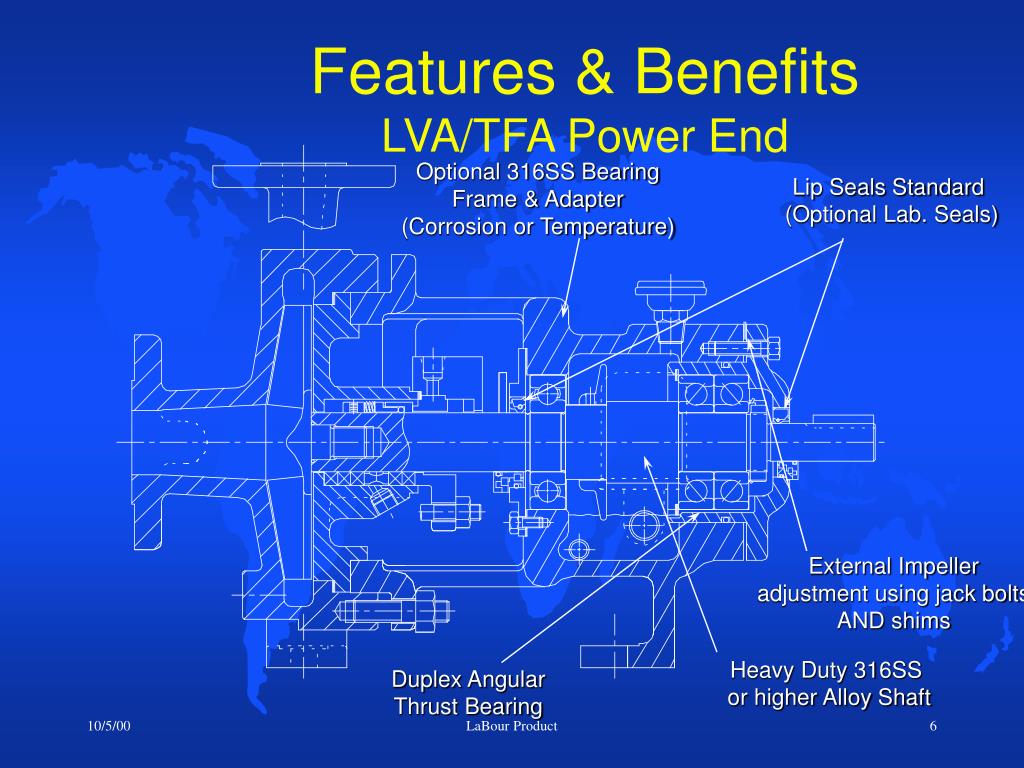

  6. Optional 316SS Bearing Frame & Adapter (Corrosion or Temperature) Lip Seals Standard (Optional Lab. Seals) External Impeller adjustment using jack bolts AND shims Heavy Duty 316SS or higher Alloy Shaft Duplex Angular Thrust Bearing Features & BenefitsLVA/TFA Power End LaBour Product

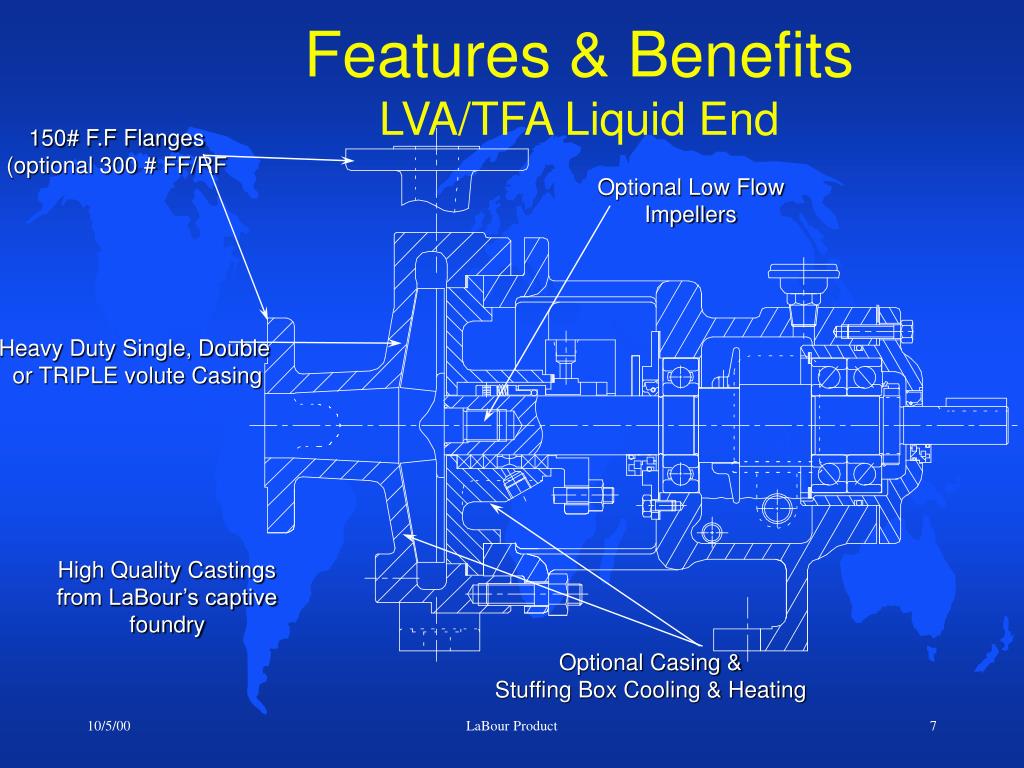

  7. 150# F.F Flanges (optional 300 # FF/RF Optional Low Flow Impellers Heavy Duty Single, Double or TRIPLE volute Casing Optional Casing & Stuffing Box Cooling & Heating Features & BenefitsLVA/TFA Liquid End High Quality Castings from LaBour’s captive foundry LaBour Product

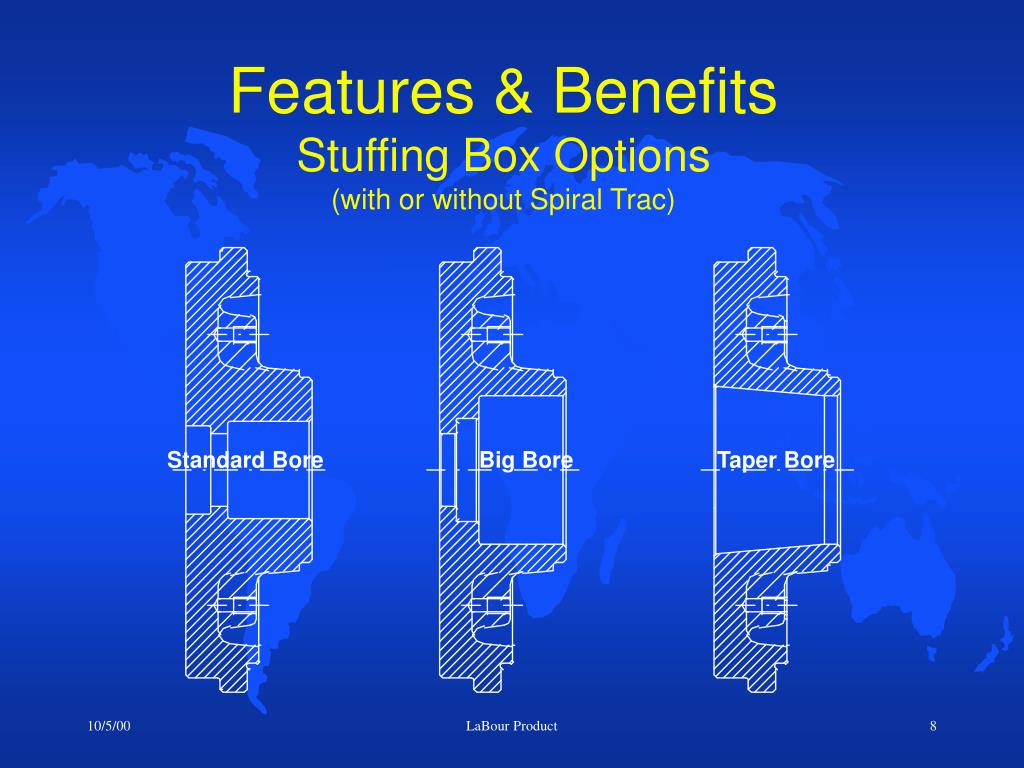

  8. Features & BenefitsStuffing Box Options(with or without Spiral Trac) Standard Bore Big Bore Taper Bore LaBour Product

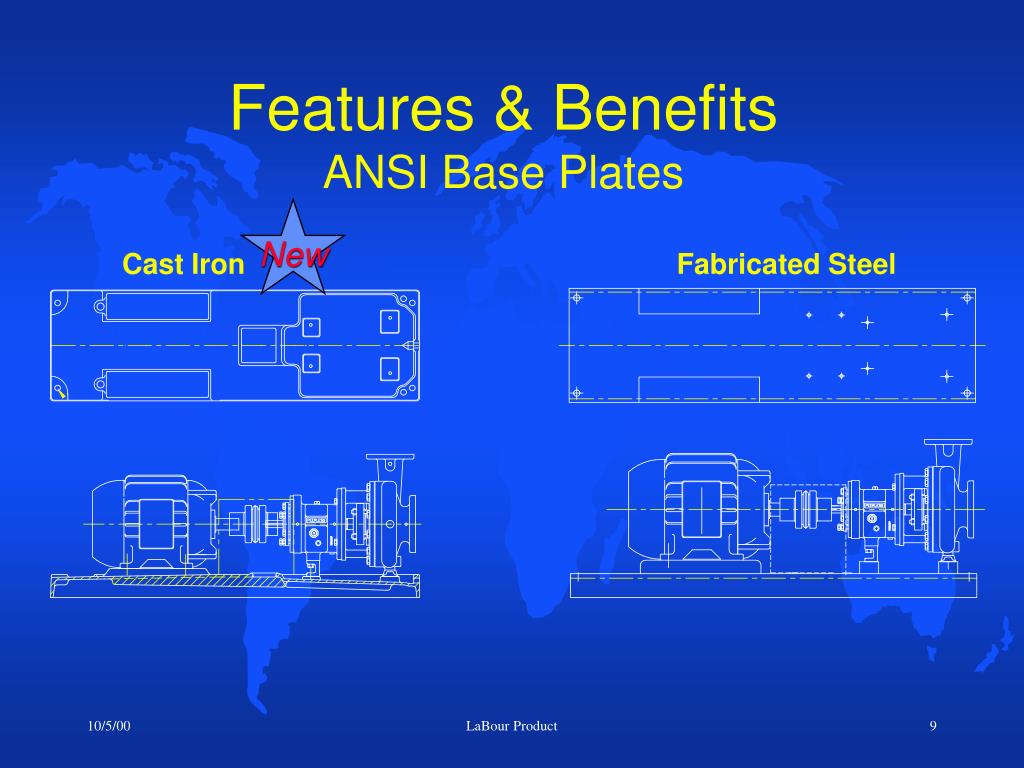

  9. Features & BenefitsANSI Base Plates New Cast Iron Fabricated Steel LaBour Product

  10. Competition Comparison LaBour Product

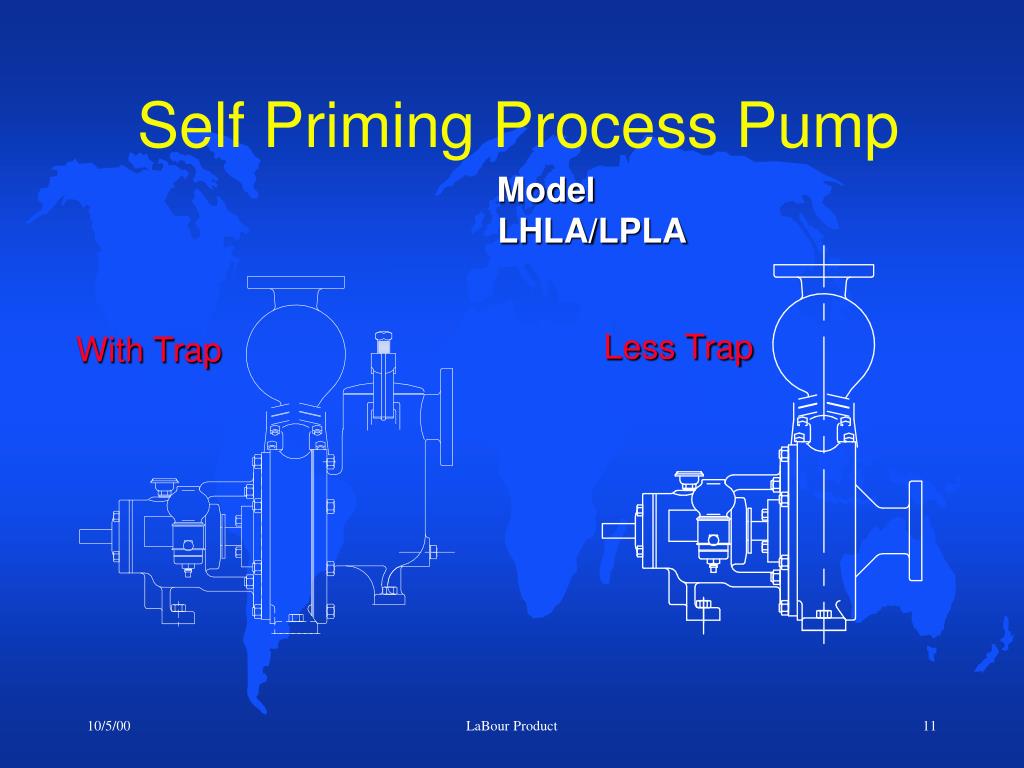

  11. Self Priming Process Pump • Model LHLA/LPLA • Less Trap • With Trap LaBour Product

  12. LPLA/LHLA Design LaBour Product

  13. Features & BenefitsLPLA/LHLA Liquid End LaBour’s HYDRO-BALANCE guarantees suction lifts of upto 25 feet ANSI Back Pull Out Power End with DUPLEX angular thrust bearing LaBour Product

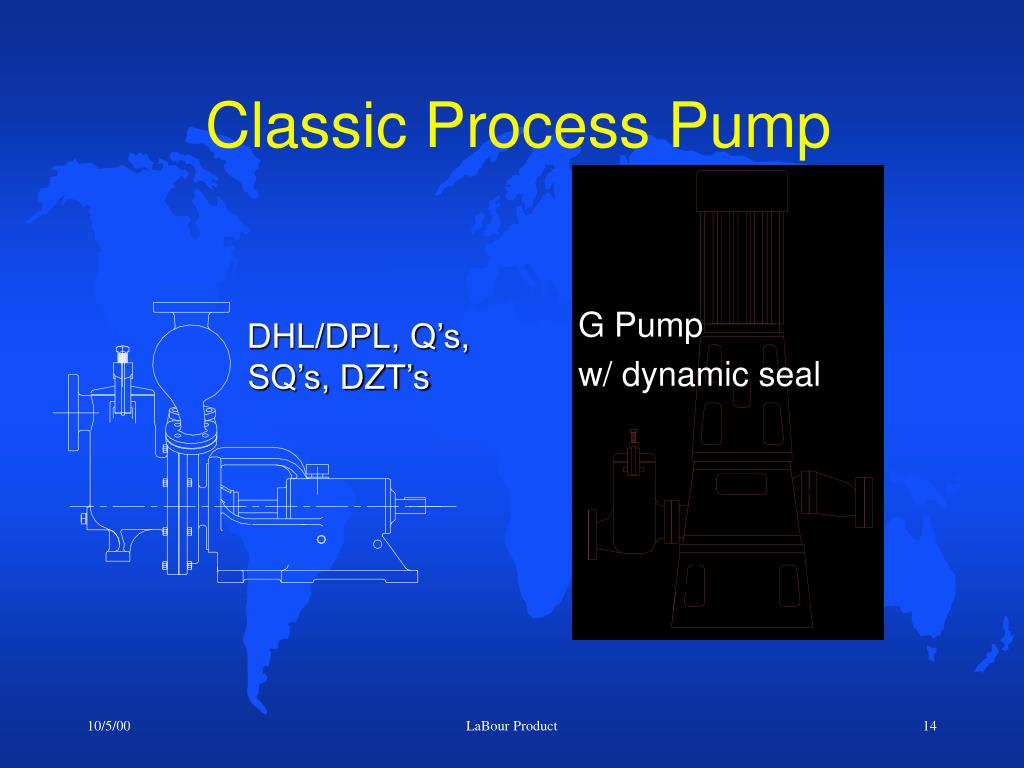

  14. Classic Process Pump • G Pump • w/ dynamic seal • DHL/DPL, Q’s, SQ’s, DZT’s LaBour Product

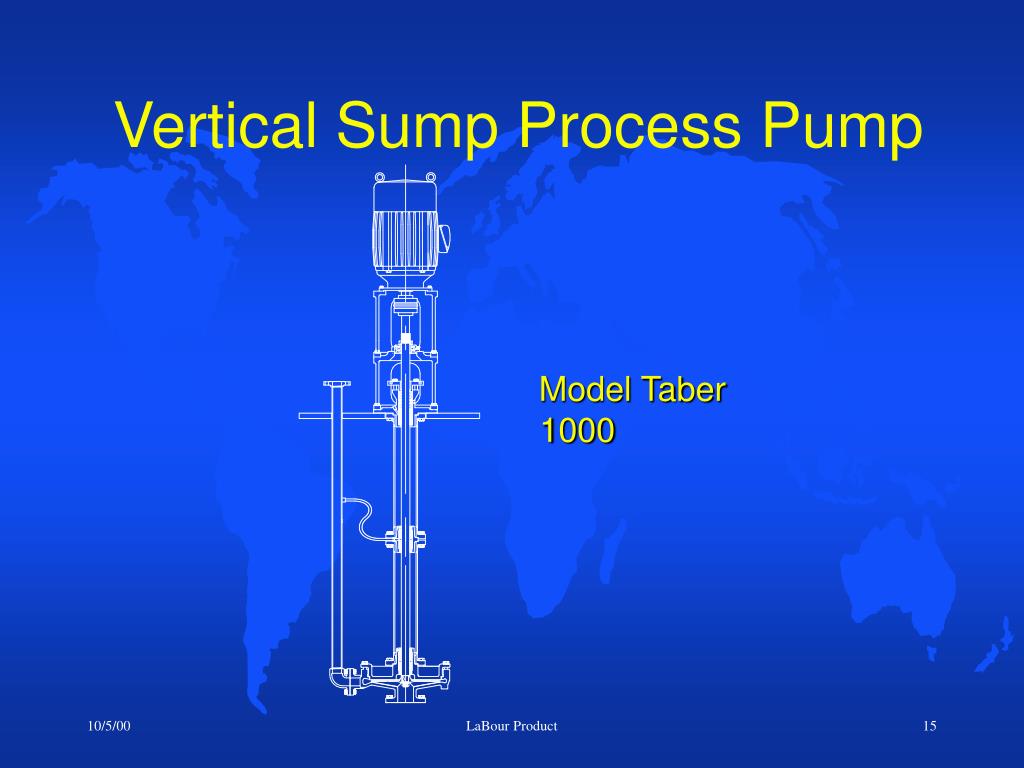

  15. Vertical Sump Process Pump • Model Taber 1000 LaBour Product

  16. Taber 1000 Series Design LaBour Product

  17. Impeller adjustment above the support plate Available with single or double stuffing box, Packed,, Double Liquid or Gas Seal Optional Mounting Arrangements Registered fits throughout the pump simplfying assembly Heavy Duty Construction Features & BenefitsTaber Pumps ANSI Wet End with positively secured Impeller LaBour Product

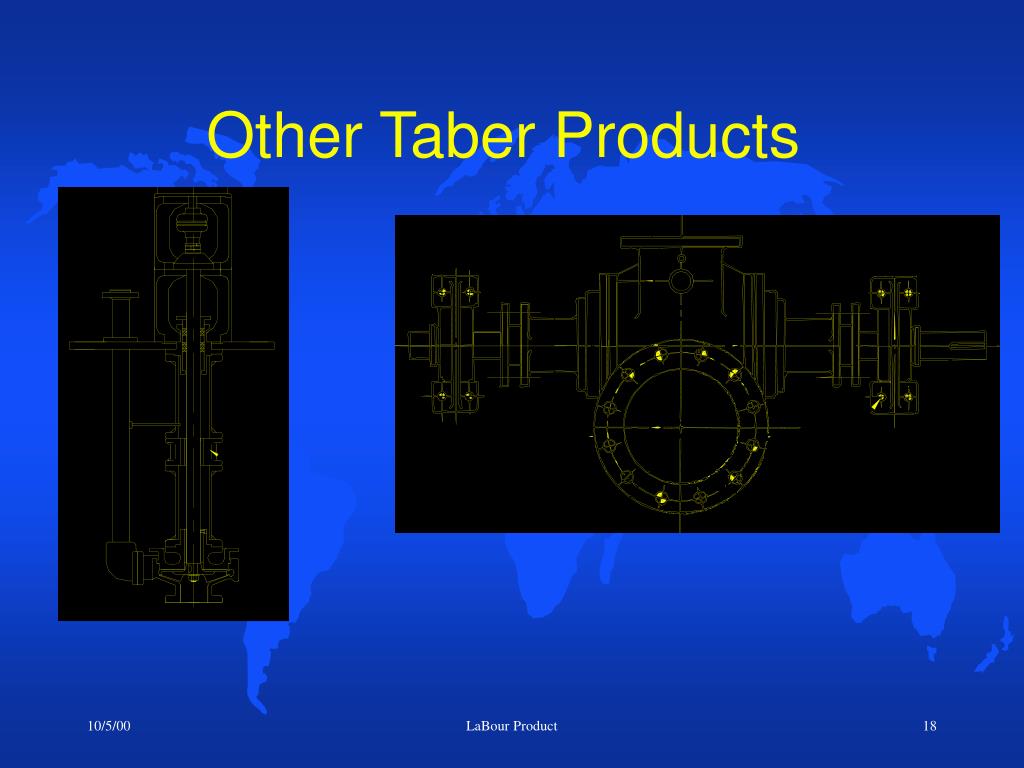

  18. Other Taber Products LaBour Product

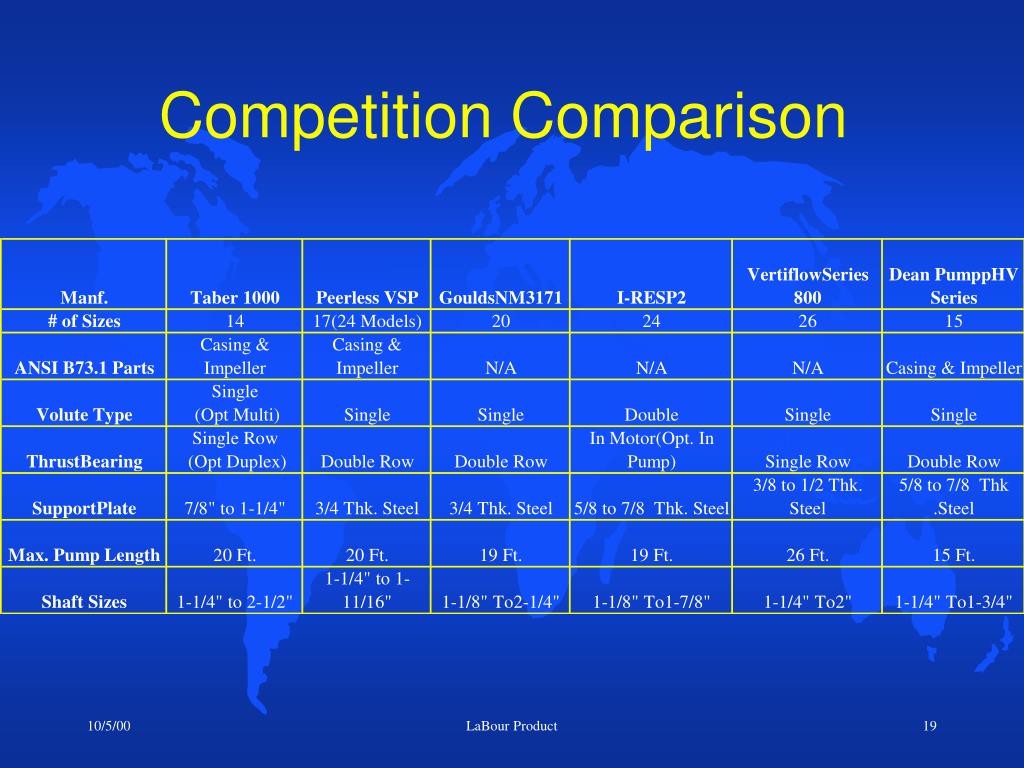

  19. Competition Comparison LaBour Product

  20. Markets • Chemical Process -Industrial Chemicals; Organic Chemicals; Electro Chemicals Fertilizers • Processing and Refining • Metal Finishing • Pharmaceuticals and Cosmetics • Food and Beverage • General Industrial LaBour Product
