Presentation Transcript

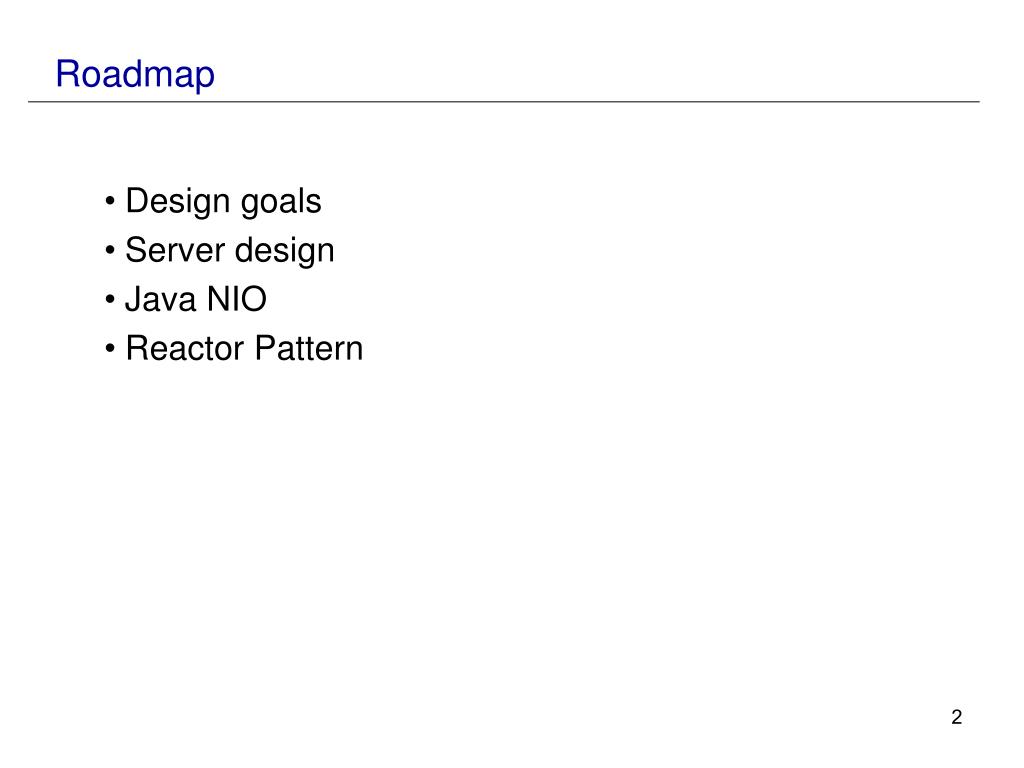

slide2

Roadmap

  • Design goals
  • Server design
  • Java NIO
  • Reactor Pattern
slide3

Design Goals

  • Meet availability and performance goals (response time, throughput … etc)
  • Scalability:
    • Graceful degradation under increasing load (more clients)
    • Continuous improvement with increasing resources (CPU, memory, disk, bandwidth)
slide4

Server Design Spectrum

Server Design

Concurrent

Iterative

+ Simple to implement.

  • Low performance
  • Not scalable
  • Harder to implement (manage concurrency, data sharing)

+ Higher performance

+ Better scalability (more efficient use of resources and ability to handle more clients)

slide5

Server Design Spectrum

Server Design

Concurrent

Iterative

Processes

Threads

+ More secure. (separation of memory space)

+ More fault tolerant (a crash of one process often does not impact other processes)

- Higher overhead

  • Less secure.
  • Less reliable ( a crash in a single thread may lead to a complete server crash)

+ Lower overhead

+ Easier to program.

slide6

Server Design Spectrum

Server Design

Concurrent

Iterative

Processes

Threads

Thread-per-request

(blocking IO)

Event based

(Non blocking IO)

slide7

Server Design Spectrum – Thread-per-request

Figures source: “SEDA: An Architecture for Well-Conditioned, Scalable Internet Services”, Matt Welsh, et. al. SOSP 2001.

slide8

Server Design Spectrum – Event Based

Figures source: “SEDA: An Architecture for Well-Conditioned, Scalable Internet Services”, Matt Welsh, et. al. SOSP 2001.

slide9

Server Design Spectrum

Server Design

Concurrent

Iterative

Processes

Threads

Thread-per-request

(blocking IO)

Event based

(Non blocking IO)

+ Easier to implement.

  • Higher overhead
  • Less scalable
  • Harder to implement (requires maintaining communication state machine and implement handlers for set of events)

+ Less overhead (requires few threads, more efficient use of resources)

+ More scalable.

slide10

Roadmap

  • Design goals
  • Server design
  • Java NIO
  • Reactor Pattern
slide11

Java Non-Blocking IO

Server Side

Figure from O’Reilly OnJava.com

slide12

Java NIO support

  • Channels
    • Connections to files, sockets etc that support non-blocking operations (read, write)
  • Buffers
    • Array-like objects that can be directly read or written by Channels
  • Selectors
    • Tell which of a set of Channels have IO events
  • SelectionKeys
    • Maintain IO event status and bindings
slide13

Java NIO Program Structure

  • Create Selector and one or more Channels
  • Register Channels to a Selector
    • Mark the events of interest to detect in each channel.
  • Loop:
    • Call to the selectoperation of Selector.
      • Returns a number of the keys whose ready set has changed.

(each key corresponds to a channel)

    • Using the selected keys:
      • Check ready operations for each key.
      • Remove the key from the selected keys set.
        • That clears the ready operations set of the key.
      • Do appropriate processing.
slide14

Java NIO Program Structure

// Create the server socket channel

ServerSocketChannel server = ServerSocketChannel.open();

// nonblocking I/O

server.configureBlocking(false);

// host-port 8000

server.socket().bind(new java.net.InetSocketAddress(host,8000));

// Create the selector

Selector selector = Selector.open();

// Recording server to selector (type OP_ACCEPT)

server.register(selector, SelectionKey.OP_ACCEPT);

slide15

Java NIO Program Structure

for(;;) {

// Waiting for events

selector.select(timeout);

// Get the keys

Set keys = selector.selectedKeys();

Iterator i = keys.iterator();

// For each keys...

while(i.hasNext()) {

SelectionKey key = (SelectionKey) i.next();

// Remove the current key

i.remove();

slide16

Java NIO Program Structure

// if isAccetable == true - then a client required a connection

if (key.isAcceptable()) {

// get client socket channel

SocketChannel client = server.accept();

// Non Blocking I/O

client.configureBlocking(false);

// recording to the selector (reading)

client.register(selector, SelectionKey.OP_READ);

continue; }

// if isReadable = true - then the server is ready to read

if (key.isReadable()) {

SocketChannel client = (SocketChannel) key.channel();

try {

client.read(buffer);

} catch (Exception e) {… }

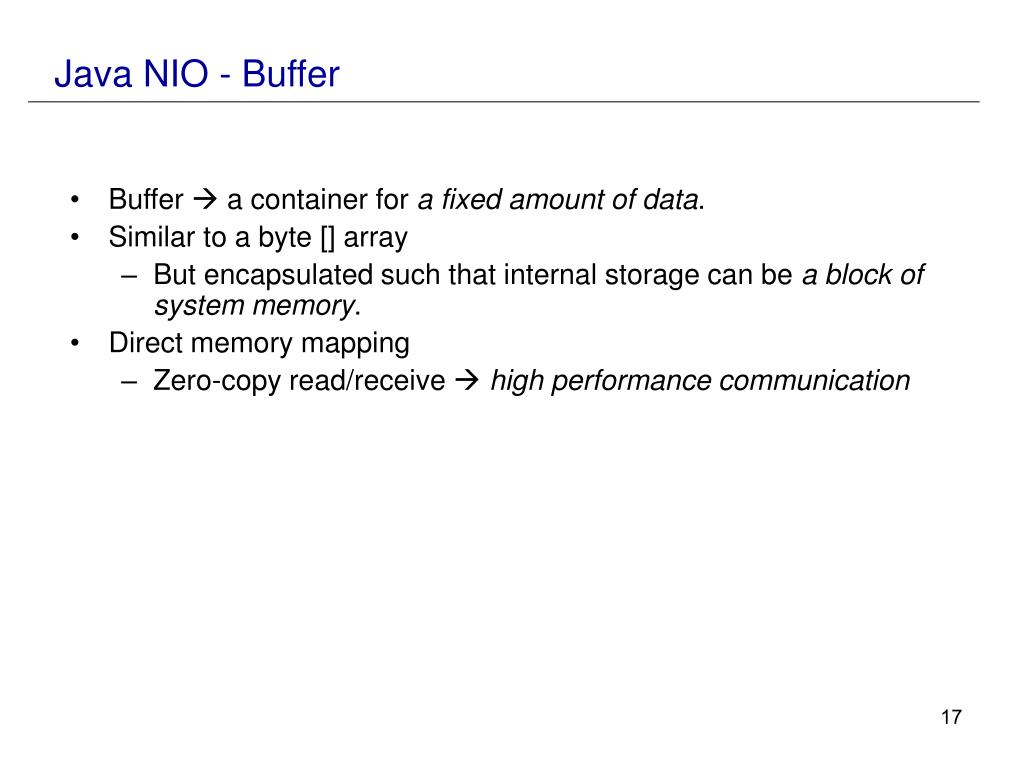

slide17

Java NIO - Buffer

  • Buffer a container for a fixed amount of data.
  • Similar to a byte [] array
    • But encapsulated such that internal storage can be a block of system memory.
  • Direct memory mapping
    • Zero-copy read/receive  high performance communication
slide18

Java NIO – Non blocking operations

  • socket.configureBlocking(false) ;
  • A read() operation transfers data that is immediately available. If no data immediately available, returns 0.
  • If data cannot be immediately written, a write() will immediately return 0.
  • For a server socket, if no client is currently trying to connect, the accept() method immediately returns null.
  • connect() is more complicated
    • generally connections would always block for some interval waiting for the server to respond.
    • In non-blocking mode connect() generally returns false. But the negotiation with the server is nevertheless started. The finishConnect() method on the same socket should be called later. It also returns immediately. Repeat until it return true.
slide19

Java NIO – Key Attachments

  • Problem: when it.next() returns a key, there is no convenient way of getting information about the context in which the associated channel was registered with the selector.
  • Solution: specify an arbitrary object as an attachment to the channel when you register it;
    • Later when you get the key from the selected set, you can extract the attachment, and use its content in to decide what to do.
slide20

Java NIO – Key Attachments Example

channel1.register (selector, SelectionKey.OP_READ,

new Integer(1) ) ; // attachment

channel3.register (selector, SelectionKey.OP_READ |

SelectionKey.OP_WRITE,

new Integer(3) ) ; // attachment

while(true) {

Iterator it = selector.selectedKeys().iterator() ;

SelectionKey key = it.next() ;

if( key.isReadable() )

switch( ((Integer) key.attachment() ).value() ) {

case 1 :

… action appropriate to channel1 …

case 3 :

… action appropriate to channel3 …

}

}

slide21

Java NIO Tutorial

Introducing Non blocking IO

http://www.onjava.com/pub/a/onjava/2002/09/04/nio.html?page=1

A good overview (including NIO.2)

http://chamibuddhika.wordpress.com/2012/08/11/io-demystified/

slide22

Roadmap

  • Design goals
  • Server design
  • Java NIO
  • Reactor Pattern
slide25

Reactor Design

Pattern

  • Handle
    • Receives events; E.g. a network connection, timer, user interface device
  • Synchronous Event Demultiplexer
    • select() waits until an event is received on a Handle and returns the event.
    • Often implemented as part of an operating system.
  • Initiation Dispatcher
    • Uses the Synchronous Event Demultiplexer to wait for events.
    • Dispatches events to the Event Handlers.
  • Event Handler
    • Application-specific event processing code.
slide26

Reactor Design Pattern Dynamics

  • Setup
    • Create Initiation Dispatcher.
    • Register Event Handlers with Initiation Dispatcher.
  • Main loop
    • Call handleEvents in Initiation Dispatcher repeatedly.
    • Initiation Dispatcher calls select in Synchronous Event Demultiplexer, blocking until an event is received.
    • The Initiation Dispatcher calls handleEvent in the corresponding Event Handler, passing it the event.
  • End
    • Unregister Event Handlers from Initiation Dispatcher.
