Folic Acid

Folic Acid. C 19 H 19 N 7 O 6. A member of vitamin B-complex. Slightly solubility in water. Odorless. Antianemic, “food addictive “ and reproduction optimizer. Dosfolat (Tetrahydrofolicacid). - The hydrosoluble form of folic acid. - Optimizes the enzymatic metabolism of bacteria.

sabine
Download Presentation

Folic Acid

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Folic Acid C19H19N7O6 • A member of vitamin B-complex. • Slightly solubility in water. • Odorless. • Antianemic, “food addictive “ and reproduction optimizer.

  2. Dosfolat (Tetrahydrofolicacid) - The hydrosoluble form of folic acid. - Optimizes the enzymatic metabolism of bacteria. - Reduces the generated amount of sludge. - Activates the ammonia nitrification. - Ends the excessive growth of filamentous bacteria. - Since 1983 - no similar products. - Developed for 20 years.

  3. - Density: 1.25 g/cm3 • - pH (10.000 ppm): 6.5 • - Shock dosage: 0,5 to 0,7 ppm, more often 0,5. • - Operation dosage, accordingly to COD: • up to 2000 mg/l  0,1 ppm • between 5000 and 5500  0,2 ppm • above 5500  0,3 ppm • - Increase of stalk protozoa, decrease of turbidity. • - Contains nitrogen, promoting the decrease of urea dosage.

  4. - Dosage: • Dilution 1:100 (initial), 1:200 or 1:400 (industrial effluents, high load or organic toxics), in distilled or demineralized water. • Solution valid for 1 week, maximum tolerance 14 days. • Water quality testing for solution (in case of light water): prepare a 1% solution, let it rest for 24 hours, if no precipitation or turbidity is observed, water is apt. • - Dosage point: TQ-AR entrance (next to recycling).

  5. Cloudiness means poor quality dilution water

  6. Phases of action of Dosfolat General summary 1. Increase of active microorganisms population 2. More efficient oxidation, requiring less contact time OM / bacteria 3. Thus, we are able to raise the sludge age 4. As oxidation is faster, there is no sufficient time for solids (biomass) increase 5. Working with regular levels of solids in the system, high degradability and high sludge age (IL), sludge discharge is reduced.

  7. Experience 1 Santista Têxtil (Americana - SP) - Beginning of tests in Jan/98. Plant characteristics: - Main objectives: • Flowrate (Q): 95 m3/h • BOD2: 1100 mg/l • COD2: 1800 mg/l (Ef removal: 85%) • IL: 20 days • SST3: 3400 ml/l • Sludge Generation: 1100 kg/day (dry base) • Increase microbiota population (observation of flocs) • Increase efficiency in BOD/COD removal • Reduce number of filamentous bacteria • Decrease generation of sludge (raise IL level to 30 days) • Decrease in color

  8. - Operation: • Initial dosage, or shock dosage, with duration of 15 days 0,5 mg/l (19,26 kg) • Operational Dosage 0,2 mg/l (15,40 kg/month) • Solution 1:400, with demineralized water • Periodical increasing on the sludge age

  9. 1000 liters polyethylene tank, with lid Dosing pump Qr Q Outlet to DC TQ-AR 6400 m3 Scheme for preparation tank and dosage point

  10. Main Results Microbiology:decrease of filaments, improving the settleability, reducing SVI and presenting larger and more cohese flocs. Proliferation of stalked ciliate protozoa was observed, indicating stability of the plant. Color:the ETS had a history of 2410 mg/l of PtCo, we reached 574 with stabilization at 1409 mg/l of PtCo. SOUR (specific oxygen uptake rate):used to maintain a mean value of 10 mgO2/h/g of SSV. By the end of the essays the ETS was already working with a SOUR of 165 mgO2/h/g of SSV. COD removal: increase of efficiency, from 85 % to 93 % Decrease of the generated amount of sludge: compared to 5 days prior to the beginning of administration: 23 % compared to the last 30 days prior to the beginning of administration: 38,7 % compared to the last 90 days: 38 % compared to the last 12 months: 36 %

  11. 20 days 25 days 30 days Results 1.Increase of efficiency in COD removal B. Decrease of final values

  12. 20 days 25 days 30 days Results 2. Reduction of Color

  13. 20 days 25 days 30 days Results 3. Reduction of SVI

  14. 20 days 25 days 30 days Results 4. Reduction of generated sludge

  15. Microbiology

  16. Before Application

  17. After Application

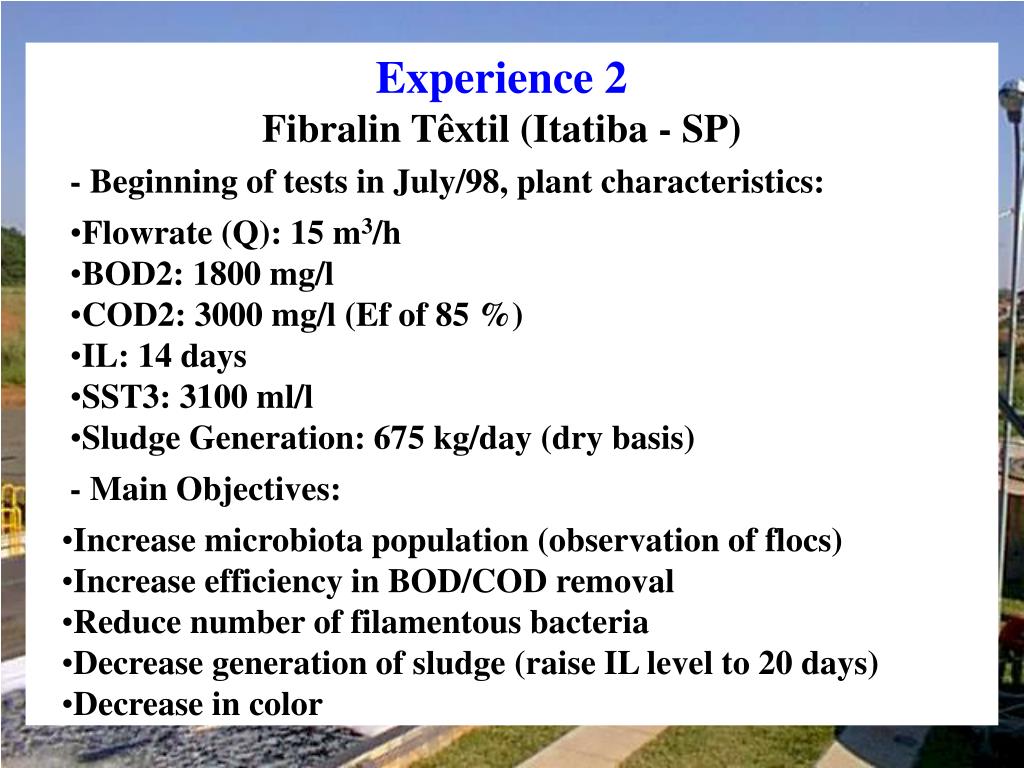

  18. Experience 2 Fibralin Têxtil (Itatiba - SP) - Beginning of tests in July/98, plant characteristics: - Main Objectives: • Flowrate (Q): 15 m3/h • BOD2: 1800 mg/l • COD2: 3000 mg/l (Ef of 85 %) • IL: 14 days • SST3: 3100 ml/l • Sludge Generation: 675 kg/day (dry basis) • Increase microbiota population (observation of flocs) • Increase efficiency in BOD/COD removal • Reduce number of filamentous bacteria • Decrease generation of sludge (raise IL level to 20 days) • Decrease in color

  19. - Operation: • Shock dosage, with duration of 15 days 0,5 mg/l (0,24 kg/day) • Operational dosage 0,3 mg/l (0,144 kg/d) • Solution 1:400, with demineralized water • Periodical increasing on the age of sludge

  20. Sludge Reduction • After 2 years, we have observed the following pattern of reduction: • 3 first months: 46 % • 6 months: 70 % • 1 year and 5 months: 85 % • 2 years: 99,6 %

  21. Experience 3 Vine Têxtil S/A - F I - (Itatiba - SP) Discharge closed in 35 days, sustained till today (18 months)

  22. IMPORTANT OBSERVATIONS • Never interrupt dosage: breakage of degradation cycle • Use only demineralized or distilled water: avoid clots • Avoid direct action of UV rays • Basic rules of manipulation • Don’t use metal barrels for storage of solution
