Allied telesis products that can help anixter security team

Allied Telesis products that can help Anixter Security Team

  • Power over Ethernet (PoE) Switches

  • Connection to IP Cameras

    • IP Cameras over fibre

    • IP Cameras over legacy Co-ax

    • PoE Injector

  • Connection to Wireless IP Cameras

    • Outdoor wireless router

  • Connecting it all together (with security)

    • Advanced Layer 3 (Core) Switches


Power over ethernet poe cameras

Power over Ethernet (PoE) Cameras

  • IP Cameras require Power and IP connectivity,

  • PoE Switches both provide power and connectivity down one cable

  • Different IP Cameras need different amounts of power:

  • Axis P1344 - Class 2 (6.3 Watt x 24 = 151 Watt)

  • (1280 x 800 1MP HDTV 720p)

  • Axis P1344E - Class 3(15.4 Watt x 24 = 370 Watt)

  • (Outdoor housing with small heater)

  • Axis M3203 Fixed Dome - Class 2(6.3 Watt x 24 = 151 Watt)

  • (800 x 600)

  • Axis Q6032-E Pan Tilt Zoom - High Power PoE+ (Up to 30 Watt ea)

  • Different PoE switches provide different facilities and different total Power

  • Total PoE power of Switch must exceed total PoE consumption of cameras!


Power and wired connectivity switches for fixed ip cameras

Power and wired connectivity Switches for Fixed IP Cameras

  • AT-FS750/24POE– 24 ports 10/100 100W PoE total

  • 12 ports PoE

  • WebSmart (simple configuration from a browser)

  • ECO Switch - Low power consumption, low or no fan noise

  • 2 Combo uplinks - (1Gb copper or up to 2Km fibre)

12 PoE Ports

AT-8000S/24POE- 24 ports 10/100185 Watt PoE total

24 ports Class 2 PoE (6.5Watt) or 12 Class 3 PoE (13W)

Full Managed Layer 2 (has resilient & secure features)

Can secure the switch, it only talks to known devices

2 Combo uplinks – (1Gb copper or up to 2Km fibre)


Power and connectivity for pzt outdoor cameras

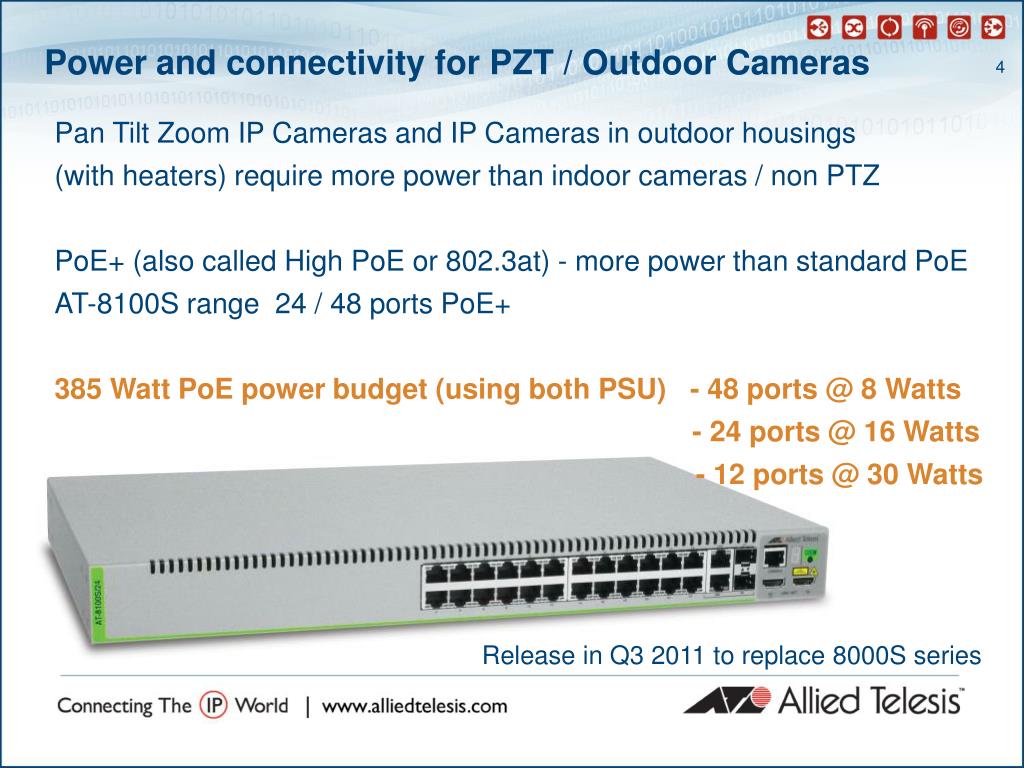

Power and connectivity for PZT / Outdoor Cameras

  • Pan Tilt Zoom IP Cameras and IP Cameras in outdoor housings

  • (with heaters) require more power than indoor cameras / non PTZ

  • PoE+ (also called High PoE or 802.3at) - more power than standard PoE

  • AT-8100S range 24 / 48 ports PoE+

  • 385 Watt PoE power budget (using both PSU) - 48 ports @ 8 Watts

  • - 24 ports @ 16 Watts

  • - 12 ports @ 30 Watts

Release in Q3 2011 to replace 8000S series


Ip camera more than 100m away

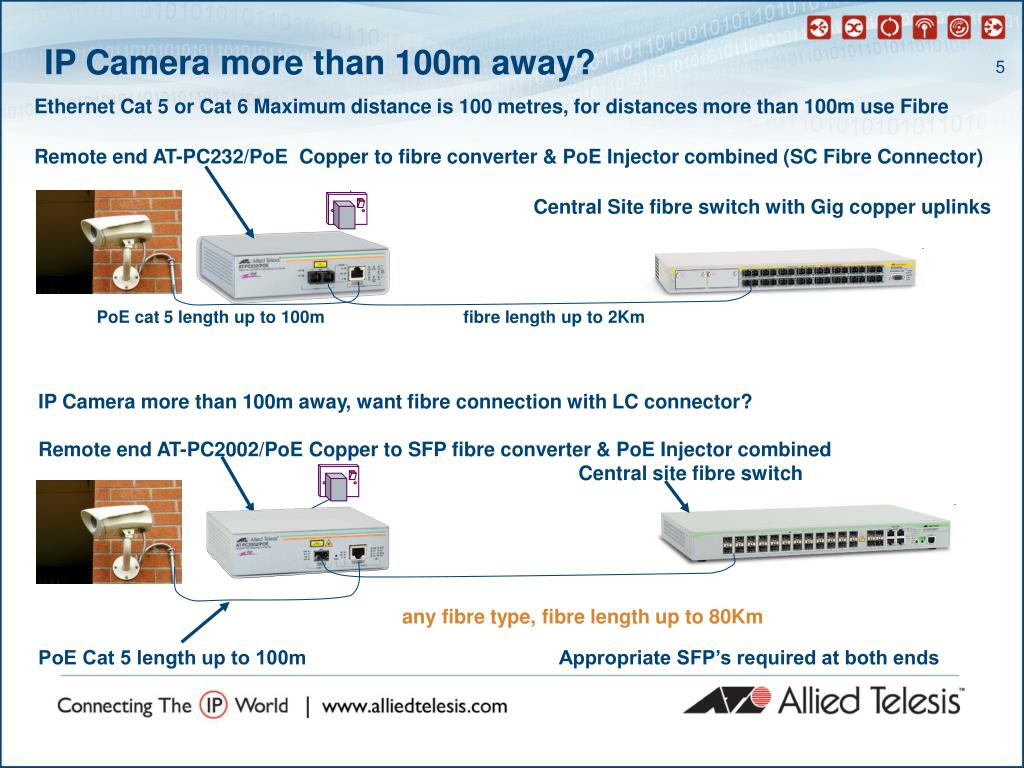

IP Camera more than 100m away, want fibre connection with LC connector?

Remote end AT-PC2002/PoE Copper to SFP fibre converter & PoE Injector combined

Central site fibre switch

any fibre type, fibre length up to 80Km

PoE Cat 5 length up to 100m Appropriate SFP’s required at both ends

IP Camera more than 100m away?

  • Ethernet Cat 5 or Cat 6 Maximum distance is 100 metres, for distances more than 100m use Fibre

  • Remote end AT-PC232/PoE Copper to fibre converter & PoE Injector combined (SC Fibre Connector)

  • Central Site fibre switch with Gig copper uplinks

  • PoE cat 5 length up to 100m fibre length up to 2Km


Upgrading analog cameras to ip cameras

Central site solution allows up to 12

Ethernet over co-ax Media converters

To be put into one Rack

Optional PoE Injector (AT-6101G)

Saves running separate power cable to camera

May be situated up to 100m away from Camera

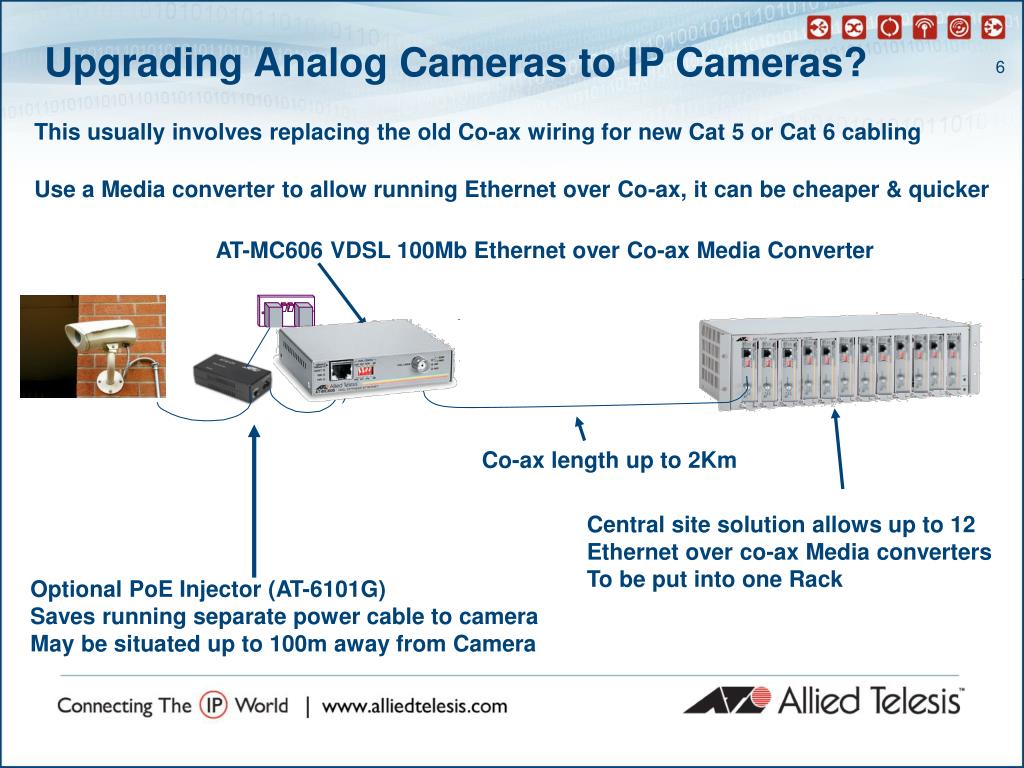

Upgrading Analog Cameras to IP Cameras?

  • This usually involves replacing the old Co-ax wiring for new Cat 5 or Cat 6 cabling

  • Use a Media converter to allow running Ethernet over Co-ax, it can be cheaper & quicker

AT-MC606 VDSL 100Mb Ethernet over Co-ax Media Converter

Co-ax length up to 2Km


Outdoor wireless router

Outdoor Wireless Router

  • 2.4 GHz and 5 GHz Dual Band, Dual Radio

  • 802.11a/b/g compliant connects directly to cameras

  • High sensitivity radio for longer reach wireless links

  • Selection of directional antenna for longer reach

  • PoE powered for wired backhaul

  • Dual Radio allows for Wireless backhaul

802.11b/g

IP Cameras

802.11a

PoE switch Viewing Station

802.11b/g

Wireless Cameras

with power source

WR4562 Wireless Router


Core switches

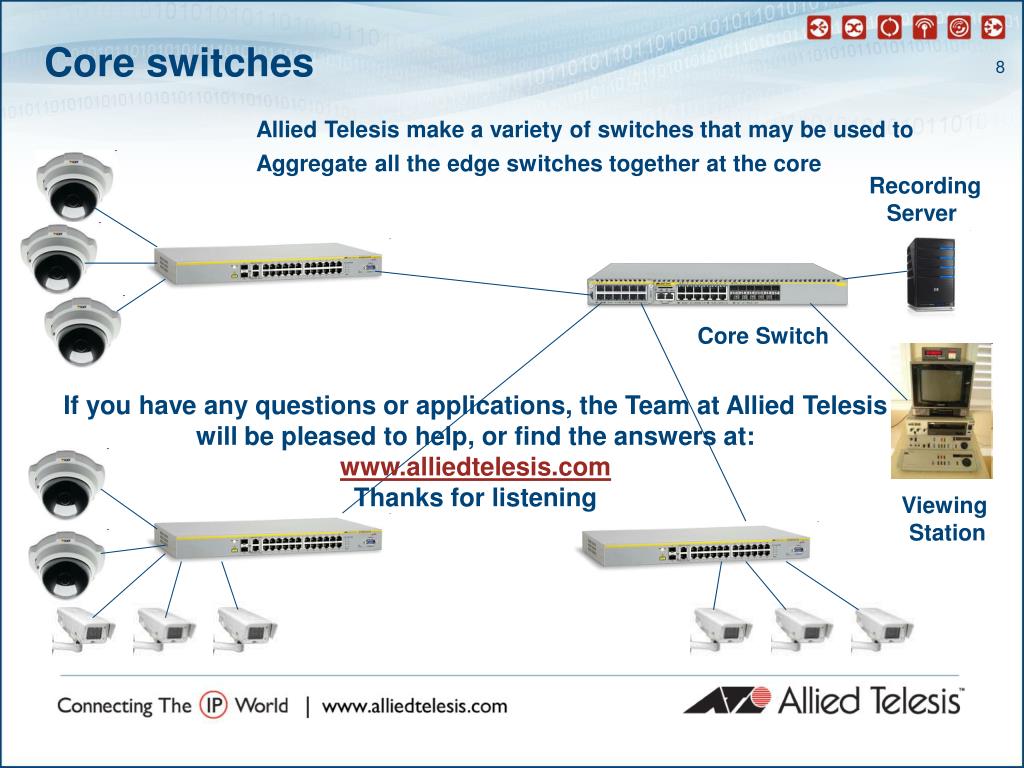

Core switches

  • Allied Telesis make a variety of switches that may be used to

  • Aggregate all the edge switches together at the core

Recording

Server

Core Switch

If you have any questions or applications, the Team at Allied Telesis

will be pleased to help, or find the answers at:

www.alliedtelesis.com

Thanks for listening

Viewing

Station
