  1. e-VLBI Development Program at MIT Haystack Observatory Alan R. WhitneyChester A. Ruszczyk MIT Haystack Observatory 13 July 2005e-VLBI WorkshopAustralia

  2. Current Projects at Haystack Observatory • Standardization • VSI-E Draft VSI-E standard distributed in January 2004 • Reference implementation released in October 2004 • Network interfacing equipment for e-VLBI • Mark 5 VLBI data system • Network Monitoring • Evaluation, development and deployment of monitoring systems • Intelligent Applications • Automation of e-VLBI transfers an ongoing process • Development of optimization-based algorithms for intelligent applications ongoing (EGAE) • Intelligent optically-switched networks (DRAGON) • e-VLBI Experiments • Goal to put e-VLBI into routine use

  3. VSI-E Architecture

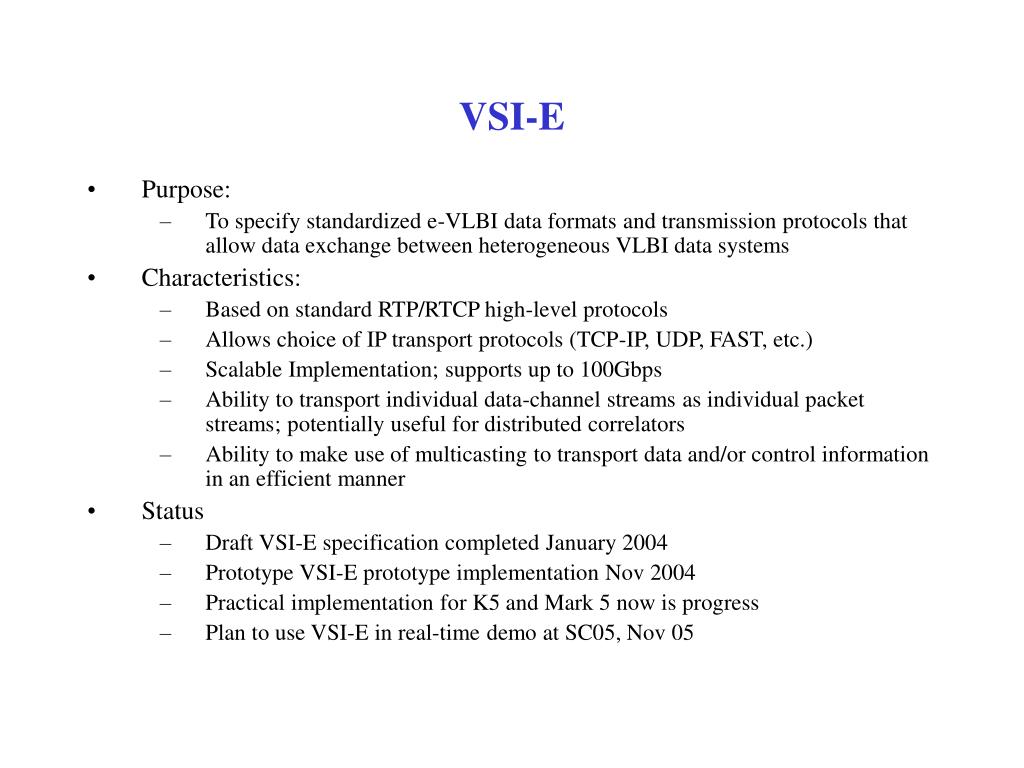

  4. VSI-E • Purpose: • To specify standardized e-VLBI data formats and transmission protocols that allow data exchange between heterogeneous VLBI data systems • Characteristics: • Based on standard RTP/RTCP high-level protocols • Allows choice of IP transport protocols (TCP-IP, UDP, FAST, etc.) • Scalable Implementation; supports up to 100Gbps • Ability to transport individual data-channel streams as individual packet streams; potentially useful for distributed correlators • Ability to make use of multicasting to transport data and/or control information in an efficient manner • Status • Draft VSI-E specification completed January 2004 • Prototype VSI-E prototype implementation Nov 2004 • Practical implementation for K5 and Mark 5 now is progress • Plan to use VSI-E in real-time demo at SC05, Nov 05

  5. Reaching 1024 Mbps with Mark 5 • Achieving 1024Mbps with Mark 5 is challenging • Can move ~1.2 Gbps between StreamStor card memory via PCI bus, but • If GigE NIC is on same PCI bus, bus contention slows aggregate transfers to ~400-550Mbps, depending on motherboard • Single GigE connections tops out at ~980Mbps (theoretically and experimentally) • Typical GigE drivers require interrupt service every Ethernet frame; can generate up to ~100,000 interrupts/sec • Elements of Solution • Capable motherboard with multiple independent PCI buses • Dual ‘channel-bonded’ GigE links • Driver or hardware interrupt mitigation; use of ‘jumbo frames’ • Careful software structure

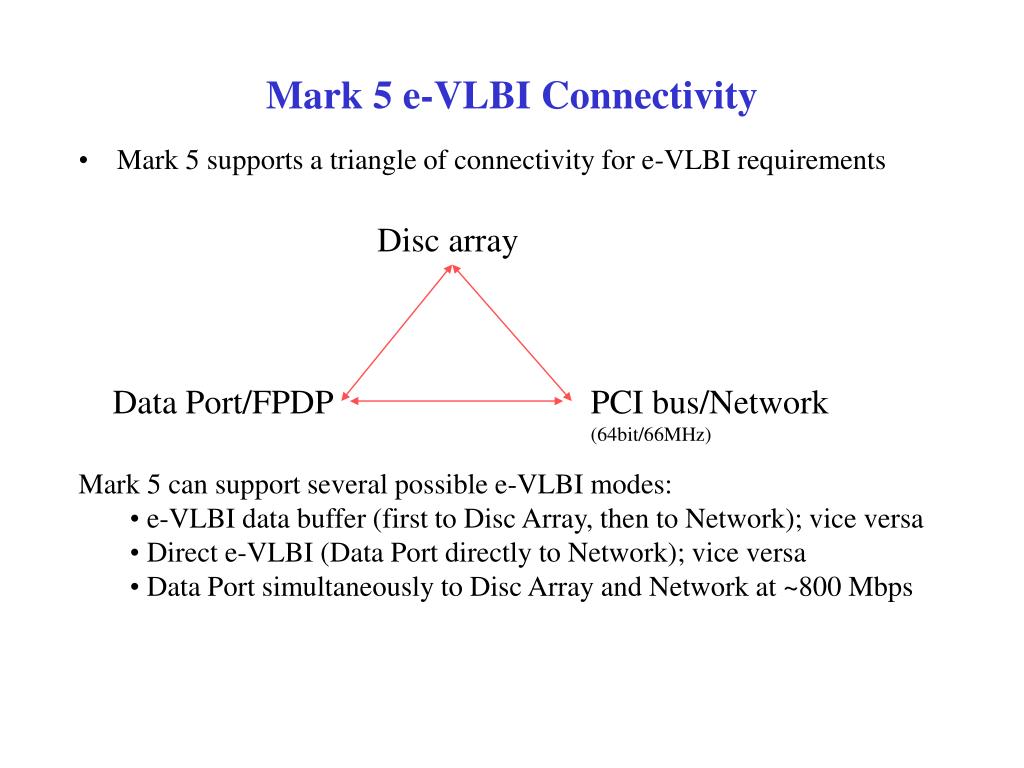

  6. Mark 5 e-VLBI Connectivity • Mark 5 supports a triangle of connectivity for e-VLBI requirements Disc array Data Port/FPDP PCI bus/Network(64bit/66MHz) • Mark 5 can support several possible e-VLBI modes: • e-VLBI data buffer (first to Disc Array, then to Network); vice versa • Direct e-VLBI (Data Port directly to Network); vice versa • Data Port simultaneously to Disc Array and Network at ~800 Mbps

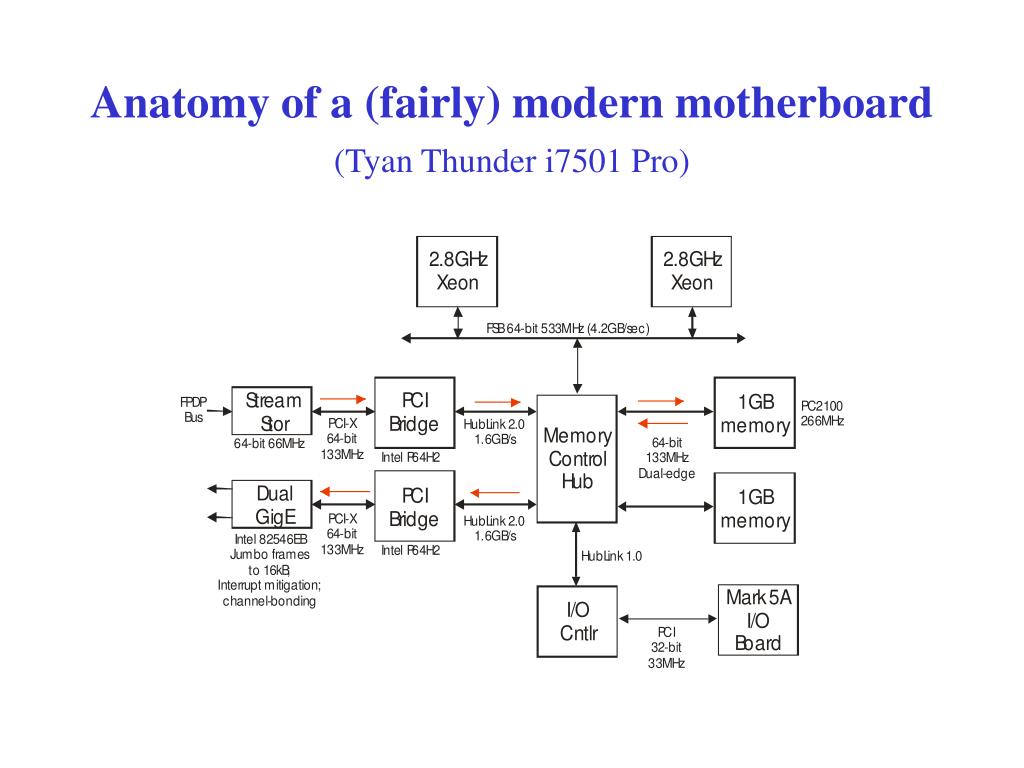

  7. Anatomy of a (fairly) modern motherboard(Tyan Thunder i7501 Pro)

  8. Best transfer rates to date • Memory-to-memory transfers between Tyan motherboards – ~1900Mbps • Uses dual channel-bonded GigE connection • Mark 5A-to-memory transfer – ~1200 Mbps • Required major re-working of Mark 5A software to improve efficiency of data-transfer to/from NIC, minimize number of internal buffer-to-buffer transfers, and support multiple threads • More work still to be done to achieve routine 1024 Mbps Mark5-to-Mark5 transfers • We plan to concentrate our efforts on implementing and optimizing with VSI-E to achieve 1024 Mbps • There should be no performance difference between Mark 5Aand Mark 5B

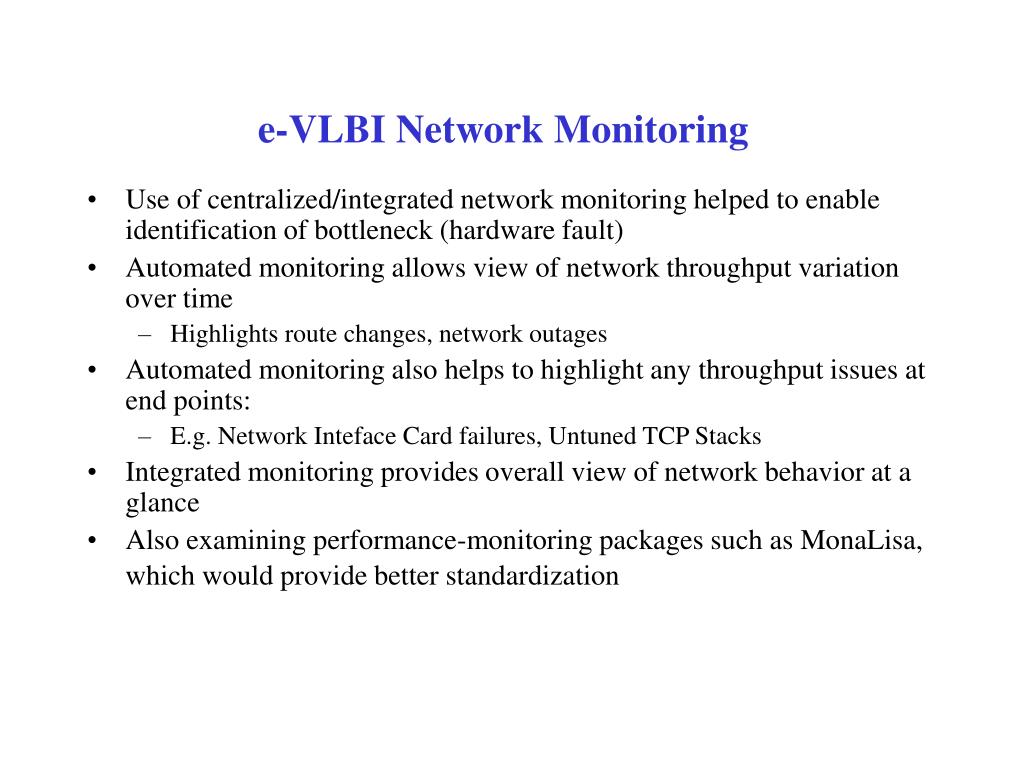

  9. e-VLBI Network Monitoring • Use of centralized/integrated network monitoring helped to enable identification of bottleneck (hardware fault) • Automated monitoring allows view of network throughput variation over time • Highlights route changes, network outages • Automated monitoring also helps to highlight any throughput issues at end points: • E.g. Network Inteface Card failures, Untuned TCP Stacks • Integrated monitoring provides overall view of network behavior at a glance • Also examining performance-monitoring packages such as MonaLisa, which would provide better standardization

  10. Network State DataBase (NSDB) • Tool to keep track of state of e-VLBI state: • Network performance • Configuration of end systems • State of end systems • Integrates and builds on standard monitoring tools to provide a single, coherent view of e-VLBI network state: • Maintain continuous state monitoring of entire e-VLBI system • Essential for being able to identify issues with network/end system configuration • Diagnose at-a-glance (cf. current practice)

  11. NSDB Architecture

  12. e-VLBI Weather Map Web Page(Haystack to Kashima)http://web.haystack.mit.edu/e-vlbi/evlbi.html

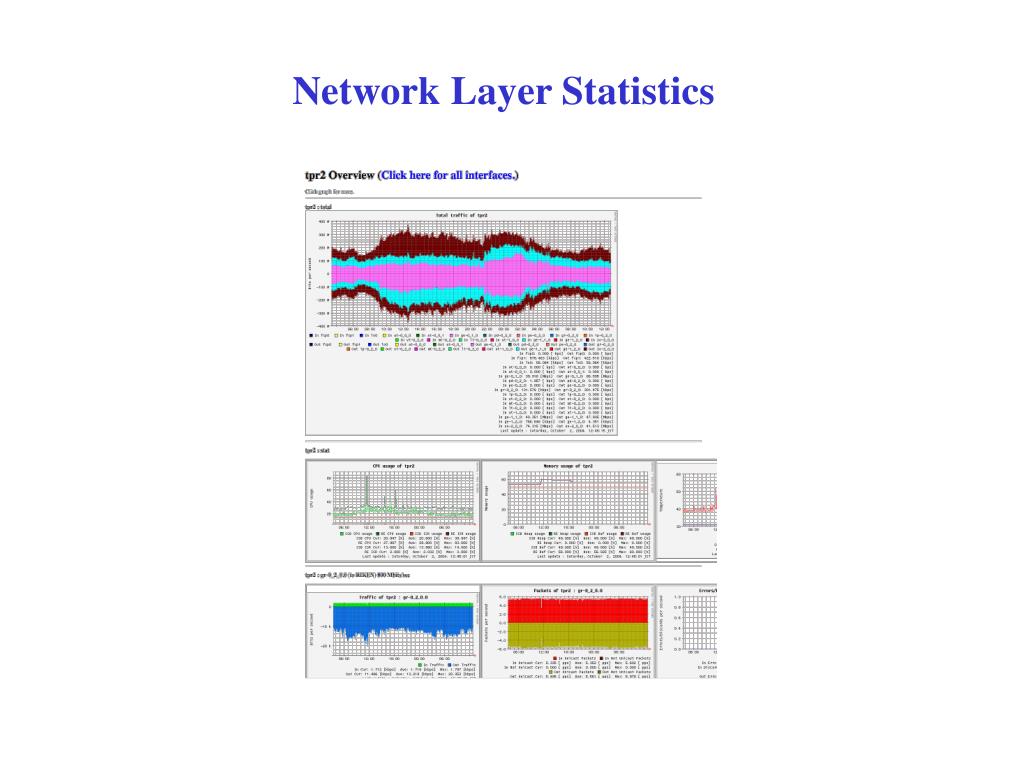

  13. Network Layer Statistics

  14. New Application-Layer Protocols for e-VLBI • Based on observed usage statistics of networks such as Abilene, it is clear there is much unused capacity • New protocols are being developed which are tailored to e-VLBI characteristics; for example: • Can tolerate some loss of data (perhaps 1% or so) in many cases • Can tolerate delay in transmission of data in many cases • ‘Experiment-Guided Adaptive Endpoint’ (EGAE) strategy being developed at Haystack Observatory under 3-year NSF grant: • Will ‘scavenge’ and use ‘secondary’ bandwidth • ‘Less than best effort’ service will not interfere with high-priority users • Translates science-user criteria into network constraints

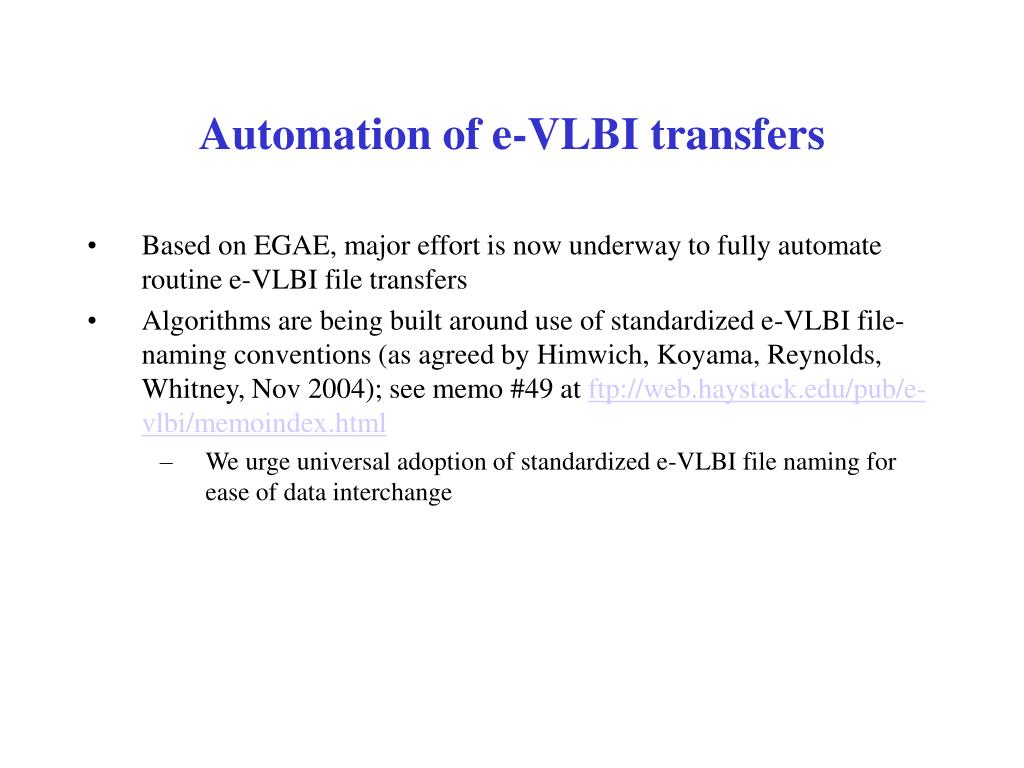

  15. Automation of e-VLBI transfers • Based on EGAE, major effort is now underway to fully automateroutine e-VLBI file transfers • Algorithms are being built around use of standardized e-VLBI file-naming conventions (as agreed by Himwich, Koyama, Reynolds, Whitney, Nov 2004); see memo #49 at ftp://web.haystack.edu/pub/e-vlbi/memoindex.html • We urge universal adoption of standardized e-VLBI file naming for ease of data interchange

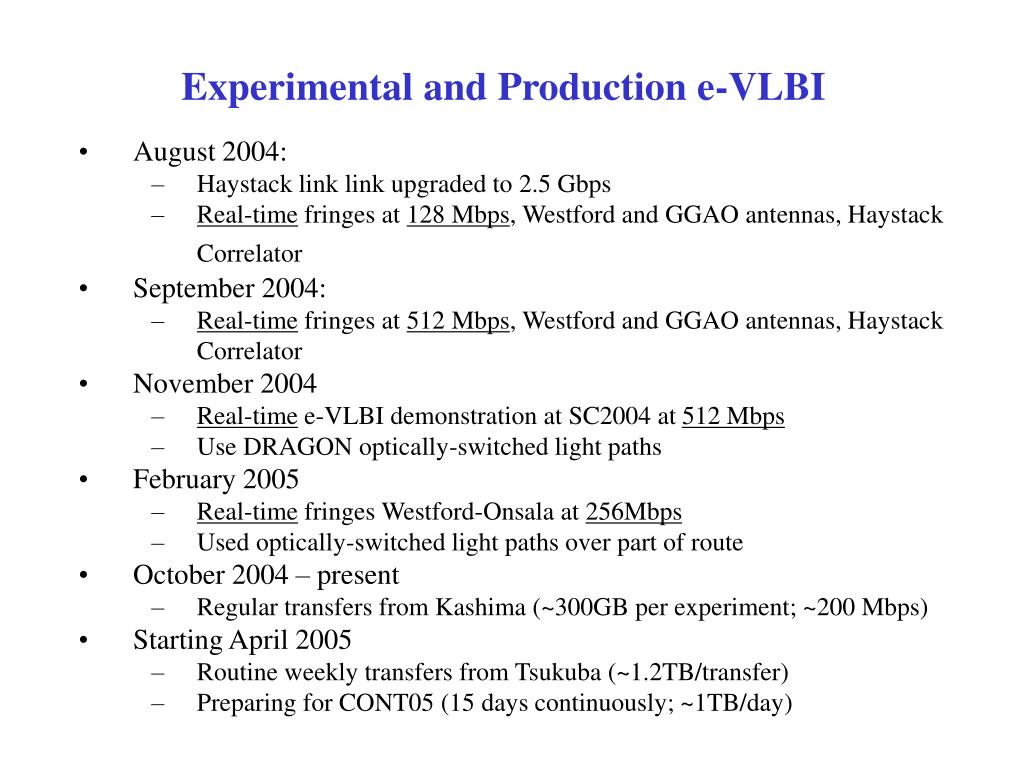

  16. Experimental and Production e-VLBI • August 2004: • Haystack link link upgraded to 2.5 Gbps • Real-time fringes at 128 Mbps, Westford and GGAO antennas, Haystack Correlator • September 2004: • Real-time fringes at 512 Mbps, Westford and GGAO antennas, Haystack Correlator • November 2004 • Real-time e-VLBI demonstration at SC2004 at 512 Mbps • Use DRAGON optically-switched light paths • February 2005 • Real-time fringes Westford-Onsala at 256Mbps • Used optically-switched light paths over part of route • October 2004 – present • Regular transfers from Kashima (~300GB per experiment; ~200 Mbps) • Starting April 2005 • Routine weekly transfers from Tsukuba (~1.2TB/transfer) • Preparing for CONT05 (15 days continuously; ~1TB/day)

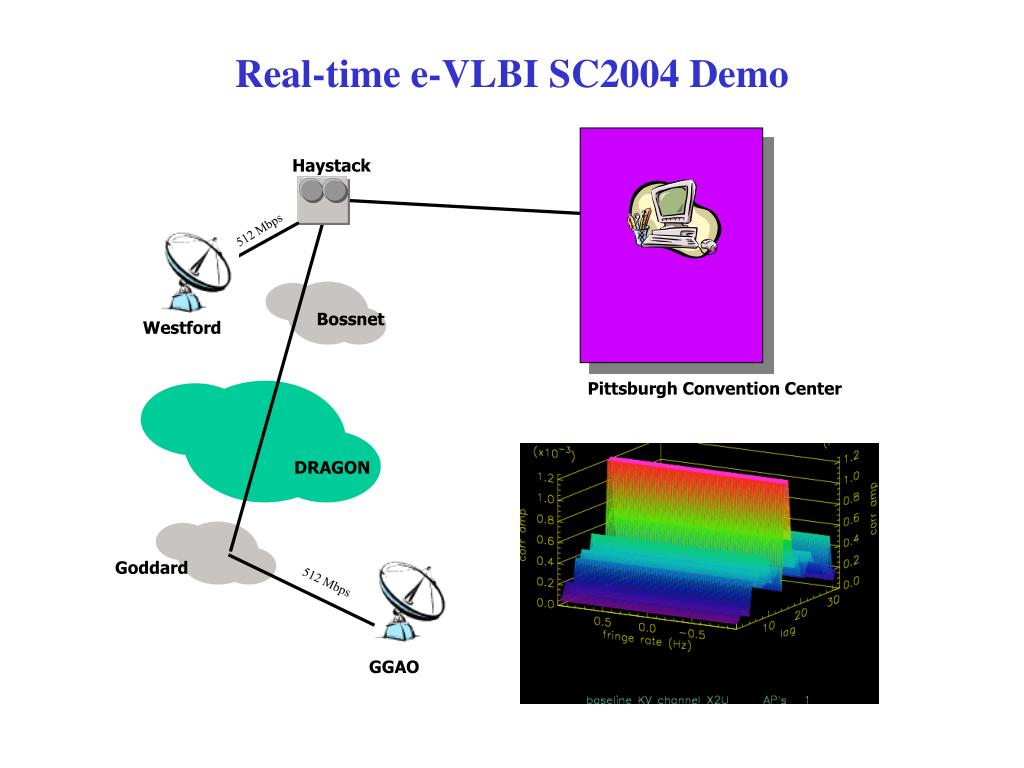

  17. Real-time e-VLBI SC2004 Demo Haystack 512 Mbps Bossnet Westford Pittsburgh Convention Center DRAGON Goddard 512 Mbps GGAO

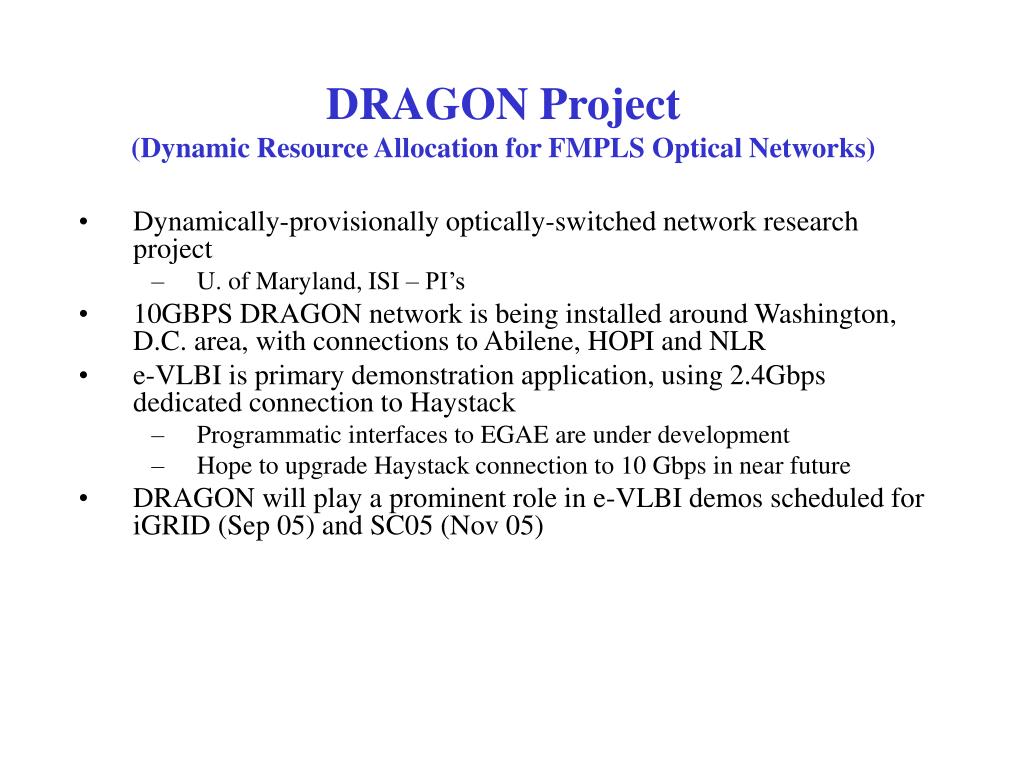

  18. DRAGON Project(Dynamic Resource Allocation for FMPLS Optical Networks) • Dynamically-provisionally optically-switched network research project • U. of Maryland, ISI – PI’s • 10GBPS DRAGON network is being installed around Washington, D.C. area, with connections to Abilene, HOPI and NLR • e-VLBI is primary demonstration application, using 2.4Gbps dedicated connection to Haystack • Programmatic interfaces to EGAE are under development • Hope to upgrade Haystack connection to 10 Gbps in near future • DRAGON will play a prominent role in e-VLBI demos scheduled for iGRID (Sep 05) and SC05 (Nov 05)

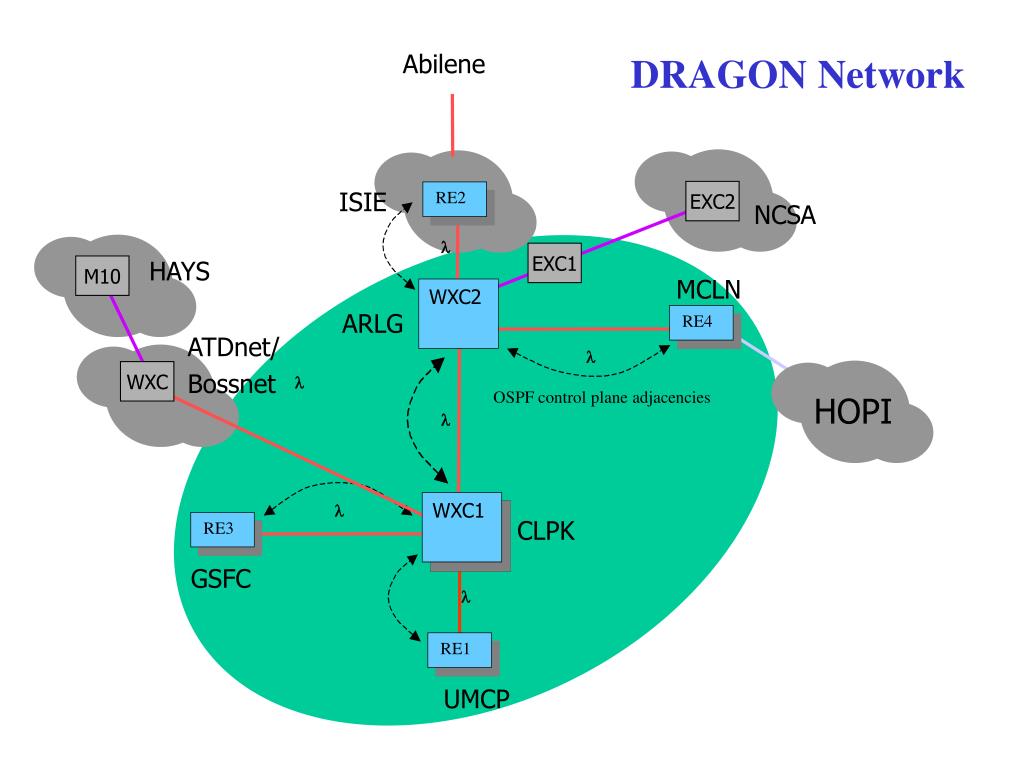

  19. RE1 RE4 RE2 RE1 RE1 RE1 Abilene DRAGON Network ISIE EXC2 NCSA l EXC1 HAYS M10 MCLN WXC2 ARLG WXC2 ATDnet/ Bossnet l WXC l HOPI OSPF control plane adjacencies l WXC1 l CLPK RE3 RE3 GSFC l UMCP

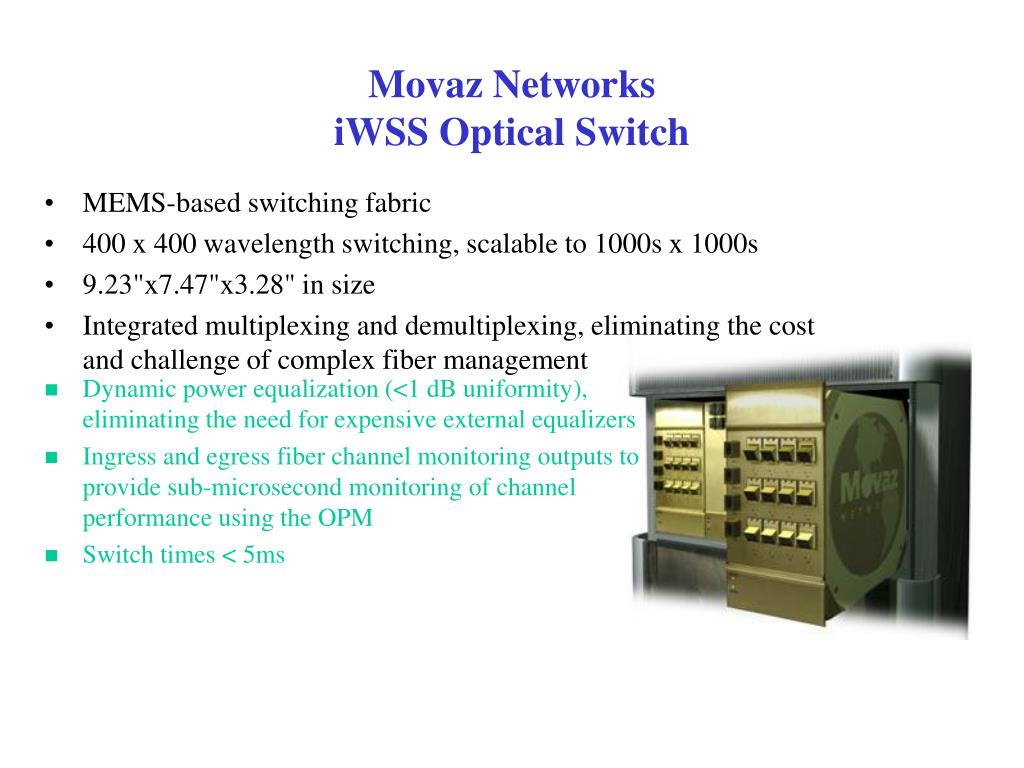

  20. Movaz NetworksiWSS Optical Switch • MEMS-based switching fabric • 400 x 400 wavelength switching, scalable to 1000s x 1000s • 9.23"x7.47"x3.28" in size • Integrated multiplexing and demultiplexing, eliminating the cost and challenge of complex fiber management • Dynamic power equalization (<1 dB uniformity), eliminating the need for expensive external equalizers • Ingress and egress fiber channel monitoring outputs to provide sub-microsecond monitoring of channel performance using the OPM • Switch times < 5ms

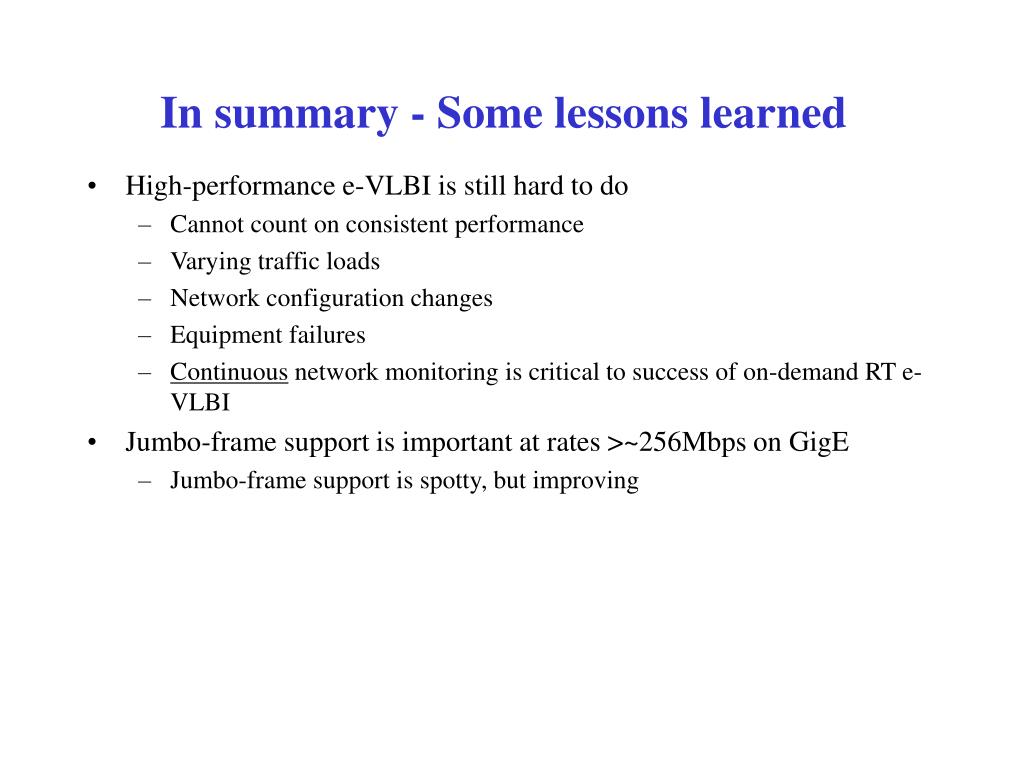

  21. In summary - Some lessons learned • High-performance e-VLBI is still hard to do • Cannot count on consistent performance • Varying traffic loads • Network configuration changes • Equipment failures • Continuous network monitoring is critical to success of on-demand RT e-VLBI • Jumbo-frame support is important at rates >~256Mbps on GigE • Jumbo-frame support is spotty, but improving

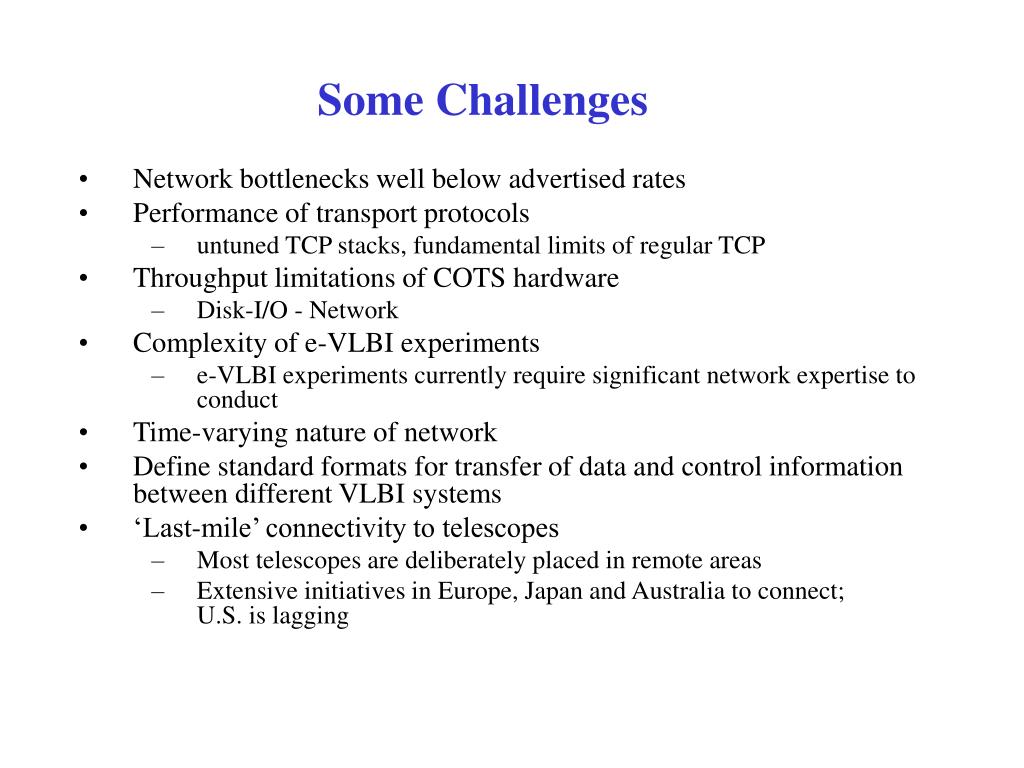

  22. Some Challenges • Network bottlenecks well below advertised rates • Performance of transport protocols • untuned TCP stacks, fundamental limits of regular TCP • Throughput limitations of COTS hardware • Disk-I/O - Network • Complexity of e-VLBI experiments • e-VLBI experiments currently require significant network expertise to conduct • Time-varying nature of network • Define standard formats for transfer of data and control information between different VLBI systems • ‘Last-mile’ connectivity to telescopes • Most telescopes are deliberately placed in remote areas • Extensive initiatives in Europe, Japan and Australia to connect;U.S. is lagging

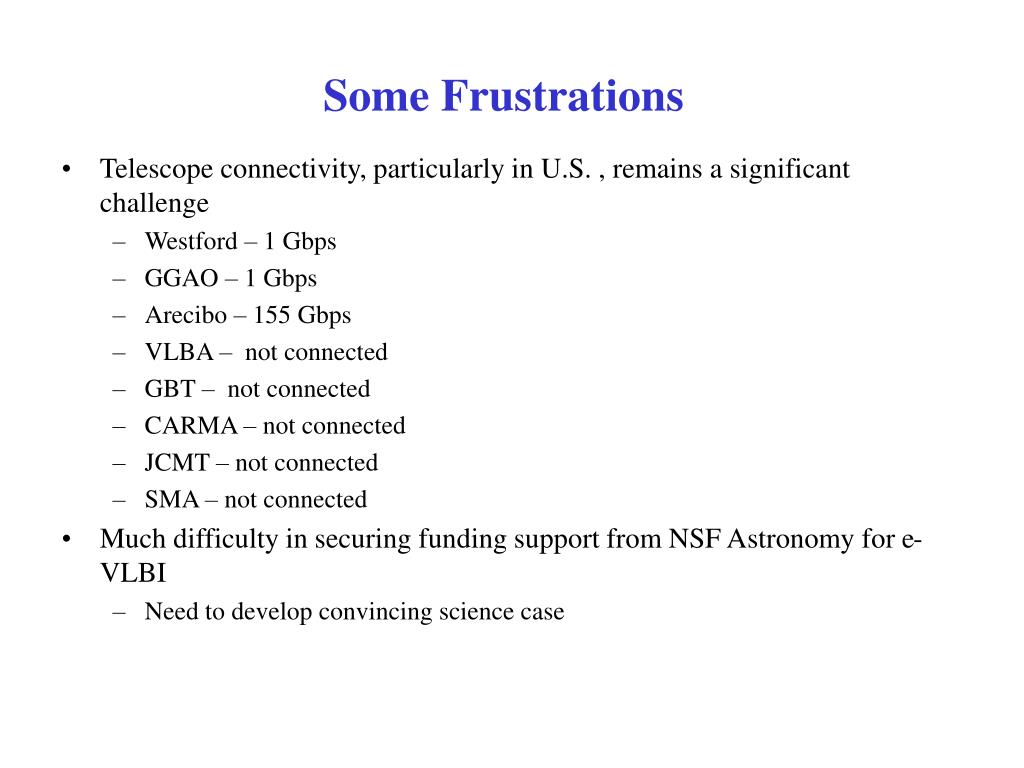

  23. Some Frustrations • Telescope connectivity, particularly in U.S. , remains a significant challenge • Westford – 1 Gbps • GGAO – 1 Gbps • Arecibo – 155 Gbps • VLBA – not connected • GBT – not connected • CARMA – not connected • JCMT – not connected • SMA – not connected • Much difficulty in securing funding support from NSF Astronomy for e-VLBI • Need to develop convincing science case

  24. Future Directions • Further EGAE and VSI-E development and deployment • Improved IP protocols for e-VLBI • Optically-switched networks for highly provisioned high-data-rate pipes • Solving ‘last mile’ problem to U.S. telescopes • Distributed correlation using clusters and/or highly distributed PC’s • Extending to higher bandwidths • Haystack has Astronomy NSF grant to push for 4Gbps/station • Preparing NSF proposal to extend to 16Gbps/station using new digital-filter and recording technology • Continuing to move e-VLBI into routine practice on a global basis

  25. e-VLBI Technical Working Group • Established at this e-VLBI workshop as group of technical experts, David Lapsley chair • On hold until David Lapsley replacement is on-board • Hope to re-invigorate at July e-VLBI workshop in Sydney • Objectives • Evaluate e-VLBI/VSI-E hardware/software/procedures • Implement standardized global e-VLBI network performance/monitoring tools • Provide expert assistance to e-VLBI users • ~2 members from each major e-VLBI geographical area

  26. Thank you - THE ENDQuestions?

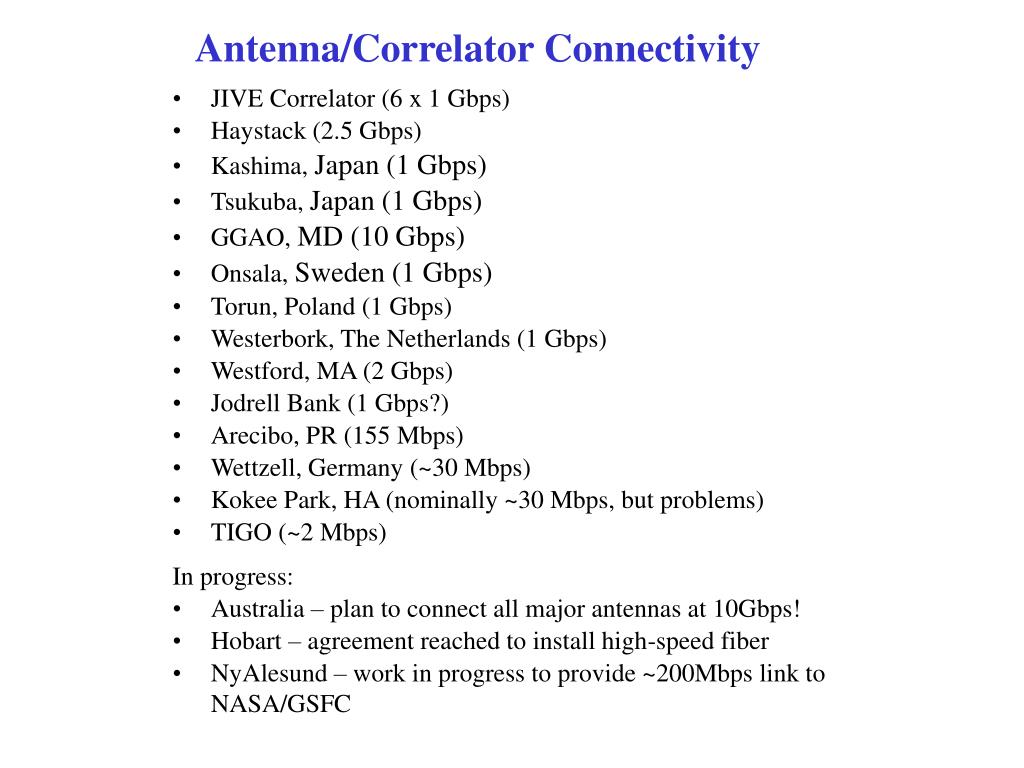

  27. Antenna/Correlator Connectivity • JIVE Correlator (6 x 1 Gbps) • Haystack (2.5 Gbps) • Kashima, Japan (1 Gbps) • Tsukuba, Japan (1 Gbps) • GGAO, MD (10 Gbps) • Onsala, Sweden (1 Gbps) • Torun, Poland (1 Gbps) • Westerbork, The Netherlands (1 Gbps) • Westford, MA (2 Gbps) • Jodrell Bank (1 Gbps?) • Arecibo, PR (155 Mbps) • Wettzell, Germany (~30 Mbps) • Kokee Park, HA (nominally ~30 Mbps, but problems) • TIGO (~2 Mbps) In progress: • Australia – plan to connect all major antennas at 10Gbps! • Hobart – agreement reached to install high-speed fiber • NyAlesund – work in progress to provide ~200Mbps link to NASA/GSFC
