2.1 Symmetry. When a figure has line symmetry, it can be folded on its line of symmetry and the two have to coincide exactly There are 3 symmetries important in graphing. (–a, b). (a, b). (a, b). (a, b). (a, –b). (–a, –b). Typically can do two types of problems

Download Presentation

2.1 Symmetry

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


2 1 symmetry

2.1 Symmetry


2 1 symmetry

When a figure has line symmetry, it can be folded on its line of symmetry and the two have to coincide exactly

There are 3 symmetries important in graphing

(–a, b)

(a, b)

(a, b)

(a, b)

(a, –b)

(–a, –b)


2 1 symmetry

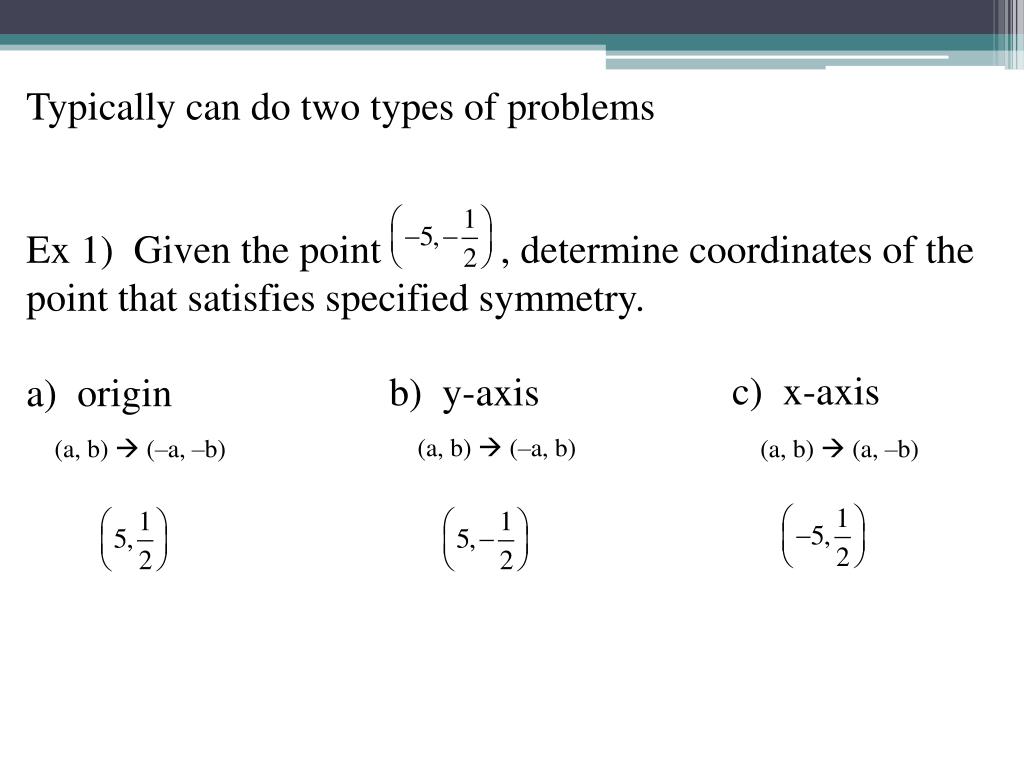

Typically can do two types of problems

Ex 1) Given the point , determine coordinates of the point that satisfies specified symmetry.

origin

c) x-axis

b) y-axis

(a, b)  (–a, b)

(a, b)  (–a, –b)

(a, b)  (a, –b)


2 1 symmetry

Ex 2) Determine symmetry. Graph using the properties of symmetry.

x-axis

–y = x2 – 4

y = –x2 + 4

not equivalent

y-axis

y = (–x)2 – 4

y = x2 – 4

equivalent

origin

–y = (–x)2 – 4

–y = x2 – 4

not equivalent

Choose only positive x’s & negative x’s will match


2 1 symmetry

Ex 3) Use graphing calculator to find symmetry.

x = 2


2 1 symmetry

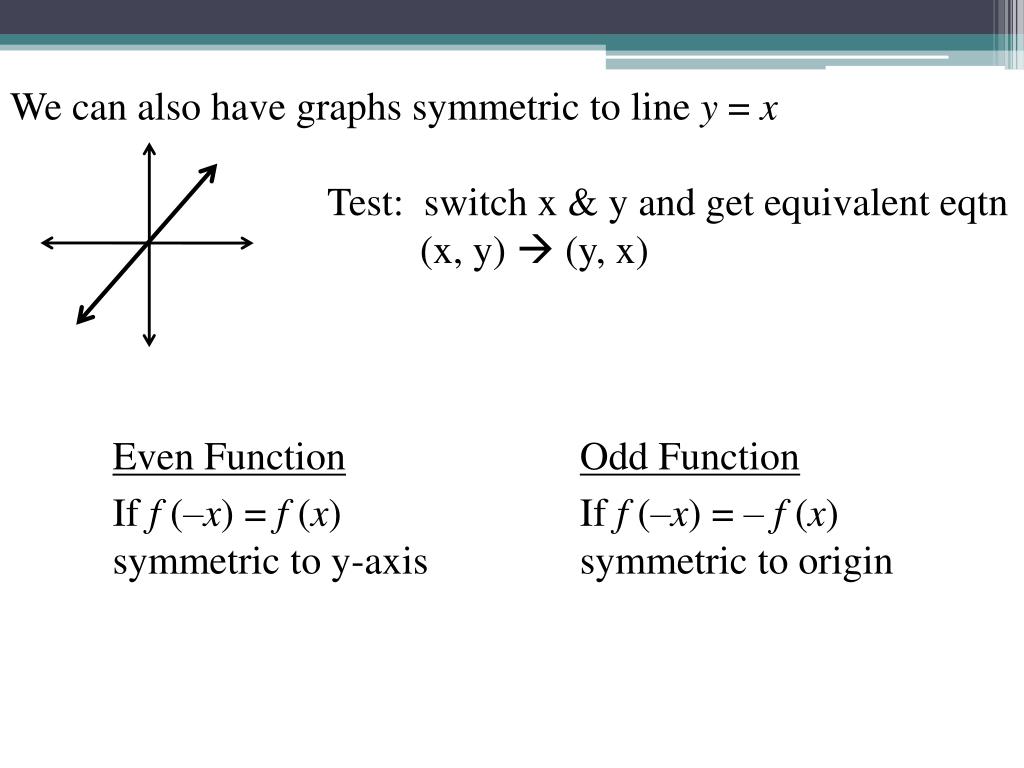

We can also have graphs symmetric to line y = x

Test: switch x & y and get equivalent eqtn

(x, y)  (y, x)

Even Function

If f (–x) = f (x)

symmetric to y-axis

Odd Function

If f (–x) = – f (x)

symmetric to origin


2 1 symmetry

Ex 4) Determine if function is even, odd or neither

a)

odd

b)

neither

c)

even


Homework

Homework

#201 Pg 61 #1–31 odd, 39, 41–46 all
