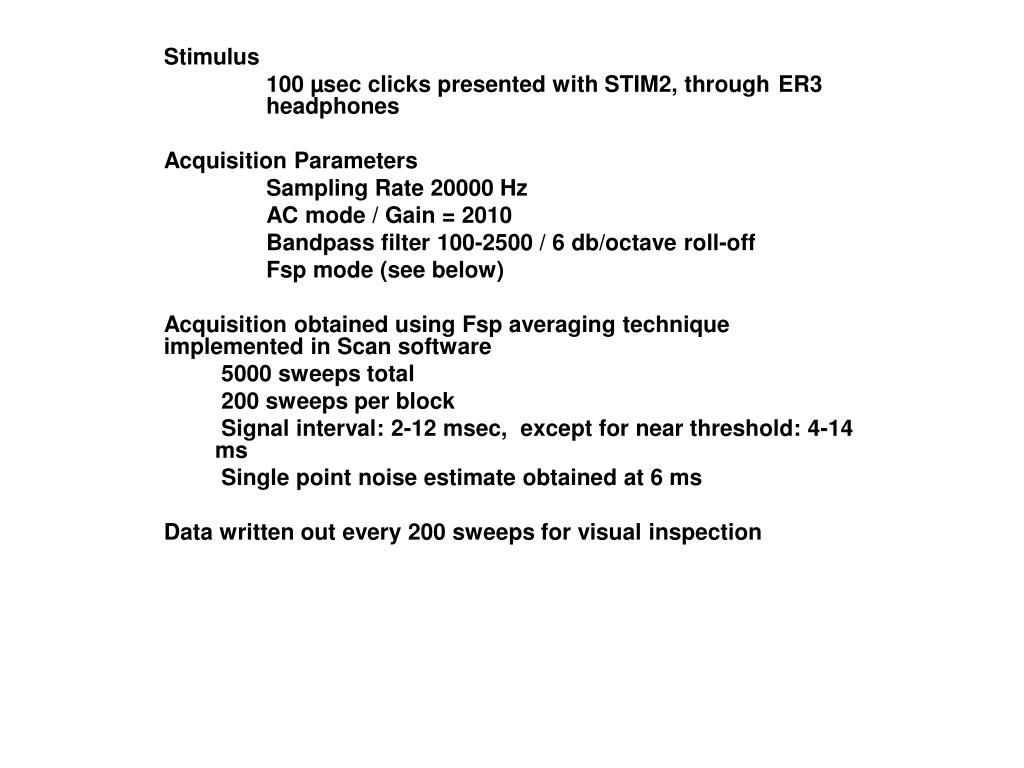

Stimulus 100 sec clicks presented with stim2 through er3 headphones acquisition parameters

Stimulus

100 µsec clicks presented with STIM2, through ER3 headphones

Acquisition Parameters

Sampling Rate 20000 Hz

AC mode / Gain = 2010

Bandpass filter 100-2500 / 6 db/octave roll-off

Fsp mode (see below)

Acquisition obtained using Fsp averaging technique implemented in Scan software

5000 sweeps total

200 sweeps per block

Signal interval: 2-12 msec, except for near threshold: 4-14 ms

Single point noise estimate obtained at 6 ms

Data written out every 200 sweeps for visual inspection
