ELECTROMAGNETICS. Linear Charges Surface Charges Ring Charges Volume Charges. Professor: Viviana Vladutescu. LINEAR CHARGES. An infinite length line of charge,  L , is placed along the z -axis. We wish to find E at an arbitrary point P(  , , z ).

ryann
Download Presentation

ELECTROMAGNETICS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. ELECTROMAGNETICS Linear Charges Surface Charges Ring Charges Volume Charges Professor: Viviana Vladutescu

  2. LINEAR CHARGES

  3. An infinite length line of charge, L, is placed along the z-axis. We wish to find E at an arbitrary point P(, , z).

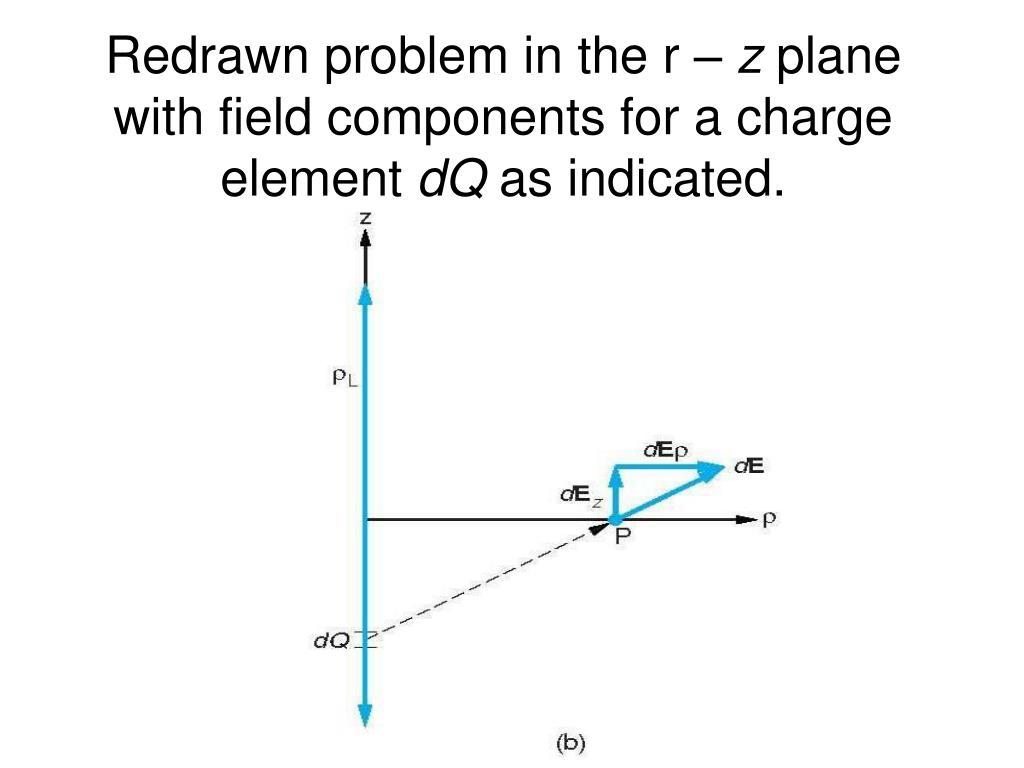

  4. Redrawn problem in the r – z plane with field components for a charge element dQ as indicated.

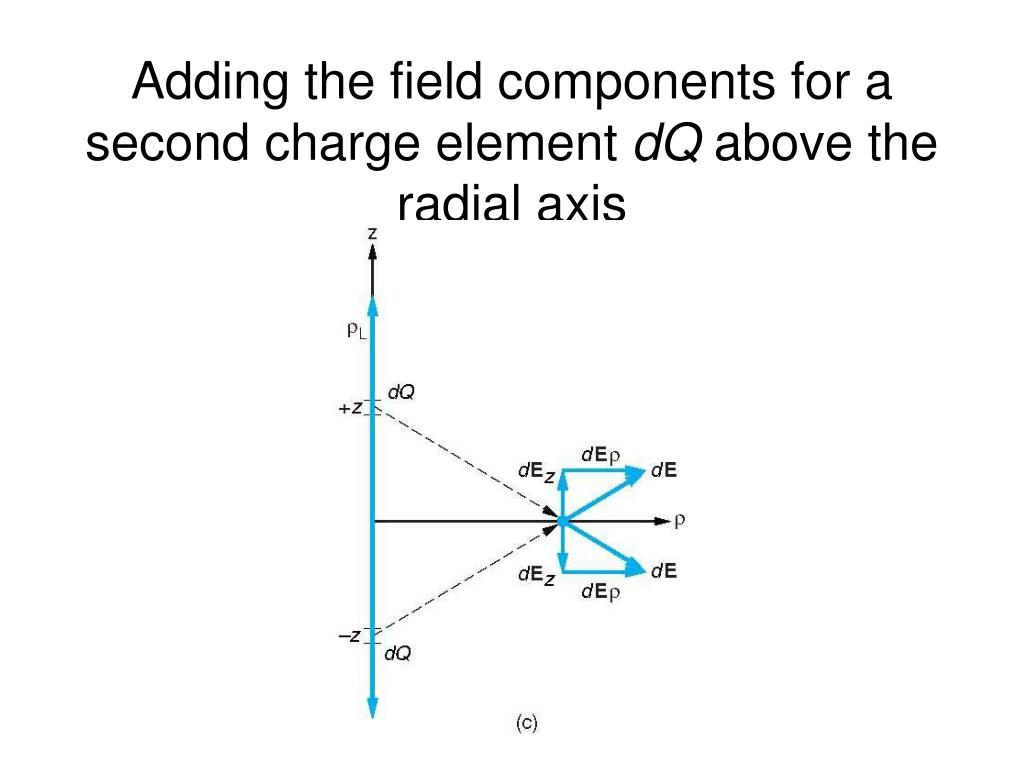

  5. Adding the field components for a second charge element dQ above the radial axis

  6. Sketch to show where all the components come from to set up the integral.

  7. Surface Charges

  8. The point P is shown h above a current sheet of infinite extent occupying the x – y plane..

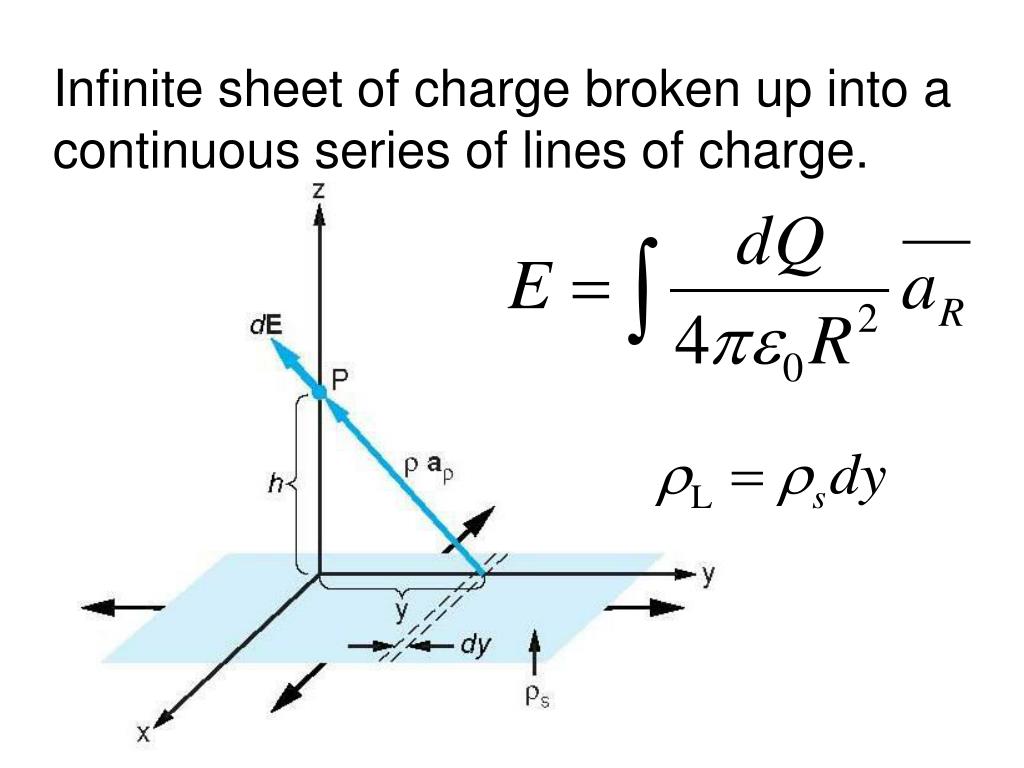

  9. Infinite sheet of charge broken up into a continuous series of lines of charge.

  10. Ring Charges

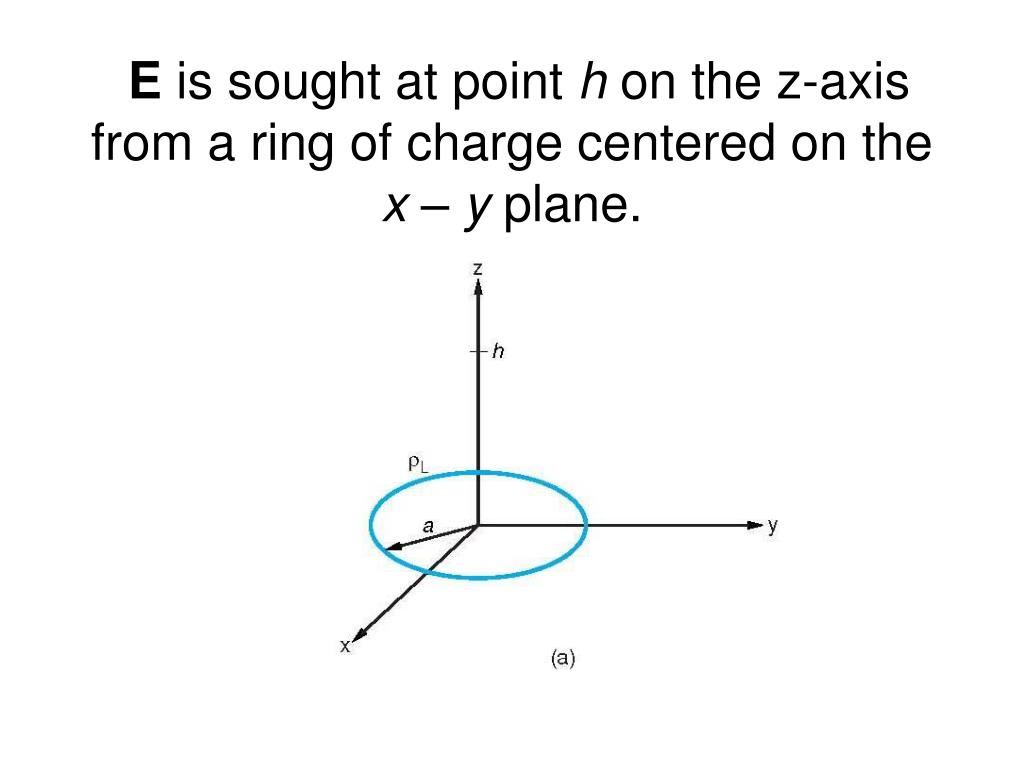

  11. E is sought at point h on the z-axis from a ring of charge centered on the x – y plane.

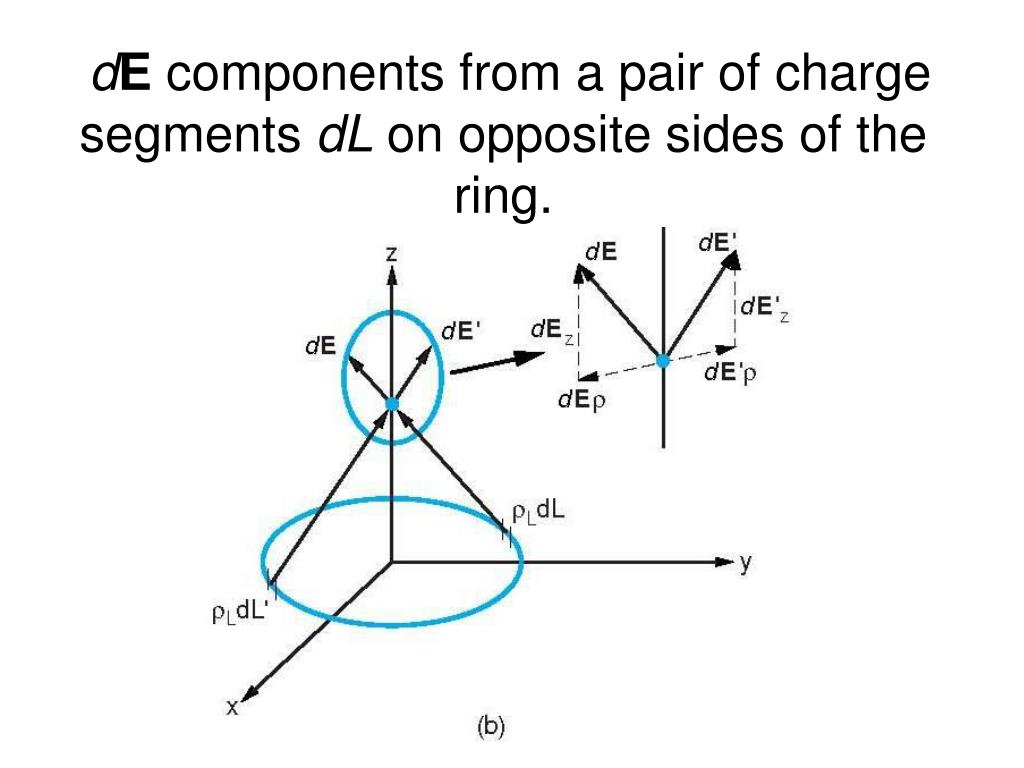

  12. dE components from a pair of charge segments dL on opposite sides of the ring.

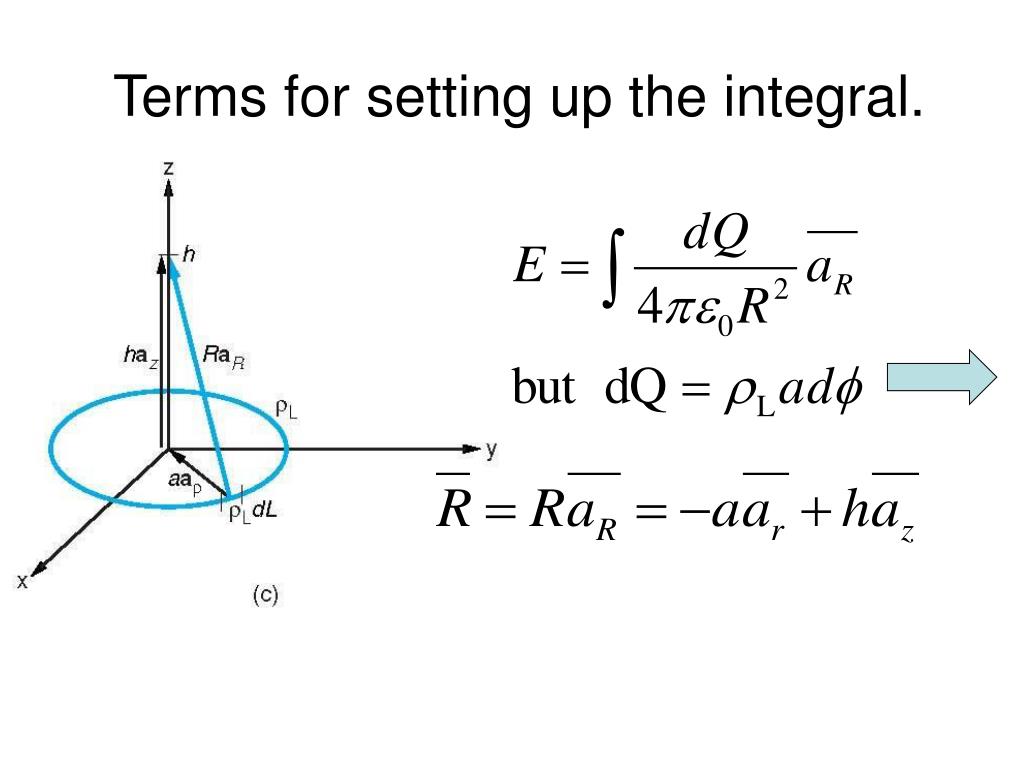

  13. Terms for setting up the integral.
