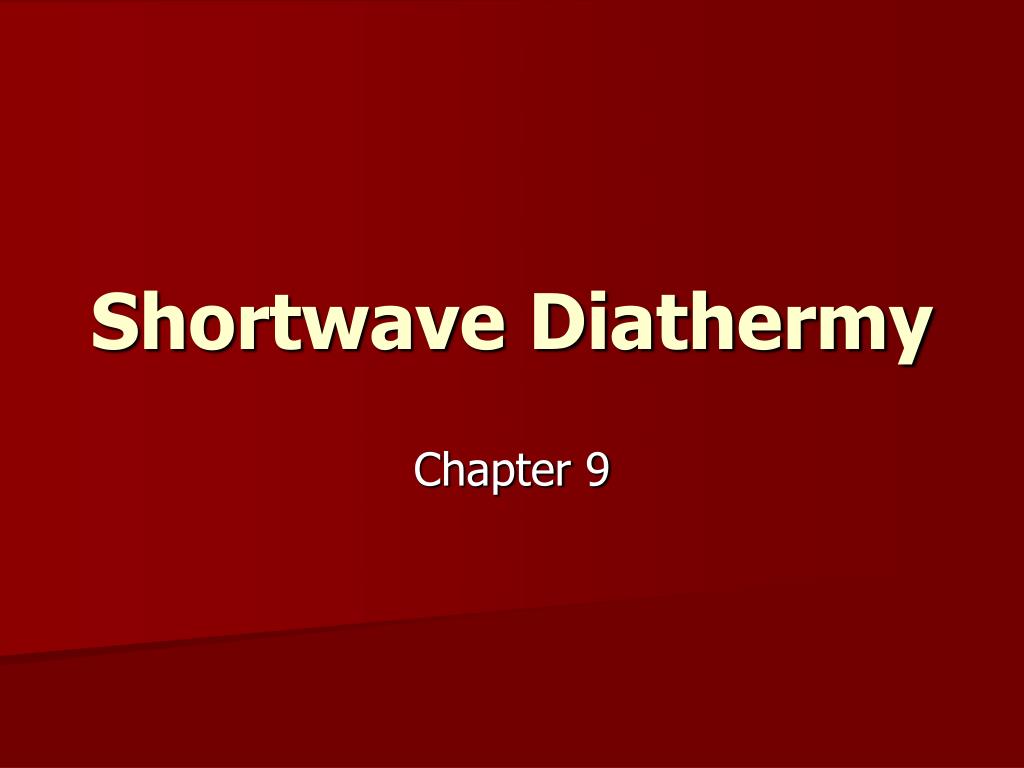

Shortwave Diathermy. Chapter 9. Description. High-frequency electrical currents Radio waves Pass through the tissues Cause molecular vibration Results in deep heating Capable of heating large volumes of tissues Causes both thermal and nonthermal effects. Thermal Effects Deep heat

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Shortwave Diathermy' - ryanadan


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

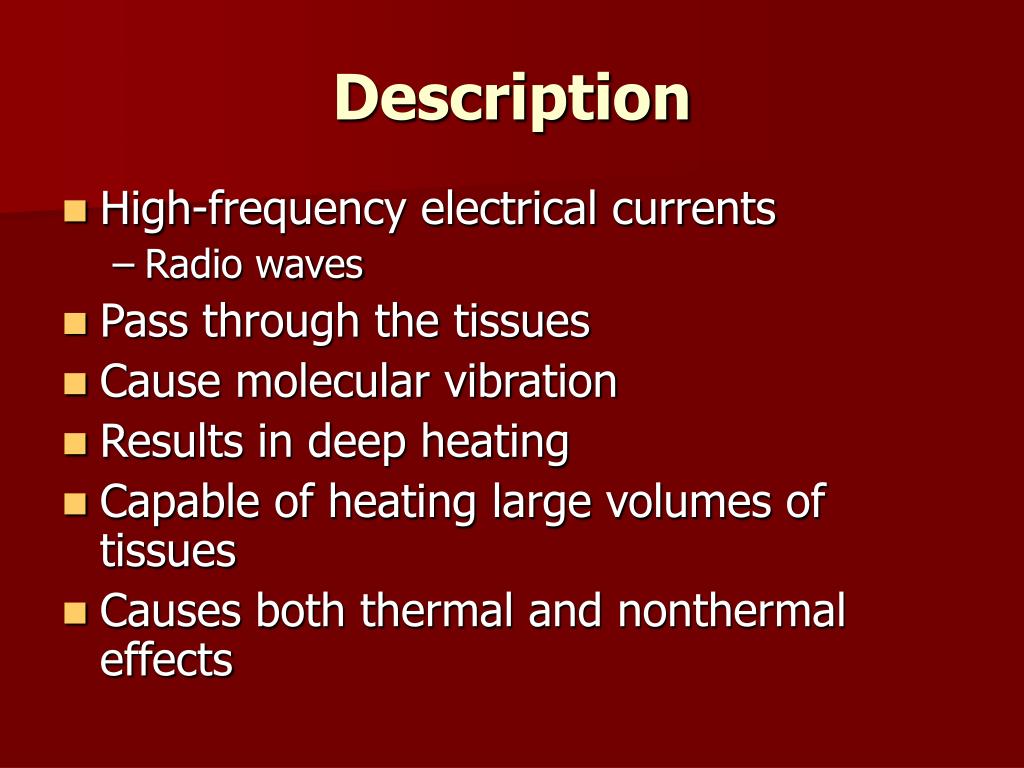

Description l.jpg
Description

  • High-frequency electrical currents

    • Radio waves

  • Pass through the tissues

  • Cause molecular vibration

  • Results in deep heating

  • Capable of heating large volumes of tissues

  • Causes both thermal and nonthermal effects


Slide3 l.jpg

Thermal Effects

Deep heat

Increased blood flow

Increased cell metabolism

Increased tissue extensibility

Muscular relaxation

Possible changes in enzyme reactions

Nonthermal Effects

Edema reduction

Lymphedema reduction

Superficial wound healing

Treatment of venous stasis ulcers

Uses


Types of shortwave diathermy l.jpg

Types of Shortwave Diathermy

Induction Field

Capacitive Field

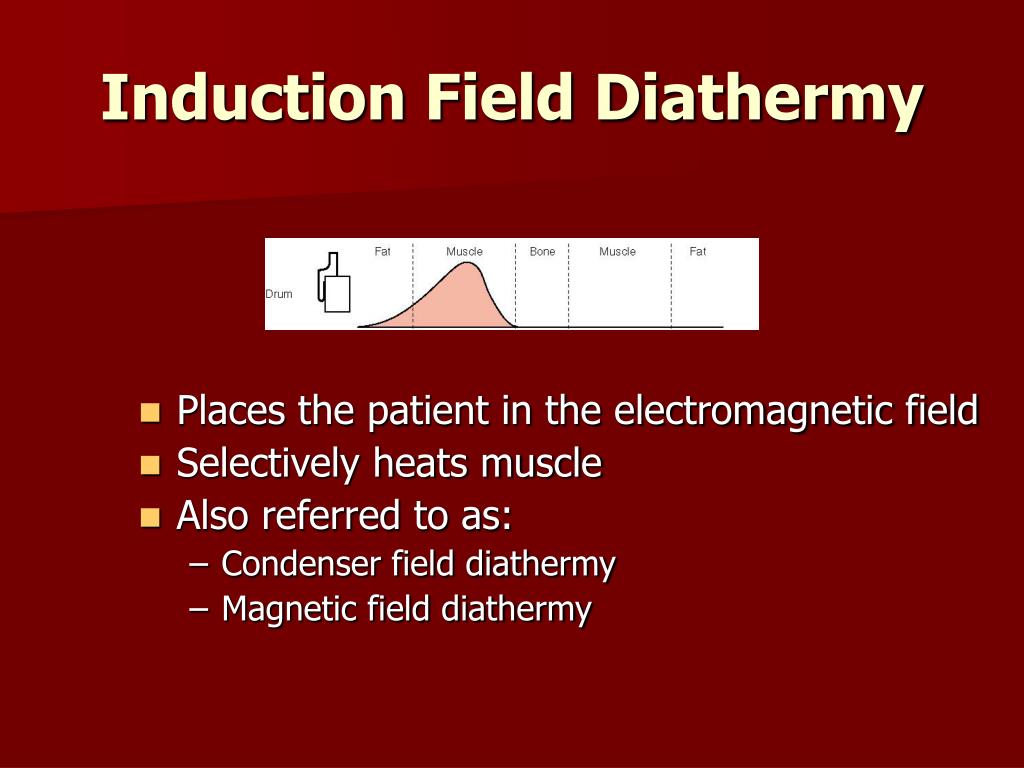

Induction field diathermy l.jpg
Induction Field Diathermy

  • Places the patient in the electromagnetic field

  • Selectively heats muscle

  • Also referred to as:

    • Condenser field diathermy

    • Magnetic field diathermy

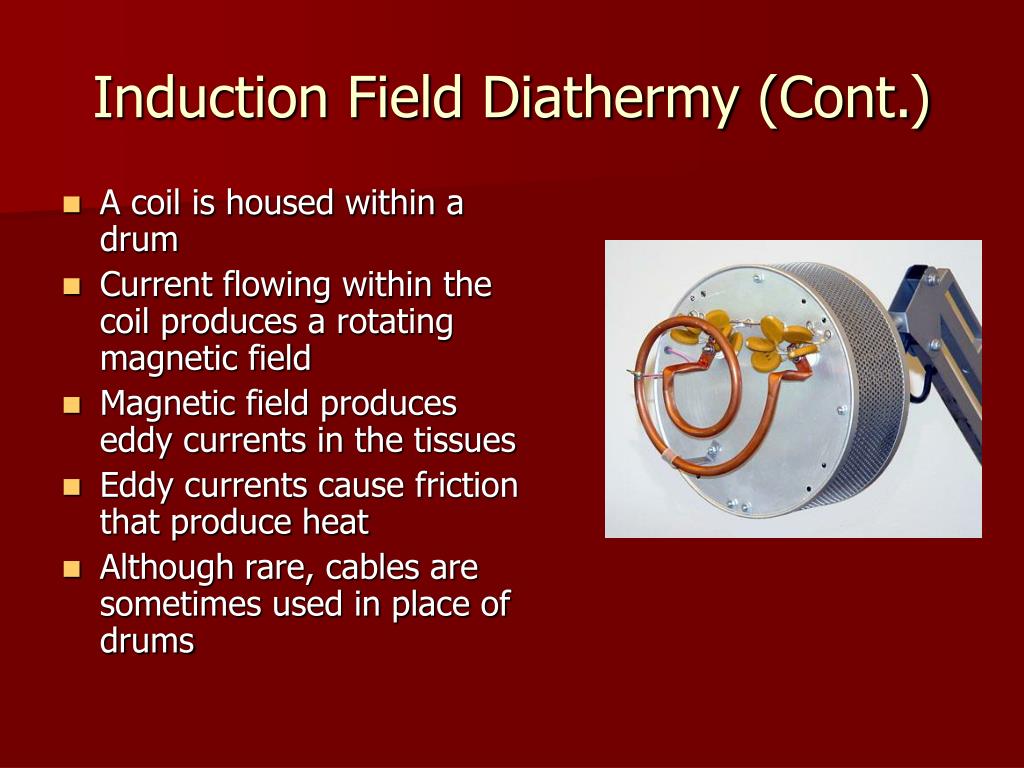

Induction field diathermy cont l.jpg
Induction Field Diathermy (Cont.)

  • A coil is housed within a drum

  • Current flowing within the coil produces a rotating magnetic field

  • Magnetic field produces eddy currents in the tissues

  • Eddy currents cause friction that produce heat

  • Although rare, cables are sometimes used in place of drums


Capacitive field diathermy l.jpg
Capacitive Field Diathermy

  • Uses the patient’s tissues as a part of the circuit

  • The tissues’ electrical resistance produces heat

  • Selectively heats skin

    • Muscle is heated via conduction from the adipose

  • Also referred to as “condenser field diathermy”


Capacitive field diathermy cont l.jpg
Capacitive Field Diathermy (Cont.)

  • Heat is produced by the dipole effect

  • Charge particles within membrane align with the field

  • The movement produces heat

+

-

+

-

+

-

+

+

-

+

-

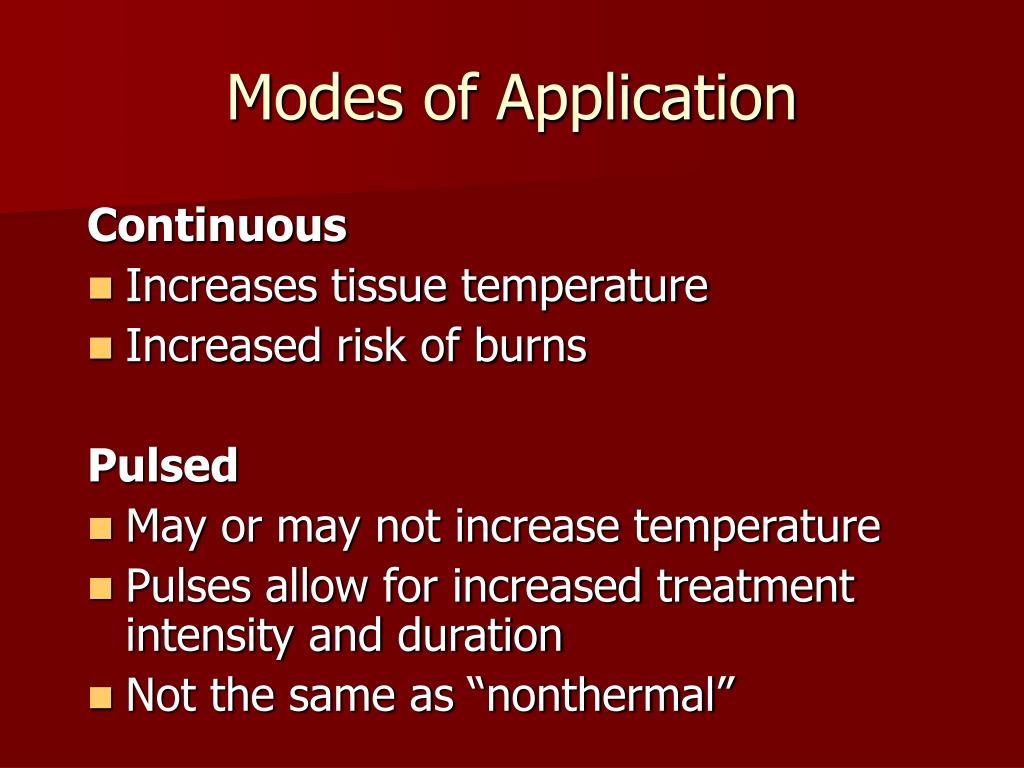

Modes of application l.jpg
Modes of Application

Continuous

  • Increases tissue temperature

  • Increased risk of burns

    Pulsed

  • May or may not increase temperature

  • Pulses allow for increased treatment intensity and duration

  • Not the same as “nonthermal”


Ultrasound swd comparison l.jpg
Ultrasound & SWD Comparison

UltrasoundShortwave Diathermy

Energy type Acoustical Electromagnetic

Tissue heated Collage-rich C: Skin, adipose tissue

I: Muscle, vessels

Tissue volume Small (20 cm2) Large (200 cm2)

Temp increase 1 MHz: > 6.3°F C: > 7°F

3 MHz: > 14.9°F I: > 18°F

Heat retention 3 min > 9 min

C = Capacitive method

I = Induction method


Biophysical effects l.jpg
Biophysical Effects

Inflammation

  • Assists in removal of cellular debris and toxins

  • Nonthermal:

    • Alters diffusion rate across the cell membrane

  • Thermal

    • Increases intramuscular metabolism


Biophysical effects12 l.jpg
Biophysical Effects

Blood and Fluid Dynamics

  • Vasodilation increases:

    • Blood flow

    • Capillary filtration

    • Capillary pressure

    • Oxygen perfusion

  • Increased fibroblastic activity and capillary growth

  • Effects occur deeper than other forms of heat


Biophysical effects13 l.jpg
Biophysical Effects

Tissue Elasticity

  • SWD can vigorously heat deep tissues

  • Alters collagen properties, allowing it to elongate

  • Requires stretching during and/or immediately following the treatment

  • Multiple treatments are required


Biophysical effects14 l.jpg
Biophysical Effects

Wound Healing

  • Nonthermal SWD increases rate of phagocytosis

  • Number of mature collage bundles increase

  • ATP activity increases (assisting wound regeneration)

  • Necrosed muscle fibers decrease


Contraindications l.jpg

Metal implants or metal jewelry (be aware of body piercings)

Cardiac pacemakers

Ischemic areas

Peripheral vascular disease

Perspiration and moist dressings: The water collects and concentrates the heat.

Tendency to hemorrhage, including menstruation.

Pregnancy

Fever

Sensory loss

Cancer

Areas of particular sensitivity:

Epiphyseal plates in children

The genitals

Sites of infection

The abdomen with an implanted intrauterine device (IUD)

The eyes and face

Application through the skull

Contraindications
