“Paint Systems” - PowerPoint PPT Presentation

Paint systems l.jpg
Download
1 / 29

“Paint Systems”. Paintable Substrates. Aluminum Galvanized Steel (HDG) Galvalume. Why Do We Paint?. Provide protection Add aesthetic appeal Promote corporate brand and increase recognition Decrease energy costs. What is Paint?.

I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.

Download Presentation

“Paint Systems”

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Paint systems l.jpg

“Paint Systems”


Paintable substrates l.jpg

Paintable Substrates

  • Aluminum

  • Galvanized Steel (HDG)

  • Galvalume


Why do we paint l.jpg

Why Do We Paint?

  • Provide protection

  • Add aesthetic appeal

  • Promote corporate brand and increase recognition

  • Decrease energy costs


What is paint l.jpg

What is Paint?

Definition: A mixture of a pigment, resin, solvent and additives reduced to a liquid or paste form, applied usually with a brush or roller, and used as a protective covering or coloring of a surface.


The pigments l.jpg

The Pigments

  • Small solid particles added to a paint to enhance appearance by providing color and /or improve physical (functional) properties of a paint. Pigments are protected by the resin system and are UV reflective.

  • Ceramic Pigments

  • Earth Tone Pigments

  • Organic Pigments


Different pigments offer different performance properties l.jpg

Best

Better

Good

Different Pigments OfferDifferent Performance Properties

Inorganic – Ceramic

Earth Tone

Organic


The resin l.jpg

Fluoropolymer (PVDF)

  • Siliconized Modified Polyester (SMP)

  • Polyester

  • Plastisol

Epoxy

  • Urethane

  • Acrylic

The Resin

The most important part of any paint system. The liquid glue of the paint system that surrounds and protects the pigment particles.


Slide8 l.jpg

Best

Better

Good

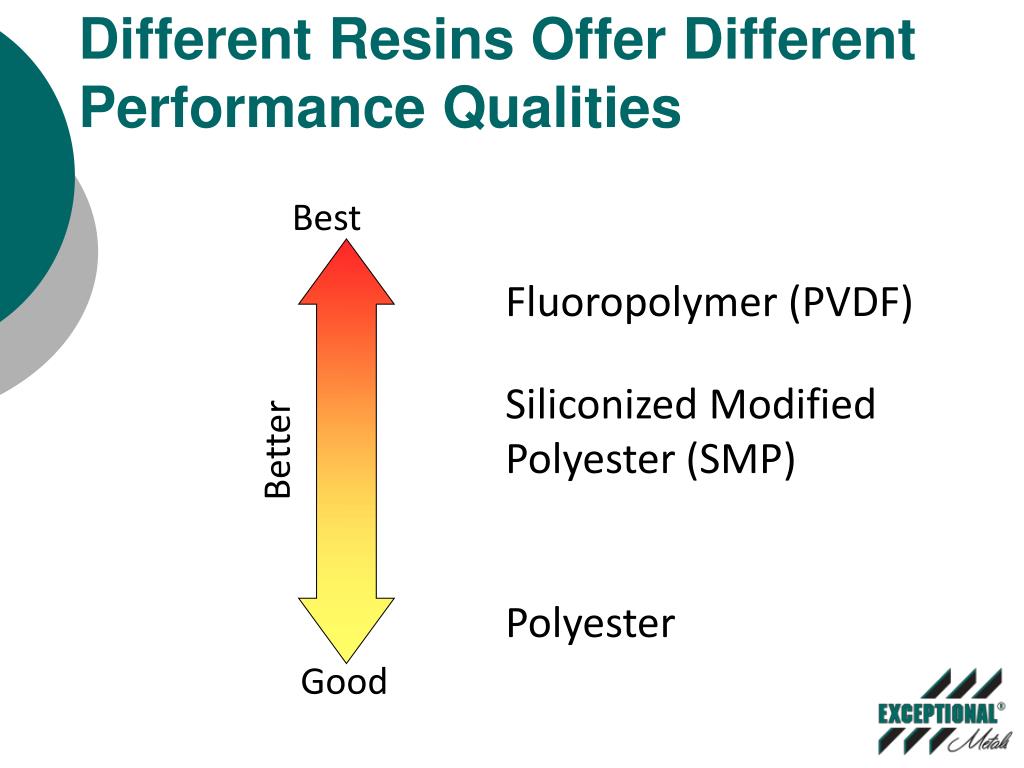

Different Resins Offer Different Performance Qualities

Fluoropolymer (PVDF)

Siliconized Modified Polyester (SMP)

Polyester


The solvent l.jpg

The Solvent

This is the vehicle by which the pigment is transported to the metal surface. Actually evaporates during the curing/baking process to permit the formation of a paint film.

  • Mainly used as a thinner

  • Totally volatile, leaves the film when baked

Solvent


The additives l.jpg

The Additives

Any number of chemicals added to the paint, usually in small amounts to bring special effects to the paint.

  • Flow

  • Cure

  • Air entrapment

  • Waxes


Functions of the components l.jpg

Functions of the Components


Slide12 l.jpg

Cross-Section of Paint


How coatings fail l.jpg

How Coatings Fail


How coatings fail14 l.jpg

How Coatings Fail

Polyester Urethane

Polyester Urethane


How coatings fail15 l.jpg

How Coatings Fail

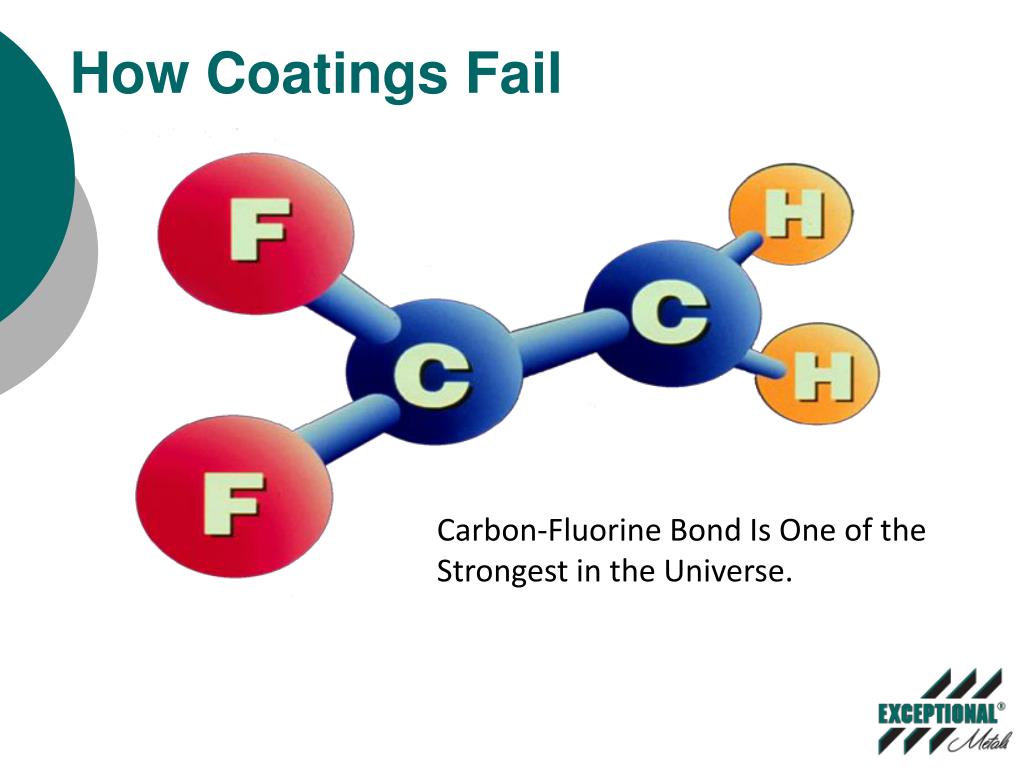

Carbon-Fluorine Bond Is One of the Strongest in the Universe.


Polyester paint systems l.jpg

Polyester Paint Systems

  • A generic polymer coating with limited weathering performance.

  • Generally Using Organic Pigments.

    • End Uses:

      • Interior Applications

        • Home Appliances

        • Lighting Fixtures

        • Wall Panels


Siliconized modified polyester smp paint systems l.jpg

Siliconized Modified Polyester (SMP) Paint Systems

  • A generic coating type that represents a wide range of topcoats used on prepainted metal in construction.

  • The silicon extends the service life of the base polymer and improves weathering.

  • Generally Using Organic and Ceramic Pigments.

    • End Uses:

      • Metal Building Components.

      • Agricultural and Corrugated panels.


Polyvinylidene fluoride pvdf l.jpg

Polyvinylidene Fluoride (PVDF)

  • The resin, which is a fluoropolymer, that is used as the major vehicle (base resin) in the paint system.

  • Paint chemistry of 70% by weight of PVDF resin.

  • Exhibits superior

    • Color retention

    • Chalk resistance

    • Corrosion Resistance

    • Flexibility

    • Stain Resistance

    • Overall exterior durability


Pvdf vs other coatings l.jpg

PVDF vs. Other Coatings


Pvdf vs other coatings20 l.jpg

PVDF vs. Other Coatings


Weathering properties l.jpg

Weathering Properties


Physical properties l.jpg

Physical Properties


Chemical properties l.jpg

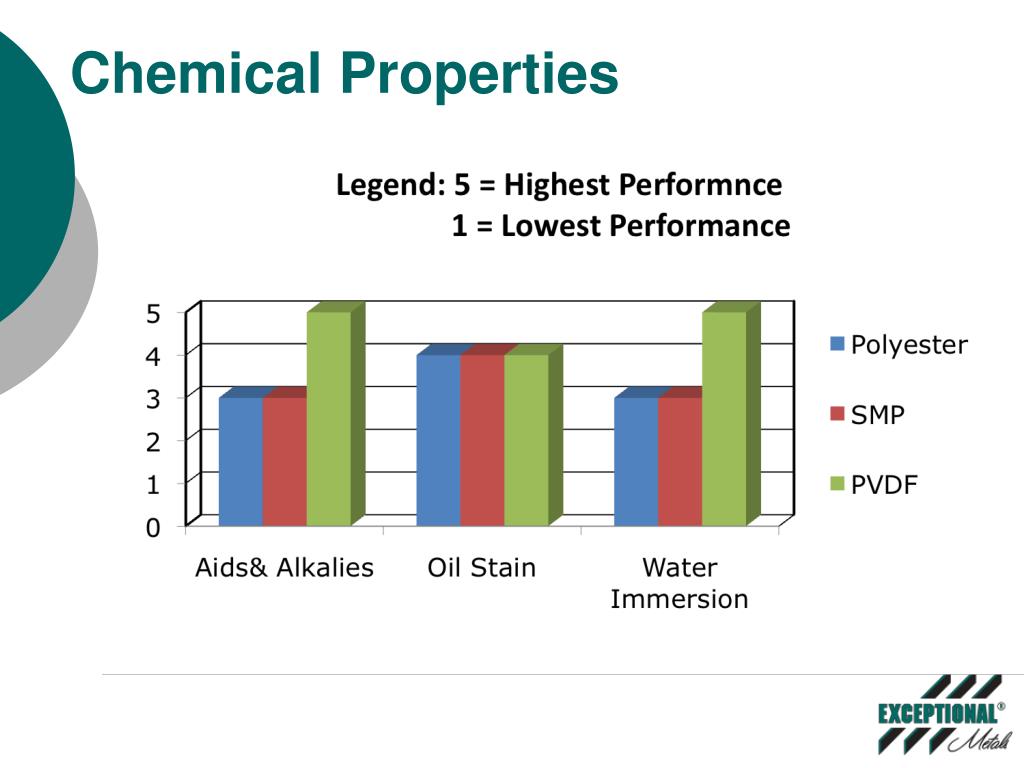

Chemical Properties


Slide24 l.jpg

What Causes Chalking?

  • Failure in the resin system causes chalking.

  • As the resin system breaks down, resin particles along with imbedded pigment particles lose adhesion and take on a white appearance.

  • Visual ratings are assigned according to ASTM D659.

  • Ratings ranges from 10 – 0, where 10 is best.


Slide25 l.jpg

Kynar

500®

Silicone

Polyester

Kynar

500®

Polyester

Acrylic

Kynar

500®

What Causes Color Fading?

  • Failure in the pigment system causes color fading.

  • Fading is caused when substances in the environment attack the pigment portion of the paint and cause the color to change.

  • Color fade is expressed in calculated “Delta E” values or NBS units which are measured and calculated according to ASTM D2244.

  • Values range from 0 – Infinity, where 0 is best (no color change).


Chalk and weather resistance l.jpg

Chalk and Weather Resistance

  • These panels exposed at an independent test fence facility in Southern Florida clearly demonstrate the superior weatherability of PVDF.


Chalk and weather resistance27 l.jpg

unexposed

exposed

10 yrs. exposure

15 yrs. exposure

17 yrs. exposure

Chalk and Weather Resistance

Polyester

Powder

Yellow

Kynar 500

Blue

Urethane

Blue

Kynar 500

Bronze

Acrylic

Bronze

Kynar 500

Yellow

exposed


Chalk and weather resistance28 l.jpg

Chalk and Weather Resistance

Siliconized Modified Polyester

45˚ South

160 months

unexposed

exposed

Exposure Panels

Control

20 months

51 months

110 months

160 months


Chalk and weather resistance29 l.jpg

Chalk and Weather Resistance

PVDF Based Coating

45˚ South

160 months

unexposed

exposed

Control

Exposure Panels

20 months

51 months

110 months

160 months


  • Login
