Presentation Transcript

Agenda l.jpg

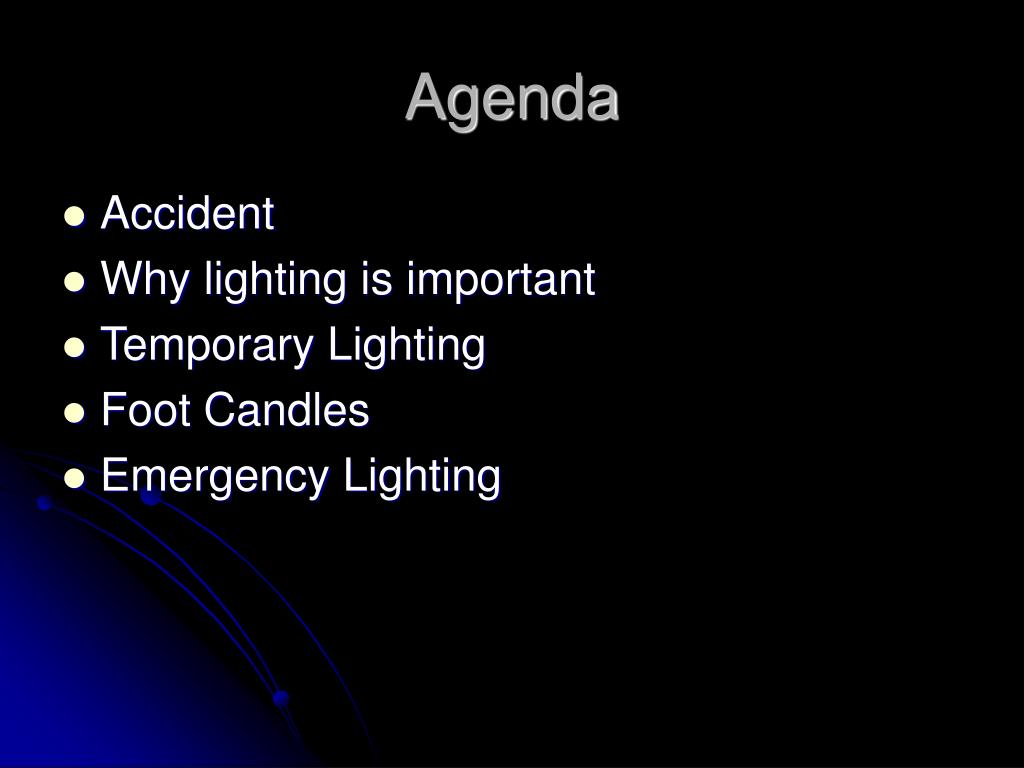

Agenda

  • Accident

  • Why lighting is important

  • Temporary Lighting

  • Foot Candles

  • Emergency Lighting


Accident l.jpg
Accident

  • An employee of Majestic Marble was laying tile on the fifth floor when he walked in to a nearby room he fell between 35 and 40 ft down landing on metal ducting. He sustained a broken toe, a puncture wound to his left shin, he cut open his forehead and multiple abrasions


What was the cause l.jpg
What was the Cause

  • The room was improperly lit

  • The worker did not have the required head lamp or flash light


Why is it important l.jpg

Increases Productivity

Enhances Comfort

Most importantly improves safety

Why is it Important?


Common misconception l.jpg
Common Misconception

  • People often think lighting is only a problem if it is too dark but lights that are too bright can also be dangerous

  • Having to work in awkward positions because light is in your eyes can cause eyestrain and headaches making anything you are working on more dangerous


Temporary lighting l.jpg

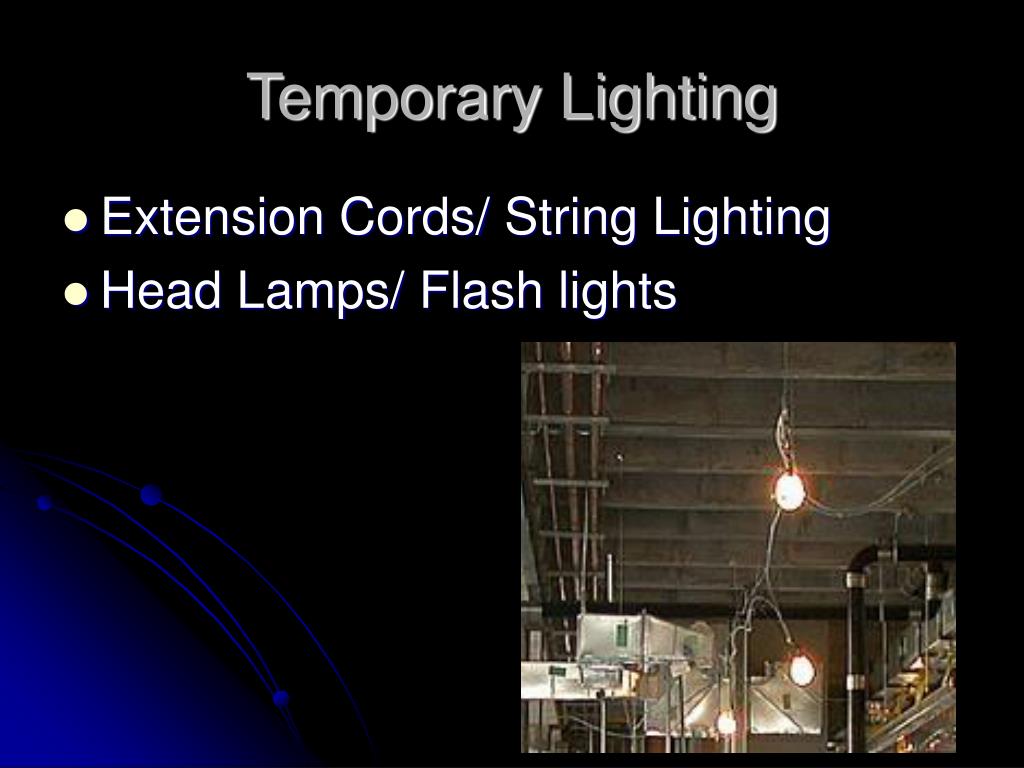

Temporary Lighting

  • Extension Cords/ String Lighting

  • Head Lamps/ Flash lights


Extension cord string lighting l.jpg
Extension Cord/ String Lighting

  • Extension cord with light bulbs attached at set intervals

  • Each bulb must be covered with a plastic cage to protect bulbs from breaking

  • Very important to be strung properly


Flash lights head lamp l.jpg
Flash Lights/ Head Lamp

  • This method is best when working in confined spaces

  • Head lamps are better because leaves hands free


The unit of measurement l.jpg
The Unit of Measurement

  • Lighting is measured in foot candles

  • One foot candle is the amount of light given off by one candle one foot away

  • A Light meter is used to measure the number of foot candles


Common foot candle applications l.jpg

Application

General construction

Underground/ Indoors

Storage/ Loading Areas

First aid Stations/ Offices

Shops/ Plants

Min. Foot Candles

5

5

30

10

10

Common Foot Candle Applications



Example 2 l.jpg
Example 2 candles.

  • This kitchen read about 25 foot candles



Emergency lighting l.jpg
Emergency Lighting candles.

  • Emergency illumination must be provided for a minimum of 1.5 hours in the event of failure of normal lighting.

  • Must provide initial illumination of on average at least one foot-candle and a minimum at any point of 0.1 foot-candle measured along the path of egress at floor level.

  • The maximum illumination at any one point can be no more than 40 times the minimum illumination at any one point to prevent excessively bright and dark spots


Emergency light l.jpg
Emergency Light candles.


Slide17 l.jpg


Thank you l.jpg

Thank You! the cause of many fall incidents
