Presentation Transcript
introduction
Introduction
  • What is an embedded system?
  • Embedded system market trends
  • Characteristics of embedded systems
  • Embedded system requirements
  • Design of embedded systems
  • Trend of embedded systems
what is an embedded system
What Is an Embedded System?
  • What is a system?
    • A set or arrangement of things so related or connected as to form a unity or organic whole.
  • What is embedded?
    • To be set or fixed firmly in a surrounding mass.
  • What is an embedded system?
    • An electronic system embedded within a given plant or external process to perform a specific function, which has to respond to certain inputs within a prescribed time constraint.
      • The external process comprises both a physical system and also humans performing some supervising or parameter setting tasks.
components of an embedded system
Components of an Embedded System
  • Software
    • Operating systems, device drivers, application programs that Provide system features and flexibility
  • Hardware
    • Processor cores, DSP cores, ASICs, Memorys, I/O devices, SOCs (system-on-chip), communication ICs, ADC/DAC, …, are used for achieving the required performance and sometimes the security.
characteristics
Characteristics
  • Perform a single or tightly knit set of functions, which is not usually general purpose, i.e., application specific
  • Increasingly high-performance and real-time constraints
  • Reactive, i.e., an embedded system (ES) must respond to an input stimulus
  • Distributed, i.e., many correlated components (processors) are coordinated to react the input stimuli coming from the various positions of an ES.
  • Cost, reliability(long life), power are important attributes in design decision, usually under the constraints of limited hardware resource.
real time requirements

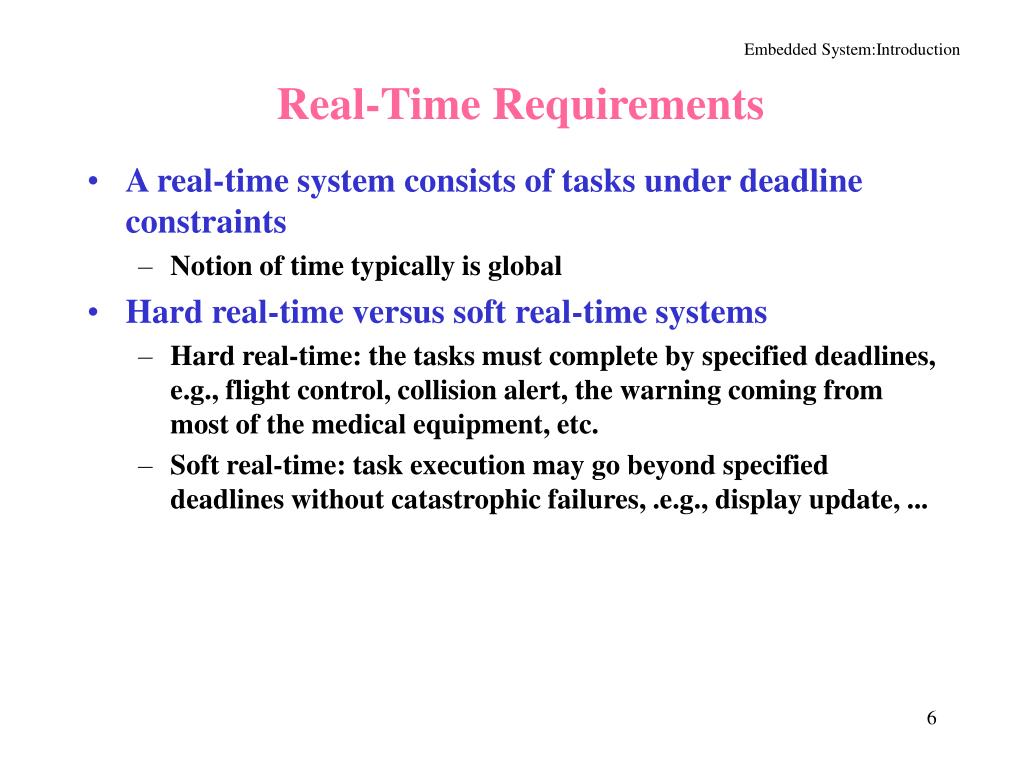

Real-Time Requirements
  • A real-time system consists of tasks under deadline constraints
    • Notion of time typically is global
  • Hard real-time versus soft real-time systems
    • Hard real-time: the tasks must complete by specified deadlines, e.g., flight control, collision alert, the warning coming from most of the medical equipment, etc.
    • Soft real-time: task execution may go beyond specified deadlines without catastrophic failures, .e.g., display update, ...
applications
Applications
  • Consumer electronics, e.g., cameras, camcorders, ….
  • Home appliance, e.g., washers, microwave ovens, ….
  • Medical instruments, e.g., heart-beat monitor for new-born, contraction monitor for womb,….
  • Automobiles, e.g., anti-lock braking, engine control, ….
  • Industrial process controllers
  • Avionics and defense systems
  • Computer/communication products, e.g., network printers, fax, PDA, cellular phones, software modem, ….
  • Multimedia applications, e.g., interactive game boxes, TV set-top-box, ...
diversified computing requirements

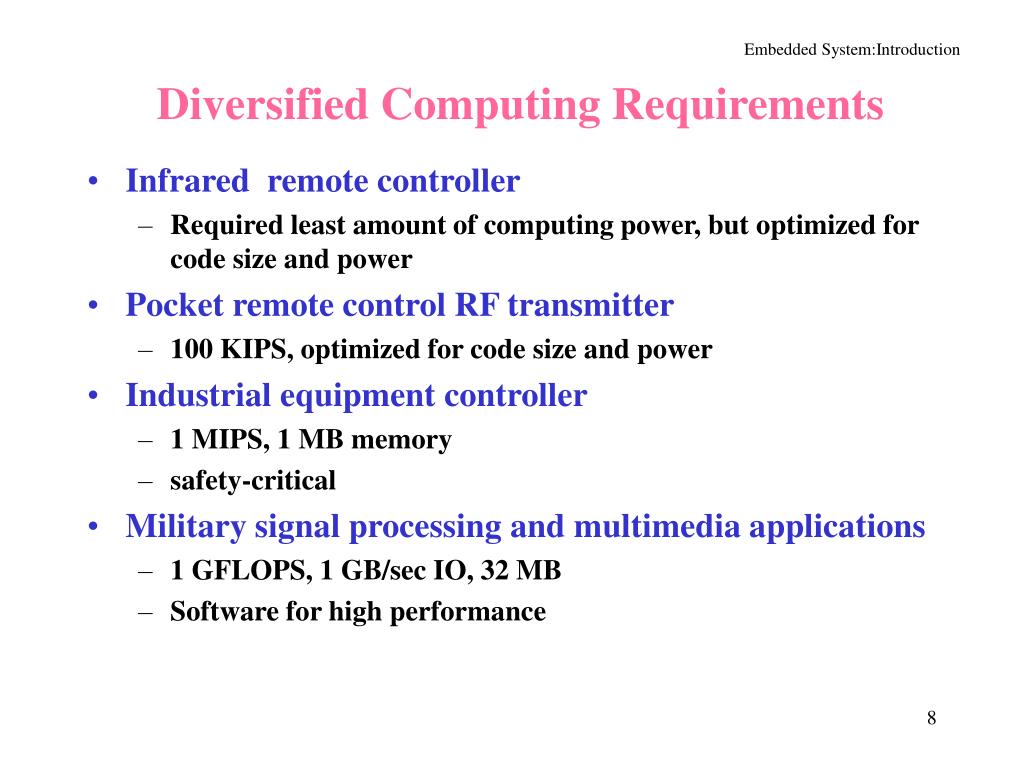

Diversified Computing Requirements
  • Infrared remote controller
    • Required least amount of computing power, but optimized for code size and power
  • Pocket remote control RF transmitter
    • 100 KIPS, optimized for code size and power
  • Industrial equipment controller
    • 1 MIPS, 1 MB memory
    • safety-critical
  • Military signal processing and multimedia applications
    • 1 GFLOPS, 1 GB/sec IO, 32 MB
    • Software for high performance
embedded system market
Embedded System Market
  • Market size for embedded systems: US$ 31 B
    • General purpose computing: US$ 46.5 B
  • Micro-controller market: US$4.6 B, +18% annual growth rate
    • Versus +10% annual growth rate for general purpose processors
  • Embedded system market will finally surpass computing marketing.
driving forces
Driving Forces
  • Computing technologies are proliferating to non-computing domains
    • portable devices, medical instrumentation and imaging, information appliance
  • Increasing the need for product personalization
    • Hand-held devices
  • Increasing the need for entertainment
    • Game boxes
  • Advance in semiconductor technologies and design methodologies
    • reducing manufacturing and design costs
embedded system design
Embedded System Design
  • Defining Specifications
  • Modeling the system to be designed algorithmically;
  • Refining the function to be implemented into smaller interacting pieces;
  • HW-SW partitioning by allocating elements in the refined model to either (1) HW units, or (2) SW running on custom hardware or a general processor;
  • Scheduling the times at which the functions are executed;
  • Mapping a functional description into (1) software that runs on a processor, or (2) a collection of custom, semi-custom, or commodity HW.
diversified design requirements
Diversified Design Requirements
  • Cost
  • Size
  • Power
  • Reliability
    • safety-critical
    • viable for a harsh environment
  • Performance
  • Real-time constraint
  • Product differentiation
  • Time to market pressure
  • Combination of HW and SW
    • New design paradigms, techniques, and tools
embedded system design13
Embedded System Design
  • Defining Specifications
  • Modeling the system to be designed algorithmically;
  • Refining the function to be implemented into smaller interacting pieces;
  • HW-SW partitioning by allocating elements in the refined model to either (1) HW units, or (2) SW running on custom hardware or a general processor;
  • Scheduling the times at which the functions are executed;
  • Mapping a functional description into (1) software that runs on a processor, or (2) a collection of custom, semi-custom, or commodity HW.
what is hw sw co design
What is HW/SW Co-design?
  • The act of bridging the gap between the HW and SW.
  • Traditional design approach
    • SW and HW partitioning is decided at an early stage, and designs proceed separately from then onward.
  • HW/SW co-design
    • A flexible design strategy, wherein the HW/SW designs proceed in parallel, with feedback and interaction occurring between the two as the design progresses.
    • Final HW/SW partitioning and allocation is made after evaluating trade-offs and performance of options.
cad for embedded system design
CAD for Embedded System Design
  • Co-design: Joint optimization of hardware and software
    • Cost-performance tradeoffs as a part of product implementation, as opposed to product specification. That is, we can perform design space exploration across the HW and SW boundary
  • Co-synthesis: Synthesis assisting co-design
    • Design derived from (formal) specifications
    • Rapid exploration of design alternatives
disciplines in embedded system design
Disciplines in Embedded System Design
  • The design of embedded systems spans several different disciplines in CS and EE
  • Application domain (Signal processing,….)
  • Software engineering (Programming languages, compilers, …)
  • VLSI (computer aided) design
  • Parallel/distributed system design
    • Networking and communications
  • Real-time systems (Real-time OS)
  • Computer organization and architecture
  • Input/output, sensor and actuators technologies, etc.
trends in embedded systems
Trends in Embedded Systems
  • Increasing code size
    • Average code size: 16K~64KB in 1992, 64K~512KB in 1996
    • Migration from assembling coding to high-level languages
  • Reuse of hardware and software components
    • Processors (micro-controllers, DSPs)
    • Software components (drivers)
  • Increasing integration and system complexity
    • integration of RF, DSP, networking interface
    • 32-bit processors, IO processors, Network processors
  • Increasing more intelligent
digital signal processing in es
Digital Signal Processing in ES
  • Continued digitalization of signals increasing the role of DSP
    • Signals are represented digitally as sequence of samples
    • ADCs are moving closer to signals
      • Even RF, IF processing in digital domain
  • Typical DSP processing
    • Filtering, averaging, FFT, device control, etc.
    • Speech: codec, processing, user interface, etc
    • Communications: modulation, demodulation, noise/echo cancellation, encoding, decoding, equalization, etc.
example 1
Example 1
  • Nike psa
    • Delivers up to 120 minutes of digital music.
    • Plays either MP3 or WMA digital audio formats downloaded from the Internet.
  • Universal Information Appliance
summary
Summary
  • What is an embedded system?
  • Embedded system market trends
  • Characteristics of embedded systems
  • Embedded system requirements
  • Design of embedded systems
  • Trend of embedded systems
