Presentation Transcript

Modeling Frozen Soil and Subgrid Snow Cover in CLM

Zong-Liang Yang

Guo-Yue Niu

Hua Su

The University of Texas at Austin

CCSM LWGM

March 28, 2006

www.geo.utexas.edu/climate


NCAR Community Land Model (CLM)

  • a 10-layer soil sub-model

  • a 5-layer snow sub-model

  • a topography-based runoff scheme

  • an explicit solution of the freezing and thawing of soil water

  • sub-grid landunits, soil columns, and plant functional types

  • New developments at University of Texas at Austin

  • Improved TOPMODEL (Yang and Niu, 2003; Niu and Yang, 2003; SIMTOP: Niu et al., 2005)

  • Improved frozen soil scheme (Niu and Yang, 2006)

  • Snow-vegetation canopy interaction (Niu and Yang, 2004)

  • Global unconfined aquifer/groundwater component (SIMGM: Niu et al., 2006, Yang et al., 2006a)

  • Stochastic subgrid snow cover in CLM (Yang et al., 2006b)

Frozen Soil | Subgrid Snow


Topography based runoff scheme simtop

Surface runoff

Rs = FsatQwat+(1–Fsat) max(0, Qwat – Imax)

Saturation Excess

2) Subsurface runoff Rsb = Rsb,max exp (-f zw)

Infiltration Excess

simplified from

Rsb = [ αKsat (0) / f ] exp(- λm) exp(- f zw)

α= anisotropic factor for Ksat in v. and h. directions

λm= grid-cell averaged topographic index

zw= grid-cell mean water table depth

3) Ksat (0) = ksat exp (f Dc) Ksat (z) = Ksat(0) exp(–f z )

ksat is determined by Cosby et al. (1984).

Allowing macropores.

Water Table Depth

4)Fsat = ∫λ≥ (λm + f*zw)pdf(λ) dλ

5) The water table is diagnosed from an equilibrium relationship

ψ(z) – z = ψsat – zw (i.e., the total head is equal across the soil column layers)

Topography

Bottom

Super-saturation

Topography-based Runoff Scheme (SIMTOP)

Yang and Niu (2003), Niu and Yang (2003), Niu and Yang et al. (2005, JGR-Atmospheres)

Frozen Soil | Subgrid Snow


~100km

Radiative Transfer within the Vegetation Canopy: Two-Stream Model Accounting for the 3-D Canopy Structure

(Niu and Yang, 2004, JGR-Atmos)

Frozen Soil | Subgrid Snow


Canopy Water and Ice Balance

(Niu and Yang, 2004, JGR-Atmos)

Frozen Soil | Subgrid Snow


Frozen Soil Affects Climate

  • Thermal effects: increases the inertia of the climate system by enhancing the soil heat capacity through diurnal and seasonal freezing-thawing cycles.

  • Hydrological effects: affects snowmelt runoff and soil hydrology by reducing soil permeability. In turn, runoff from Arctic river systems affects ocean salinity and thermohaline circulation.

  • Ecological effects: affects ecosystem diversity and productivity and carbon decomposition and release.

Frozen Soil | Subgrid Snow


Supercooled Liquid Water Exists in Frozen Soil

  • When soil water freezes, the water closest to soil particles remains in liquid form due to the absorptive and capillary forces exerted by the soil particles.

  • The supercooled liquid water at subfreezing point is equivalent to a depression of the freezing-point (0˚C).

  • However, CLM does not account for these properly.

Frozen Soil | Subgrid Snow


Frozen Soil Is Permeable?

  • Early Russian literature and recent works showed that frozen soil has very weak or no effects on runoff

  • Russian laboratory and field experiments in 1960s and 1970s (Koren, 1980).

  • Shanley and Chalmers (1999) in Sleepers River, USA.

  • Lindstrom et al. (2002) in a 0.59 km2 watershed in North Sweden.

  • Stahli et al. (2004): Dye tracer techniques revealed that water can infiltrate into deep soil through preferential pathways which are air-filled pores at the time of freezing.

Frozen Soil | Subgrid Snow


The Frozen Soil Scheme in the NCAR CLM

T > Tfrz

T ≤ Tfrz

Frozen Soil | Subgrid Snow


The Frozen Soil Scheme in the NCAR CLM

  • The freezing and thawing processes are analogous to those in snow. It has three main flaws:

  • Matrix potential discontinuous at the freezing point.

  • High ice fraction: the ice content is solely determined by the heat content. Thus, the ice fraction of a soil layer can reach 100% when the heat content is sufficient to freeze all the water.

  • Low permeability: The hydraulic conductivity and the matrix potential are a function of liquid water only. Thus, when there is no or little liquid water in the soil, the soil permeability becomes too low.

Frozen Soil | Subgrid Snow


Introduction of supercooled liquid water by using the freezing-point depression equation

Most researchers

Koren et al., 1991

Frozen Soil | Subgrid Snow


Relaxes the dependence of hydraulic properties on the soil ice content

Fractional impermeable area

Frozen Soil | Subgrid Snow


Model Results ice content

CTRL

New

Koren

New scheme has less ice, higher infiltration, and greater soil water

Ice Fraction

Infiltration

Soil Moisture

Frozen Soil | Subgrid Snow


Soil Moisture Profiles ice content

New

Koren

CTRL

Total water

Liquid water

Ice Fraction

New scheme has more total soil water in the upper 0.5 m soil

Frozen Soil | Subgrid Snow

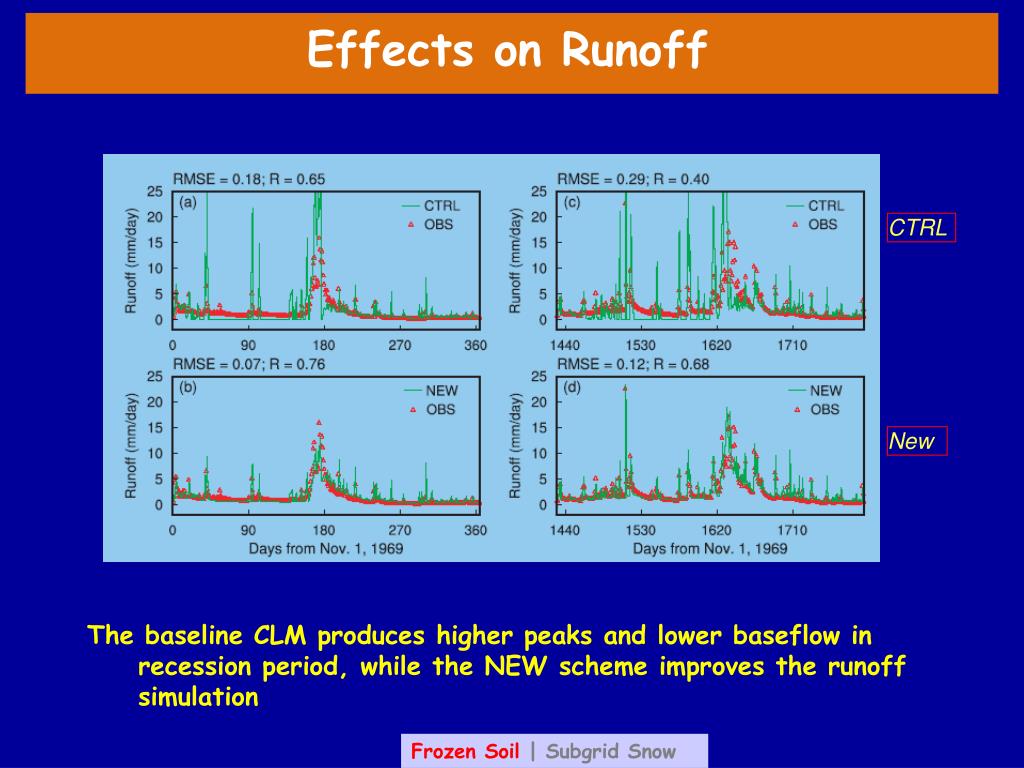

Effects on Runoff ice content

CTRL

New

The baseline CLM produces higher peaks and lower baseflow in recession period, while the NEW scheme improves the runoff simulation

Frozen Soil | Subgrid Snow


CTRL ice content

GRDC

New

Effects on Runoff in Six Large Rivers

CLM produces higher peaks and lower baseflow in recession period, while the NEW scheme improves the runoff simulation

Frozen Soil | Subgrid Snow


Modeled Snow Depth ice content

Earlier runoff does not result from earlier snowmelt

Frozen Soil | Subgrid Snow


Change in Water Storage (Snow + Soil) ice content

The water storage of CLM reaches its maximum in March, while NEW in April

Frozen Soil | Subgrid Snow

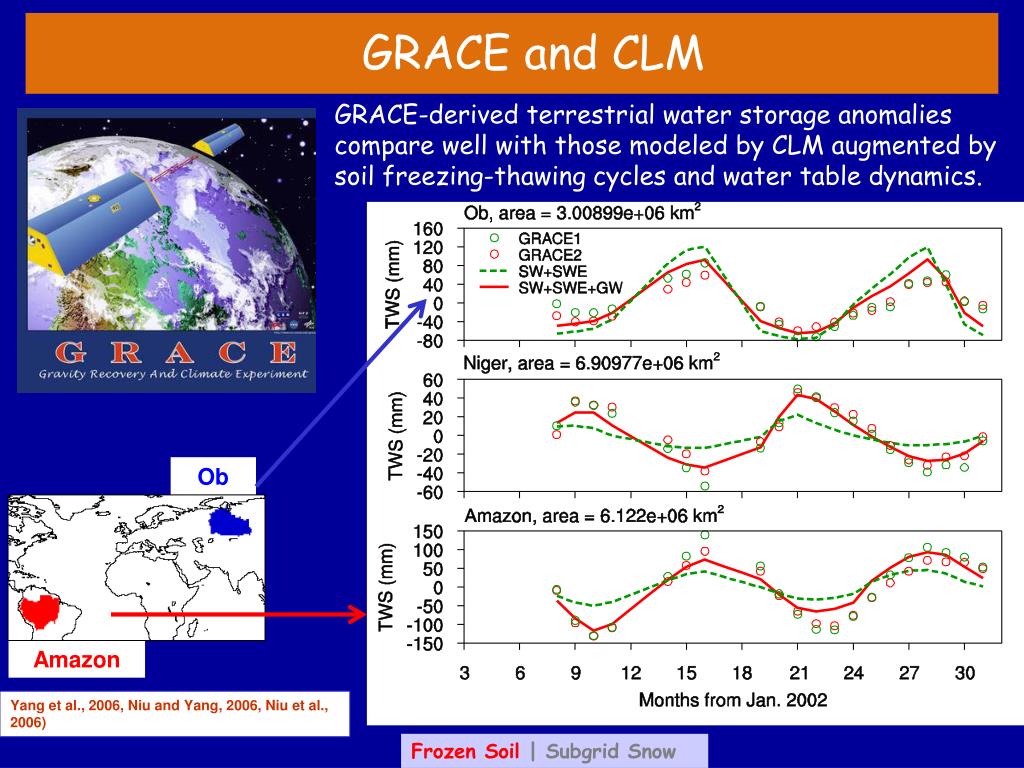

GRACE and CLM ice content

GRACE-derived terrestrial water storage anomalies compare well with those modeled by CLM augmented by soil freezing-thawing cycles and water table dynamics.

Ob

Amazon

Yang et al., 2006, Niu and Yang, 2006, Niu et al., 2006)

Frozen Soil | Subgrid Snow


Summary ice content

  • Supercooled liquid water is improperly treated in the baseline CLM (easy to get 100% soil ice).

  • We made the following changes:

    • implemented the supercooled liquid water by using the freezing-point depression equation.

    • introduced a concept of fractional unfrozen ground in CLM.

    • relaxed the dependence of hydraulic properties on ice content.

  • The resultant scheme produces better simulations of runoff (comparing with GRDC and ArcticNet) and soil water storage (comparing with GRACE).

  • See Niu and Yang (2006), J. Hydromet. (in press).

Frozen Soil | Subgrid Snow


Subgrid Snow Cover and Surface Temperature ice content

Frozen Soil | Subgrid Snow


Winter Warm Bias in NCAR Simulations ice content

CCM3/CLM2 T42 - OBS

CCSM3.0 T85 - OBS

(Bonan et al., 2002)

Why?

Excessive LW↓ due to excessive low clouds

(Dickinson et al., 2006)

Anomalously southerly winds

Frozen Soil | Subgrid Snow


Smaller Snow Cover ice content Warmer Surface

Snow

Vegetation

OLD – OBS

The new scheme reduces the warm bias in winter and spring in NCAR GCM (i.e. CAM2/CLM2).

NEW – OBS

Snow Cover Fraction and Air Temperature

Liston (2004) JCL

Frozen Soil | Subgrid Snow


New snow cover fraction scheme
New Snow Cover Fraction Scheme ice content

  • The new SCF scheme improves the simulations of snow depth in mid-latitudes in both Eurasia and North America.

Eurasia (55-70°N,60-90°E)

North America (40-65°N,115-130°W)

Frozen Soil | Subgrid Snow


Interception ice content

Interception

PFT

SWE

SWE

Ground

SCF

SCF

Representations of Snow Cover and SWE

Climate Modeling

Remote Sensing

Nature

  • A land grid has multiple PFTs plus bare ground.

  • Energy and mass balances.

  • For each PFT-covered area, on the ground, one mean SWE, one SCF. Canopy interception and canopy snow cover.

  • Pixels.

  • Integrated signals from multi-sources (e.g., snow, soil, water, vegetation), depending on many factors (e.g., view angle, aerosols, cloud cover, etc).

  • Each pixel, MODIS provides one SCF. AMSR provides one SWE.

Frozen Soil | Subgrid Snow


Theory of Sub-grid Snow Cover ice content

Liston (2004), “Representing Subgrid Snow Cover Heterogeneities in Regional and Global Models”. Journal of Climate.

The snow distribution during the accumulation phase can be represented using a lognormal distribution function, with the mean of snow water equivalent and the coefficient of variation as two parameters.

The snow distribution during the melting phase can be analyzed by assuming a spatially homogenous melting rateapplied to the snow accumulation distribution.

Liston (2004) JCL

Frozen Soil | Subgrid Snow

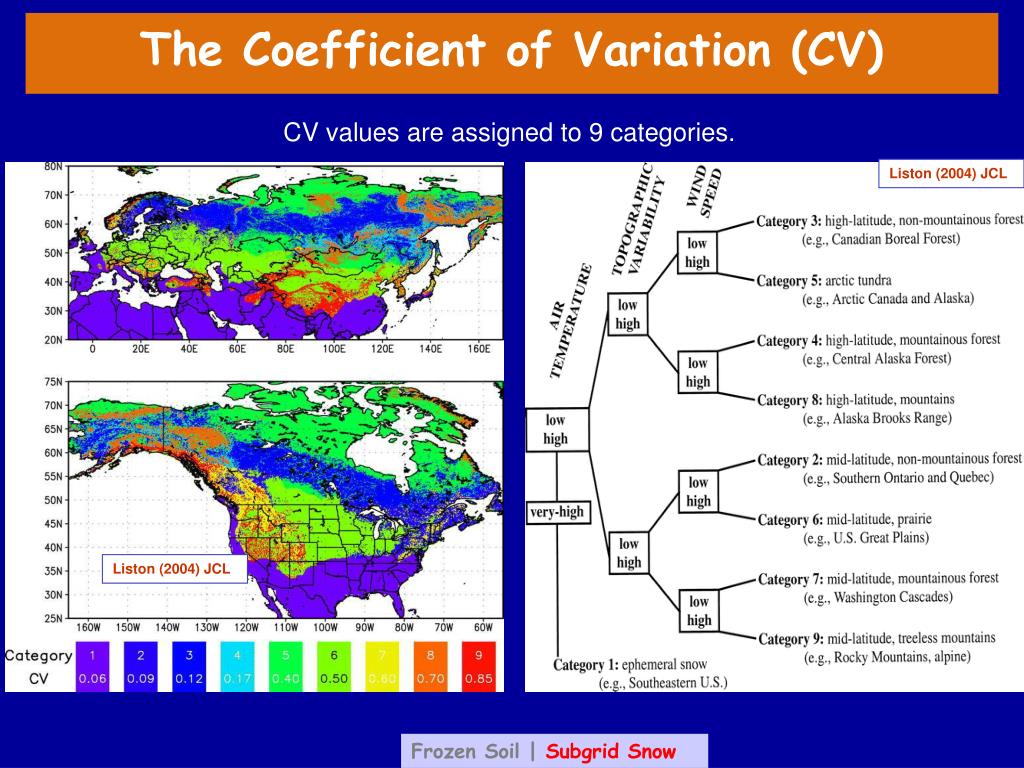

The Coefficient of Variation (CV) ice content

CV values are assigned to 9 categories.

Liston (2004) JCL

Liston (2004) JCL

Frozen Soil | Subgrid Snow


Relationship Between Snow Cover & SWE ice content

Accumulation phase: SCF is constant =1; SWE is the cumulative value of snowfall.

Melting phase: The SCF and SWE relationship can be described by equations (1) and (2), with the cumulative snowfall, snow distribution coefficient of variation (CV) and melting rate as the parameters.

(1) Snow Cover Fraction

(2) SWE

Liston (2004) JCL

Frozen Soil | Subgrid Snow


SCF-SWE in Different Methods ice content

Each curve represents a distinct SCF-SWE relationship in melting season

Liston (2004) JCL

Questions:

Can we derive CV values from MODIS and AMSR?

How is the CV method compared to “traditional” methods?

Frozen Soil | Subgrid Snow


Datasets ice content

GLDAS 1˚×1˚ 3-hourly, near-surface meteorological data for 2002–2004

Daily Snow Cover Fraction from MODIS Oct 2002–Dec 2004 (MOD10C1 CMG 0.05º × 0.05º)

Daily SWE from AMSR Oct 2002–Dec 2004

Frozen Soil | Subgrid Snow


A flowchart for deriving a grid scale scf
A Flowchart for Deriving a Grid-scale SCF ice content

Three records for each sub-grid:

snow cover fraction,

cloud cover fraction,

confidence index

Frozen Soil | Subgrid Snow


Steps to Derive CV ice content

Compare MODIS SCF and AMSR SWE at the same grid

Upscale 0.05º snow cover data to a coarse grid (0.25º, 0.5º or 1º) using the upscaling algorithm described above; Average SWE to the same grid.

Quality check the snow cover and SWE data for each analyzed gridand for each dayto make sure there are no missing data or no cloud obscuring SCF data.

Estimate snowfall at the same grid from other sources

Design a SCF retrieving algorithm from SWE, CV, µ, Dm

Optimize CV by calibrating the theory-derived SCF against the MODIS SCF through a Nonlinear-Discrete Genetic Algorithm

Frozen Soil | Subgrid Snow


Retrieving SCF from SWE, CV, ice contentμand Dm

Snowmelt starts from the first day when SCF is less than 1. This criteria can be relaxed to a smaller value like 0.9 because the MODIS data may underestimate SCF in forest-covered areas.

Recursive method:

(1)

If snowfall at day t is zero, use

to calculate Dm, then useto calculate SCF

(2)

If snowfall µt at day t is larger than zero, and Dm is the cumulative melting rate at day t-1, then

if µt>Dm, then the cumulative snowfall as the mean of snow distribution, μ, would be replaced by µ+µt-Dm, and follow the same method in (1) to calculate SCF;

if µt≤Dm, then directly follow the method in (1) to calculate SCF

This SCF retrieving algorithm is used to derive grid- or PFT-specific CV based on SCF data and SWE data with Genetic Algorithm Optimization.

Frozen Soil | Subgrid Snow


AMSR ice content

RMSE = 16 mm

Optimization

Snow Water Equivalent (mm)

Coefficient of Variation (CV) = 1.38

Days from November 1, 2002

Characterizing Sub-grid-scale Variability of Snow Water Equivalent Using MODIS and AMSR Satellite Datasets

1°× 1° Grid (46–47°N, 107–108°W)Grassland in Great Plains 6 January–23 March, 2003

In the optimization, the relationship between snow cover fraction and SWE follows the stochastic scheme of Liston (2004).

The optimized CV value is used in CLM (next slide).

Frozen Soil | Subgrid Snow


Modeling SWE at Sleeper’s River, Vermont Using CLM with a Stochastic Representation of Sub-grid Snow Variability

CV=1.38

Blue: Simulated

Red: Observed

CV=0.8

Frozen Soil | Subgrid Snow


Values of CV in CLM Stochastic Representation of Sub-grid Snow Variability

Vegetated Land

Barren Land

Frozen Soil | Subgrid Snow


Geographic Distribution of CV in CLM Stochastic Representation of Sub-grid Snow Variability

PFT Type1

PFT Type2

PFT Type3

PFT Type4

Frozen Soil | Subgrid Snow


AMSR Obs Stochastic Representation of Sub-grid Snow Variability

CV

Snow Density

Baseline

Tanh

Monthly SWE from 2002 to 2004

Frozen Soil | Subgrid Snow


MODIS Obs Stochastic Representation of Sub-grid Snow Variability

CV

Snow Density

Baseline

Tanh

Daily SCF for Northwest U.S. 2002-2004

Frozen Soil | Subgrid Snow


MODIS Obs Stochastic Representation of Sub-grid Snow Variability

CV

Snow Density

Baseline

Tanh

Daily SCF for High-latitude Regions 2002-2004

Frozen Soil | Subgrid Snow


CV - Baseline Stochastic Representation of Sub-grid Snow Variability

Snow density - Baseline

Tanh - Baseline

Daily Trad for Northwest U.S. 2002-2004

Frozen Soil | Subgrid Snow


CV - Baseline Stochastic Representation of Sub-grid Snow Variability

Snow density - Baseline

Tanh - Baseline

Daily Trad for High-latitude Regions 2002-2004

Frozen Soil | Subgrid Snow


Summary Stochastic Representation of Sub-grid Snow Variability

  • The high latitude wintertime warm bias in NCAR climate model simulations can be caused by an improper parameterization of snow cover fraction.

  • A procedure is developed to estimate CV using MODIS and AMSR data.

  • The CV method (i.e. stochastic subgrid snow cover scheme) is implemented in CLM and the results are promising.

  • The density-dependent SCF scheme is sensitive to the parameters used.

  • We will look at coupled land-atmosphere simulations using CAM3.

Frozen Soil | Subgrid Snow


ad
