Presentation Transcript


Robotic kinematics the inverse kinematic solution l.jpg

Robotic Kinematics – the Inverse Kinematic Solution

ME 3230

Kinematics and Mechatronics

Dr. R. Lindeke

ME 3230


Fks vs iks l.jpg

Cartesian Space

Joint Space

Joint Space

FKS vs. IKS

  • In FKS we built a tool for finding end frame geometry from Given Joint data:

  • In IKS we need Joint models from given End Point Geometry:

Cartesian Space

ME 3230


So this iks problem is nasty in mathematics this is considered a hard modeling issue l.jpg

So this IKS Problem is Nasty (in Mathematics this is considered a Hard Modeling Issue)

  • It a more difficult problem because:

    • The Equation set is “Over-Specified”:

      • 12 equations in 6 unknowns

    • Space can be “Under-Specified”:

      • Planer devices with more joints than 2

    • The Solution set can contain Redundancies:

      • Multiple solutions

    • The Solution Sets may be un-defined:

      • Unreachable in 1 or many joints

ME 3230


But the iks is very useful some uses of iks include l.jpg

But the IKS is VERY Useful – some Uses of IKS include:

  • Building Workspace Maps

  • Allow “Off-Line Programming” solutions

  • The IKS allows the engineer to equate Workspace capabilities with Programming realities to assure that execution is feasible(as done in ROBCAD & IGRIP)

  • The IKS Aids in Workplace Design and Operational Simulations

ME 3230


Doing a pure iks solution the r manipulator l.jpg

Doing a Pure IKS solution: the R Manipulator

R Frame Skeleton (as DH Suggest!)

Same Origin Point!

ME 3230


Lp table and a i s l.jpg

LP Table and Ai’s

ME 3230


Fks is a1 a2 l.jpg

FKS is A1*A2:

ME 3230


Forming the iks l.jpg

Forming The IKS:

In the Inverse Problem, The RHS MATRIX is completely known (perhaps from a robot mapped solution)! And we use these values to find a solution to the joint equations that populate the LHS MATRIX

ME 3230


Forming the iks9 l.jpg

If 2 Matrices are Equal then EACH and EVERY term is also Uniquely equal as well!

Forming The IKS:

  • Examining these two matrices

    • n, o, a and d are “givens” in the inverse sense!!!

    • (But typically we want to build general models leaving these terms unspecified)

  • Term (1, 4) & (2,4) on both sides allow us to find an equation for :

    • (1,4): C1*(d2+cl2) = dx

    • (2,4): S1*(d2+cl2) = dy

  • Form a ratio to build Tan():

    • S1/C1 = dy/ dx

    • Tan  = dy/dx

    •  = Atan2(dx, dy)

  • ME 3230


    Forming the iks10 l.jpg

    Forming The IKS:

    • After  is found, back substitute and solve for d2:

      • (1,4): C1*(d2+cl2) = dx

      • Isolating d2: d2 = [dx/Cos1] - cl2

    ME 3230


    Alternative method doing a pure inverse approach l.jpg

    Alternative Method – “doing a pure inverse approach”

    • Form A1-1 then pre-multiply both side by this ‘inverse’

    • Leads to: A2 = A1-1*T0ngiven

    ME 3230


    Simplifying solving l.jpg

    Simplifying & Solving:

    • Selecting and Equating (1,4)

      • 0 = -S1*dx + C1*dy

      • Solving: S1*dx = C1*dy

      • Tan() = (S1/C1) = (dy/dx)

      •  = Atan2(dx, dy) – the same as before

  • Selecting and Equating (3,4) -- after back substituting  solution

    • d2 + cl2 = C1*dx + S1*dy

    • d2 = C1*dx + S1*dy - cl2

  • ME 3230


    Performing iks for industrial robots a more involved problem l.jpg

    Performing IKS For Industrial Robots: (a more involved problem)

    • First let’s consider the concept of the Spherical Wrist Simplification:

      • All Wrist joint Z’s intersect at a point

      • The ‘n Frame’ is offset from this Z’s intersection point at a distance dn (the hand span) along the a vector of the desired solution (3rd column of desired orientation sub-matrix!) which is the z direction of the 3rd wrist joint

      • This follows the DH Algorithm design tools as we have learned them!

    ME 3230


    Performing iks with a spherical wrist l.jpg

    Performing IKS – with a Spherical Wrist

    • We can now separate the POSE effects:

      • ARM joints

        • Joints 1 to 3 in a full function manipulator (without redundant joints)

        • They function to maneuver the spherical wrist to a target POSITIONrelated to the desired target POSE

      • WRIST Joints

        • Joints 4 to 6 in a full functioning spherical wrist

        • Wrist Joints function as a primary tool to ORIENT the end frame as required by the desired target POSE

    ME 3230


    Performing iks focus on positioning l.jpg

    Performing IKS: Focus on Positioning

    • We will define a point (called the WRIST CENTER) where all 3 z’s intersect as:

      • Pc = [Px, Py, Pz]

      • We find that this position is exactly: Pc = dtarget - dn*a

        • Px = dtarget,x - dn*ax

        • Py = dtarget,y - dn*ay

        • Pz = dtarget,z - dn*az

    Note: dn is the so called ‘Handspan’ (a CONSTANT)

    ME 3230


    Treating the arm types as separate robot entities l.jpg

    Treating the Arm Types (as separate robot entities):

    • Cartesian (2 types)

      • Cantilevered

      • Gantry

  • Cylindrical

  • Spherical (w/o d2 offset)

  • 2 Link Articulating (w/o d2 offset)

  • ME 3230


    Cantilevered cartesian robot l.jpg

    Cantilevered Cartesian Robot

    J2

    J3

    X0

    P-P-P Configuration

    Y0

    Z0

    J1

    ME 3230


    Gantry cartesian robot l.jpg

    Gantry Cartesian Robot

    P-P-P Configuration

    X0

    Z0

    Y0

    J3

    J2

    J1

    ME 3230


    Cylindrical robot l.jpg

    Cylindrical Robot

    • Doing IKS – given a value for:

      • X, Y and Z of End

      • Compute , Z and R

    Z0

    R

    Y0

    X0

    ME 3230


    Spherical robot l.jpg

    Spherical Robot

    • Developing a IKS (model):

    • Given Xe, Ye, & Ze

    • Compute ,  & R

    R

    Z0

    Y0

    X0

    ME 3230


    2 link articulating arm manipulator l.jpg

    2-Link Articulating Arm Manipulator

    Z0

    3

    L2

    L1

    X0

    Y0

    2

    1

    ME 3230


    Focusing on the arm manipulators in terms of p c l.jpg

    Focusing on the ARM Manipulatorsin terms of Pc:

    • Prismatic:

      • q1 = d1= Pz (its along Z0!) – cl1

      • q2 = d2 = Px or Py - cl2

      • q3 = d3= Py or Px - cl3

  • Cylindrical:

    • 1 = Atan2(Px, Py)

    • d2 = Pz – cl2

    • d3 = Px/C1 – cl3 {or +(Px2 + Py2).5 – cl3}

  • ME 3230


    Focusing on the arm manipulators in terms of p c23 l.jpg

    Focusing on the ARM Manipulatorsin terms of Pc:

    • Spherical:

      • 1 = Atan2(Px, Py)

      • 2 = Atan2( (Px2 + Py2).5 , Pz)

      • D3 = (Px2 + Py2 + Pz2).5 – cl3

    ME 3230


    Focusing on the arm manipulators in terms of p c24 l.jpg

    Focusing on the ARM Manipulatorsin terms of Pc:

    • Articulating:

      • 1 = Atan2(Px, Py)

      • 3 = Atan2(D, (1 – D2).5)

        • Where D =

      • 2 =  - 

        •  is: Atan2((Px2 + Py2).5, Pz)

        •  is:

    ME 3230


    Focusing on the arm manipulators in terms of p c25 l.jpg

    Focusing on the ARM Manipulatorsin terms of Pc:

    • 2 = Where D =

    Atan2((Px2 + Py2).5, Pz) -

    ME 3230


    One further complication must be considered l.jpg

    One Further Complication Must Be Considered:

    • This is called the d2 offset problem

    • A d2 offset is a problem that states that the nth frame has a non-zero offset along the Y0 axis as observed in the solution of the T0n with all joints at home

      • (like the 5 dof articulating robots in our lab!)

  • This leads to two solutions for 1 the So-Called “Shoulder Left” and “Shoulder Right” solutions

  • ME 3230


    Defining the d 2 offset issue l.jpg

    Defining the d2 Offset issue

    Here: ‘The ARM’ might contain a prismatic joint (as in the Stanford Arm – discussed in text) or it might be the a2 & a3 links in an Articulating Arm as it rotates out of plane

    A d2 offset means that there are two places where 1 can be placed to touch a given point (and note, when 1is at Home, the wrist center is not on the X0 axis!)

    ME 3230


    Lets look at this device from the top a plan view of the structure projected to the x 0 y 0 plane l.jpg

    Lets look at this Device “From the Top” – a ‘plan’ view of the structure projected to the X0 Y0 plane

    F1

    11

    ME 3230


    Solving for 1 l.jpg

    Solving For 1:

    • We will have a Choice of two poses for 1:

    ME 3230


    This device like the s110 robots in lab is called a hard arm solution l.jpg

    This device (like the S110 robots in lab) is called a “Hard Arm” Solution

    • We have two 1’s

    • These lead to two 2’s (Spherical)

      • One for Shoulder Right & one for Shoulder Left

  • Or four 2’s and 3’s in the Articulating Arm:

    • Shoulder Right  Elbow Up & Down

    • Shoulder Left  Elbow Up & Down

  • ME 3230


    Now lets look at orientation iks s l.jpg

    Now, lets look at Orientation IKS’s

    • Orientation IKS again relies on separation of joint effects

    • We (now) know the first 3 joints control positions

      • they would have been solved by using the appropriate set of equations developed above

  • The last three (wrist joints) will control the achievement of our desired Orientation

  • ME 3230


    These ideas lead to an orientation model for a device that is given by l.jpg

    These Ideas Lead to an Orientation Model for a Device that is Given by:

    • This ‘model’ separates Arm Joint and Wrist Joint Contribution to the desired Target Orientation

    • Note: target orientation is a ‘given’ for the IKS model!

    ME 3230


    Focusing on orientation issues l.jpg

    Focusing on Orientation Issues

    • Lets begin by considering ‘Euler Angles’ (they are a model that is almost identical to a full functioning Spherical Wrist as defined using the D-H algorithm!):

    • Step 1, Form a Product:

      • Rz1*Ry2*Rz3

      • This product becomesR36 in the model on the previous slide

    ME 3230


    Euler wrist simplified l.jpg

    Euler Wrist Simplified:

    this matrix, which contains the joint control angles, is then set equal to a ‘U matrix’ prepared by multiplying the inverse of the ARM joint orientation sub-matrices and the Desired (given) target orientation sub-matrix:

    NOTE: R03 is Manipulator dependent! (Inverse required a Transpose)

    ME 3230


    Continuing to define the u matrix l.jpg

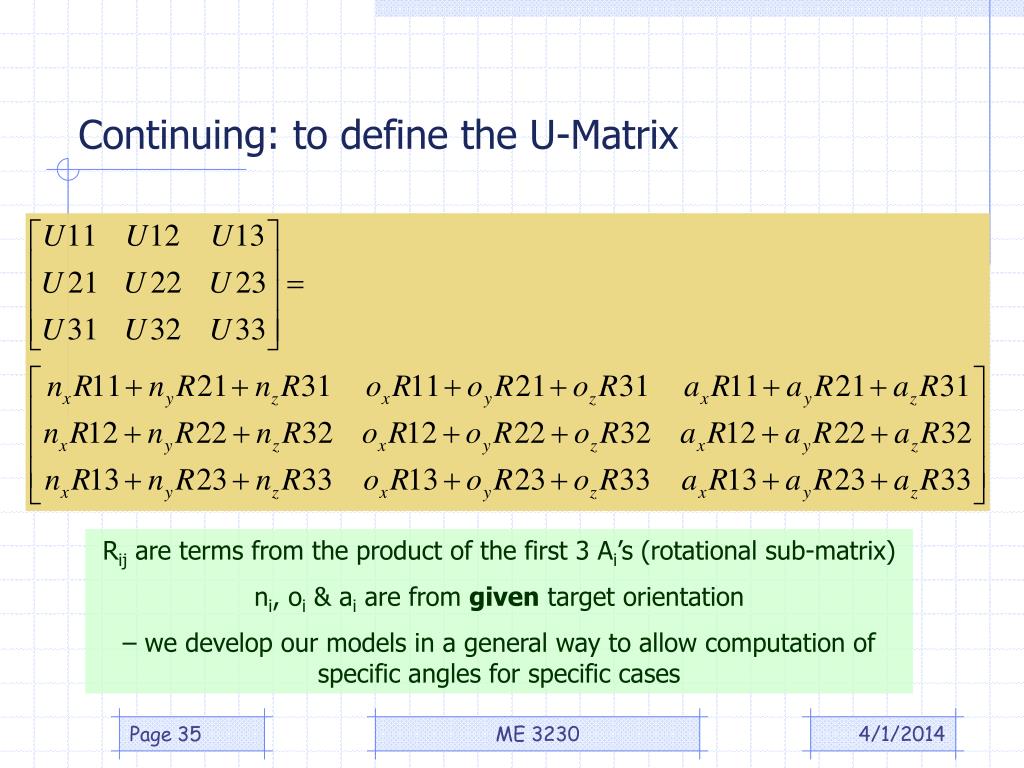

    Continuing: to define the U-Matrix

    Rij are terms from the product of the first 3 Ai’s (rotational sub-matrix)

    ni, oi & ai are from given target orientation

    – we develop our models in a general way to allow computation of specific angles for specific cases

    ME 3230


    Now set lhs euler angles rhs u matrix l.jpg

    Now Set: LHS (euler angles) = RHS (U-Matrix)

    U as defined on the previous slide! (a function of arm-joint POSE and Desired End-Orientation)

    ME 3230


    Solving for individual orientation angles 1 st solve for the middle one l.jpg

    Solving for Individual Orientation Angles (1st solve for ‘’ the middle one):

    • Selecting (3,3) C= U33

    • With C we “know” S = (1 - C2).5

    • Hence:  = Atan2(U33, (1-U332).5)

    • NOTE: leads to 2 solutions for !

    ME 3230


    Re examining the matrices l.jpg

    Re-examining the Matrices:

    • To solve for : Select terms: (1,3) & (2,3)

      • CS = U13

      • SS = U23

      • Dividing the 2nd by the 1st: S /C = U23/U13

      • Tan() = U23/U13

      •  = Atan2(U13, U23)

    ME 3230


    Continuing our solution l.jpg

    Continuing our Solution:

    • To solve for : Select terms: (3,1) & (3,2)

      • -SC = U31

      • SS = U32 (and dividing this by previous)

      • Tan() = U32/-U31 (note sign migrates with term!)

      •  = Atan2(-U31, U32)

    ME 3230


    Summarizing l.jpg

    Summarizing:

    •  = Atan2(U33, (1-U332).5)

    •  = Atan2(U13, U23)

    •  = Atan2(-U31, U32)

    Uij’s as defined on the earlier slide!

    – and –

    U is manipulator and desired orientation dependent

    ME 3230


    Let consider a spherical wrist l.jpg

    Let consider a Spherical Wrist:

    Same Origin Point

    Here drawn in ‘Good Kinematic Home’ – for attachment to an Articulating Arm

    ME 3230


    Iksing the spherical wrist l.jpg

    IKSing the Spherical Wrist

    ME 3230


    Writing the solution l.jpg

    Writing The Solution:

    Uij’s as defined on the earlier slide!

    – and –

    U is manipulator and desired orientation dependent

    ME 3230


    Let s solve here i try the pure inverse technique l.jpg

    Let’s Solve(here I try the ‘Pure Inverse’ Technique):

    Note: R4’s Inverse

    ME 3230


    Simplifying l.jpg

    Simplifying

    ME 3230


    Solving l.jpg

    Solving:

    • Let’s select Term(3,3) on both sides:

      • 0 = C4U23 – S4U13

      • S4U13 = C4U23

      • Tan(4) = S4/C4 = U23/U13

      • 4 = Atan2(U13, U23)

  • With the givens and back-substituted values (from the arm joints) we have a value for 4 andthe RHS is completely known!

  • ME 3230


    Solving for 5 6 l.jpg

    Solving for 5 & 6

    • For 5: Select (1,3) & (2,3) terms

      • S5 = C4U13 + S4U23

      • C5 = U33

      • Tan(5) = S5/C5 = (C4U13 + S4U23)/U33

      • 5 = Atan2(U33, C4U13 + S4U23)

  • For 6: Select (3,1) & (3, 2) terms

    • S6 = C4U21 – S4U11

    • C6 = C4U22 – S4U12

    • Tan(6) = S6/C6 = ([C4U21 – S4U11]/[C4U22 – S4U12])

    • 6 = Atan2 ([C4U22 – S4U12], [C4U21 – S4U11])

  • ME 3230


    Using the pure inversing l.jpg

    Using the Pure Inversing:

    • We removed ambiguity from the solution

    • We were able to solve for joints “In Order”

    • Without noting – we see the obvious relationship between Spherical wrist and Euler Orientation!

    ME 3230


    Summarizing49 l.jpg

    Summarizing:

    • 4 = Atan2(U13, U23)

    • 5 = Atan2(U33, C4U13 + S4U23)

    • 6 = Atan2 ([C4U22 – S4U12], [C4U21 – S4U11])

    ME 3230


    Lets try one l.jpg

    Lets Try One:

    • Cylindrical Robot w/ Spherical Wrist

    • Given would be a Target matrix from Robot Mapping! (it’s an IKS after all!)

    • The d3 “constant” is 400mm; the d6 offset (the ‘Hand Span’) is 150 mm.

    • 1 = Atan2((dx – ax*150),(dy-ay*150))

    • d2 = (dz – az*150)

    • d3 = ((dx – ax*150)2+p(dy-ay*150)2).5 - 400

    ME 3230


    The frame skeleton l.jpg

    The Frame Skeleton:

    Note “Dummy” Frame to account for Orientation problem with Spherical Wrist – might not be needed if we had set wrist kinematic home for Cylindrical Machine!

    ME 3230


    Solving for u l.jpg

    Solving for U:

    NOTE: We needed a “Dummy Frame” to account for the Orientation issue at the end of the Arm (as drawn) – this becomes a “part” of the arm space – not the wrist space!

    ME 3230


    Simplifying53 l.jpg

    Simplifying:

    ME 3230


    Subbing u ij s into spherical wrist joint models l.jpg

    Subbing Uij’s Into Spherical Wrist Joint Models:

    • 4 = Atan2(U13, U23)= Atan2((C1ax + S1az), ay)

    • 5 = Atan2(U33, C4U13 + S4U23)= Atan2{ (S1ax-C1az) , [C4(C1ax+S1az) + S4*ay]}

    • 6 = Atan2 ([C4U21 - S4U11], [C4U22 - S4U12]) = Atan2{[C4*ny - S4(C1nx+S1nz)], [C4*oy - S4(C1ox+S1oz)]}

    ME 3230


  • Login
