  1. Standards in Seabed Data Modeling Overview for POSC Jay Hollingsworth (郝灵傑 ) – Principal Data Architect November 2nd, 2005

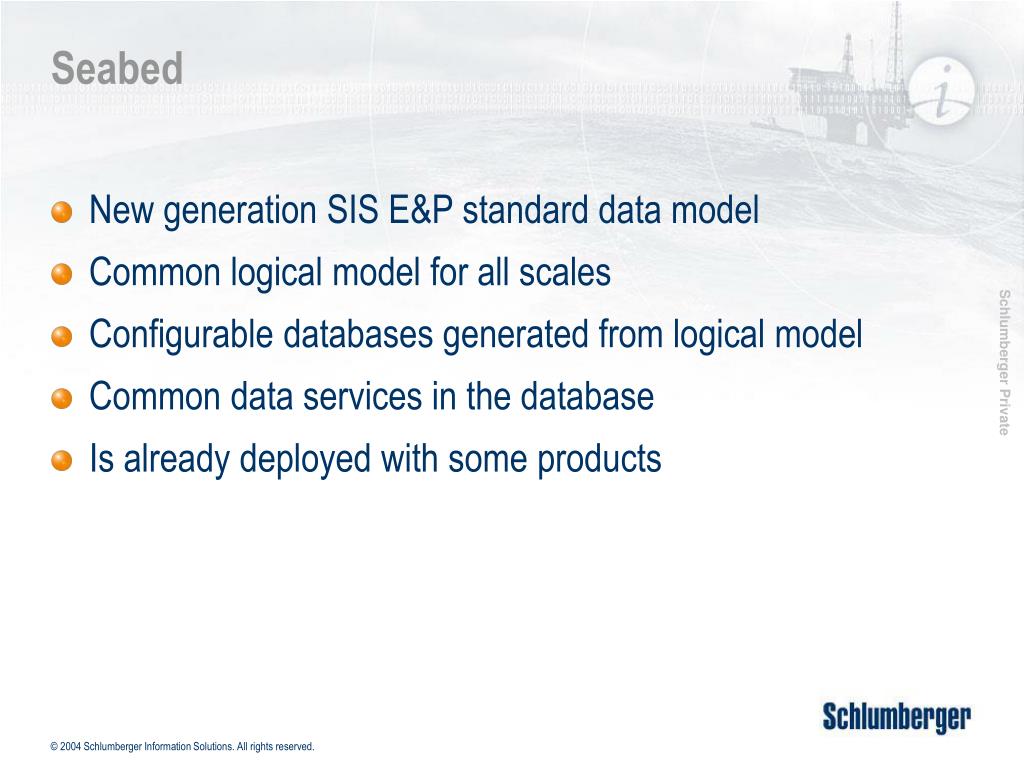

  2. Seabed • New generation SIS E&P standard data model • Common logical model for all scales • Configurable databases generated from logical model • Common data services in the database • Is already deployed with some products

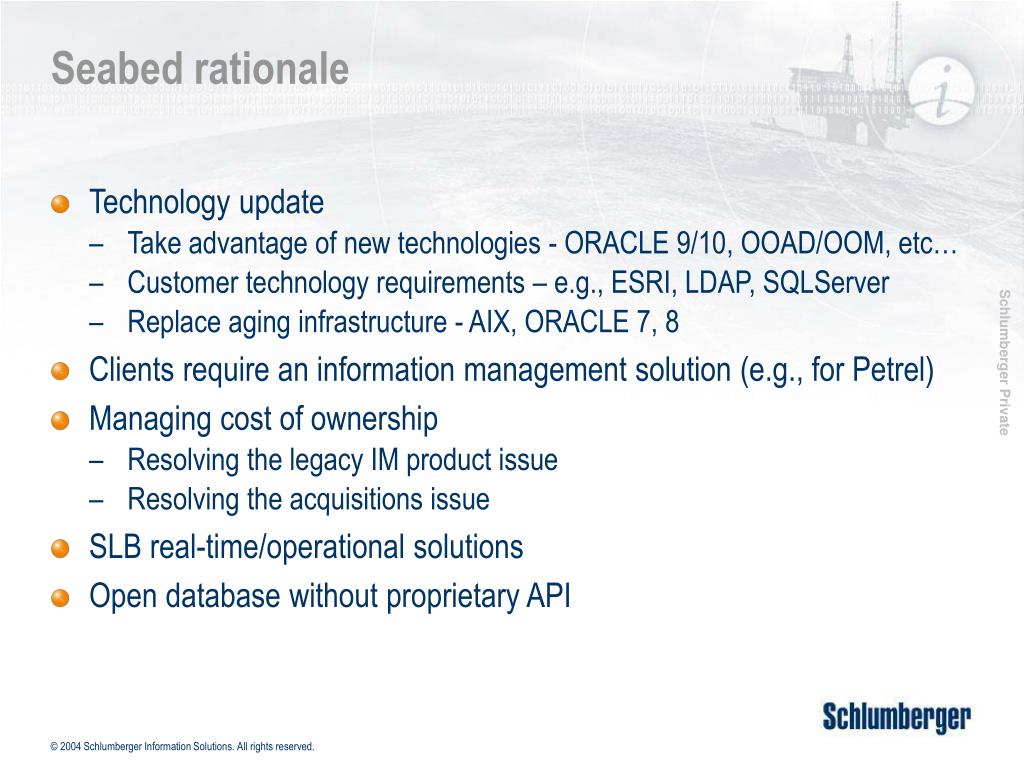

  3. Seabed rationale • Technology update • Take advantage of new technologies - ORACLE 9/10, OOAD/OOM, etc… • Customer technology requirements – e.g., ESRI, LDAP, SQLServer • Replace aging infrastructure - AIX, ORACLE 7, 8 • Clients require an information management solution (e.g., for Petrel) • Managing cost of ownership • Resolving the legacy IM product issue • Resolving the acquisitions issue • SLB real-time/operational solutions • Open database without proprietary API

  4. Seabed - why a new data model? • Customers need the best characteristics of all models • breadth • descriptions • content • without the disadvantages • Epicentre • PPDM • OpenSpirit

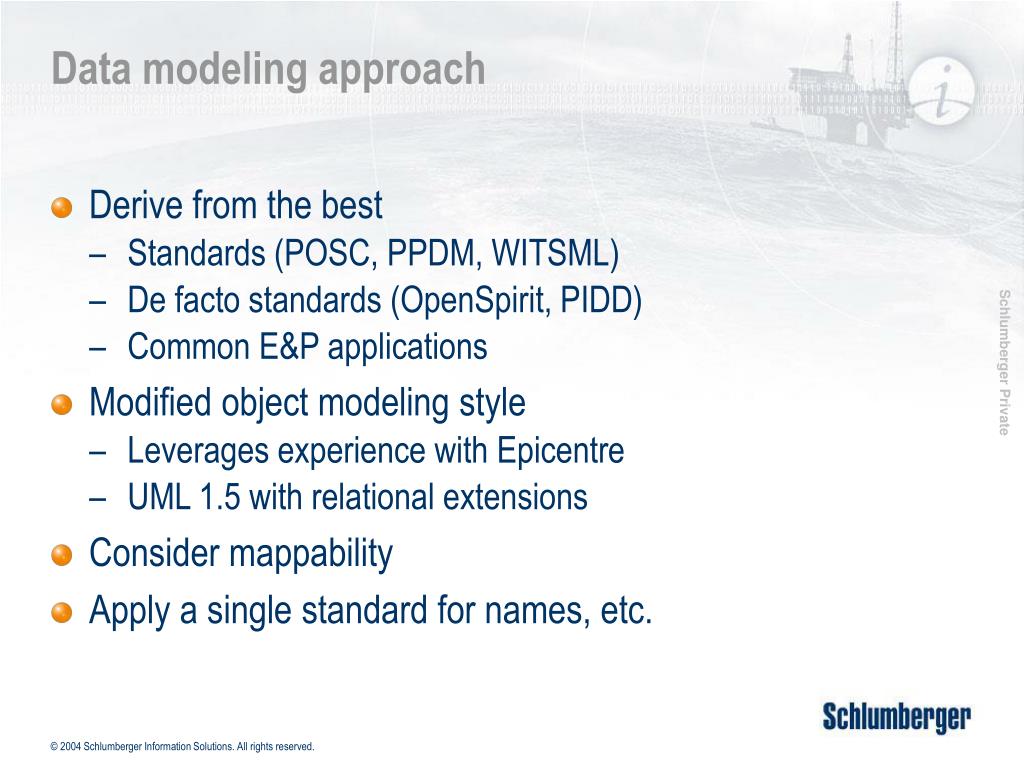

  5. Data modeling approach • Derive from the best • Standards (POSC, PPDM, WITSML) • De facto standards (OpenSpirit, PIDD) • Common E&P applications • Modified object modeling style • Leverages experience with Epicentre • UML 1.5 with relational extensions • Consider mappability • Apply a single standard for names, etc.

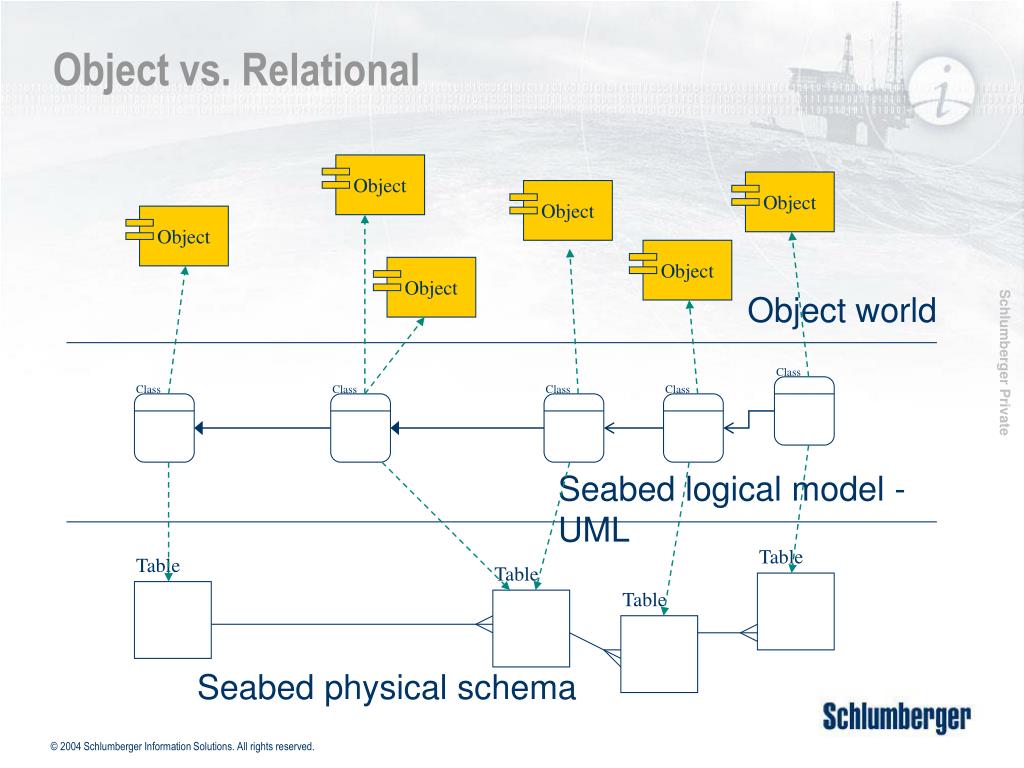

  6. Object Object Object Object Object Object Class Class Class Class Class Table Table Table Table Object vs. Relational Object world Seabed logical model - UML Seabed physical schema

  7. Data model benefits • Modular by domains • Modular by levels of detail • Include specific functions • Activity history (Sarbanes/Oxley-style) tracking • Uncertainty • Integration of documents • Mappability

  8. Questions?
