Performance metric of convergence time of information flooding in multi domain gmpls networks

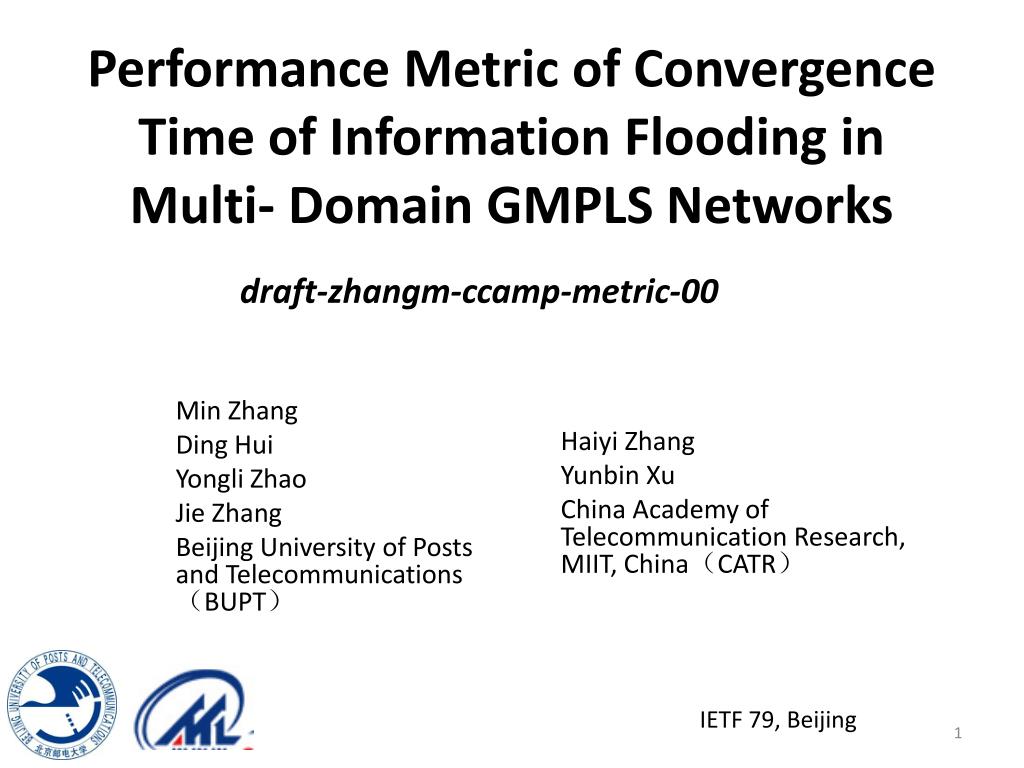

Performance Metric of Convergence Time of Information Flooding in Multi- Domain GMPLS Networks

Min Zhang

Ding Hui

Yongli Zhao

Jie Zhang

Beijing University of Posts and Telecommunications(BUPT)

draft-zhangm-ccamp-metric-00

Haiyi Zhang

Yunbin Xu

China Academy of Telecommunication Research, MIIT, China(CATR)

IETF 79, Beijing

1


Existing rfcs about measurement in gmpls networks
Existing RFCs about Flooding in Multi- Domain GMPLS Networks measurement in GMPLS networks

Multi-domain testing is not mentioned

  • Test routing protocol in GMPLS networks

    • RFC5814-signaling protocol

  • Convergence time vs. Setup delay

    • RFC5814-setup delay

  • Convergence of the network

    • RFC4061-single router control plane

2

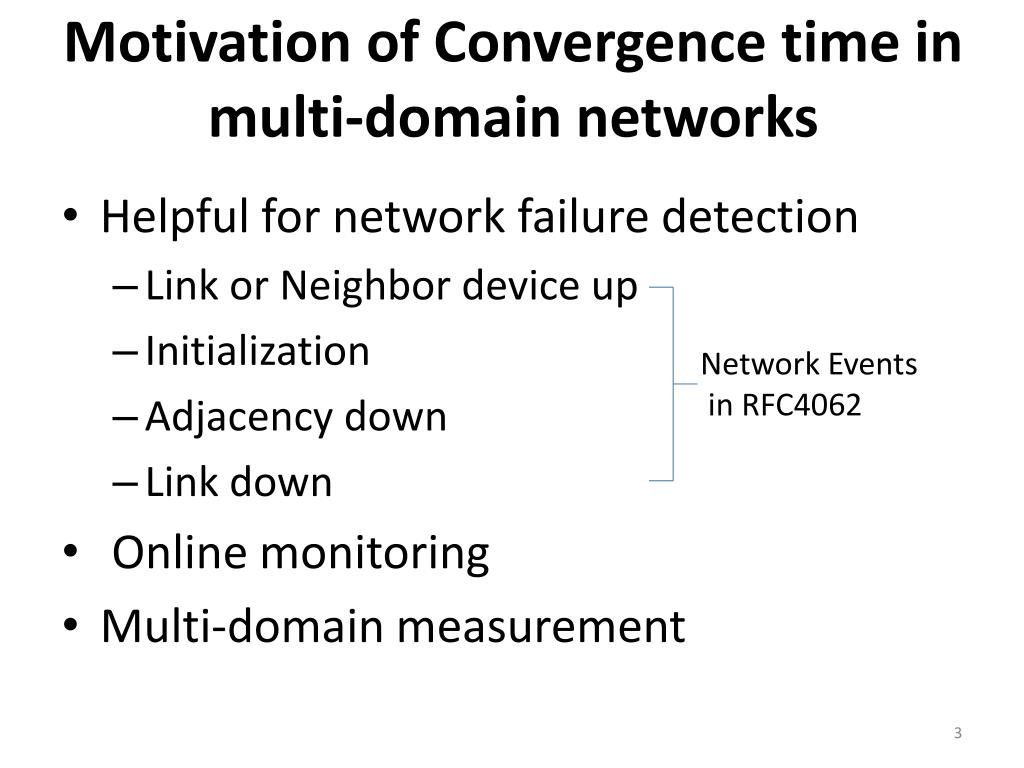

Motivation of convergence time in multi domain networks
Motivation of Convergence time in multi-domain networks Flooding in Multi- Domain GMPLS Networks

Network Events

in RFC4062

  • Helpful for network failure detection

    • Link or Neighbor device up

    • Initialization

    • Adjacency down

    • Link down

  • Online monitoring

  • Multi-domain measurement

3

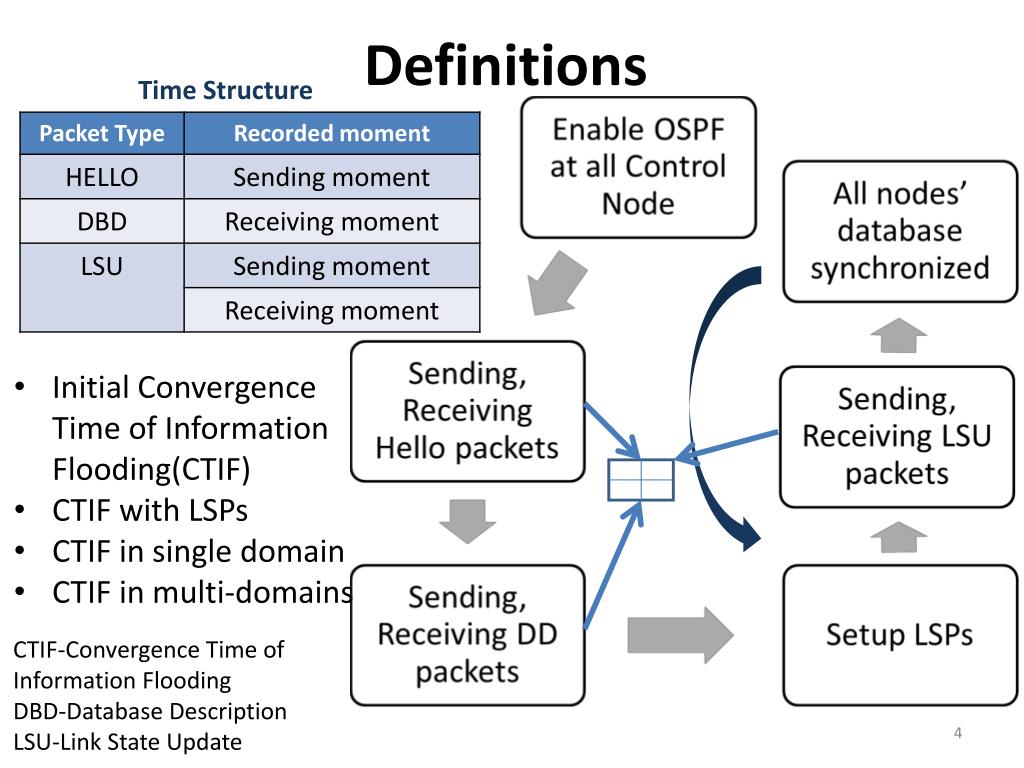

Definitions
Definitions Flooding in Multi- Domain GMPLS Networks

Time Structure

  • Initial Convergence Time of Information Flooding(CTIF)

  • CTIF with LSPs

  • CTIF in single domain

  • CTIF in multi-domains

CTIF-Convergence Time of Information Flooding

DBD-Database Description

LSU-Link State Update

4


Multi domain scenario
Multi-domain scenario Flooding in Multi- Domain GMPLS Networks

CTIF-Convergence Time of Information Flooding

Destination

Source

Time structure is stored in every control node.

Discussion

Clock synchronization among all control nodes.

Proper waiting time before the affirmation on completion of resource reservation.

5

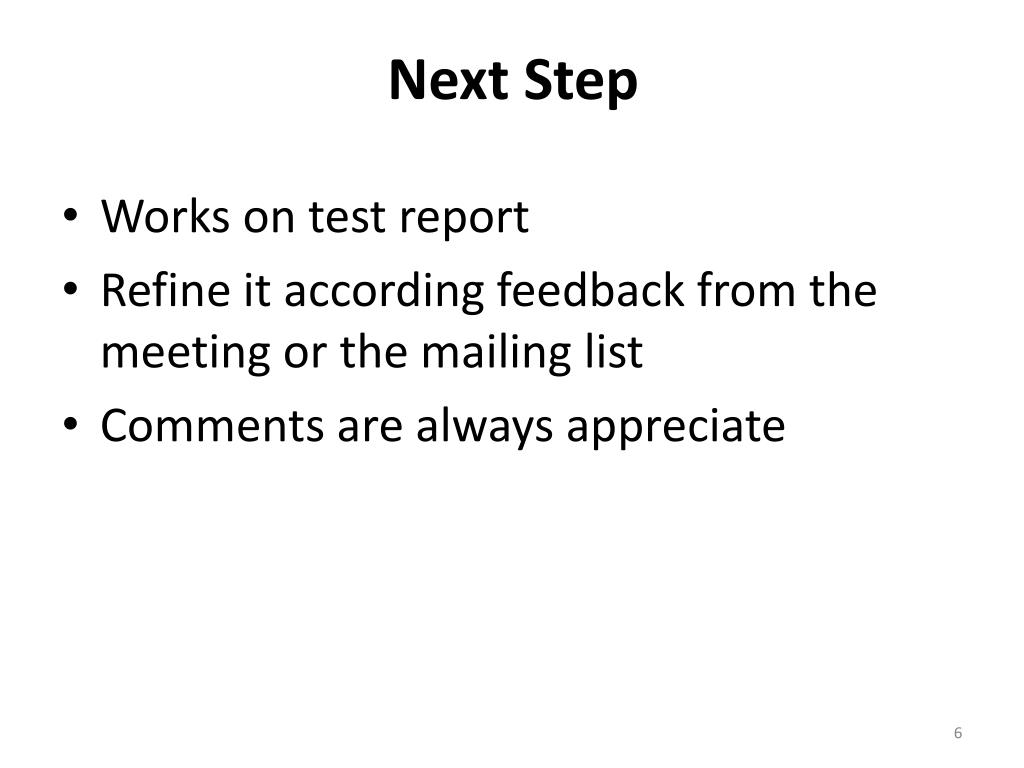

Next step
Next Step Flooding in Multi- Domain GMPLS Networks

Works on test report

Refine it according feedback from the meeting or the mailing list

Comments are always appreciate

6
