Presentation Transcript


Joyful mood is a meritorious deed that cheers up people around you

Joyful mood is a meritorious deed

that cheers up people around you

like the showering of cool spring breeze.


Chapter 13

Chapter 13

Binomial Distributions

Chapter 13


Binomial setting

Binomial Setting

  • Fixed number n of observations

  • The n observations are independent

  • Each observation falls into one of just two categories

    • may be labeled “success” and “failure”

  • The probability of success, p, is the same for each observation

Chapter 13


Binomial setting examples

Binomial SettingExamples

  • In a shipment of 100 televisions, how many are defective?

    • counting the number of “successes” (defective televisions) out of 100

  • A new procedure for treating breast cancer is tried on 25 patients; how many patients are cured?

    • counting the number of “successes” (cured patients) out of 25

Chapter 13


Binomial distribution

Binomial Distribution

  • Let X = the count of successes in a binomial setting. The distribution of X is the binomial distribution with parameters n and p.

    • n is the number of observations

    • p is the probability of a success on any one observation

    • X takes on whole values between 0 and n

Chapter 13


Binomial distribution1

Binomial Distribution

  • not all counts have binomial distributions

    • trials (observations) must be independent

    • the probability of success, p, must be the same for each observation

      • if the population size is MUCH larger than the sample size n, then even when the observations are not independent and p changes from one observation to the next, the change in p may be so small that the count of successes (X) has approximately the binomialdistribution

Chapter 13


Case study

Case Study

Inspecting Switches

An engineer selects a random sample of 10 switches from a shipment of 10,000 switches. Unknown to the engineer, 10% of the switches in the full shipment are bad. The engineer counts the number X of bad switches in the sample.

Chapter 13


Case study1

Case Study

Inspecting Switches

  • X (the number of bad switches) is not quite binomial

    • Removing one switch changes the proportion of bad switches remaining in the shipment (selections are not independent)

  • However, removing one switch from a shipment of 10,000 changes the makeup of the remaining 9,999 very little

    • the distribution of X is very close to the binomial distribution with n=10 and p=0.1

Chapter 13


Binomial probabilities

Binomial Probabilities

  • Find the probability that a binomial random variable takes any particular value

    • P(x successes out of n observations) = ?

    • need to add the probabilities for the different ways of getting exactly x successes in n observations

Chapter 13


Binomial probabilities example

Binomial ProbabilitiesExample

Each offspring hatched from a particular type of reptile has probability 0.2 of surviving for at least one week. If 6 offspring of these reptiles are hatched, find the probability that exactly 2 of the 6 will survive for at least one week. Label an offspring that survives with S for “success” and one that dies with F for “failure”.P(S) = 0.2 and P(F) = 0.8.

Chapter 13


Binomial probabilities example1

Binomial ProbabilitiesExample

(1)First, find probability that the two survivors are the first two offspring:

Using the Multiplication Rule:

P(SSFFFF)= (0.2)(0.2)(0.8)(0.8)(0.8)(0.8)= (0.2)2(0.8)4= 0.0164

Chapter 13


Binomial probabilities example2

Binomial ProbabilitiesExample

(2)Second, find the number of possible arrangements for getting two successes and four failures:

SSFFFF SFSFFF SFFSFF SFFFSF SFFFFS

FSSFFF FSFSFF FSFFSF FSFFFS FFSSFF

FFSFSF FFSFFS FFFSSF FFFSFS FFFFSS

There are 15 of these, and each has the same probability of occurring: (0.2)2(0.8)4.

Thus, the probability of observing exactly 2 successes out of 6 is: P(X=2) = 15(0.2)2(0.8)4 = 0.246 .

Chapter 13


Binomial coefficient

Binomial Coefficient

  • The number of ways of arranging k successes among n observations is given by the binomial coefficient

where n! is “n factorial” (see next slide).

  • the binomial coefficient is read “n choose k”.

Chapter 13


Factorial notation

Factorial Notation

  • For any positive whole number n, its factorialn! is

n! = n  (n1)  (n2)    3  2  1

  • Also, 0! = 1 by definition.

  • Example: 6! = 6·5·4·3·2·1 = 720,

    and from the previous example:

  • Chapter 13


    Binomial probabilities1

    Binomial Probabilities

    • If X has the binomial distribution with n observations and probability p of success on each observation, the possible values of X are 0, 1, 2, …, n. If k is any one of these values, then

    Chapter 13


    Case study2

    Case Study

    Inspecting Switches

    The number X of bad switches has approximately the binomial distribution with n=10 and p=0.1. Find the probability of getting 1 or 2 bad switches in a sample of 10.

    Chapter 13


    Mean and standard deviation

    Mean and Standard Deviation

    • If X has the binomial distribution with n observations and probability p of success on each observation, then the mean and standard deviation of X are

    Chapter 13


    Case study3

    Case Study

    Inspecting Switches

    The number X of bad switches has approximately the binomial distribution with n=10 and p=0.1. Find the mean and standard deviation of this distribution.

    • µ = np = (10)(0.1) = 1

    • the probability of each being bad is one tenth; so we expect (on average) to get 1 bad one out of the 10 sampled

    Chapter 13


    Case study4

    Probability Histogram

    n=10, p=0.1

    Case Study

    Inspecting Switches

    Chapter 13


    Normal approximation to the binomial

    Normal Approximationto the Binomial

    • The formula for binomial probabilities becomes cumbersome as the number of trials n increases

    • As the number of trials n increases, the binomial distribution gets close to a Normal distribution

      • when n is large, Normal probability calculations can be used to approximate binomial probabilities

    Chapter 13


    Normal approximation to the binomial1

    Normal Approximationto the Binomial

    • The Normal distribution that is used to approximate the binomial distribution uses the same mean and standard deviation:

    • When n is large, a binomial random variable X (with n trials and success probability p) is approximately Normal:

    Chapter 13

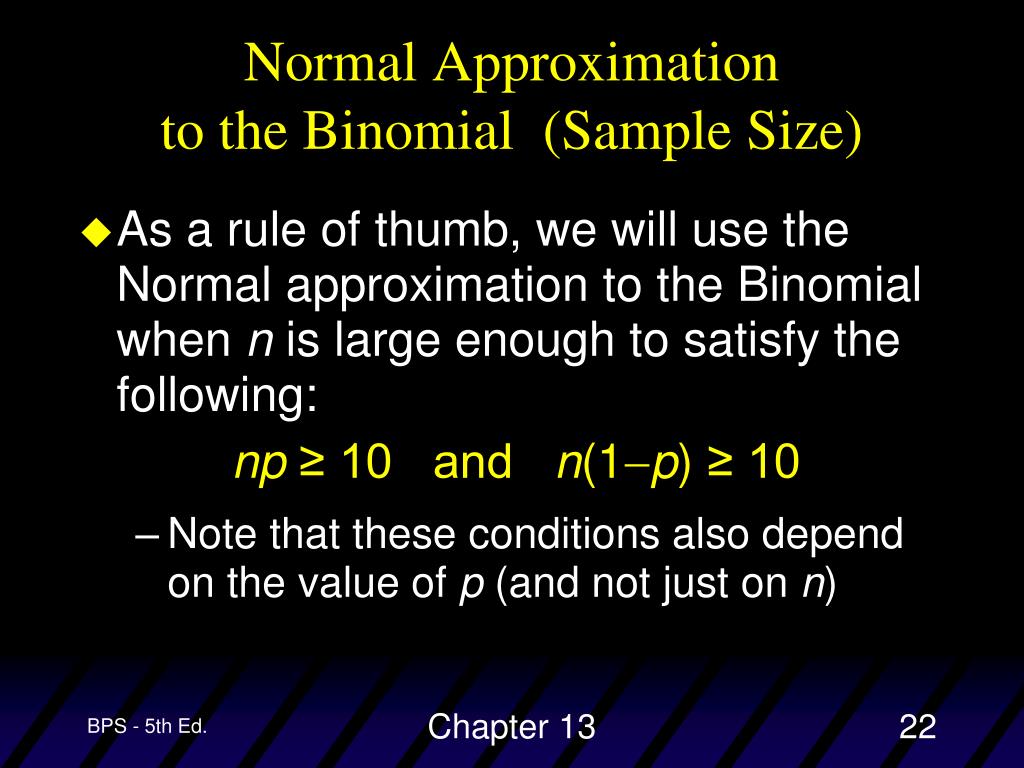

    Normal approximation to the binomial sample size

    Normal Approximationto the Binomial (Sample Size)

    • As a rule of thumb, we will use the Normal approximation to the Binomial when n is large enough to satisfy the following:

      np≥ 10 and n(1p) ≥ 10

      • Note that these conditions also depend on the value of p (and not just on n)

    Chapter 13


    Case study5

    Case Study

    Shopping Attitudes

    Hall, Trish. “Shop? Many say ‘Only if I must’,” New York Times, November 28, 1990.

    Nationwide random sample of 2500 adults were asked if they agreed or disagreed with the statement “I like buying clothes, but shopping is often frustrating and time-consuming.” Suppose that in fact 60% of the population of all adult U.S. residents would say “Agree” if asked this question. What is the probability that 1520 or more of the sample agree?

    Chapter 13


    Case study6

    Case Study

    Shopping Attitudes

    • The responses of the 2500 randomly chosen adults (from over 210 million adults) can be taken to be independent.

    • The number X in the sample who agree has a binomial distribution with n=2500 and p=0.60.

    • To find the probability that at least 1520 people in the sample agree, we would need to add the binomial probabilities of all outcomes from X=1520 to X=2500…this is not practical.

    Chapter 13


    Case study7

    Case Study

    Shopping Attitudes

    Find probability of getting at least 1520:

    Histogram of 1000 simulated values of the binomial variable X, and the density curve of the Normal distribution with the same mean and standard deviation:

    µ = np = 2500(0.6) = 1500

    Chapter 13


    Case study8

    Case Study

    Shopping Attitudes

    Assuming X has the N(1500, 24.49) distribution [np and n(1p) are both ≥ 10], we have

    Chapter 13


    Case study9

    Case Study

    Shopping Attitudes

    • The probability of observing 1520 or more adults in the sample who agree with the statement has been calculated as 20.61% using the Normal approximation to the Binomial.

    • Using a computer program to calculate the actual Binomial probabilities for all values from 1520 to 2500, the true probability of observing 1520 or more who agree is 21.31%

    • This is a very good approximation!

    Chapter 13
