Testing implementations of access control and authentication

School of Electrical and Computer Engineering

Department of Computer Science

Purdue University

Testing Implementations of Access Control and Authentication

Cyber Security & Information Infrastructure Workshop

Graduate Students:

Ammar Masood, K. Jayaram

Faculty:

Arif Ghafoor (ECE), Aditya Mathur (CS)

May 10, 2006

Oak Ridge National Lab, Oak Ridge, TN


Research objective

Research Objective

To develop and experiment with novel techniques for the generation of tests to test implementations of access control policies and authentication protocols.

Testing Access Control and Authentication


Target security mechanisms

Target security mechanisms

  • Role based access control (RBAC) with or without temporal constraints.

  • Authentication protocols (e.g. TLS)

Testing Access Control and Authentication


Proposed test infrastructure access control

Policy tests

Test harness

Policy verifier

plugin

Test generator

plugin

IUT

Policy

(internal representation)

Modeling plugin

Policy model

Proposed Test Infrastructure (Access control)

Access Control policy

Testing Access Control and Authentication


Challenges

Challenges

  • Modeling:

    • Naïve FSM or timed automata models are prohibitively large even for policies with 10 users and 5 roles (and 3 clocks).

    • How to reduce model size and the tests generated?

  • Test generation:

    • How to generate tests to detect (ideally) all policy violation faults that might lead to violation of the policy?

  • Test execution:

    • Distributed policy enforcement?

Testing Access Control and Authentication


Proposed approach

Proposed Approach

  • Express behavior implied by a policy as an FSM.

  • Apply heuristics to scale down the model.

  • Use the W- method, or its variant, to generate tests from the scaled down model.

  • Generate additional tests using a combination of stress and random testing aimed at faults that might go undetected due to scaling.

Testing Access Control and Authentication


Sample model

AS: assign. DS: De-assign. AC: activate. DC: deactivate.

Xij: do X for user i role j.

Sample model

Two users, one role. Only one user can activate the role.

Number of states≤32.

Testing Access Control and Authentication


Heuristics

Heuristics

H1: Separate assignment and activation

H2: Use FSM for activation and single test sequence for assignment

H3: Use single test sequence for assignment and activation

H4: Use a separate FSM for each user

H5: Use a separate FSM for each role

H6: Create user groups for FSM modeling.

Testing Access Control and Authentication


Fault model

Fault model

Testing Access Control and Authentication


Tests generated

Tests generated

Testing Access Control and Authentication


Concurrency and cryptographic protocols

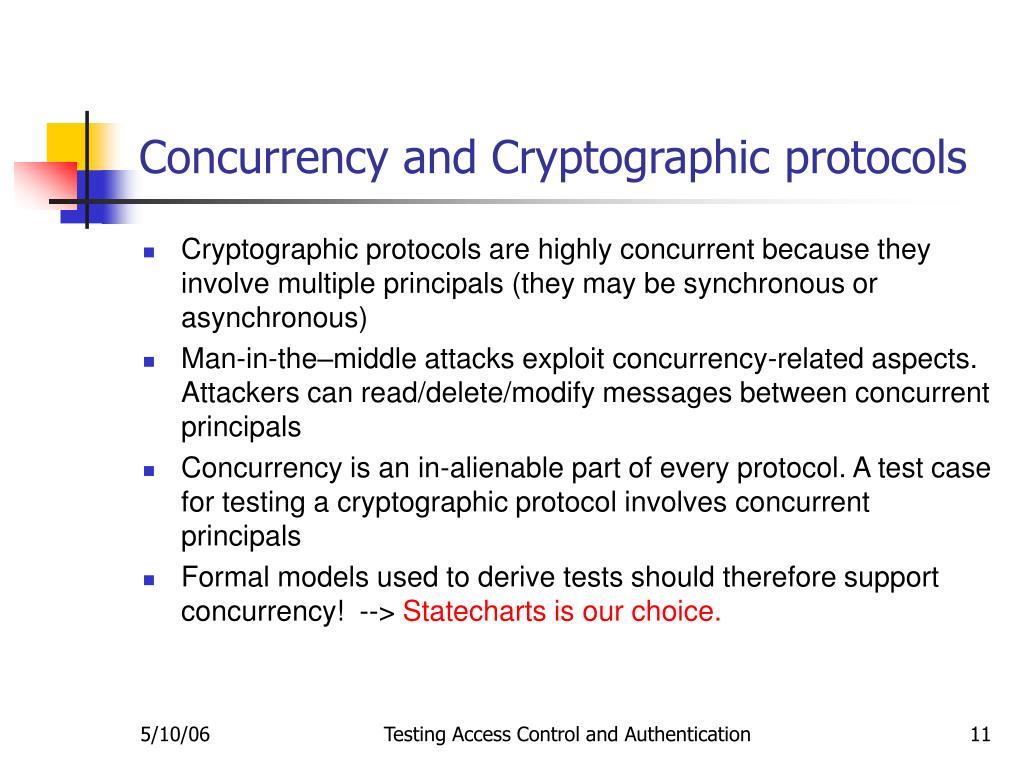

Concurrency and Cryptographic protocols

  • Cryptographic protocols are highly concurrent because they involve multiple principals (they may be synchronous or asynchronous)

  • Man-in-the–middle attacks exploit concurrency-related aspects. Attackers can read/delete/modify messages between concurrent principals

  • Concurrency is an in-alienable part of every protocol. A test case for testing a cryptographic protocol involves concurrent principals

  • Formal models used to derive tests should therefore support concurrency! --> Statecharts is our choice.

Testing Access Control and Authentication


Other aspects of concurrency

Other aspects of concurrency

  • A server for example, has several sessions of a protocol running concurrently.

  • The protocol implementation should be thread safe.

  • Principals in one concurrent session should not be able to access parameters of a parallel session

  • Protocol implementations may be required to satisfy performance requirements in a multi-session scenario – this is important for performance/stress testing

Testing Access Control and Authentication


What is next

What is next…

  • Modeling:

    • Handling timing constraints? (timed automata, fault model, heuristics)

    • Handling authentication protocols? (Statecharts, insecure paths, test generation)

    • Dealing with concurrency?

  • Experimentation:

    • With large/realistic policies and commercial authentication protocols to assess the efficiency and effectiveness of the test generation methods.

  • Prototype tool development (Money???)

Testing Access Control and Authentication
